Description
Key Features
- X3D Turbo Mode to unleash new era gaming performance
- AMD Socket AM5 : Supports AMD Ryzen™ 9000/8000/ 7000 Series Processors
- Digital 8+2+2 phases VRM solution
- Dual Channel DDR5 : 2*DIMMs with AMD EXPO™Memory Module Support
- WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation
- EZ-Latch : PCIe x16 Slot with Quick Release Design
- Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW.
- Ultra-Fast Storage : 3*M.2 slots, including 1* PCIe 5.0 x4
- Fast Networking : 802.11ax Wi-Fi6E and 2.5GbE LAN
- Extended Connectivity : DP, HDMI
Specification:
| CPU | AMD Socket AM5, support for: AMD Ryzen™ 9000 Series Processors/ AMD Ryzen™ 8000 Series Processors/ AMD Ryzen™ 7000 Series Processors (Go to GIGABYTE's website for the latest CPU support list.) |
|---|---|
| Chipset | AMD B850 |
| Memory | Support for DDR5 9600(OC)/ 9200(OC)/ 8800(OC)/ 8600(OC)/ 8400(OC)/ 8200(OC)/ 8000(OC)/ 7800(OC)/ 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6666(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800/ 4400 MT/s memory modules 2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 Support for AMD EXPO™ and XMP (Refer to "Memory Support List" on GIGABYTE's website.) |
| Onboard Graphics | Integrated Graphics Processor with AMD Radeon™ Graphics support: - 1 x HDMI port, max 4096x2160@60 Hz * HDMI 2.1, HDCP 2.3, HDR - 1 x DisplayPort, max 3840x2160@144 Hz * DisplayPort 1.4 (Graphics specifications may vary by CPU) |
| Audio | Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * Configurable in audio software |
| LAN | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Wireless | MediaTek Wi-Fi 6E MT7902 - Wi-Fi a/b/g/n/ac/ax (2.4/5/6 GHz) - Bluetooth 5.3 - 11ax 160MHz support (Actual data rate may vary) |
| Expansion Slots | 1 x PCIe x16 (CPU): - Ryzen 9000/7000: PCIe 5.0 x16 - Ryzen 8000 Phoenix 1: PCIe 4.0 x8 - Ryzen 8000 Phoenix 2: PCIe 4.0 x4 * Supports GPU or NVMe SSD only Chipset: - 1 x PCIe x16 (PCIe 4.0 x4) |
| Storage | CPU Integrated: - M2A_CPU: PCIe 5.0 (Ryzen 9000/7000), PCIe 4.0 (Ryzen 8000) - M2B_CPU: PCIe 4.0 (Ryzen 9000/8000) Chipset: - M2C_SB: PCIe 4.0 x2 - 4 x SATA 6Gb/s connectors RAID: - NVMe: RAID 0/1/5/10 (*RAID 5 only Ryzen 9000) - SATA: RAID 0/1/10 |
| USB | CPU: - 1 x USB Type-C® (USB 3.2 Gen 1) - 1 x USB 3.2 Gen 2 Type-A (red) - 1 x USB 2.0 Chipset: - 1 x USB Type-C® (USB 3.2 Gen 1, internal) - 4 x USB 3.2 Gen 1 (2 rear, 2 internal) - 5 x USB 2.0 (1 rear, 4 internal) |
| Internal I/O | 1 x 24-pin ATX, 1 x 8-pin ATX 12V Fan/pump headers, RGB headers 3 x M.2, 4 x SATA Front panel, audio, USB headers TPM header, reset jumper, CMOS jumper Q-Flash Plus button |

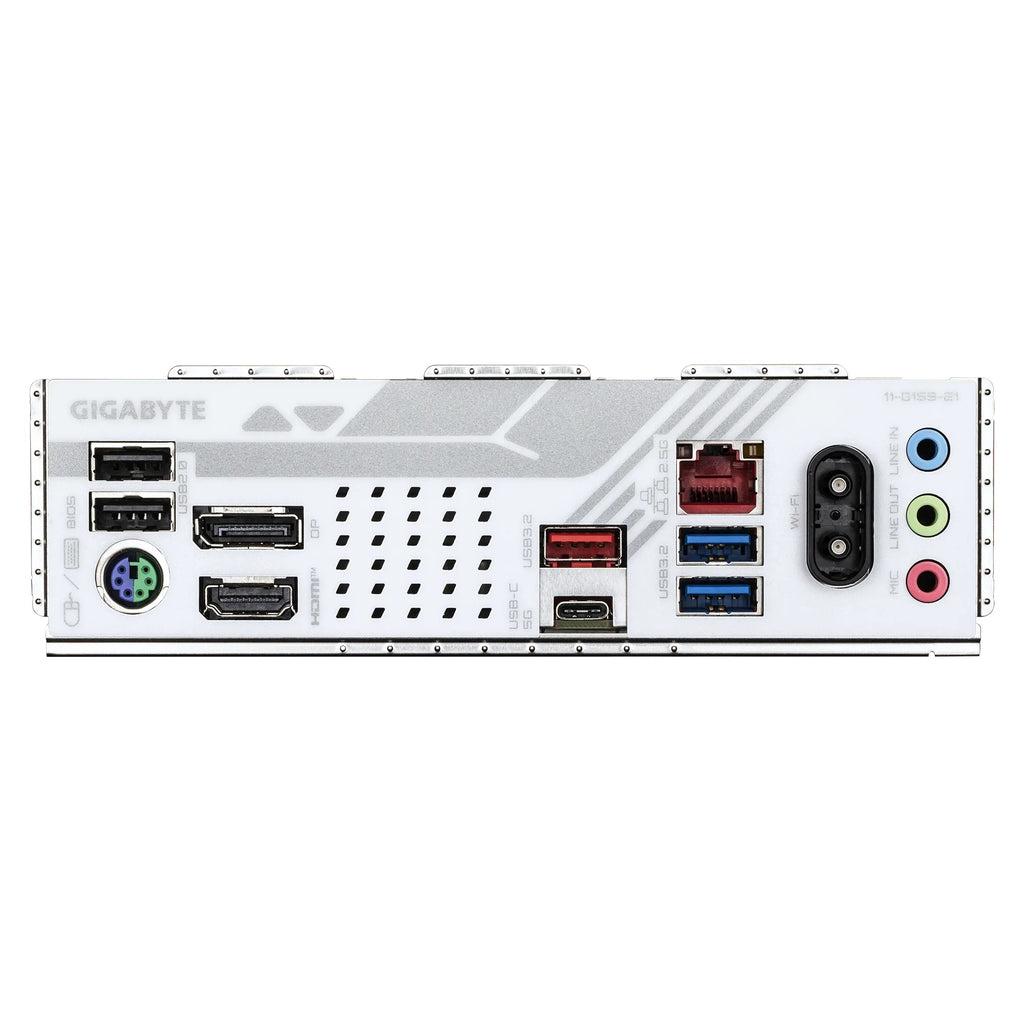

| Back Panel | 1 x HDMI, 1 x DisplayPort 1 x PS/2 1 x USB Type-C® (USB 3.2 Gen 1) 2 x USB 3.2 Gen 1 1 x USB 3.2 Gen 2 Type-A (red) 2 x USB 2.0 1 x RJ-45 2 x Antenna connectors 3 x Audio jacks |
| I/O Controller | iTE® I/O Controller Chip |
| H/W Monitoring | Voltage, Temperature, Fan speed, Flow rate detection Fan fail warning, Fan control (depends on fan) |
| BIOS | 1 x 256 Mbit flash AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Unique Features | GIGABYTE Control Center (GCC) Q-Flash, Q-Flash Plus, Smart Backup |
| Software | Norton® Internet Security (OEM) |
| OS Support | Windows 11 64-bit, Windows 10 64-bit |
| Form Factor | Micro ATX; 24.4cm x 24.4cm |
