Description
Experience Ultra-Fast Gaming

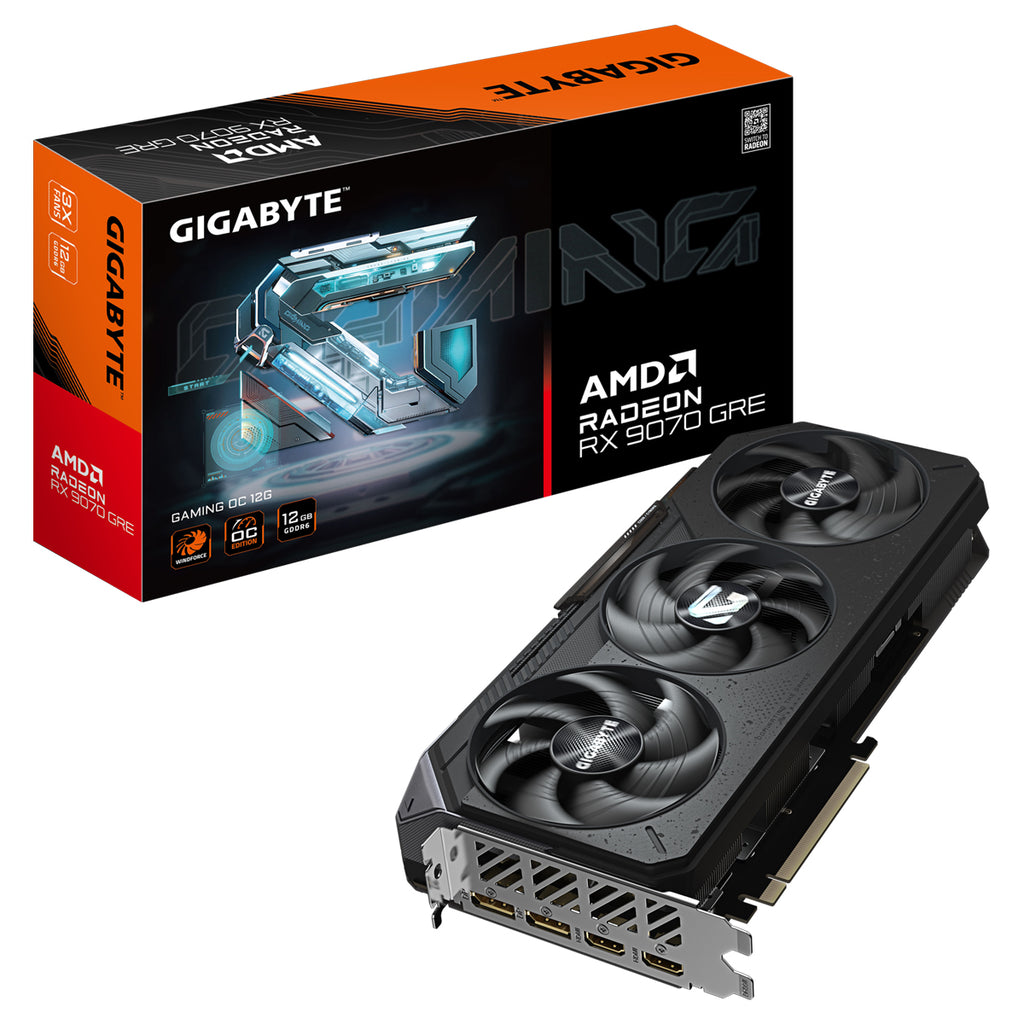

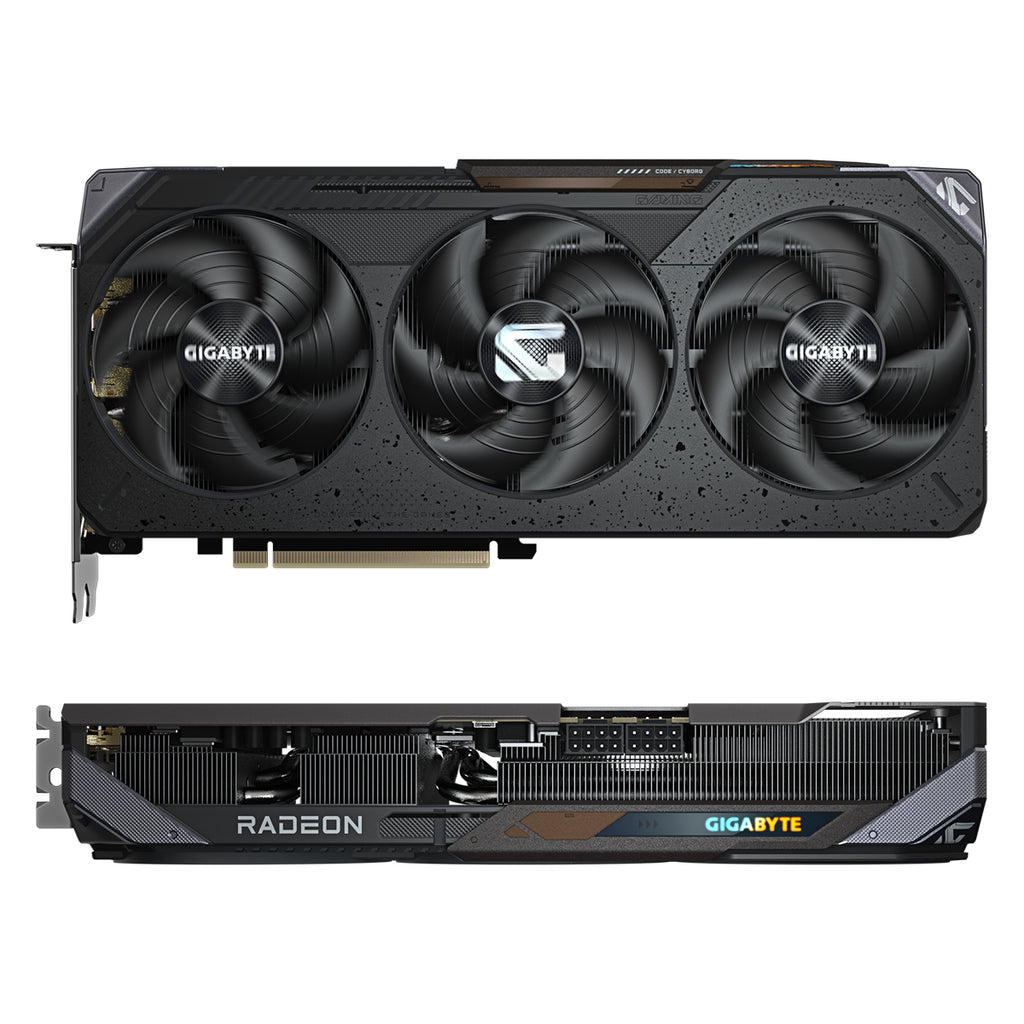

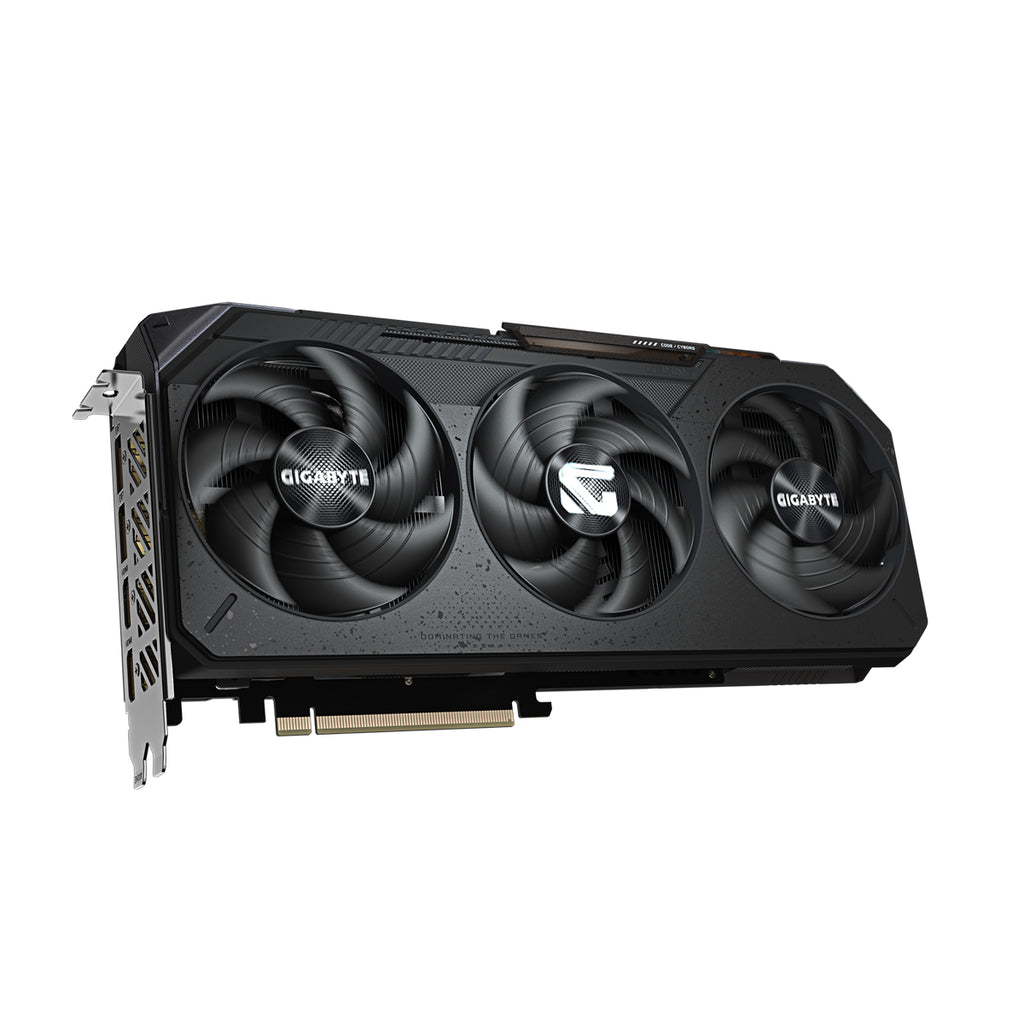

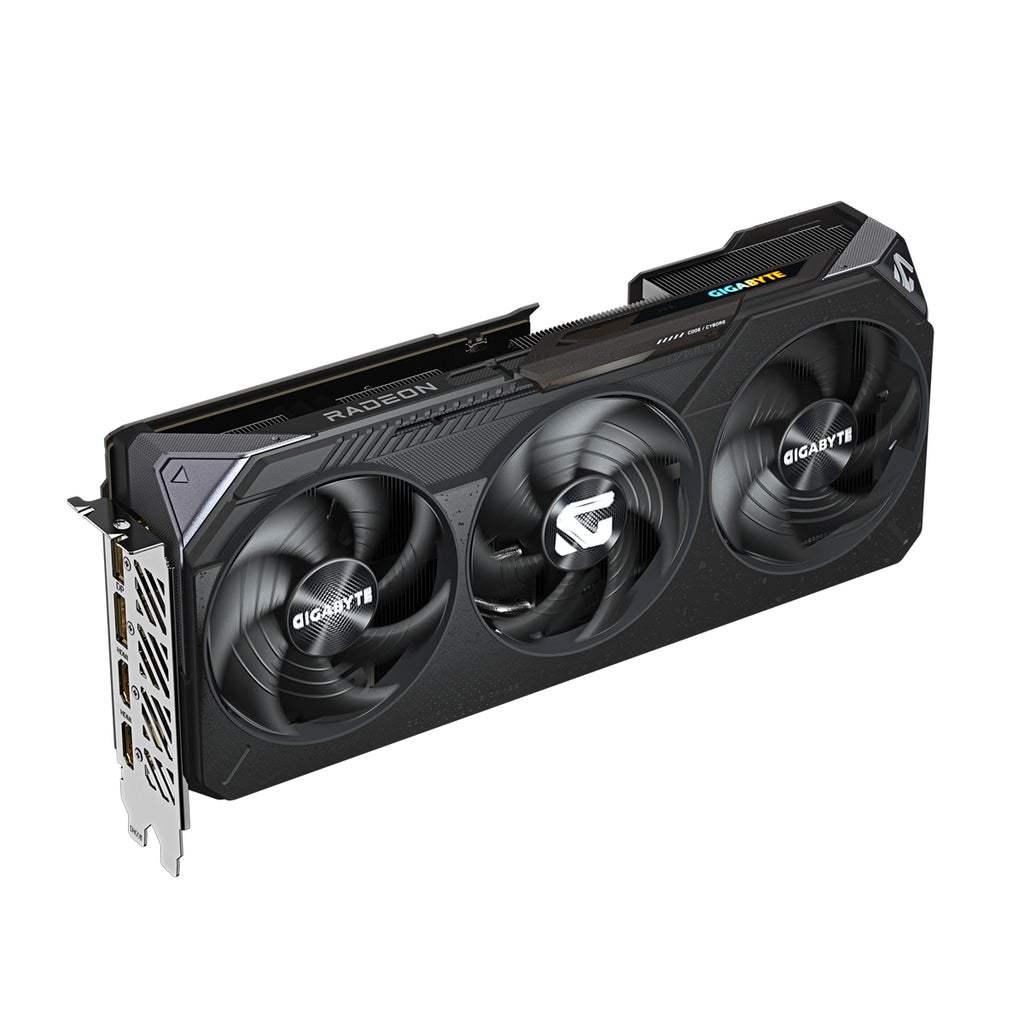

The GIGABYTE Radeon™ RX 9070 GRE GAMING OC 12G is engineered for high-performance gaming, combining the power of the AMD RDNA™ 4 architecture with GIGABYTE's renowned WINDFORCE cooling system. Whether you are aiming for high frame rates or ultra-immersive visuals, this card is built to dominate.
Key Features
- Powered by Radeon™ RX 9070 GRE: Delivers exceptional 1440p gaming performance and advanced ray tracing.

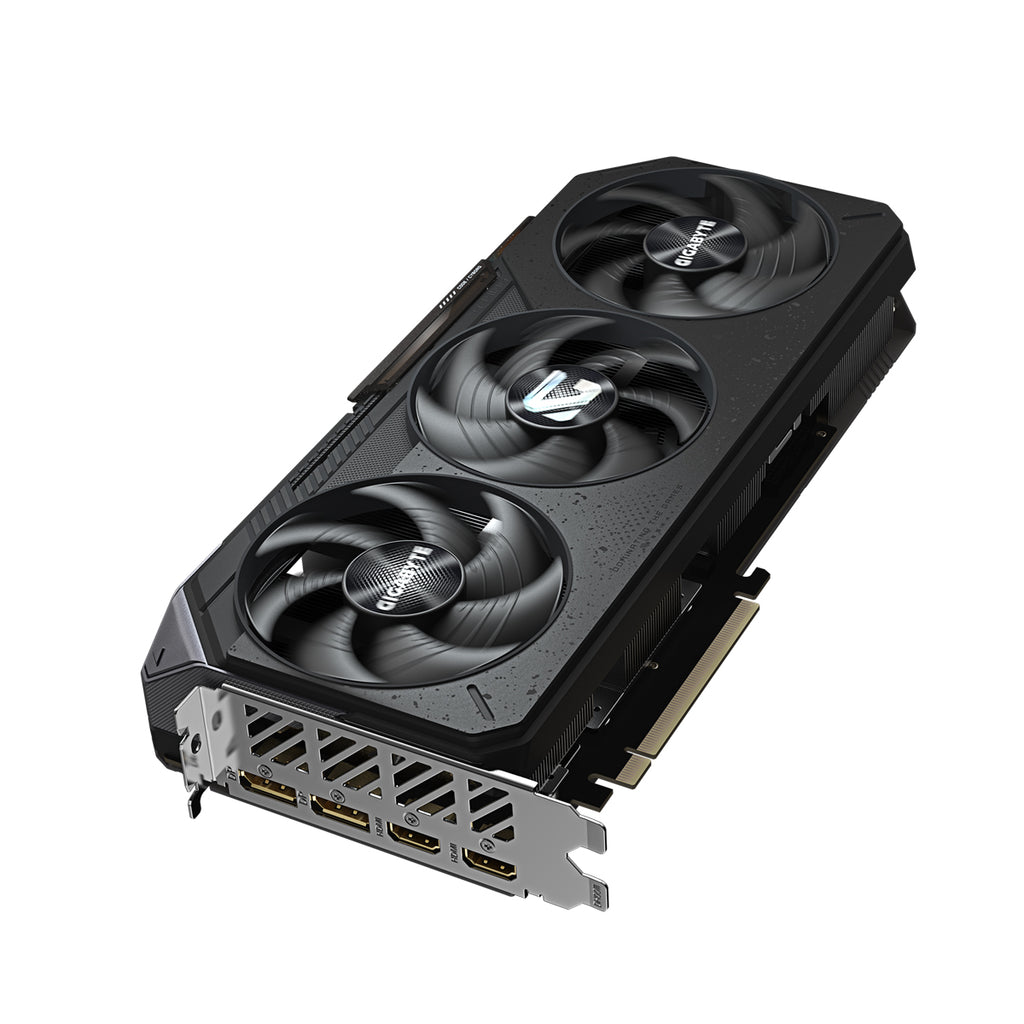

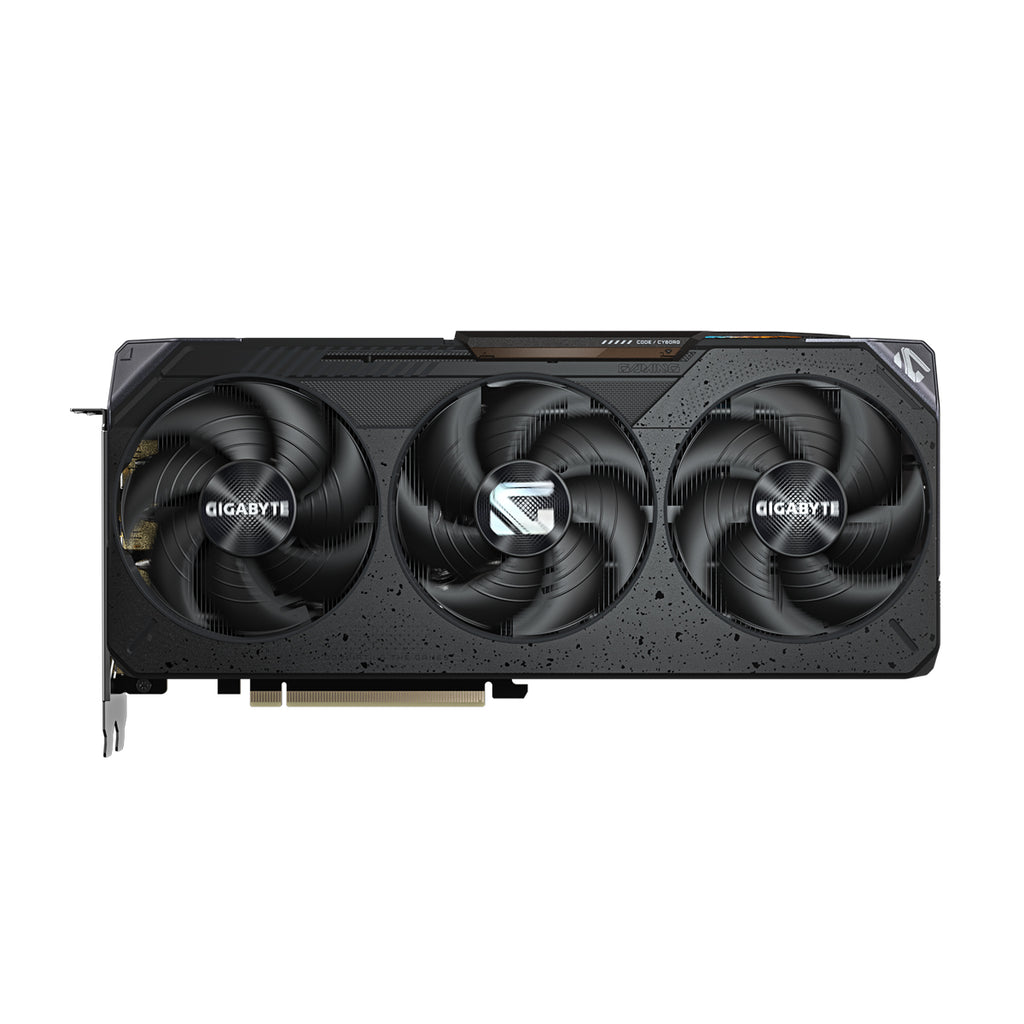

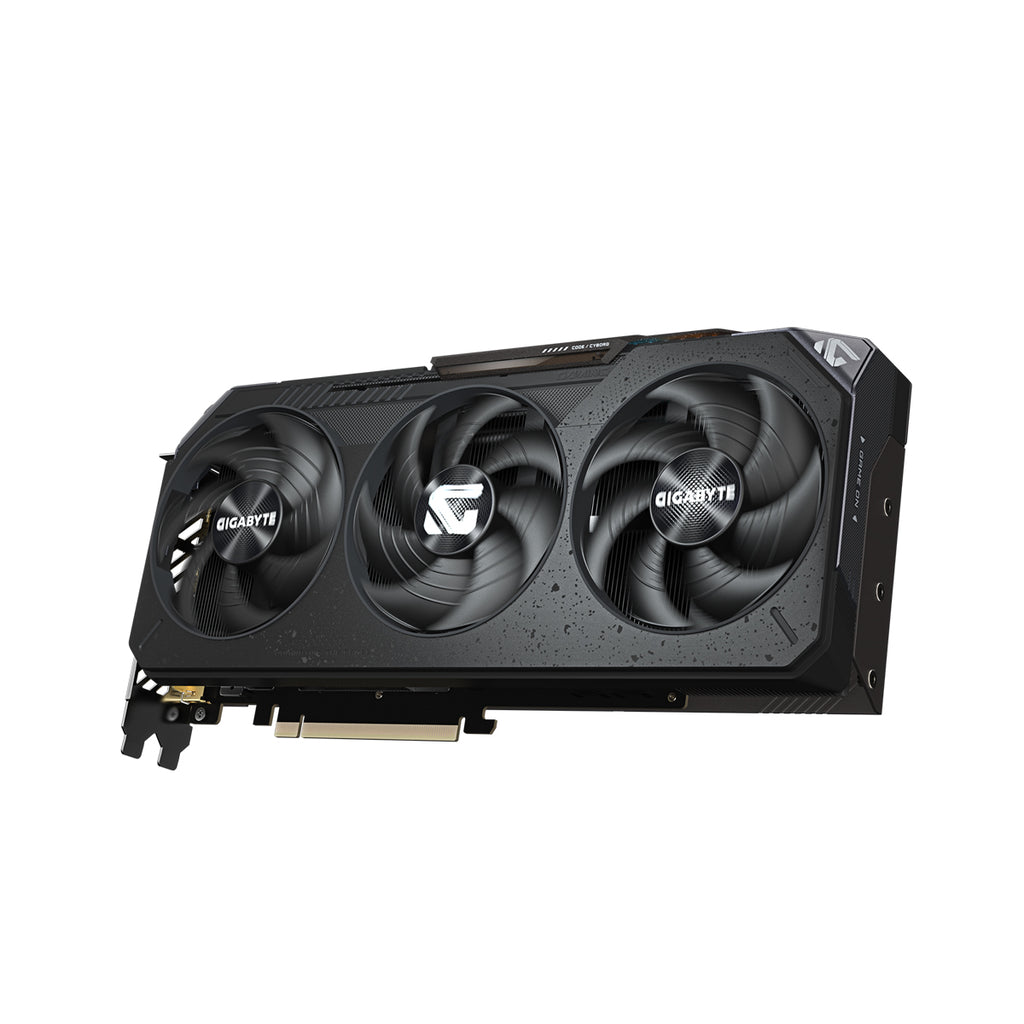

- WINDFORCE Cooling System: Features innovative "Hawk" fans with alternate spinning, composite copper heat pipes, and a large copper base plate for maximum thermal efficiency.
- Dual BIOS: Switch between Performance and Silent modes to suit your gaming needs.

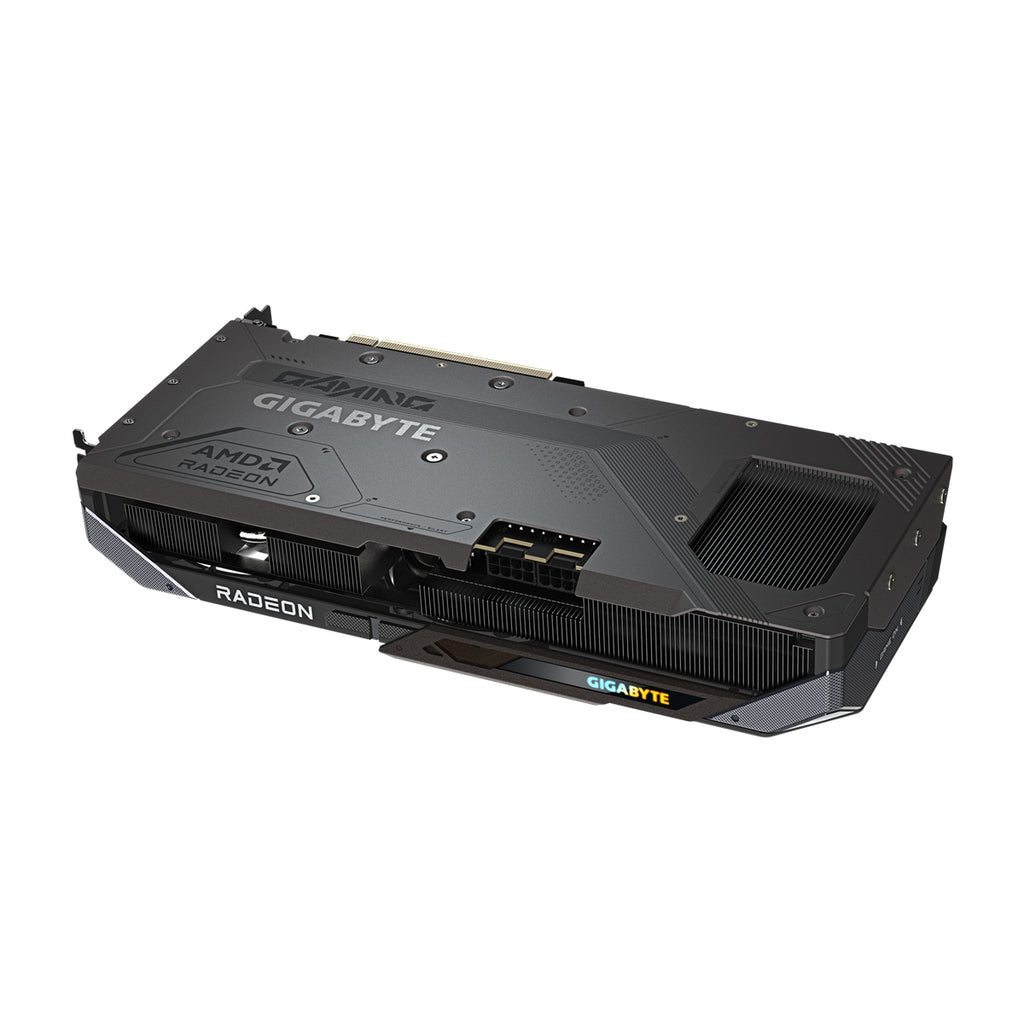

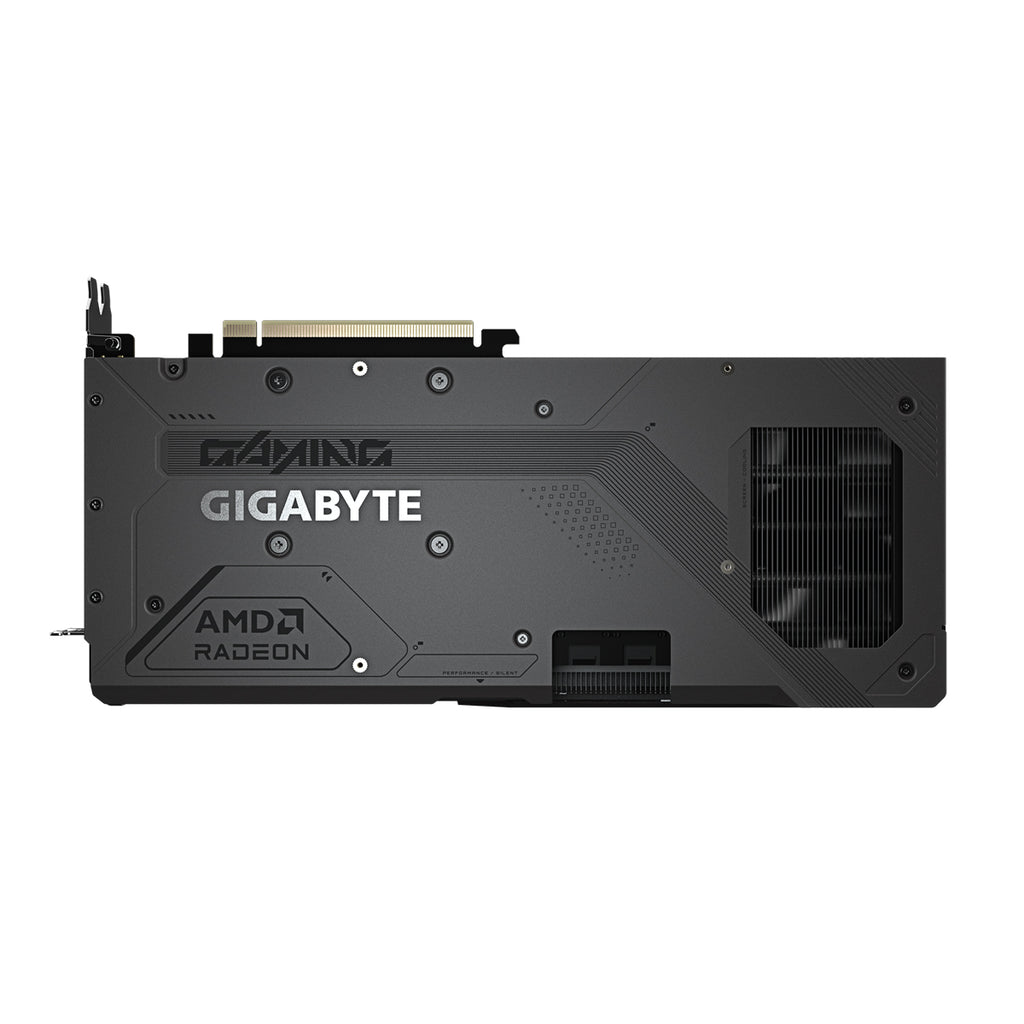

- Futuristic Armor Design: A mech-inspired aesthetic with a reinforced metal backplate for durability and style.
- PCIe 5.0 Support: Future-ready tech designed to work seamlessly with the latest high-speed platforms.
Specifications
| Feature | Details |
|---|---|
| Graphics Processing | Radeon™ RX 9070 GRE |
| Core Clock | Boost: 2920 MHz | Game: 2340 MHz |
| Memory | 12GB GDDR6 (18 Gbps) |
| Stream Processors | 3072 |
| Memory Bus | 192-bit |

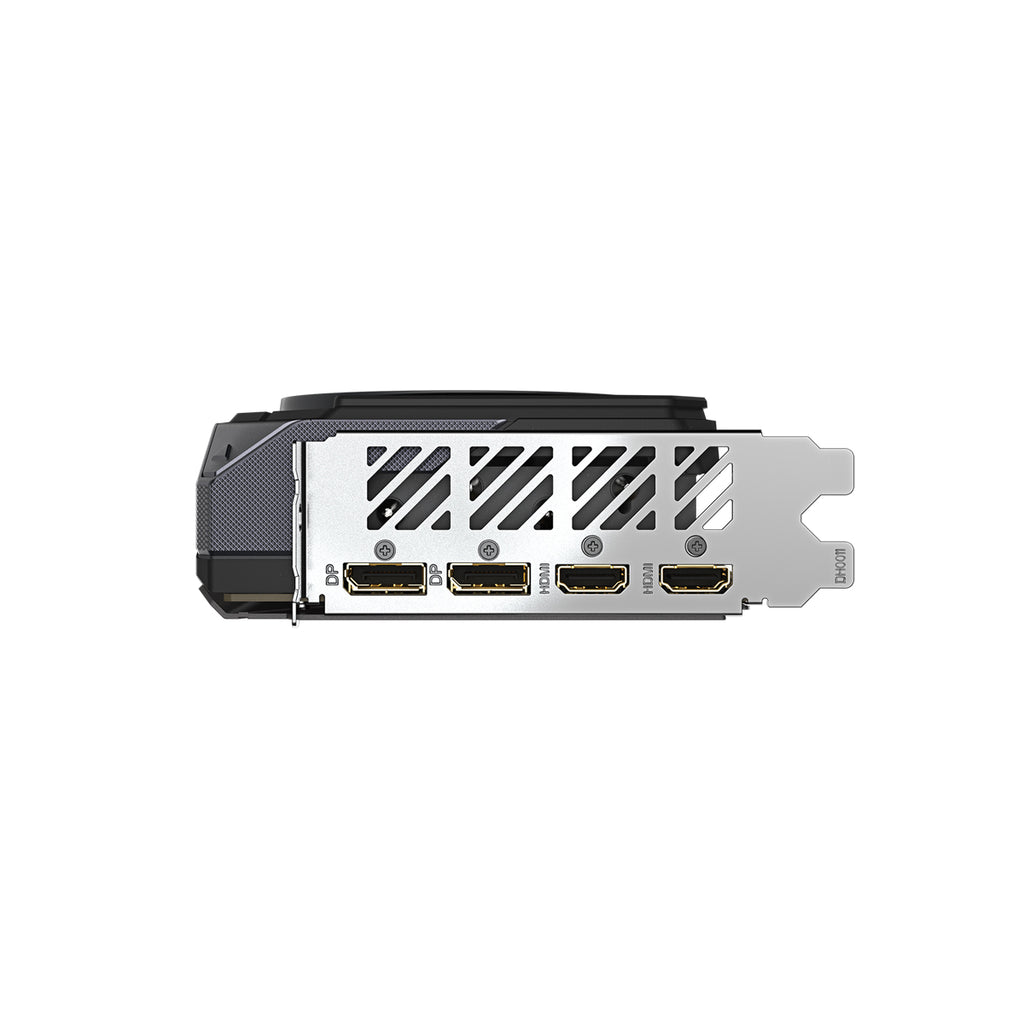

| Connectivity | 2x DisplayPort 2.1a, 2x HDMI 2.1b |
| Recommended PSU | 750W (2x 8-pin connectors) |
| Dimensions | 288 x 132 x 50 mm |
| System Specifications | |
|---|---|
| Graphics Processing | Radeon™ RX 9070 GRE |
| Core Clock | Boost Clock: up to 2920 MHz; Game Clock: up to 2340 MHz |
| Stream Processors | 3072 |
| Memory Clock | 18 Gbps |
| Memory Size | 12GB |
| Memory Type | GDDR6 |
| Memory Bus | 192 bit |
| Card Bus | PCI-E 5.0 |
| Digital max resolution | 7680 x 4320 |
| Multi-view | 4 |
| Card size | L=288 W=132 H=50 mm |
| PCB Form | ATX |
| DirectX | DirectX 12 API |
| OpenGL | OpenGL 4.6 |
| Recommended PSU | 750W |
| Power Connectors | 8 pin x 2 |
| Output | DisplayPort 2.1a x 2, HDMI 2.1b x 2 |
| Accessories | Quick guide |
| Note | * “Boost Clock” is the maximum frequency achievable on the GPU running a bursty workload. Boost clock achievability, frequency, and sustainability will vary based on several factors, including but not limited to: thermal conditions and variation in applications and workloads. GD-151 * “Game Clock” is the expected GPU clock when running typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary. GD-147 |
