Description

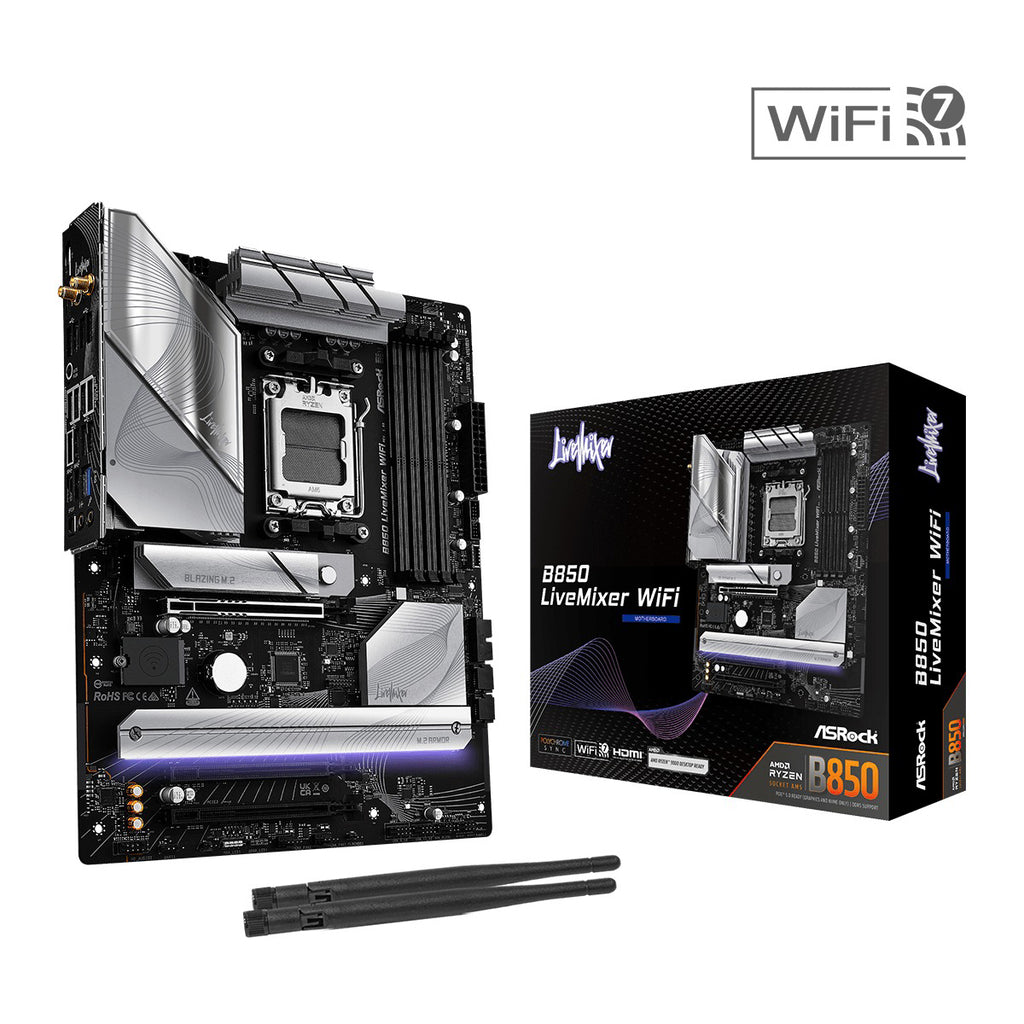

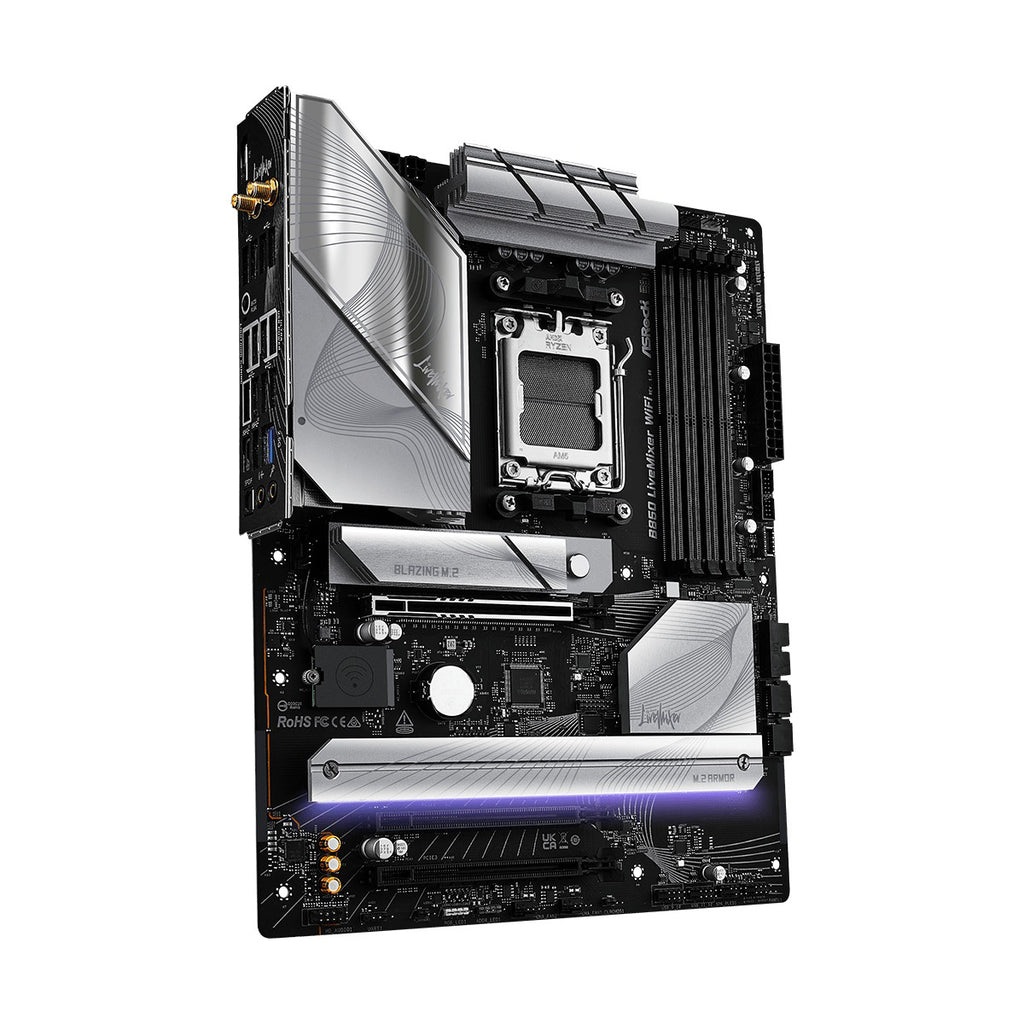

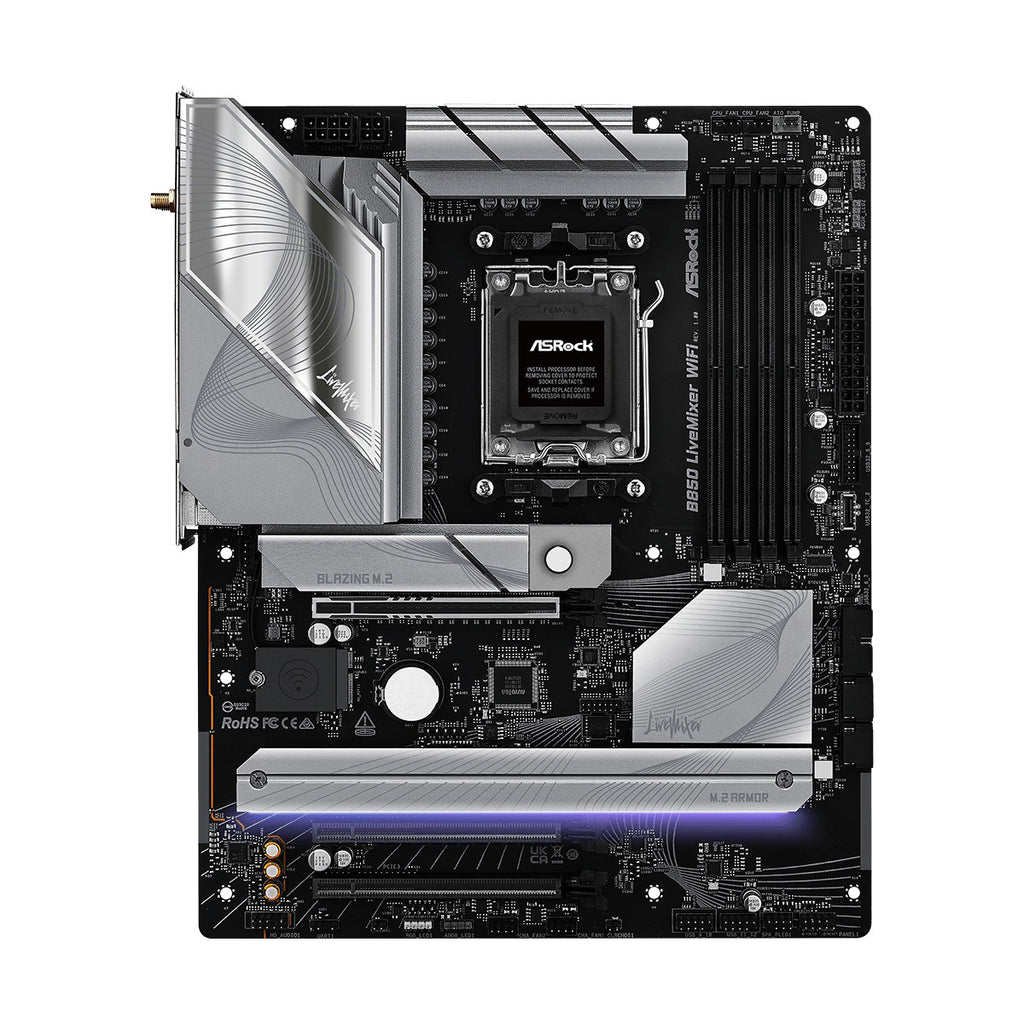

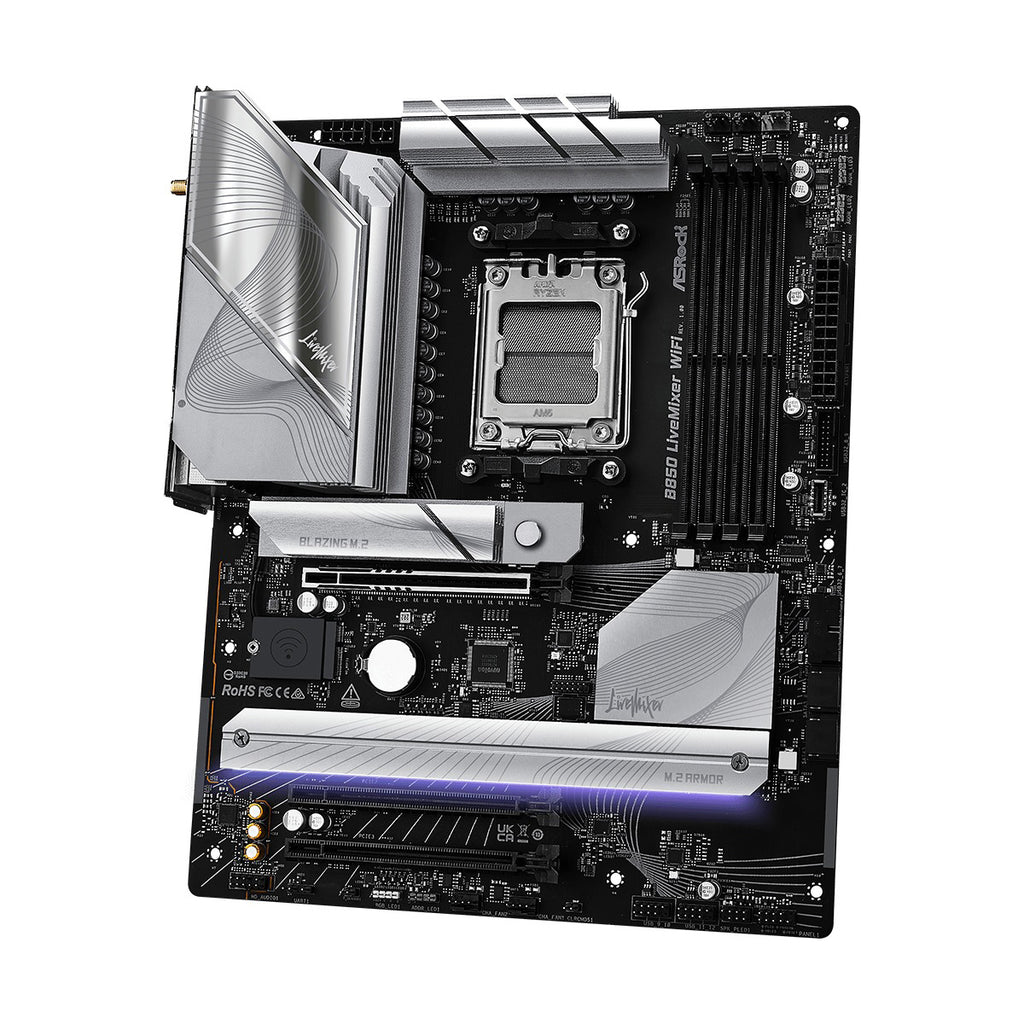

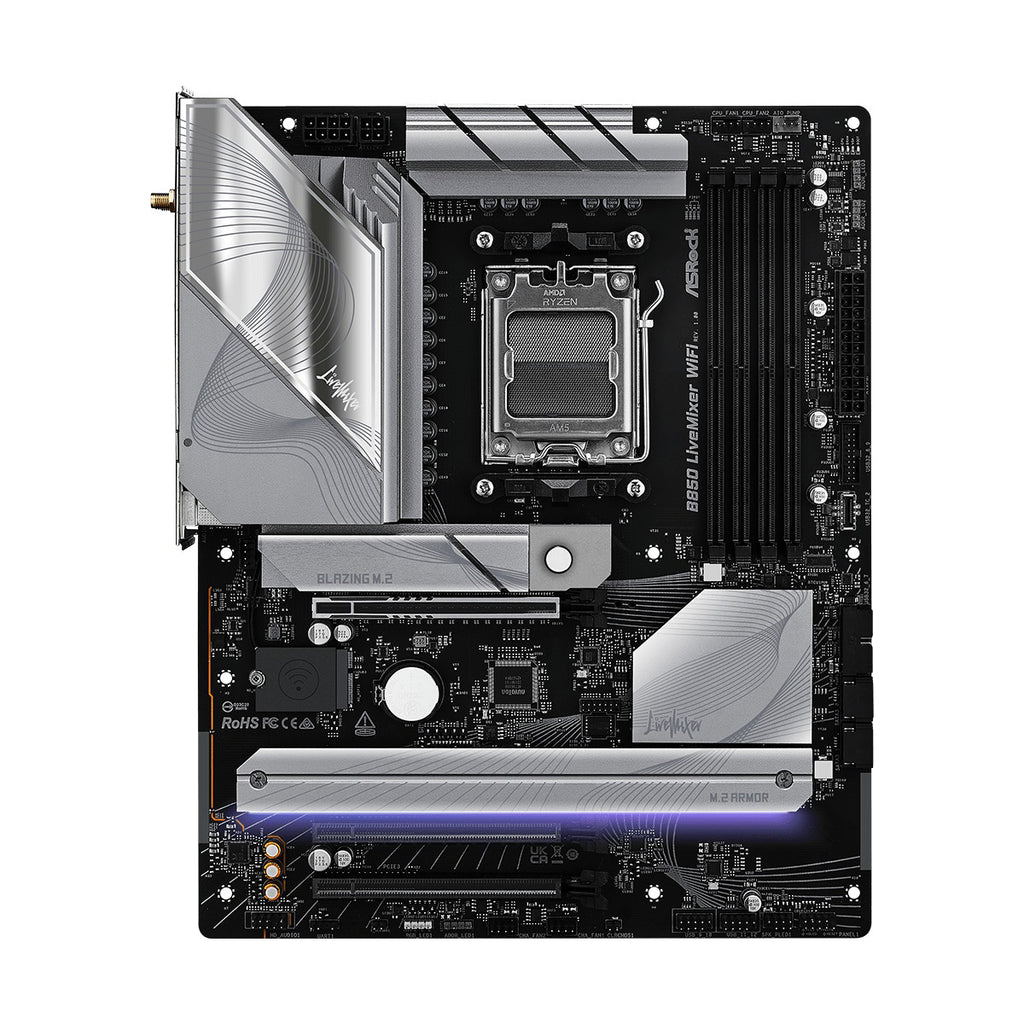

B850 LiveMixer WiFi
LiveMixer series is crafted with the needs of modern content creators in mind, offering excellent connectivity for streaming and multiple auxiliary devices. Its reliable performance ensures seamless content creation and efficient time management.
Specifications:
| Unique Feature | Superb Productivity - PCIe Gen5 (Graphics, M.2) - Dual Channel DDR5 Rock-Solid Durability - 14+2+1 Power Phase, 80A Dr.MOS with Enlarged Heatsink Armor - Flexible Integrated I/O Shield - 20K Long-lasting Black Caps Ultrafast Connectivity - 2.5G LAN, 802.11be Wi-Fi 7 Module - ASRock Lightning Gaming Ports EZ Update - BIOS Flashback Button - ASRock Auto Driver Installer EZ Troubleshooter - ASRock Post Status Checker |
| CPU | AMD Socket AM5 Ryzen 9000, 8000, 7000 Series |
| Chipset | AMD B850 |
| Memory | Dual Channel DDR5, 4 x DIMM Supports ECC/non-ECC up to 8000+(OC) Max 256GB Supports XMP & EXPO |
| BIOS | 256Mb AMI UEFI Legal BIOS with GUI |
| Graphics | Integrated AMD RDNA (varies by CPU) - HDMI 2.1 (4K@120Hz, HDR, HDCP 2.3) - DisplayPort 1.4 (4K@120Hz, HDCP 2.3, DSC) |
| Audio | 7.1 CH HD Audio (Realtek ALC1220) Impedance Sensing, Separate PCB Layers Nahimic Audio |
| LAN | 2.5GbE LAN (RTL8125BG) Dragon LAN Software, Bandwidth Control, Gaming Optimizations |
| Wireless | 802.11be Wi-Fi 7, 2x2 Supports 2.4/5/6GHz Bluetooth 5.4, MU-MIMO |
| Slots | CPU: 1 x PCIe 5.0 x16 (Gen5x16/Gen4x8/Gen4x4 depending on CPU) Chipset: 2 x PCIe 4.0 x16 (x4), 1 x M.2 (Key E) 15μ Gold Contact VGA Slot |
| Storage | CPU: - 1 x M.2 Gen5x4 (M2_1) - 1 x M.2 Gen4x4 (M2_2) Chipset: - 1 x M.2 Gen4x4 (M2_3) - 2 x SATA3 Supports RAID 0/1 (SATA), RAID 0/1/10 (NVMe) |
| USB | CPU: - 1 x USB 3.2 Gen2 Type-C (Rear) - 1 x USB 3.2 Gen2 Type-A (Rear) - 1 x USB 3.2 Gen1 Type-A (Rear) Chipset: - 1 x USB 3.2 Gen2x2 Type-C (Front) - 7 x USB 3.2 Gen1 (3 Rear, 4 Front) - 12 x USB 2.0 (8 Rear, 4 Front) |
| Connectors | RGB & ARGB headers Multiple CPU/Chassis/AIO fan headers with smart control ATX 24-pin + 8-pin + 4-pin power Front audio, TPM, thermistor, USB headers |

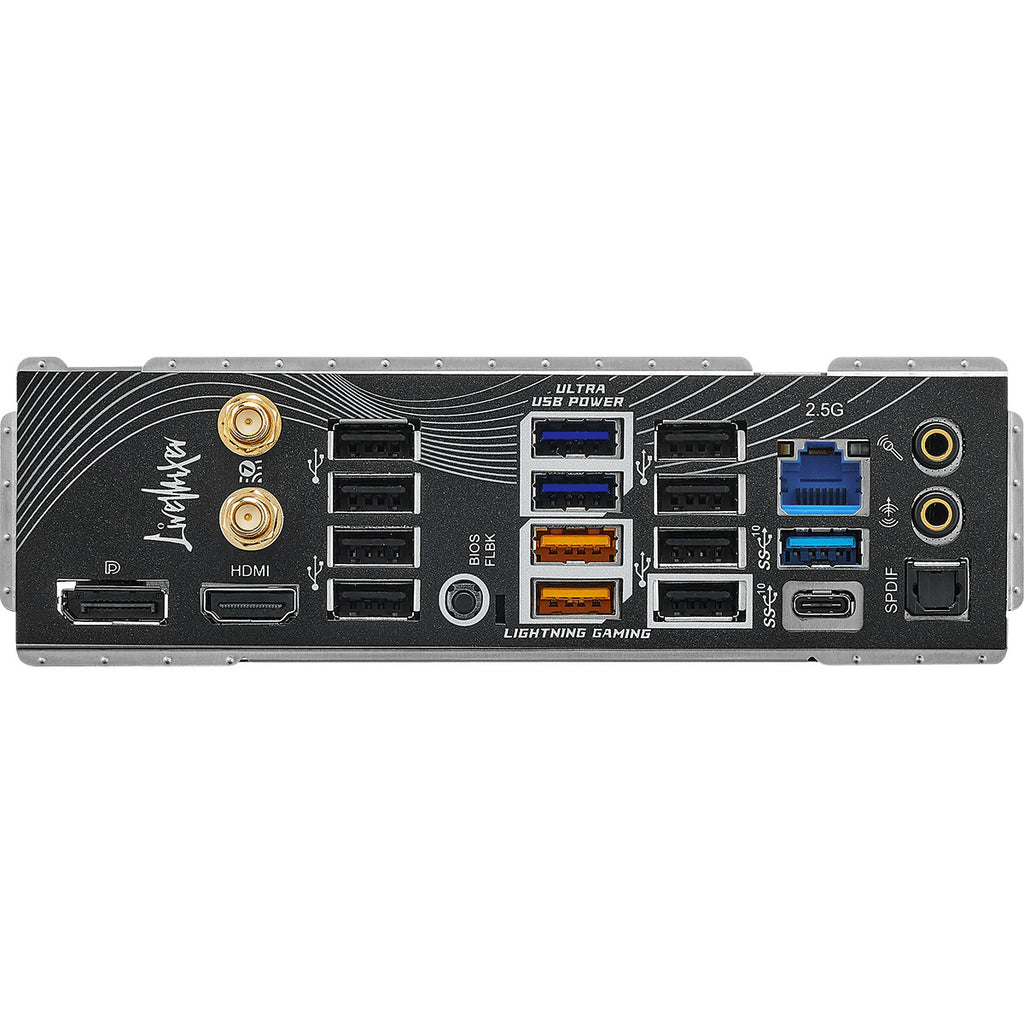

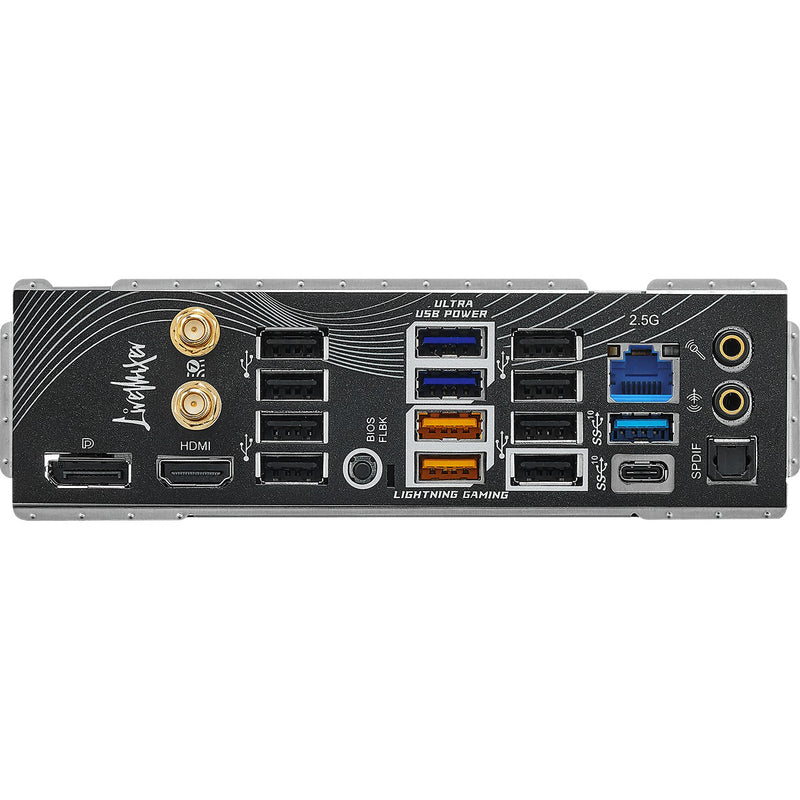

| Rear I/O | - 2 x Antenna Ports - 1 x HDMI, 1 x DP - Optical SPDIF - USB: 1 x Type-C Gen2, 1 x Type-A Gen2, 4 x Gen1, 8 x USB 2.0 - 1 x RJ-45 LAN - BIOS Flashback Button - Audio Jacks (Line Out, Mic) |
| Software / UEFI | ASRock A-Tuning, Dragon LAN, Polychrome SYNC UEFI EZ Mode, Full HD UEFI, Auto Driver Installer, Instant Flash |
| Accessories | 2 x SATA Cables 2 x Wi-Fi Antennas 1 x Thermistor Cable |
| Form Factor | ATX (30.5 x 24.4 cm), 8 Layer PCB |
| OS | Windows 10/11 64-bit |
| Certifications | FCC, CE, ErP/EuP Ready |
