Description

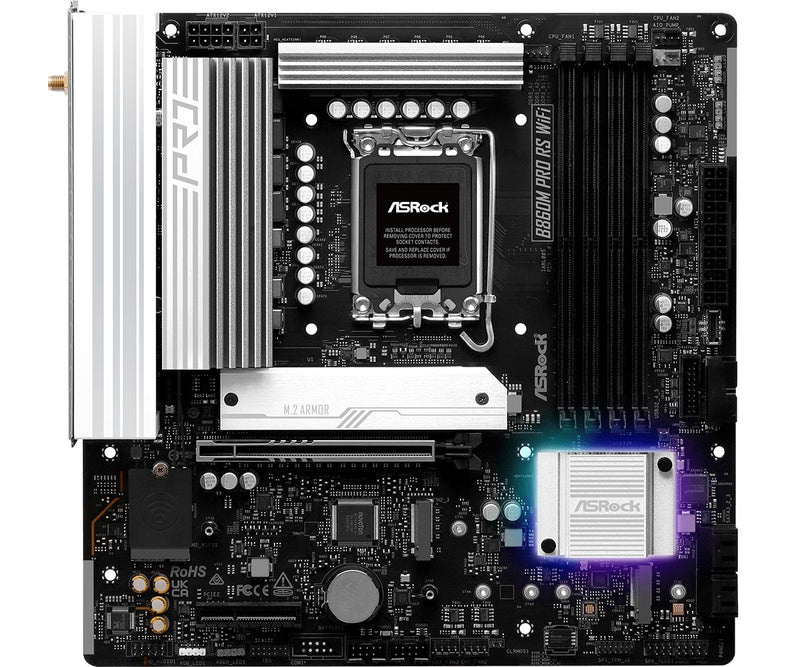

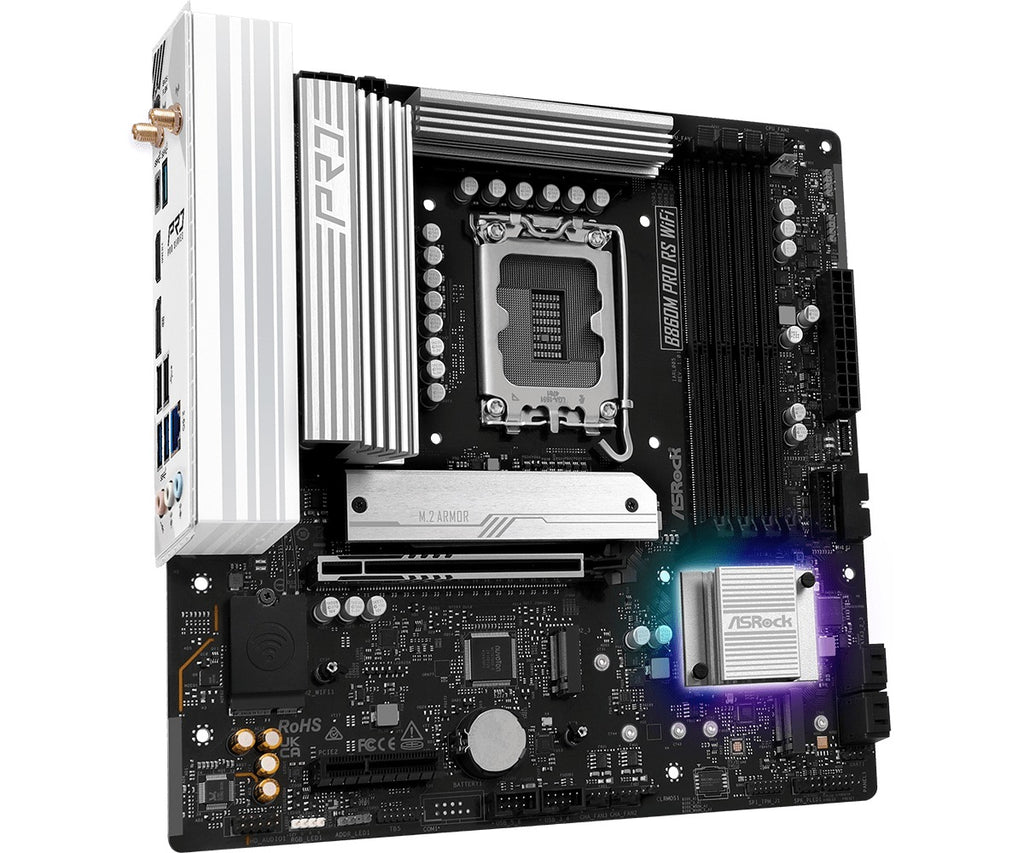

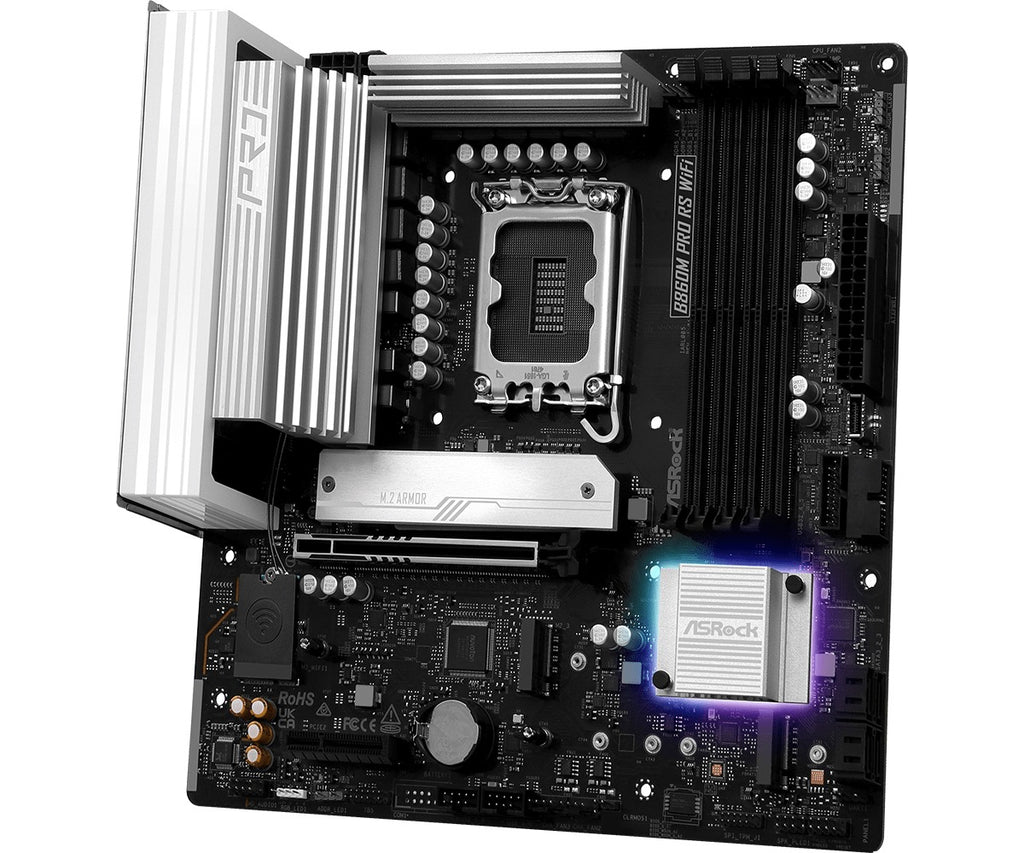

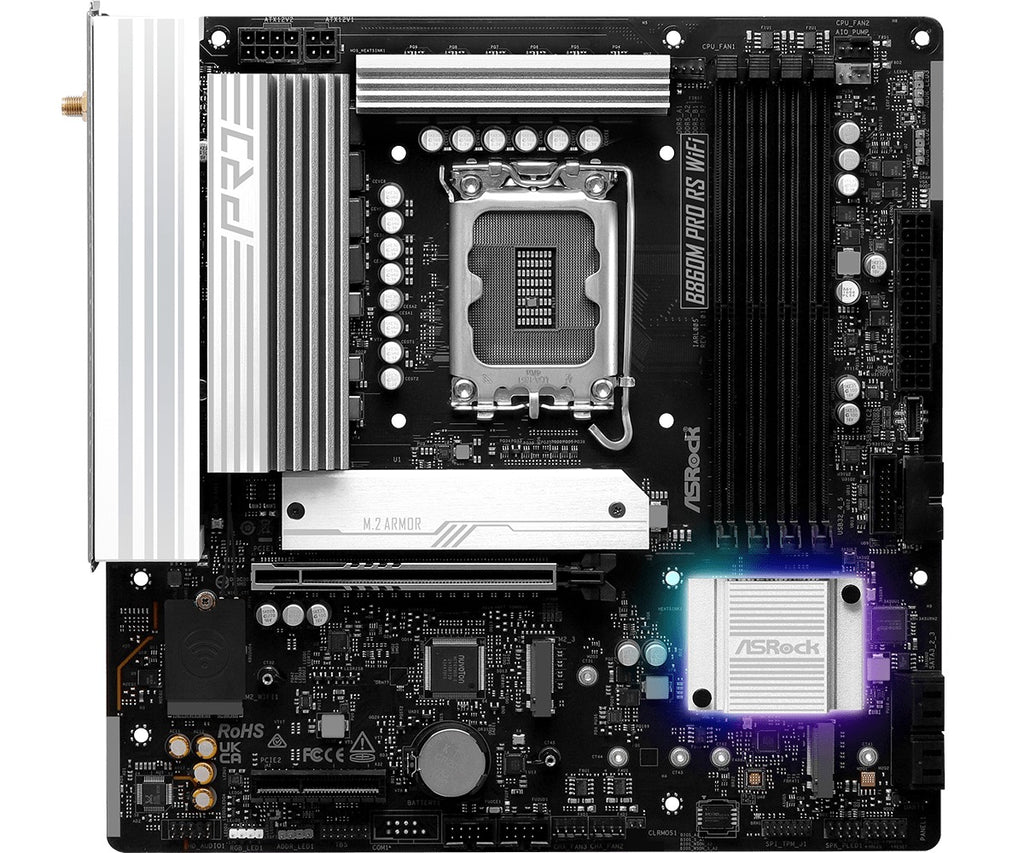

ASRock B860M Pro RS WiFi Motherboard
Modern and futuristic, with the attractive specifications and perfect balance, the Race Sport (RS) Edition is the evolution of the most popular PRO series motherboard.
- Supports Intel® Core™ Ultra Processors (Series 2)(LGA1851)
- 10+1+1+1+1 Power Phase, Dr.MOS for VCore+GT+SA
- 4 x DDR5 DIMMs
Supports Dual Channel, up to 8666+ (OC) - 1 PCIe 5.0 x16, 1 PCIe 4.0 x4
- Graphics Output Options: 1 HDMI, 1 DisplayPort
- Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio
- 4 SATA3
1 Blazing M.2 (PCIe Gen5x4)
2 Hyper M.2 (PCIe Gen4x4) - 1 USB 3.2 Gen2x2 Type-C (Rear)
1 USB 3.2 Gen1 Type-C (Front)
7 USB 3.2 Gen1 (3 Rear, 4 Front)
6 USB 2.0 (2 Rear, 4 Front) - Realtek 2.5G LAN
- 802.11axe Wi-Fi 6E + Bluetooth
- Supports BIOS Flashback, M.2 Bottom Heatsink
Specification:
| Unique Features | Superb Productivity: PCIe Gen5 (Graphics, M.2), Dual Channel DDR5; Rock-Solid Durability: 10+1+1+1+1 Power Phase Dr.MOS for VCore+GT+SA, Pre-Installed I/O Shield; Ultrafast Connectivity: 2.5G LAN, Wi-Fi 6E; EZ Update: BIOS Flashback Button, ASRock Auto Driver Installer; EZ Troubleshooter: ASRock Post Status Checker |
| CPU | Supports Intel® Core™ Ultra Processors (Series 2) (LGA1851); Supports Intel® Hybrid Technology, Turbo Boost Max 3.0, TVB, ABT, Integrated NPU |
| Chipset | Intel® B860 |
| Memory | Dual Channel DDR5; 4 × DDR5 DIMM Slots; Up to DDR5-8666+(OC); Max 256GB; Supports CUDIMM, XMP 3.0 |
| BIOS | 256Mb AMI UEFI Legal BIOS with GUI |
| Graphics | Intel® Xe LPG Graphics; HDMI 2.1 (HDR, HDCP 2.3, 4K@120Hz); DisplayPort 1.4 with DSC (8K@60Hz, 5K@120Hz) |
| Audio | 7.1 CH HD Audio (Realtek ALC897); Nahimic Audio |
| LAN | 2.5G LAN (Dragon RTL8125BG) with bandwidth control & game/streaming modes |
| Wireless LAN | Wi-Fi 6E 802.11axe; 2×2 MIMO; Dual-Band with 6GHz support; Bluetooth 5.3; MU-MIMO |
| Expansion Slots | 1 × PCIe 5.0 x16 (CPU); 1 × PCIe 4.0 x4 (Chipset); 1 × M.2 (Key E, 2230) for WiFi/BT & CNVio/CNVio2 |
| Storage | CPU: 1 × Blazing M.2 (M2_1, 2280, PCIe Gen5x4); Chipset: 1 × Hyper M.2 (M2_2, 2230–2280, PCIe Gen4x4), 1 × Hyper M.2 (M2_3, 2280, PCIe Gen4x4), 4 × SATA3 6Gb/s; NVMe boot support |
| RAID | RAID 0/1/5/10 for SATA |
| USB | Rear: 1 × USB 3.2 Gen2x2 Type-C, 3 × USB 3.2 Gen1, 2 × USB 2.0; Front: 1 × USB 3.2 Gen1 Type-C, 4 × USB 3.2 Gen1, 4 × USB 2.0; all ESD protected |
| Internal Connectors | SPI TPM; RGB Header; 3 × Addressable LED Headers; 2 × CPU Fan (1A/12W & 3A/36W); 3 × Chassis Fans (3A/36W); 1 × AIO Pump (3A/36W); 24-pin ATX; 8-pin + 4-pin 12V; Front Audio; USB 2.0 (4 ports); USB 3.2 Gen1 (4 ports); Front USB 3.2 Gen1 Type-C |

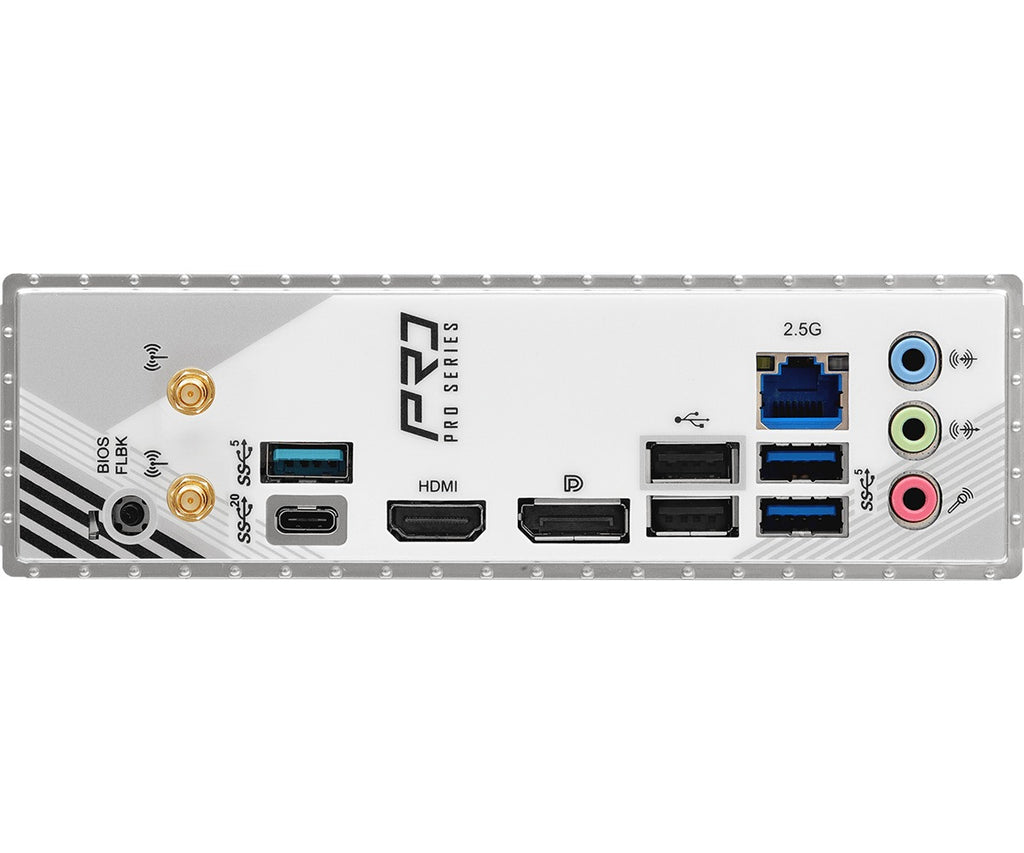

| Rear I/O | 2 × Antenna Ports; HDMI; DisplayPort 1.4; USB 3.2 Gen2x2 Type-C (20Gb/s); 3 × USB 3.2 Gen1; 2 × USB 2.0; 2.5G LAN; BIOS Flashback; HD Audio Jacks |
| Software | ASRock A-Tuning; Dragon 2.5G LAN Software; Polychrome SYNC |
| UEFI | ASRock EZ Mode; Full HD UEFI; My Favorites; Auto Driver Installer; Instant Flash |

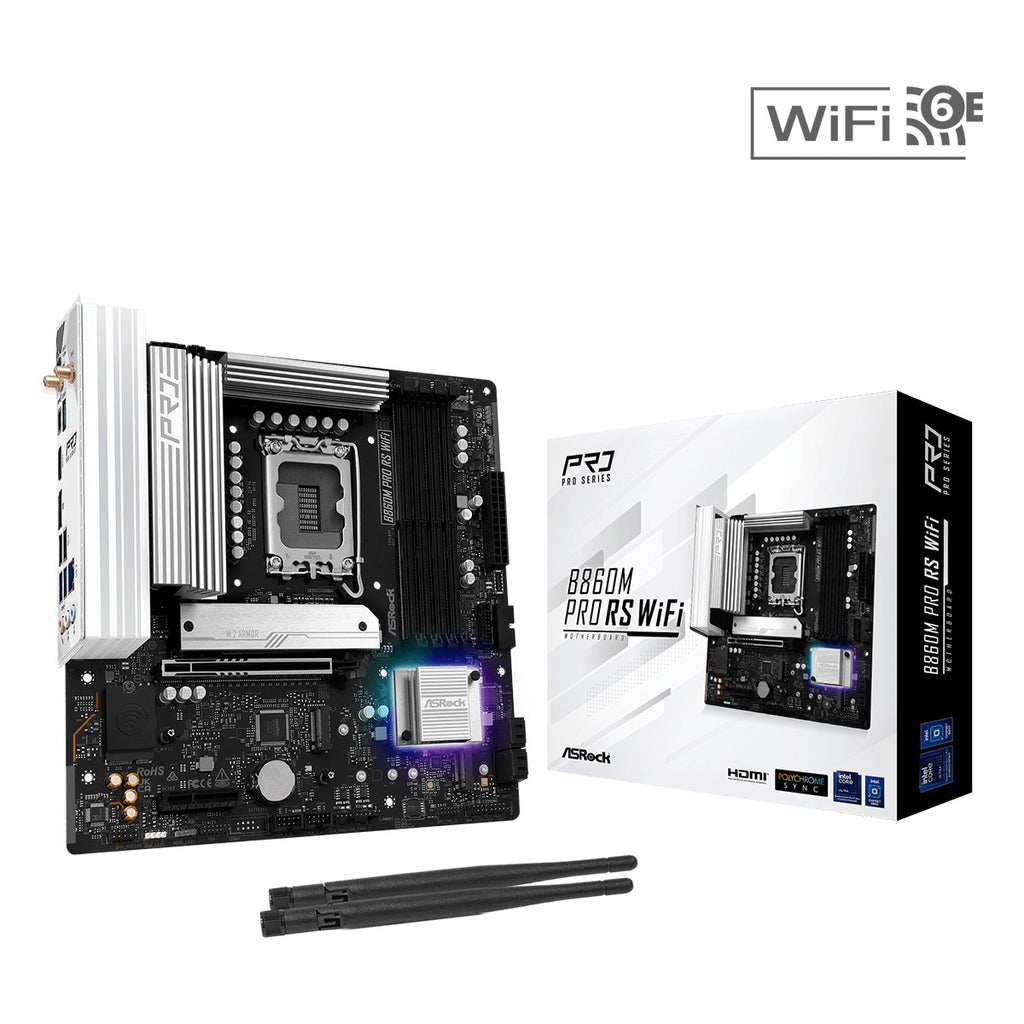

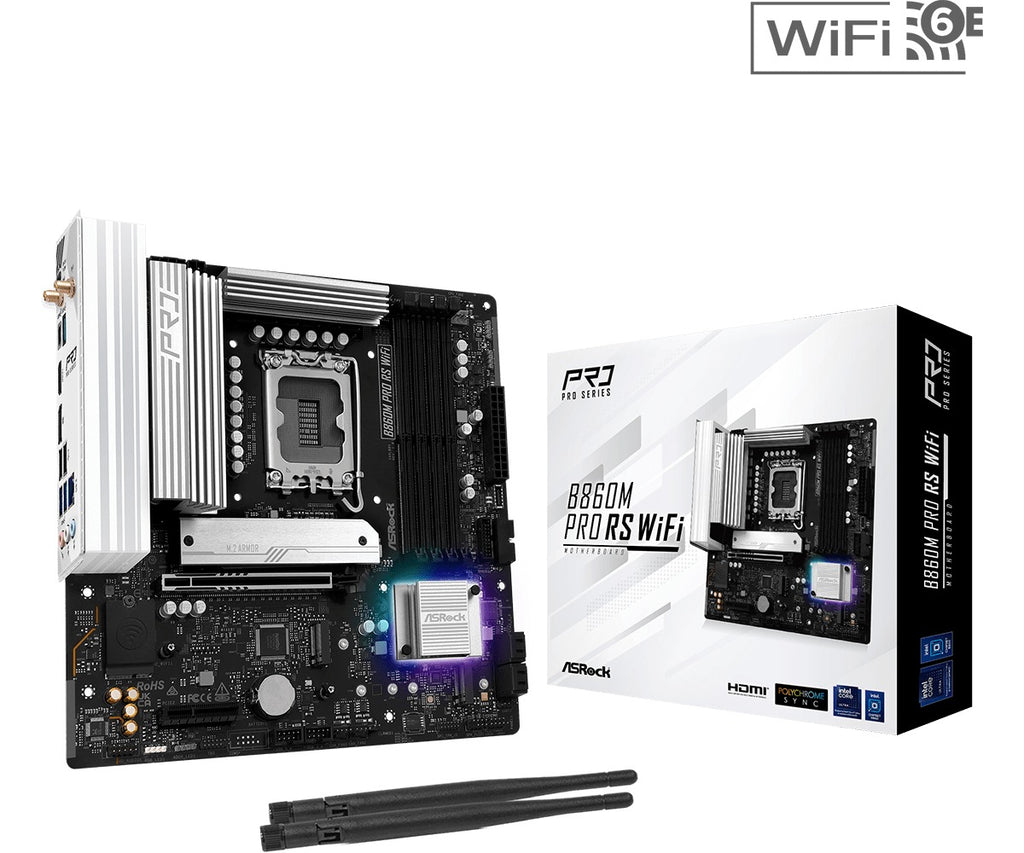

| Accessories | 2 × SATA Cables; 2 × WiFi Antennas |
| Form Factor | Micro ATX, 24.4 × 24.4 cm |
| Operating System | Windows 11 64-bit |
| Certifications | FCC, CE; ErP/EuP Ready |
