Description

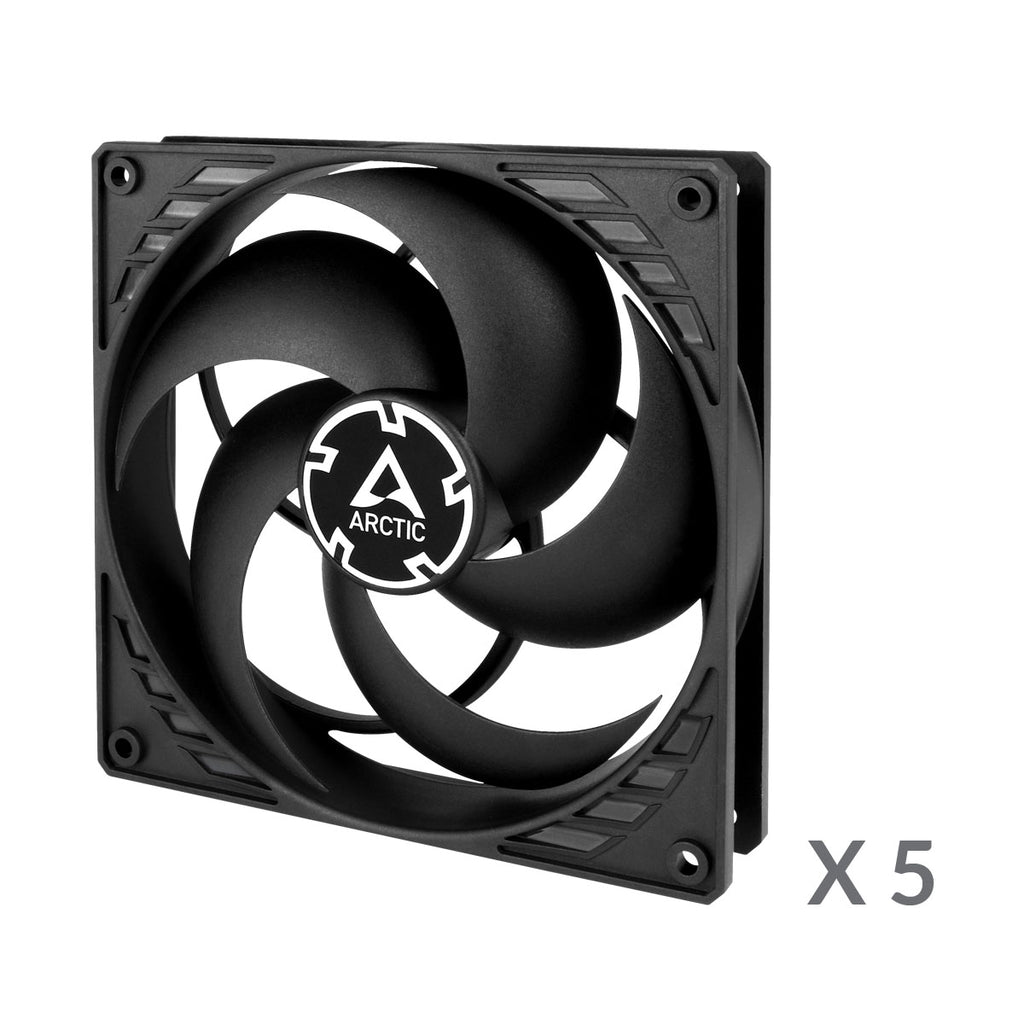

P14 PWM PST
140 mm PWM Fan with Cable Splitter | 5 Pieces
Specification:
| Performance | |
|---|---|
| Fan Speed | 200—1700 rpm PWM Controlled (0 rpm below 5 % PWM) |
| Airflow | 72.80 cfm | 123.76 m³/h |
| Static Pressure | 2.40 mmH2O |
| Noise Level | 0.3 Sone |
| Operating Ambient Temperature | 0—40 °C |
| Fan | |
| Fan Frame | Standard |
| Control Type | PWM PST |
| Connector | 4-Pin Connector + 4-Pin Socket |
| Fan Bearing | Fluid Dynamic Bearing |
| Warranty | 6 Years |
| Electric Characteristics | |
| Typical Voltage | 12 V DC |
| Starting Voltage | 3.9 V |
| Current | Voltage | 0.12 A | 12 V DC |
| Cable Length | 400 mm |
| Size & Weight | |
| Length | 140 mm |
| Width | 140 mm |
| Height | 27 mm |
| Weight | 194 g |
