Description
HydroShift II LCD-S

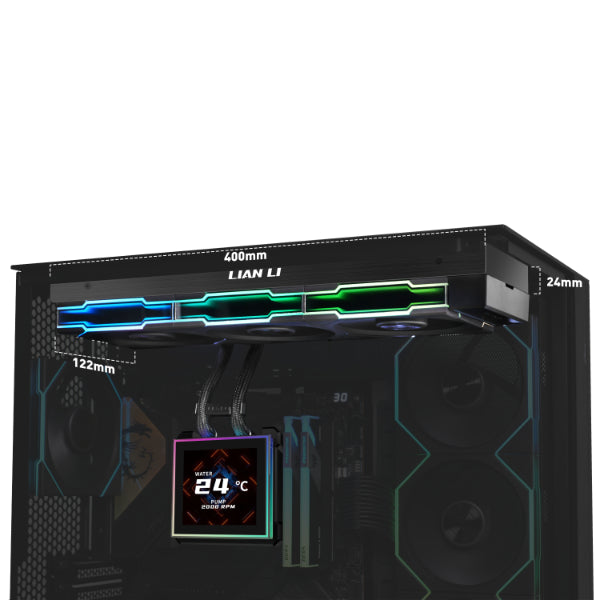

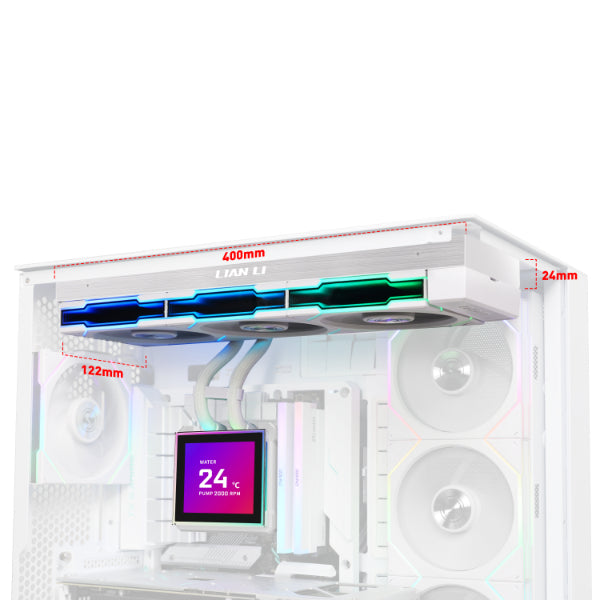

- Compact 360mm radiator (400 × 122 × 24 mm) with a slimmer profile for broader case compatibility and easier installation.
- 3.4” IPS LCD display (480×480, 500 nits, 60 Hz) delivering sharp visuals, smooth animations, and real-time system monitoring.
- Magnetic hot-swap LCD mount for easy installation/removal without powering off the system.
- Upgraded high-performance pump, reaching up to 3200 RPM with reduced noise and enhanced cooling efficiency.
- Side-mounted tubing with fully concealed wiring for an ultra-clean, cable-free aesthetic along the radiator edge.
- Three control modes via L-Connect 3: Offline, Wireless, USB Streaming (with media uploads and customizable widgets).
- Supports UNI FAN TL / CL Wireless ecosystems and integrates seamlessly with wireless lighting sync.
- USB power and data lines embedded inside the tubing, eliminating visible front-side cables for a refined minimalist build.
| Specification | Detail |
|---|---|
| Product Name | HydroShift II LCD-S 360 CL |

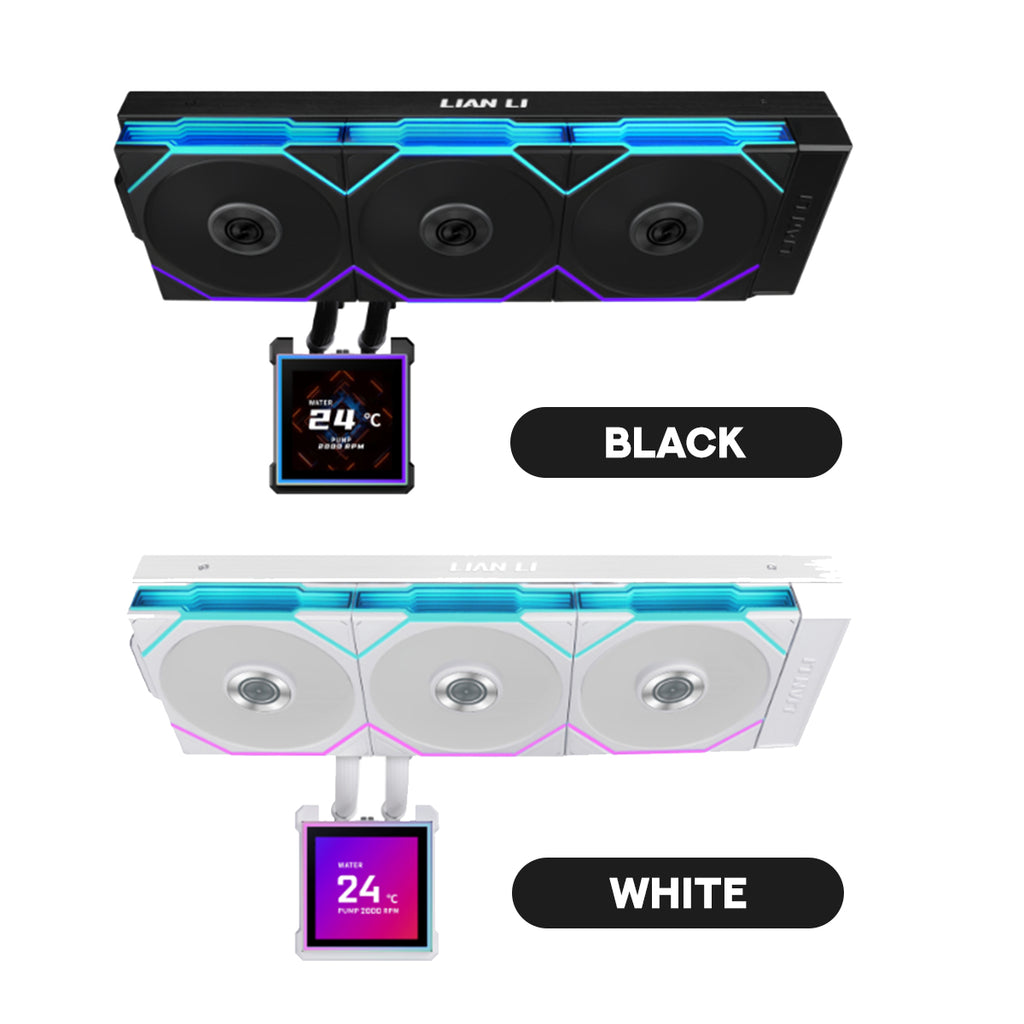

| Model | GHS2LCDS36CB (Black) / GHS2LCDS36CW (White) |
| Pump Speed | 1600-3200 RPM ±10% |
| Pump Noise | ≤28dBA |
| Water Block Dimensions | 91 x 99 x 62mm |
| LCD Panel | 3.4″ IPS |
| LCD Resolution / Refresh Rate | 480 x 480 / 60Hz |
| Brightness | 500nit |
| Radiator Size | 400 x 122 x 24mm |
| Radiator Material | Aluminum |
| Tubing Length | 450/470mm |
| Fan Size | 124 x 120 x 28mm |
| Fan Speed | 0, 200-2100RPM |
| Fan Pressure | 3.00H2O |
| Airflow | 72.7CFM |
| Noise Level | 30dBA |
| Bearing Type | Fluid Dynamic Bearing (FDB) |
| CPU Socket Support | Intel: LGA1700, LGA1851 | AMD: AM4, AM5 |
