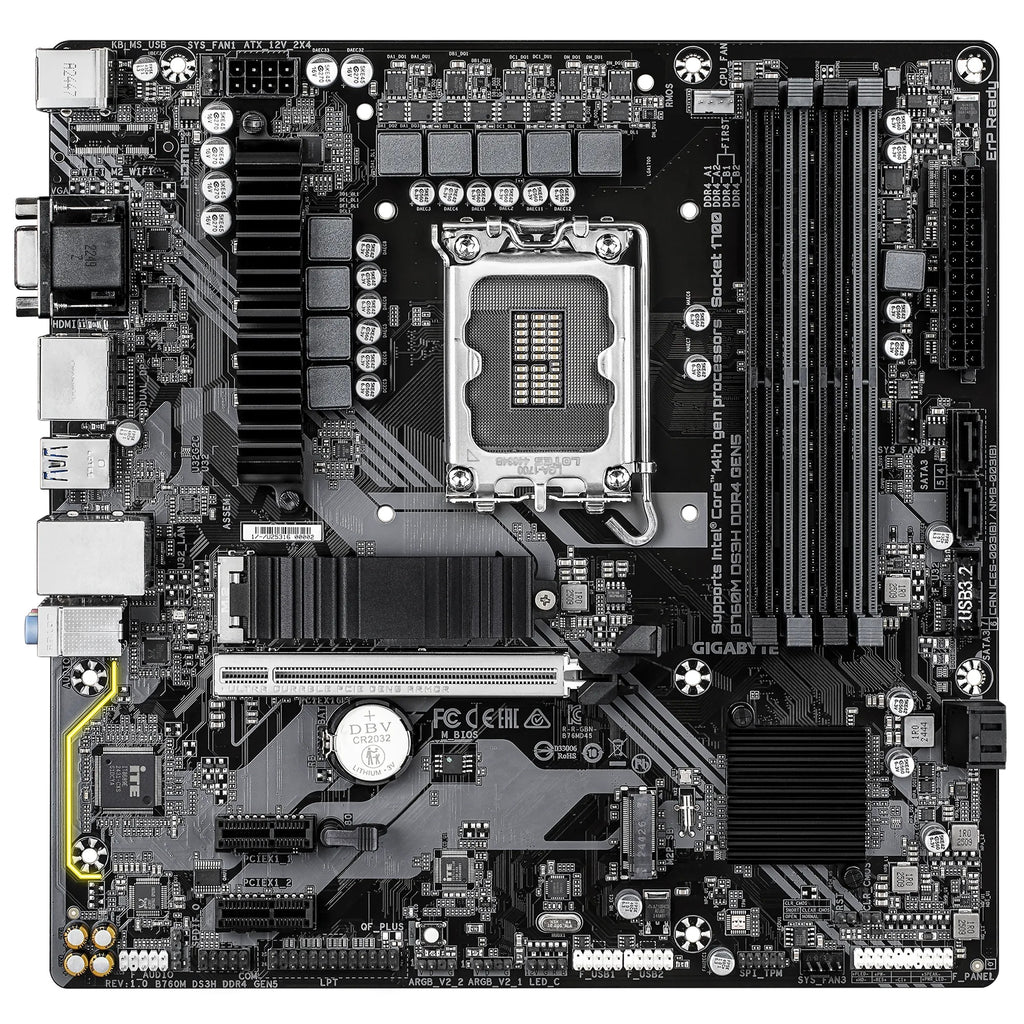

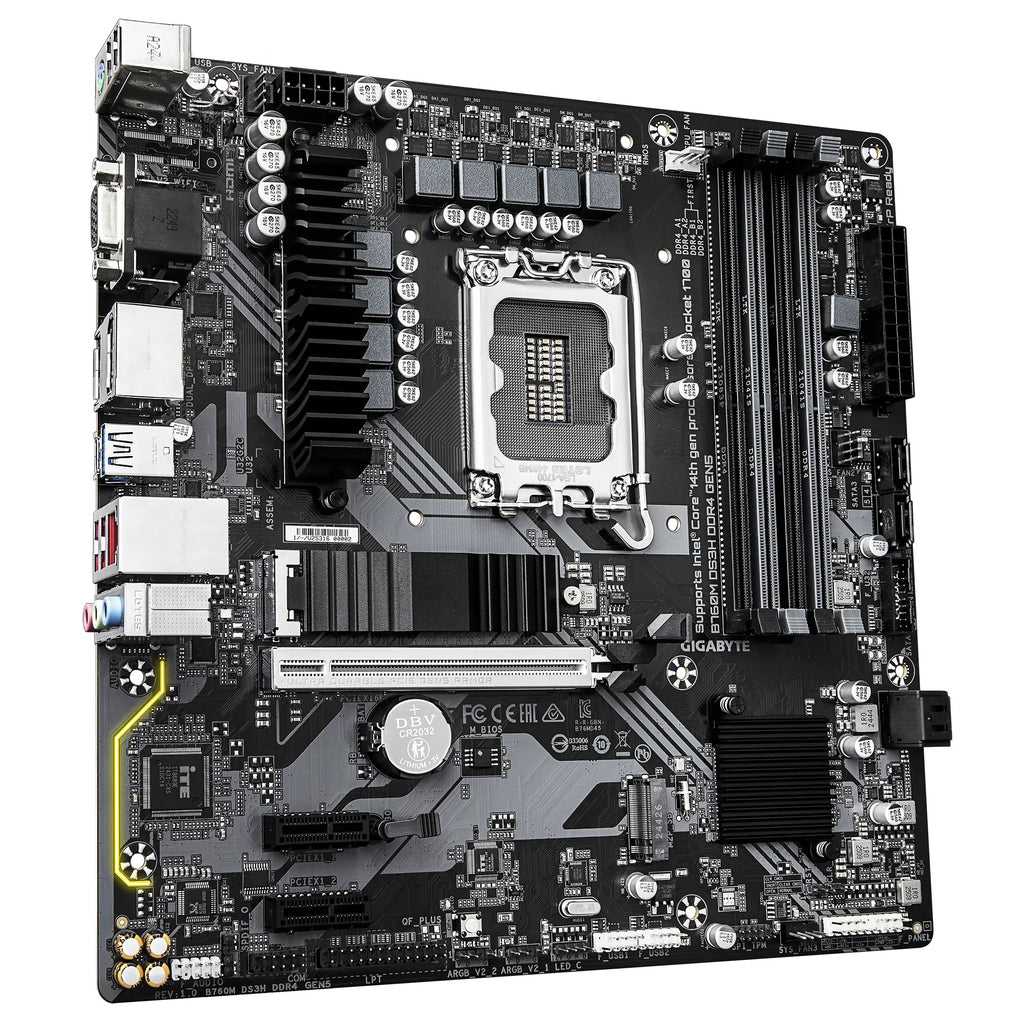

Description
Key Features
- PCIe Gen5 Performance : Perfect Sync to Win
- Supports Intel® Core™ 14th/ 13th /12th processors
- EZ-Latch : PCIe 5.0x16 Slot with Quick Release Design
- PCIe UD Slot : SMD PCIe 5.0 Armor for enhanced graphics card support
- Unparalleled Performance : Hybrid 6+2+1 Phases VRM Solution
- Dual Channel DDR4 : 4*DIMMs XMP Memory Module Support
- Fast Networks : 2.5 GbE LAN
- Next Generation Storage : 2*PCIe 4.0 x4 M.2 Connectors
- Extended Connectivity : Rear USB-C® 10Gb/s, DP, HDMI, D-Sub
- Smart Fan 6 : Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- Q-Flash Plus : Update BIOS Without Installing the CPU, Memory and Graphics Card
Specifications:
| CPU | LGA1700 socket, supports 14th, 13th, and 12th Gen Intel® Core™, Pentium® Gold, and Celeron® processors |
| Chipset | Intel® B760 Express Chipset |
| Memory | 4 x DDR4 DIMM, up to 128 GB, supports 3200/3000/2933/2666/2400/2133 MT/s, ECC/non-ECC, XMP |
| Onboard Graphics | D-Sub (1920x1200@60Hz), HDMI (4096x2160@60Hz), 2 x DisplayPort (4096x2304@60Hz), up to quad-display |
| Audio | Realtek® Audio CODEC, 2/4/5.1/7.1-channel, S/PDIF Out |
| LAN | Realtek® 2.5GbE LAN chip (2.5/1Gbps/100Mbps) |
| Expansion Slots | 1 x PCIe x16 (PCIe 5.0, CPU), 2 x PCIe x1 (PCIe 3.0, chipset) |
| Storage | 2 x M.2 (PCIe 4.0 x4/x2), 4 x SATA 6Gb/s, RAID 0/1/5/10 |
| USB Ports | 1 x USB Type-C® (USB 3.2 Gen 2), 5 x USB 3.2 Gen 1, 6 x USB 2.0/1.1 |
| Internal I/O | 24-pin + 8-pin power, 3 fan headers, 2 ARGB, 1 RGB, TPM, serial, parallel, audio, USB, reset, CMOS, Q-Flash Plus |

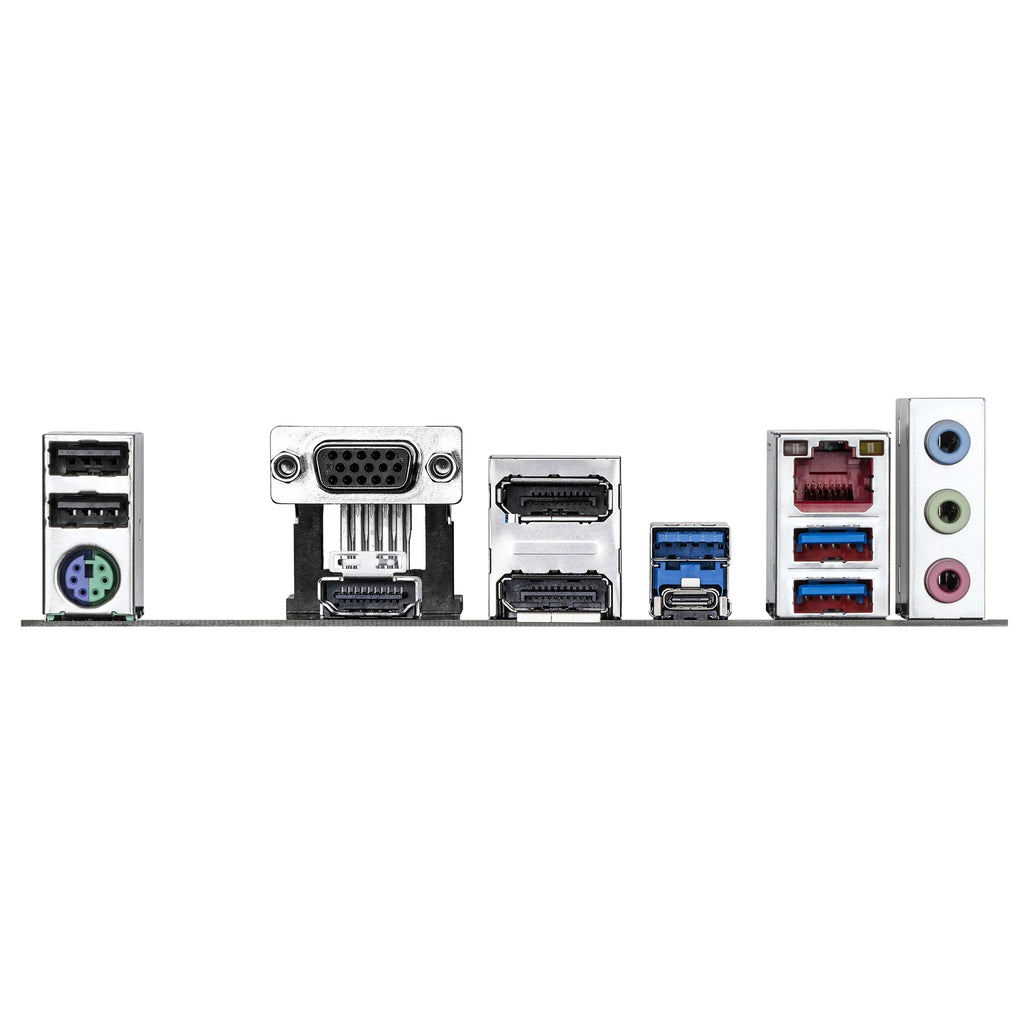

| Back Panel | 2 x USB 2.0, PS/2, D-Sub, HDMI, 2 x DisplayPort, 3 x USB 3.2 Gen 1, 1 x USB-C, LAN, 3 x audio jacks |
| I/O Controller | iTE® I/O Controller Chip |
| Monitoring | Voltage, Temperature, Fan speed, Water flow, Fan fail warning, Speed control |
| BIOS | 128 Mbit AMI UEFI BIOS, PnP 1.0a, DMI 2.7, ACPI 5.0, etc. |
| Unique Features | GIGABYTE Control Center, Q-Flash, Q-Flash Plus, Smart Backup |
| Bundled Software | Norton® Internet Security (OEM) |
| OS Support | Windows 11/10 64-bit |
| Form Factor | Micro ATX, 24.4cm x 24.4cm |
