Description

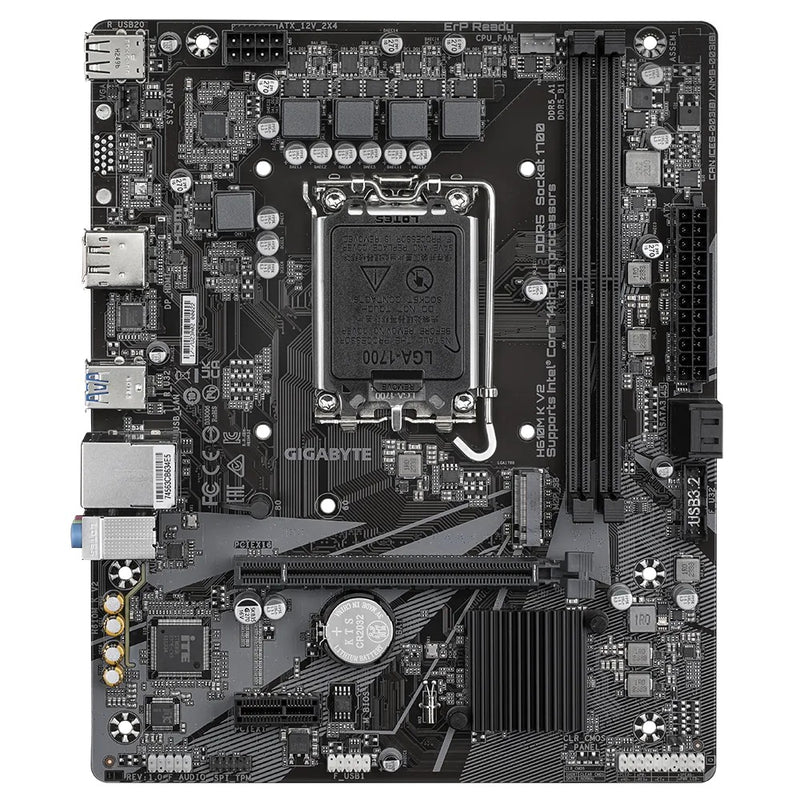

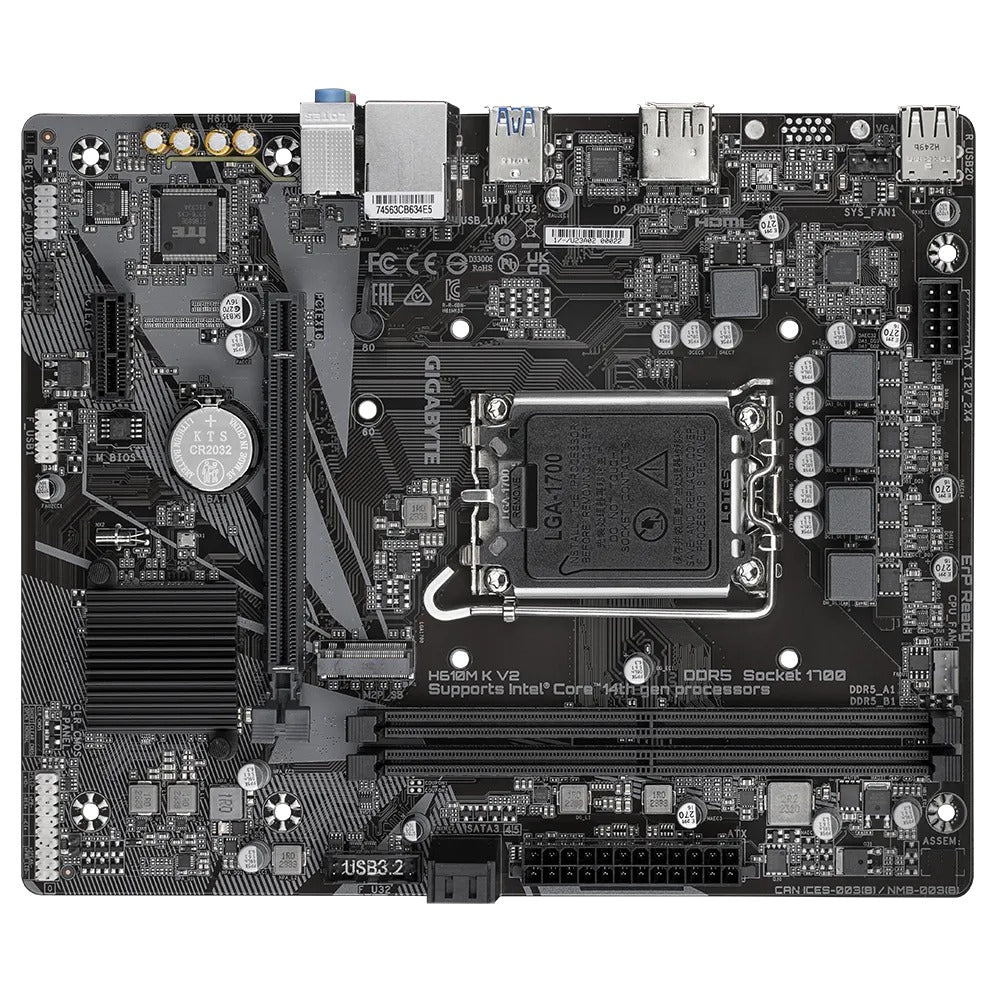

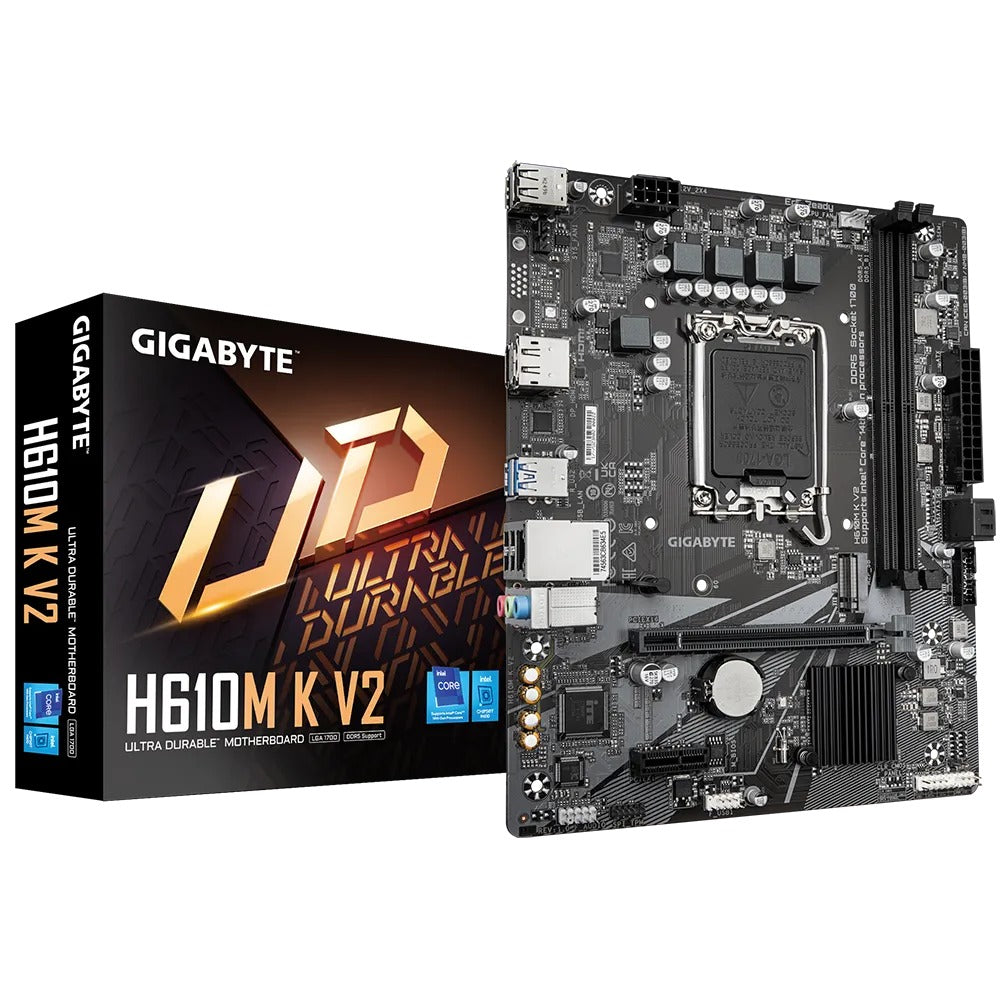

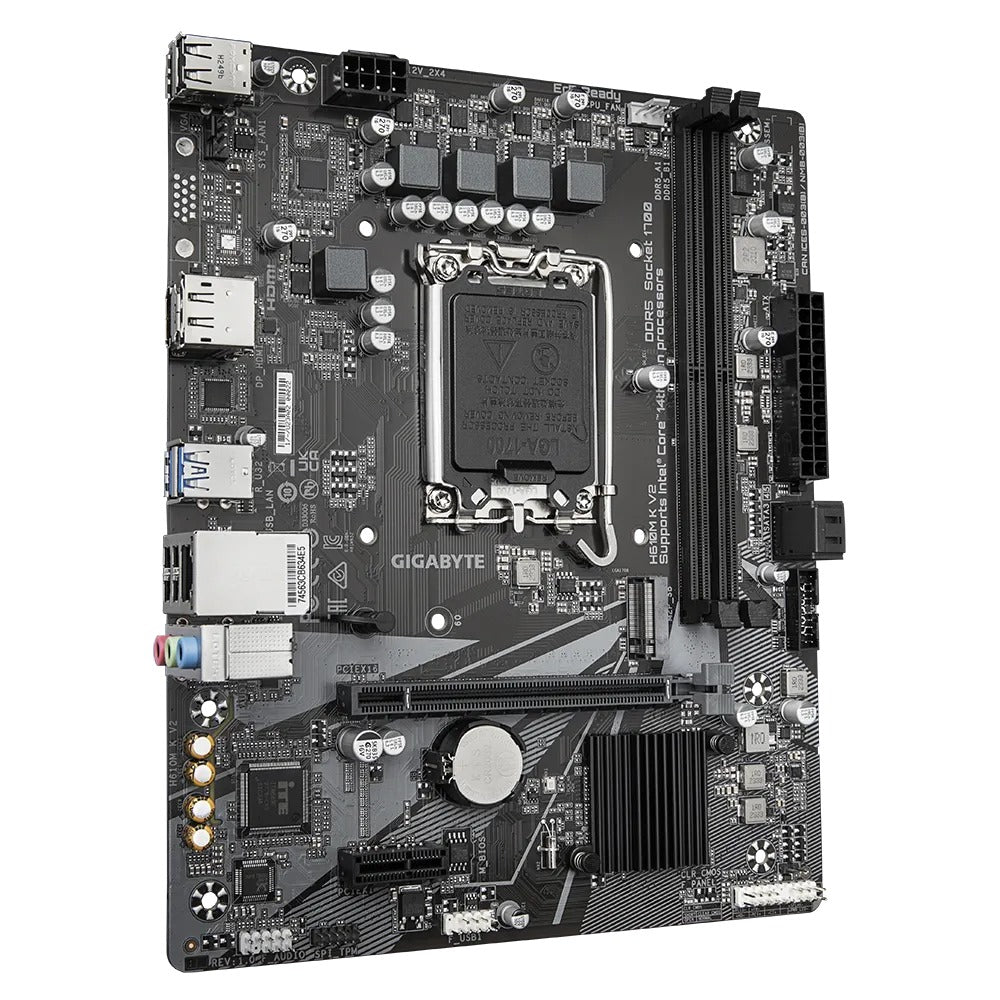

H610M K V2 (rev. 1.0)
PCIe 4.0 Design, Gen3 x4 M.2 , GbE LAN , Anti-Sulfur Resistor, Smart Fan 6
- Supports Intel® Core™ 14th/ 13th /12th processors
- Dual Channel Non-ECC Unbuffered DDR5, 2 DIMMs
- GbE LAN with Bandwidth Management
- NVMe PCIe 3.0 x4 M.2
- High Quality Audio Capacitors and Audio Noise Guard
- Smart Fan 6 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- GIGABYTE APP Center, Simple and Easy Use
- Anti-Sulfur Resistors Design
Specifications:
| CPU | LGA1700 socket: Supports 14th, 13th, and 12th Gen Intel® Core™, Pentium® Gold, and Celeron® Processors * L3 cache varies with CPU * Refer to "CPU Support List" |
| Chipset | Intel® H610 Express Chipset |
| Memory | 14th/13th Gen i9/i7: DDR5 5600/5200/4800/4400 MT/s 13th Gen i5/i3 & 12th Gen: DDR5 4800/4400 MT/s 2 x DDR5 DIMM sockets, up to 128 GB Dual channel architecture ECC/Non-ECC support (ECC operates in non-ECC mode) XMP support * Refer to "Memory Support List" |
| Onboard Graphics | Intel® HD Graphics (depends on CPU) 1 x HDMI (4096x2160@60Hz) – HDMI 2.1, HDCP 2.3 1 x DisplayPort (4096x2304@60Hz) – DP 1.2, HDCP 2.3 |
| Audio | Realtek® Audio CODEC High Definition Audio, 2/4/5.1/7.1-channel * Configurable via software |
| LAN | Realtek® GbE LAN (1 Gbps/100 Mbps/10 Mbps) |
| Expansion Slots | CPU: 1 x PCIe x16 (PCIe 4.0, x16) Chipset: 1 x PCIe x1 (PCIe 3.0, x1) |
| Storage Interface | 1 x M.2 (PCIe 3.0 x4/x2) 2 x SATA 6Gb/s |
| USB Ports | 4 x USB 3.2 Gen 1 (2 rear, 2 via header) 6 x USB 2.0/1.1 (4 rear, 2 via header) |
| Internal I/O | 1 x 24-pin ATX 1 x 8-pin ATX 12V 1 x CPU fan header 1 x System fan header 1 x M.2 Socket 3 2 x SATA 1 x Front panel header 1 x Front panel audio header 1 x USB 3.2 Gen 1 header 1 x USB 2.0 header 1 x TPM header 1 x Clear CMOS jumper |
| Back Panel | 1 x HDMI 1 x DisplayPort 2 x USB 3.2 Gen 1 4 x USB 2.0 1 x RJ-45 3 x audio jacks |
| I/O Controller | iTE® I/O Controller Chip |
| Monitoring | Voltage, Temperature, Fan speed, Water flow Fan fail warning Fan speed control (*depends on fan) |
| BIOS | 128 Mbit flash, AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Unique Features | APP Center (*varies by model) - @BIOS, EasyTune, Smart Backup, System Info Viewer Support for Q-Flash |
| Bundled Software | Norton® Internet Security (OEM), LAN bandwidth manager |
| OS Support | Windows 11 64-bit, Windows 10 64-bit |
| Form Factor | Micro ATX, 22.6cm x 18.5cm |
