Description

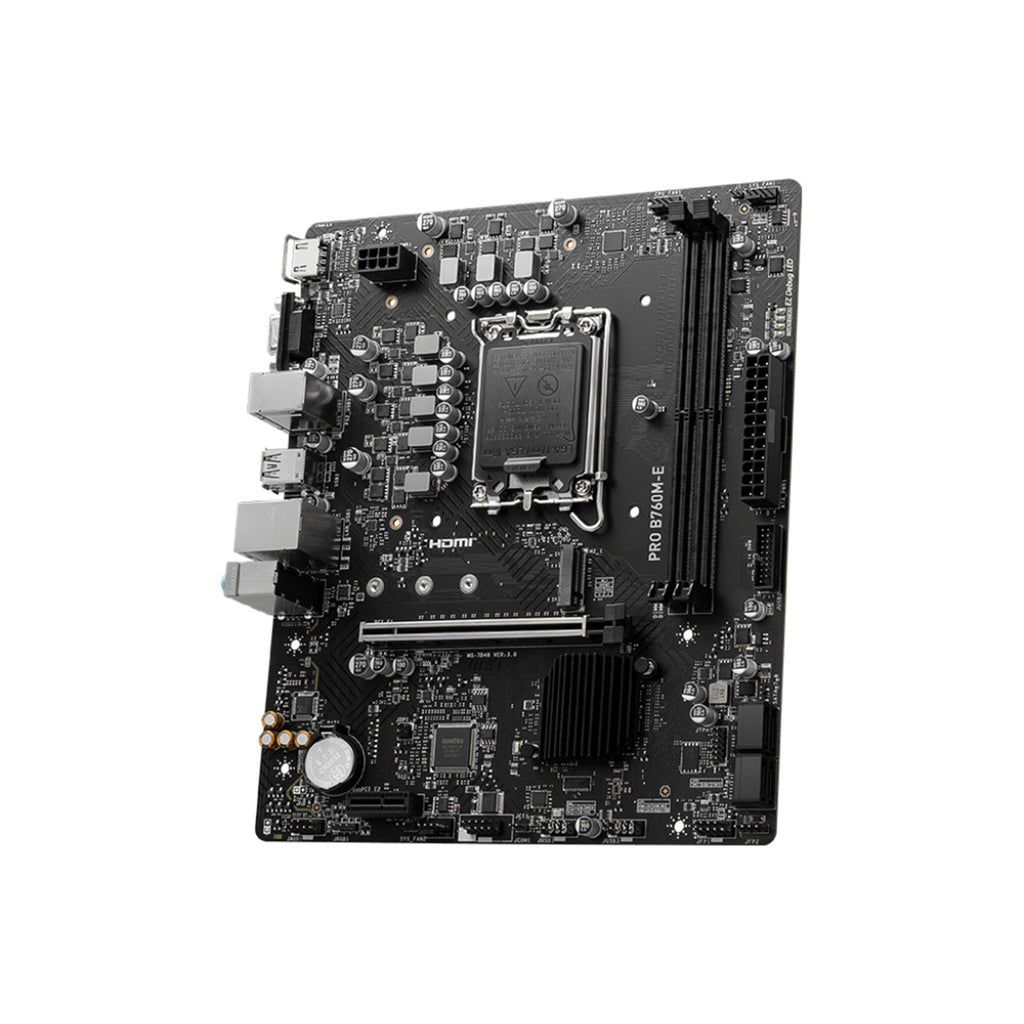

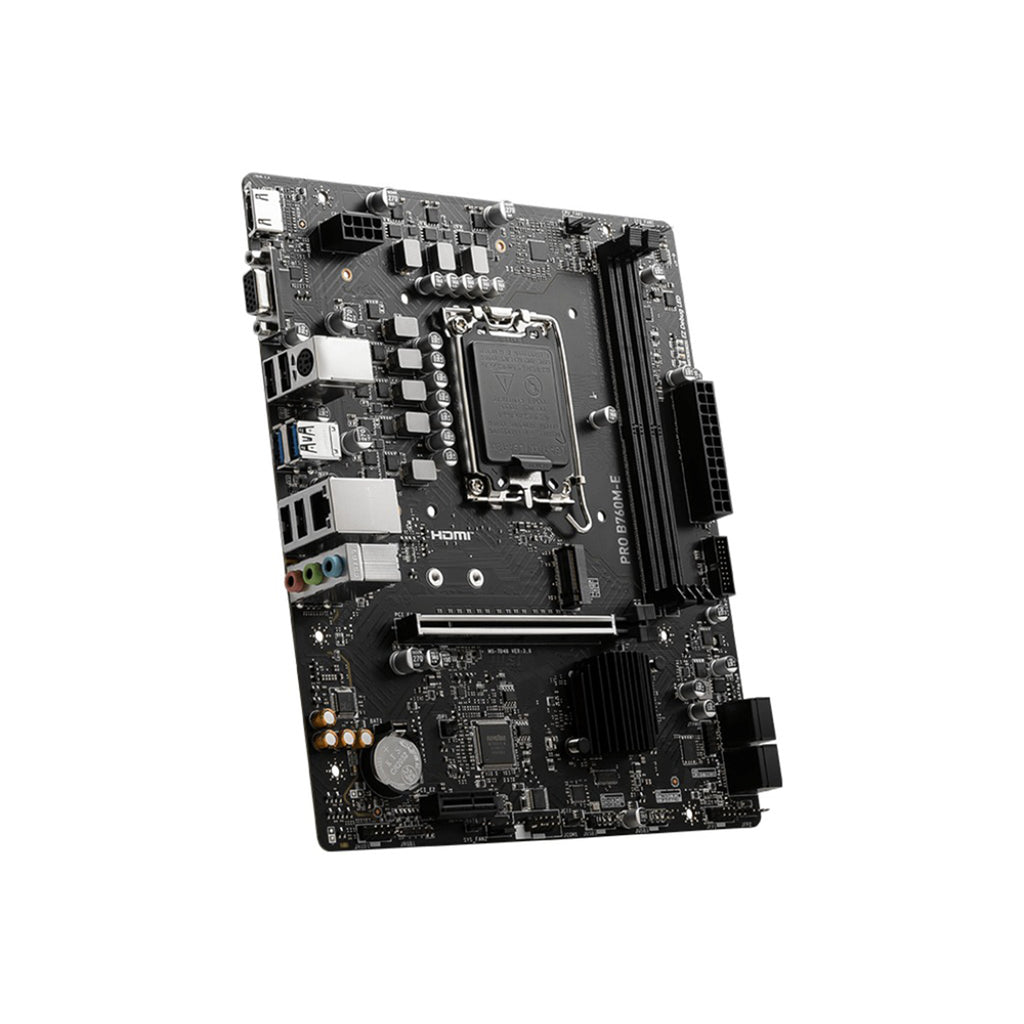

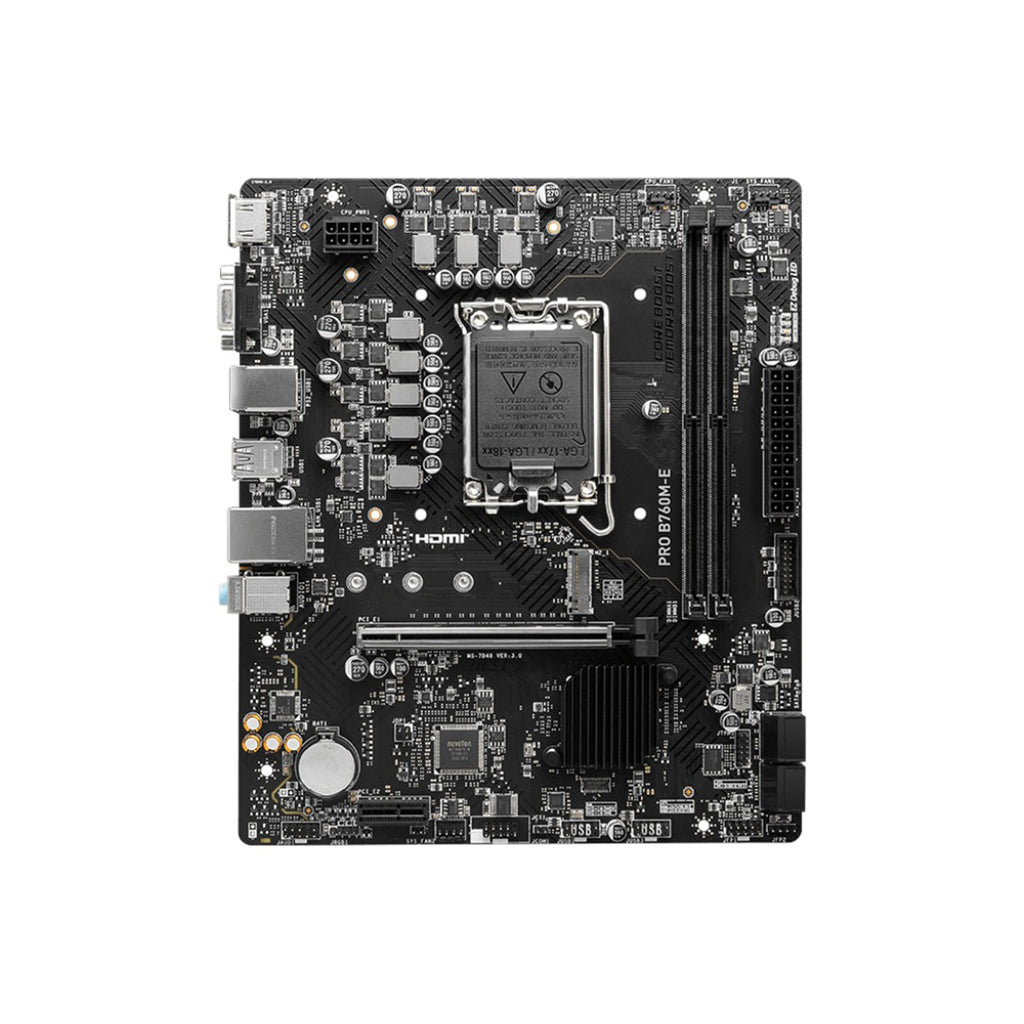

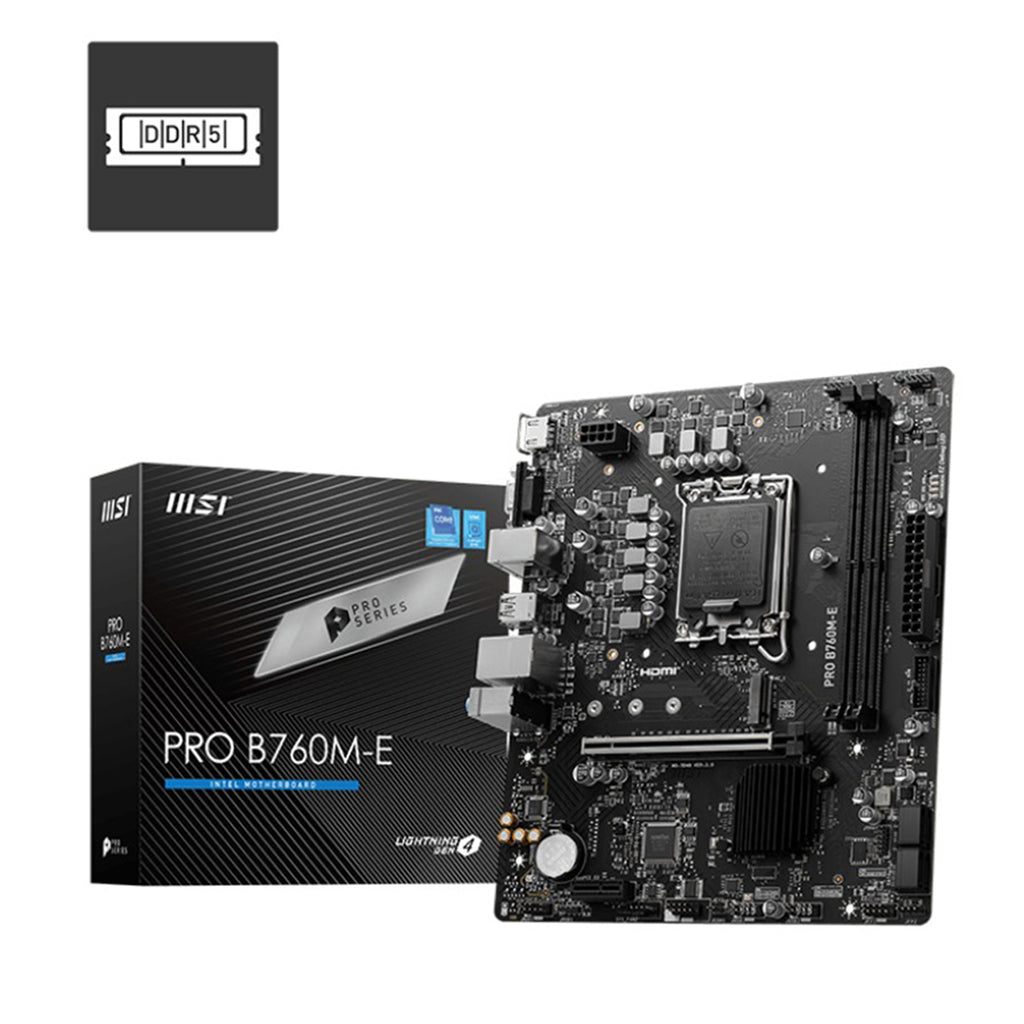

MSI PRO B760M-E DDR5 Intel Motherboard
- Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors for LGA 1700 socket
- Supports DDR5 Memory, Dual Channel DDR5 6400+MHz (OC)
- Core Boost : With premium layout and digital power design to support more cores and provide better performance
- Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
- Lightning Fast Experience: PCIe 4.0, Lightning Gen4 x4 M.2
- AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience
- Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength
| Motherboard Specifications | |
|---|---|
| Chipset | INTEL B760 |
| CPU | Support Intel® Core™ 14th/13th/12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors LGA 1700 |
| Memory | 2x DDR5, Maximum Memory Capacity 128GB DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) Max. Overclocking Frequency: • 1DPC 1R: up to 6400+ MHz • 1DPC 2R: up to 5600 MHz Supports Intel® XMP 3.0 OC Supports Dual-Controller Dual-Channel mode Supports non-ECC, un-buffered memory |
| Onboard Graphics | 1x HDMI™ 1.4 with HDR, max 4K@30Hz 1x VGA, max 2048×1536@50Hz, 2048×1280@60Hz, 1920×1200@60Hz *Available only on processors featuring integrated graphics. Specifications may vary depending on CPU installed. |
| Slots | 1x PCI-E x16 (PCIe 4.0, from CPU) 1x PCI-E x1 (PCIe 3.0, from Chipset) |
| Audio | Realtek® ALC897 Codec 7.1-Channel High Definition Audio |
| Storage | 1x M.2 (PCIe 4.0 x4 / SATA, 2280/2260/2242) 4x SATA 6Gb/s * SATA5 will be unavailable when using M.2 SATA SSD in M2_1 slot |
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
| USB | Rear: 4x USB 2.0, 2x USB 5Gbps Type-A Front: 4x USB 2.0, 2x USB 5Gbps Type-A |
| LAN | Realtek® RTL8111H Gigabit LAN |
| Internal I/O | 1x 24-pin ATX Power Connector 1x 8-pin CPU Power Connector 1x CPU Fan header 2x System Fan headers 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x COM Port (JCOM) 1x RGB LED Connector (JRGB) 1x TPM 2.0 Header 4x USB 2.0 ports 2x USB 5Gbps Type-A ports |
| LED Feature | 4x EZ Debug LED |

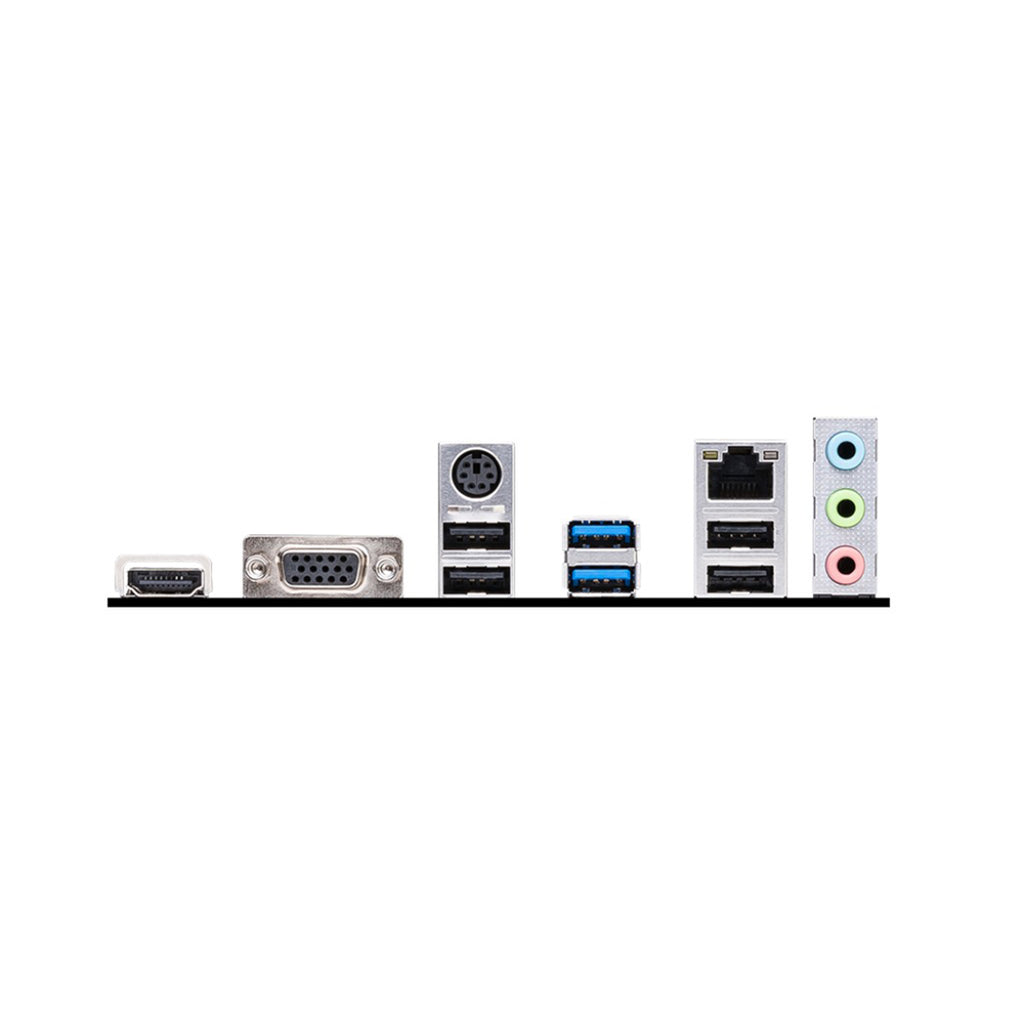

| Back Panel Ports | 1x HDMI™ 1x VGA 1x Keyboard / Mouse 1x USB 3.2 Gen 1 (5Gbps, Type-A) 1x LAN port 3x Audio Connectors 2x USB 2.0 |
| Operating System | Windows® 11 64-bit, Windows® 10 64-bit |
| PCB Info | mATX, 200mm × 236.16mm |
