Description

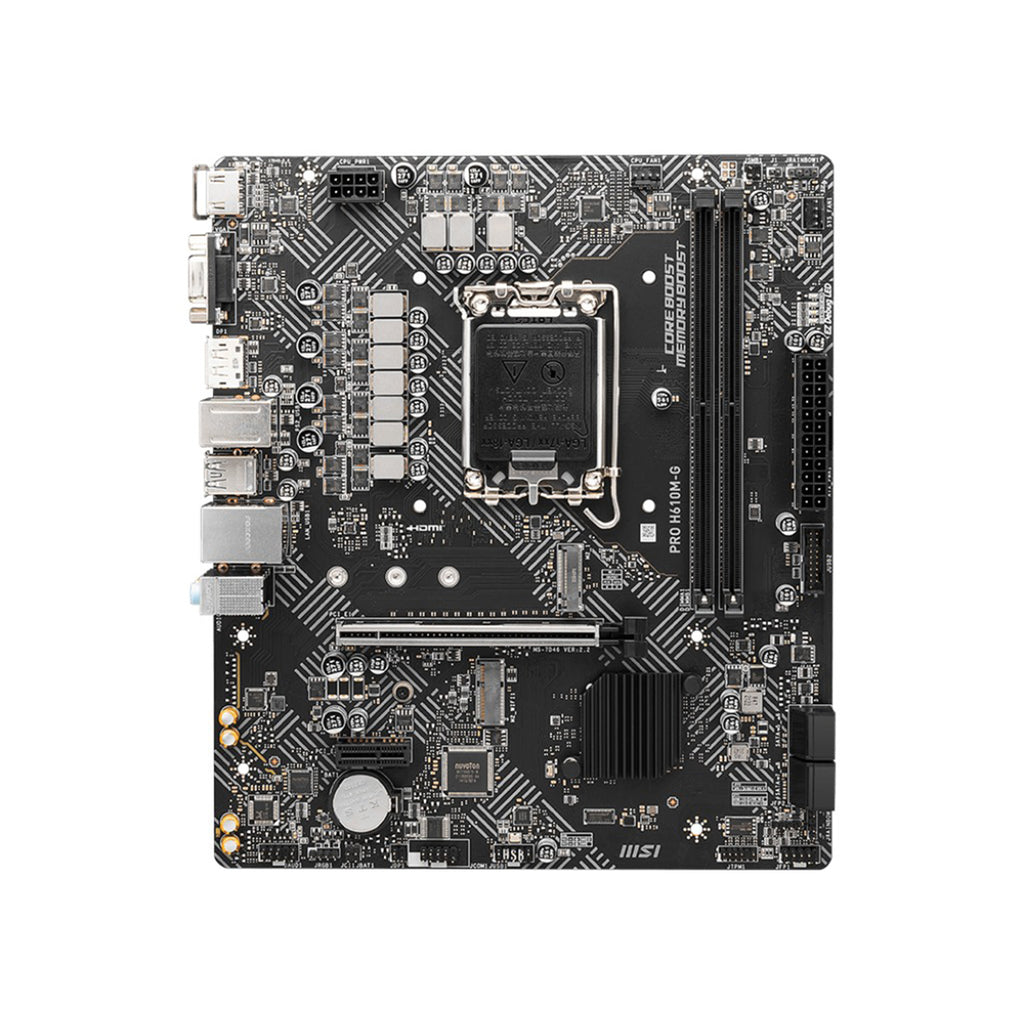

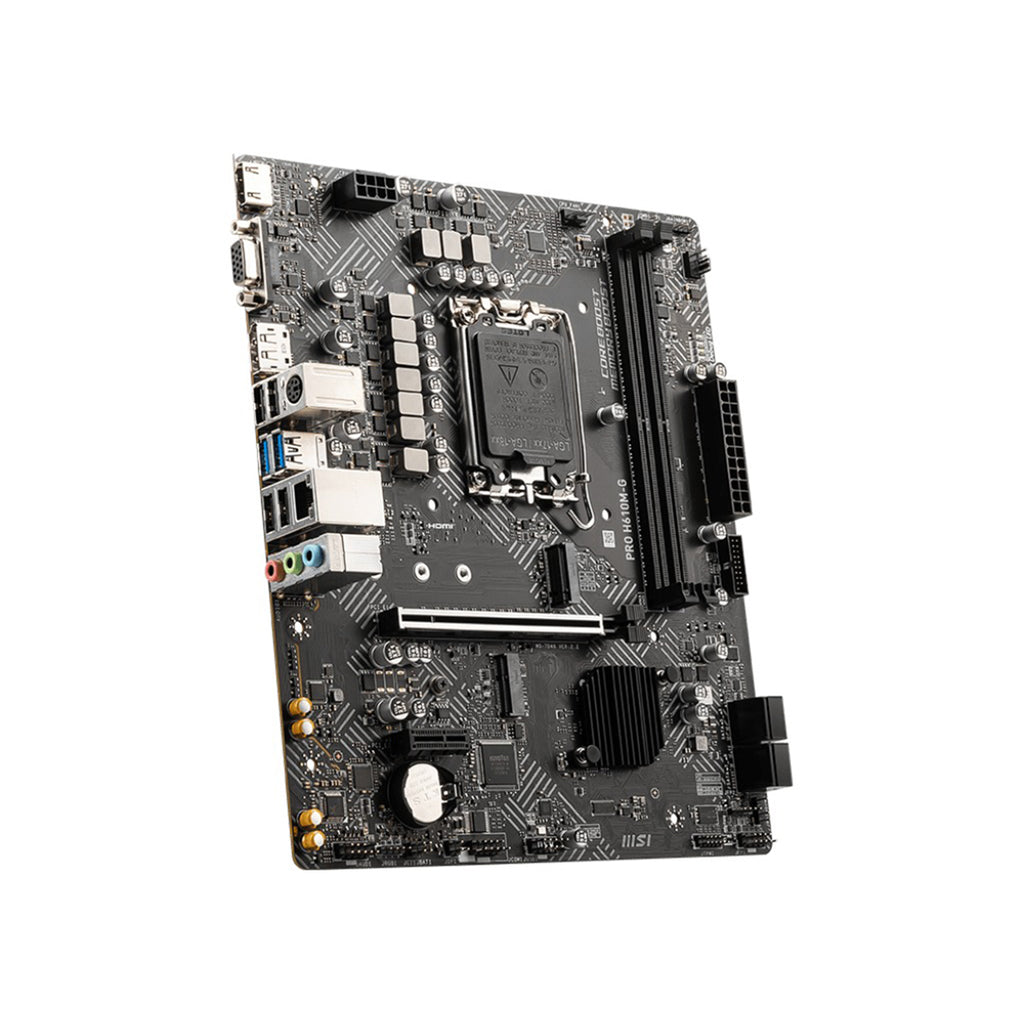

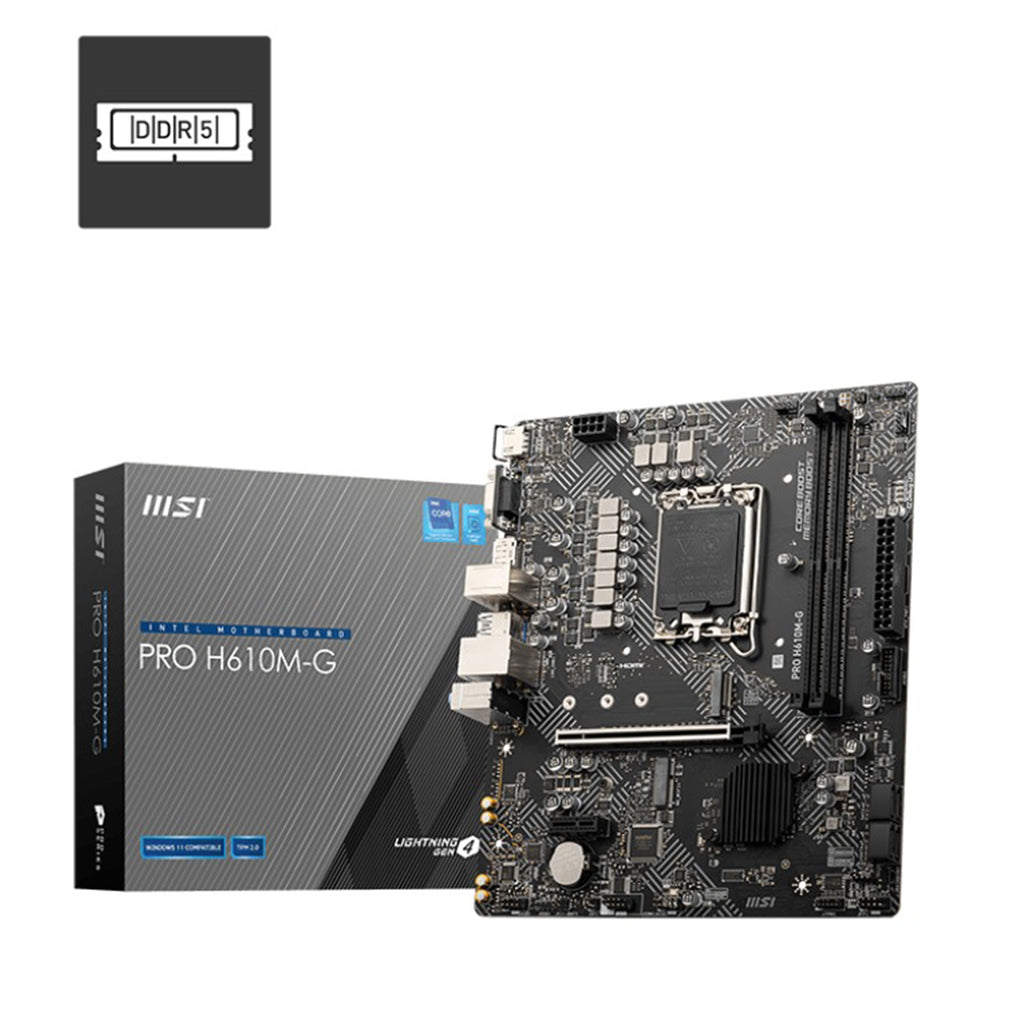

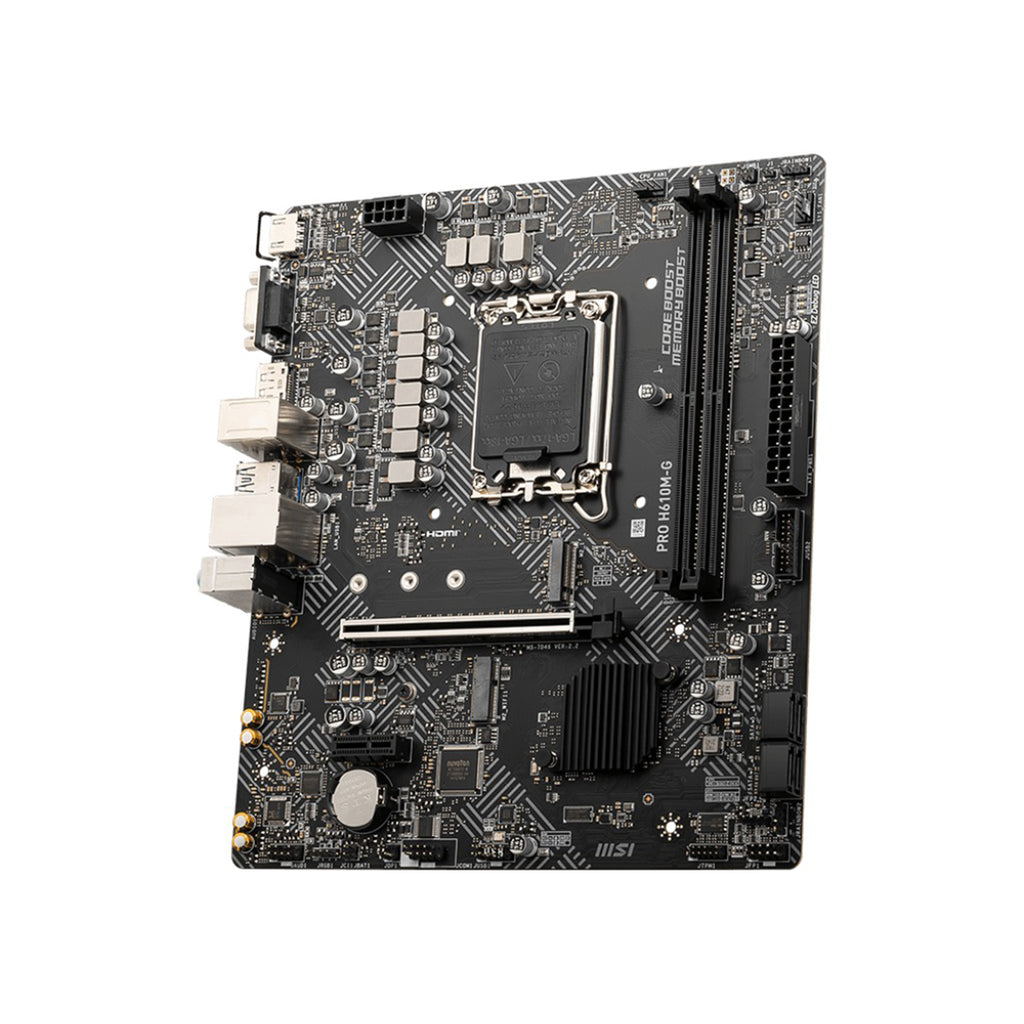

MSI PRO H610M-G WiFi DDR5 Intel Motherboard
- Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors for LGA 1700 socket
- Supports DDR5 Memory, up to 5600(MAX) MHz
- Core Boost : With premium layout and digital power design to support more cores and provide better performance
- Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
- Lightning Fast Experience: PCIe 4.0
- Audio Boost: Reward your ears with studio grade sound quality
- Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength.
| Motherboard Specifications | |
|---|---|
| Chipset | INTEL H610 |
| CPU | Support Intel® Core™ 14th/13th/12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors LGA 1700 |
| Memory | 2x DDR5, Maximum Memory Capacity 96GB DDR5 5600 MHz (by JEDEC & POR) Supports Intel® XMP 3.0 OC Supports Dual-Controller Dual-Channel mode Supports non-ECC, un-buffered memory |
| Onboard Graphics | 1x HDMI™ 2.1, max 4K@60Hz 1x DisplayPort 1.4, max 4K@60Hz 1x VGA, max 2048×1536@50Hz, 2048×1280@60Hz, 1920×1200@60Hz *Available only on processors featuring integrated graphics. Specifications may vary depending on CPU installed. |
| Slots | 1x PCI-E x16 (PCIe 4.0, from CPU) 1x PCI-E x1 (PCIe 3.0, from Chipset) 1x M.2 slot with E-key for PCIe WiFi module only |
| Audio | Realtek® ALC897 Codec 7.1-Channel High Definition Audio |
| Storage | 1x M.2 (PCIe 3.0 x4 / SATA, 2280/2260/2242) 4x SATA 6Gb/s * SATA7 will be unavailable when using M.2 SATA SSD in M2_2 slot |
| USB | Rear: 4x USB 2.0, 2x USB 5Gbps Type-A Front: 2x USB 2.0, 2x USB 5Gbps Type-A |
| LAN | Intel® I219V 1Gbps LAN controller |
| Internal I/O | 1x 24-pin ATX Power Connector 1x 8-pin CPU Power Connector 1x CPU Fan header 1x System Fan header 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x COM Port (JCOM) 2x Addressable RGB LED (JRAINBOW) 1x RGB LED (JRGB) 1x TPM 2.0 Header 2x USB 2.0 ports 2x USB 5Gbps Type-A ports |
| LED Feature | 4x EZ Debug LED |

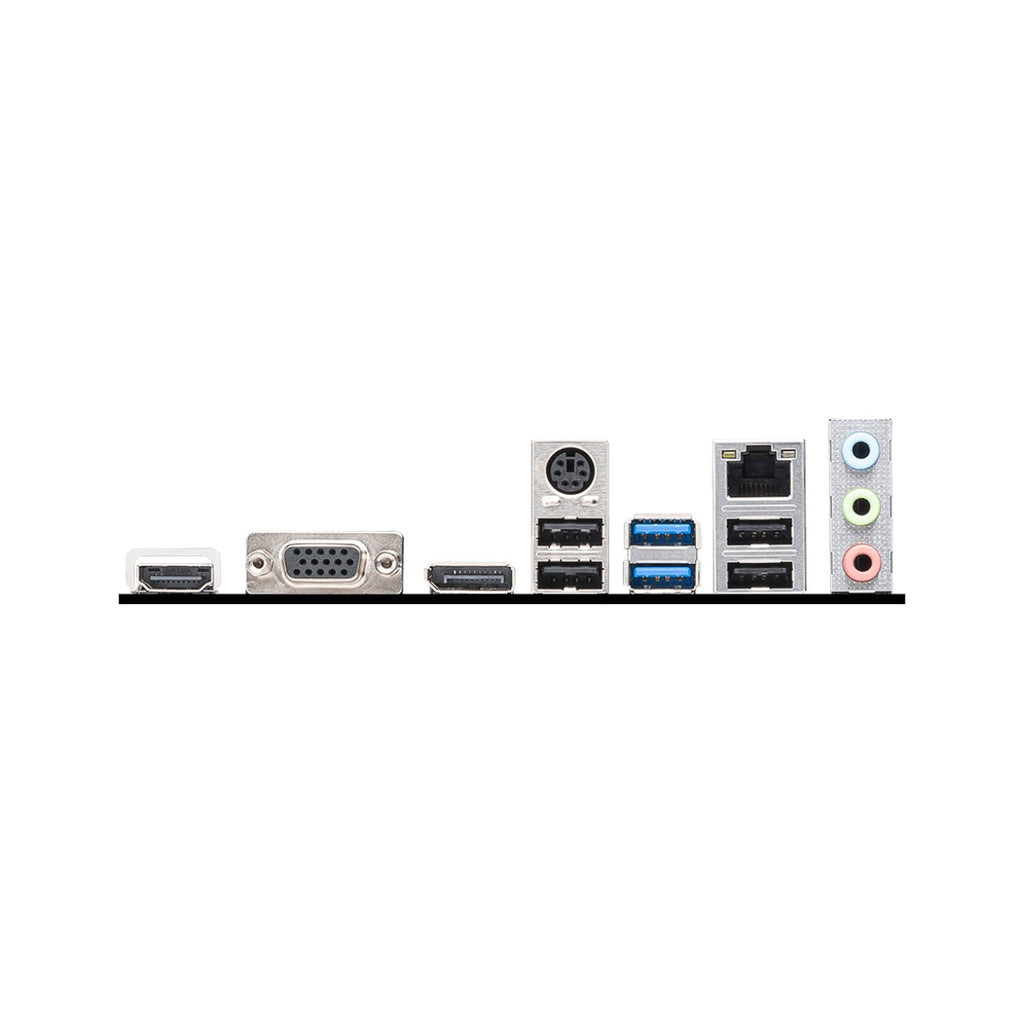

| Back Panel Ports | 1x HDMI™ 1x VGA 1x DisplayPort 1x Keyboard / Mouse 1x USB 3.2 Gen 1 (5Gbps, Type-A) 1x LAN port 3x Audio Connectors 4x USB 2.0 |
| Operating System | Windows® 11 64-bit, Windows® 10 64-bit |
| PCB Info | mATX, 211mm × 243.84mm |
