Description

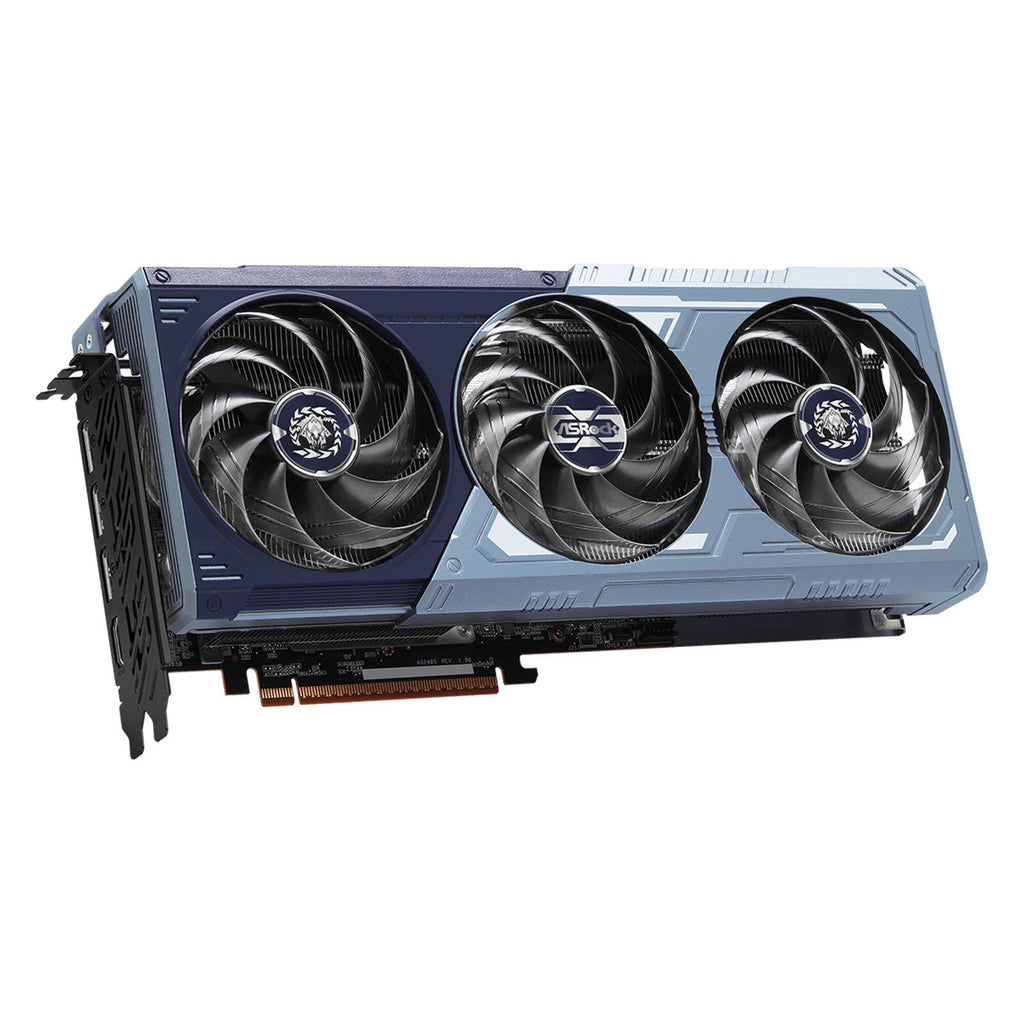

AMD Radeon™ RX 9070 XT Monster Hunter Wilds Edition 16GB
RX9070XT MH 16G
-
Clock: GPU / Memory
Boost Clock*: Up to 2970 MHz / 20 Gbps
Game Clock**: 2400 MHz / 20 Gbps -
Key Specification
AMD Radeon™ RX 9070 XT GPU
16GB GDDR6 on 256-Bit Memory Bus
AMD RDNA™ 4 Architecture
64 Compute Units (3rd Gen RT + 2nd Gen AI Accelerators)
Microsoft® DirectX® 12 Ultimate
PCI® Express 5.0 Support
2x 8-pin Power Connectors
3x DisplayPort™ 2.1a, 1x HDMI™ 2.1b -
Key Features
Polychrome SYNC
Triple Fan Design

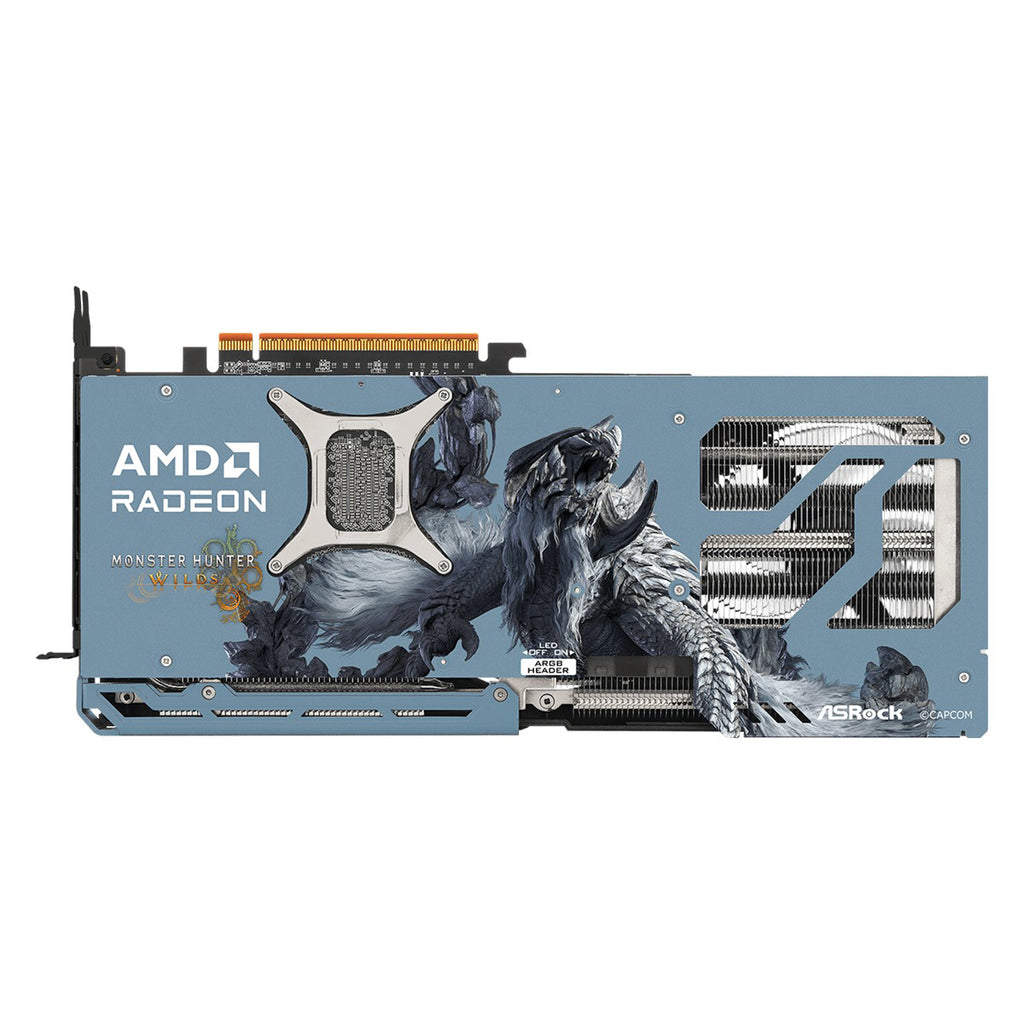

Stylish Metal Backplate
Striped Ring Fan
Reinforced Metal Frame
Air Deflecting Fin
Ultra-fit Heatpipe
Super Alloy Graphics Card
*Boost Clock is the maximum frequency achievable on the GPU running a bursty workload. Boost clock achievability, frequency, and sustainability will vary based on several factors, including but not limited to: thermal conditions and variation in applications and workloads.
**Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary.
**Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary.
| Graphics Engine | AMD Radeon™ RX 9070 XT |
| Bus Standard | PCI® Express 5.0 x16 |
| DirectX | 12 Ultimate |
| OpenGL | 4.6 |
| Memory | 16GB GDDR6 |
| Engine Clock | Boost Clock: Up to 2970 MHz Game Clock: 2400 MHz |
| Stream Processors | 4096 |
| Memory Speed | 20 Gbps |
| Memory Interface | 256-bit |
| Resolution | Digital Max Resolution: 7680 × 4320 |
| Interface | 3 × DisplayPort 2.1a, 1 × HDMI 2.1b |
| HDCP | Yes |
| Multi-view | 4 |
| Recommended PSU | 800W |
| Power Connector | 2 × 8-pin |
| Accessories | 1 × Quick Installation Guide |
| Dimensions | 298 × 131 × 58 mm (2.9-slot) |
| Net Weight | 1155 g |
