Description
_lxacdk.jpg)
_90kcdz.jpg)
_bnoqvo.jpg)
| CPU COOLER SPECIFICATIONS | |
|---|---|
| Compatibility | |

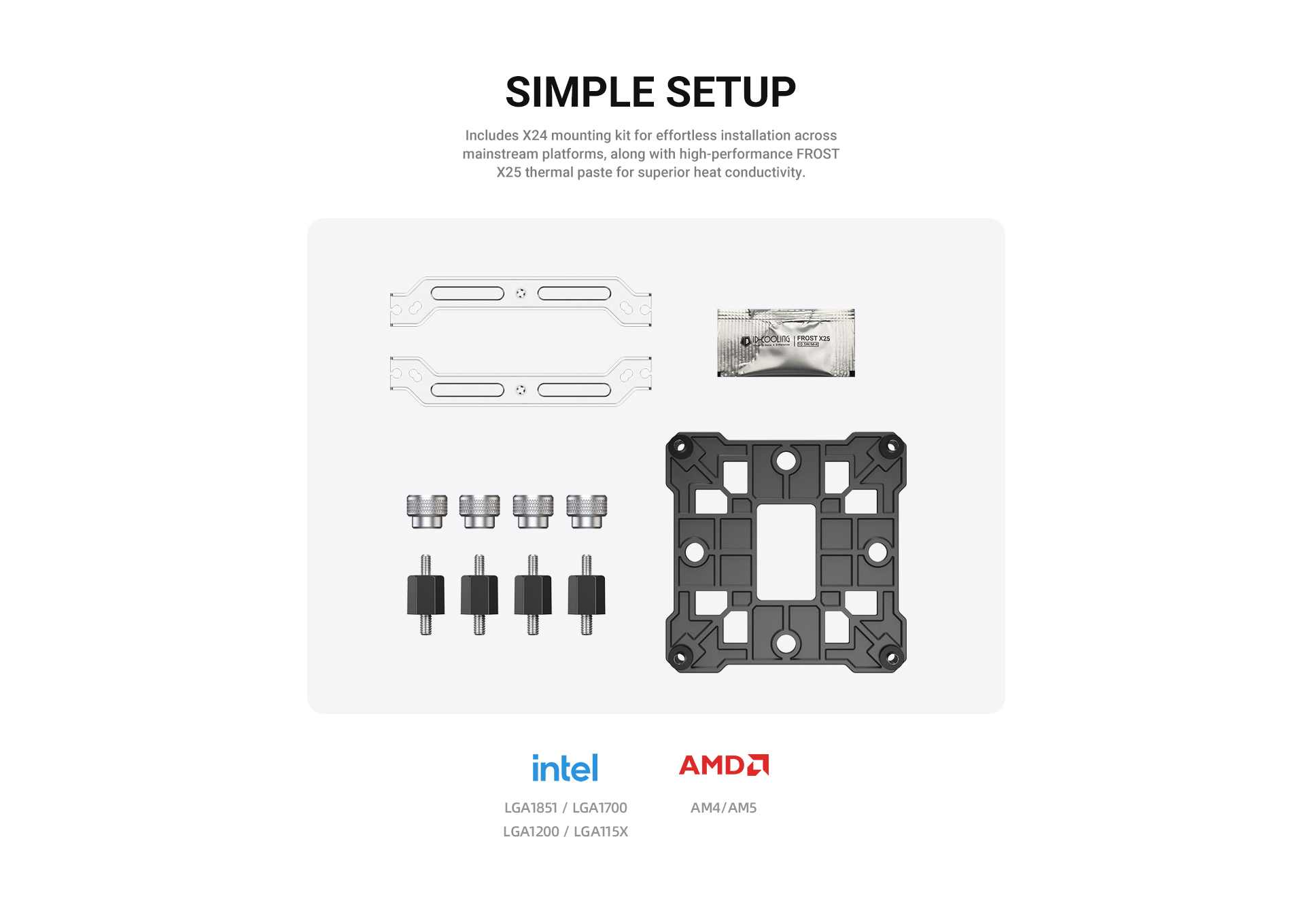

| Intel | LGA1851 / 1700 / 1200 / 115X |
| AMD | AM5 / AM4 |
| Performance | |
| TDP | 200W |
| Overall Dimension | 128 × 73 × 152 mm (L × W × H) |

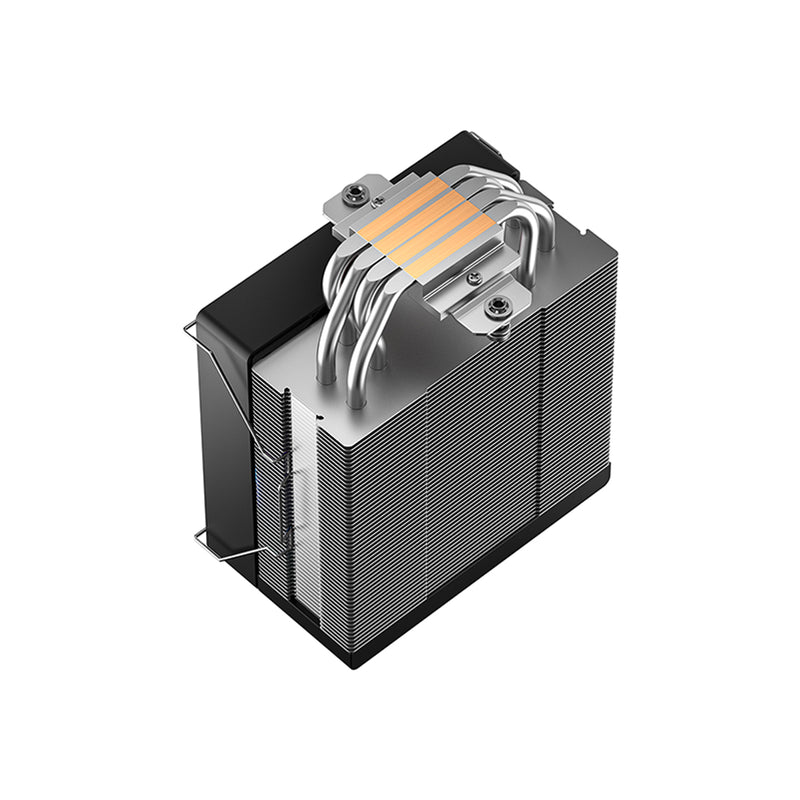

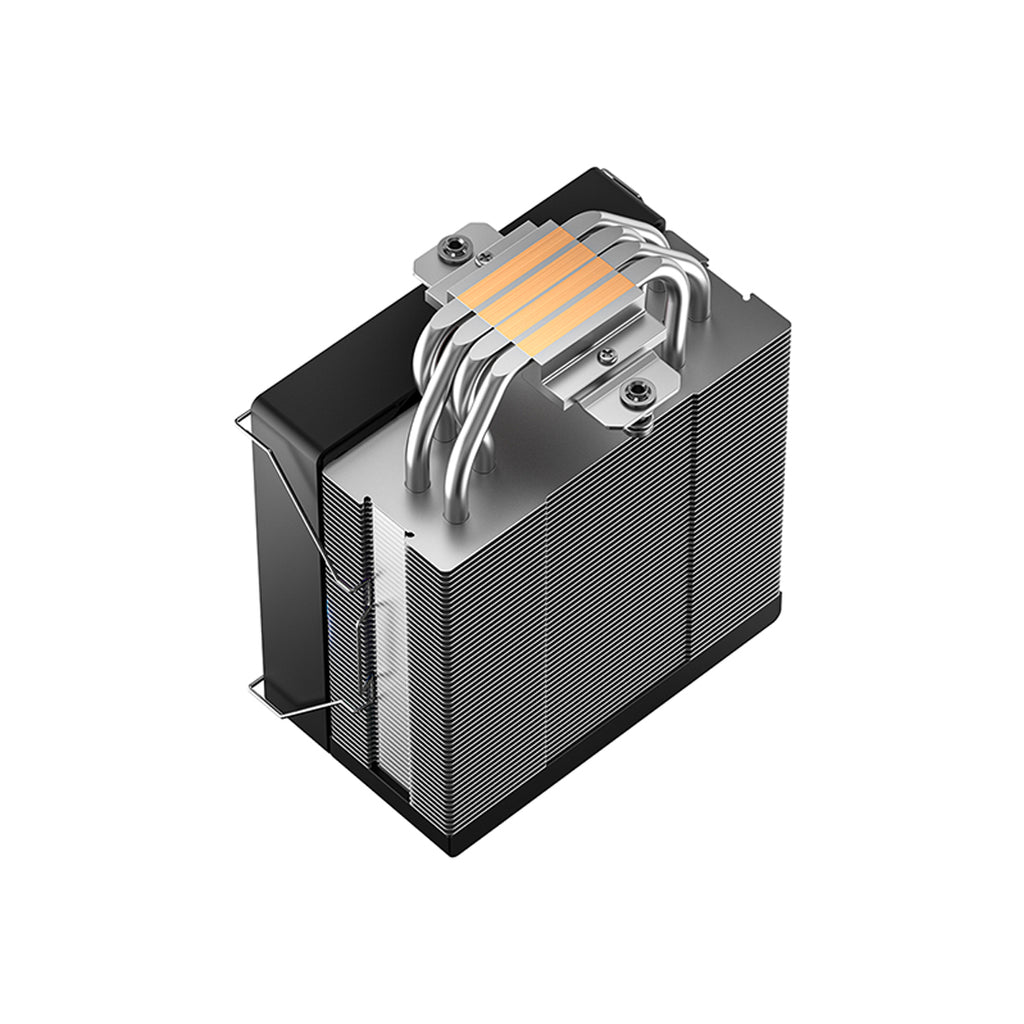

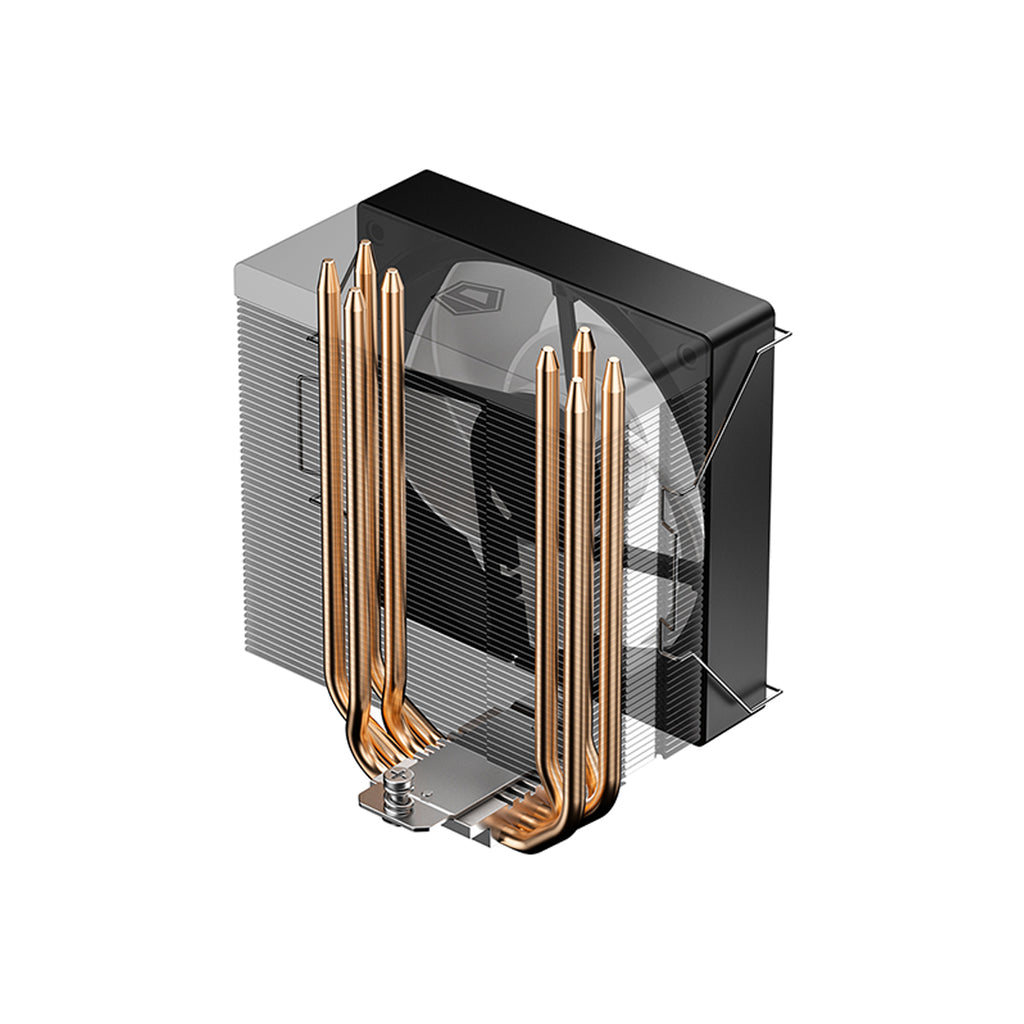

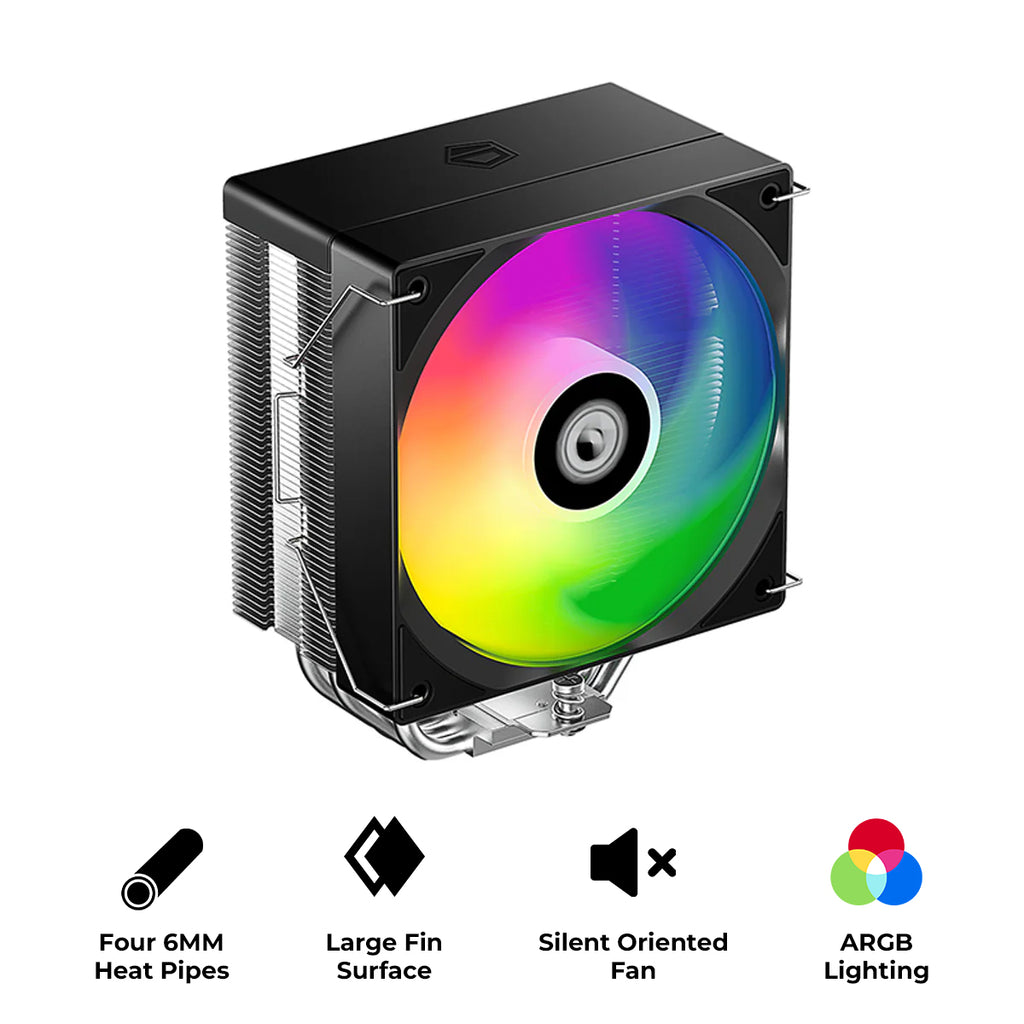

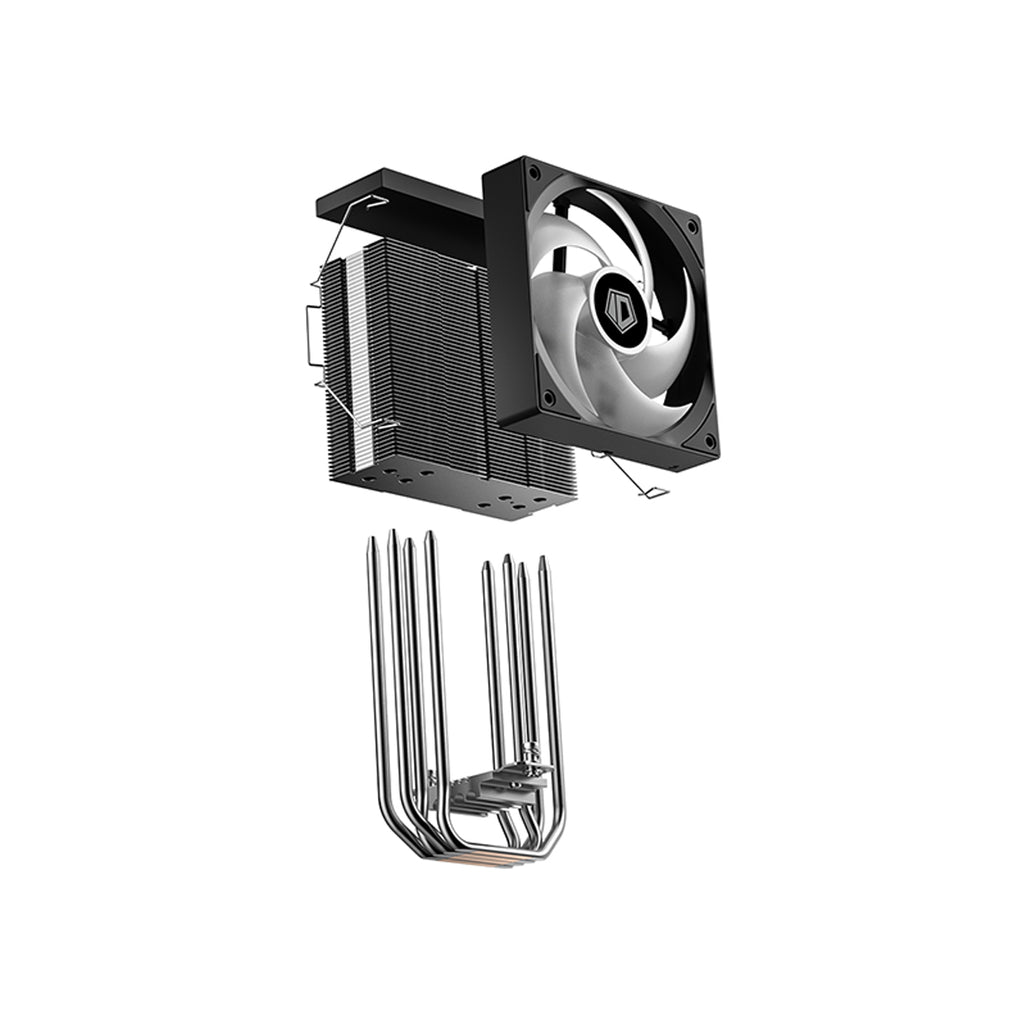

| Heatsink Material | 4 × Φ6mm Heatpipe (Direct Touch) + Aluminum Fin |
| Weight | 550g (heatsink + fan) |

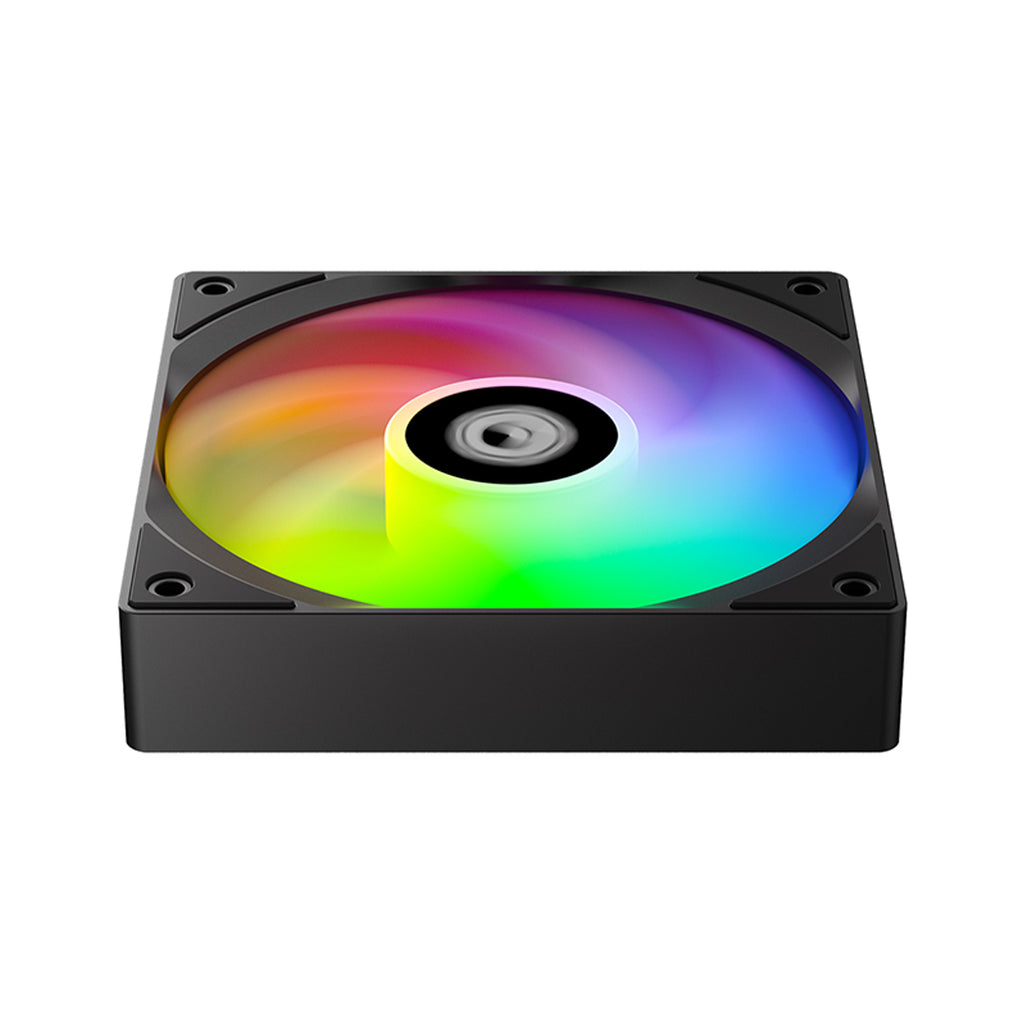

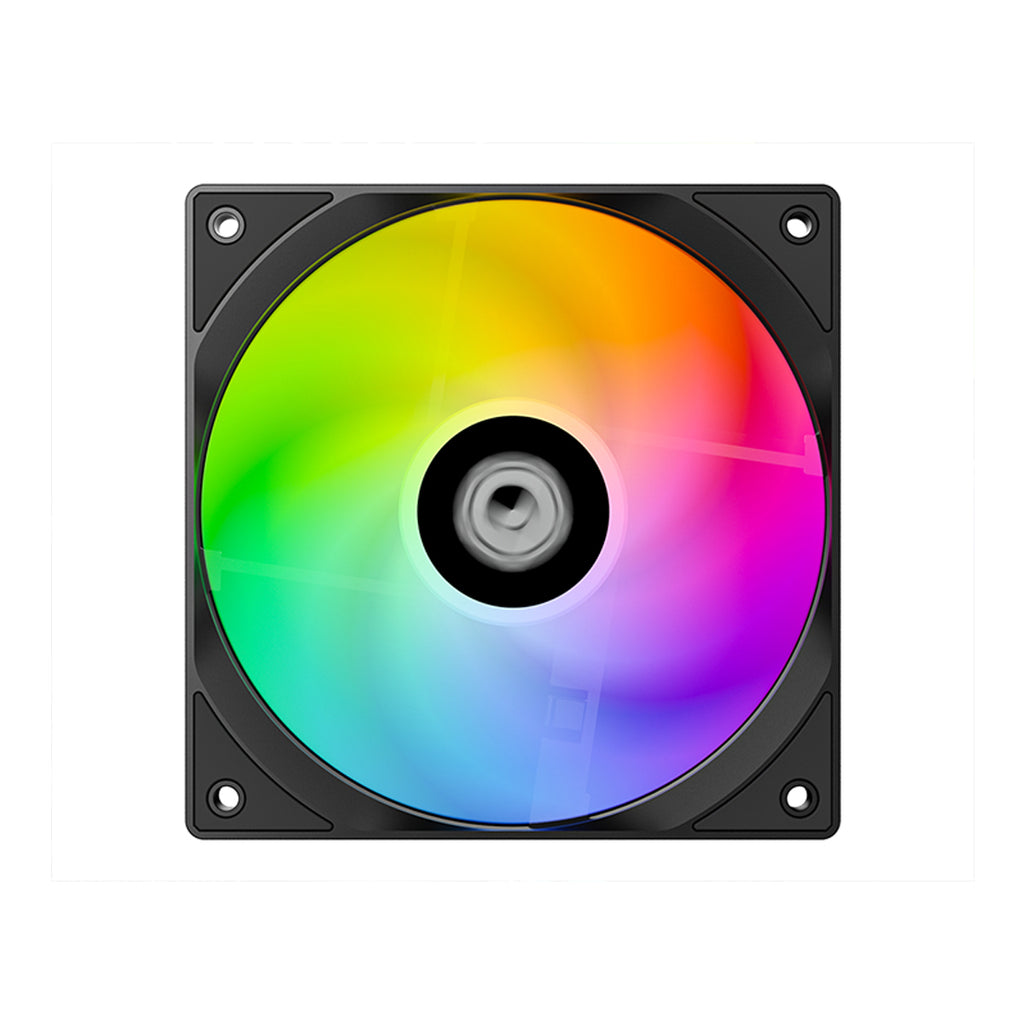

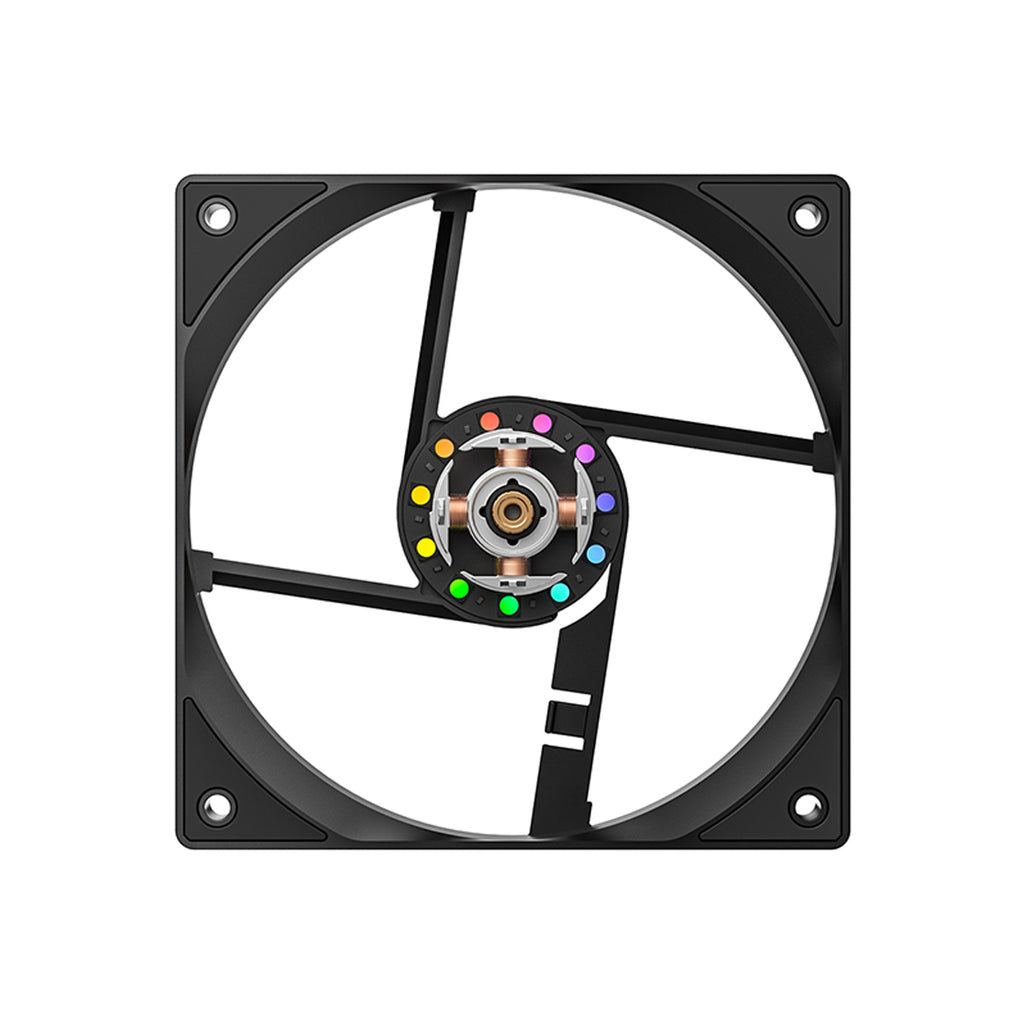

| Fan Specifications | |

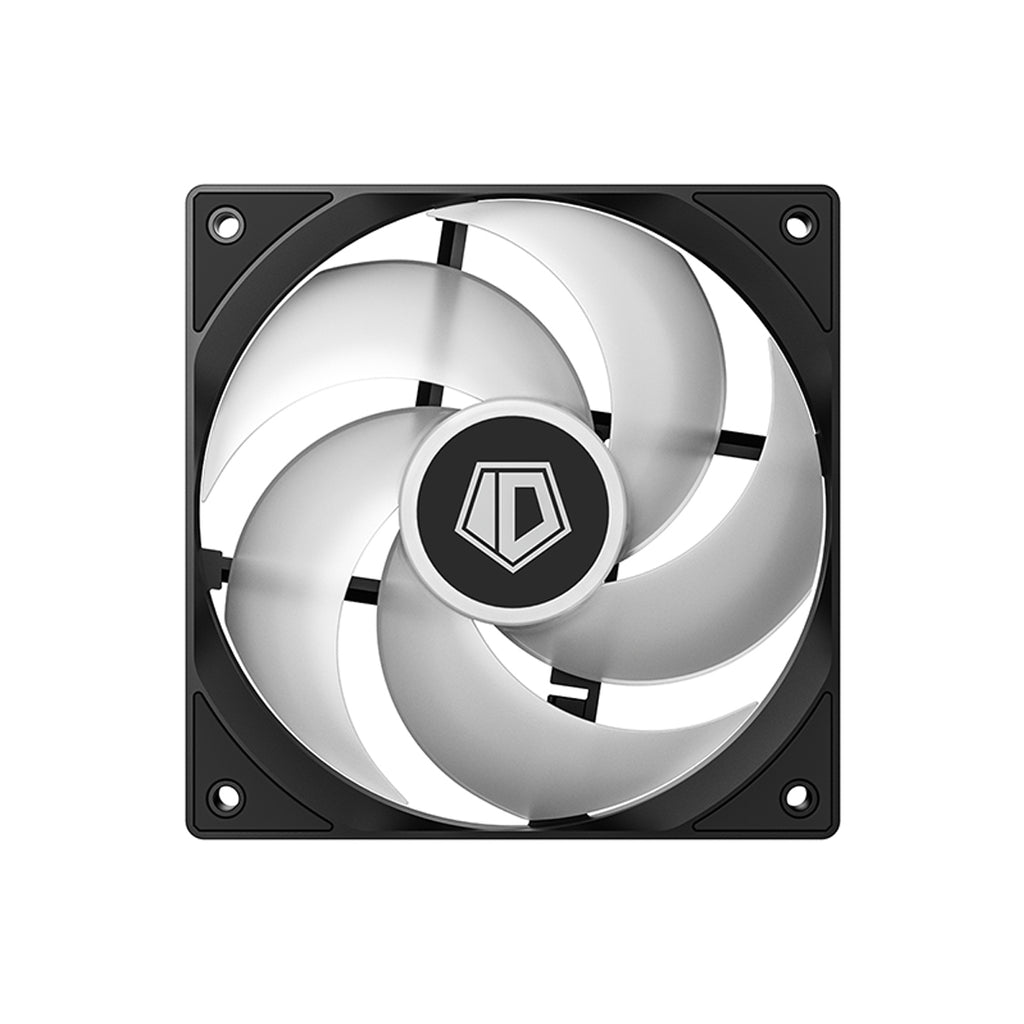

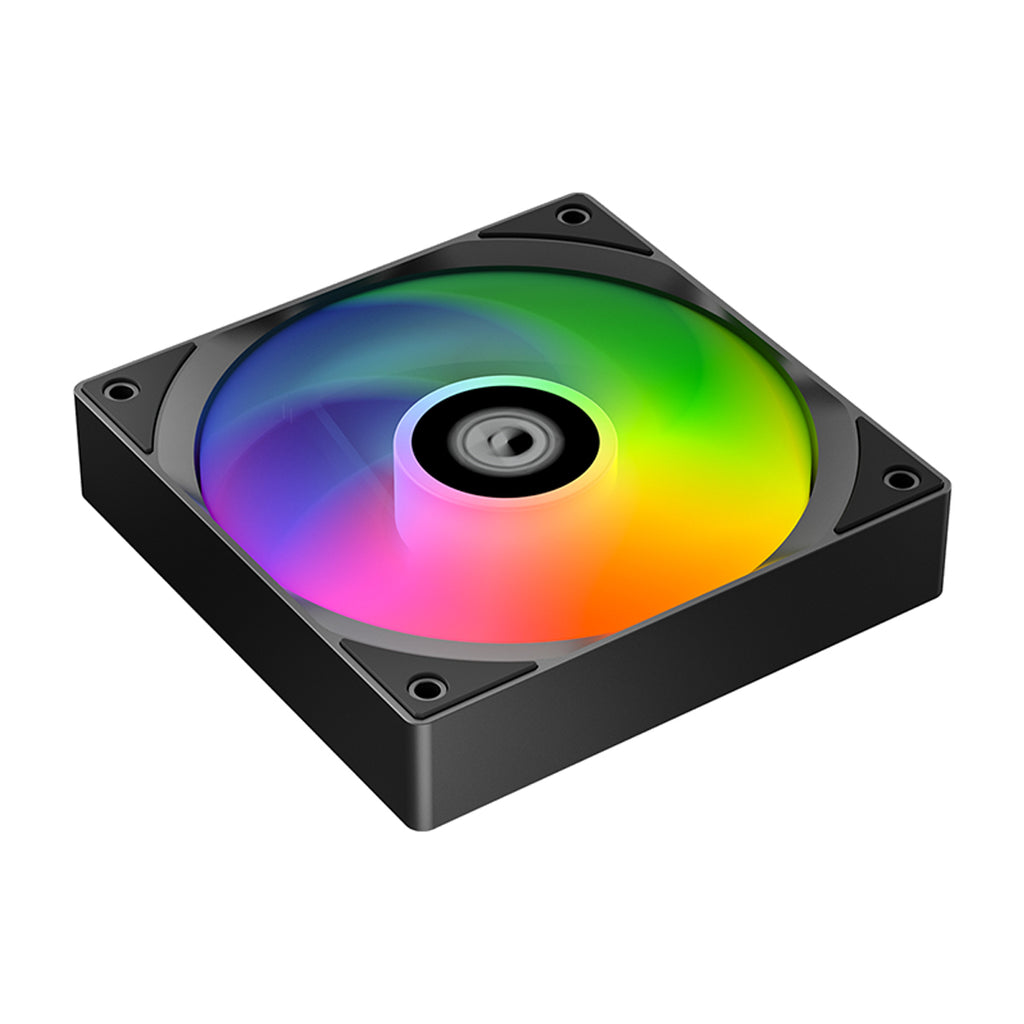

| Fan Model | AS-120-ARGB V2 |
| Fan Dimension | 120 × 120 × 25 mm |
| Fan Speed | 300 ~ 2000±10% RPM |
| Max. Air Flow | 58 CFM |
| Max. Static Pressure | 1.94 mmH₂O |
| Noise | 27.2 dB(A) Max. |
| Electrical Specifications | |
| Rated Voltage | 12 VDC (4-pin PWM) |
| Operating Voltage | 10.8 ~ 13.2 VDC |
| Started Voltage | 7 VDC |
| Rated Current | 0.15 A |
| Power Input | 1.8 W |
| Additional Information | |
| Bearing Type | Hydraulic Bearing |
| Connector | 4-pin PWM + 3-pin ARGB |
| EAN | 6931393308043 |
