Description
SER7 7840HS
CPU: AMD Ryzen™ 7 7840HS Processor, 8 Cores/16 Threads, 5.1GHz
Graphics: AMD Radeon 780M (Frequency 2700MHz)
Storage: 1TB M.2 2280 PCIe 4.0 SSD
Memory: 32GB DDR5 (SO-DIMM Slots×2, Up to 5600MHz, Max 64GB)
Wireless Network: WiFi 6, BlueTooth 5.2
Power: Magnetic Power Supply (With 19V/6.32A adapter)

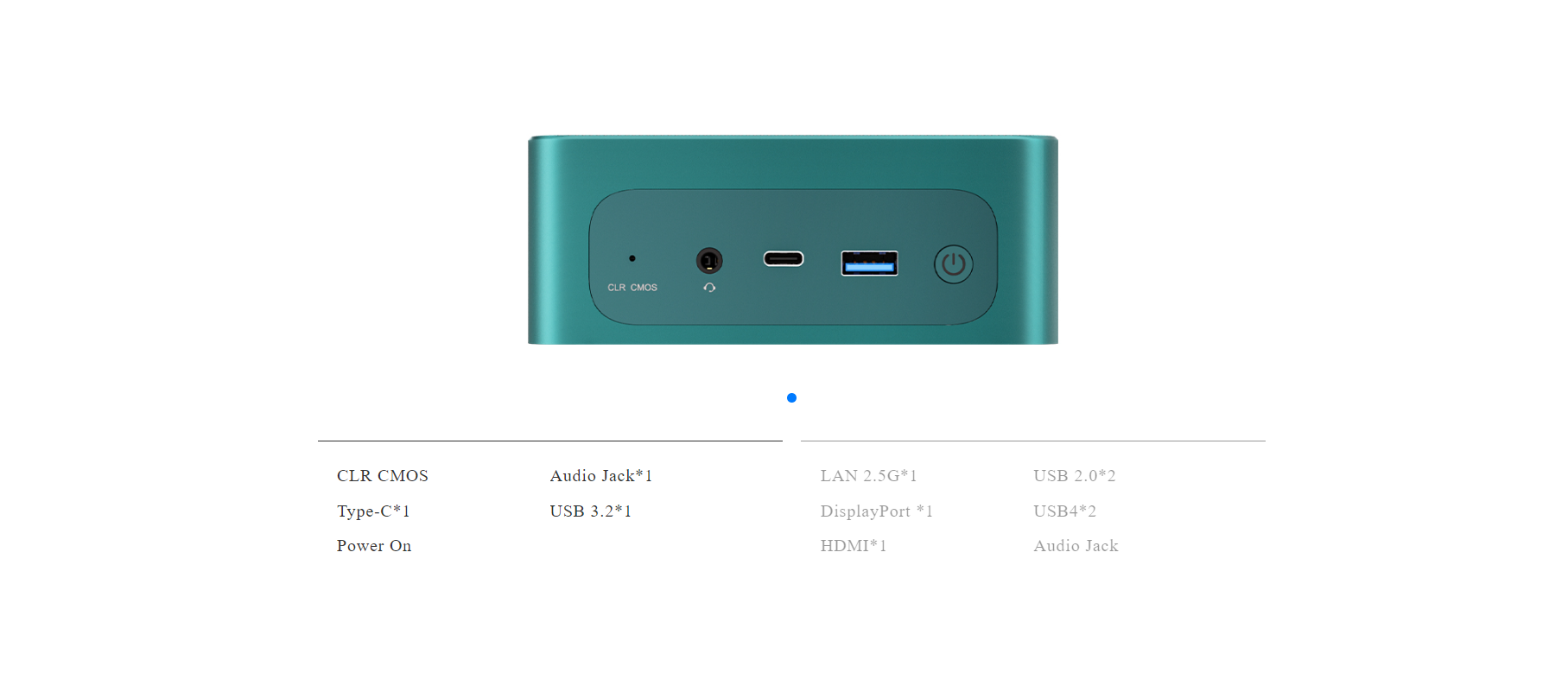

Interface: USB4 ×2, DP 1.4 ×1, HDMI 2.1 ×1, LAN 2.5G ×1, Type-C ×1, Audio Jack ×2, USB 3.2 ×1, USB 2.0 ×2, DC IN*1
If you want to use USB4 port(PD3.0 100W) for power supply, please set the TDP to 54W in your BIOS settings and use a PD charger which supports 20V voltage and maximum OCP of 6.32A.
Please be sure to connect 120W power adapter to DC port for power supply if you set the TDP to 65W.
SPECIFICATION
| CPU | AMD Ryzen™ 7 7840HS Base 3.80 GHz boost to 5.10 GHz |
| GPU | 12 Cores 2700 MHz Frequency |
| SSD | M.2 2280 PCIe 4.0 1TB SSD |
| Memory | Dual SO-DIMM 32GB DDR5 |
| Cooling System | MSC Technology-Vapor Chamber and System Fan |
| Quad Display | HDMI+DisplayPort+Dual USB4, Support 4K 144Hz displays. |
| Color | Dark Green |
| Audio | 3.5mm Audio Jack*2 Realtek ALC897 |
| Wireless Network | WiFi 6+Bluetooth 5.2 |
| Adapter | Input: AC 110V,50/60Hz Output: 19V/5.26A |
| Additional function | AUTO POWER ON WOL |
