Arctic P12 PWM PST RGB 0dB Semi-Passive 120mm Single Fan with Analogue RGB (Black) (ACFAN00186A)

Name: Arctic P12 PWM PST RGB 0dB Semi-Passive 120mm Single Fan with Analogue RGB (Black) (ACFAN00186A)
Brand: Arctic
SKU: 0840033400947
Price: 650.0 PHP
Availability: OutOfStock

ArcticSKU: 0840033400947

Arctic P12 PWM PST RGB 0dB Semi-Passive 120mm Single Fan with Analogue RGB RGB for Full Colours The P12 PWM PST RGB 0dB has 12 analogue RGB LEDs in the center fan wheel. These can be controlled uniformly and are compatible with the common RGB standards of leading motherboard manufacturers. ...

See full description

Share this product

Arctic P12 PWM PST RGB 0dB Semi-Passive 120mm Single Fan with Analogue RGB

RGB for Full Colours

The P12 PWM PST RGB 0dB has 12 analogue RGB LEDs in the center fan wheel. These can be controlled uniformly and are compatible with the common RGB standards of leading motherboard manufacturers. The fan can thus be fully illuminated directly via the RGB mainboard connection or an external controller and synchronised with the illumination of other hardware.

0 dB Mode — Zero rpm

The speed of the P12 PWM PST RGB 0dB can be throttled a standstill via PWM. This allows for silent operation in IDLE and at the same time guarantees maximum performance when needed.

Maximum Smoothness, Minimum Vibration

The operating noise of the newly developed ARCTIC motor is barely perceptible even at the lowest speed. In addition, the P12 PWM PST RGB has rubberised contact surfaces and thus reduces audible vibrations to a minimum.

Optimised for High Static Pressure

The P12 PWM PST RGB operates with a focused airflow and high static pressure. The fan thus guarantees extremely efficient cooling, even with increased air resistance, and is, therefore, suitable for use on heat sinks, radiators, and filters.

200 to 2000 rpm Controlled via PWM PST

With a wide speed range and the innovative PWM Sharing Technology (PST), the fan speed of the P12 PWM PST RGB can be controlled synchronously with all other fans. This reduces noise to a minimum while guaranteeing maximum cooling performance.

High-Quality Plain Bearing

Thanks to an alloy/lubricant combination developed in Germany, friction within the bearing is reduced and greater efficiency is achieved. In this way, less heat develops, less bearing noise is generated and the service life of the fan is extended.

General Specifications
Performance
Fan Speed	200—2000 rpm PWM Controlled (0 rpm below 5% PWM)
Airflow	48.80 cfm \| 82.91 m³/h
Static Pressure	1.85 mmH₂O
Noise Level	0.3 Sone
Operating Ambient Temperature	0—40 °C
Fan
Fan Frame	Standard
Control Type	PWM PST
Connector	4-Pin Connector + 4-Pin Socket
Fan Bearing	Fluid Dynamic Bearing
Warranty	6 Years
Electric Characteristics
Typical Voltage	12 V DC
Starting Voltage	5 V
Current \| Voltage	0.11 A \| 12 V DC
Cable Length	400 mm
RGB Specifications
LEDs	12 A-RGB LEDs
Connector	4-Pin 12 V-G-R-B Connector
Current / Voltage	0.2 A \| 12 V DC
Cable	450 mm Cable with 80 mm Sharing Cable, Black

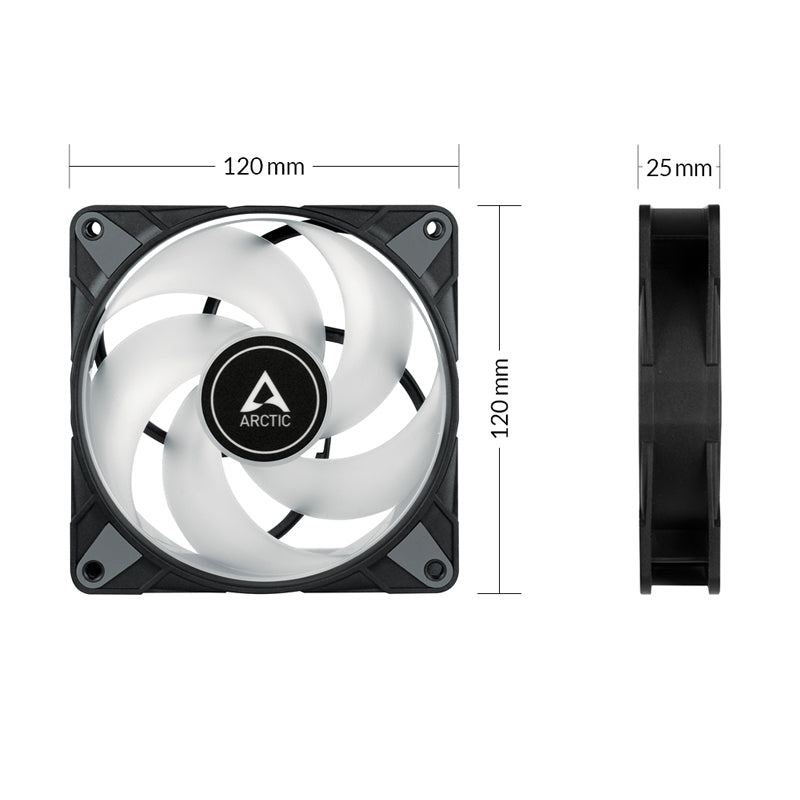

Size & Weight
Length	120 mm
Width	120 mm
Height	25 mm
Weight	131 g
