Description

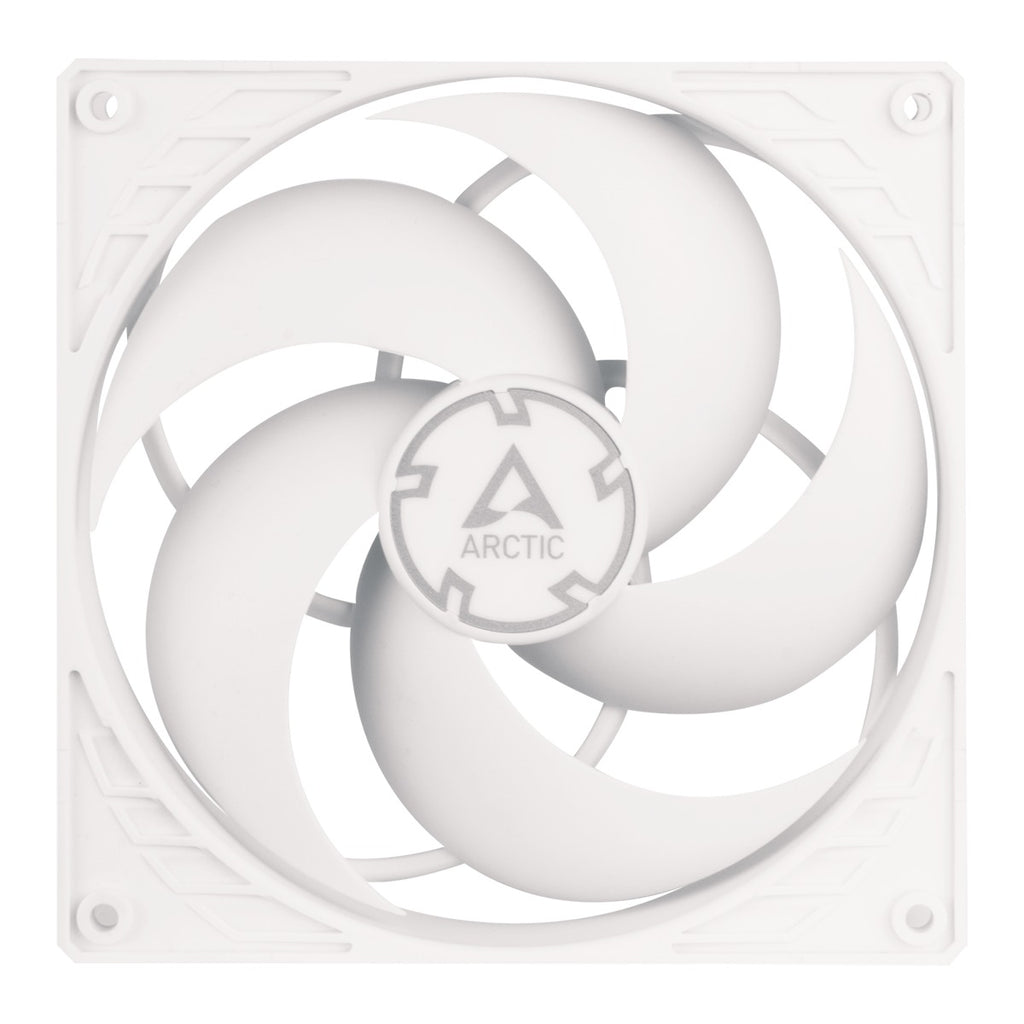

Arctic P14 PWM PST 140mm PWM Single Fan with Cable Splitter
Optimised for Static Pressure
During the development of the new P14 PWM PST, special emphasis was placed on a focused airstream and thus a high static pressure. The fan guarantees extremely efficient cooling, even with increased air resistance. Therefore, the P14 PWM PST is particularly suitable for use on heatsinks and radiators.
0 dB Mode — Zero rpm
More Efficient Technology
The motor is powered by a PWM IC of the newest generation, which allows the new P14 PWM PST to run much more efficiently than its predecessors. This saves energy without compromising the performance.
Maximum Quietness, Minimum Vibration
Even at low speeds the operating sound of the new ARCTIC motor is barely noticeable. Due to sinus-magnetizing the new motor only creates about 5 % of the vibration from the commutation of a regular DC motor without a filter. Consequently, there is no need for rubber spacers due to the steady and smooth torque of the new motor.
Extended Life Span
A 10 °C lower motor temperature roughly doubles the life span of a fan. Due to the low coil temperature of the new ARCTIC fan motors, the service life of the fans increases considerably. Therefore, we extend the warranty to 6 years.
200 to 1700 rpm Regulated via PWM PST
With a wide range of regulation and the PWM Sharing Technology (PST), the P14 PWM PST fan speed can be controlled synchronously with all your other fans together. This keeps noise at a minimum while guaranteeing maximum cooling performance when needed.
High-Quality Bearing
Thanks to an alloy/lubricant combination developed in Germany, friction within the bearing is reduced and greater efficiency is achieved. As a result, there is less heat development as well as less bearing noise, which means you can enjoy a longer service life from your fan.
Two Way Installation
- Push warm air out of the case
- Pull cool air into your case
| General Specifications | |
| Performance | |
| Fan Speed | 200—1700 rpm PWM Controlled (0 rpm below 5% PWM) |
| Airflow | 72.80 cfm | 123.76 m³/h |
| Static Pressure | 2.40 mmH2O |
| Noise Level | 0.3 Sone |
| Operating Ambient Temperature | 0—40 °C |
| Fan | |
| Fan Frame | Standard |
| Control Type | PWM PST |
| Connector | 4-Pin Connector + 4-Pin Socket |
| Fan Bearing | Fluid Dynamic Bearing |
| Warranty | 6 Years |
| Electric Characteristics | |
| Typical Voltage | 12 V DC |
| Starting Voltage | 3.9 V |
| Current | Voltage | 0.12 A | 12 V DC |
| Cable Length | 400 mm |
| Size & Weight | |
| Length | 140 mm |
| Width | 140 mm |

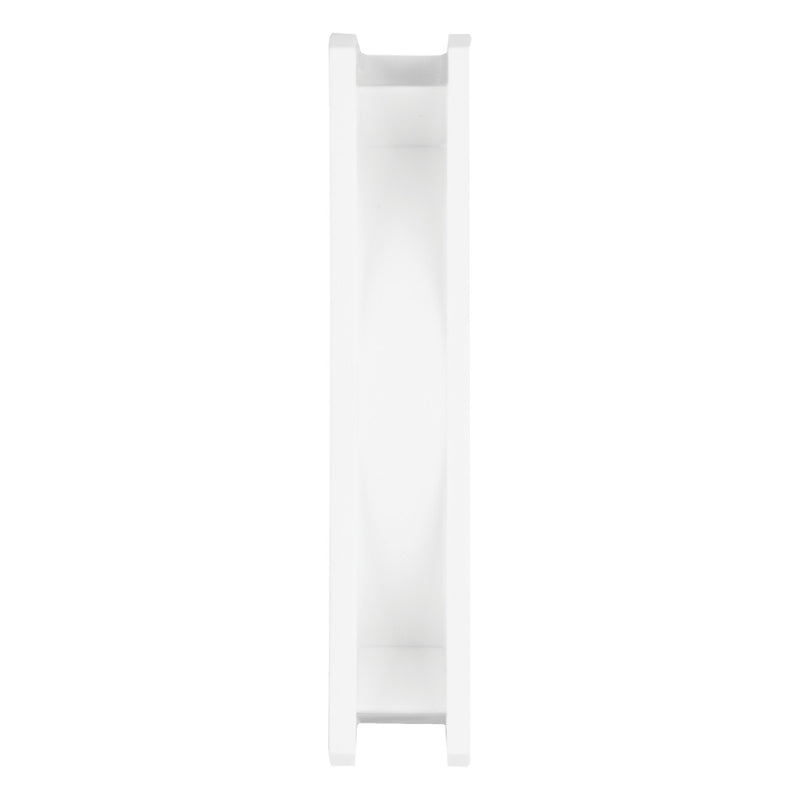

| Height | 27 mm |
| Weight | 194 g |
