ATOM
Compact, Efficient and Essential

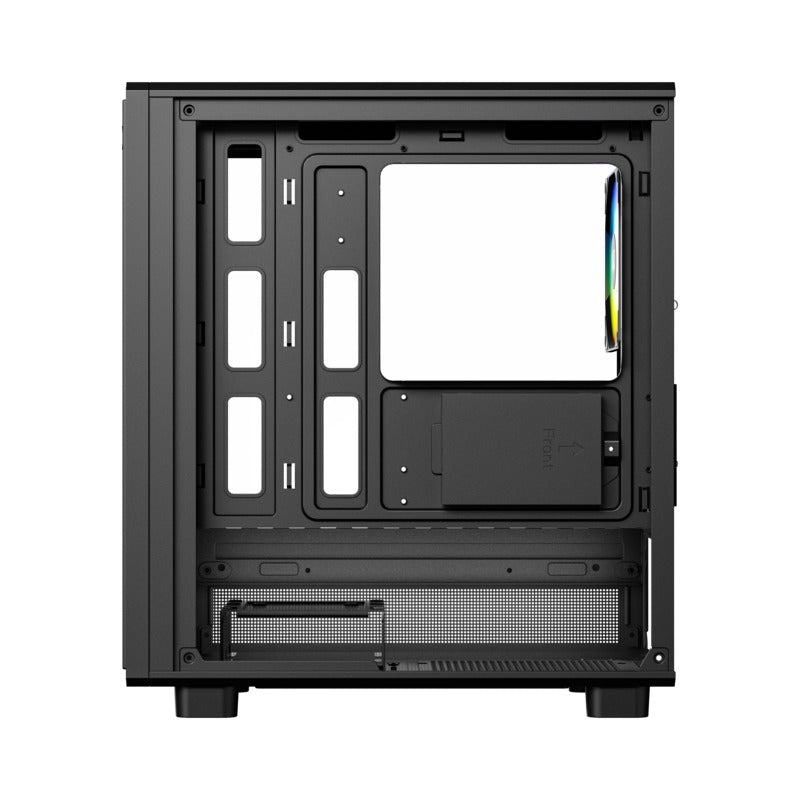

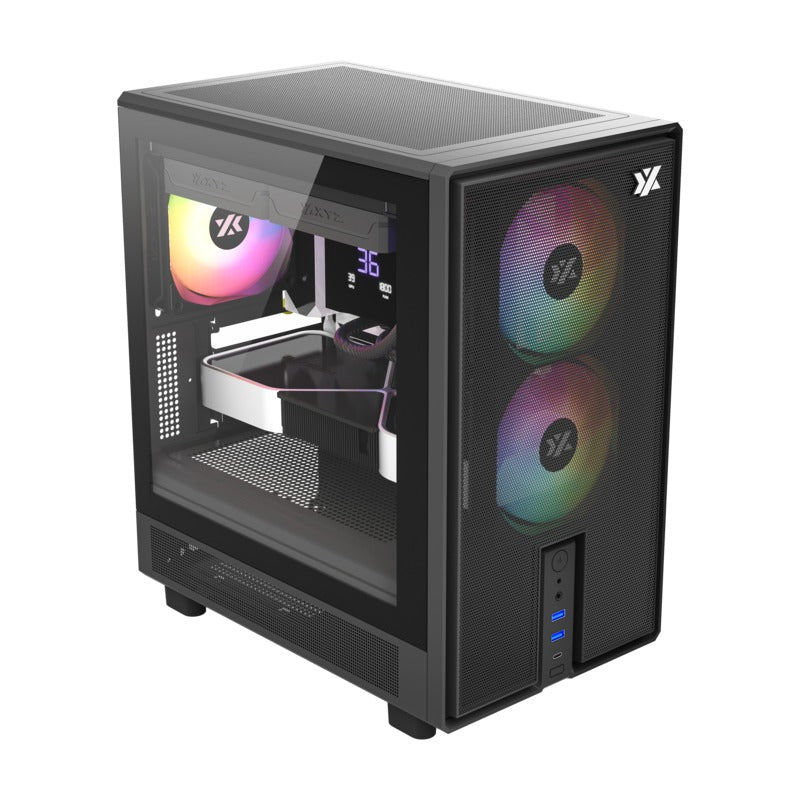

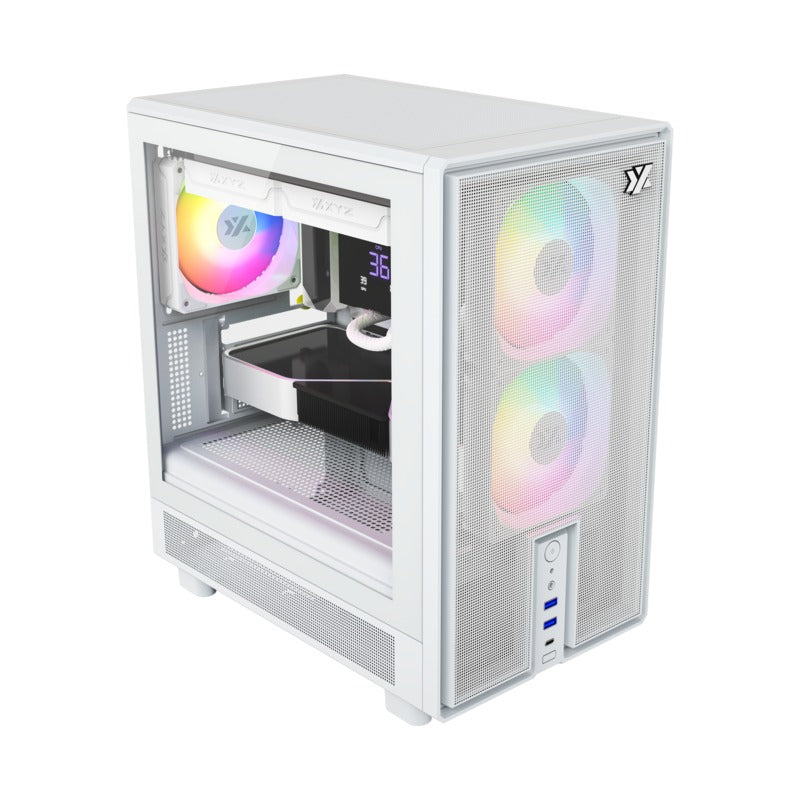

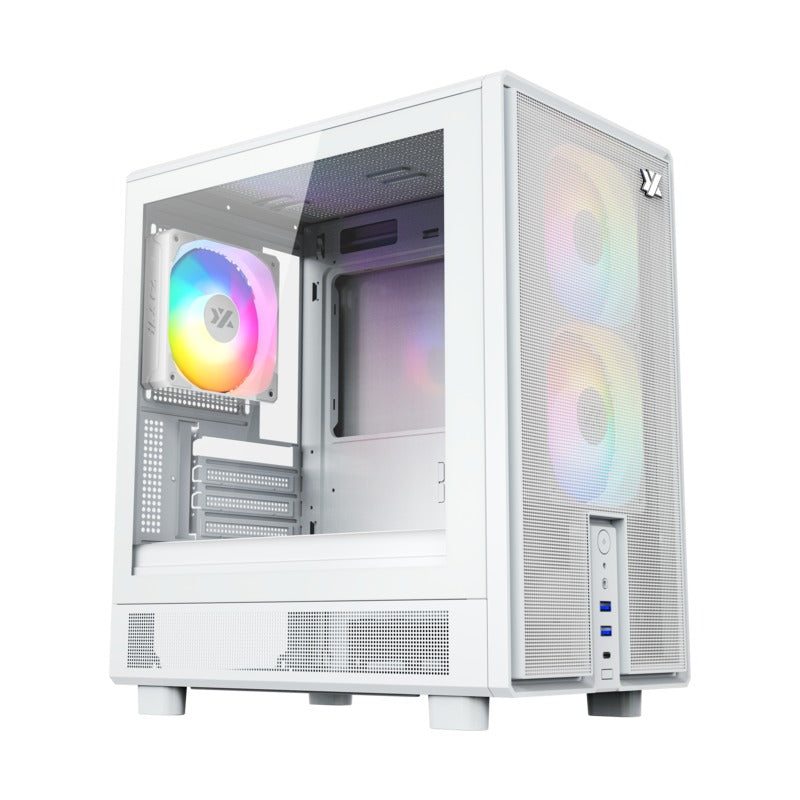

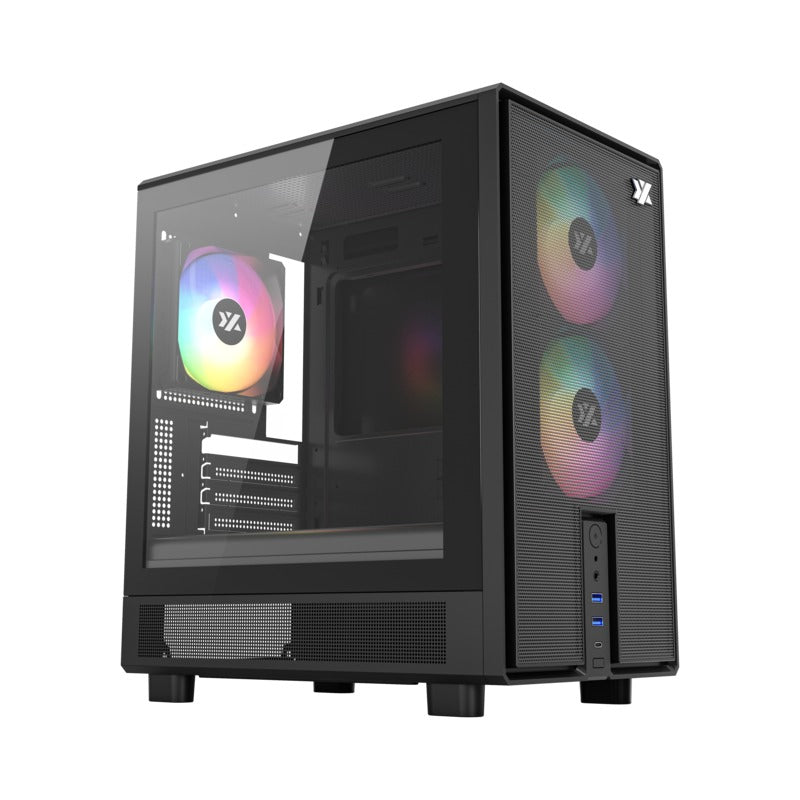

The XYZ Atom series is the perfect choice for those looking to get started in the PC world or want a compact PC without sacrificing performance. With a minimalist design and micro-ATX build, these chassis offer optimised space for your essential components, while maintaining efficient airflow thanks to their mesh finish and three A-RGB fans.

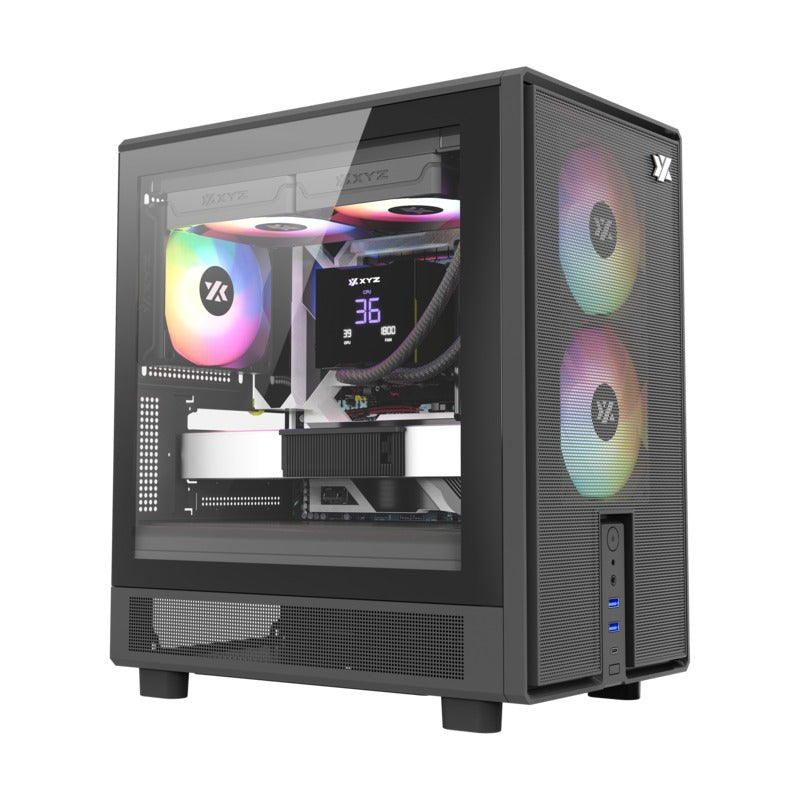

Unleash the performance of your system in a compact space with the XYZ ATOM. This Micro-ATX chassis combines a sleek design with efficient cooling and captivating ARGB lighting, perfect for compact and powerful gaming setups.

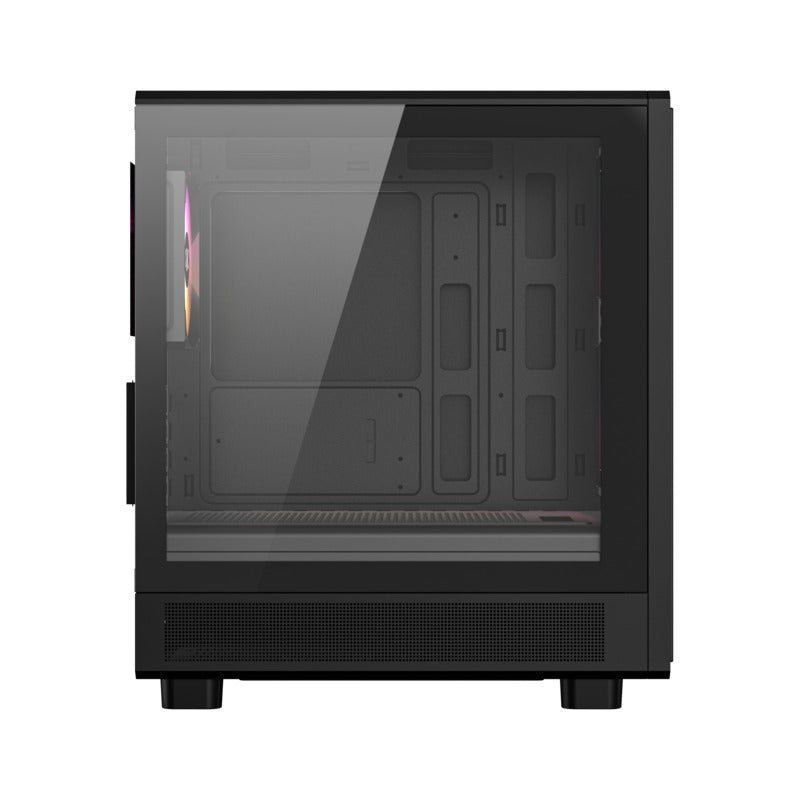

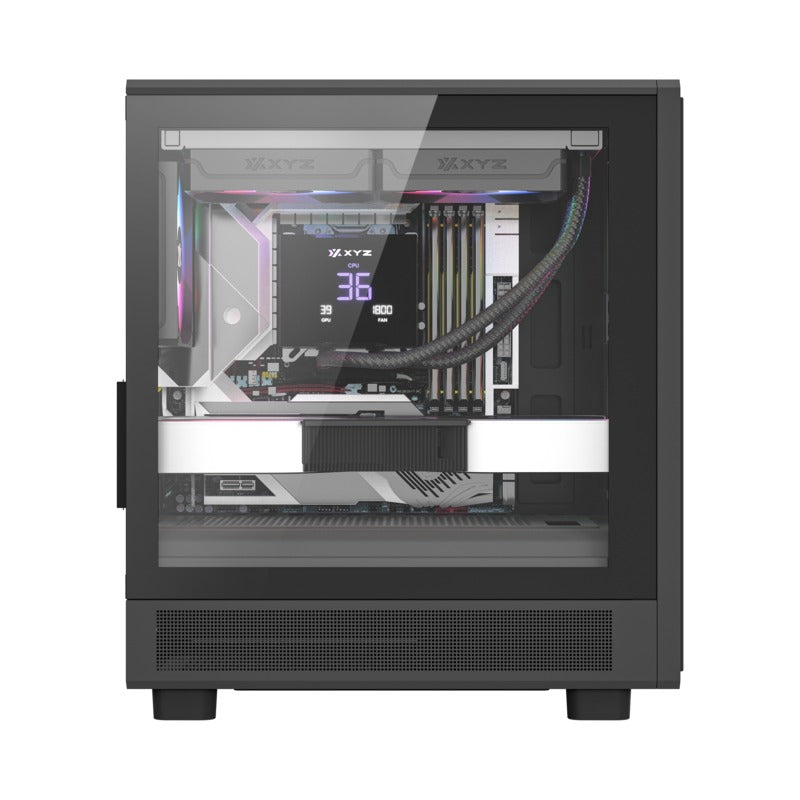

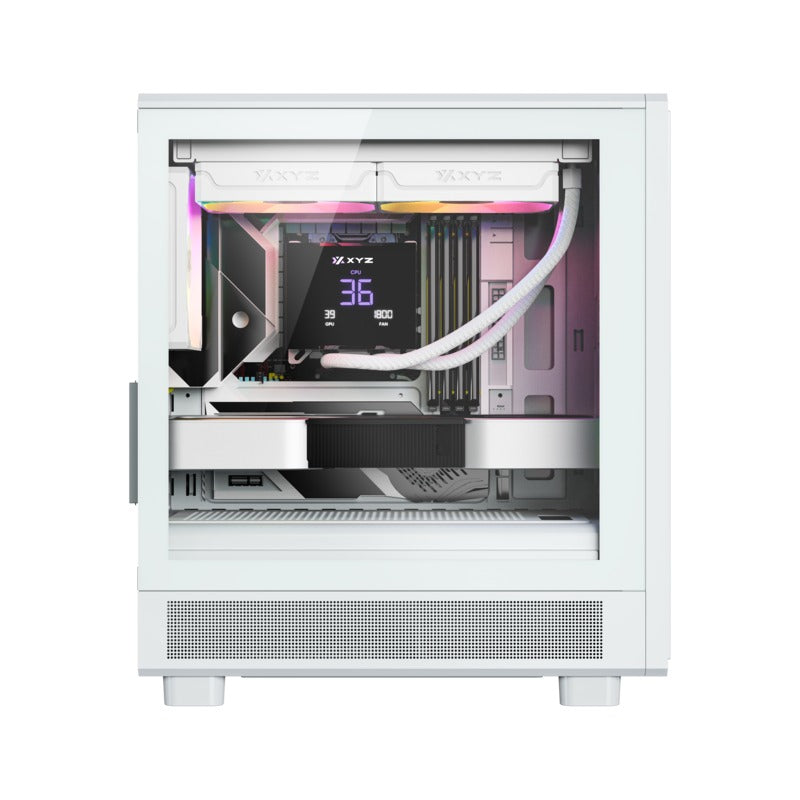

- Compact and Elegant Design: The ATOM features a minimalist and compact design that fits in any space. Its tempered glass side panel lets you show off your internal components and the ARGB lighting of the fans.

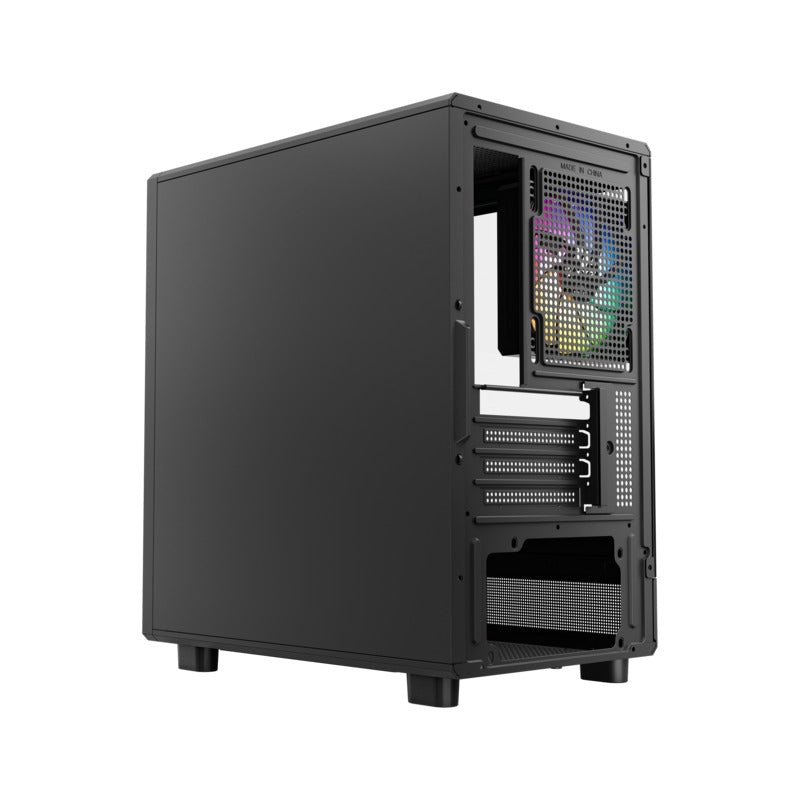

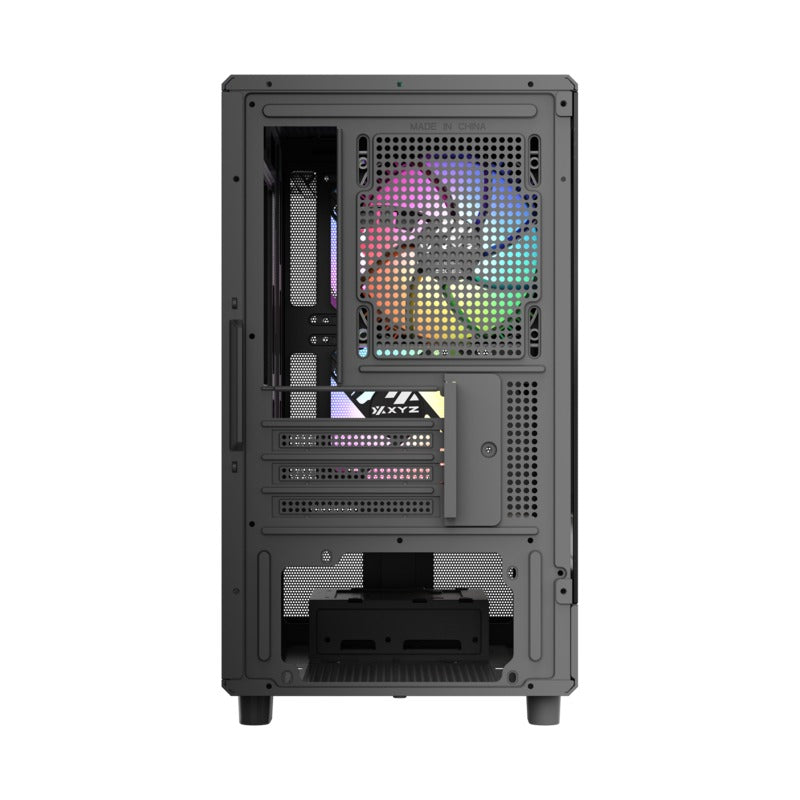

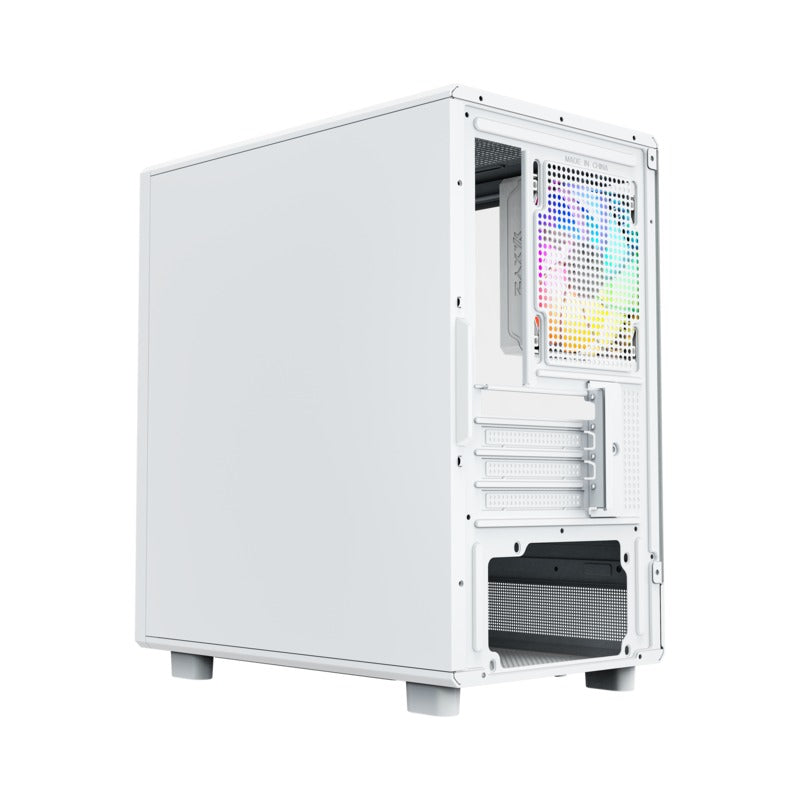

- Efficient Cooling: Keep your components cool with the 3 pre-installed 120mm Pulsar ARGB fans (2 front and 1 rear) and support for liquid cooling on the top (up to 240mm) and rear (120mm).
- Vibrant ARGB Lighting: Create an immersive gaming atmosphere with the ARGB lighting of the Pulsar fans. Customize colors and effects with the integrated controller and synchronize them with your compatible motherboard.
- Ample Compatibility, Compact size:ATOM supports M-ATX, and ITX motherboards, graphics cards up to 300mm, and CPU coolers up to 185mm. It offers space for multiple storage and liquid cooling configurations, giving you the freedom to customize your system to your liking.

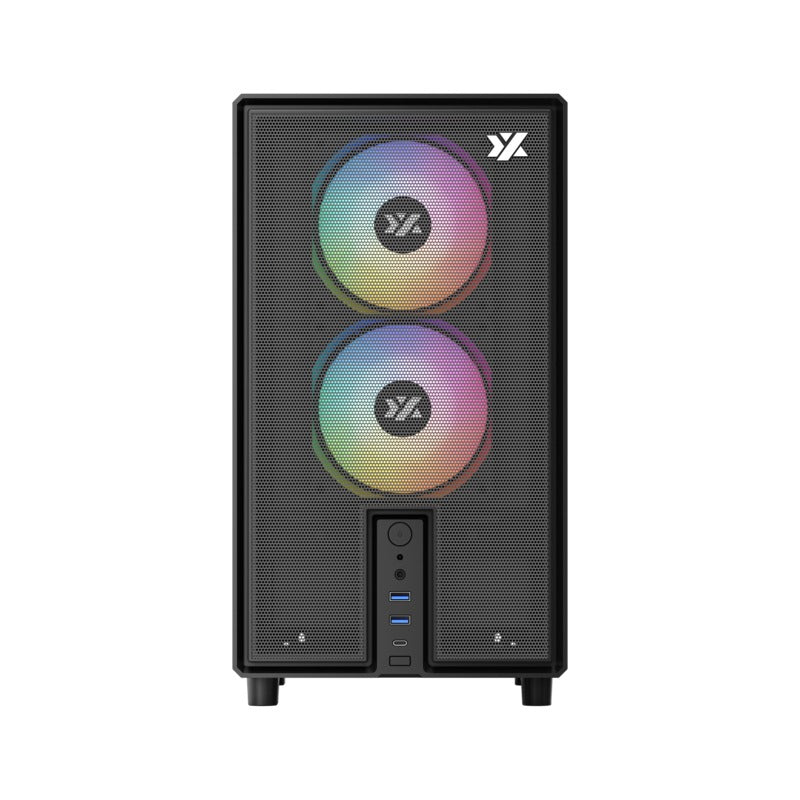

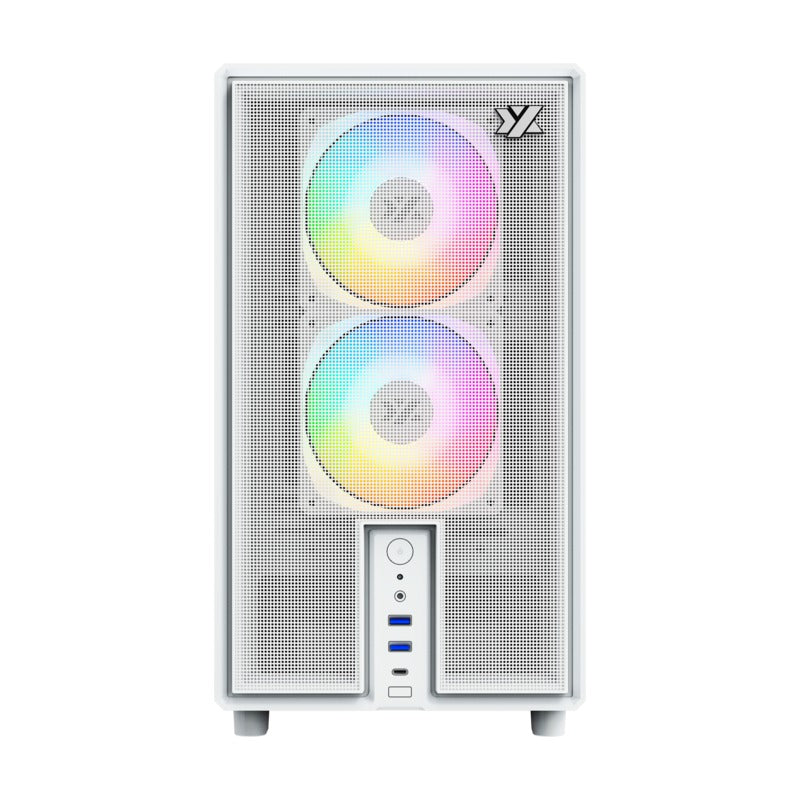

- Modern Connectivity: The front panel features a USB 3.0 port, a USB 2.0 port, a USB Type-C port, and HD audio jacks, providing quick and easy access to your devices.

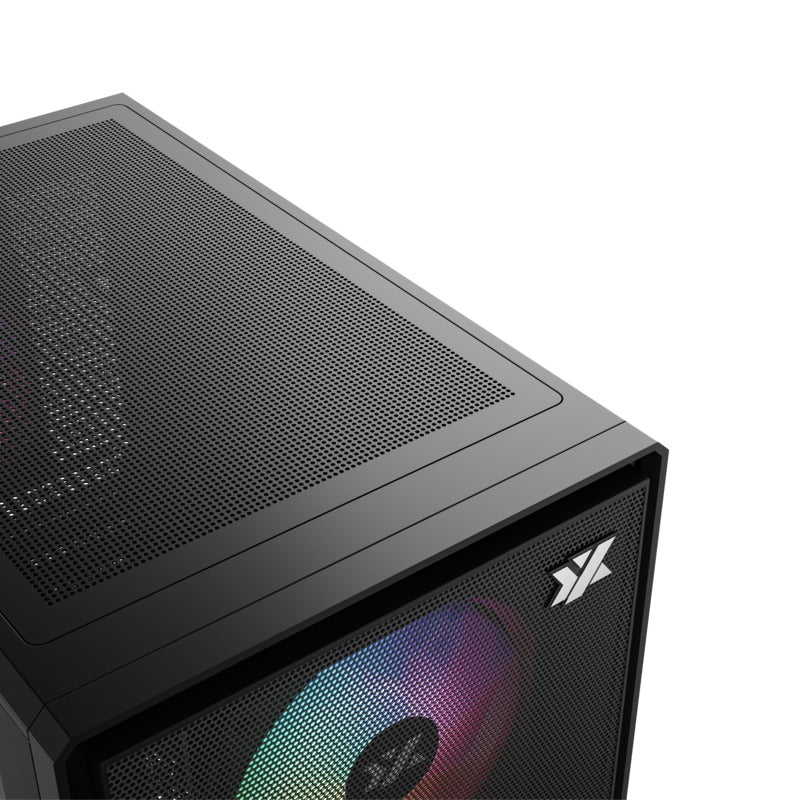

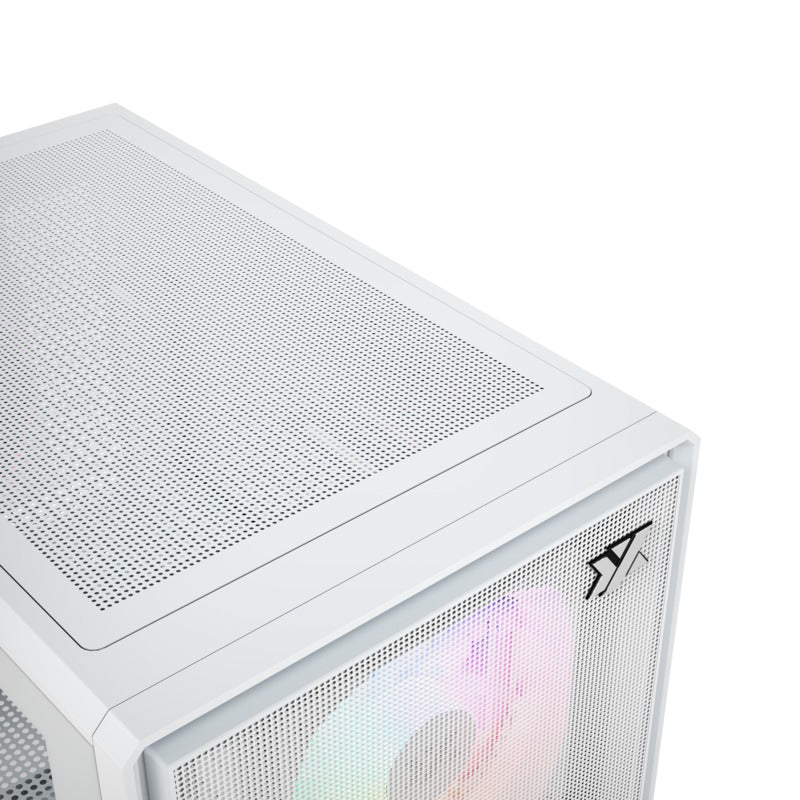

- Mesh Front & Side Panel for Optimal Ventilation: The mesh side and front panel improve airflow within the chassis, ensuring efficient cooling even during the most intense gaming sessions.
Specification:
| Structure Size | 330 x 218 x 380 mm (length x width x height) |
|---|---|
| Case Dimensions | 360 x 218 x 380 mm (length x width x height) |
| Packaging Dimensions | 440 x 310 x 420 mm (length x width x height) |
| Material | Steel, Tempered Glass, Mesh, ABS |
| Thickness | 0.45 mm (0.55 mm after painting) |
| Left Side Panel | Tempered glass with clip |

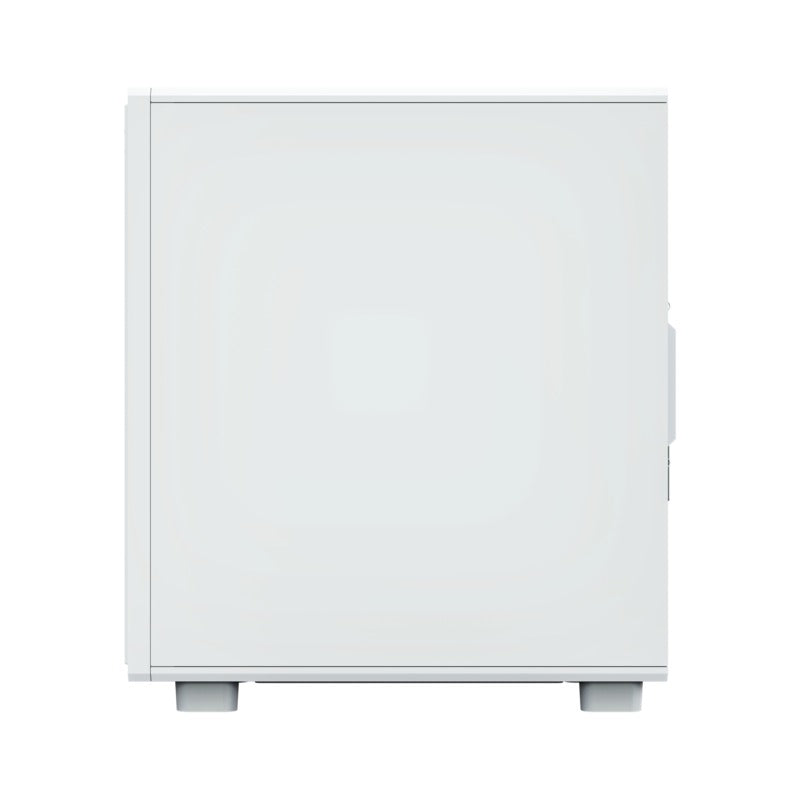

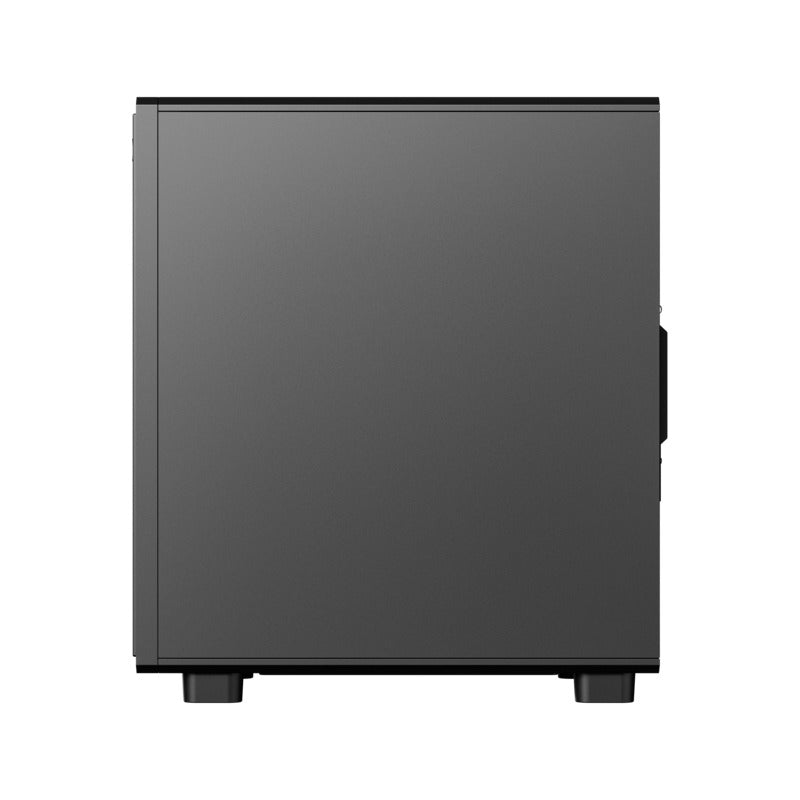

| Right Side Panel | Metal |
| Motherboard Compatibility | Micro-ATX / Mini-ITX |
| Fan Support | Front: 2 x 120 mm Top: 2 x 120/140 mm Rear: 1 x 120 mm |
| Pre-installed Fans | 2 x 120 mm M19 ARGB PWM (front) 1 x 120 mm M19 ARGB PWM (rear) |
| Controller | Yes (ARGB and PWM) |
| Liquid Cooling Support | Top: 1 x 240 mm Rear: 1 x 120 mm |
| Dust Filter | Top/Bottom |
| Drive Bays | 1 x 3.5″/2.5″, 2 x 2.5″ |
| Power Supply | Standard ATX |
| Expansion Slots | 4 |
| I/O Panel | 1 x USB 3.0 1 x USB 2.0 1 x USB Type-C 1 x HD Audio In/Out 1 x Reset button |
| Max GPU Length | 300 mm |
| Max CPU Cooler Height | 165 mm |

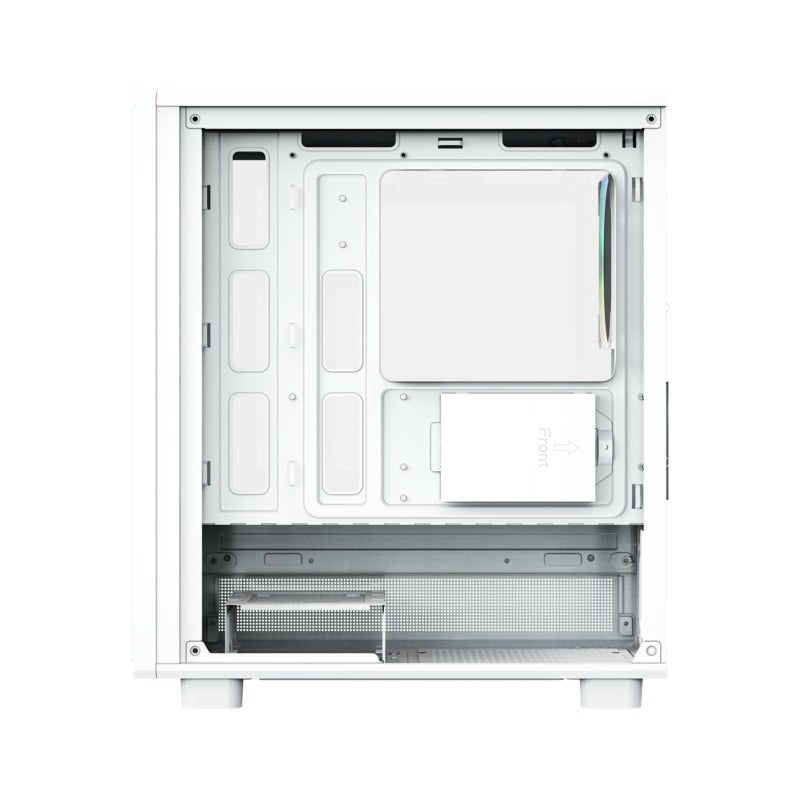

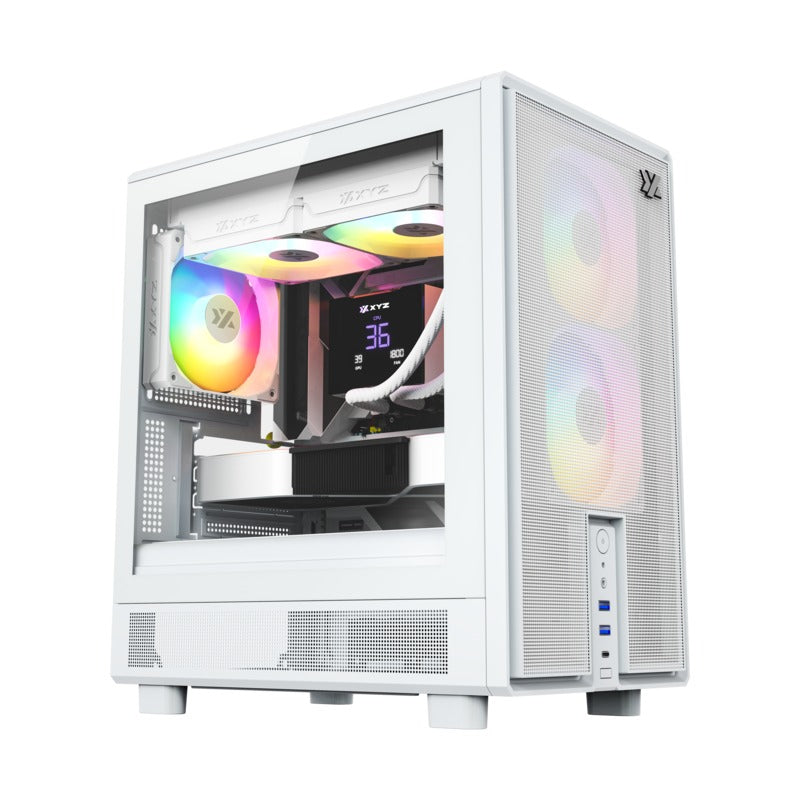

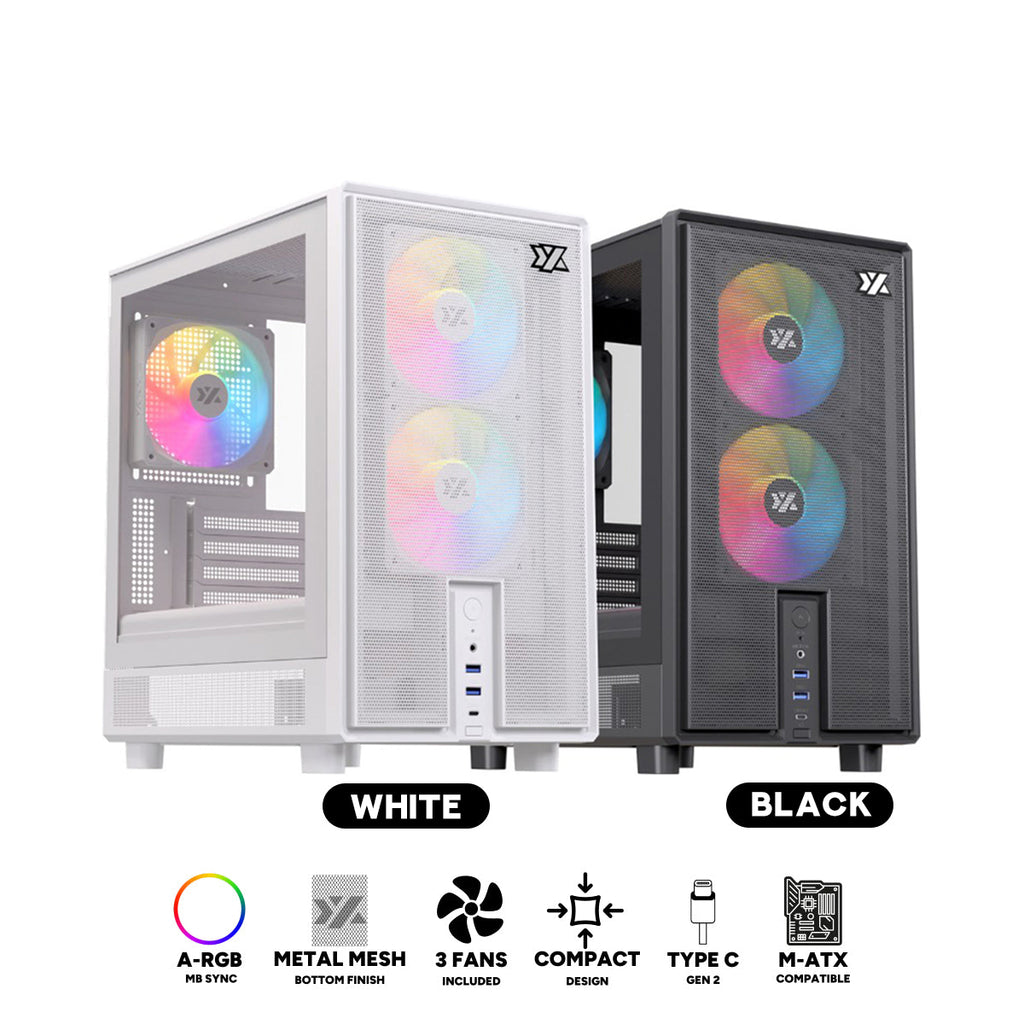

| Available Colors | Black: SKU | X-CS-ATOM-B White: SKU | X-CS-ATOM-W |
PULSAR A-RGB FANS
| Dimensions | 120 x 120 x 25 mm |
|---|---|
| Bearing Type | Rifle Bearing |
| Voltage | Nominal: DC 12V Operating: 10.8 ~ 13.2V Starting: DC 5V MAX |
| Current | Rated: 0.28A ±10% MAX Tag: 0.28A ±10% MAX Blocking: 0.30A ±10% MAX |
| Power Consumption | 3.36W ±10% MAX |
| Rotation Speed | 600-1800 ±10% RPM |
| Maximum Air Flow | 78.64 CFM (ft³/min) |
| Max. Static Pressure | 1.78mm-H₂O |
| Max. Noise Level | 36dB(A) |
| Min. Noise Level | 18.5dB(A) |
| Service Life | 50,000 hours at 25°C |
| Number of Blades | 9 |
| Number of Poles | 4 |
