Description

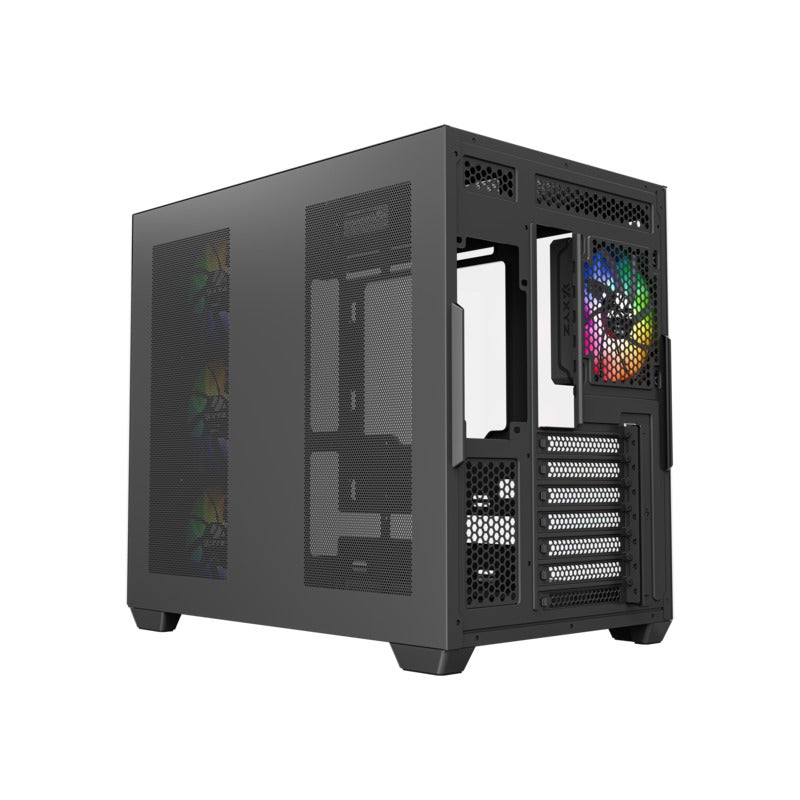

XYZ TESSERACT X
Cubic Design, Panoramic View
Experience a new dimension of gaming with the XYZ Tesseract X. This ATX chassis immerses you in a panoramic visual experience thanks to its tempered glass panels, while offering exceptional performance with its dual-chamber design and superior cooling.

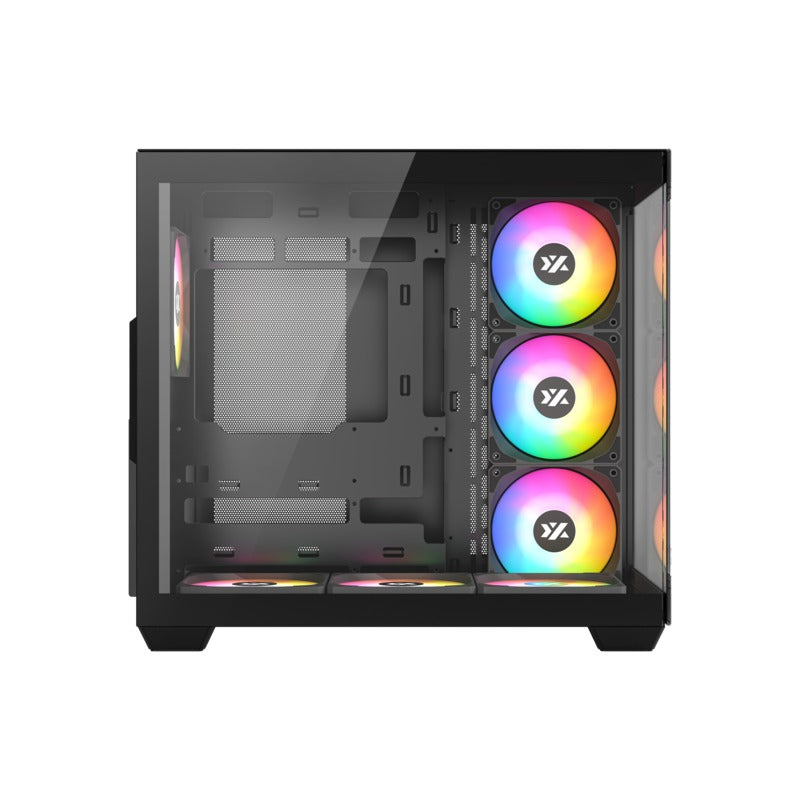

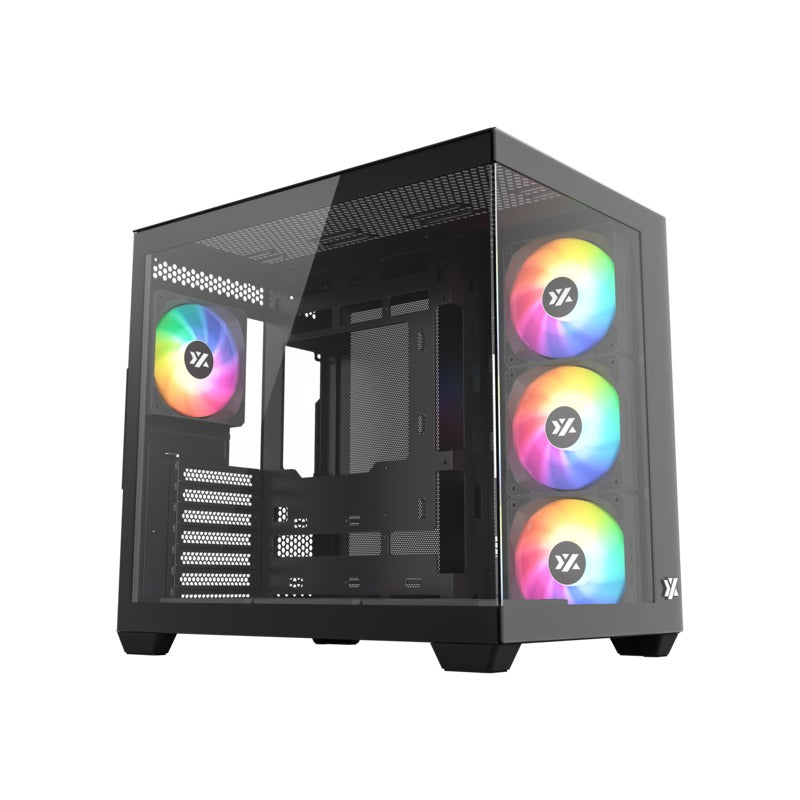

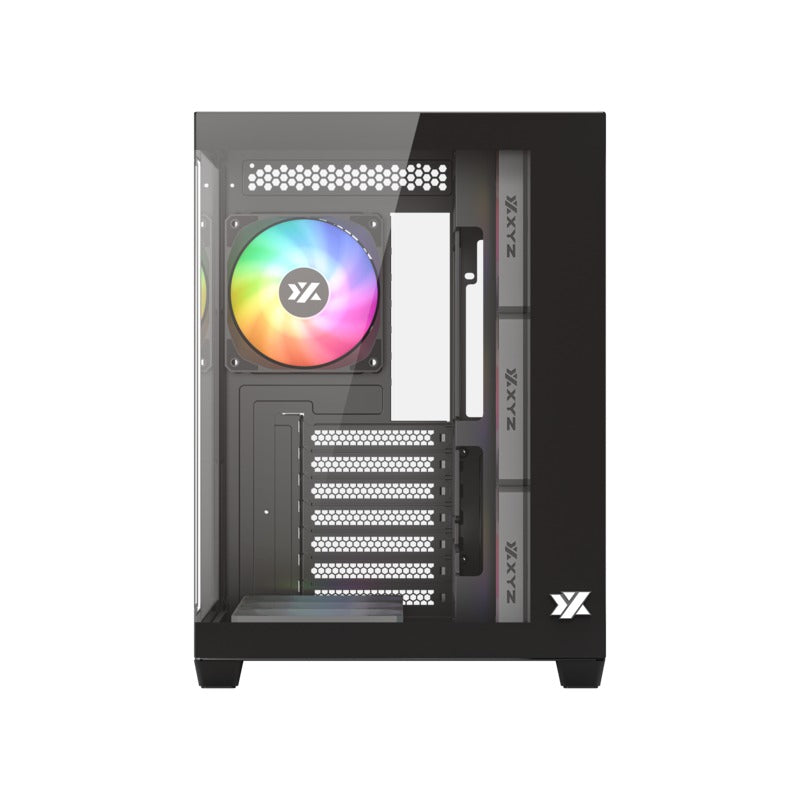

Panoramic Design with Tempered Glass: Enjoy a full view of your components through the tempered glass panels on the front and left side. The Tesseract X transforms your PC into an impressive visual spectacle.

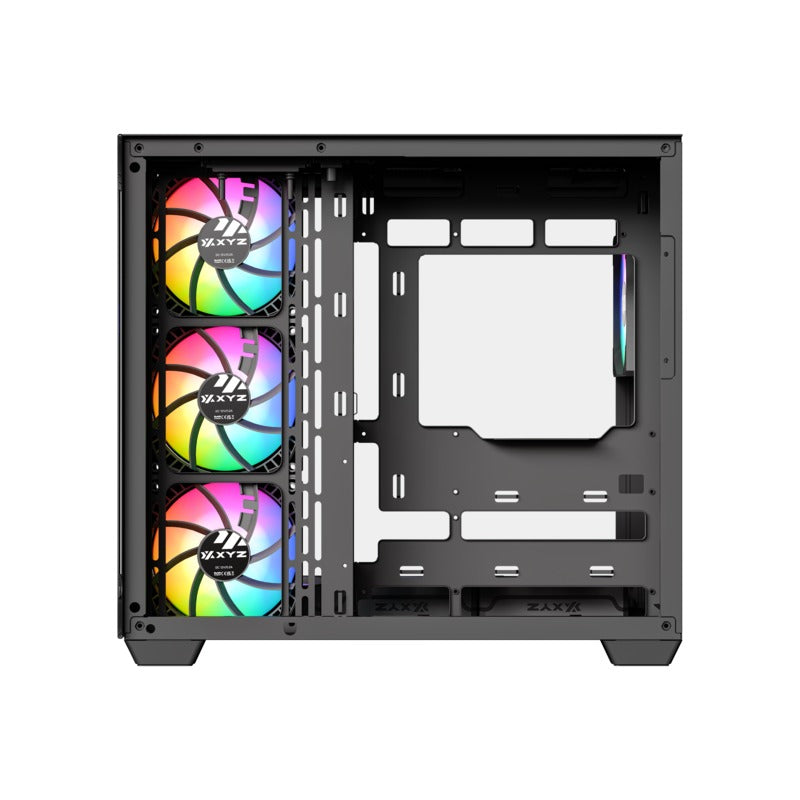

Dual Chamber for Impeccable Cable Management: The dual-chamber design separates the main components from the power supply and cables, keeping the interior of your PC clean and tidy. This improves airflow and facilitates maintenance.
Superior Cooling with 7 A-RGB PWM Fans: Keep your components cool even under the most intense workloads with the seven pre-installed 120mm A-RGB PWM fans. These fans offer powerful airflow and customizable lighting to create a captivating gaming atmosphere.
Compatibility and flexibility:The Tesseract X supports ATX, M-ATX, and ITX motherboards, graphics cards up to 390mm, and CPU coolers up to 165mm. It offers space for multiple storage and liquid cooling configurations up to 360mm, giving you the freedom to customize your system to your liking.
Integrated PWM and ARGB Controller: Customize and synchronize the lighting and fan speeds with the integrated controller. Create dynamic lighting effects and adjust cooling performance according to your needs.
Cableless Motherboard Compatibility (MB BTF): The Tesseract X is future-ready with support for the latest cableless motherboards with rear connectors, simplifying assembly and reducing cable clutter.

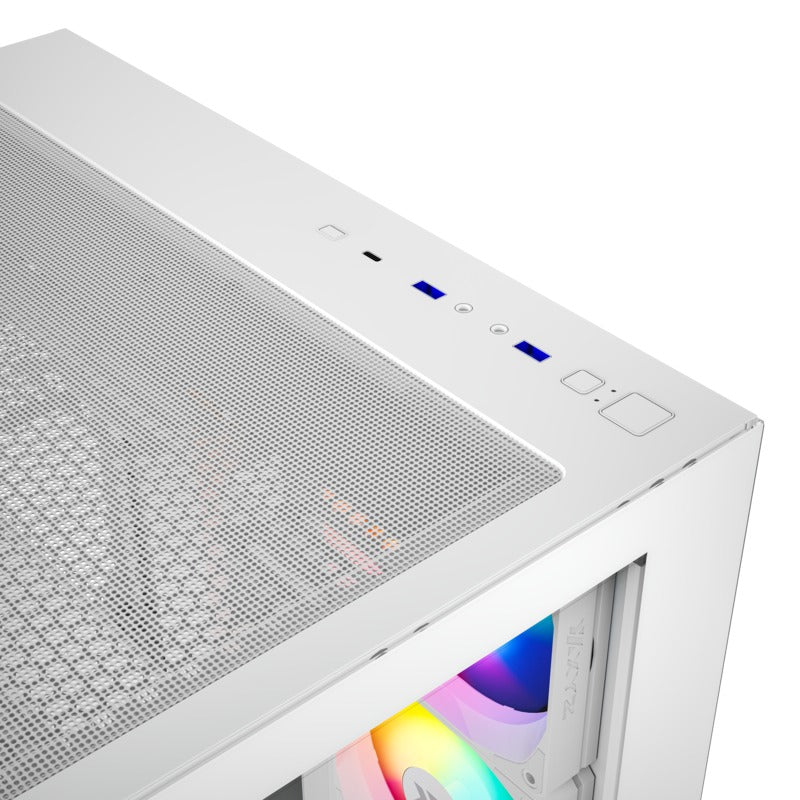

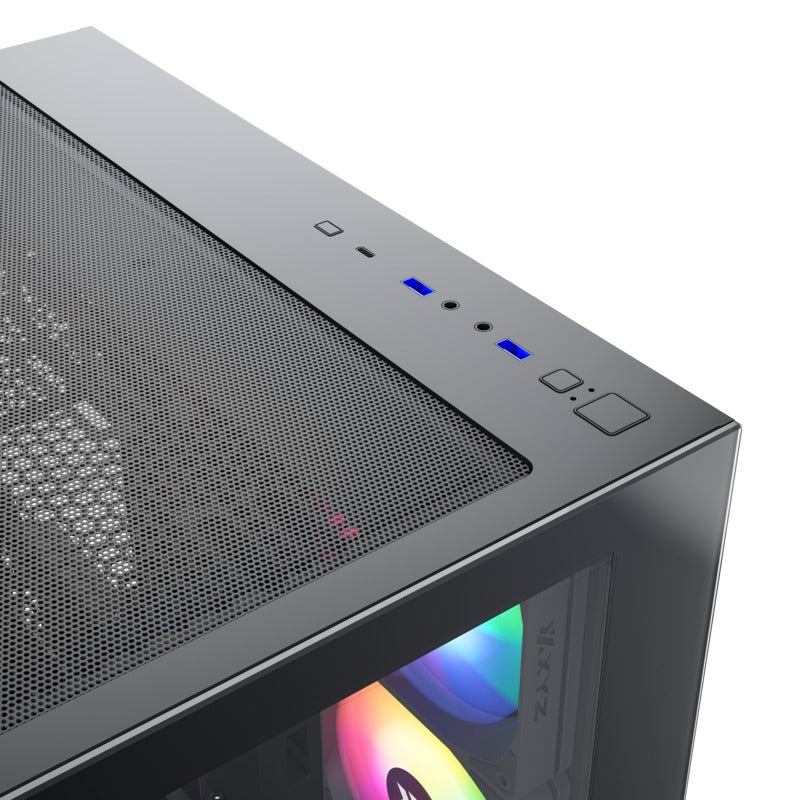

Advanced Connectivity with USB Type-C: Access your high-speed devices with ease thanks to the USB 3.0 and USB Type-C ports on the front panel.
Technical Specifications
XYZ TESSERACT X
| Structure Size | 420 x 285 x 380 mm (length x width x height) |
| Case Dimensions | 420 x 285 x 380 mm (length x width x height) |
| Packaging Dimensions | 535 x 351 x 440 mm (length x width x height) |
| Material | Steel, Tempered Glass, AB |
| Thickness | 0.6-0.7MM (After paint) |
| Left Side Panel | Tempered glass with clip |

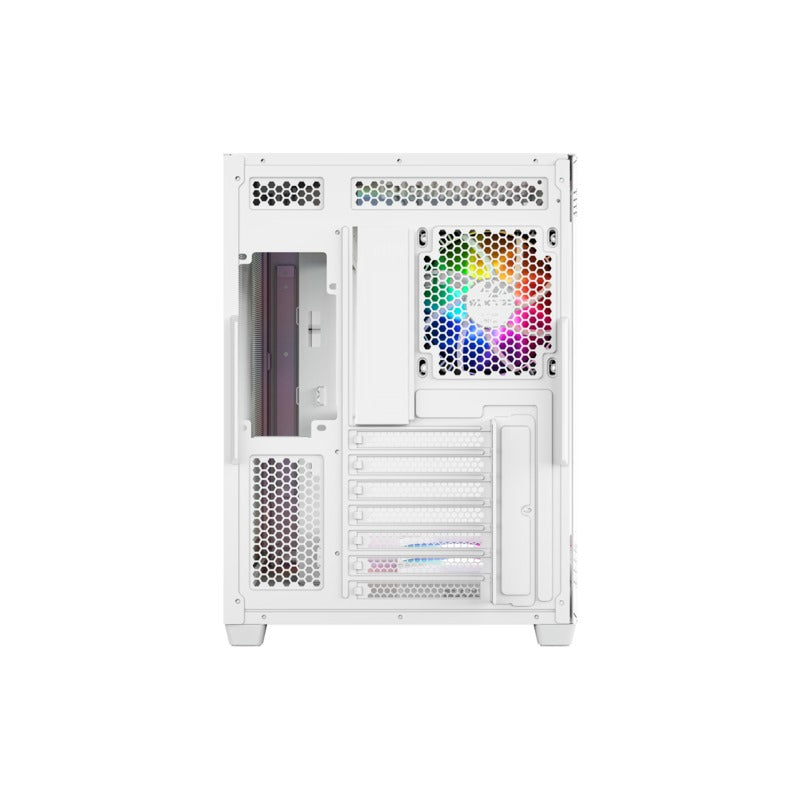

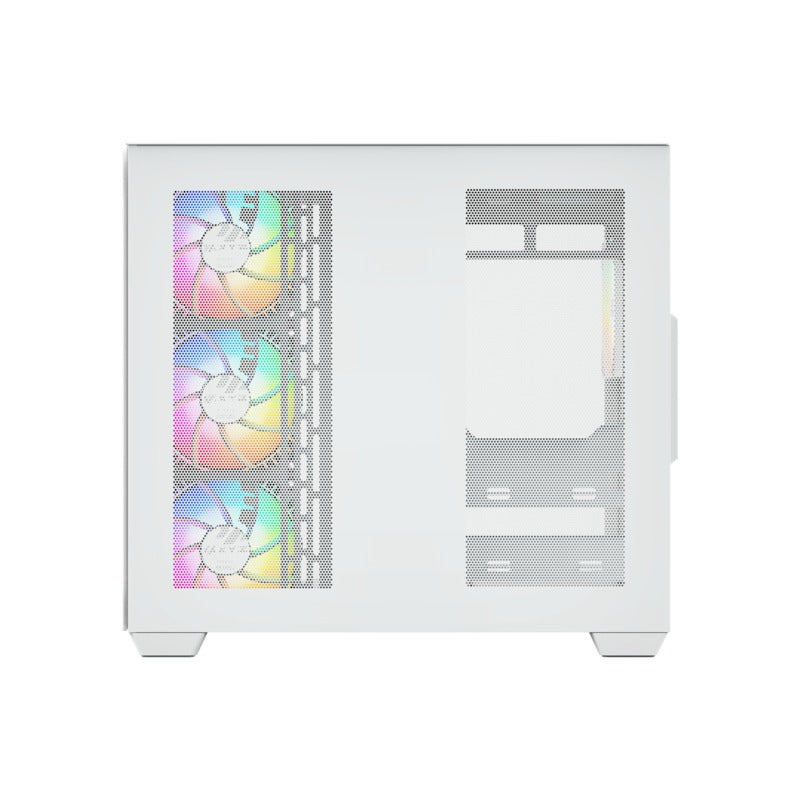

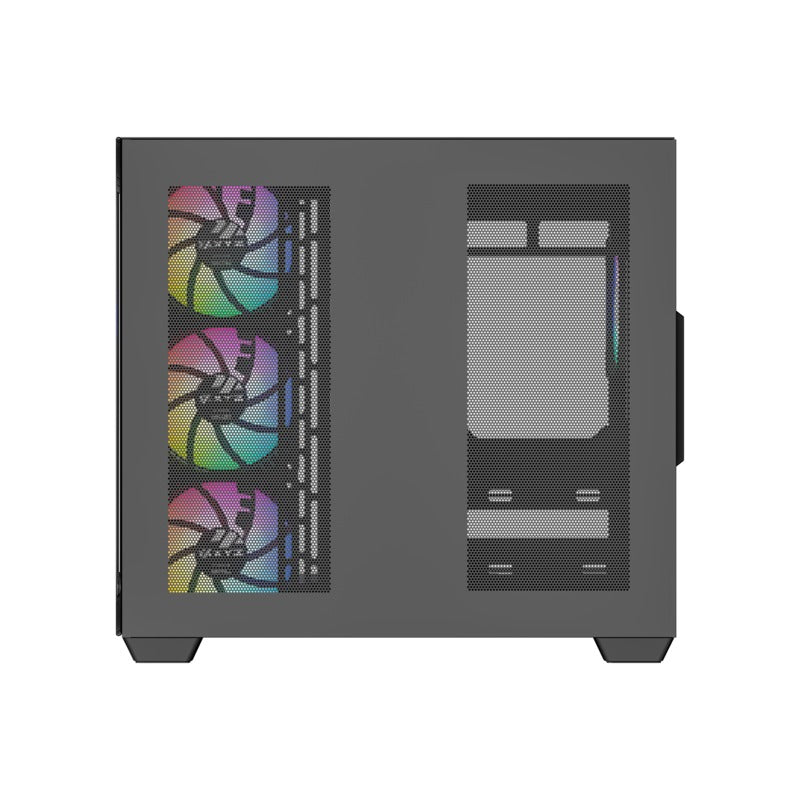

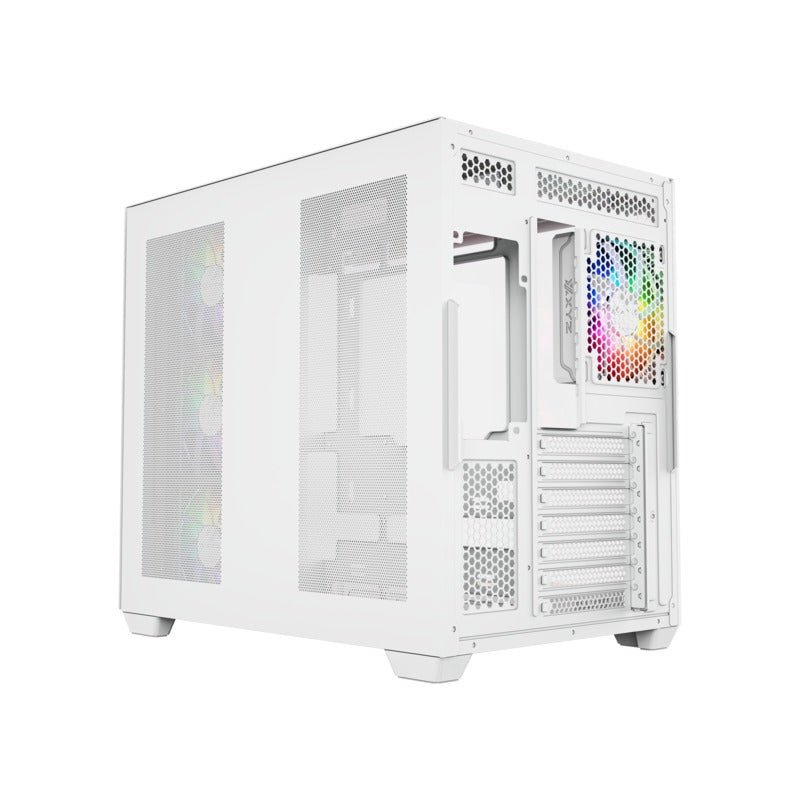

| Right Side Panel | Metal with ventilation holes |
| Motherboard Compatibility | ATX / M-ATX / ITX (Compatible with cableless back plug motherboards) |
| Fan Support | Motherboard Bracket: 2 x 140/120 mm Top: 2 x 140/3 x 120 mm Rear: 1 x 120 mm Bottom: 3 x 120 mm |
| Pre-installed Fans | 3 x 120 mm PULSAR ARGB PWM (side, reverse airflow) 1 x 120 mm PULSAR ARGB PWM (rear) 3 x 120 mm PULSAR ARGB PWM (bottom, reverse airflow) |
| Controller | Yes (ARGB and PWM) |
| Liquid Cooling Support | Motherboard Bracket: 240/280/120 mm Top: 360/280/240 mm Bottom: 360/280/240 mm |
| Dust Filter | Top/Bottom |
| Drive Bays | 1 x 3.5″ HDD, 2 x 2.5″ SSD |
| Power Supply | Standard ATX (max 240mm) |
| Expansion Slots | 7 |
| I/O Panel | 2 x USB 3.0 1 x USB Type-C 1 x HD Audio In/Out 1 x Reset/RGB Switch |
| Max GPU Length | 390mm (MB side with AIO) |
| Max CPU Heatskin Size | 165mm |

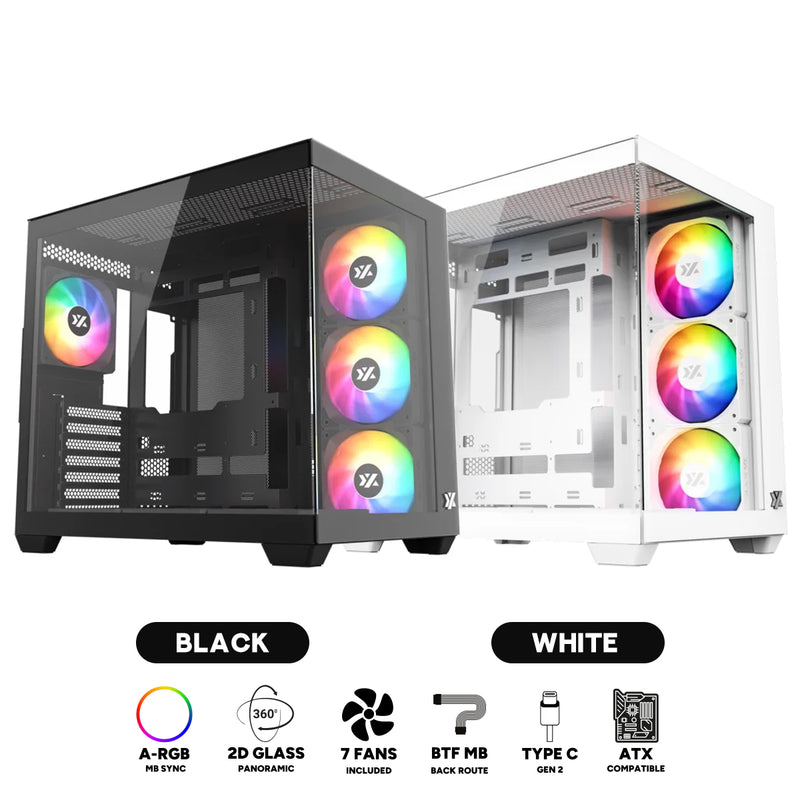

Available Colors
| Black | SKU | X-CS-TESSERACTX-B EAN | 6905290204814 |

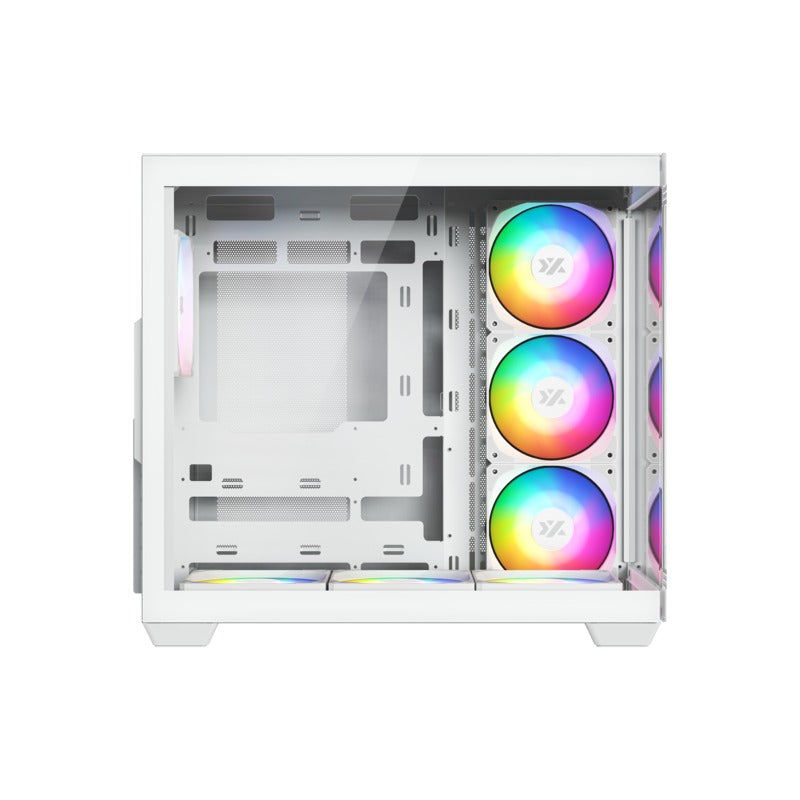

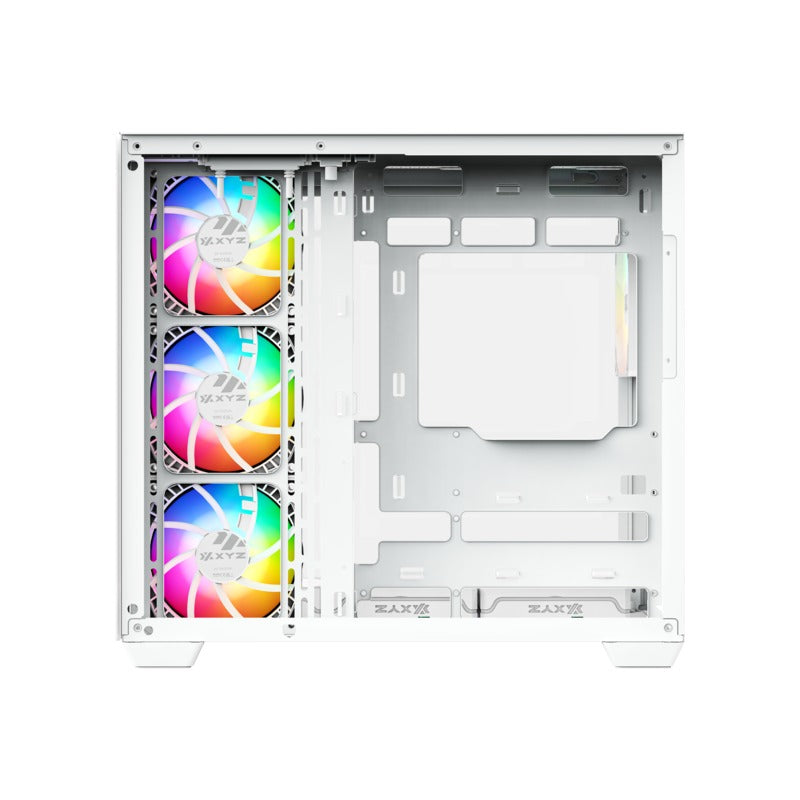

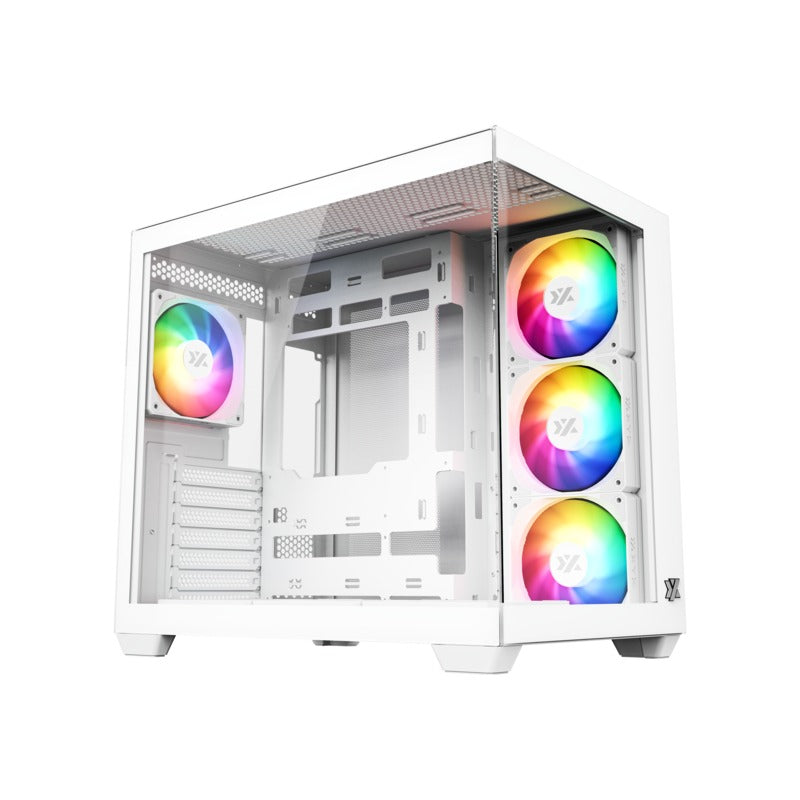

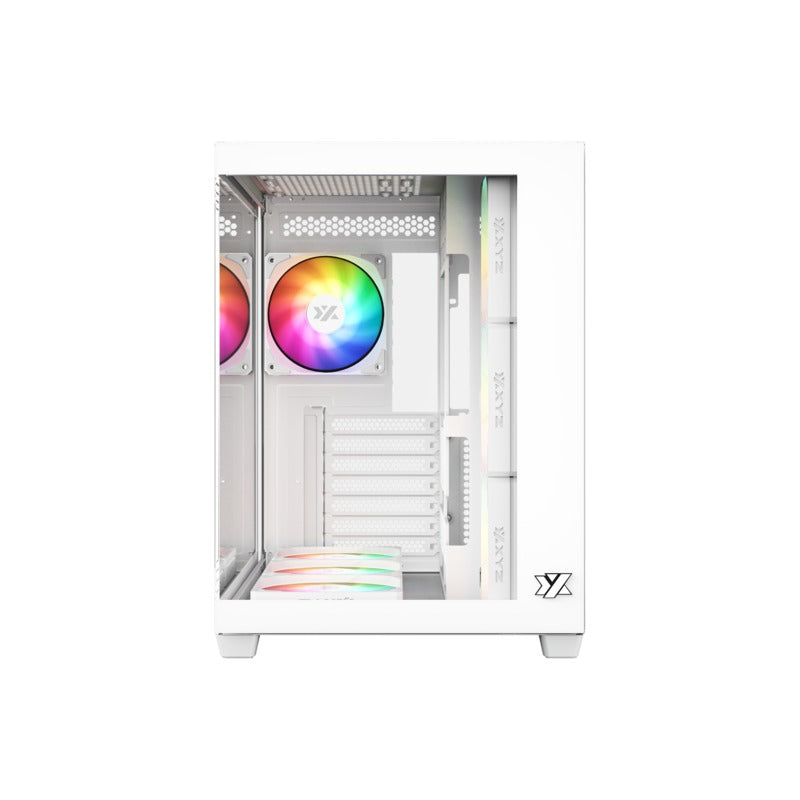

| White | SKU | X-CS-TESSERACTX-W EAN | 6905290204821 |
PULSAR A-RGB FANS
| Dimensions | 120 x 120 x 25 mm |
| Bearing Type | Rifle Bearing |
| Voltage | Nominal: DC 12V Operating: 10.8 ~ 13.2V Starting: DC 5V MAX |
| Current | Rated: 0.28A ±10% MAX Tag: 0.28A ±10% MAX Blocking: 0.30A ±10% MAX |
| Power Consumption | 3.36W ±10% MAX |
| Rotation Speed | 600-1800 ±10% RPM |
| Maximum Air Flow | 78.64 CFM (ft³/min) |
| Max. Static Pressure | 1.78mm-H₂O |
| Max. Noise Level | 36dB(A) |
| Min. Noise Level | 18.5dB(A) |
| Service Life | 50,000 hours at 25°C |
| Number of Blades | 9 |
| Number of Poles | 4 |
