Description

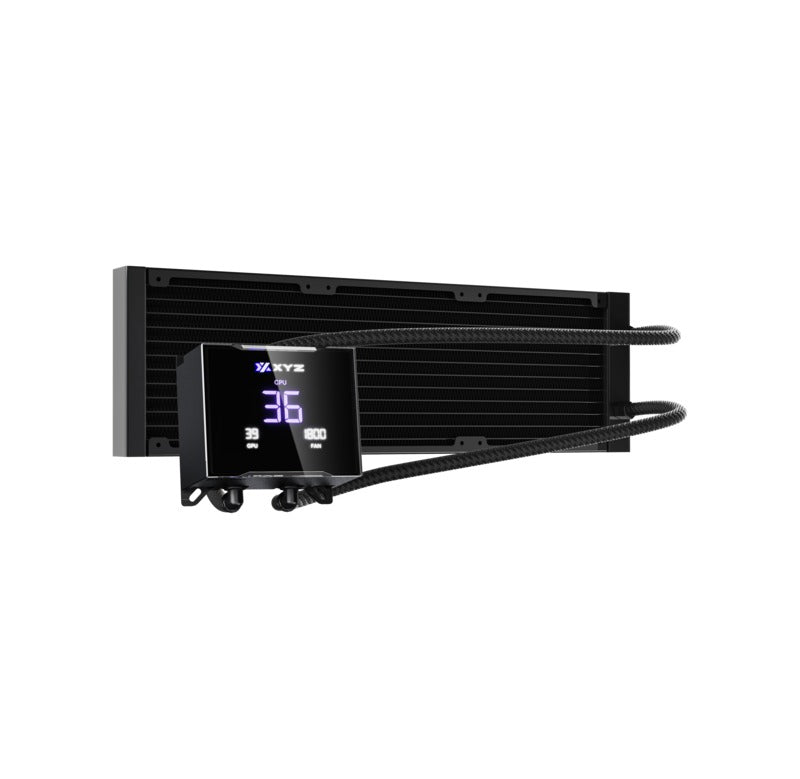

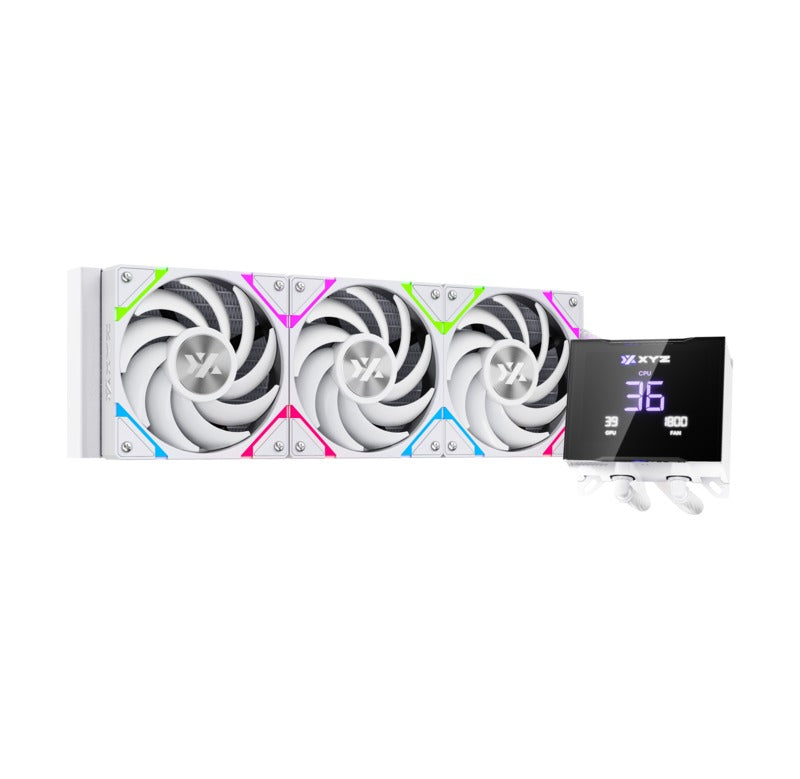

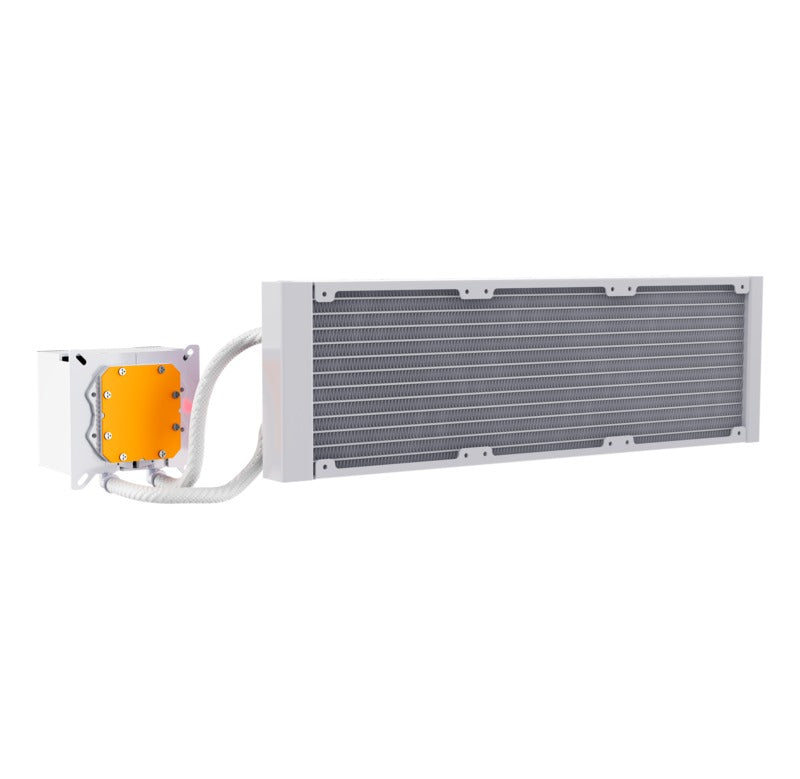

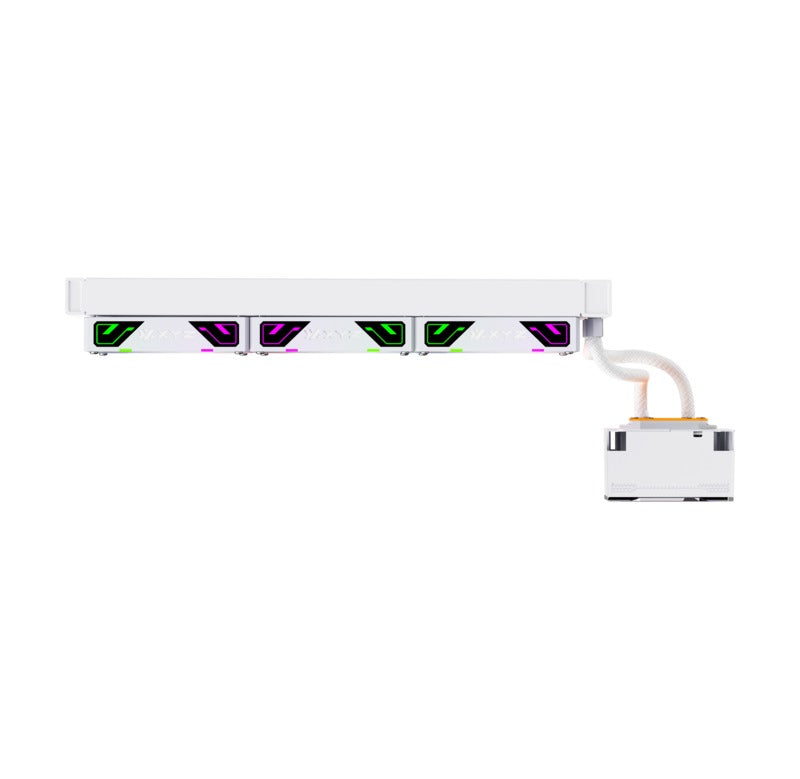

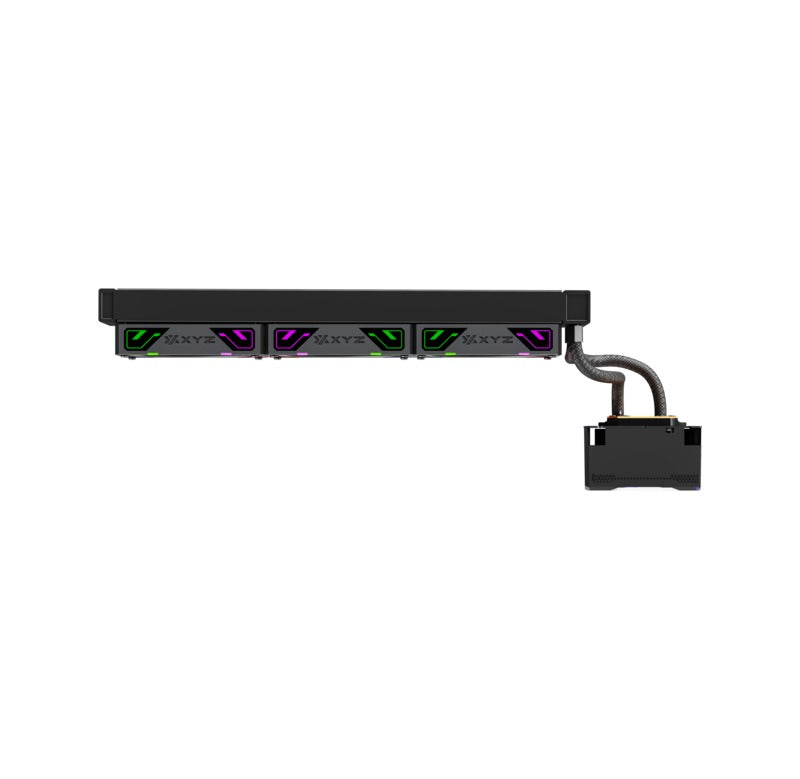

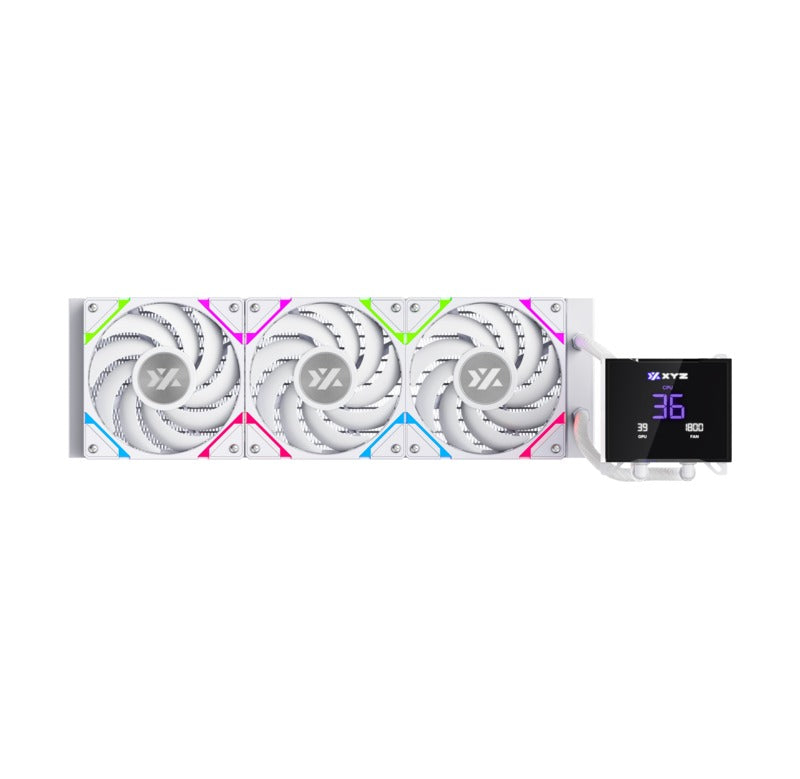

XYZ HYDROTEMP AIO 360
Smart Cooling at Your Fingertips
Master the heat and take your performance to the next level with the XYZ HYDROTEMP series AIO Liquid CPU Coolers. This all-in-one liquid cooling solutions combines exceptional performance, a sleek aesthetic, and intelligent features to keep your CPU running at optimal temperatures, even under the most demanding workloads.

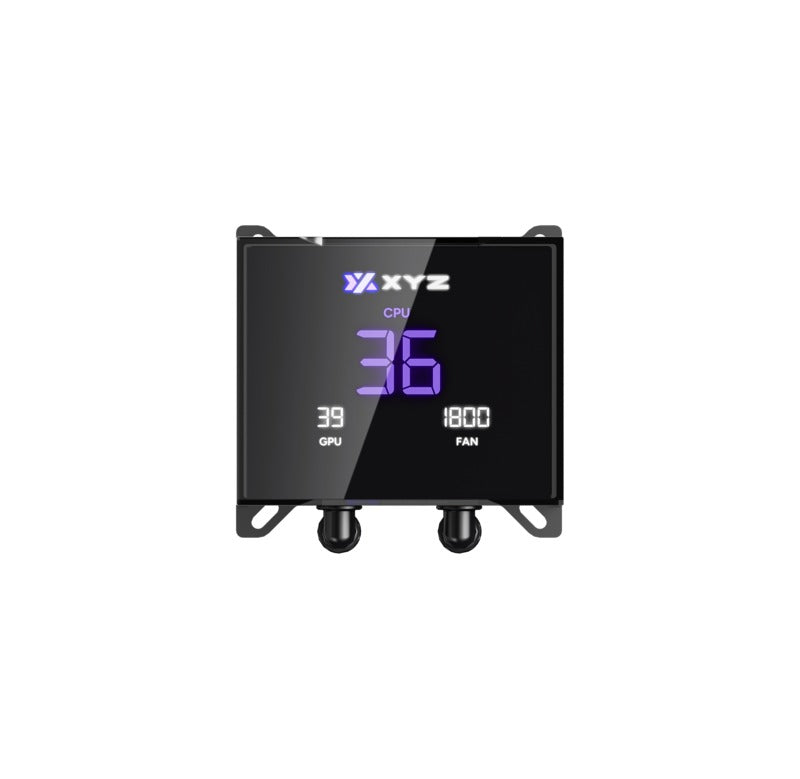

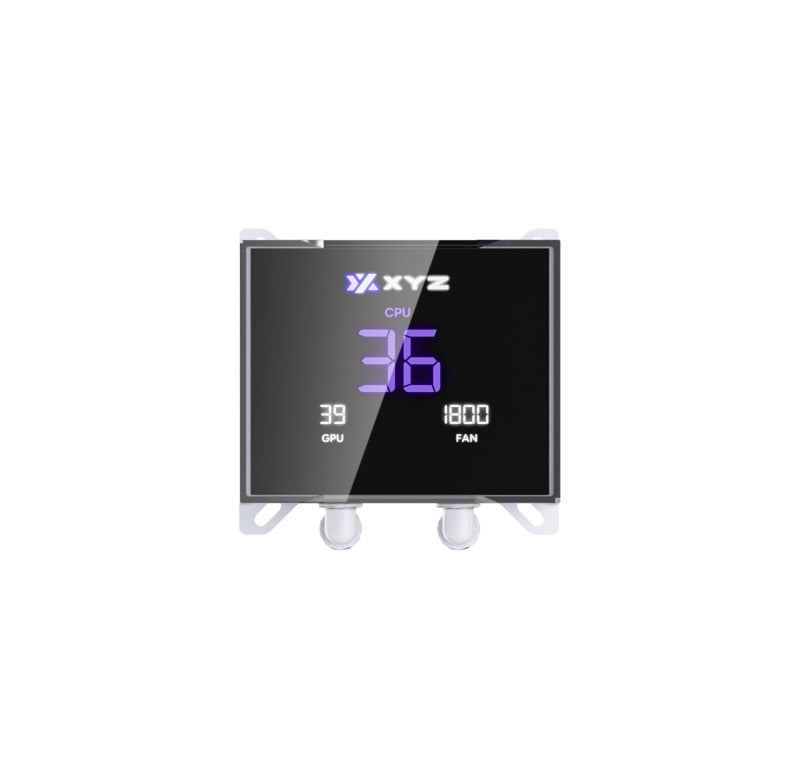

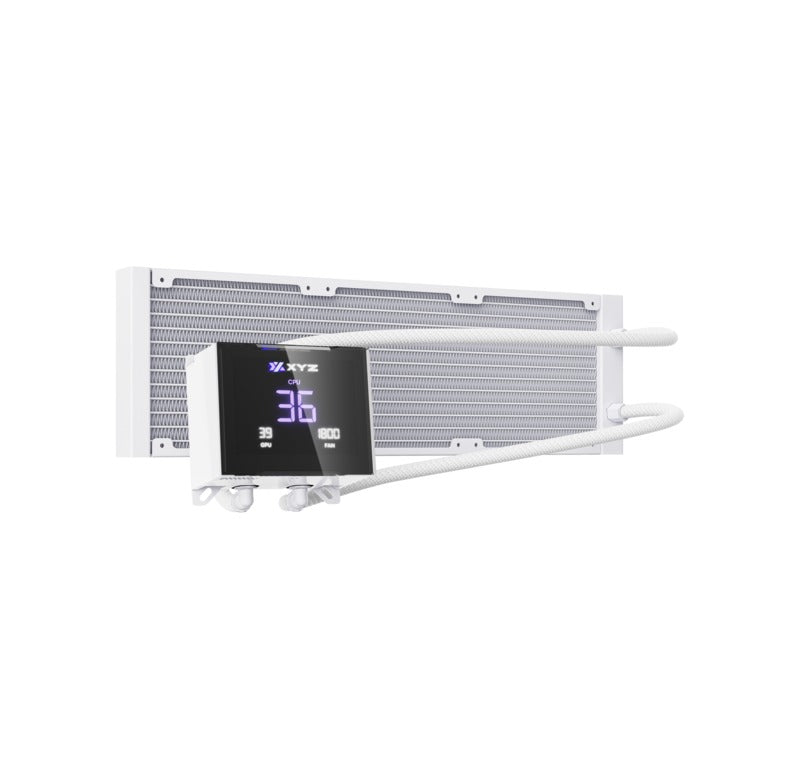

- LCD detachable Temperature Display: Maintain precise control over your CPU temperature with the 3.5”LCD detachable screen integrated into the pump block. Monitor your system’s performance in real-time and adjust settings as needed.

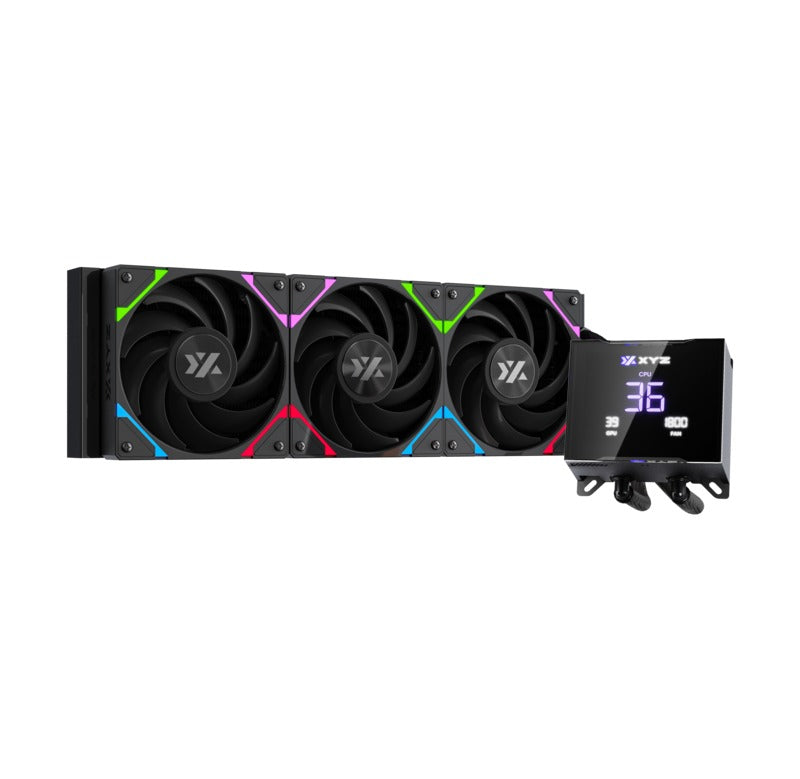

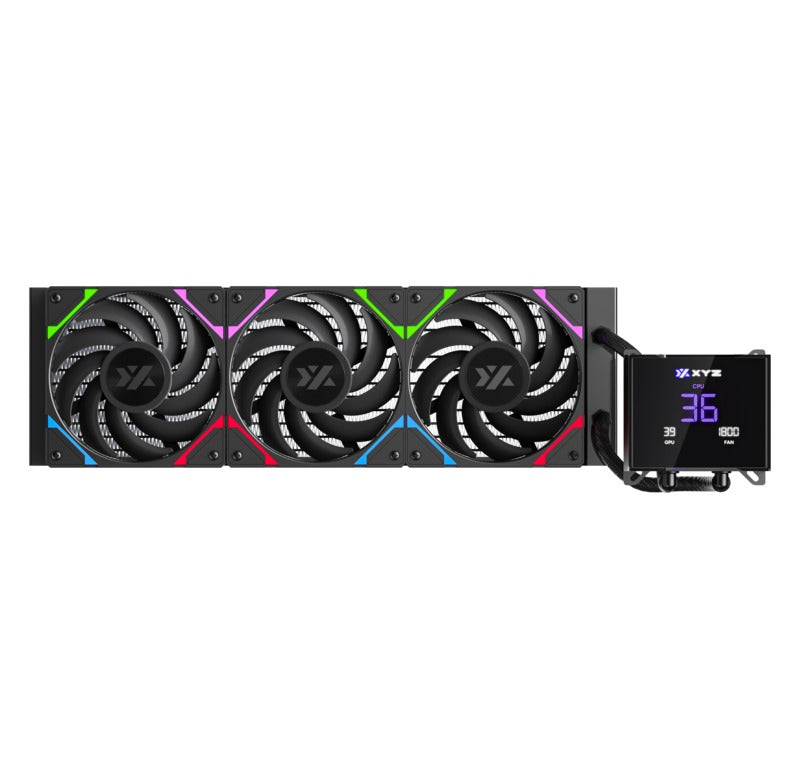

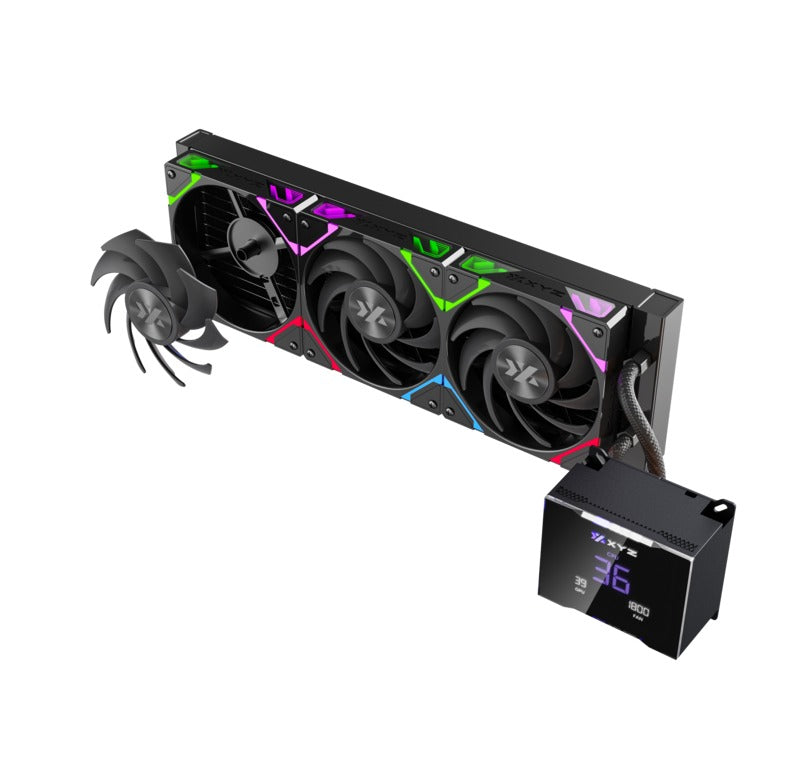

- Fans Vortex PRO 120mm PWM A-RGB Fans: Enjoy quiet and efficient cooling with the included 120mm Vortex PRO fans. These PWM fans offer precise speed control, powerful airflow, and feature customizable ARGB lighting to create a mesmerizing light show in your PC.

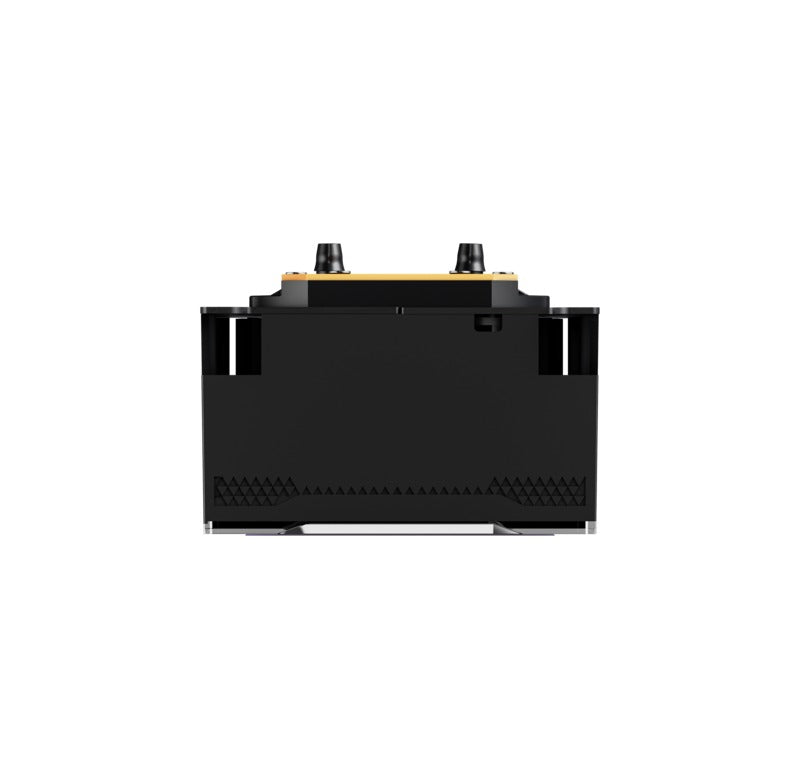

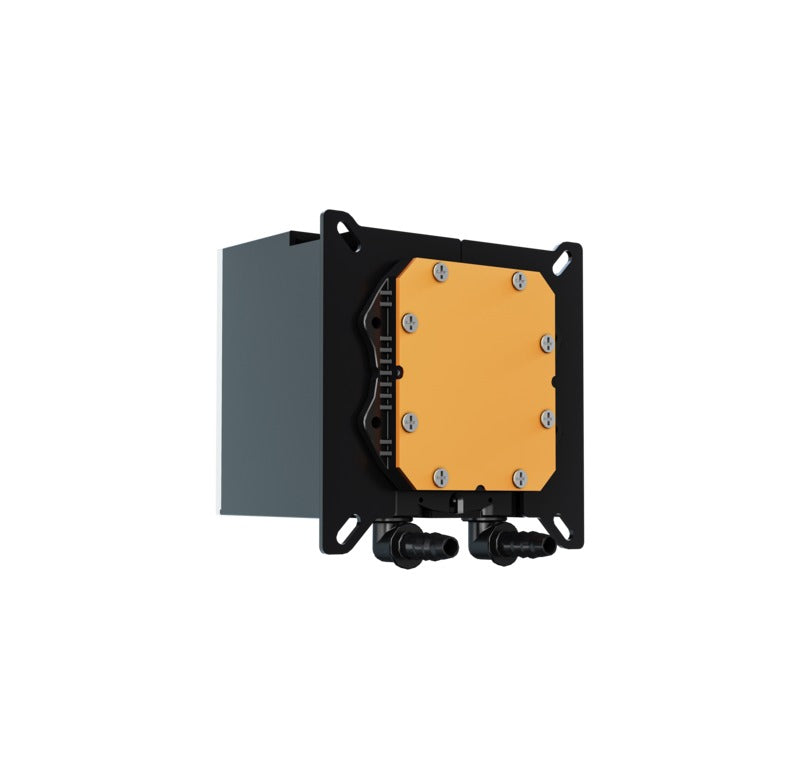

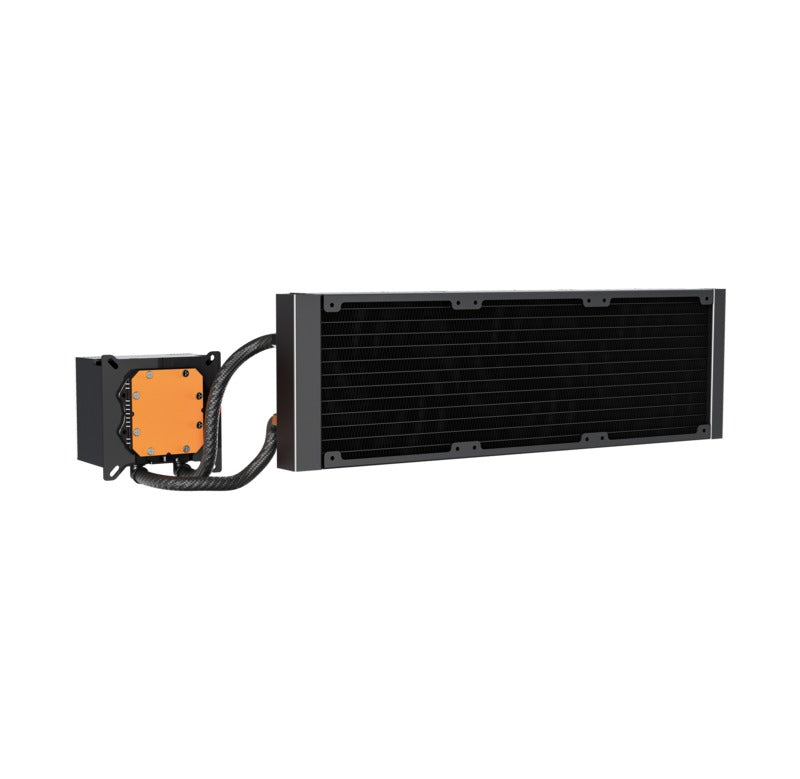

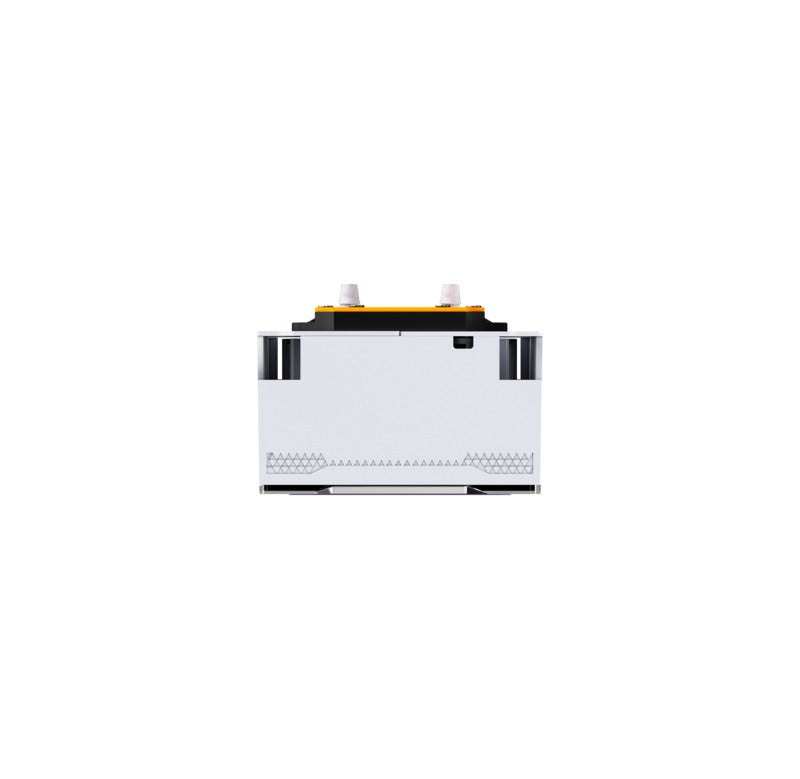

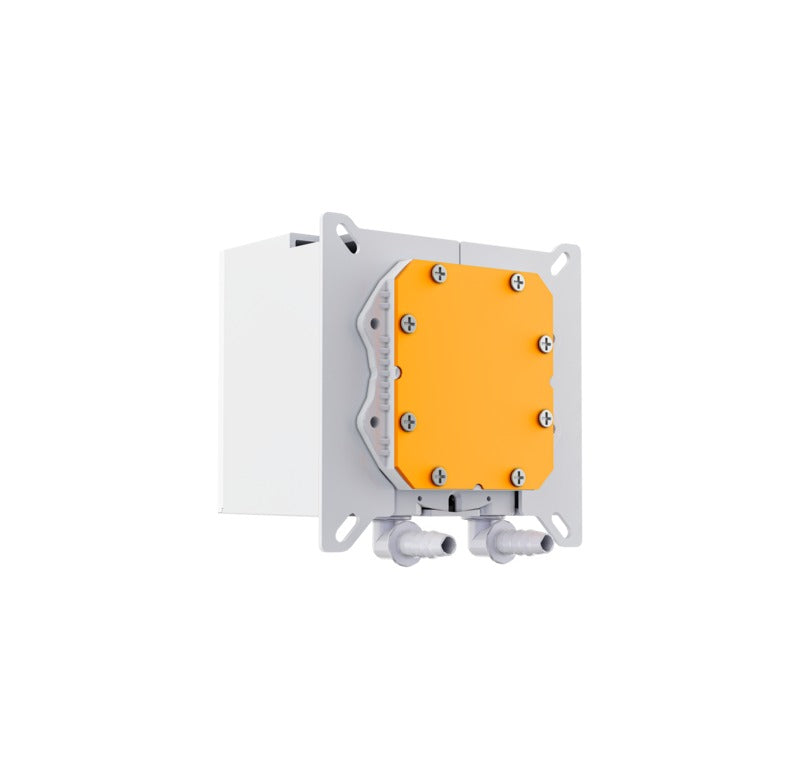

- High-Efficiency Pump: The high-efficiency pump ensures a constant flow of coolant, maximizing heat dissipation and keeping your CPU running at optimal temperatures even under heavy workloads.
- High-Quality Braided Tubing: The high-quality braided tubing not only offers durability and resistance but also adds an aesthetic touch to your setup.
- Wide Compatibility: HYDROTEMP is compatible with a wide range of Intel and AMD sockets, making it a versatile option for any gaming or high-performance PC.
- Ultra-Quiet Operation: With a minimum noise level of just 18.5 dB(A), the HYDROTEMP allows you to enjoy a quiet gaming environment without sacrificing performance. Even at maximum speed, the noise remains under control at 30 dB(A).
- Optimized Airflow and Flow Rate: The Vortex PRO fans deliver an impressive airflow of up to 62.7 CFM, while the pump guarantees a minimum flow rate of 1300 ml/min, ensuring fast and efficient heat dissipation.
Specification:
| Type | 240 AIO liquid cooling |
| Rated Voltage | 12V DC |
| Minimum Starting Voltage | ≤4.0 V |
| Electric Current | ≤0.30 A |
| Power | ≤3.6 W |
| Maximum Head | 1.5M |
| Minimum Flow Rate | ≥1300 mL/min |
| Pump Speed | 2500RPM ±10% |
| Storage Temperature | -10°C ~ 70°C |
| Operating Temperature | -10°C ~ 60°C |
| Estimated Minimum Service Life | 50,000 hours under normal working conditions |
| Maximum Noise | ≤30 dB |
| Pump Size | 92.7W92.5H59.5mm |
| Catheter | Braided tube, L=350 ±2mm |
| Dimensions | L397W120H27mm |
| TDP | 340W |
| Socket Compatibility | AMD: AM4, AM5 Intel: LGA 775, 1150, 1151, 1155, 1156, 1200, 1366, 1700, 2011, 1851 |
| Software Compatibility | Windows 10 & 11 |
| Vortex PRO A-RGB Fans | |
| Bearing | FDB (Fluid Dynamic Bearing) |
| Rated Voltage | DC 12V |
| Operating Voltage | 10.8 ~ 13.2V |
| Starting Voltage | DC 5V MAX |
| Rated Current | 0.20A ±20% MAX (Labeled Current: 0.20A) |
| Locked Current | 0.21A ±20% MAX |
| Power Consumption | 1.80W ±20% MAX |
| Speed | 600 - 2000 ±20% RPM |
| Max. Airflow | 62.7 CFM (ft³/min) |
| Max. Static Pressure | 2.68 mm-H₂O |
| Max Noise Level | 32.0 dB(A) |
| Min Noise Level | 18.5 dB(A) |
| Estimated Minimum Service Life | 60,000 hours at 25°C |
| No. of Blades | 9 Blades |
| No. of Poles | 4 Poles |
| Airflow | Regular (outtake) |

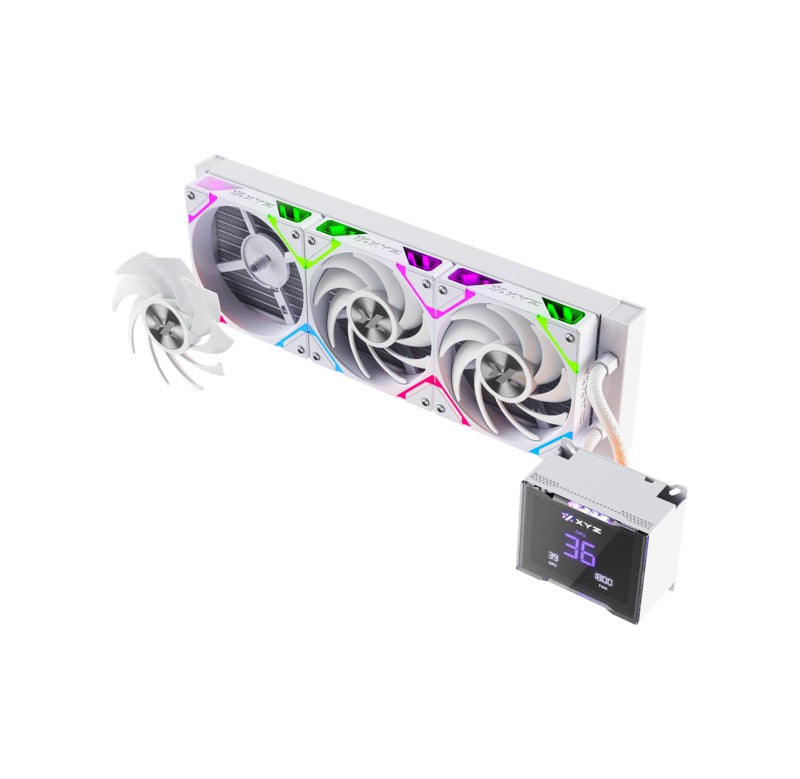

| Available Colors | Black - SKU: X-WC-HYDROTEMP-360B White - SKU: X-WC-HYDROTEMP-360W |
