Description

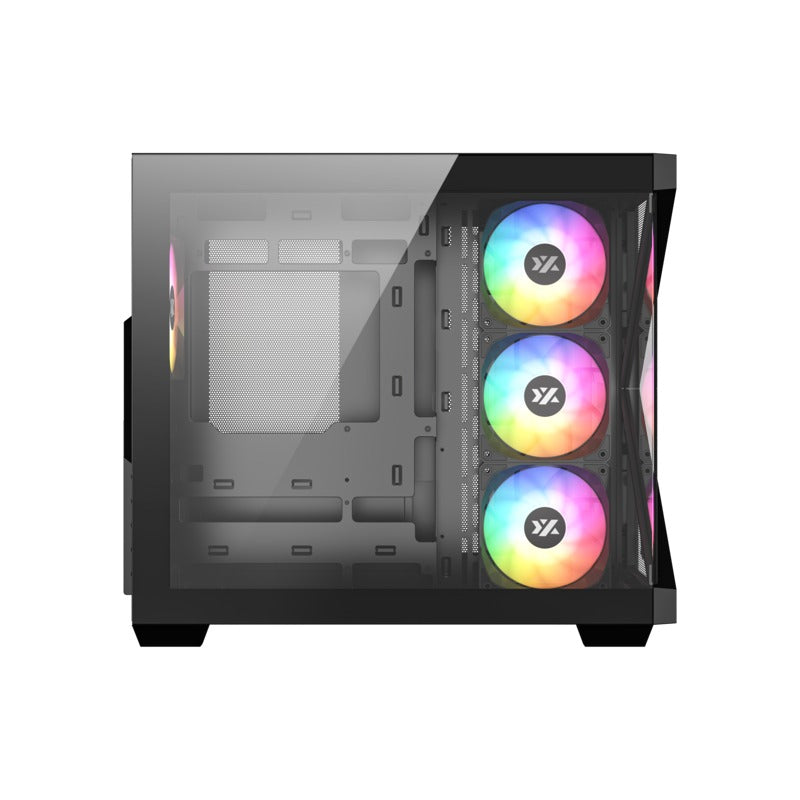

XYZ QUBEX
Cubic Elegance, Boundless Performance
Unleash the power of your passion for gaming with the XYZ Qubex, the ATX case that fuses minimalist design with exceptional performance.

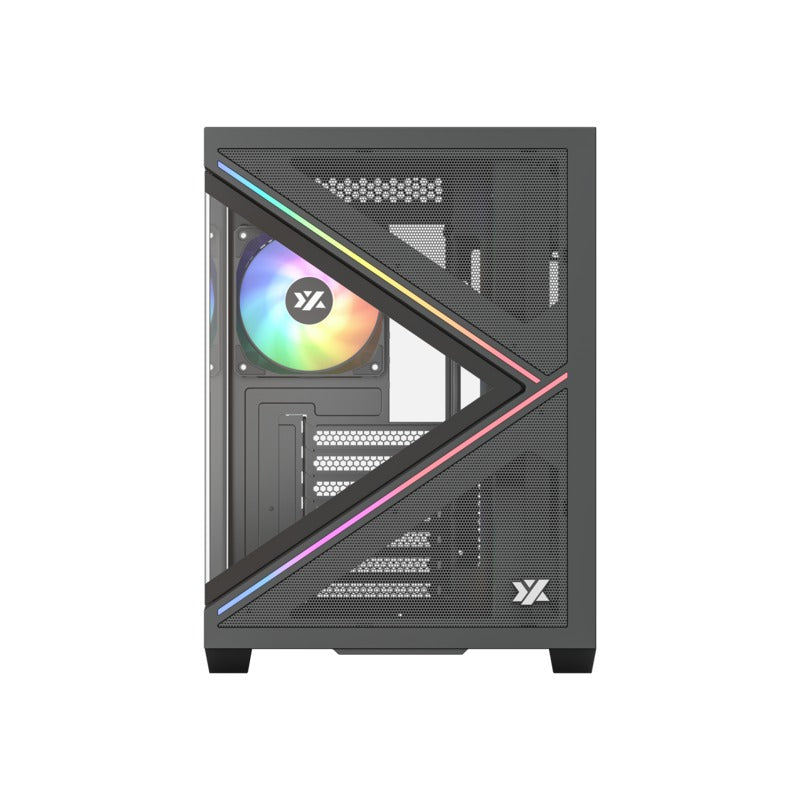

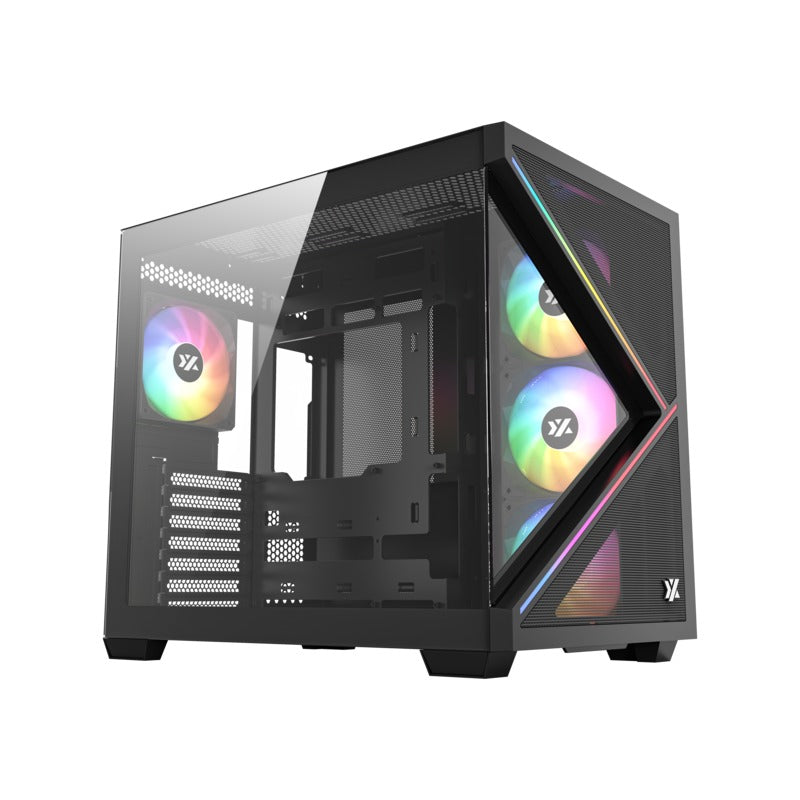

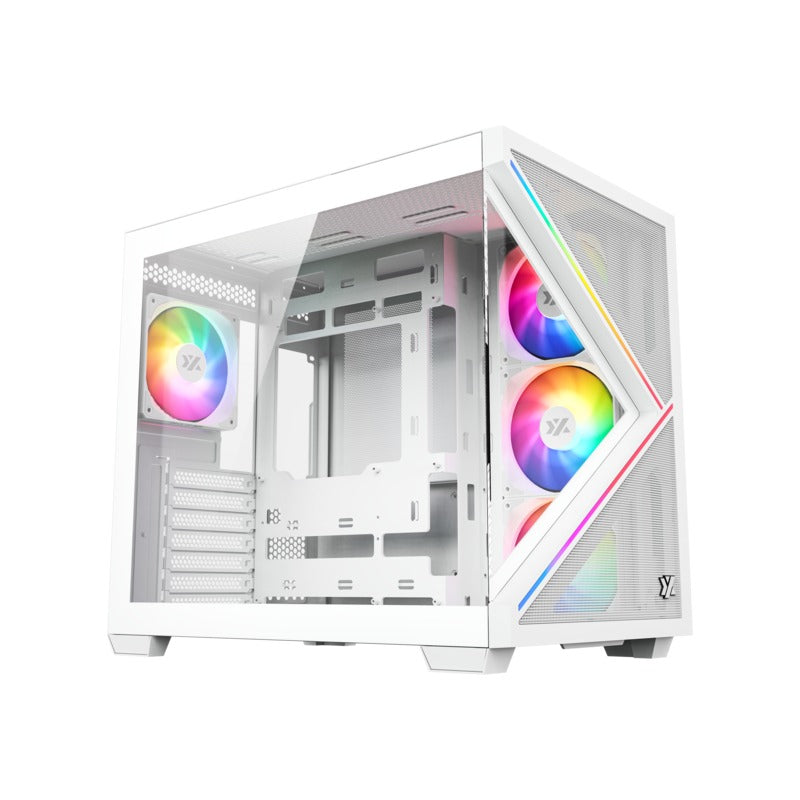

Minimalist Cubic Design: The Qubex redefines the aesthetic of gaming cases with its elegant cubic design, radiating sophistication and modernity. Its tempered glass front panel, combined with metal mesh and LED accents, creates an imposing presence on your desk.
Optimal Ventilation and Cooling: Keep your components cool even during the most intense gaming sessions thanks to its support for up to 9 fans and extensive liquid cooling options. The Qubex gives you the flexibility you need to create efficient airflow and keep your system at optimal temperatures.
Versatility and Customization: The Qubex adapts to your needs with removable PCI-E slots to install your graphics card horizontally. In addition, its spacious design supports ATX, Micro-ATX, and Mini-ITX motherboards, giving you the freedom to create the ideal configuration.

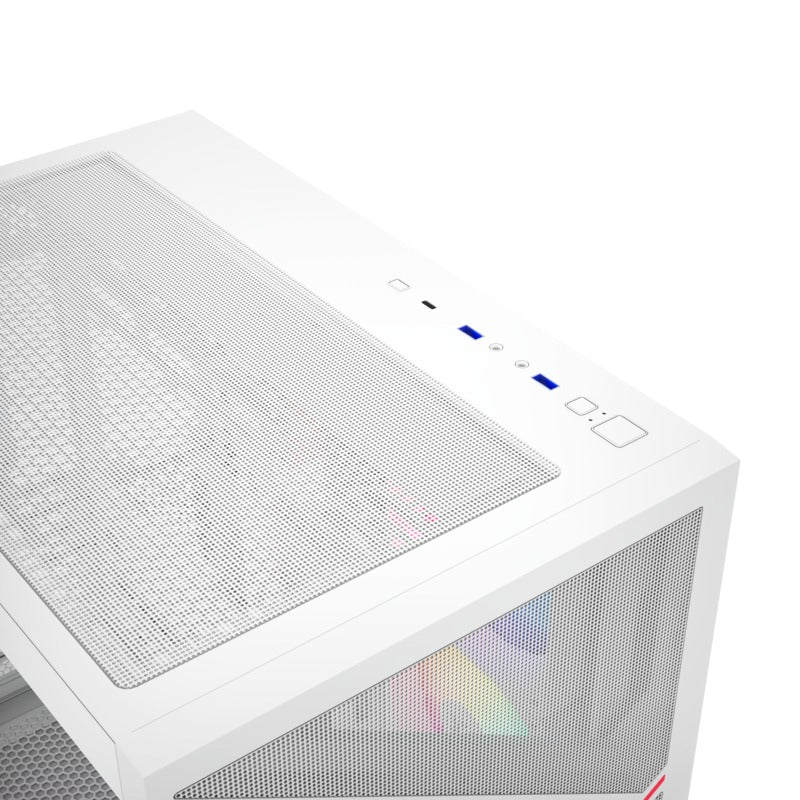

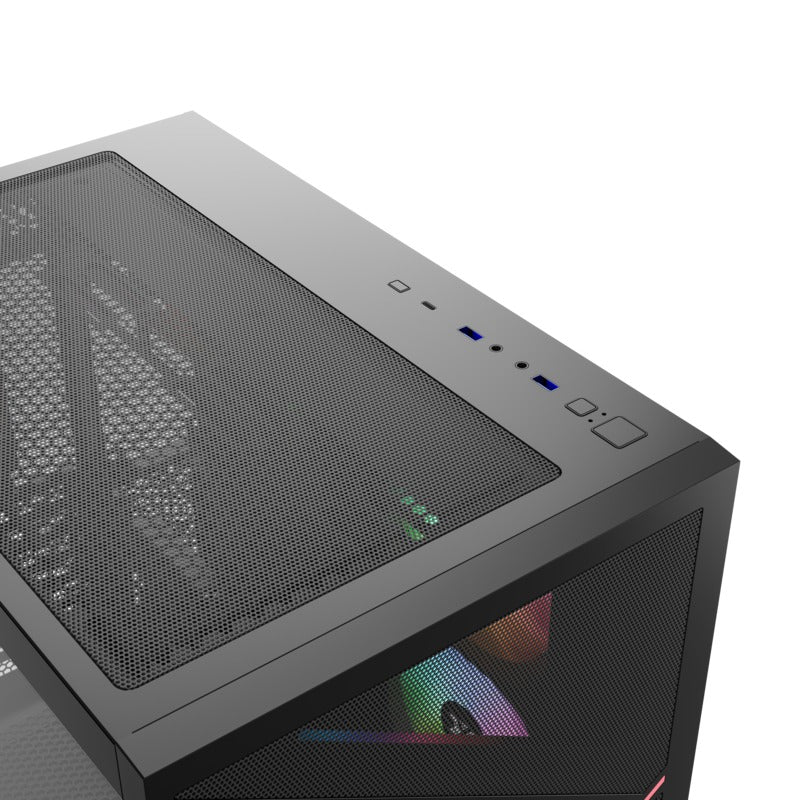

Modern and Efficient Connectivity: Connect your high-speed devices with ease thanks to the USB 3.0 and USB Type-C ports, as well as HD audio jacks. The Qubex keeps you connected without sacrificing aesthetics. It also features an integrated ARGB controller and is compatible with the ARGB sync standard of motherboards, allowing you to synchronize the lighting of your components and create impressive visual effects.

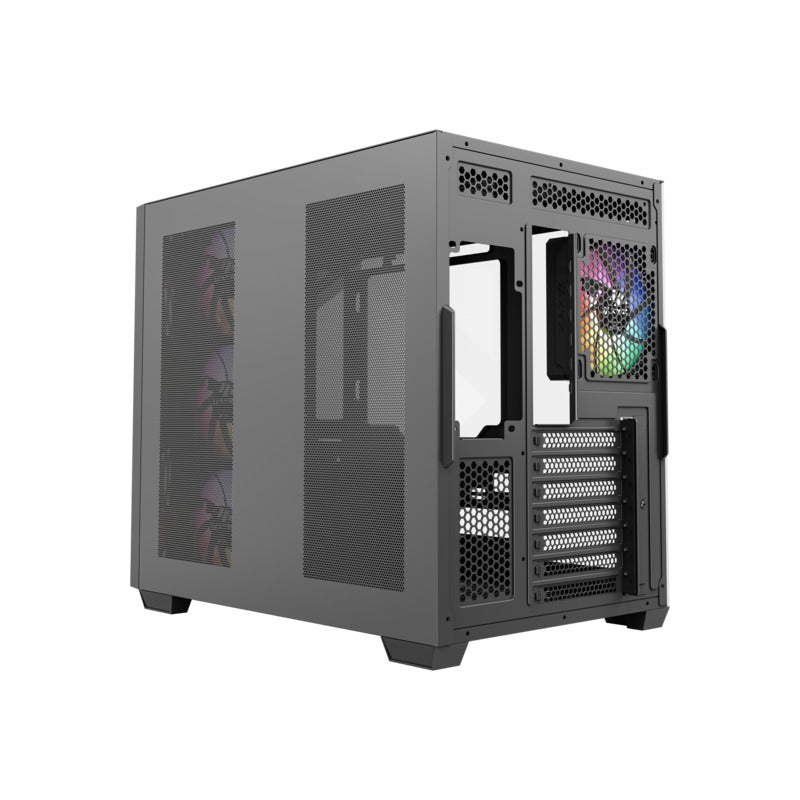

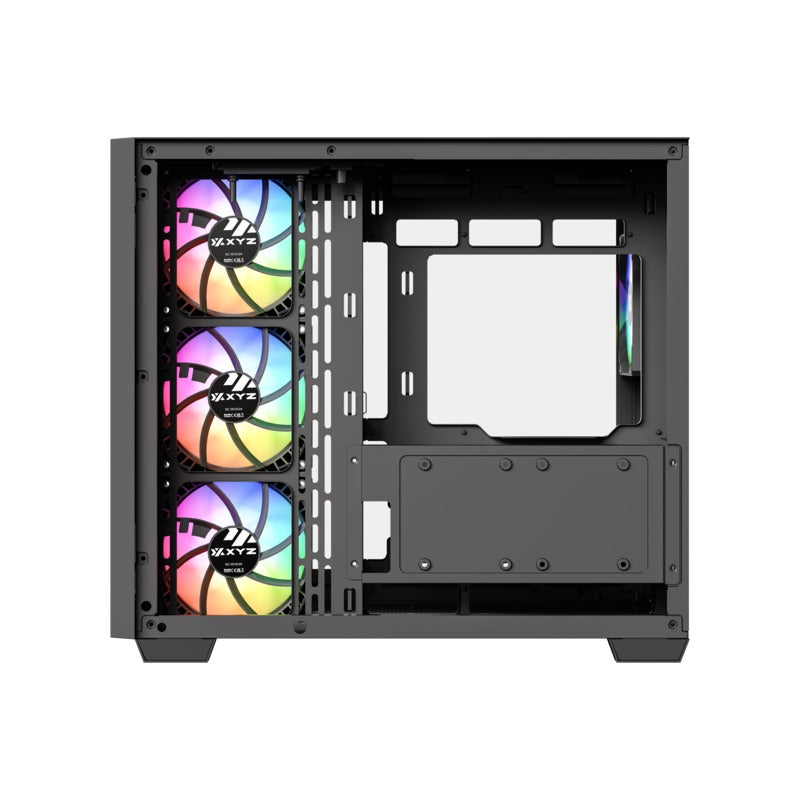

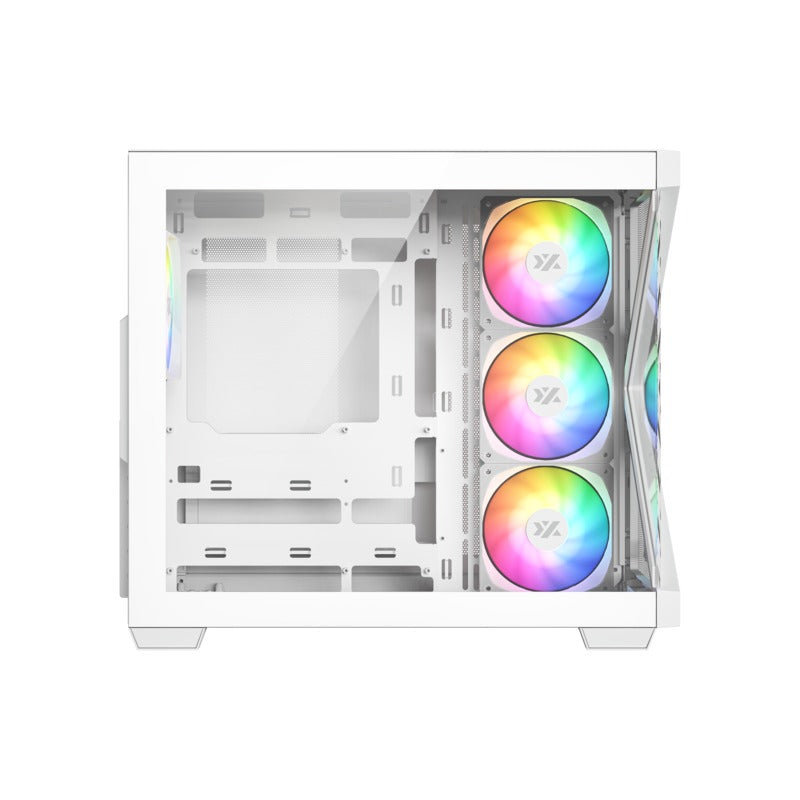

Included ARGB Lighting and Cooling: Equipped with 4 x 120mm ARGB PULSAR fans (3 front with reverse airflow and 1 rear with regular airflow), the Qubex not only offers efficient cooling but also a customizable light show to set the mood for your gaming sessions.
Cableless Motherboard Compatibility: The Qubex is compatible with the latest cableless motherboards with rear connectors, simplifying the assembly process and reducing cable clutter in your system.
Technical Specifications
XYZ QUBEX
| I/O | 2 x USB 3.0 + 1 x USB Type-C + HD Audio, Power button + Reset button |
| Front Panel | Tempered glass + metal mesh + 2 LEDs |
| Left Side Panel | Tempered glass |

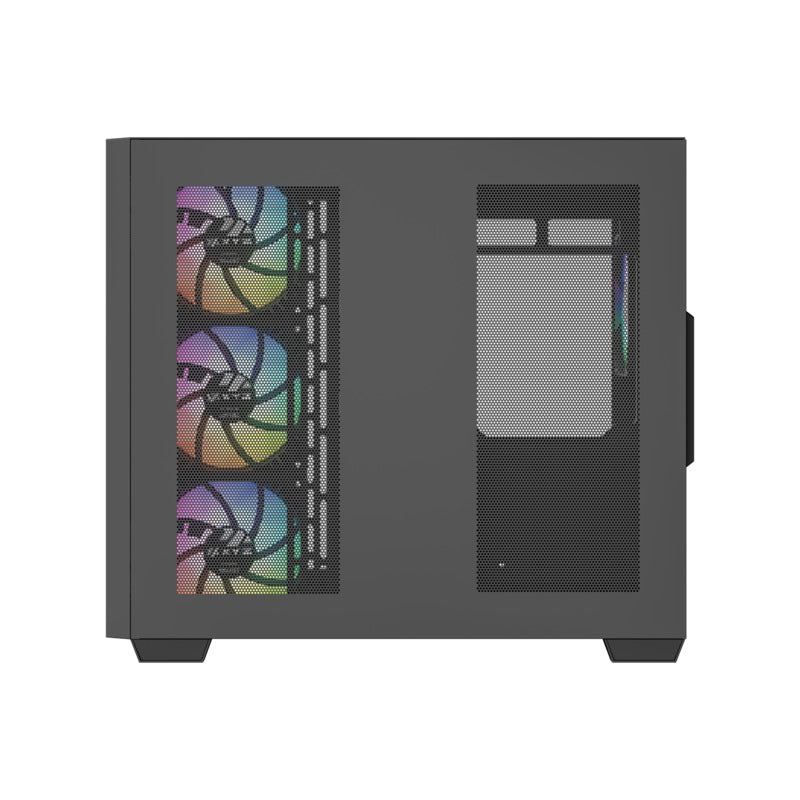

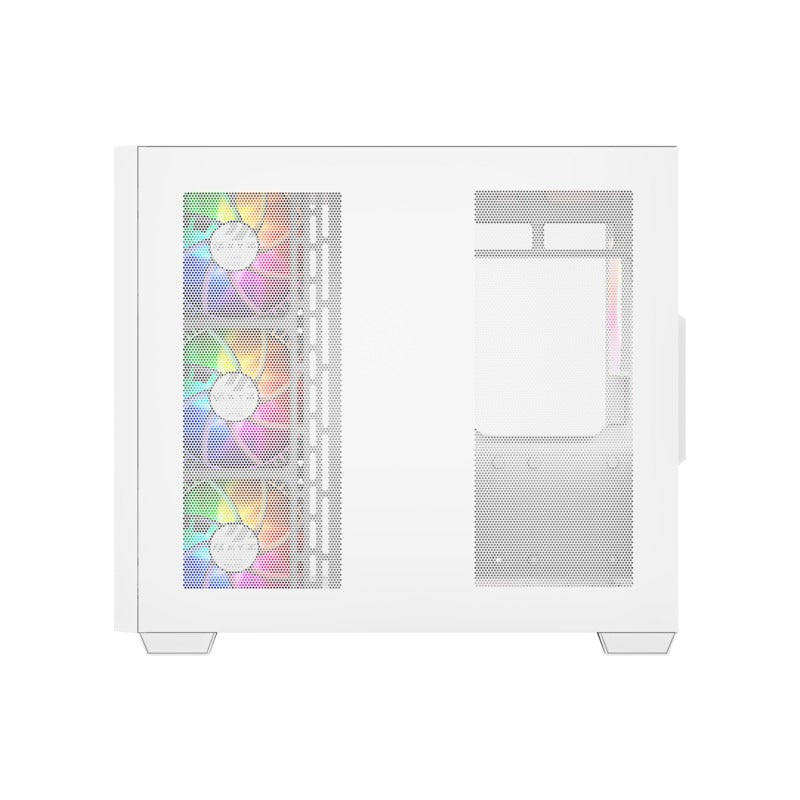

| Right Side Panel | Metal with mesh |
| Material | SPCC 0.7mm End Finish |
| PSU Position & Type | Bottom, ATX (max 200mm) |
| Motherboard Support | ATX / Micro-ATX / Mini-ITX (Compatible with cableless back plug motherboards) |
| Drive Bays | 1 x 3.5″ HDD 2 x 2.5″ SSD |

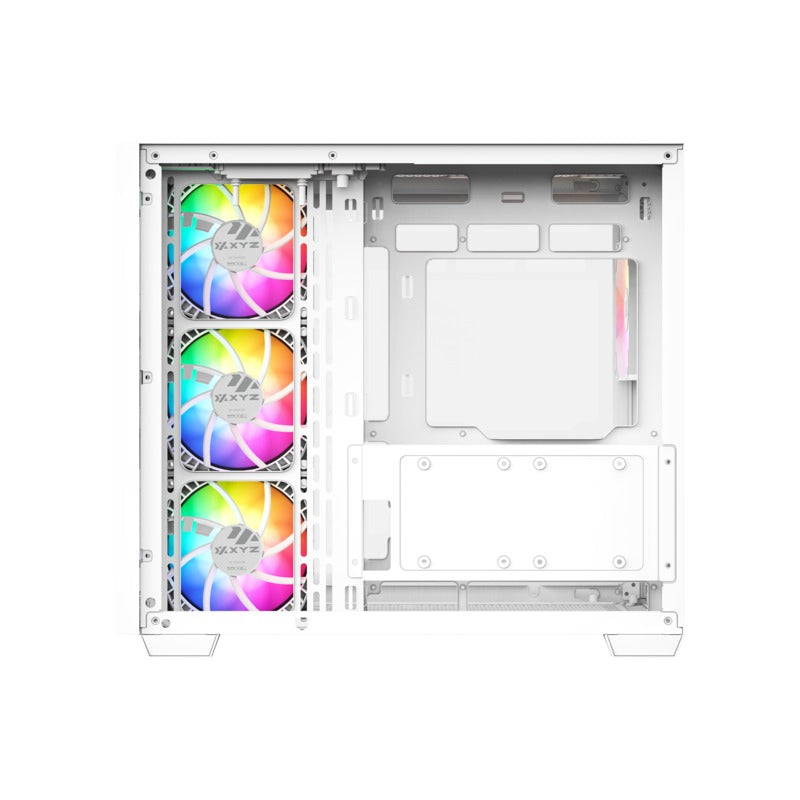

| Fan Support | Motherboard Tray: 3 x 120mm Top: 3 x 120mm Rear: 1 x 120mm Bottom: 3 x 120mm |
| Included Fans | 4 x 120mm XYZ ARGB PULSAR fans (3 reversed, 1 regular) |
| Integrated ARGB controller | YES |
| Water Cooling Support | Motherboard Tray: 240/280mm Top: 240/280/360mm Bottom: 240/360mm |

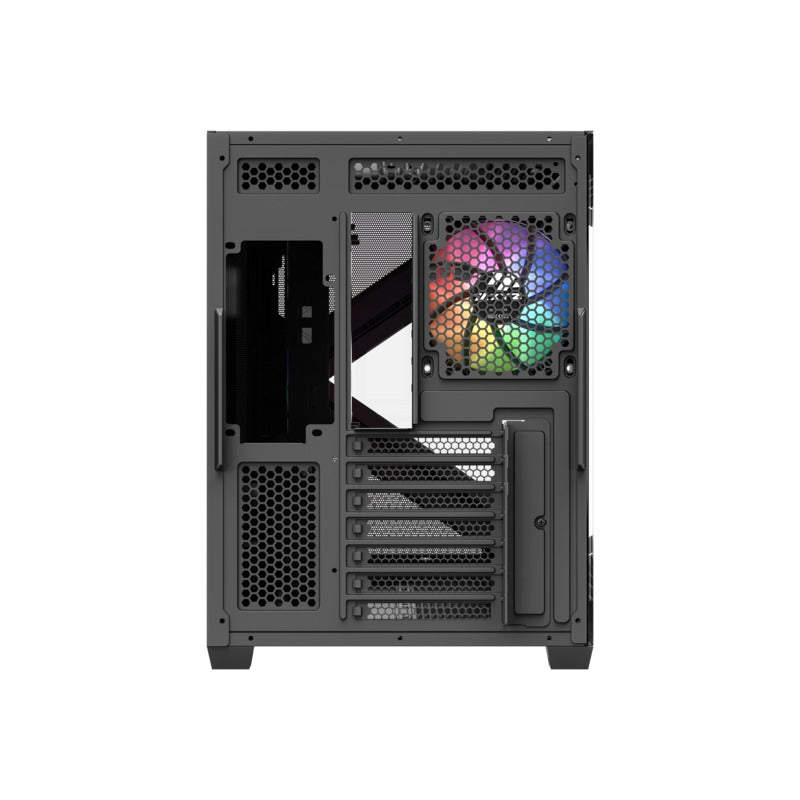

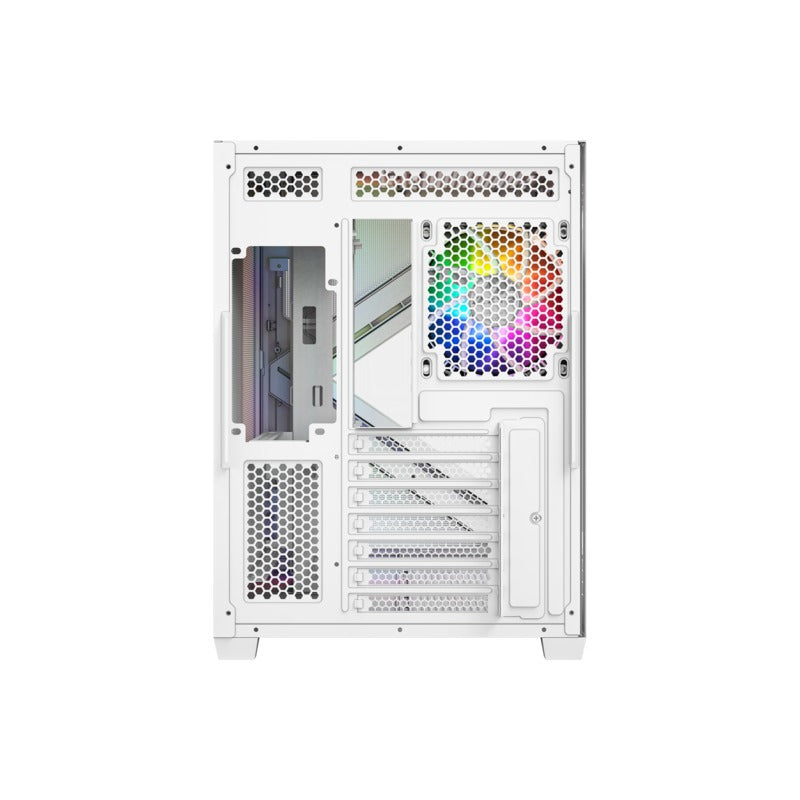

| PCI Expansion Slots | 7 |
| Max GPU Length | 400mm |
| Max CPU Cooler Height | 165mm |
| Dust Filter | Top and bottom |
| Case Dimensions | 420(L) x 285(W) x 380(H)mm |
| Carton Dimensions | 535(L) x 351(W) x 440(H)mm |

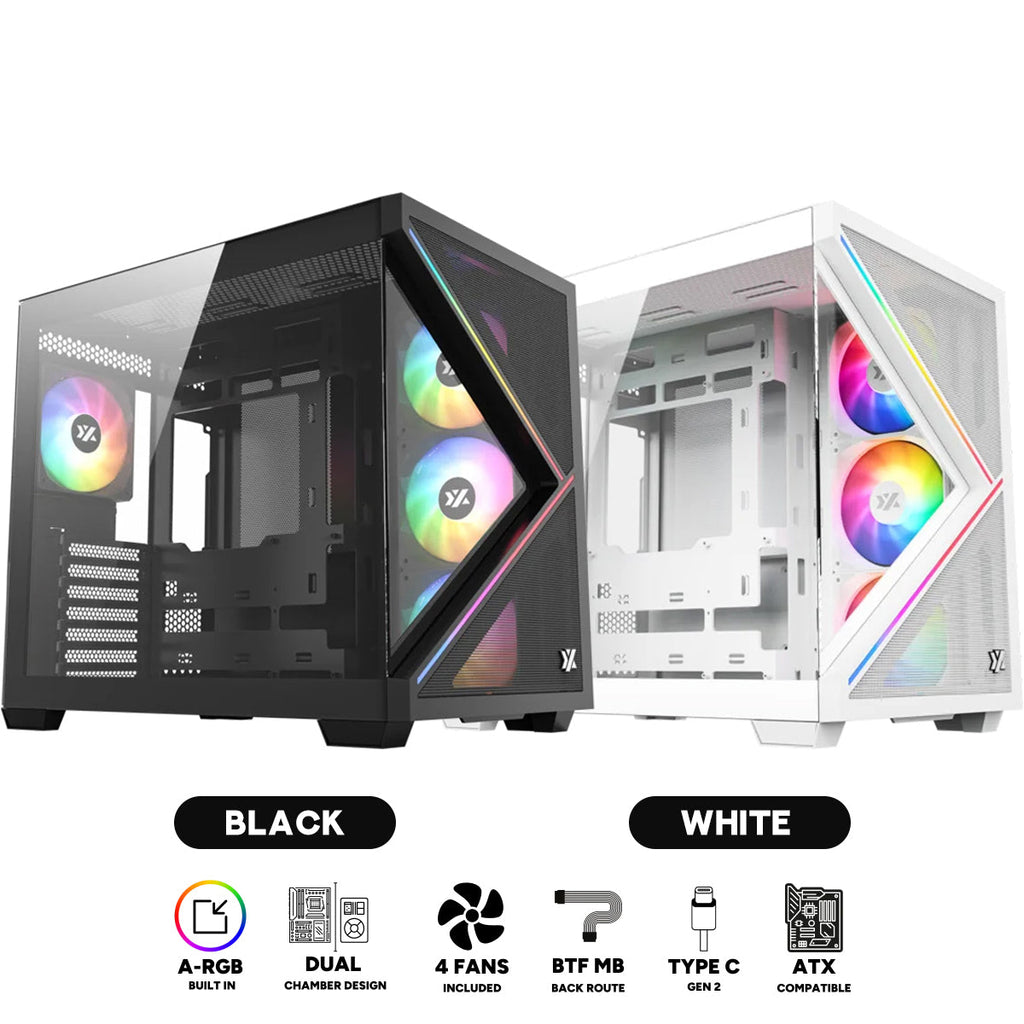

Available Colors
| Black | SKU | X-CS-QUBEX-B |

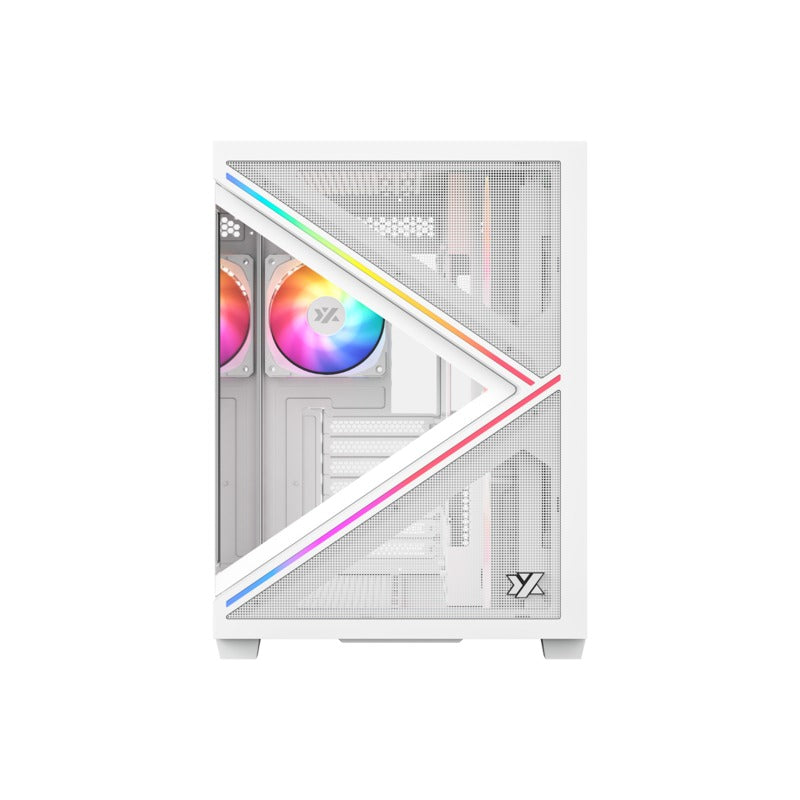

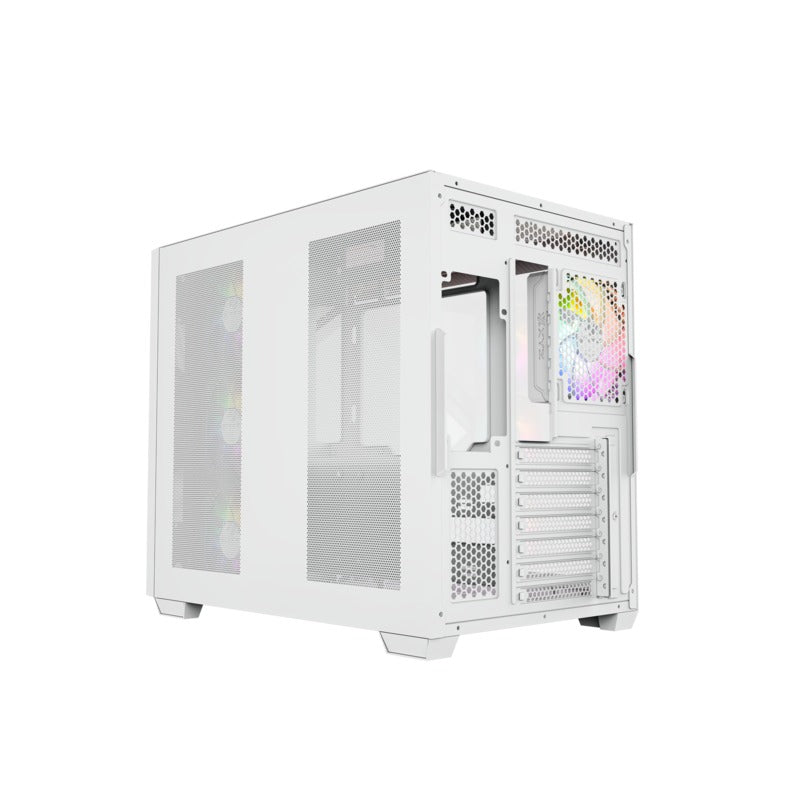

| White | SKU | X-CS-QUBEX-W |
PULSAR A-RGB FANS
| Dimensions | 120 x 120 x 25 mm |
| Bearing Type | Rifle Bearing |
| Voltage | Nominal: DC 12V Operating: 10.8 ~ 13.2V Starting: DC 5V MAX |
| Current | Rated: 0.28A ±10% MAX Tag: 0.28A ±10% MAX Blocking: 0.30A ±10% MAX |
| Power Consumption | 3.36W ±10% MAX |
| Rotation Speed | 600-1800 ±10% RPM |
| Maximum Air Flow | 78.64 CFM (ft³/min) |
| Max. Static Pressure | 1.78mm-H₂O |
| Max. Noise Level | 36dB(A) |
| Min. Noise Level | 18.5dB(A) |
| Service Life | 50,000 hours at 25°C |
| Number of Blades | 9 |
| Number of Poles | 4 |
