Description
PROCESSOR: Intel Core i9-14900HX
DISPLAY: 16.0" IPS, WQXGA (2560 x 1600), high-brightness (400 nits)
MEMORY: 1 x 16GB of DDR5 5600Mhz system memory
STORAGE: 1 x 1TB NVMe SSD
GPU: NVIDIA GeForce RTX 4060 with 8 GB of dedicated GDDR6 VRAM
OS: Windows 11 Home
SPECIFICATION

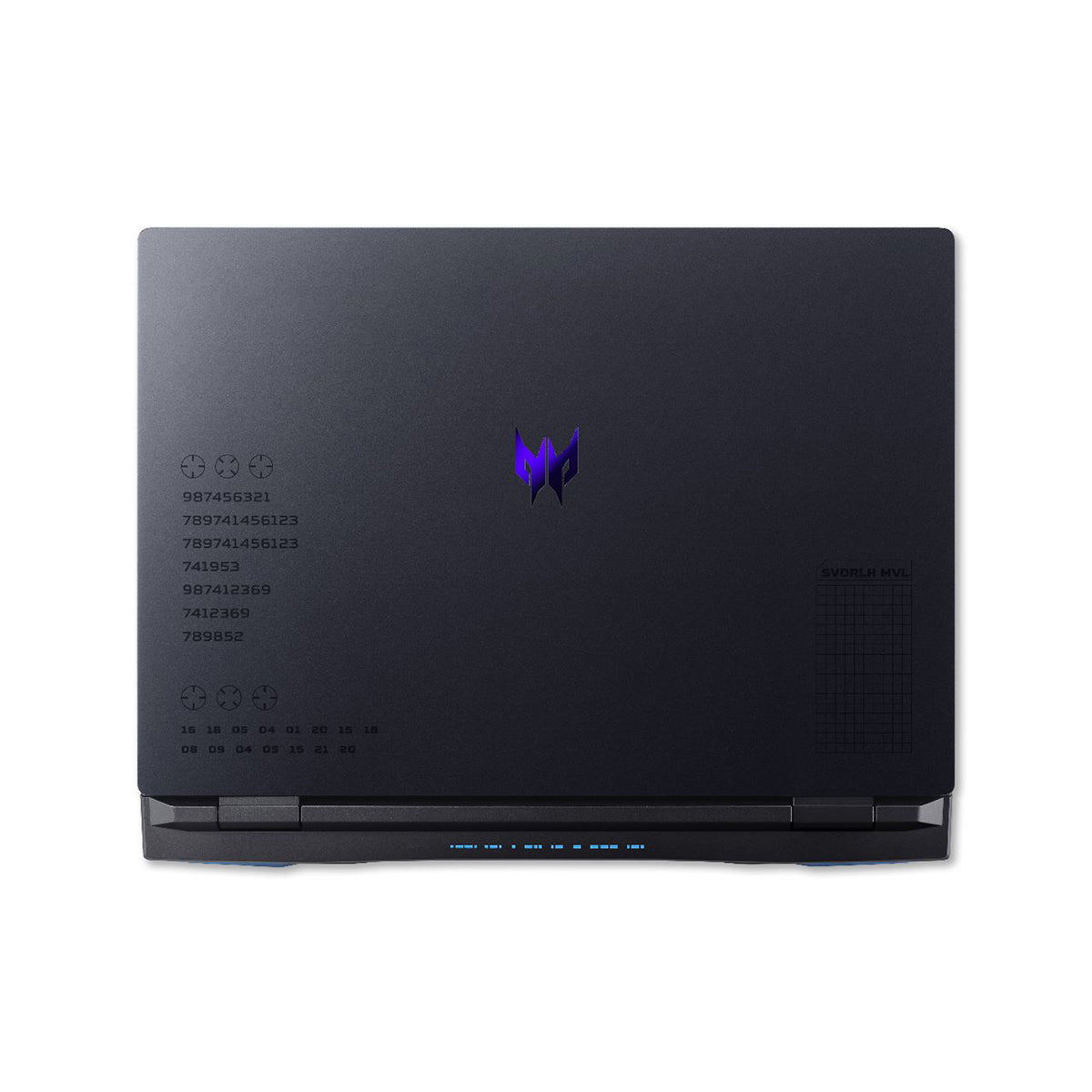

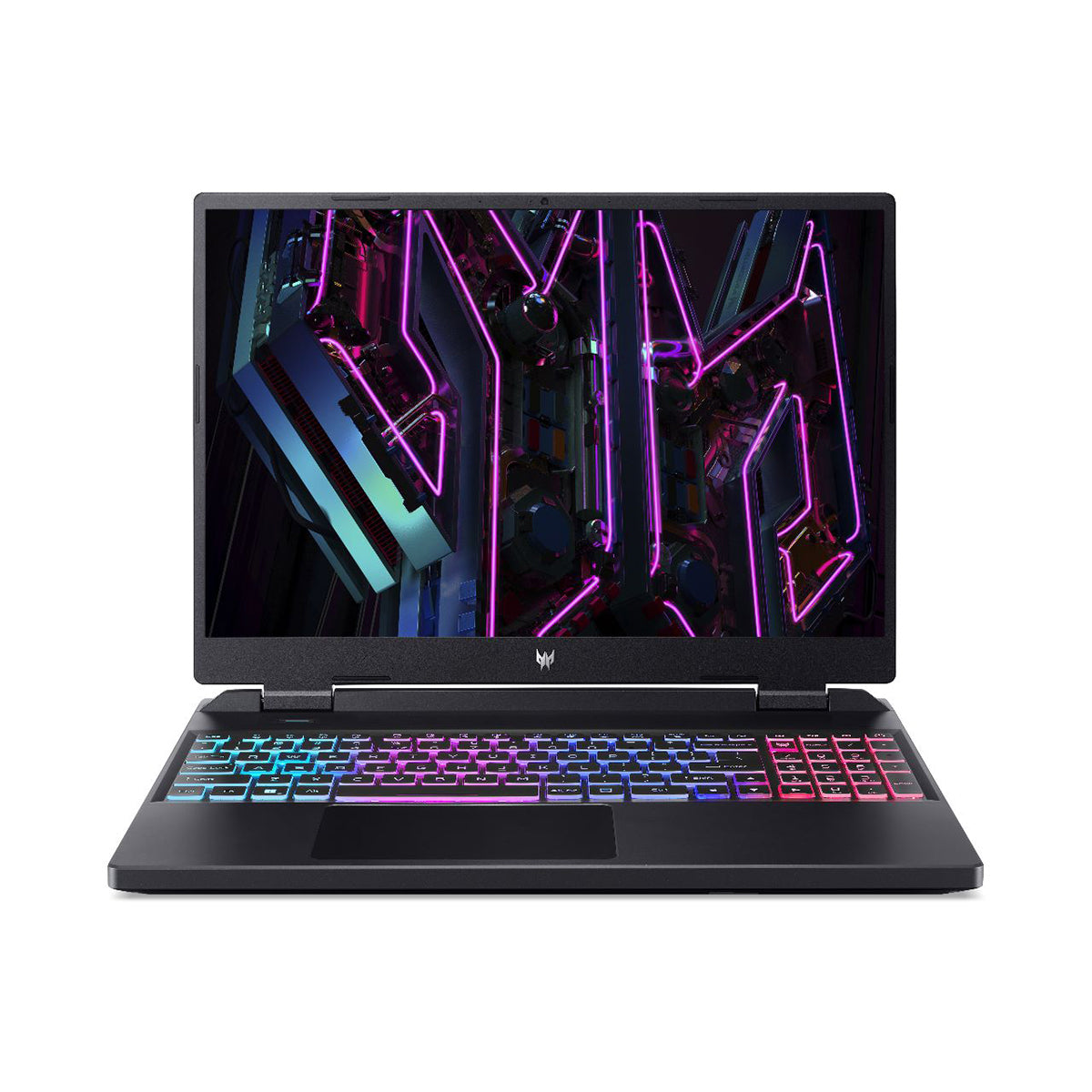

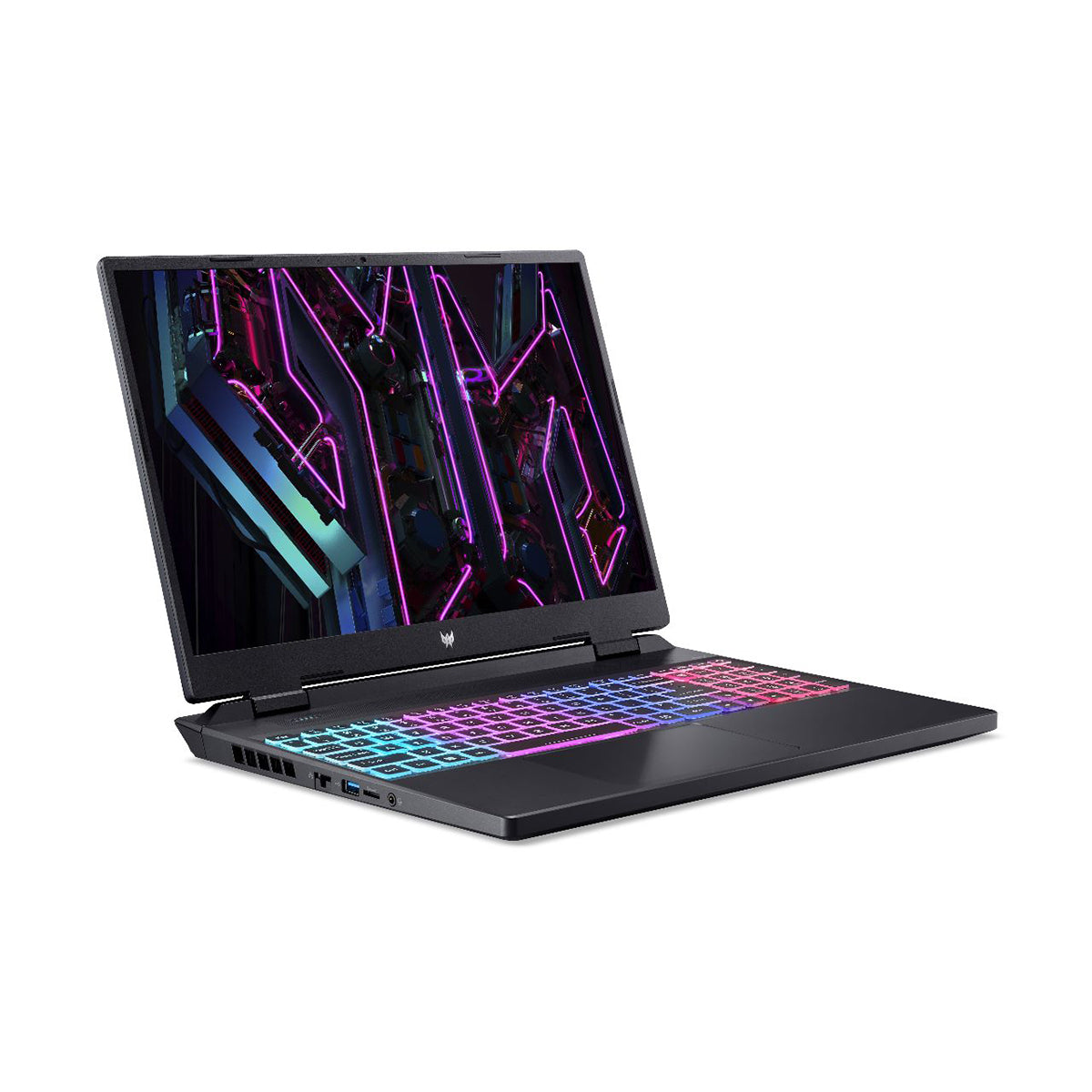

| Marketing Name | Helios Neo 16 |
| Size | 16" |
| Color | Black |
| Category | Gaming |
| Model | PHN16-72-92K1 OPI (from 92C4) |
| Part Number | NH.QNNSP.009 |
| Processor | • Intel® Core™ i9-14900HX processor (36 MB Smart Cache, 2.2 GHz Performance-core with Intel® Turbo Boost Max Technology 3.0 up to 5.7 GHz, overclock capable), supporting hybrid core architecture with Performance-core and Efficient-core |
| Memory | • 1x 16GB of DDR5 5600Mhz system memory, upgradable to 32 GB using two soDIMM modules |
| Memory Slots (Available) | 2 (1) |
| Memory Frequency | 5600Mhz DDR5 |
| Storage | 1x 1TB NVMe SSD; upgradeable to maximum of 1TB. (2TB max for RAID 0) |
| M.2 Slot/s (Available) | 2 (1) |
| Display Panel/ Resolution | • 16.0" display with IPS (In-Plane Switching) technology, WQXGA 2560 x 1600, high-brightness (400 nits) Acer ComfyView™ LED-backlit TFT LCD, supporting 180Hz, Grey to Grey 3 ms by Overdrive, Nvidia Advanced Optimus capable. • 16:10 aspect ratio, sRGB 100% • Wide viewing angle up to 170 degrees • Ultra-slim design • Mercury free, environment friendly |
| Graphics | NVIDIA® GeForce RTX™ 4060 with 8 GB of dedicated GDDR6 VRAM, supporting 3072 NVIDIA® CUDA® Cores. • With 5th gen MAXQ technology design • 1470 - 2370 MHz Boost Clock • Third Gen Ray Tracing Cores • Fouth Gen Tensor Cores • Ada Lovelace NVIDIA Architecture • Microsoft DirectX® 12 Ultimate. • NVIDIA DLSS 3.0 • NVIDIA Reflex • NVIDIA Broadcast • PCI Express Gen 4 • NVIDIA Resizable BAR • NVIDIA GeForce ExperienceTM • NVIDIA Ansel • NVIDIA FreeStyle • NVIDIA ShadowPlay® • NVIDIA Highlights • NVIDIA G-SYNC® • NVIDIA Game Ready Drivers • NVIDIA Studio Drivers. • NVIDIA Omniverse • NVIDIA GPU BoostTM • Vulkan RT API, OpenGL 4.6 • HDMI • DisplayPort • NVIDIA Dynamic Boost 2.0 • NVIDIA Whisper Mode 2.0 • NVIDIA Advanced Optimus • NVIDIA Battery Boost • NVIDIA Rapid Core Scaling • NVIDIA CPU Optimizer |
| Network Connection | WLAN • Killer Wireless Wi-Fi 6E 1675i • 802.11 a/b/g/n/ac/ax wireless LAN • Band: 2.4 GHz, 5 GHz and 6 GHz • 2x2 MU-MIMO technology • Support CNVi interface LAN • Killer™ Ethernet E3100G • 2.5G Ethernet • Killer Control Center • Lag and Latency Reduction™ Technology • Advanced Stream Detect™2.0 • Killer DoubleShot™ Pro enabled • GameFast™ Technology WPAN Supports Bluetooth® 5.3 or above Supports Bluetooth LE Audio (LC3) |
| Operating System | • Windows 11 Home |
| Audio | • DTS® X:Ultra Audio, featuring optimized Bass, Loudness, Speaker Protection with up to 6 custom content modes via smart amplifier • Supported in Windows Spatial Sound for PC Gaming with DTS Sound Unbound license integrated • Immersive audio rendering over headphones and internal speakers • High SNR DAC with 2.1 Vrms out capability and can driver high impedance headphone (up to 600 ohm) • Acer Purified.Voice technology with AI noise reduction in dual built_x0002_in microphones. Features include far-field pickup, dynamic noise reduction through neural network, adaptive beam forming, and pre_x0002_defined personal and conference call modes. • Support Advanced Privacy Mode with 3rd Mic Integrated • Compatible with Cortana with Voice • Acer TrueHarmony Technology for lower distortion, wider frequency range, headphone-like audio and powerful sound |
| Adapter | 3-pin 330 W 5.5 PHY AC adapter |
| Battery Type | 90 Wh 4-cell Li-ion battery |
| Camera | Video conferencing UFC with • Narrow USB HD camera • Compatible with Windows • 1280 x 720 resolution • 720p HD video at 30 fps with Temporal Noise Reduction • Blue Glass lens • Dual Mic (33 mm + 33 mm) • 86 x 3.2 x 2.6 mm |
| Input/Output Ports | 2x USB Type-C port: • USB 3.2 Gen 2 (up to 10 Gbps) • DisplayPort over USB-C • ThunderboltTM 4 • USB charging 5 V; 3 A • DC-in port 20 V; 100 W 3x USB Type-A port: • USB 3.2 Gen 2 port featuring power-off USB charging • USB 3.2 Gen 2 port • USB 3.2 Gen 1 port • HDMI® 2.1 port with HDCP support • microSD card (SDXC compatible) • 3.5 mm headphone/speaker jack, supporting headsets with built-in microphone • Ethernet (RJ-45) port • DC-in jack for AC adapter |

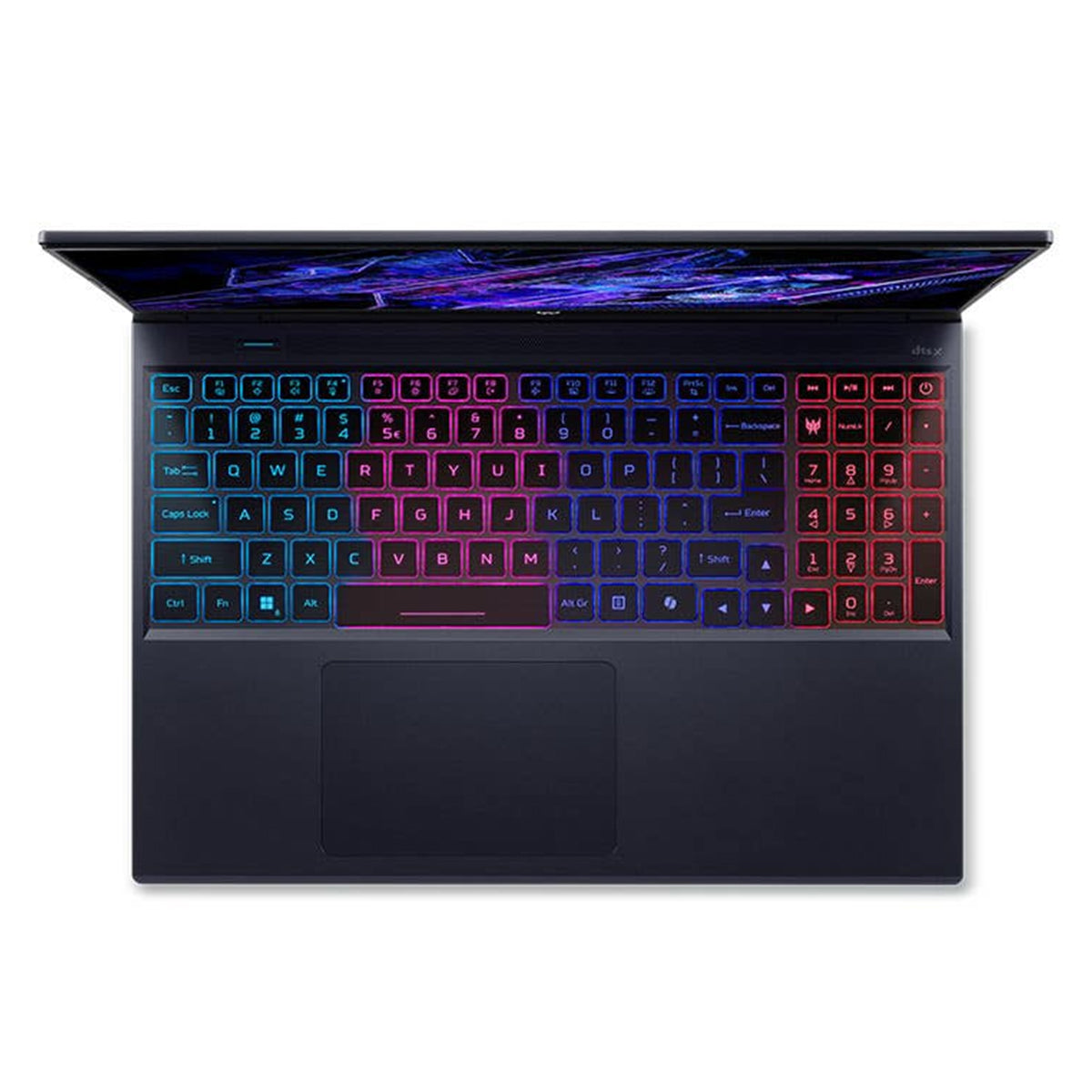

| Keyboard & Touchpad | Keyboard 103(US)-/104(UK)-key, FineTip RGB-backlight keyboard with independent standard numeric keypad, international language support • Key-to-key area: 339.45mm (width) *107.35mm (Length) • Keybaord travel distance 2.0mm for gamer optimal typing feel TouchPad Multi-gesture touchpad, supporting two-finger scroll; pinch; gestures to open Cortana, Action Center, multitasking; application commands • Microsoft Precision Touchpad certification • Moisture resistant |
| Bundled Accessory | Microsoft Office 2021 Home and Student |
| Dimensions | • 357.78 (W) x 278.63 (D) x 25.95/27.85 (H) mm (14.09 x 10.97 x 1.02/1.1 inches) with Metal A Cover |
| Weight | • 2.8 kg (6.17 lbs.) with 4-cell battery pack |
