Description

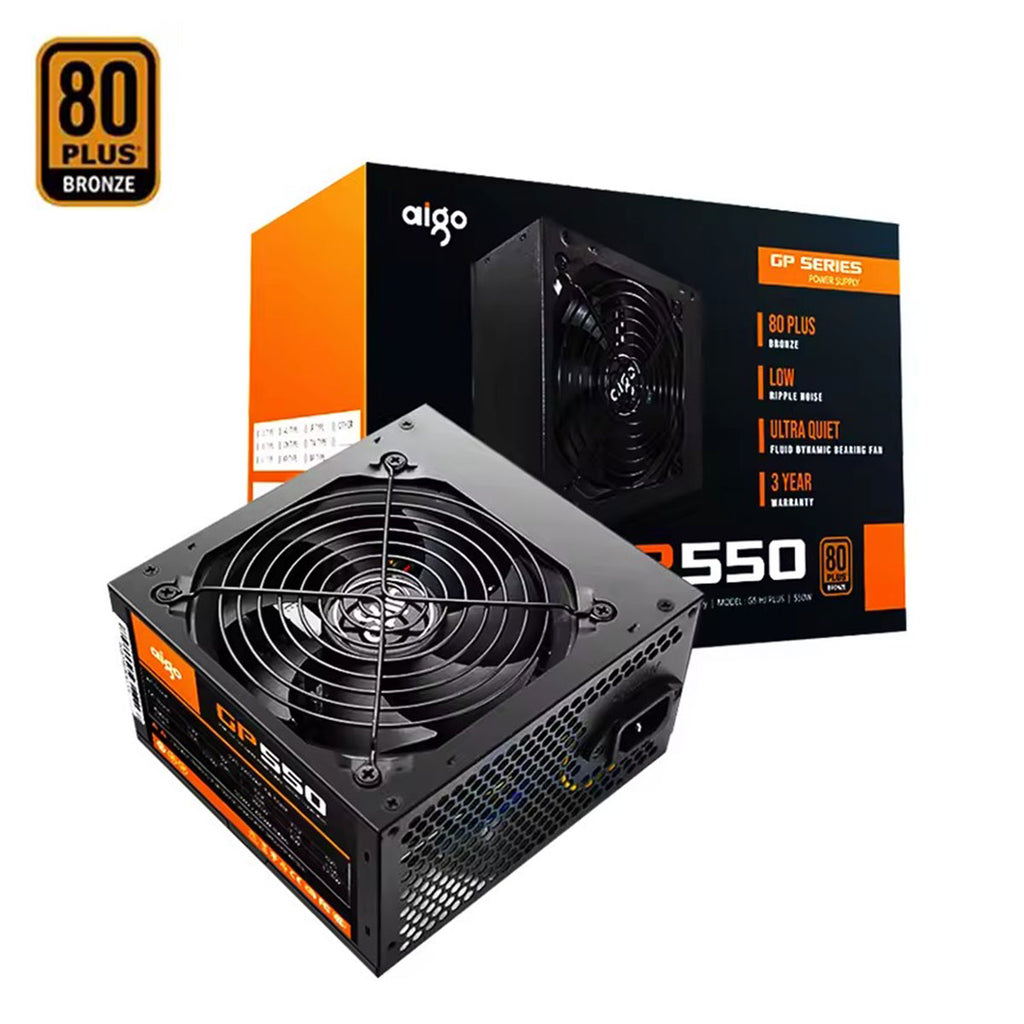

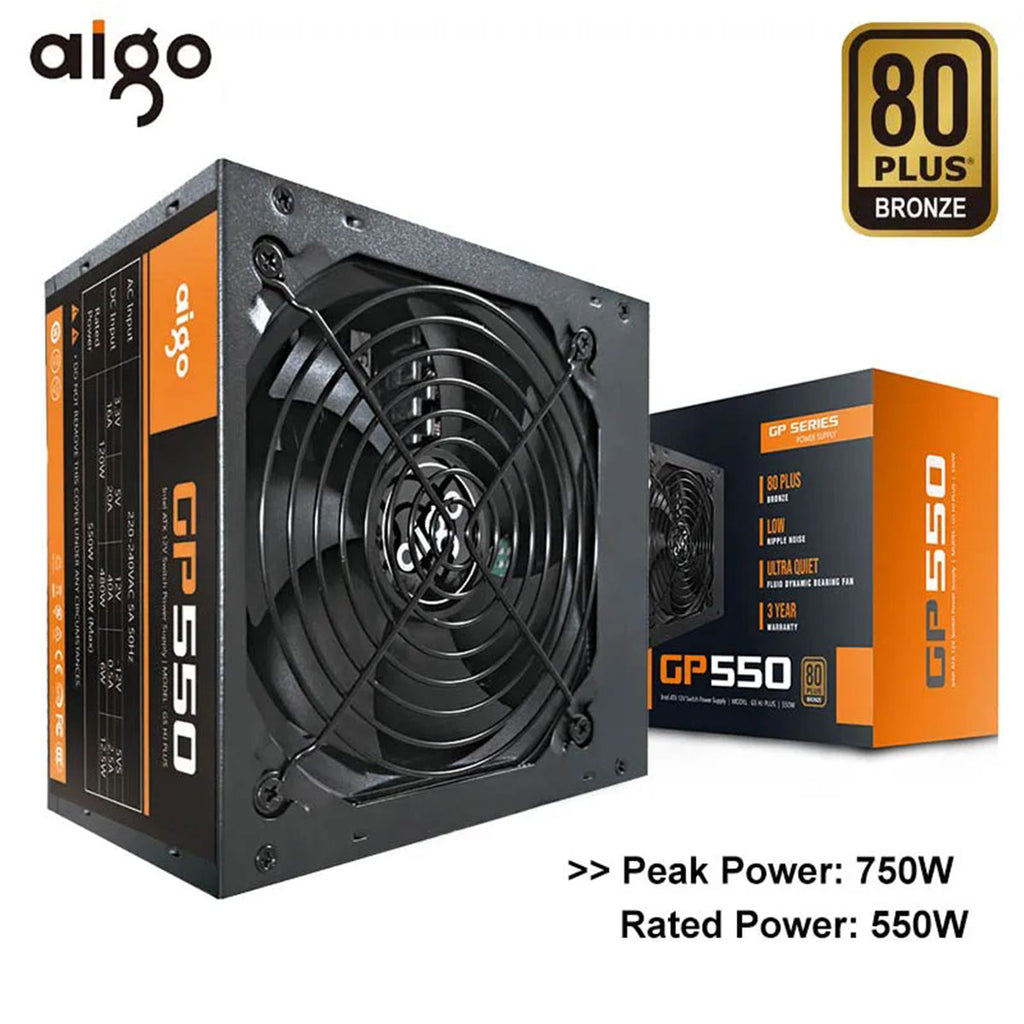

Aigo G5 HJ Plus GP550 550W 80+ Bronze Intel ATX 12V Switch Power Supply
Feature:
- Rated 550W, suitable for high-end computer configuration
- Conforms to the Intel ATX12V specification design, supports Intel, AMD complete series of dual core platform
- High efficiency energy-saving silent fan
- Built in PFC, double magnetic ring magnetic amplifier circuit, high frequency low resistance filter capacitor,

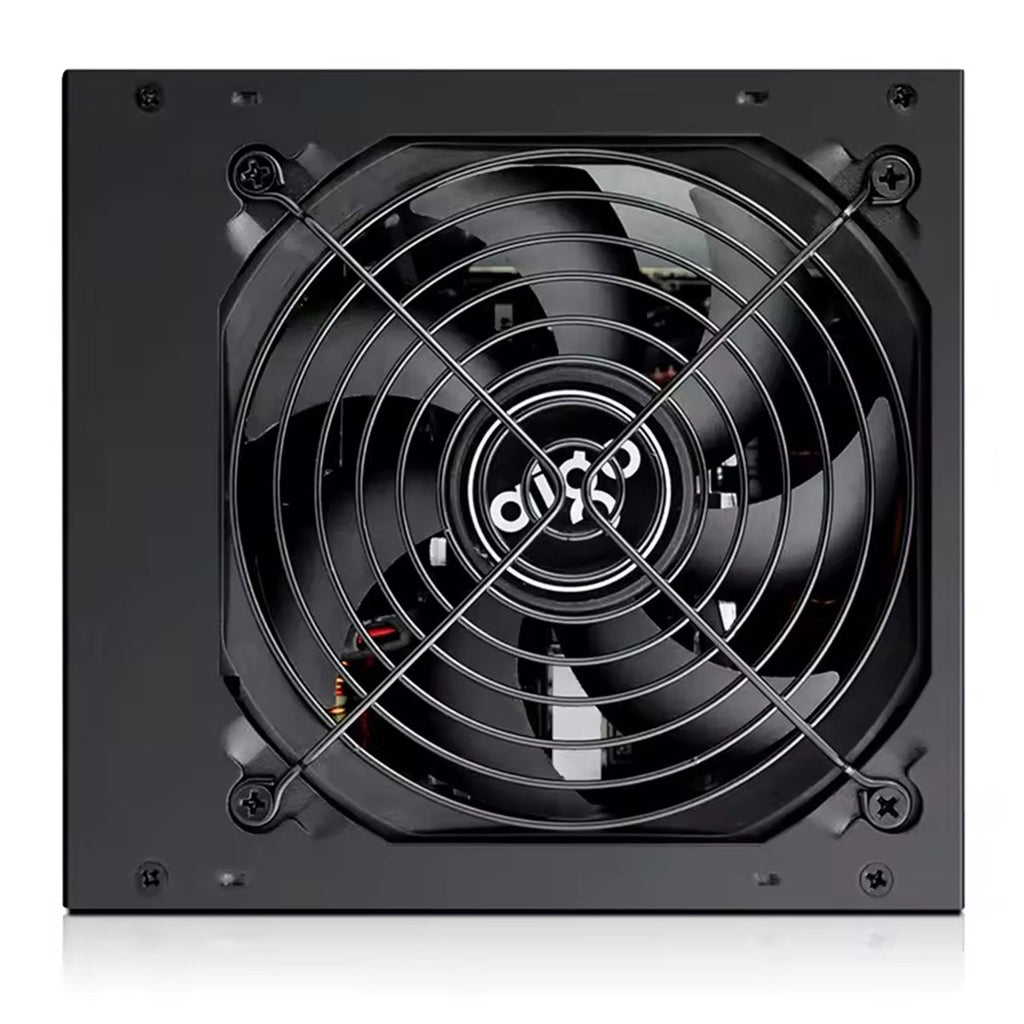

to ensure that the current is pure and stable output - Adopt 12cm hydraulic bearing fan, mute and durable, large air flow
- Intelligent temperature control circuit design, automatically adjust the fan speed, and extend the service life
- Horn high capacity, large capacity, support wide use, in the unstable voltage environment can still be used
normally - Multi function protection circuit design, with overvoltage, overcurrent, overload, undervoltage, short-circuit,
light protection functions - Innovative pest control technology design.
SPECIFICATION
| Fans | 1 |
| PFC Type | Active |
| Number of SATA Ports | 4 |
| Graphics Card 12V Pin Number | 2 x6 pin |
| D-type Bus Number | 2 |
| CPU Power Connector | 8 pin + 4 pin |
| Package | Yes |
| Interface Type | 20 + 4Pin |
| Application | Desktop |
| Model Number | aigo gp550 power supply |
| Input Voltage | 160V-264V |
| Modular | Non-Modular |
| 80 PLUS Certification | 80 PLUS BRONZE |
| Brand Name | aigo |

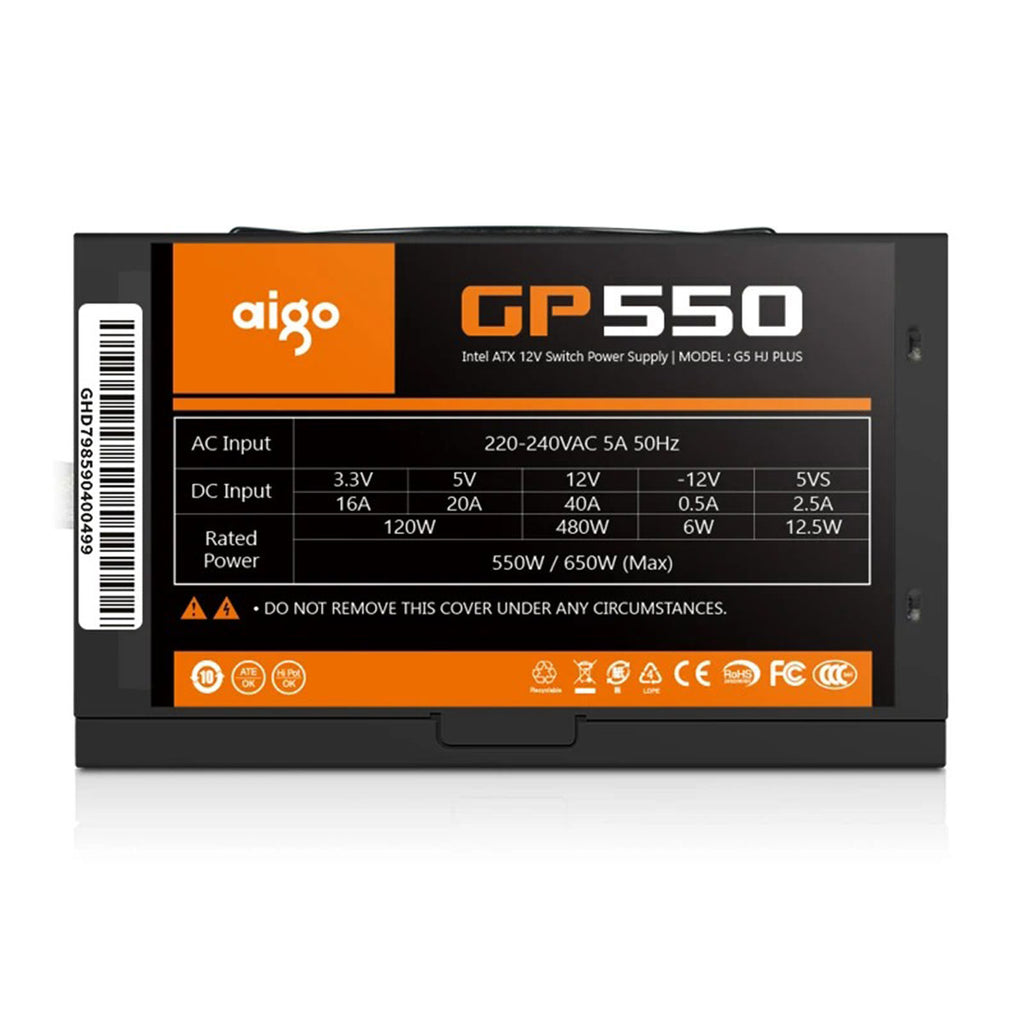

| Output Voltage | + 3.3V output current 22A + 5V output current 26A |
