Description

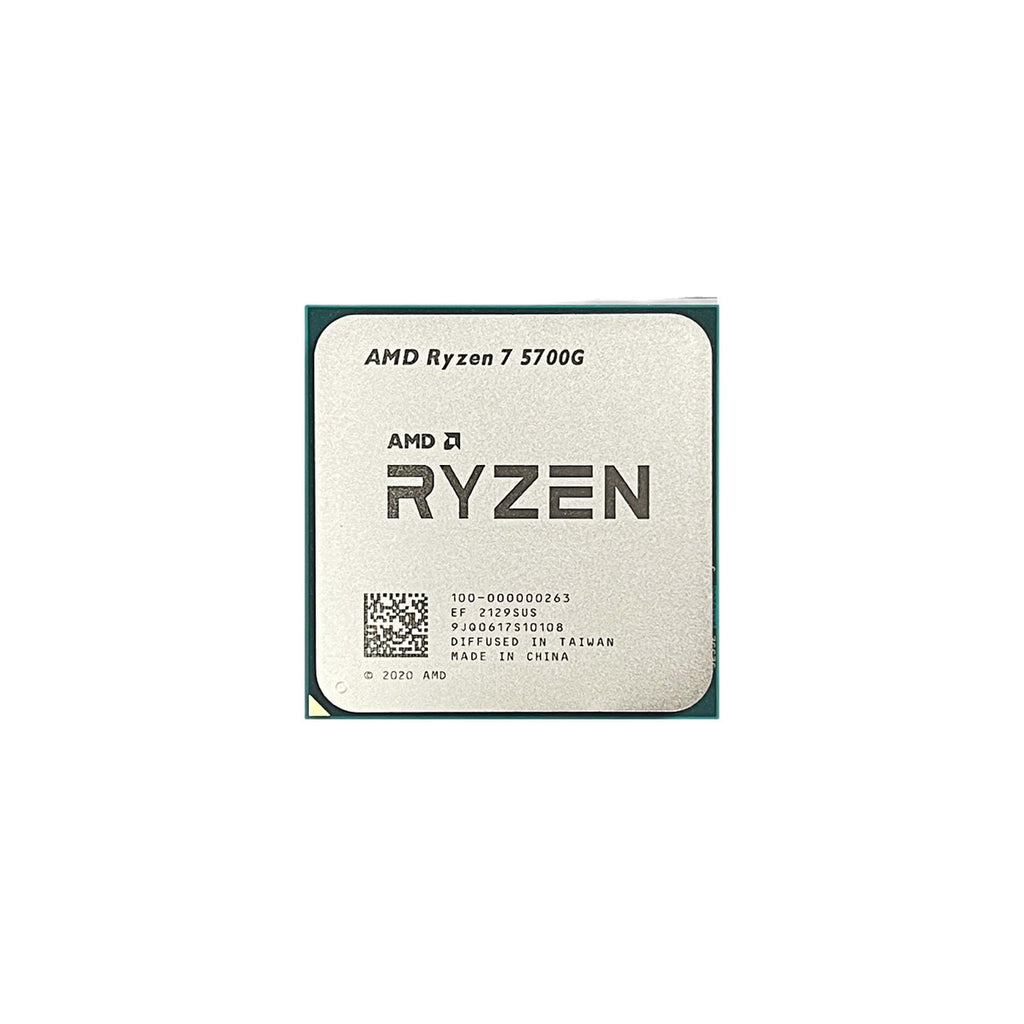

The AMD Ryzen 7 5700G is a high-performance desktop APU (Accelerated Processing Unit) that combines an 8-core, 16-thread CPU with integrated Radeon graphics. Designed for users who require strong multi-threaded performance and graphics capability without the immediate need for a discrete GPU, all in a compact, efficient package.
Specifications:
| CPU Architecture | Zen 3 (“Cezanne”) |
| Cores / Threads | 8 cores / 16 threads |
| Base Clock | ~3.8 GHz |
| Boost Clock | Up to ~4.6 GHz |
| Integrated Graphics | Radeon Graphics (Vega-8) with up to ~2.0 GHz (for graphics frequency) |
| Cache | L2 + L3 totalling ~20 MB (L3 ~16 MB) |
| TDP (Thermal Design Power) | 65 W typical |
| Socket | AM4 |
| Memory Support | DDR4, dual-channel; up to officially DDR4-3200 |
| PCIe Support | PCIe 3.0 lanes |
| Manufacturing Process | TSMC 7 nm FinFET |

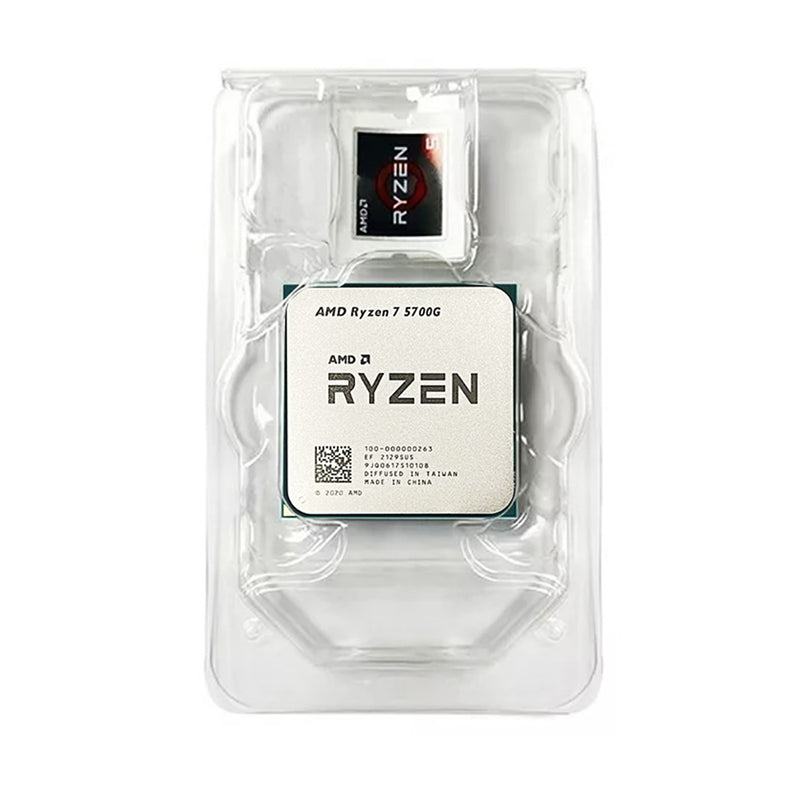

What “Tray” Means: Tray units typically come unboxed without retail packaging. They are meant for either system integrators or upgrading purposes. The processor itself is identical in both Tray and Boxed versions — same architecture, clock speeds, cores/threads, and performance.
