Description

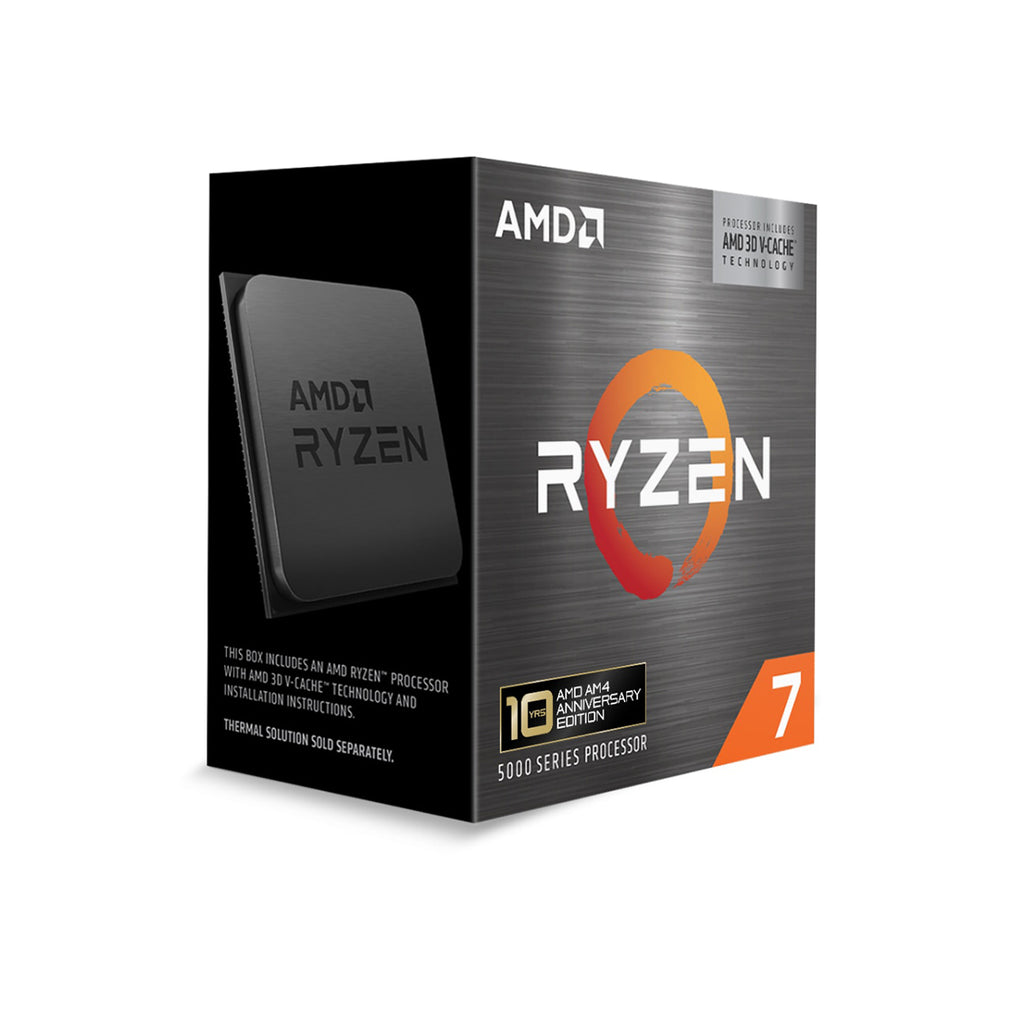

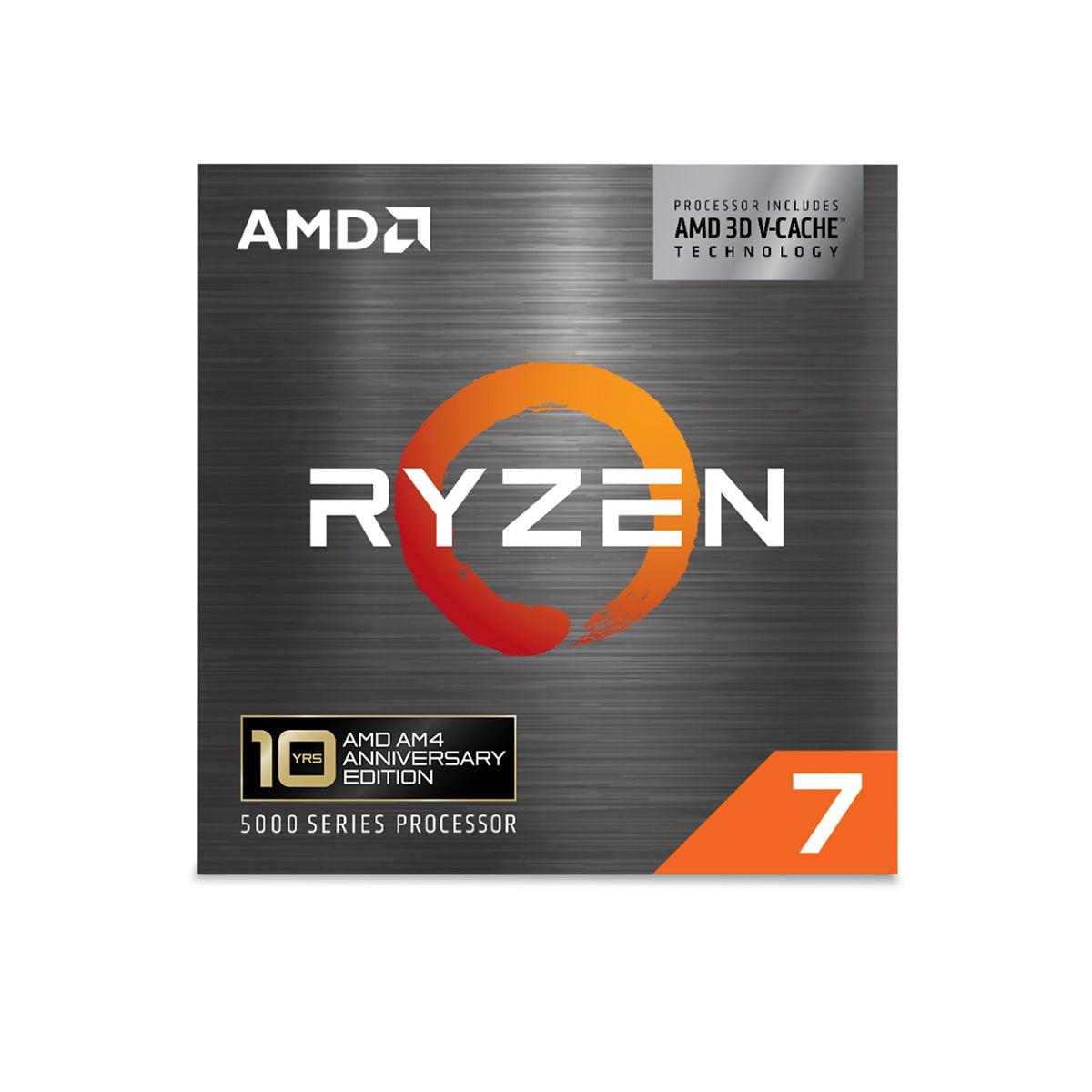

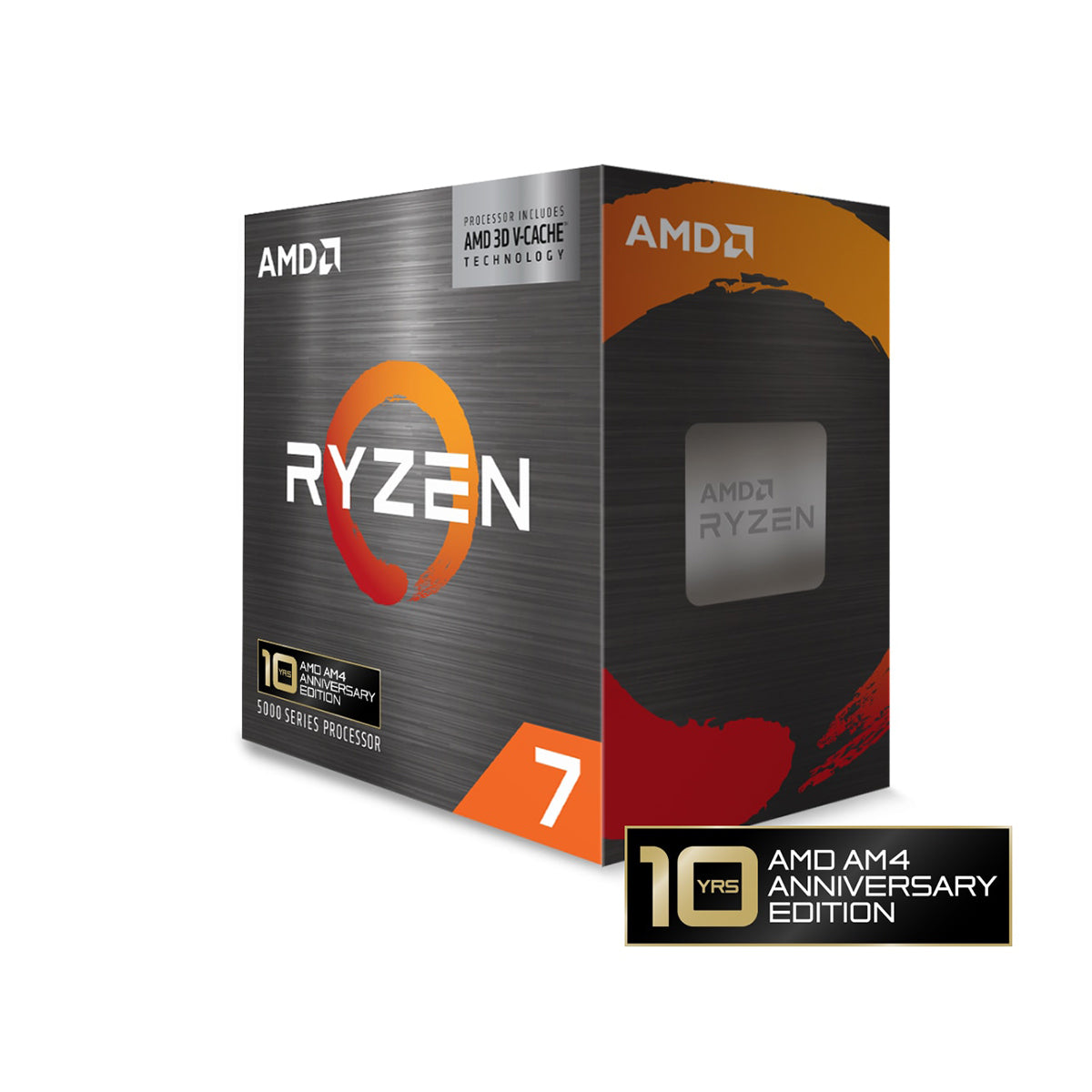

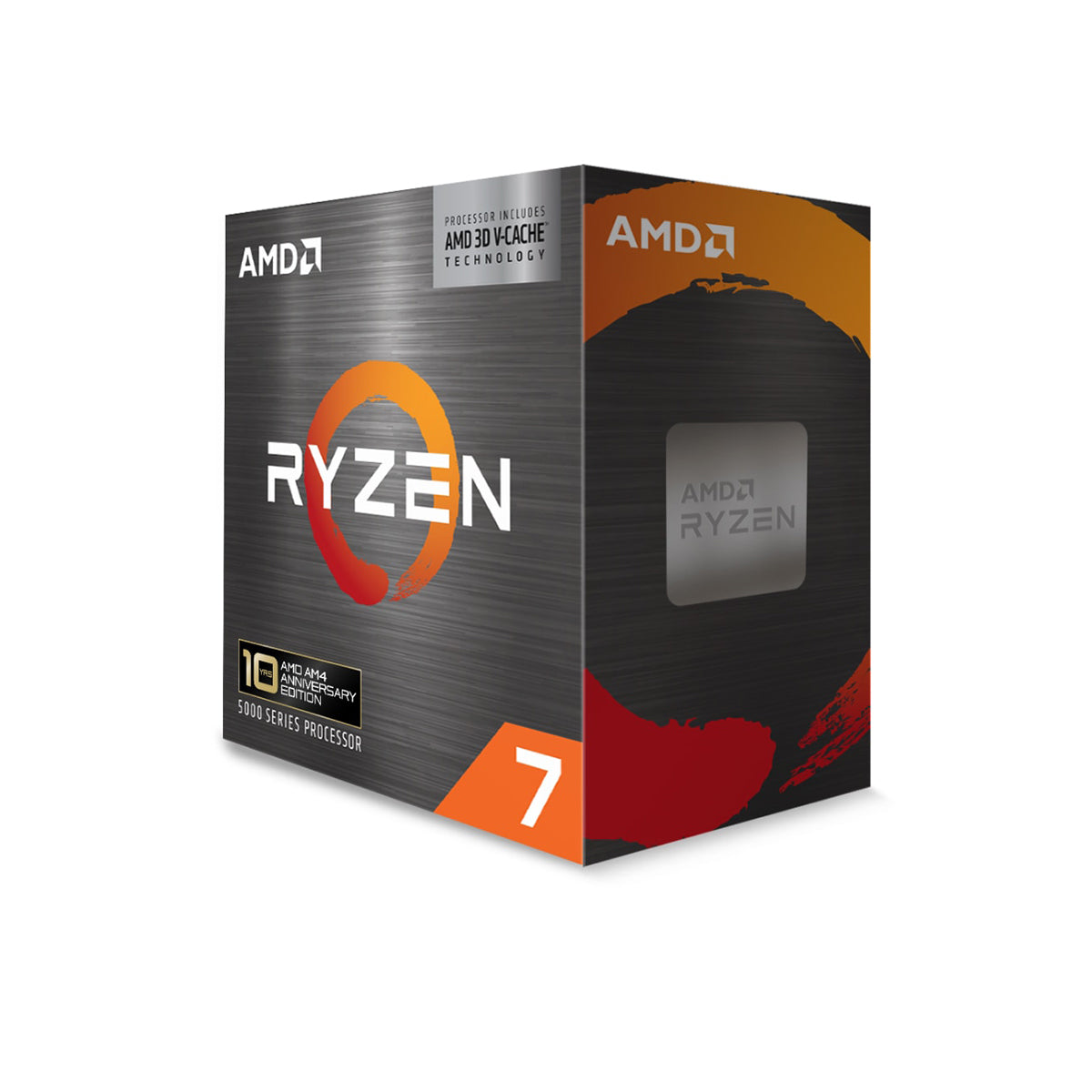

AMD Ryzen™ 7 5800X3D Gaming Processor

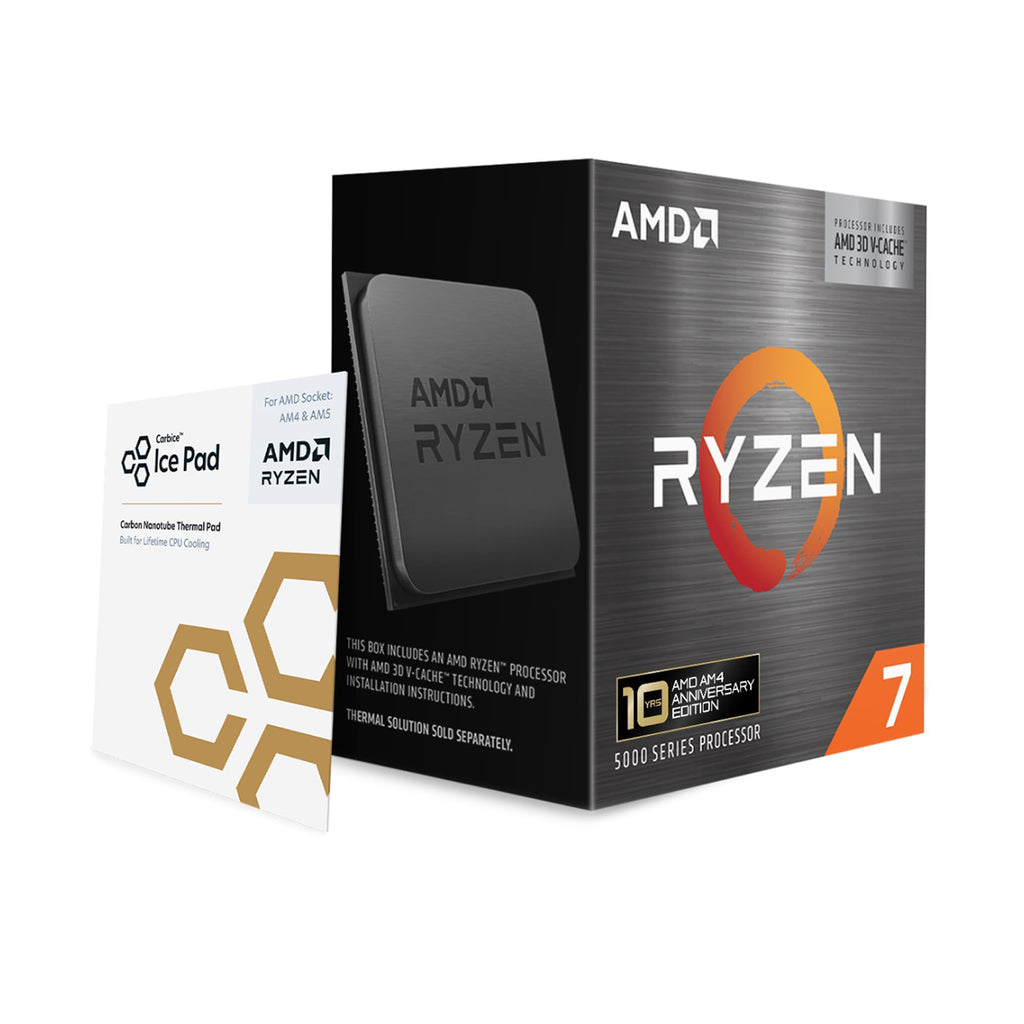

The AMD Ryzen™ 7 5800X3D is the ultimate gaming processor on any DDR4 platform. Every 10th Anniversary Edition AMD Ryzen™ 7 5800X3D Processor includes a Carbice® Ice Pad™.
Specification:
| General Specifications | |
|---|---|
| Name | AMD Ryzen™ 7 5800X3D |
| Family | Ryzen |
| Series | Ryzen 5000 Series |
| Form Factor | Desktops , Boxed Processor |
| Market Segment | Enthusiast Desktop |
| Regional Availability | Global , China , NA , EMEA , APJ , LATAM |
| Former Codename | Vermeer |
| Processor Architecture | Zen 3 |
| # of CPU Cores | 8 |
| Multithreading (SMT) | Yes |
| # of Threads | 16 |
| Max. Boost Clock | Up to 4.5 GHz |
| Base Clock | 3.4 GHz |
| L1 Cache | 512 KB |
| L2 Cache | 4 MB |
| L3 Cache | 96 MB |
| Default TDP | 105W |
| Processor Technology for CPU Cores | TSMC 7nm FinFET |
| Processor Technology for I/O Die | 12nm (Globalfoundries) |
| CPU Compute Die (CCD) Size | 74mm² |
| I/O Die (IOD) Size | 125mm² |
| Package Die Count | 2 |
| CPU Socket | AM4 |
| Supporting Chipsets | X570 , X470 , B550 , B450 , A520 |
| CPU Boost Technology | Precision Boost 2 |
| Instruction Set | x86-64 |
| Supported Extensions | AES , AMD-V , AVX , AVX2 , FMA3 , MMX-plus , SHA , SSE , SSE2 , SSE3 , SSE4.1 , SSE4.2 , SSE4A , SSSE3 , x86-64 |
| Thermal Solution (PIB) | Not Included |
| Recommended Cooler | Liquid cooler recommended for optimal performance |
| Max. Operating Temperature (Tjmax) | 90°C |
| Launch Date | 4/20/2022 |
| *OS Support | Windows 11 - 64-Bit Edition , Windows 10 - 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit |
| Connectivity | |
| Native USB 3.2 Gen 2 (10Gbps) | 4 |
| Native USB 3.2 Gen 1 (5Gbps) | 0 |
| Native USB 2.0 (480Mbps) | 0 |
| Native SATA Ports | 2 |
| PCI Express® Version | PCIe® 4.0 |
| Native PCIe® Lanes (Total/Usable) | 24 , 20 |
| Additional Usable PCIe Lanes from Motherboard | X570 — 16x Gen 4 X470 — 2x Gen 3, 8x Gen 2 |
| NVMe Support | Boot , RAID0 , RAID1 , RAID10 |
| Memory | |
| System Memory Type | DDR4 |
| Memory Channels | 2 |
| Max. Memory | 128 GB |
| System Memory Subtype | UDIMM |
| Max Memory Speed | 2x1R — DDR4-3200 2x2R — DDR4-3200 4x1R — DDR4-2933 4x2R — DDR4-2667 |
| ECC Support | Yes (Requires mobo support) |
| Graphics Capabilities | |
| Graphics Model | Discrete Graphics Card Required |
| Product IDs | |
| Product ID Boxed | 100-100000651POF |
| Product ID Tray | 100-000000651 |
| Key Features | |
| Supported Technologies | AMD 3D V-Cache™ Technology , Windows® 11 Gaming , AMD Ryzen™ VR-Ready Premium |
