Description
22B3HM
21.5" VA Panel Monitor
22B3HM is a 21.5" monitor deliver 178/178-degree viewing angles while maintaining consistent image quality and colors from all viewing positions. Picture quality matters. Regular displays deliver quality, but you expect more. Whether you prefer a wall mount or multi-monitor desk setup, VESA Mount offers the ultimate in flexibility.
SPECIFICATIONS:
| Model name | 22B3HM |
| Panel | 21.5" (VA) |
| Aspect Ratio | 16 : 9 |
| Pixel Pitch (mm) | 0.24825 (H) × 0.24825 (V) |
| Effective Viewing Area (mm) | 476.64 (H) × 268.11 (V) |
| Brightness (typical) | 250 cd/m² |
| Contrast Ratio | 3000 : 1 (Typical) 20 Million : 1 (DCR) |
| Response Time | 4ms GtG |
| Viewing Angle | 178° (H) / 178° (V) (CR > 10) |
| Color Gamut | NTSC 87% (CIE1976) / sRGB 101% (CIE1931) |
| Color Accuracy | no |
| Optimum Resolution | 1920 × 1080 @ 75Hz – HDMI 1920 × 1080 @ 60Hz – VGA |
| Display Colors | 16.7 Million |

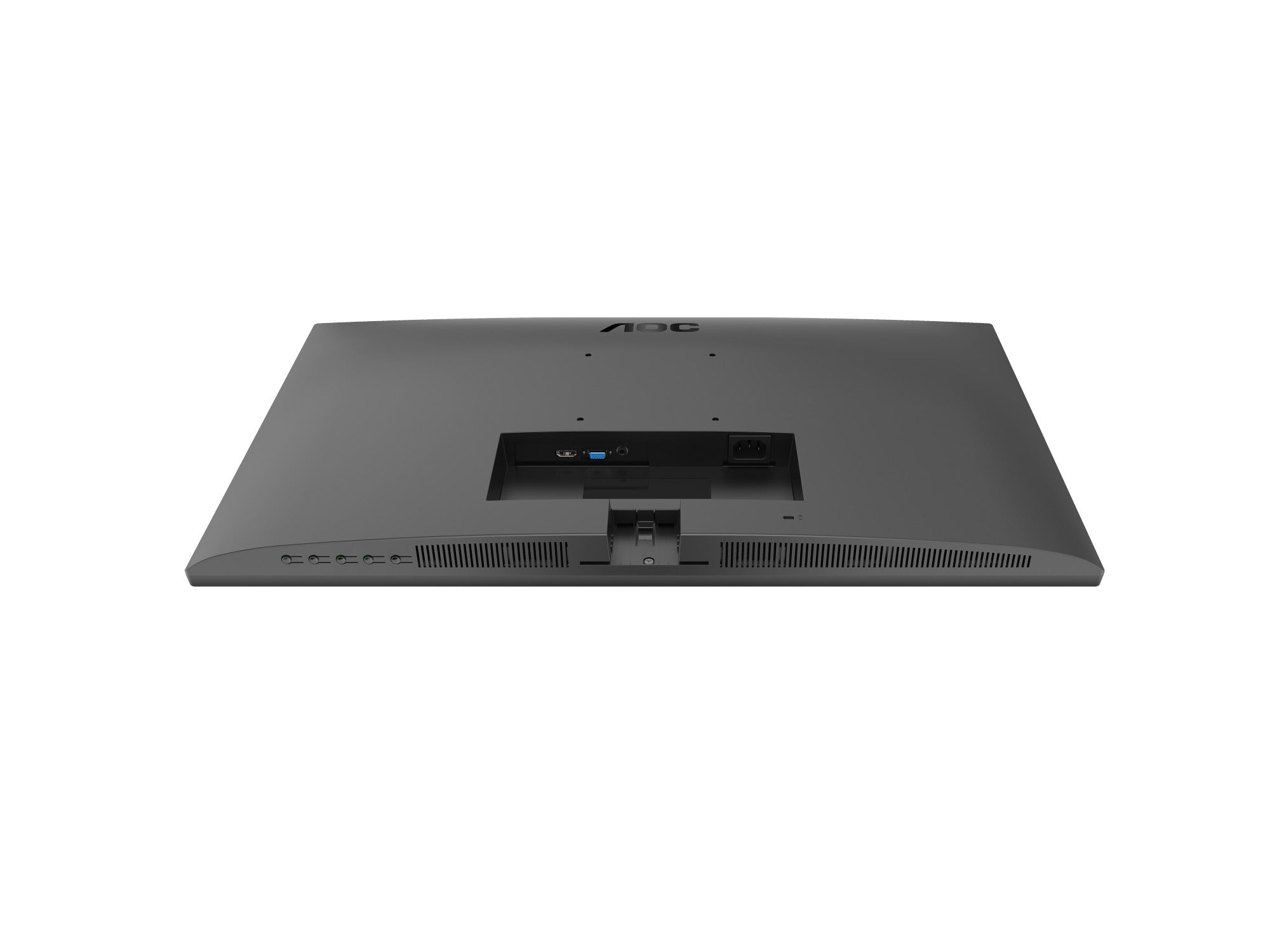

| Signal Input | VGA × 1 / HDMI 1.4 × 1 |
| HDCP Version | no |
| USB Hub | no |
| Power Supply | 100 - 240V～1.5A, 50 / 60Hz |
| Power Consumption (typical) | 20W |
| Speakers | no |
| Line in & Earphone | Earphone |

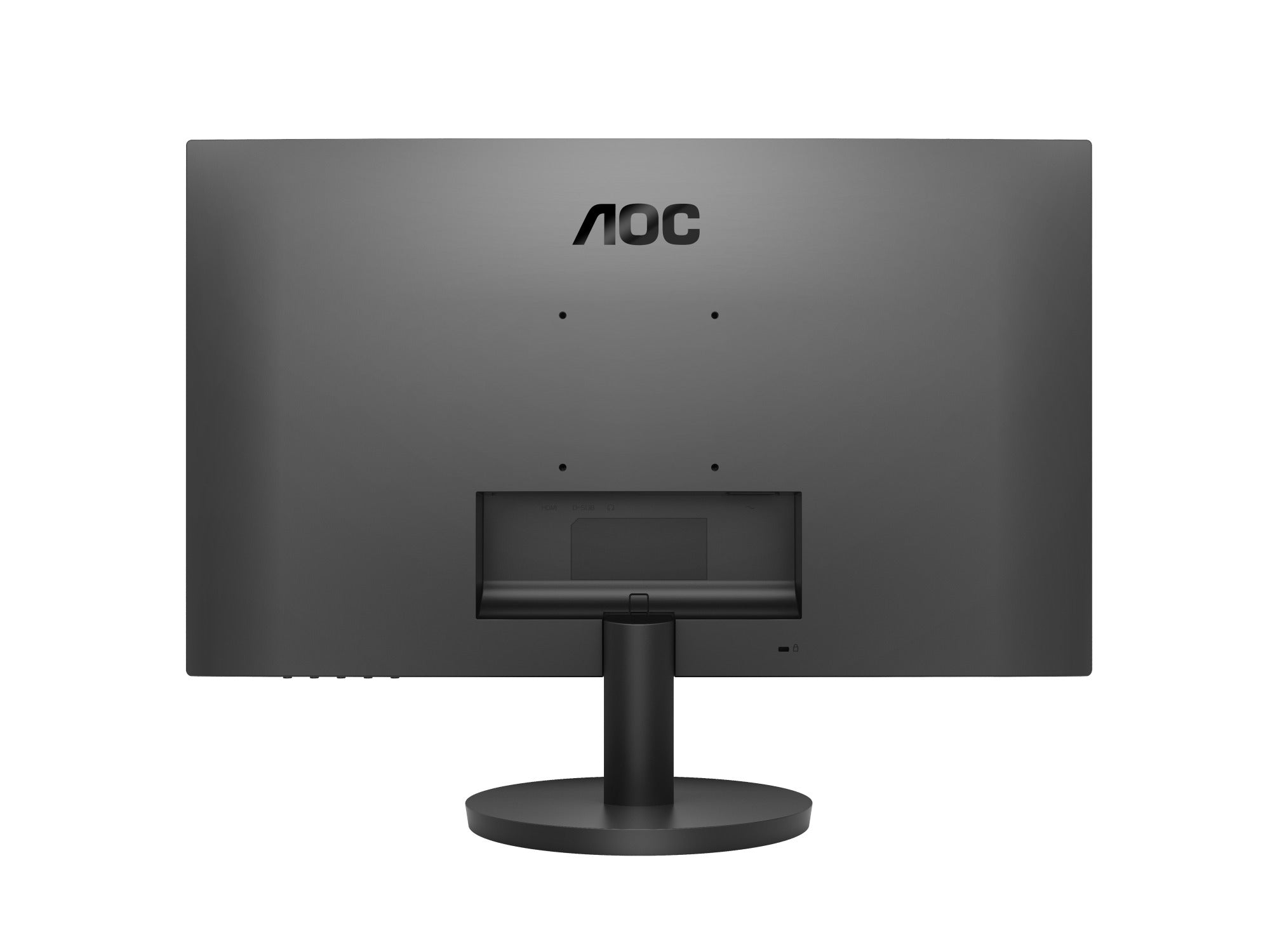

| Wall-Mount | 100mm x 100mm |
| Adjustable Stand | Tilt: -5° ~ 23° |
| Product without Stand (mm) | 292.3(H) × 492.44 (W) × 44.8 (D) |
| Product with Stand (mm) | 387.43 (H) ×492.44 (W) × 184.79 (D) |
| Product without Stand (kg) | 2.36 |
| Product with Stand (kg) | 2.62 |
| Cabinet Color | Black |
| Regulatory Approvals | CE / FCC |
