Description
Monitor

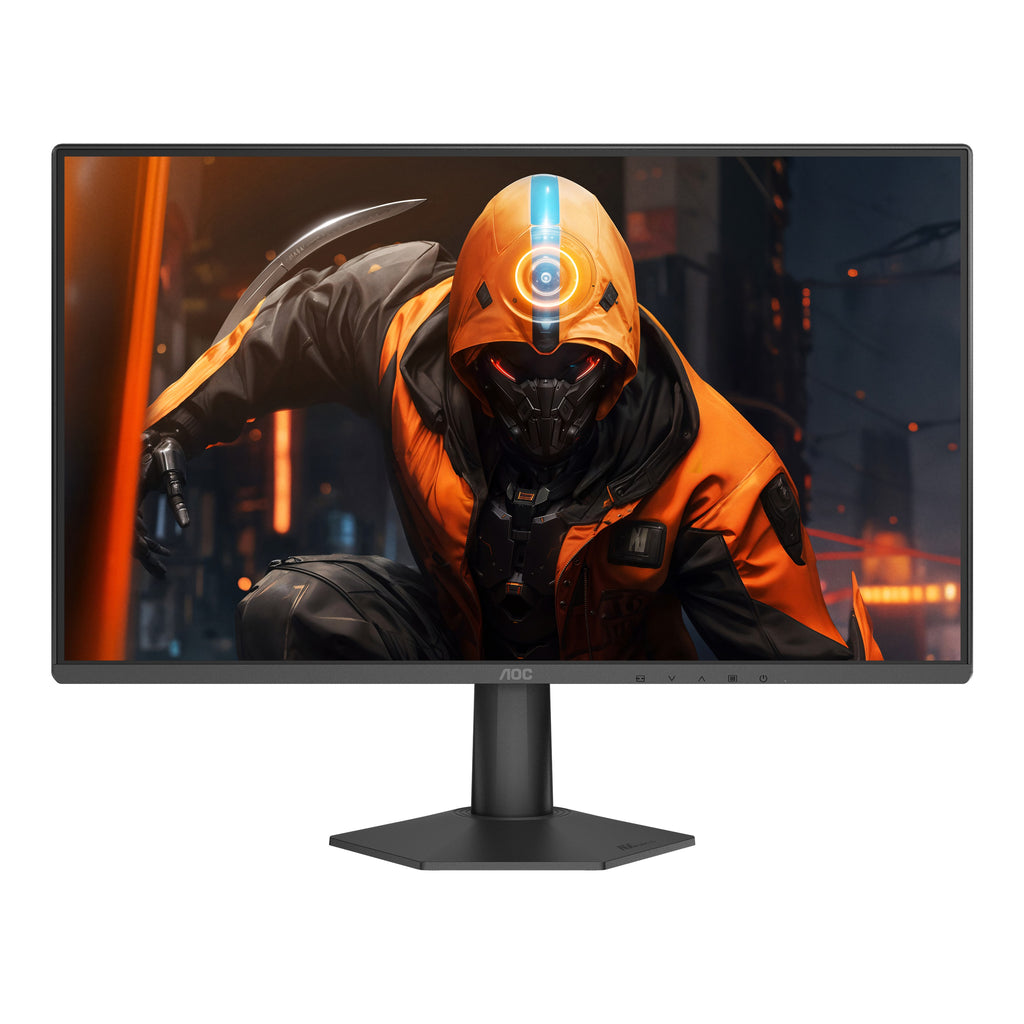

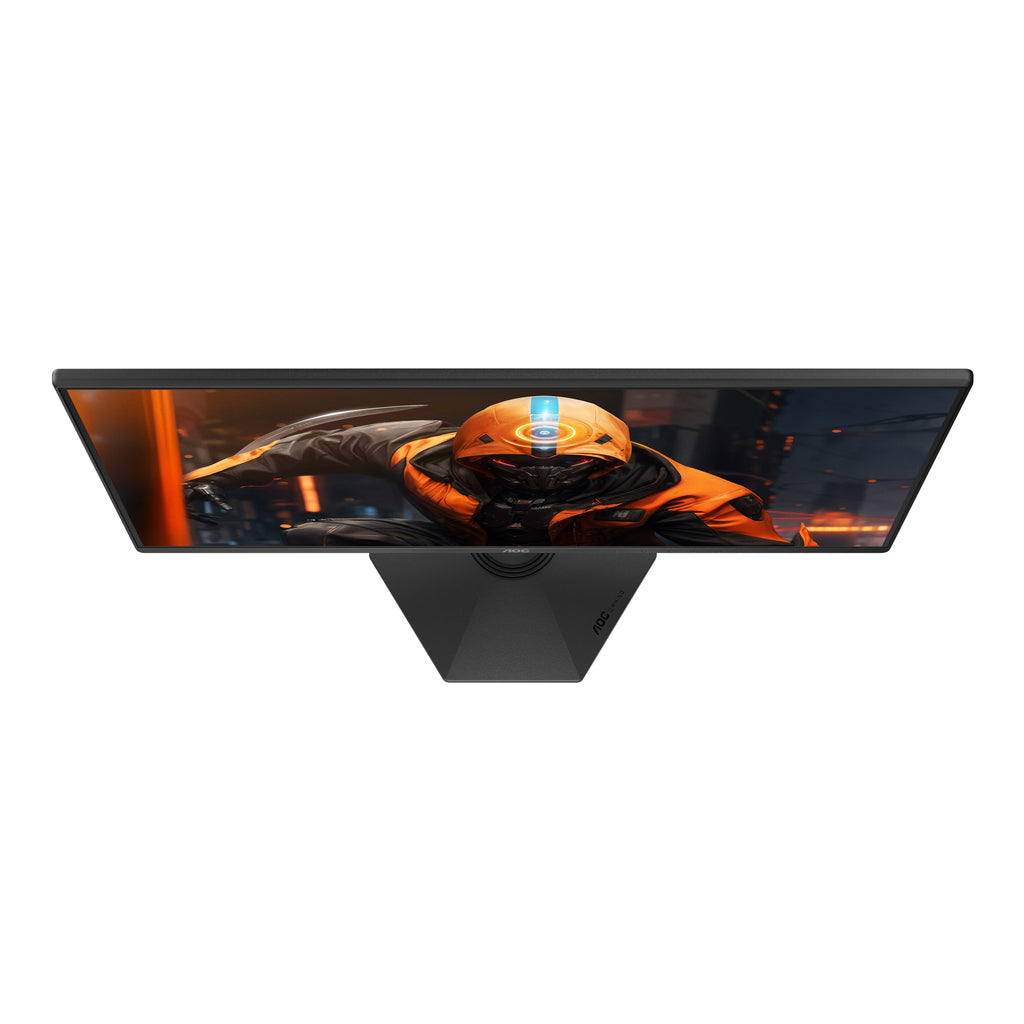

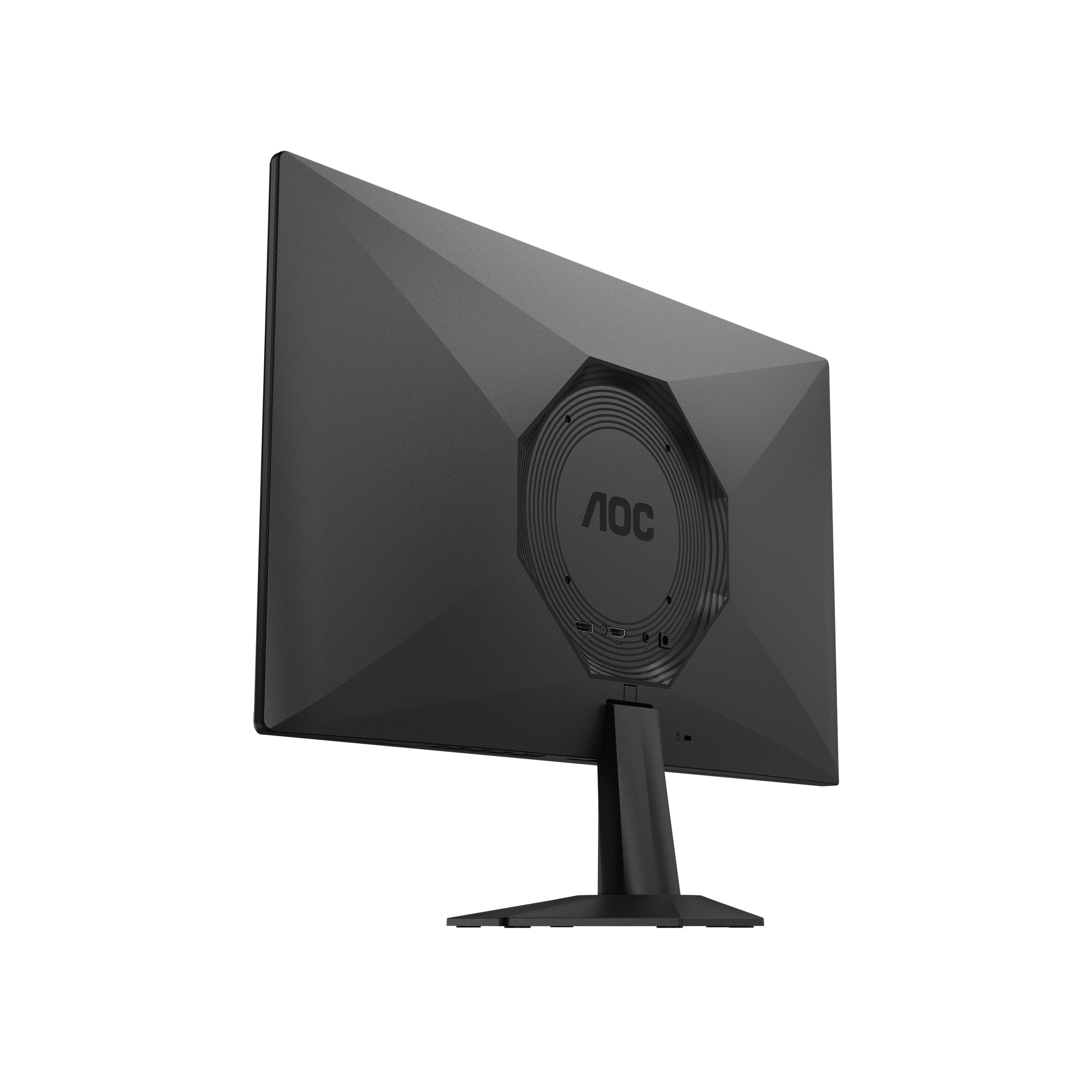

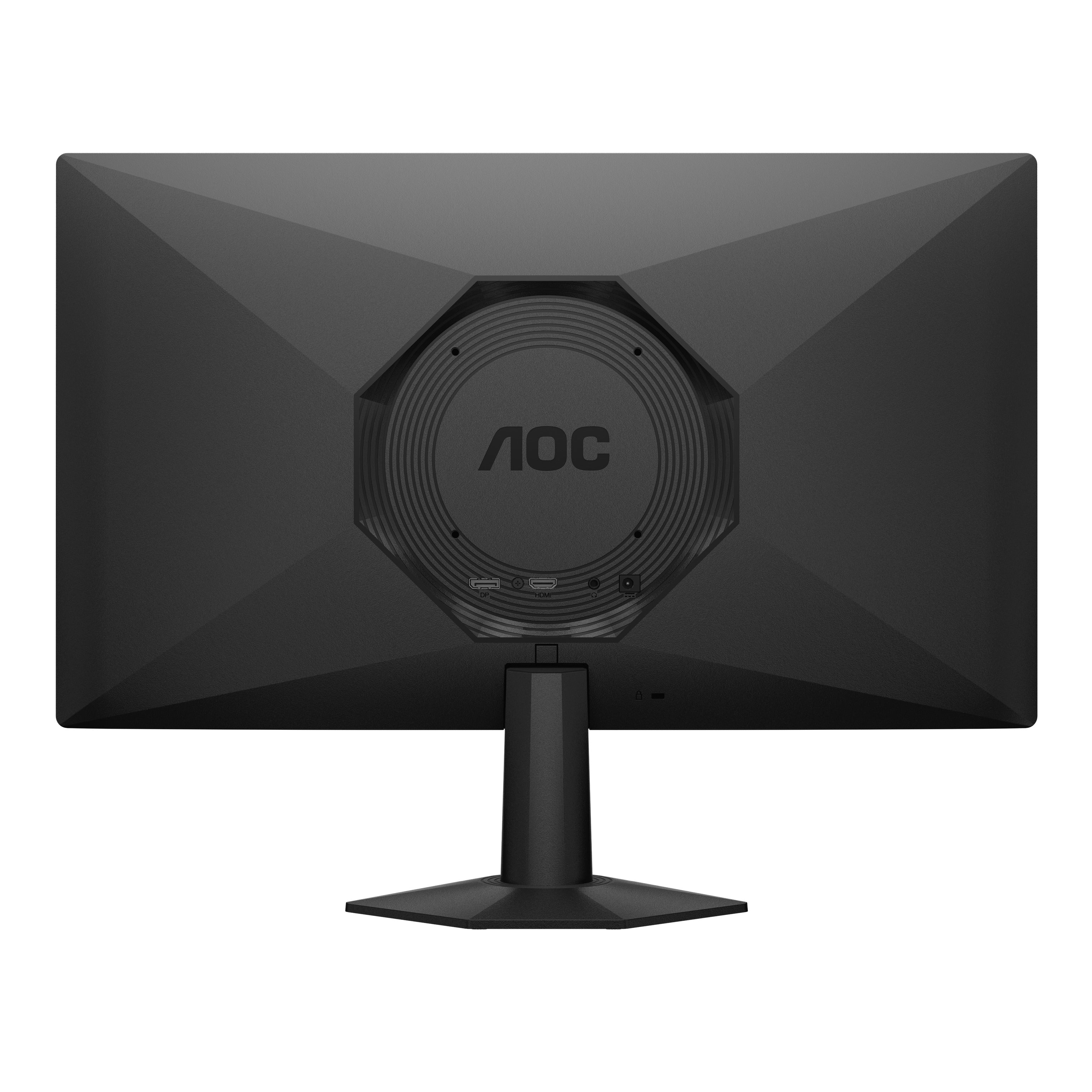

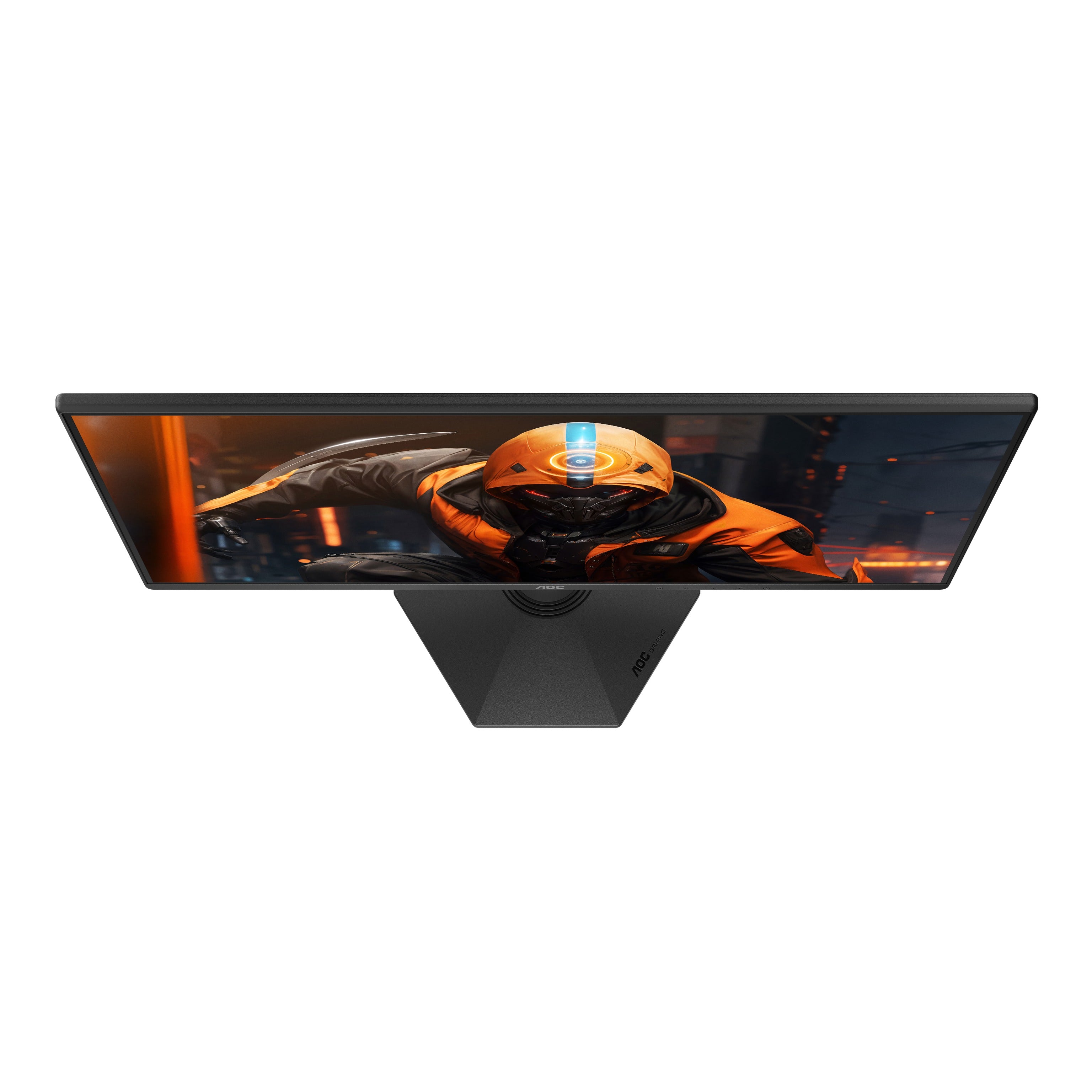

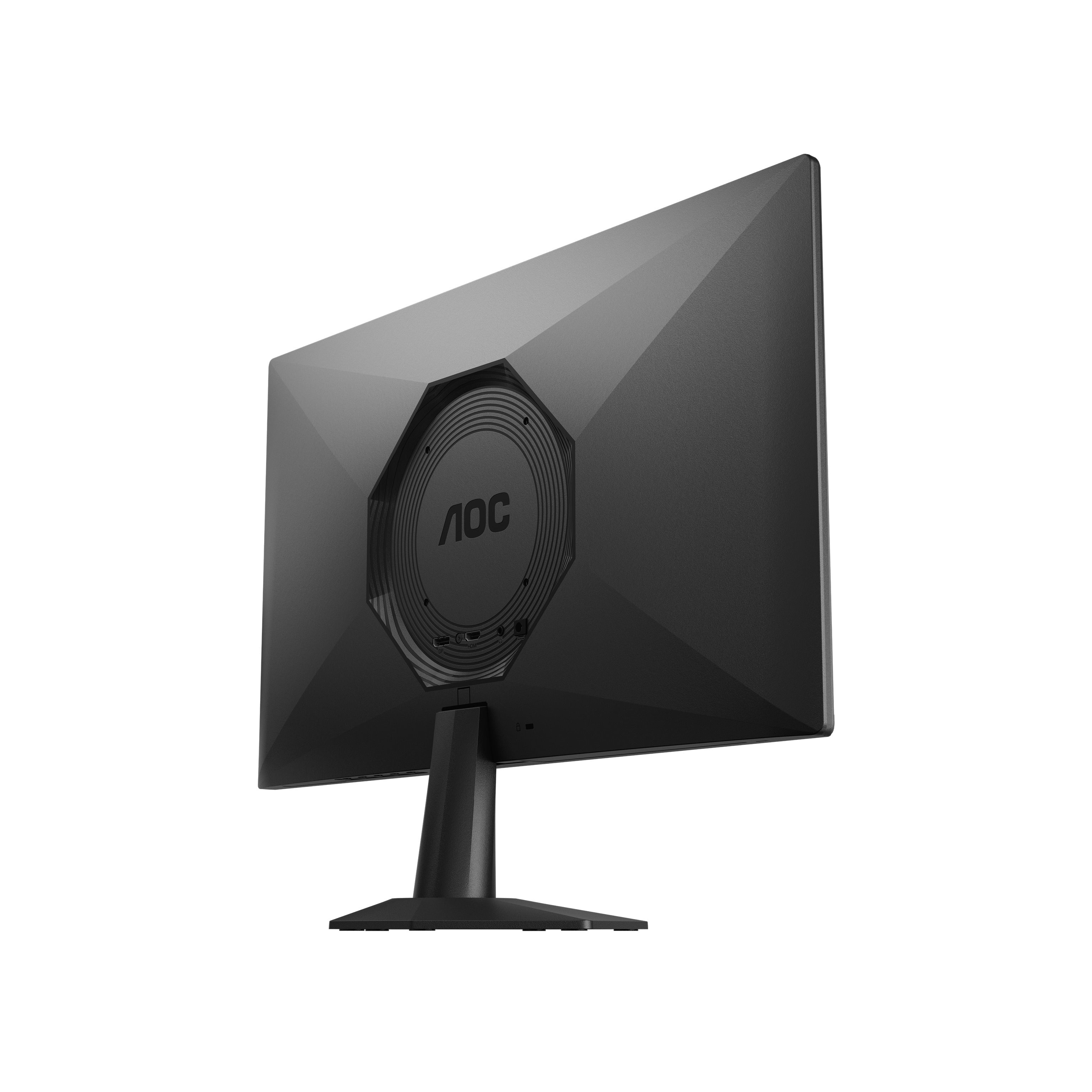

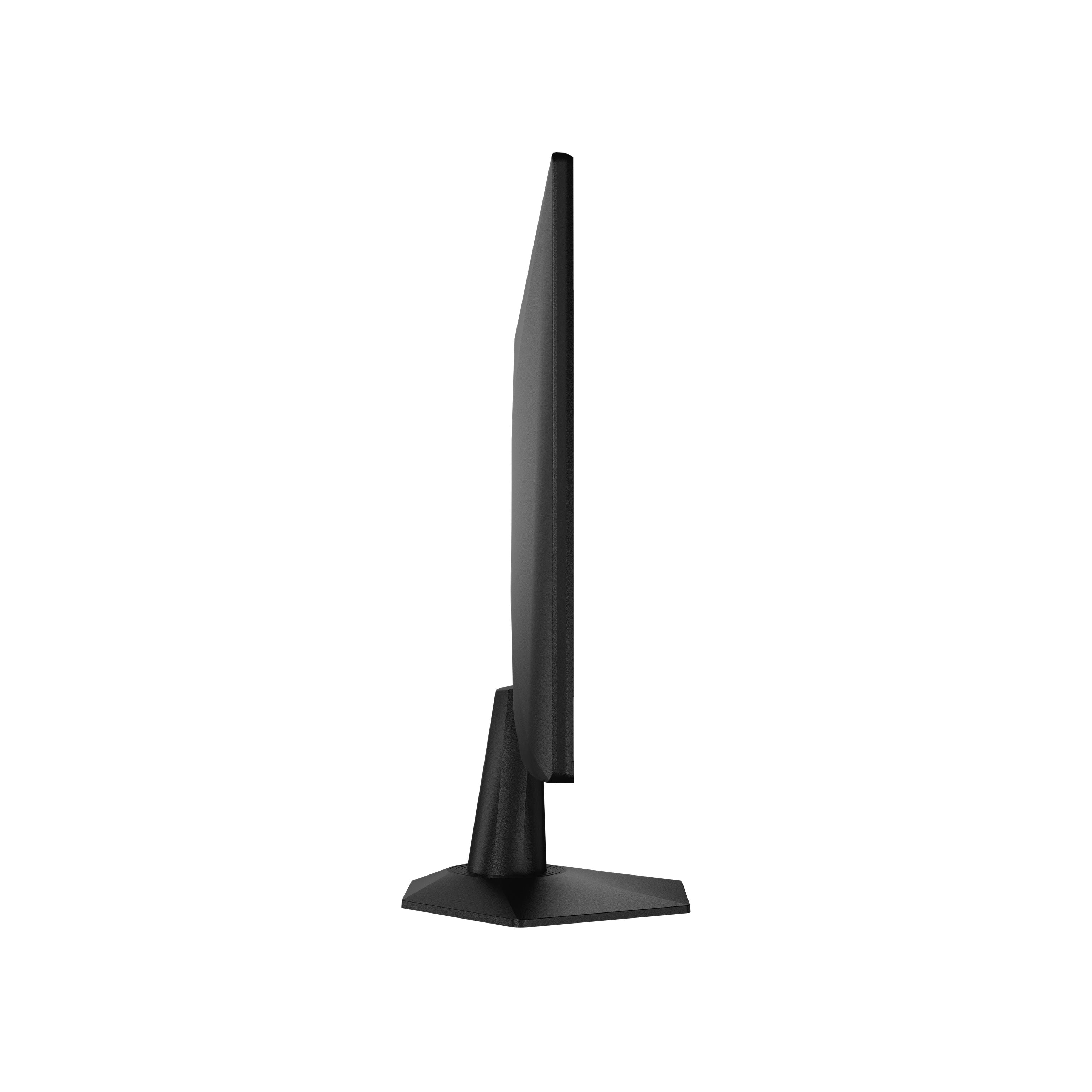

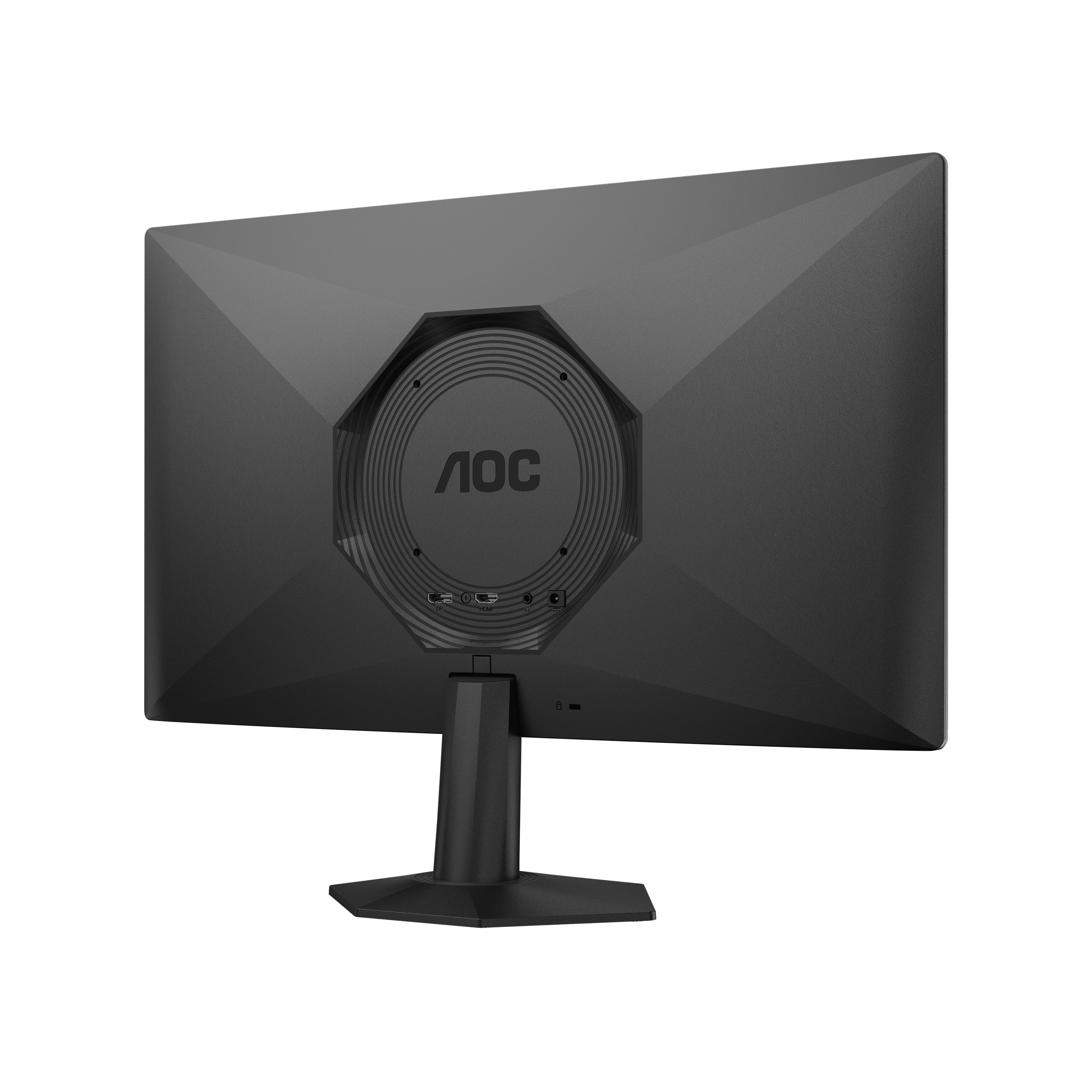

24G50F

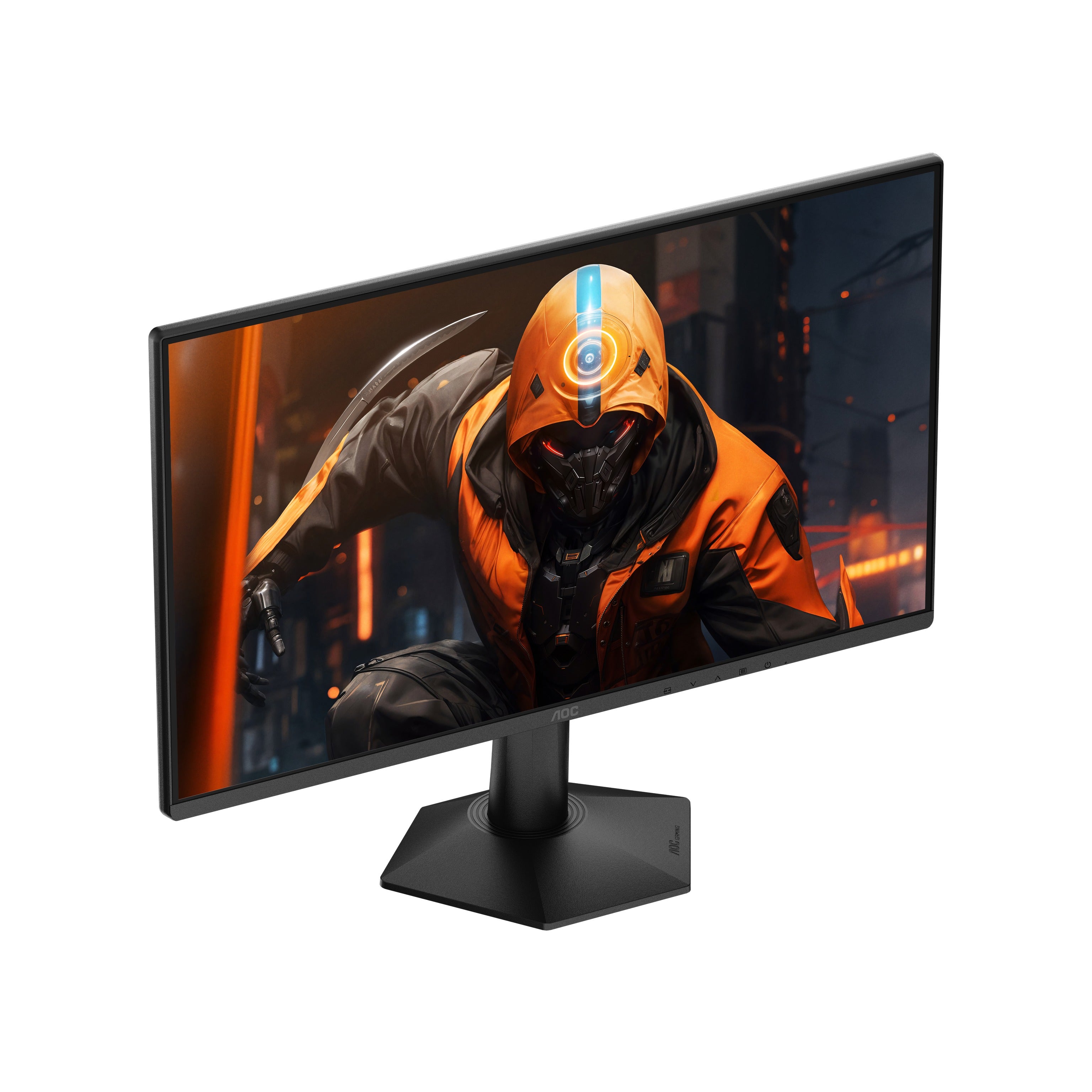

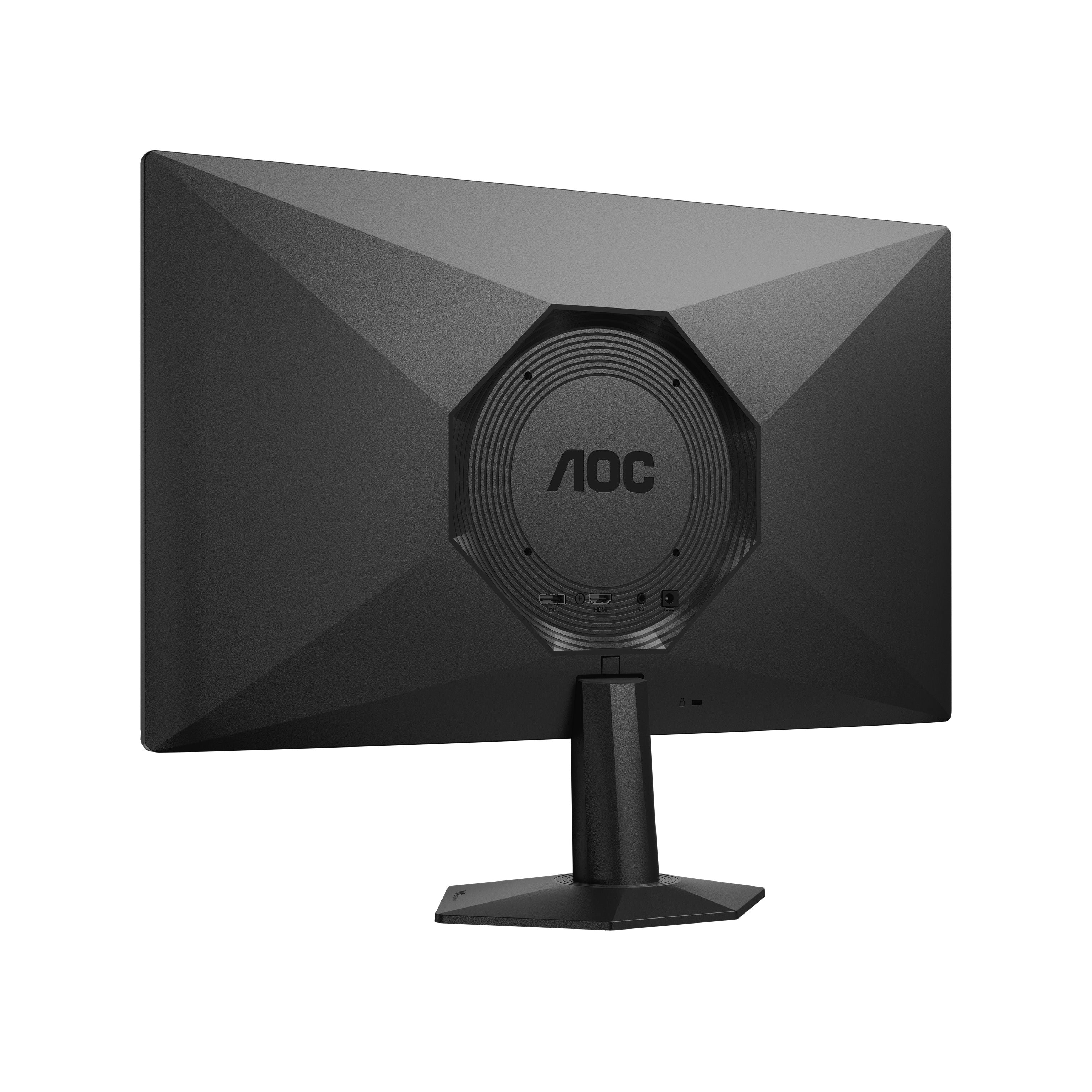

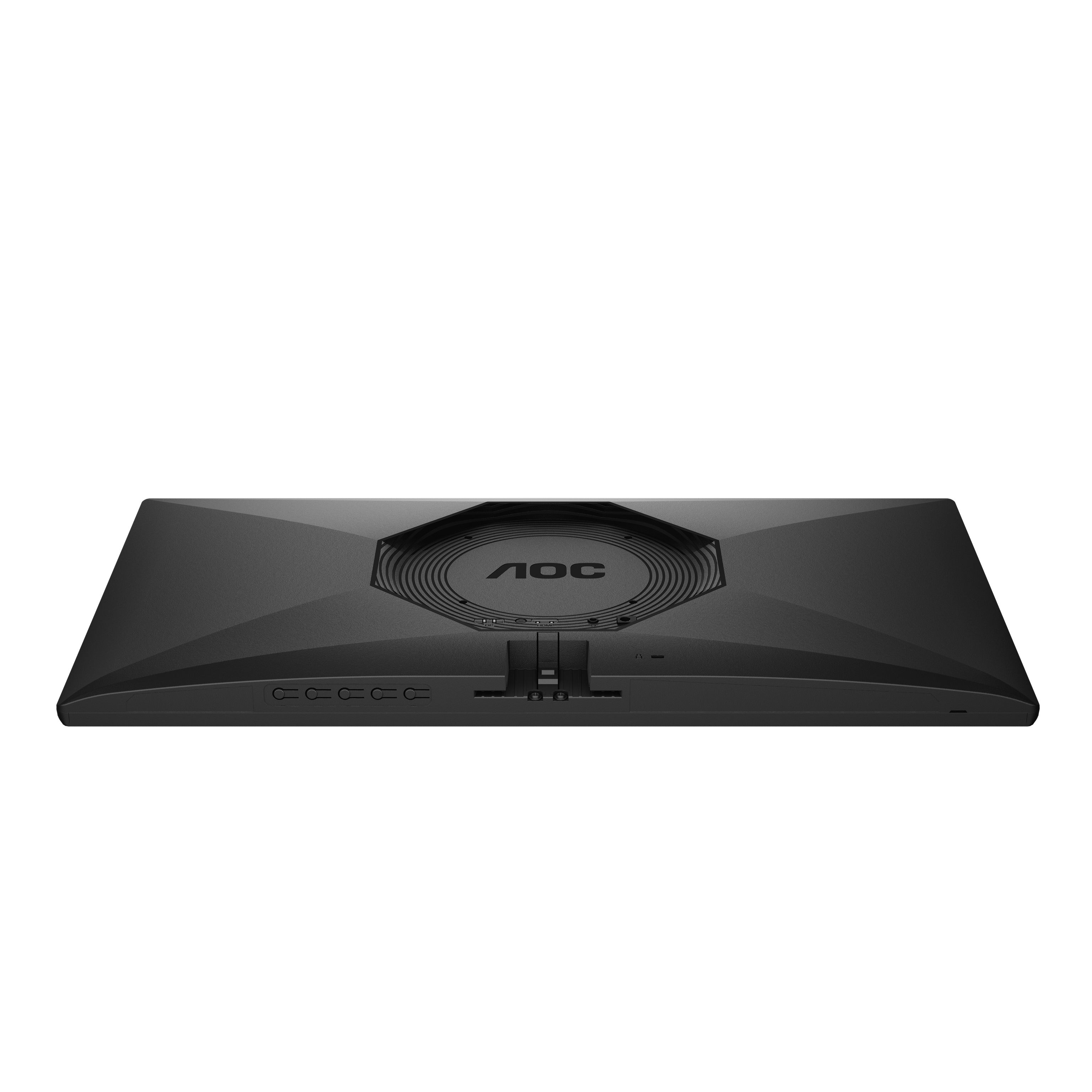

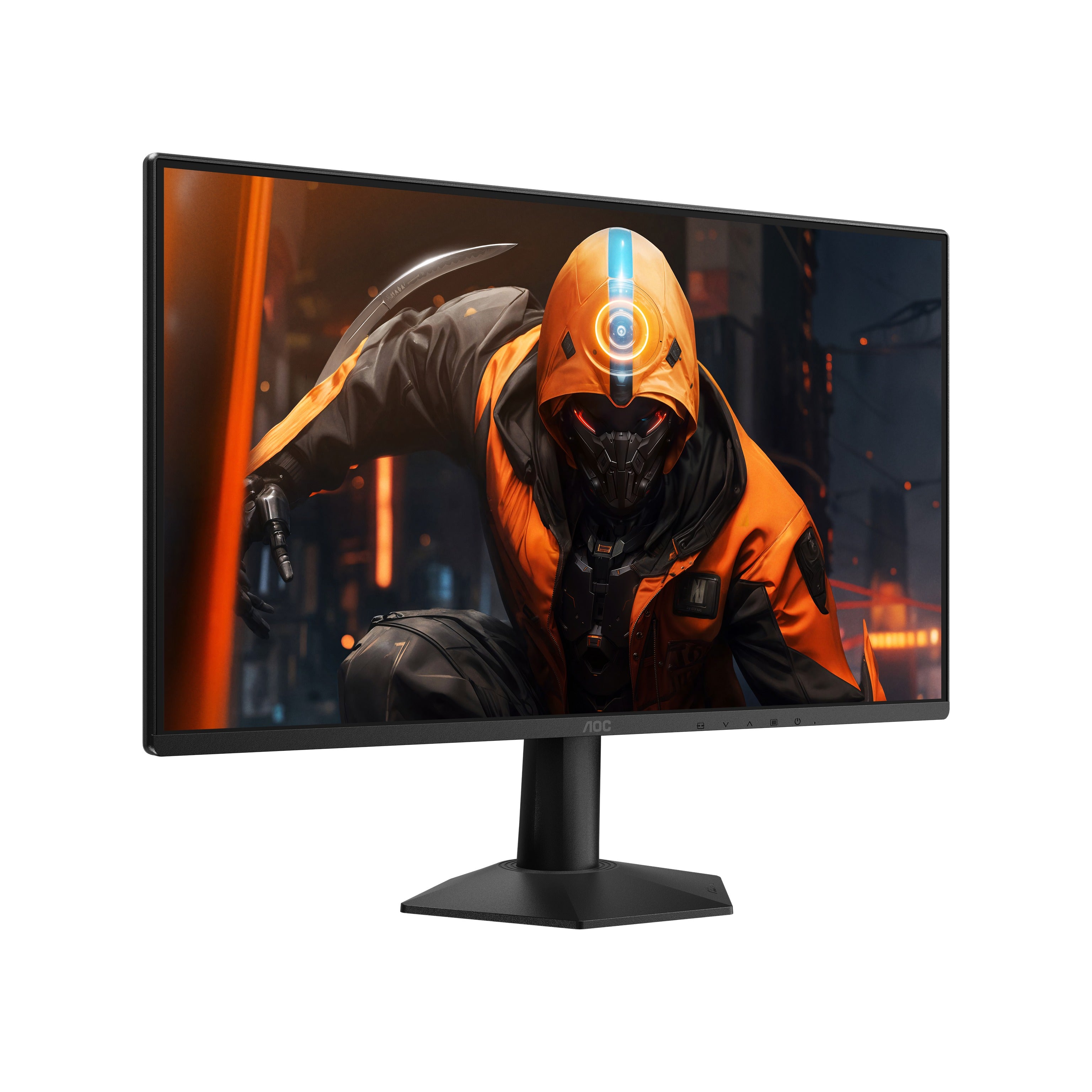

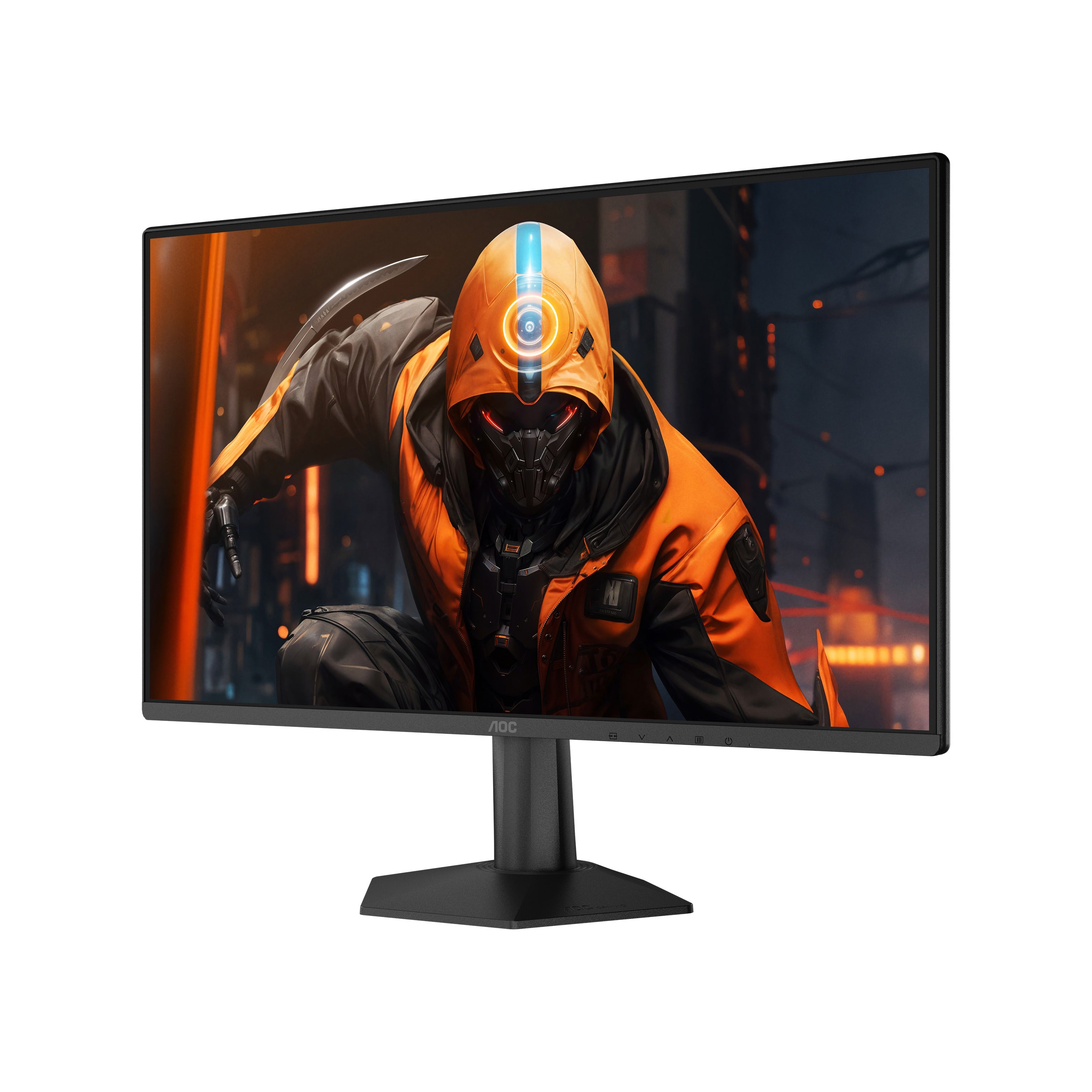

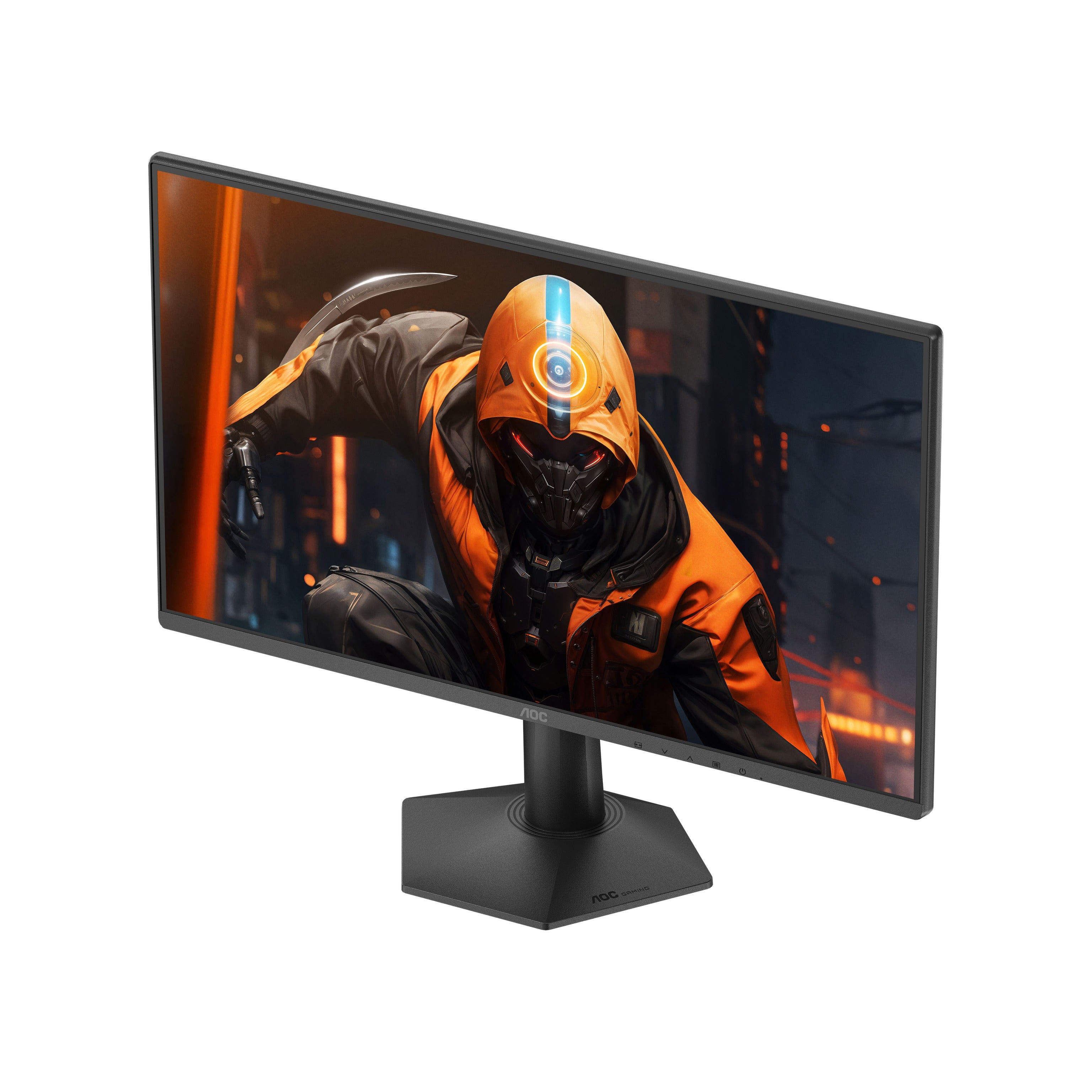

24” FHD IPS gaming monitor with 180Hz refresh rate, 0.5ms MPRT and NVIDIA G-Sync Compatible for smooth, precise gameplay.
Specification:
| Cabinet information | |
|---|---|
| Bezel type (front) | 3-sided frameless |
| Kensington Lock | Yes |
| I/O define: Connectors on rear cabinet | Vertical insert |
| VESA Mount screw Spec | M4 x 10 |
| VESA Mount Support | Yes |
| Vesa wallmount | 100x100 |
| Connectivity information | |
| Digital HDCP (HDMI version) | HDCP 2.2 |
| DP HDCP version | HDCP 2.2 |
| HDMI | HDMI 2.0 x 1 |
| DisplayPort | DisplayPort 1.4 x 1 |
| Audio Output | 1x Audio out |
| Display information | |
| Screen size (inch) | 23.8 |
| Flat / Curved | Flat |
| Curvature Radius | Flat |
| Panel treatment | Antiglare (AG) |
| Pixel Pitch (mm) | 0.2745 |
| Pixels per Inch | 93.0 |
| Panel resolution | 1920x1080 |
| Aspect ratio | 16:9 |
| Panel type | IPS |
| Backlight type | WLED |
| Max Refresh rate | 180Hz OC |
| Response time GtG | 4 ms |
| Response time MPRT | 0.5 ms |
| Static contrast ratio | 1500:1 |
| Viewing angle (CR10) | 178/178 |
| Display colours | 16.7M (6bits+FRC) |
| Brightness in nits | 300 cd/m² |
| Color Gamut | Panel native : NTSC 85%（typ）80%（min）@CIE1931 Area |
| OD Response (typical) | 4 ms GtG |
| Panel Haze Value | 25% |
| Ergonomic information | |
| Tilt | -3° ±2° ~ 21° ±2° |
| Other information | |
| MTBF | 30.000 hours |
| OSD type | AOC Gaming |
| Plug & Play Compatibility | Yes, DDC/CI |
| Operation System | Windows 8.1/10/11 |
| Power consumption | |
| Power supply | External |
| Power source | 19VDC, 1.31A |
| Power consumption on (typical) in watts | 18.0 |
| Power consumption standby in watts | 0.3 |
| Power consumption off in watts | 0.3 |
| Power LED indicator (Operation) | White |
| Power LED indicator (Standby) | Orange |
| Product dimensions | |
| Product dimensions incl. base (WxHxD) mm | 544(W) × 418.1(H)× 175(D) |
| Product dimensions excl. base (WxHxD) mm | 544(W) × 318.5 (H) × 36.1 (D) |
| Packaging dimensions (WxHxD) mm | 615(W) × 420 (H) × 124 (D) |
| Gross weight incl. package (in kg) | 4.29 |
| Product with stand (kg) | 2.49 |
| Gross weight incl. package (in kg) (CN) | 4.29 |
| Product without stand (kg) | 2.25 |
| Regulatory compliance | |
| CB | Yes |
| CE | Yes |
| FCC | Yes |
| VCCI | Yes |
| J-Moss | Yes |
| PSE | Yes |
| PC Recycle | Yes |
| Sustainability | |
| RoHs compliant | Yes |
| Carton material | Paper |
| Carton material print | Water Print (Brown Carton) |
| Video features | |
| Sync technology (VRR) | Adaptive sync + MBR Sync |
| HDR (High Dynamic Range) | HDR Ready |
| Flicker-Free | Flicker Free |
