Description

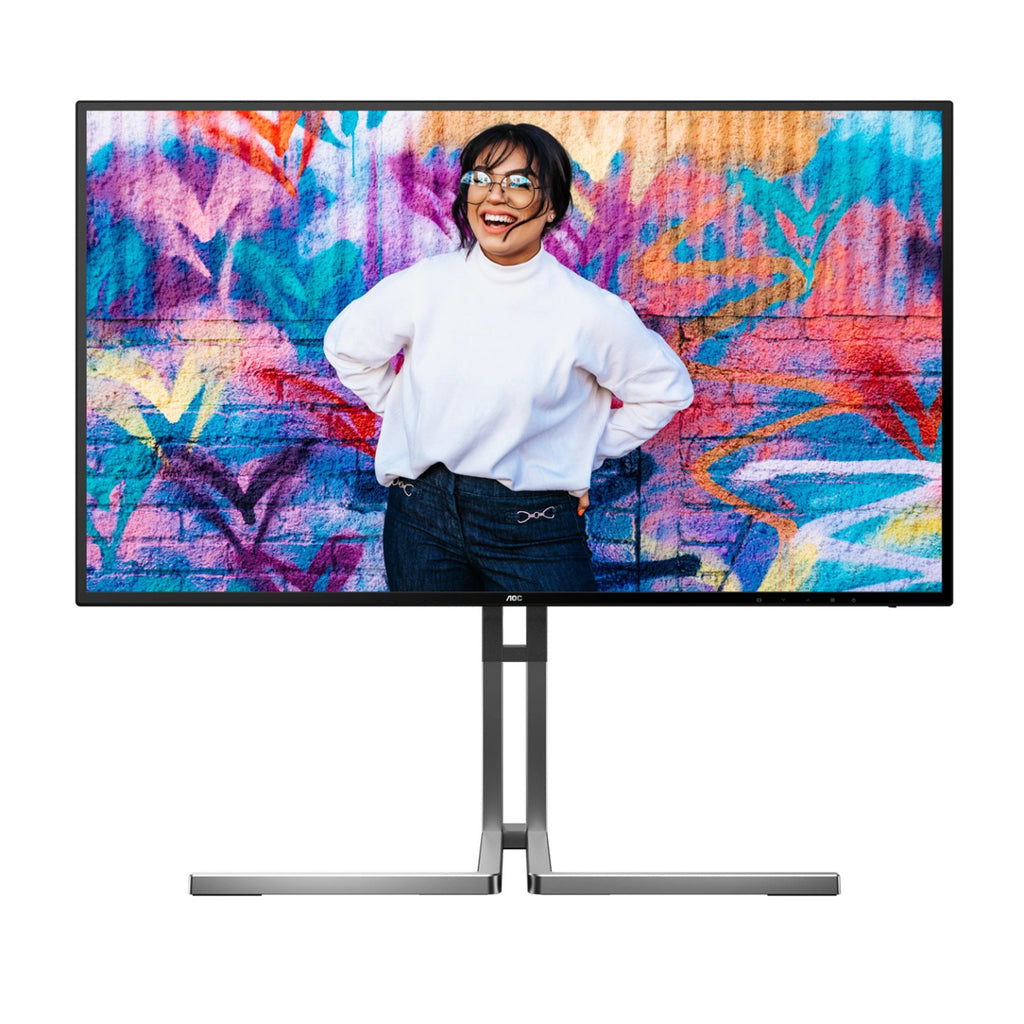

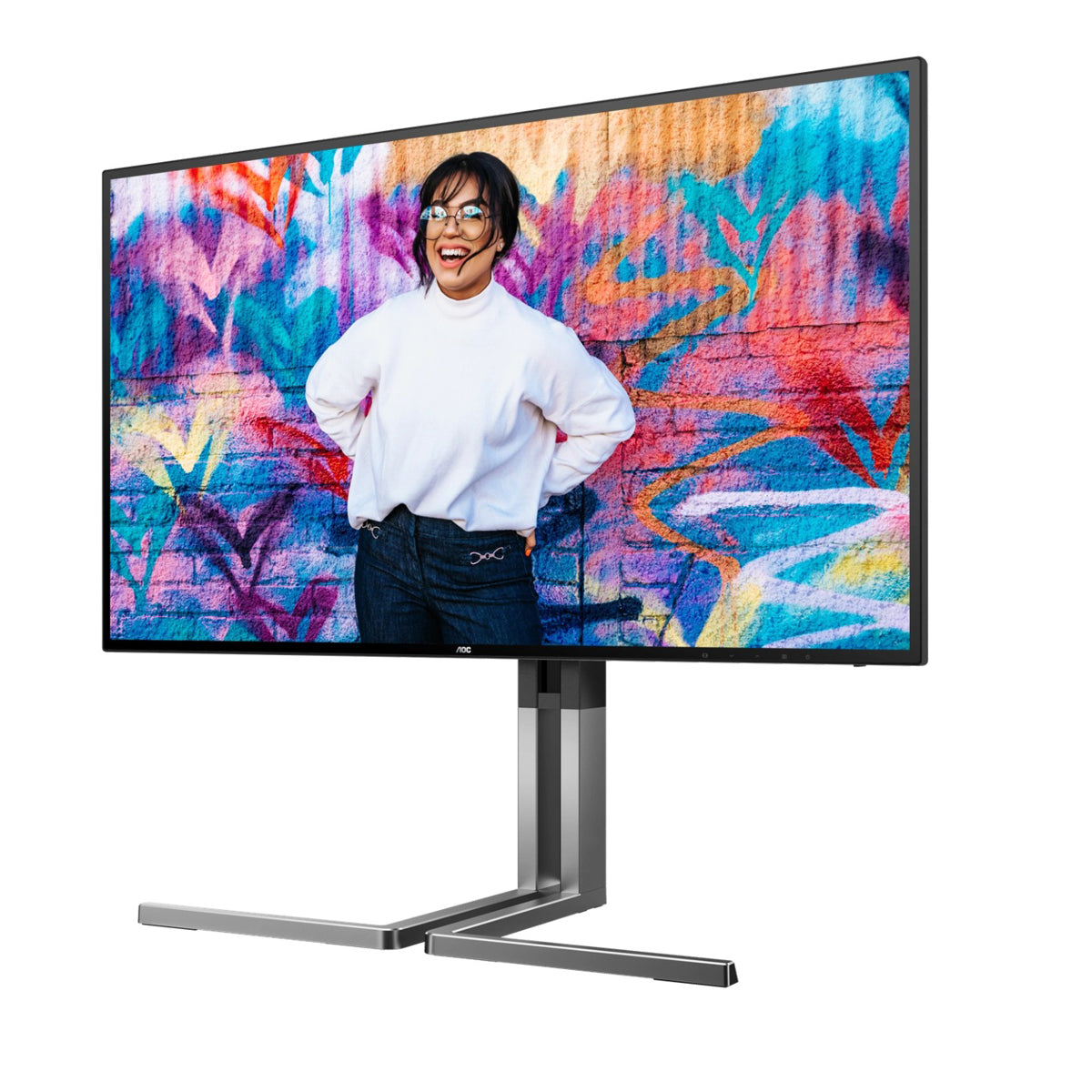

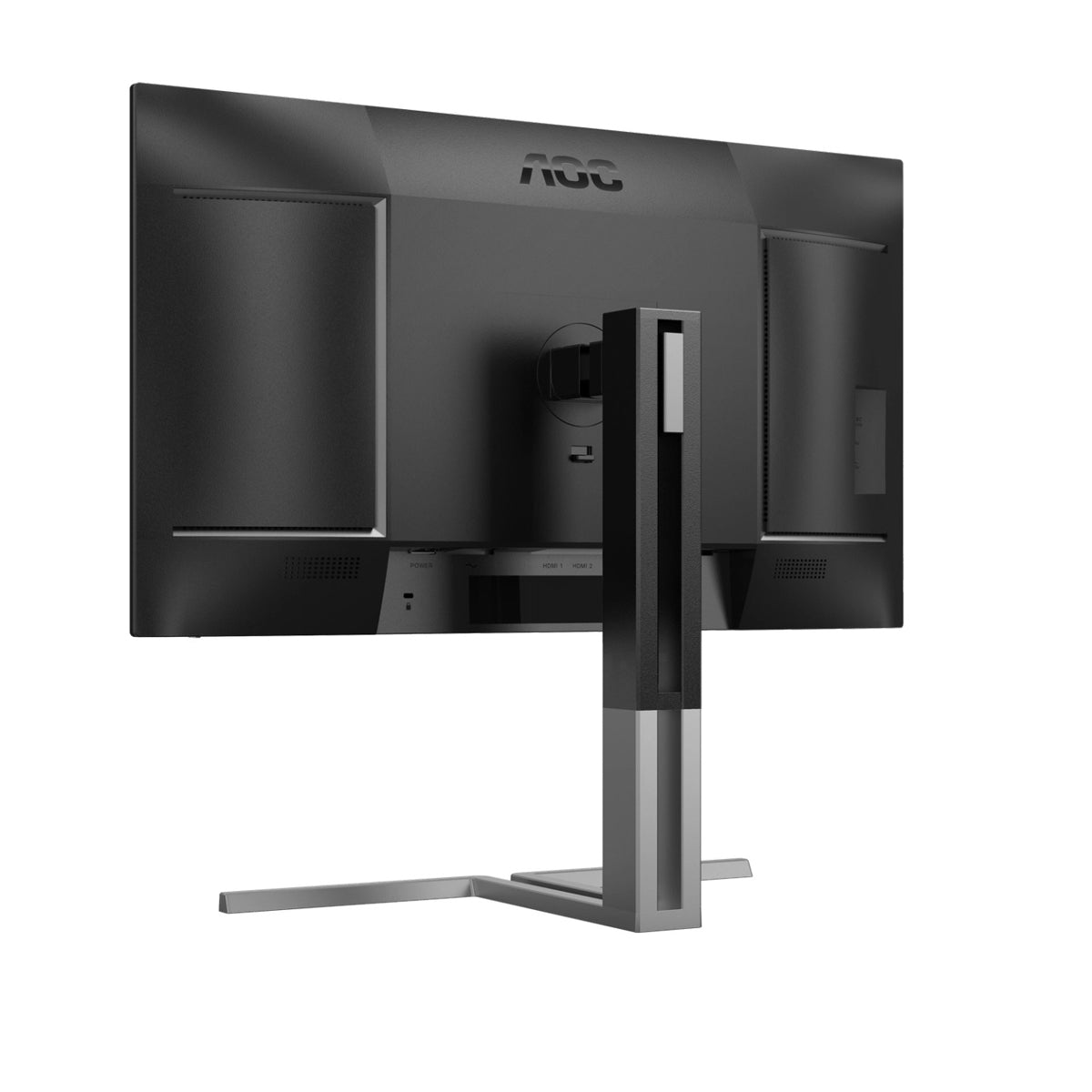

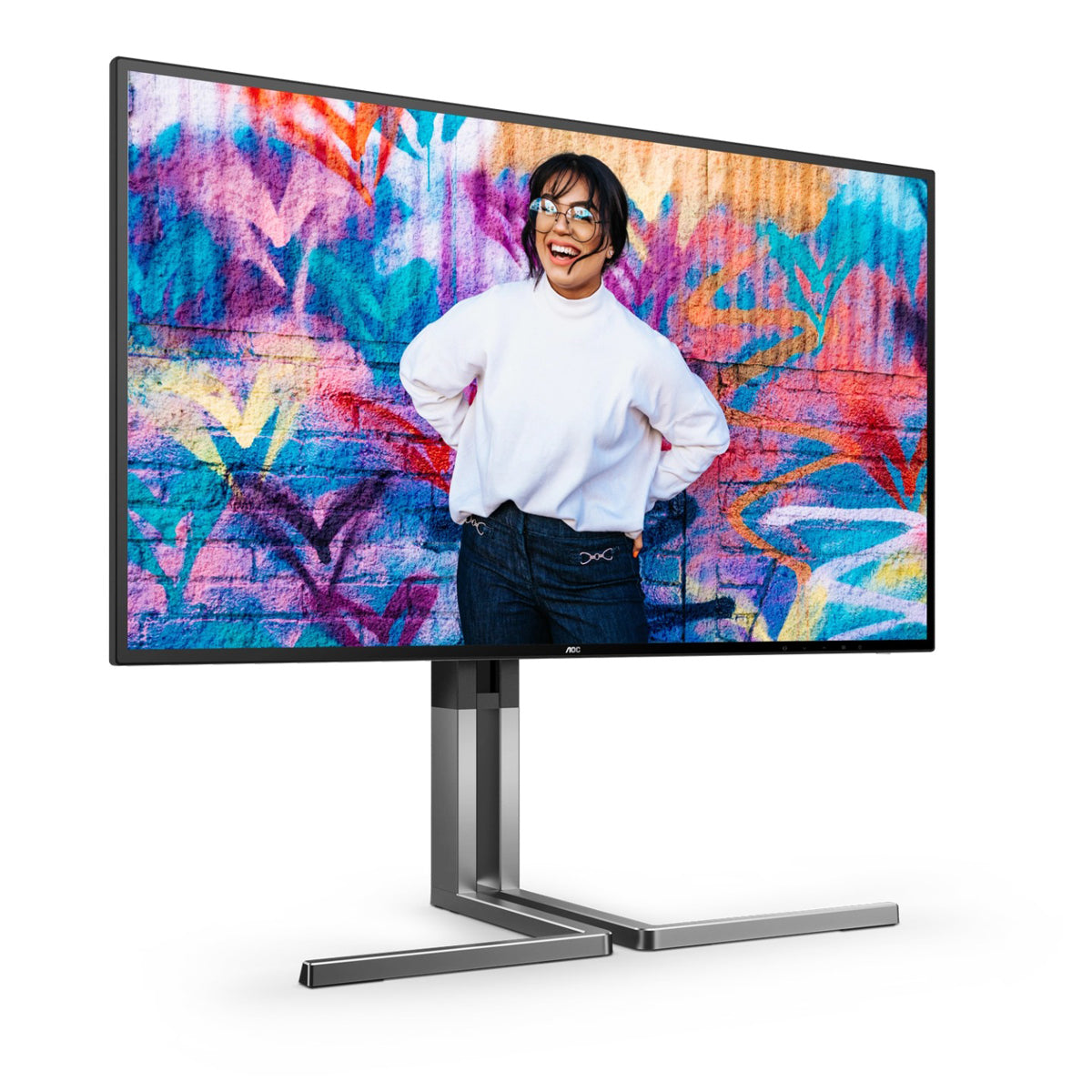

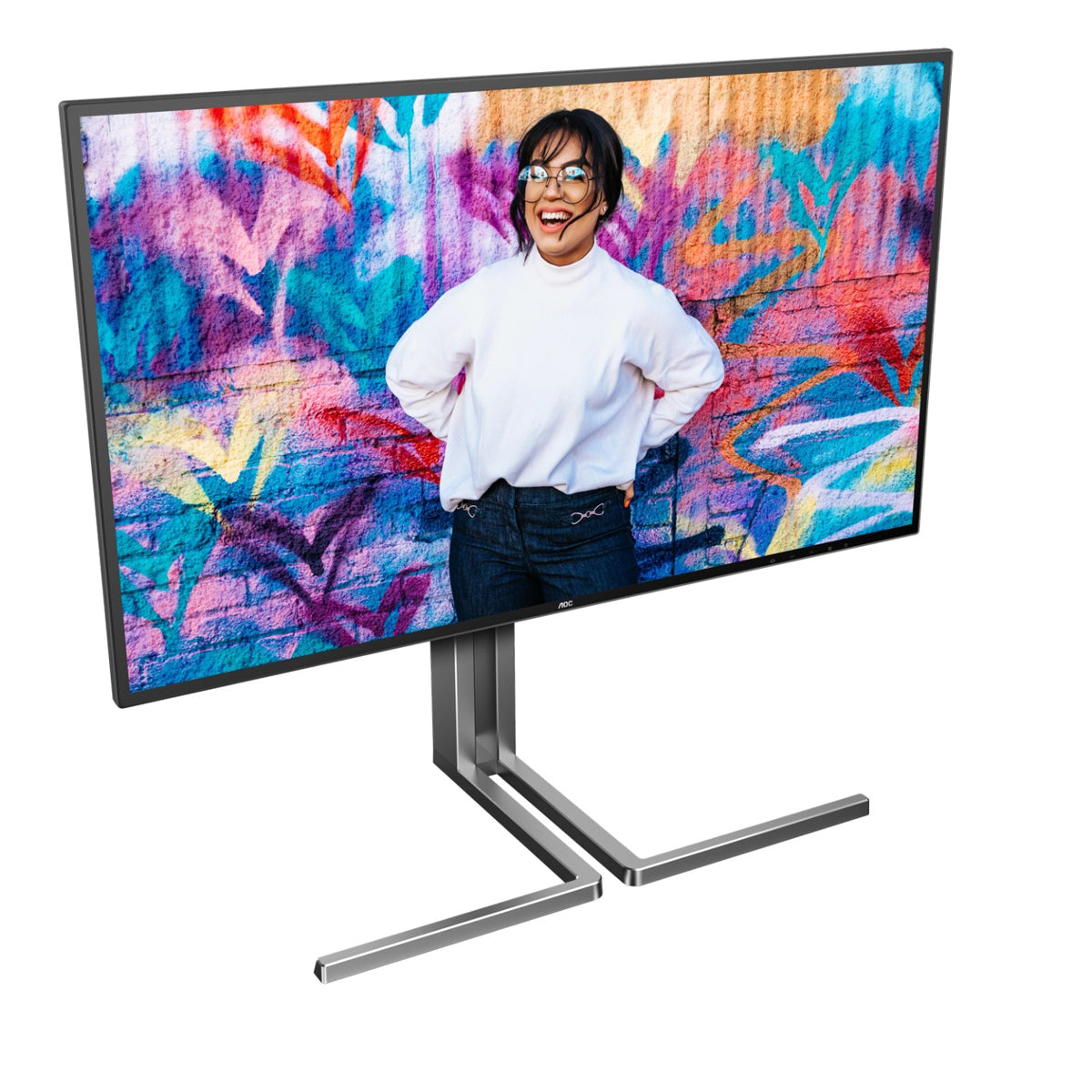

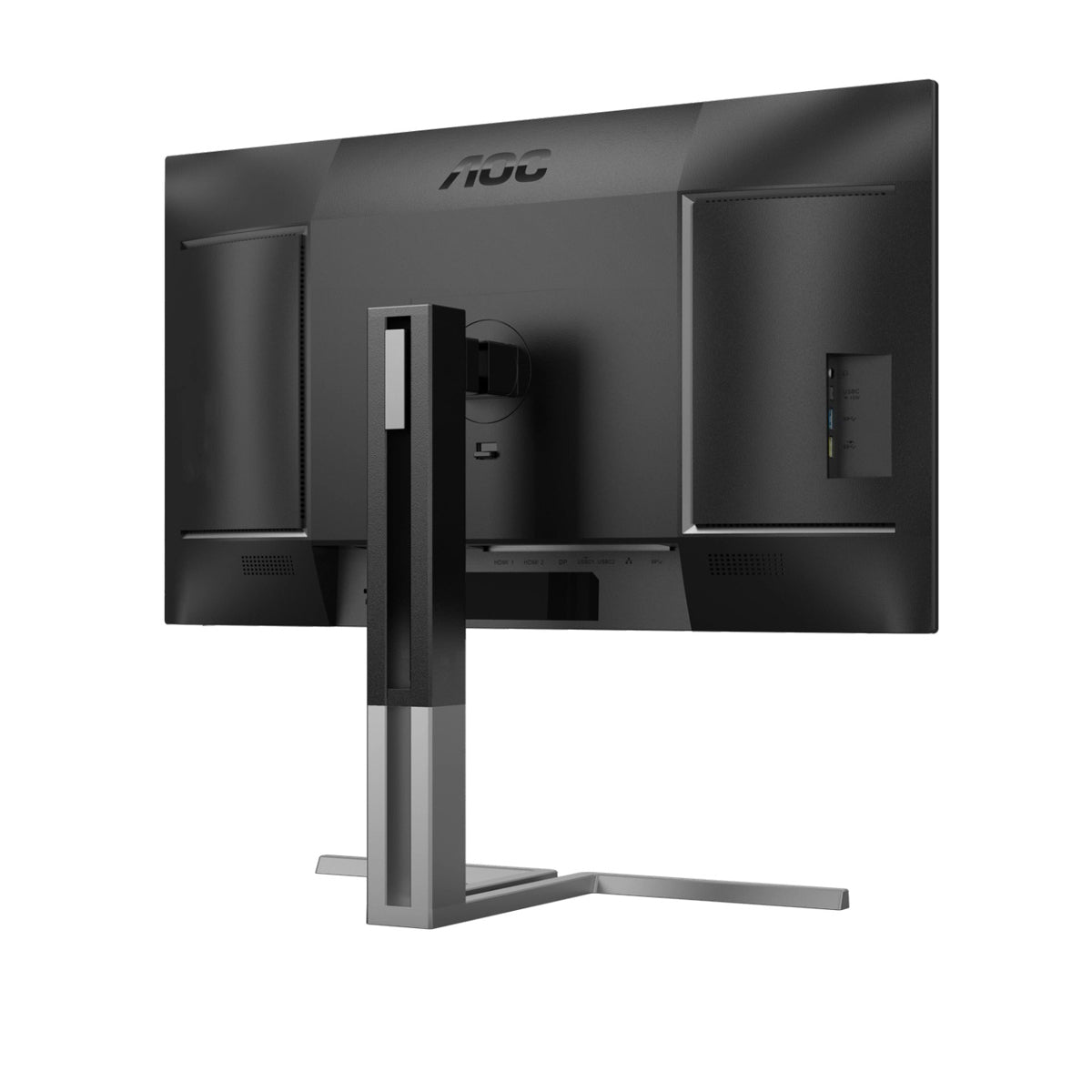

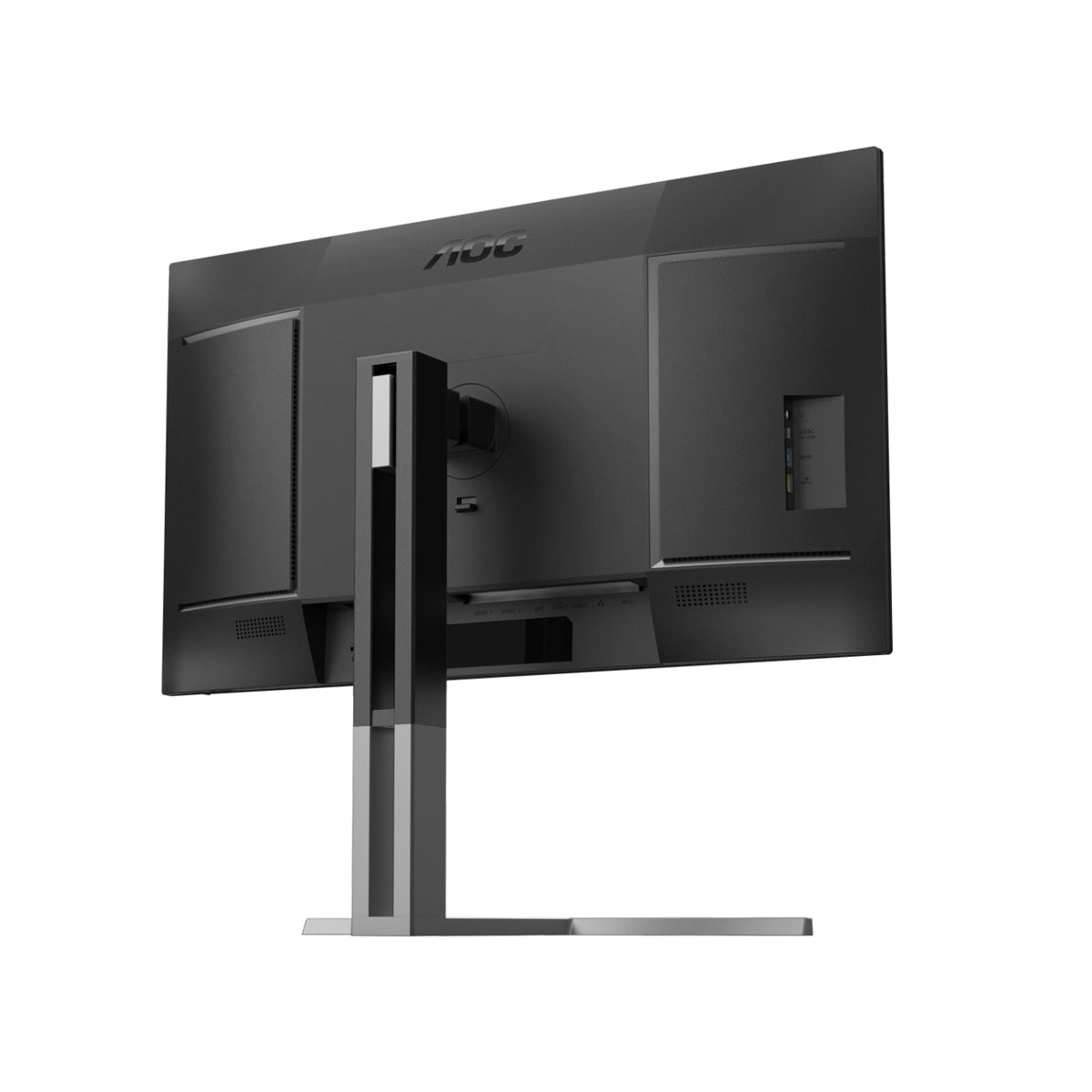

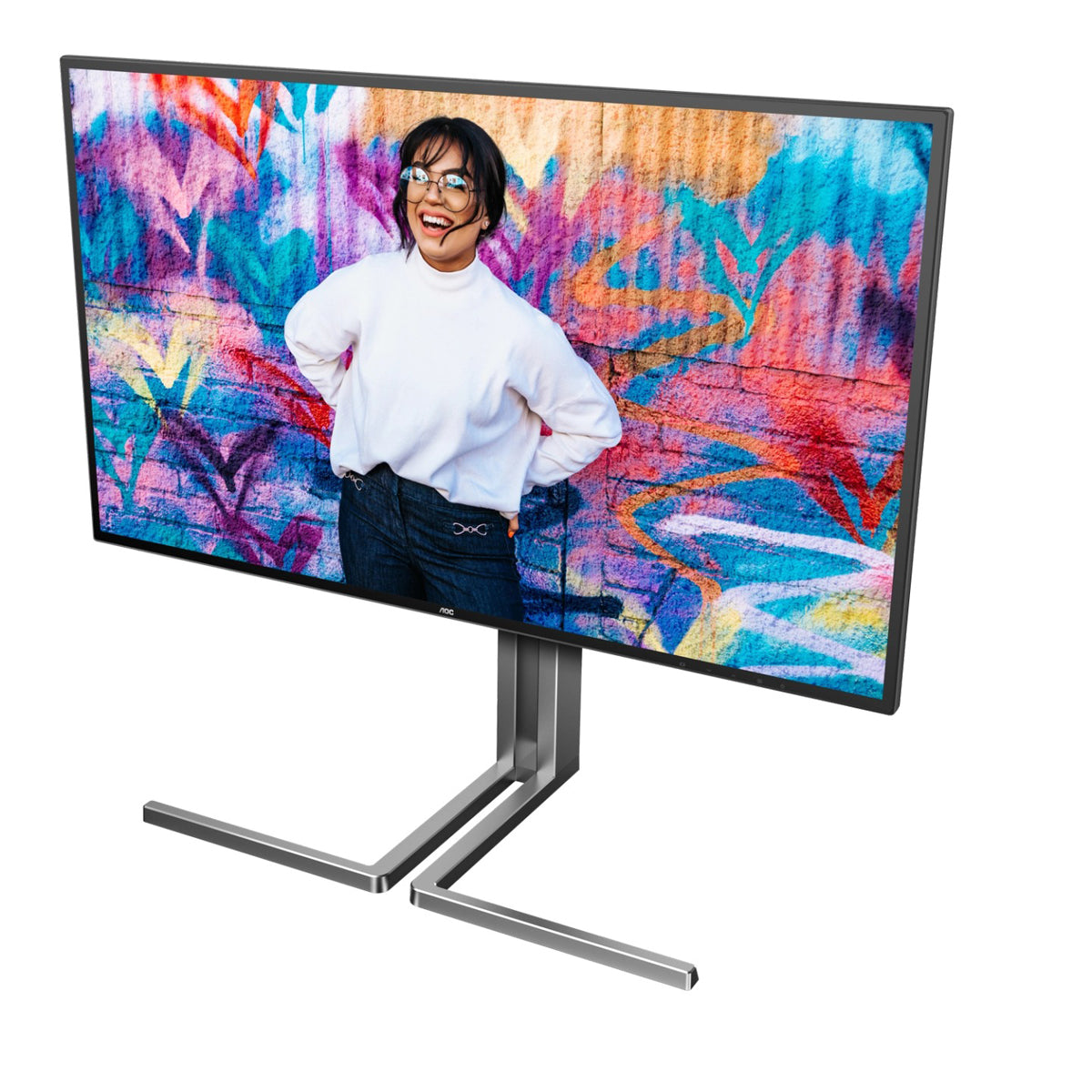

U27U3CV
Precision-engineered for graphics excellence with hardware-calibrated precision (Delta E<2), calman ready calibration, and UHD Nano IPS display
Create, elevate, imagine |

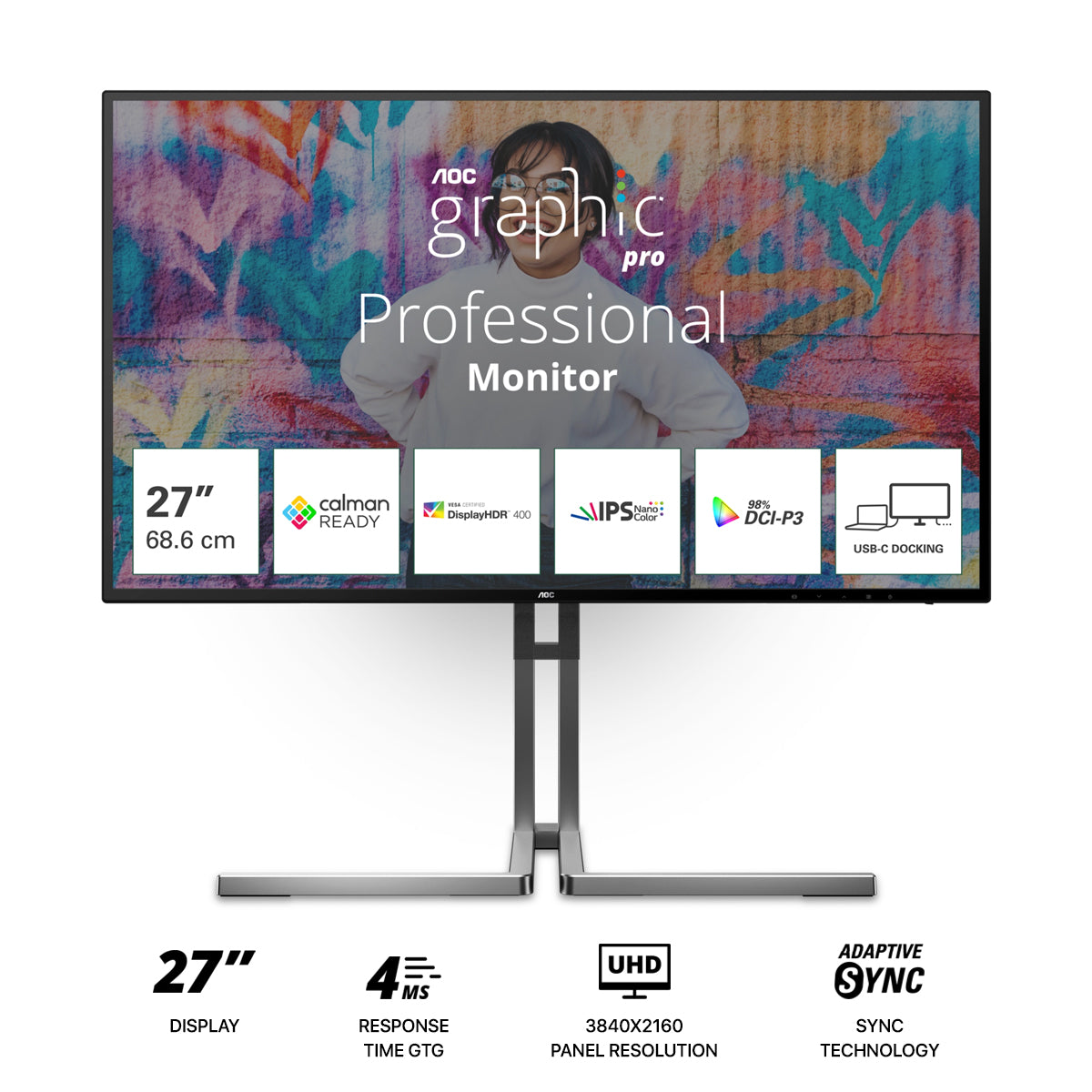

The AOC Graphic Pro U27U3CV delivers exceptional color accuracy straight out of the box, thanks to its hardware calibration achieving Delta E<2 (sRGB). Fine-tune settings effortlessly with the Calman Ready feature for optimal performance. With 98% coverage of the DCI P3, 100% of the sRGB and 100% of the Rec 709 color space, it's ideal for graphic and photo editing, offering superior quality compared to standard monitors. Its Delta E < 2 accuracy ensures precise color rendering, surpassing human eye perception. Enhanced with a 4-sided frameless screen, Vesa DisplayHDR 400, USB-C docking station, and sleek design, it stands as the top choice for professionals |
 |
|
UHD (4K) Resolution |
 |
 |
Red Dot Winner 2023 |
Vesa Certified DisplayHDR™ 400 |
 |
 |
USB-C Docking |
HDMI |
 |
 |
Calman Ready |
Nano IPS |
 |
 |
Power Delivery 90W |
Delta E<2 |
 |
| System Specifications | |
|---|---|
| Bezel type (front) | 4-sided frameless |
| Speaker power | 3 W x 2 |
| Stand screw spec | Thumb screw |
| VESA Mount screw Spec | M4 x 10 |
| Bezel Colour (front) | Black, Silver |
| Bezel finishing (front) | Painted |
| Cabinet colour (backside) | Black |
| Cabinet finishing (backside) | Texture |
| Vesa wallmount | 100x100 |
| USB-C connectivity | 1 x USB-C (DP1.4 Alt Mode, USB3.2 Gen 2 - upstream, 10Gbps, w/ HDR, Max. PD 96W Smart Power, HDR, Adaptive Sync), 1 x USB-C (USB3.2 Gen 2 - upstream, 10Gbps), 1 x USB-C (USB3.2 Gen 2 - downstream, 10Gbps, power supply up to 15W) |
| DP HDCP version | HDCP 1.4/2.2 |
| PD for USB C/TBT | USB C1 : USB PD version 3.0, typical 96W (5V/3A, 7V/3A, 9V/3A, 10V/3A, 12V/3A, 15V/3A, 20V/4.8A), USB C3 : power supply up to 15W |
| RJ45 | 1x 10M/100M/1G |
| USB Hub Down Stream | 4 x USB3.2 type A Gen1, 5Gbps (BC1.2x1 yellow), 1 USB 3.2 type C Gen1, 5Gbps |
| HDMI | HDMI 2.0 x 2 |
| DisplayPort | DisplayPort 1.4 x 1 |
| USB generation | USB 3.2 (Gen 2), 10 Gbit/s |
| USB type downstream | USB-A x4, USB-C x1 (Power supply up to 15W) |
| Audio Output | 1x Audio out |
| USB Type upstream | 1x USB-C (DP Alt Mode), USB-C PD: 96W |
| Screen size (inch) | 27.0 |
| Screen size (cm) | 68.6 |
| Flat / Curved | Flat |
| Display hardness | 3H |
| Panel treatment | Antiglare (AG) |
| Pixel Pitch (mm) | 0.1554 |
| Pixels per Inch | 163.0 |
| Panel resolution | 3840x2160 |
| Aspect ratio | 16:9 |
| Panel type | Nano IPS |
| Backlight type | WLED |
| Max Refresh rate | 60 Hz |
| Response time GtG | 4 ms |
| Static contrast ratio | 1300:1 |
| Dynamic contrast ratio | 50M:1 |
| Viewing angle (CR10) | 178/178 |
| Display colours | 1.073B (8bits+FRC) |
| Brightness in nits | HDR 400 nits |
| OD Response (typical) | 4 ms GtG |
| Panel Haze Value | 25% |
| Local Dimming Zones | Global Dimming |
| Resolution name | UHD |

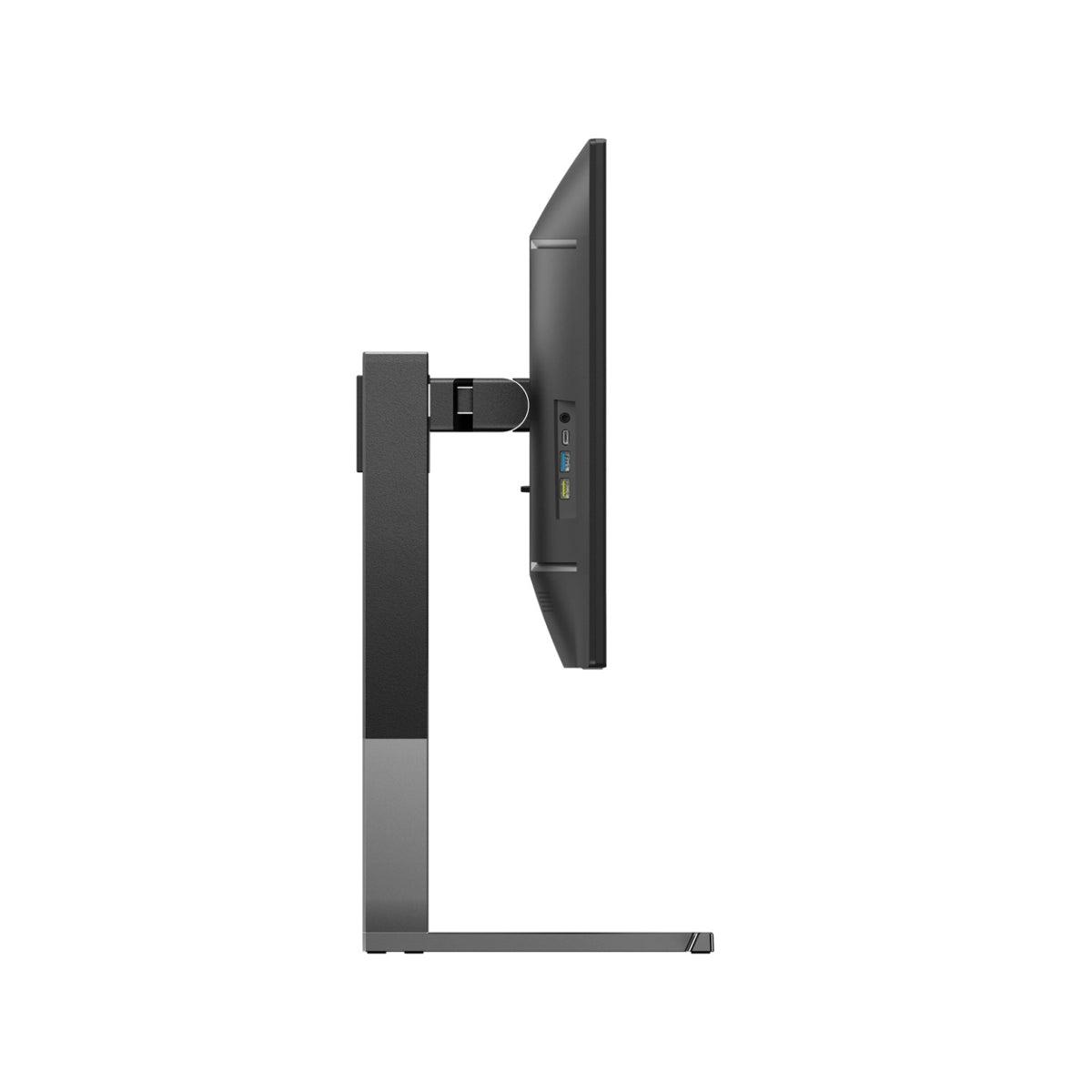

| Tilt | -6.5° ~ 23° |
| Height adjust (mm) | 150mm |
| Swivel | -30° ~30° |

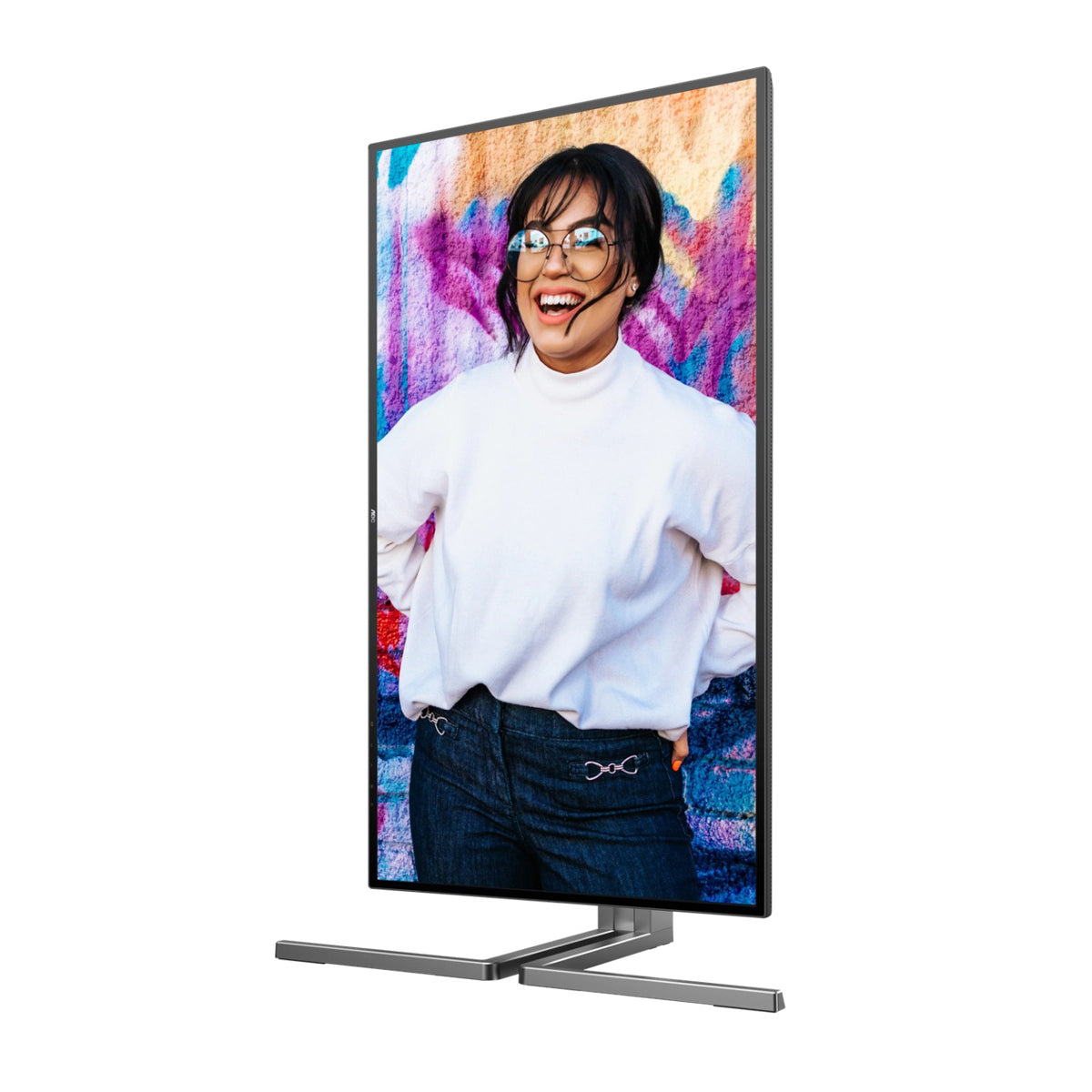

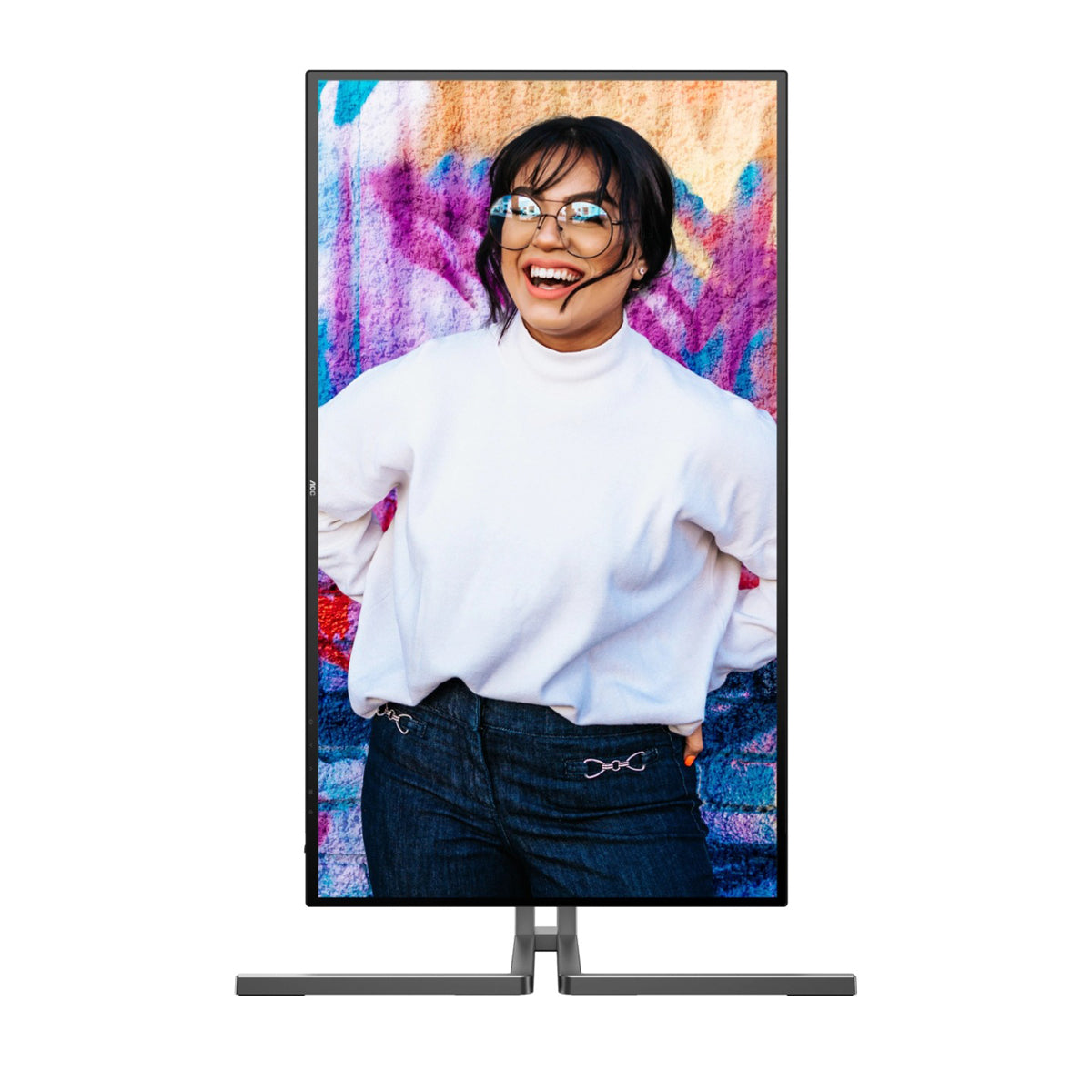

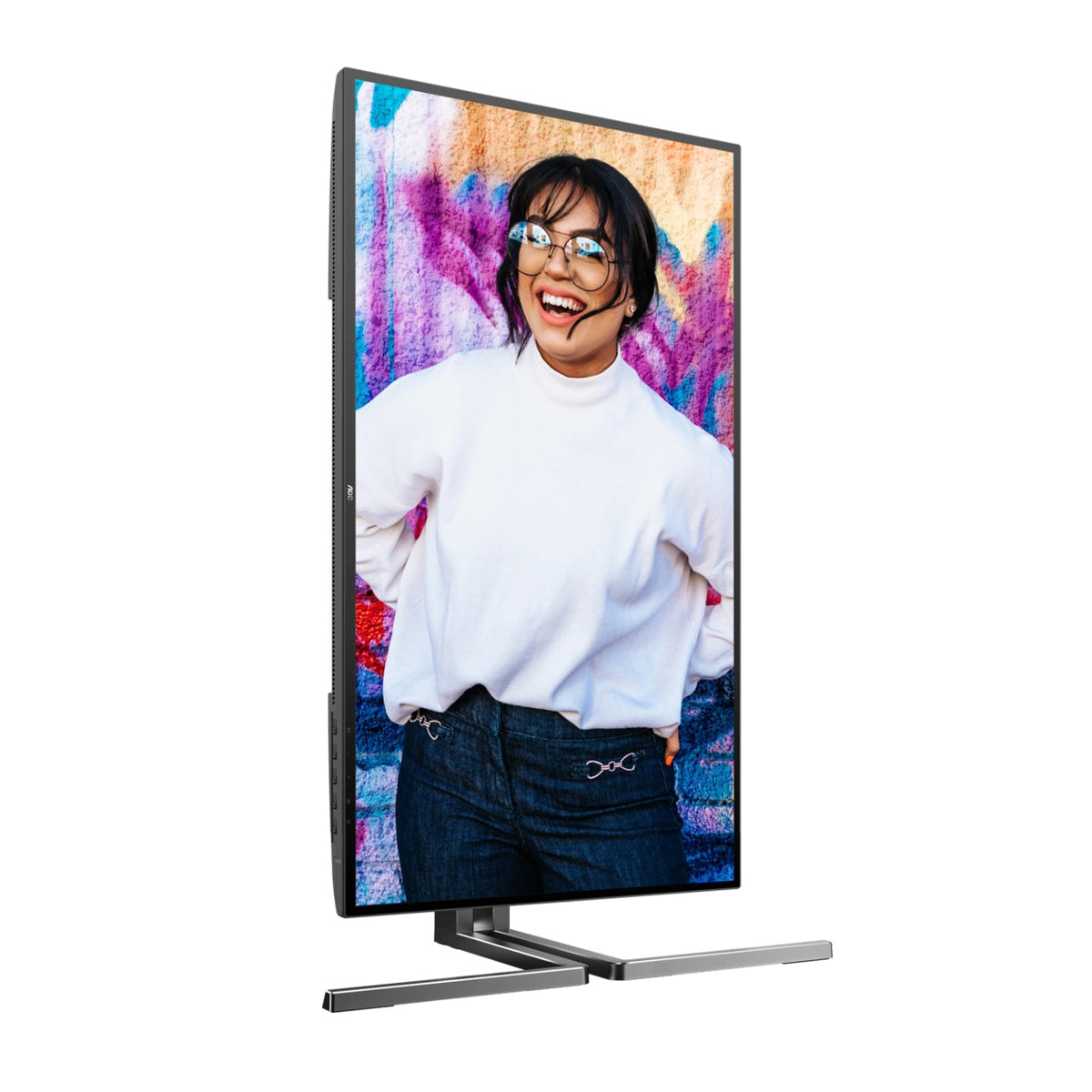

| Pivot | -90° ~ 90° |
| Auto Pivot (G sensor) | G sensor + Imenu to change windows setting |
| Product dimensions incl. base (WxHxD) mm | 612.7 x (401.3~543.6) × 238.4 |
| Product dimensions excl. base (WxHxD) mm | 612.7× 353.12 x 51.25 |
| Packaging dimensions (WxHxD) mm | 825 x 480 x 162 |
| Gross weight incl. package (in kg) | 10.02 |
| Net weight excl. package (in kg) | 6.54 |
| Product without stand (kg) | 4.85 |
| Sync technology (VRR) | Adaptive Sync |
| Digital Signal Frequency Vertical | 23-75Hz |
| Digital Signal Frequency Horizontal | 30K-140KHz |
| HDR (High Dynamic Range) | VESA Certified DisplayHDR™ 400 |
| Colour space (sRGB) CIE 1931 % | 135.2 |
| Flicker-Free | Flicker Free |
| KVM | Yes |
| Delta E<2 (sRGB) | Delta E<2 (sRGB) |
| 3D LUT 17x17x17 and 14-bit LUT | 3D LUT 17x17x17 and 14-bit LUT |
| Calman Ready | Yes |
| Color Accuracy | E<2 |
| Blue Light Technology | Low Blue Light |
| Multiview (PbP, PiP) | PiP+PbP |
