Description

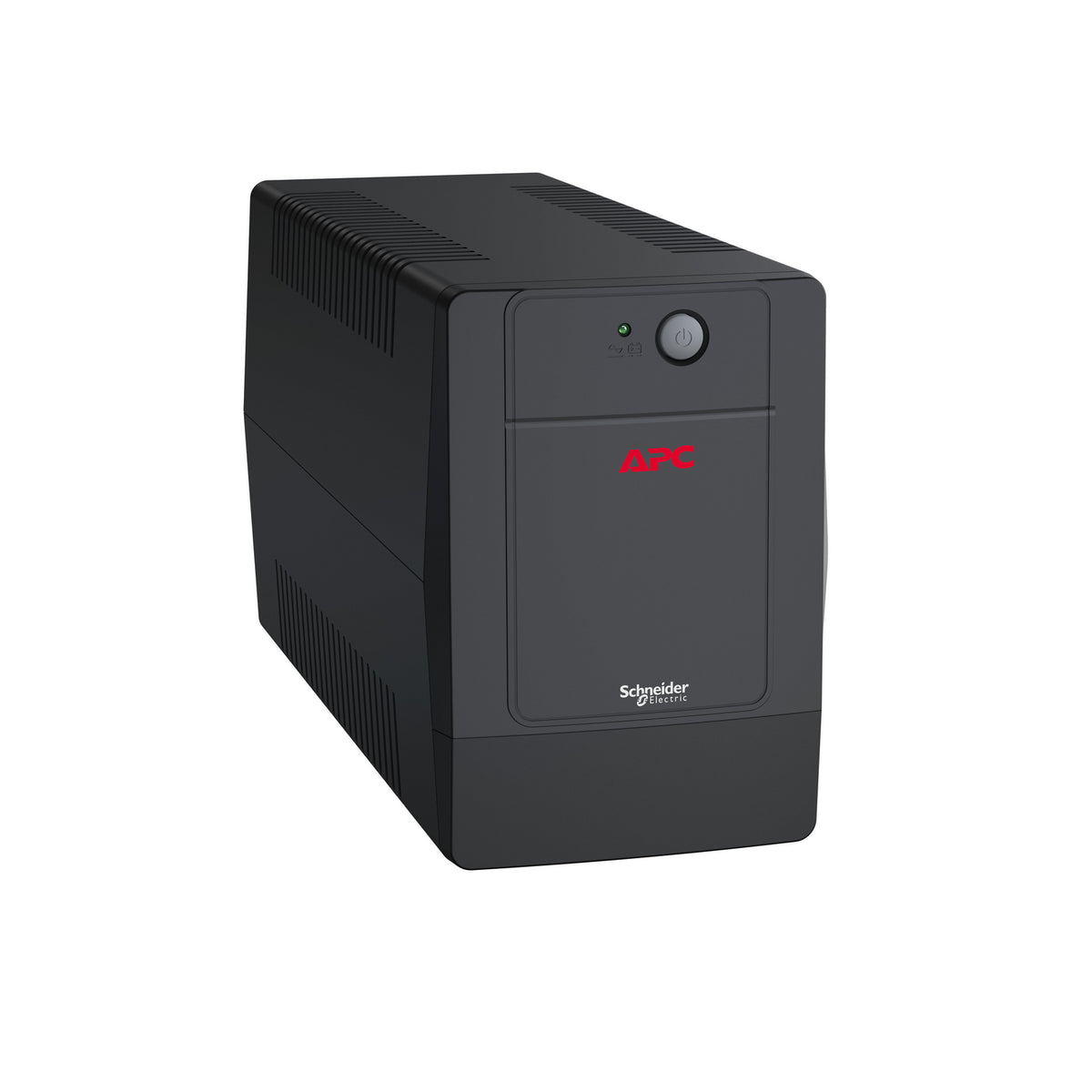

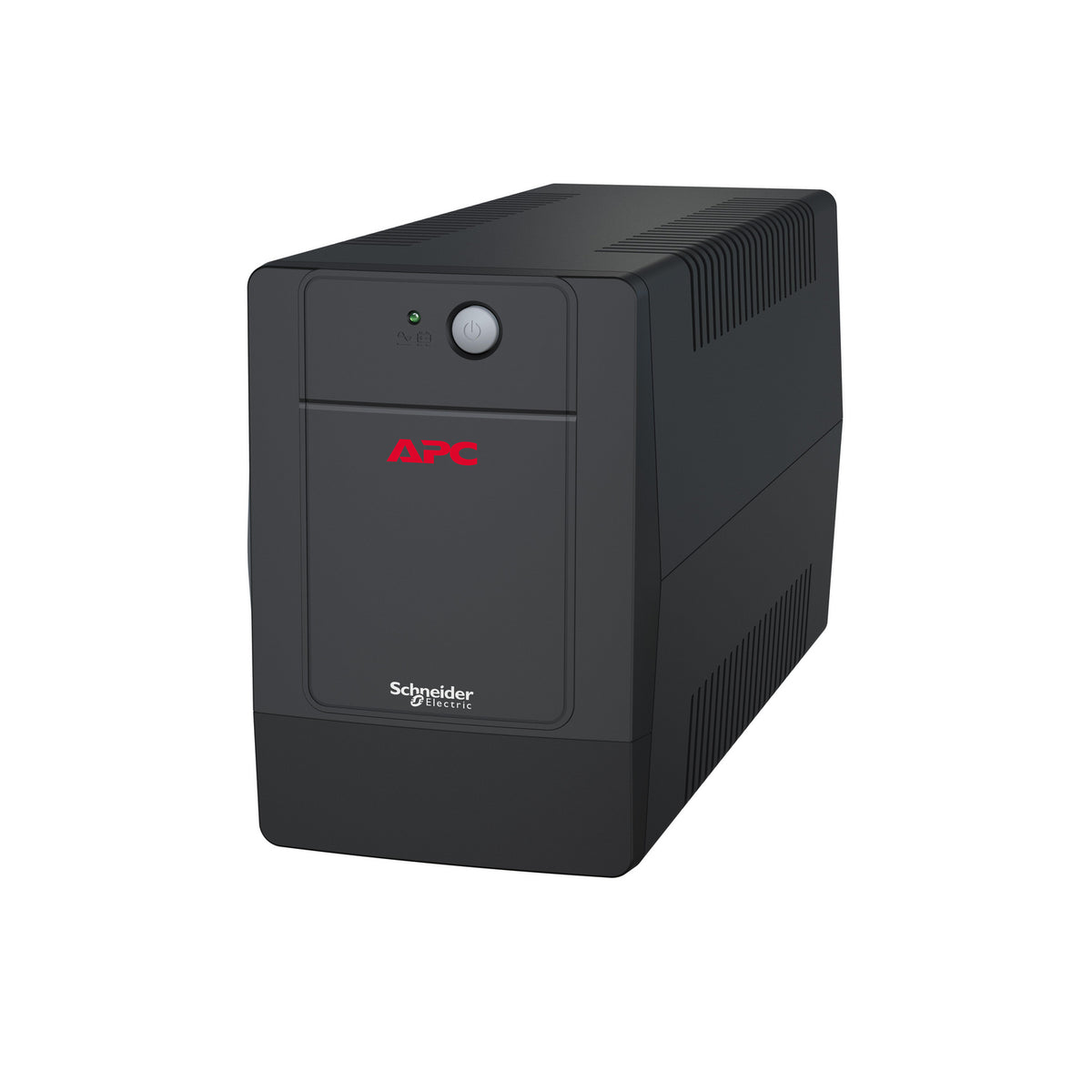

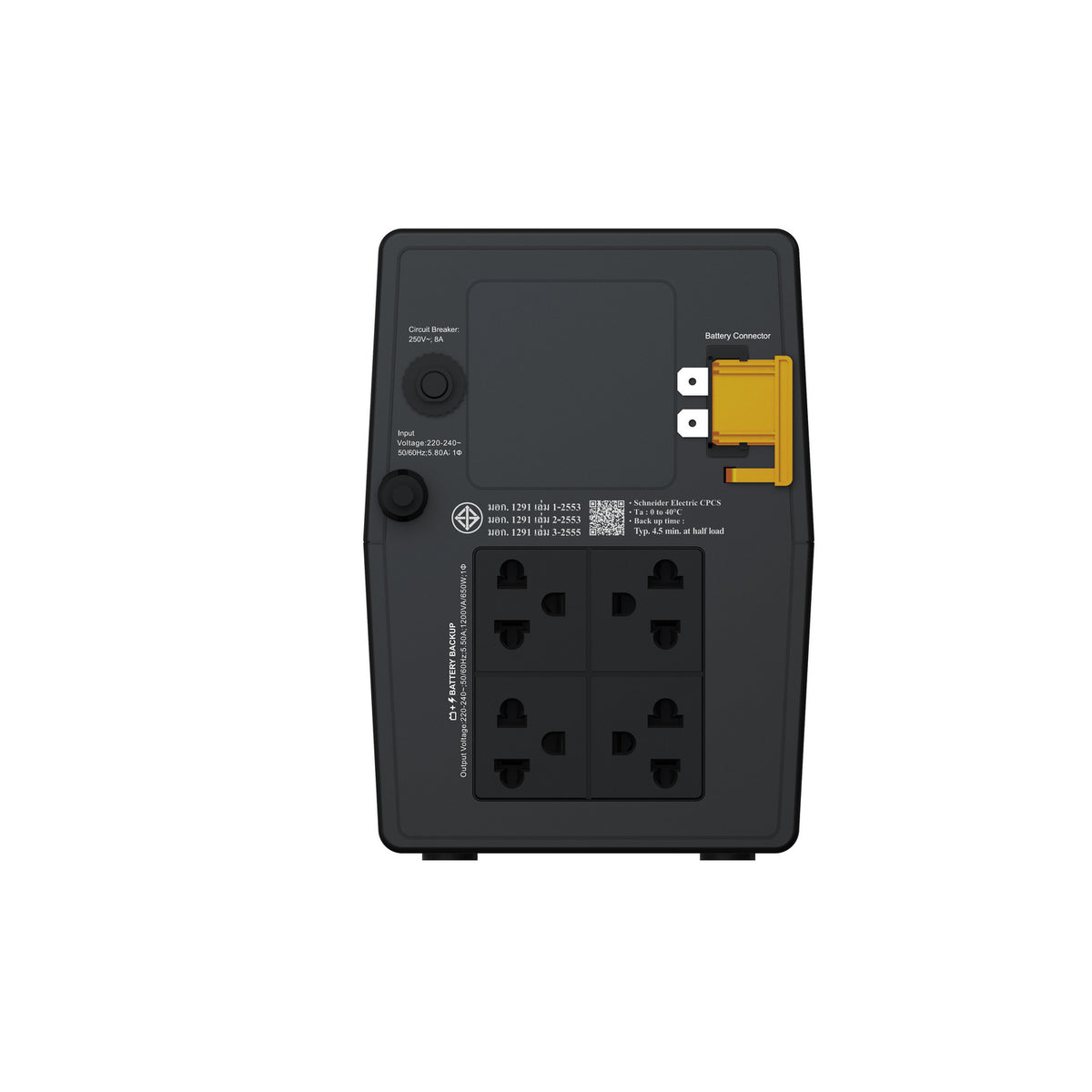

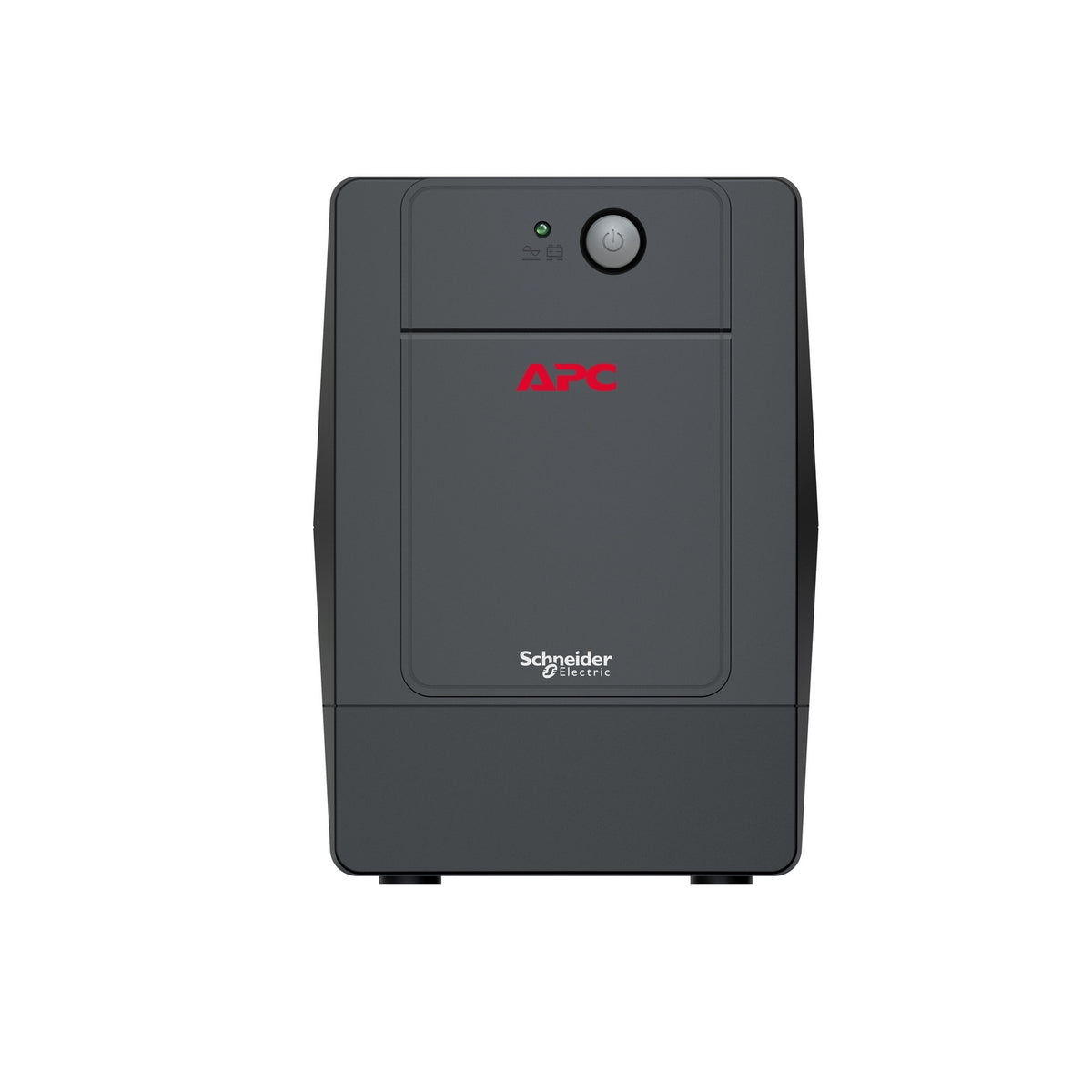

This APC Easy UPS offers reliable power backup and surge protection for your home and home office devices, helping you stay connected. With the 1200VA line interactive UPS, the essential electronic devices will have a steady network connection, reliable uptime, and clean power. The tower UPS comes with a NEMA input plug and 4 NEMA Universal outlets that provide both battery backup and surge-protection. This Uninterrupted Power Supply has a surge energy rating of 156 Joules. The auto-restart function automatically restarts the UPS while the mains recover following a full battery discharge. The battery self-diagnosis notifies you with the appropriate alarm based on the battery status. The generator compatible UPS allows optimal performance in specific power environments or generator applications.
SPECIFICATION
|
Run time for load |
W — Min-max: 10-650 W — — |
|
Max. Capacity Used |
100 % |
|
Main input voltage |
220...240 V AC 1 phase |
|
Input connection |
NEMA 5-15P 5.8 A |
|
Input protection |
Circuit breaker |
|
Input frequency |
50/60 Hz +/- 5 Hz indoor use only |
|
Output voltage |
230 V AC 1 phase |
|
Rated power in W |
650 W |
|
Rated power in VA |
1200 VA |
|
Output connection |
4 universal |
|
Output connection |
Universal |
|
Type of USB power supply |
None |
|
Maximum configurable power in W |
650 W |
|
Output voltage tolerance |
+/- 10 % |
|
Transfer time |
6 ms typical : 10 ms maximum |
|
UPS topology |
Line interactive |
|
Waveform type |
Stepped approximation to a sinewave |
|
Full load runtime |
00:00:30 650 W |
|
Half load runtime |
00:04:36 325 W |
|
Run Time Graph |
|
|
Efficiency Graph |
|
|
Battery type |
Lead-acid internal included |
|
Control panel |
LED Status display with on line : on battery |
|
Emergency power off |
No |
|
Alarm |
Alarm when on battery : distinctive low battery alarm : high temperature : overload continuous tone alarm |
|
Surge energy rating |
156 J |
|
Color |
Black |
|
Height |
182 mm |
|
Width |
130 mm |
|
Depth |
320 mm |
|
Product weight |
7.2 kg |
|
USB compatible |
No |
|
Mounting mode |
Desktop installation compact |
|
Max runtime |
0.5 min |
|
Range of product |
Easy UPS |
|
Product or component type |
Uninterruptible power supply (UPS) |
|
Ambient air temperature for operation |
0…40 °C |
|
Ambient air temperature for storage |
-15…45 °C |
|
Storage altitude |
0…3000 m |
|
IP protection |
IP20 indoor use only |
|
Relative humidity |
0…95 % non-condensing |
|
Storage relative humidity |
0…95 % non-condensing |
|
Acoustic level |
< 40 dBA |
|
Operating altitude |
0...3000 m |
|
Battery type |
VRLA |
|
Extendable runtime |
0 |
|
RBC quantity |
0 |
|
Battery design life |
3…5 year(s) |
|
Battery life |
3…5 year(s) |
|
Battery charging power |
14 W indoor use only |
|
Unit Type of Package 1 |
PCE |
|
Number of Units in Package 1 |
1 |
|
Package 1 Height |
18.2 cm |
|
Package 1 Width |
13 cm |
|
Package 1 Length |
32 cm |
|
Package 1 Weight |
7.2 kg |
