Description

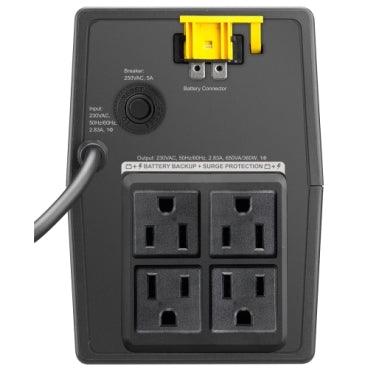

APC EASY UPS BVX 650VA AVR 230V
Introducing the all-new Easy-UPS APC™ Easy-UPS™ essential series provides battery backup and surge protection ideal for your home and home office
Features
Power capacity : 360 W / 650 VA
Battery Backup : 4 battery backup with surge protection outlets for multi-device power protection
Automatic Voltage Regulation (AVR)
Boost and Trim” AVR instantly corrects voltage fluctuations without using the battery, saving battery life for power outages
Circuit Breaker Reset
Push the circuit breaker button to reset for easy recovery from circuit overloads, protecting the UPS and connected electronics from electrical damage
Automatic Diagnostic Testing
Periodic battery self-test ensures early detection of a battery that needs to be replaced, ensuring your unit is ready when you need it
Generator Compatible
Provides clean instant battery power to prevent frequency variations from affecting the connected load
SPECIFICATION
| UPS Model | BVX650I-PH |
| Power Capacity | 360 W / 650 VA |
| Nominal Output Voltage | 230 VAC +/- 10% |
| Topology | Line Interactive |
| Transfer Time | 4-6ms typical, 10ms max |
| Output Connections | (4) NEMA 5-15R Battery Backup Outlets |
| Nominal Input Voltage | 230 VAC |
| Input Voltage Range | 140 - 300 VAC |
| Frequency | 50 Hz / 60 Hz ± 5Hz |
| Input Circuit Breaker | 5A |
| Cord Length | 1.2 (m) |
| AC Power Surge Protection | All Outlets |
| LED Indicators | LED Status display with online : on battery |
| Alarms | on battery : low battery : overload continuous tone alarm |
| Battery Type | Maintenance-free, sealed lead-acid battery, leak proof |
| Dimensions (H x W x D) | 14.2 cm x 10.1 cm x 30 cm |
| Audible Noise at 1m from Unit | 40 dBA max |
