Description
Easy UPS provides power protection for unstable power conditions, ensuring consistent and reliable connectivity at the most critical moments.
Protection
Battery backup and surge protection - Outlets provide abundant runtime for network gateway equipment and other critical low-power devices, allowing for hours of internet access during a power outage.
Battery and surge protected outlets - Back up and protect your hardware and data during power outages, surges and spikes.
Safety
Safety-agency approved - Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.
Features
Cold-started Capable - Provides temporary battery power when the utility power is out.
Sleek Design - Slim, modern design can be upright, flat, or wall-mounted to comfortably fit any electronics set-up and complement home décor.
Transformer-block spaced outlets - Protect equipment with input transformer blocks without blocking access to other receptacles.
Boost Automatic Voltage Regulation (AVR) - Preserves battery life and maximizes runtime by correcting low voltages without discharging the battery.
Manageability
LED Inidcators - Provide easy-to-read status of the unit and utility power conditions.
Audible Alarms - Provides notification of changing utility power and UPS power conditions
Availability
Battery Failure Noticaition - Provides early-warning fault analysis on batteries enabling timely preventive maintenance
Advanced Safety Features - Safeguard your Home UPS from overloads, excessive mains voltages, short circuits, installation mishaps and battery damage due to low voltage situations.
Intelligent Battery Management - Maximizes battery performance, life, and reliability through intelligent, precision charging.
Specifications:
| OVERVIEW | |
| input voltage | 230 V AC 1 phase |
| Main Output Voltage | 230 V AC 1 phase |
| rated power in W | 480 W |
| rated power in VA | 900 VA |

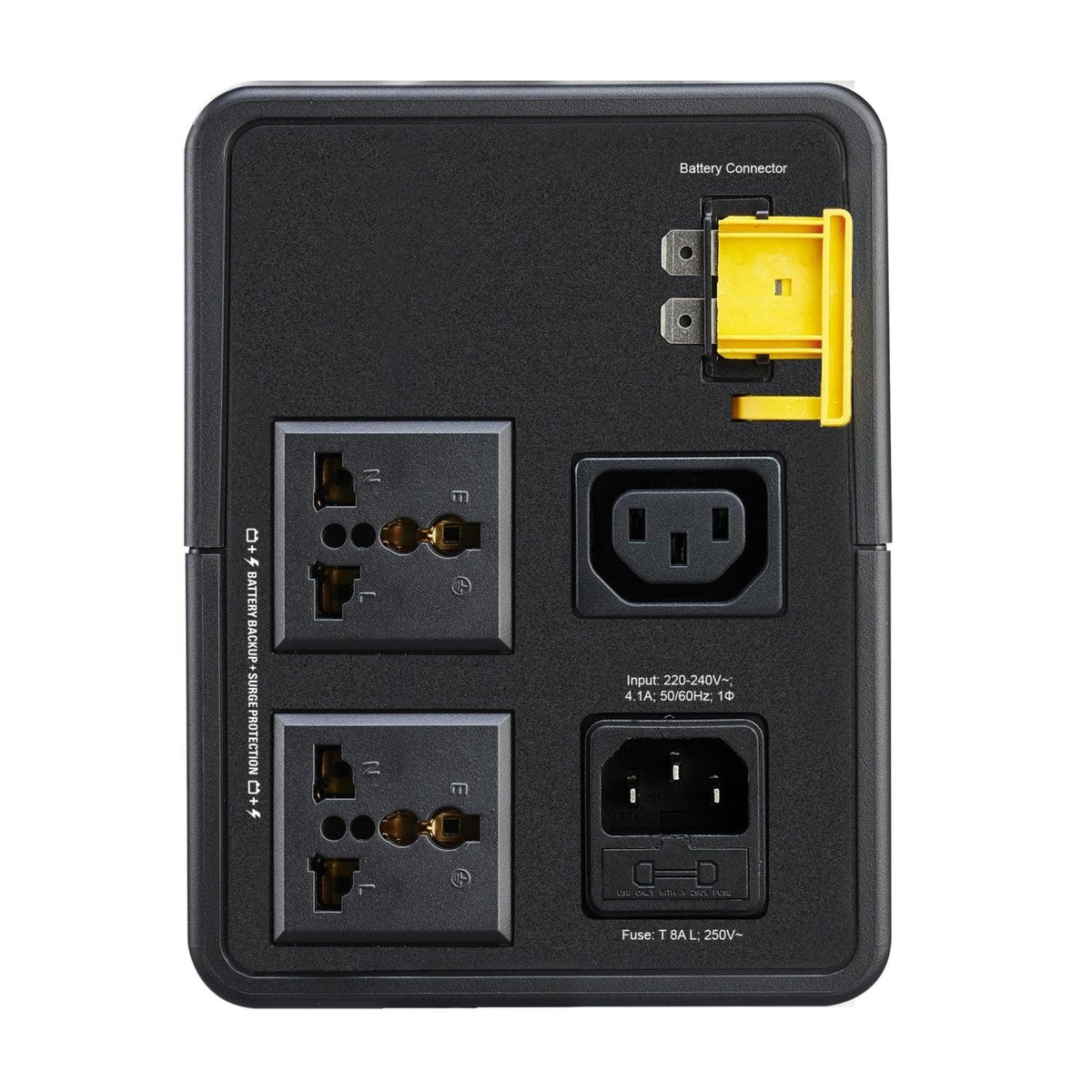

| Input Connection Type | IEC 60320 C14 |
| nb of power socket outlets | 2 universal |
| 1 IEC 60320 C13 | |
| cable length | 1.22 m |
| number of cables | 1 |
| battery type | Lead-acid battery |
| provided equipment | User manual |
| INPUT | |
| network frequency | 50/60 Hz +/- 5 Hz auto-sensing |
| input voltage limits | 140...300 V 230 V AC |
| cos phi | 0.53 |
| OUTPUT | |
| Maximum configurable power in W | 480 W |
| output frequency | 50/60 Hz +/- 1 Hz sync to mains |
| UPS type | Line interactive |
| Wave type | Stepped approximation to a sinewave |
| full load runtime | 00:01:00 480 W |
| graph display | 1 |
| half load runtime | 00:06:30 240 W |
| Maximum configurable power in VA | 900 VA |
| Transfer time | 6 ms typical : 10 ms maximum |
