Description

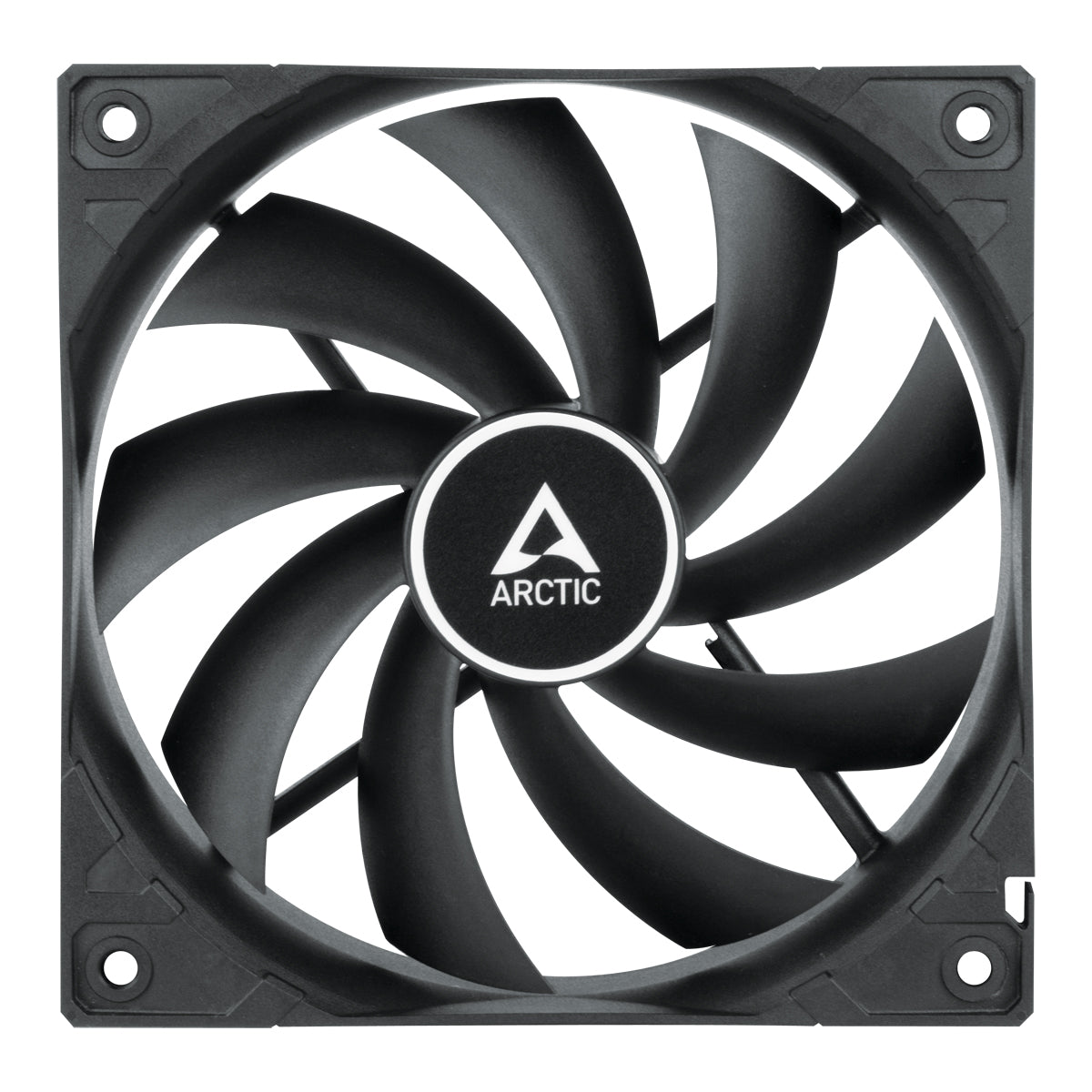

Arctic F12 PWM PST CO 120mm PWM with PST Case Fan for Continuous Operation
Perfect Case Fan Regulation with PWM
The PWM function allows the motherboard to run the fan precisely at its necessary speed. This guarantees the required cooling and minimizes the noise level.
Maximum Quietness, Minimum Vibration
Even at low speeds, the operating sound of the new ARCTIC motor is barely noticeable. Due to sinus-magnetizing the new motor only creates about 5 % of the vibration from the commutation of a regular DC motor without a filter.
PWM Sharing Technology (PST) Lowers Noise
If you want to improve the cooling efficiency of your computer you get several case fans working in parallel (since it takes 10 fans to double the noise level). But what does it help if they don't work together? The PST assures that all of your fans listen to one control signal. E.g. you share the CPU Cooler's PWM signal and assure that your case fans stand down at low load and spin up whenever necessary.
Innovative Design Enables Quiet and Efficient Ventilation
The innovative design of the fan blades improves the airflow and facilitates a highly efficient ventilation. The impeller was designed with a focus on minimising the noise level yet delivering the desired airflow and pressure.
Extended Life Span with Dual Ball Bearing
The premium quality dual ball bearing allows continuous operation 24/7 without the slightest compromise in performance. Dust and high temperature are affecting this bearing a lot less than generic sleeve or one ball bearings and thus make it the perfect choice if reliability is key. The CO case fan's life span is up to 5 times longer compared to models using a generic bearing.
Two Way Installation
- Blow warm air out of the case
- Draw cool air into your case
| General Specifications | |
| Performance | |
| Fan Speed | 230—1350 rpm |
| Airflow | 53 cfm | 90.1 m³/h |
| Static Pressure | 1 mmH2O |
| Noise Level | 0.3 Sone |
| Fan | |
| Fan Frame | Standard |
| Control Type | PWM PST |
| Connector | 4-Pin Connector + 4-Pin Socket |
| Fan Bearing | Dual Ball Bearing |
| Operating Ambient Temperature | 0—40 °C |
| Warranty | 6 Years |
| Electric Characteristics | |
| Typical Voltage | 12 V DC |
| Starting Voltage | 6 V |
| Current | Voltage | 0.22 A | 12 V DC |
| Cable Length | 400 mm |

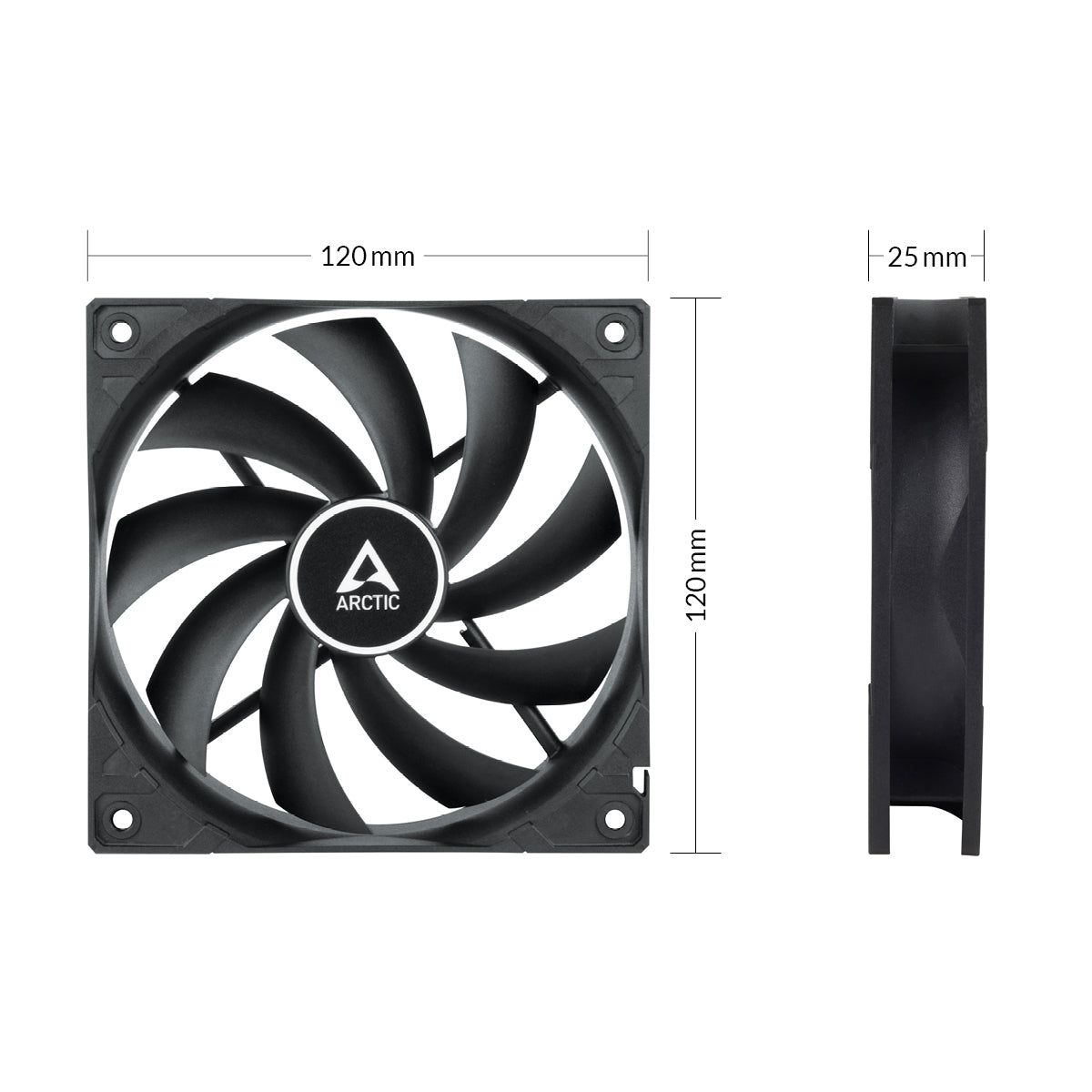

| Size & Weight | |
| Length | 120 mm |
| Width | 120 mm |
| Height | 25 mm |
| Weight | 109 g |
