Description

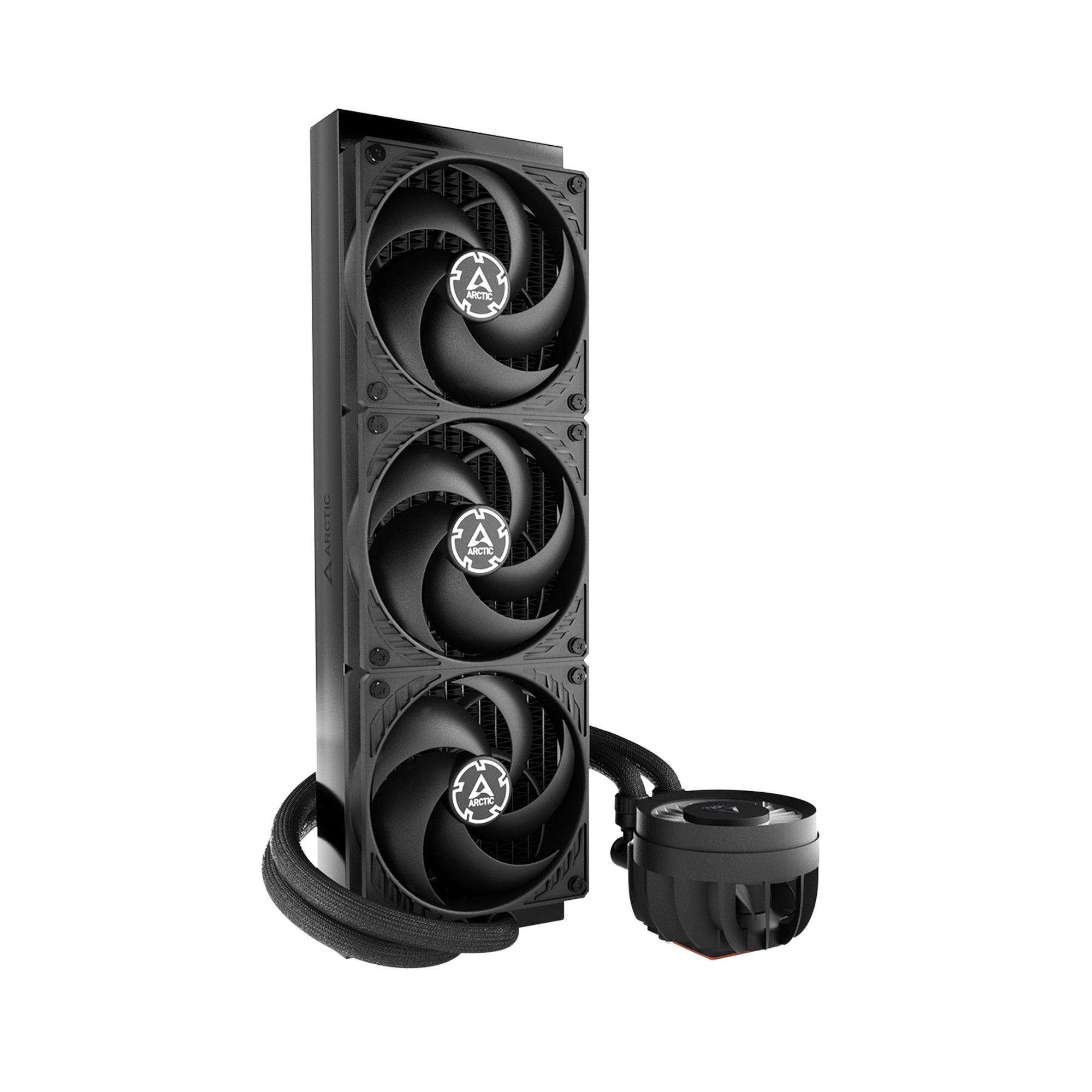

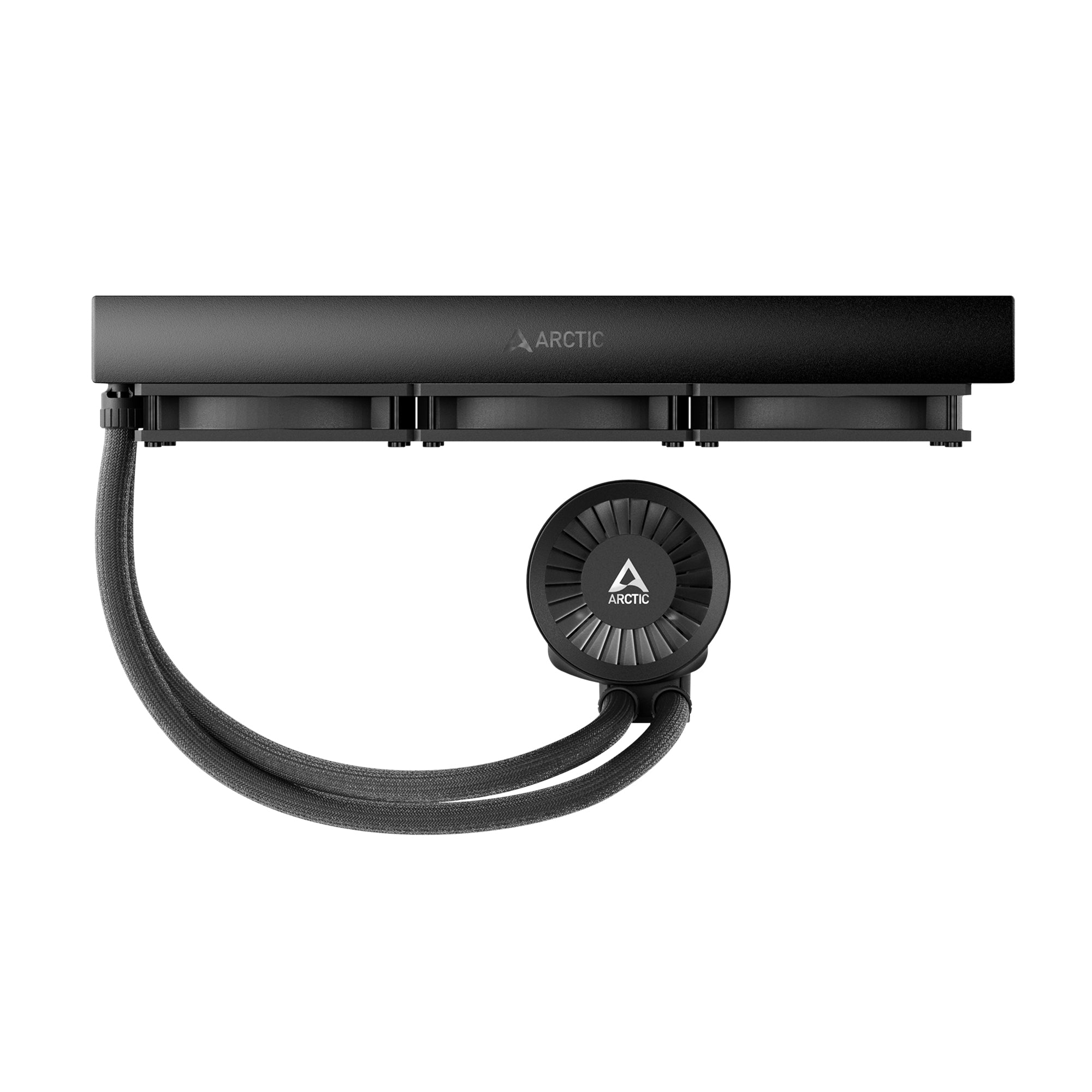

Liquid Freezer III 360
Multi Compatible All-in-One CPU Water Cooler
| General Specification |
| TIM | MX-6 (0.8 g) |
| Operating Ambient Temperature | 0—40 °C |
| PI | NNPI |
338 | 309
|
| All-In-One Connector | 4-Pin PWM Connector |
| Splitt Connector | 3x 4-Pin PWM Connector |
| Weight | 1840 g |
| Compatibility |
| Intel | 1851, 1700 |
| AMD | AM5, AM4 |
| Pump Specifications |
| Pump | 800—2800 rpm (PWM controlled) |
|
Current | Voltage
|
0.35 A | 12 V DC |
|

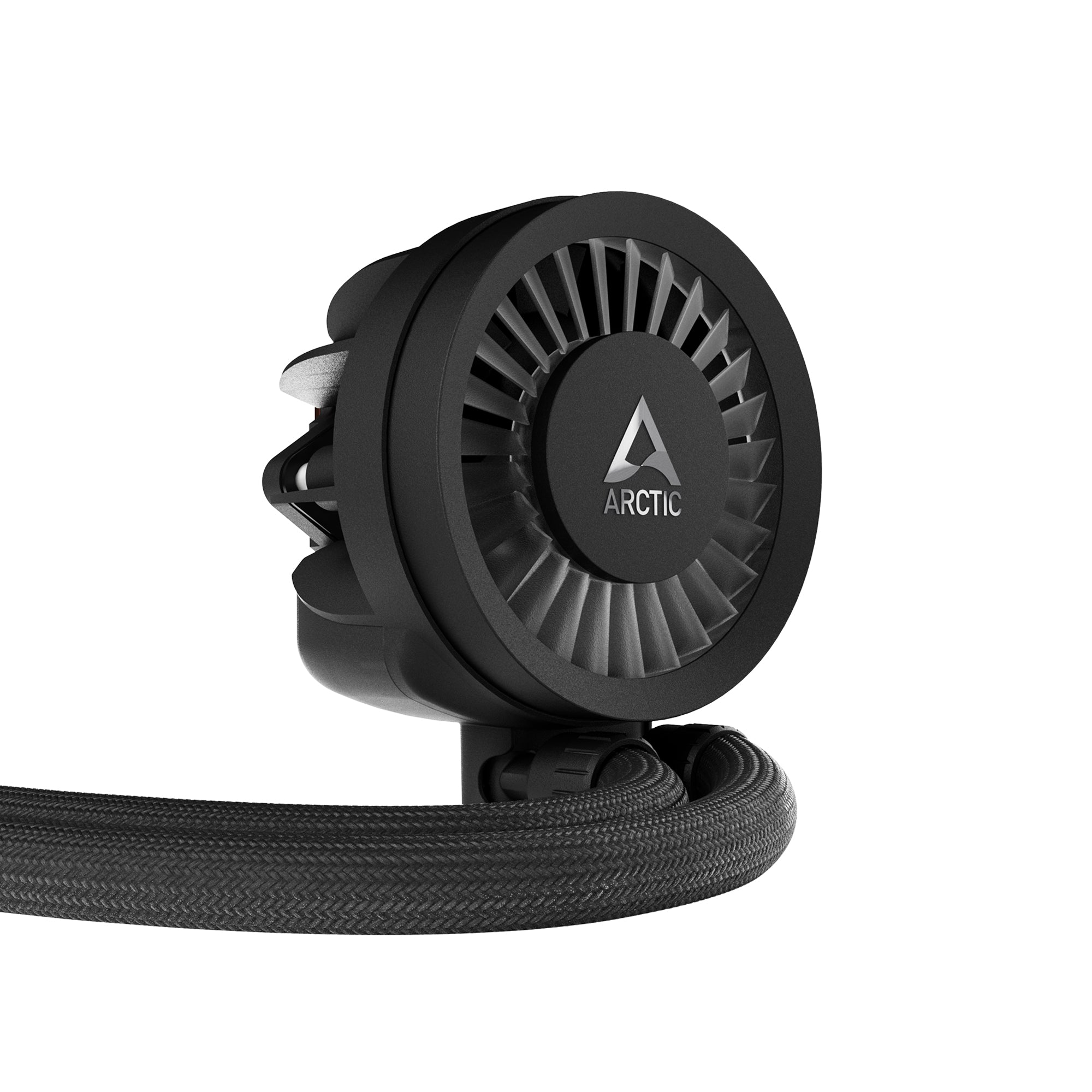

Cold Plate
|
Copper, Micro Skived Fins |
|
Tube Length
|
450 mm |
|
Tube Diameter
|
Outer: 12.4 mm
Inner: 6.0 mm
|
| Radiator Specifications |
| Material |
Aluminium
|

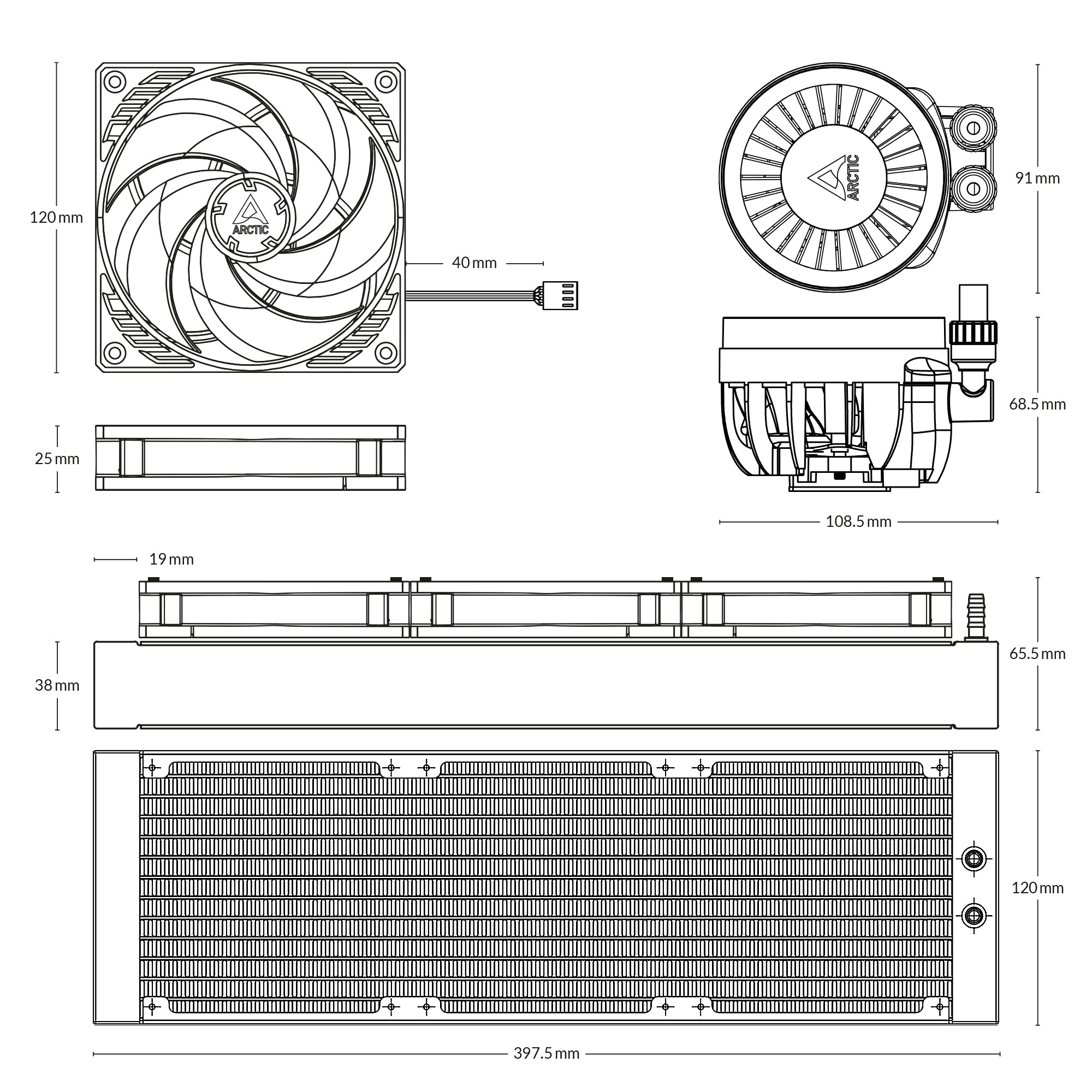

| Dimensions |
398 (L) x 120 (W) x 38 (H) mm
|
| VRM Modul Specifications |
|
VRM Fan
|
400—2500 rpm (PWM controlled)
|
|
Current | Voltage
|
0.05 A | 12 V DC |
| Fan Specifications |
| General | 3x P12 PWM |
| Speed |
200—1800 rpm
|
|
Air Flow
|
56.30 cfm | 95.65 m3/h |
|
Static Pressure
|
2.20 mmH2O |
| Bearing | Fluid Dynamic Bearing |
| Current | Voltage | 0.10 A | 12 V DC |
| Cable Lenght | 40 mm |
| Connector | 4-Pin PWM Connector |
