Description
Integrated VRM Fan
PWM-controlled fan lowers the voltage regulator temperature, ensuring stable performance.
Offset Mounting for Intel and AMD
Shifts the cold plate to the CPU hotspot for more efficient heat transfer.
Intel Contact Frame
Optimized contact pressure distribution for longer CPU lifespan and improved heat dissipation.
Specifications:
| TIM | MX-6 (0.8 g) |
| Warranty | 6 Years |
| Operating Ambient Temperature | 0—40 °C |
| Pump | 800–2800 rpm (PWM controlled) |
| Current | Voltage | 0.35 A | 12 V DC |
| Cold Plate | Copper, Micro Skived Fins |
| Tube Length | 450 mm |
| Tube Diameter | Outer: 12.4 mm Inner: 6.0 mm |
| Weight | 2020 g |
| Compatibility | |
| Intel | LGA1851, LGA1700 |
| AMD | AM5, AM4 |
| PI | NNPI | 396 | 326 |
| Radiator | |
| Material | Aluminium |

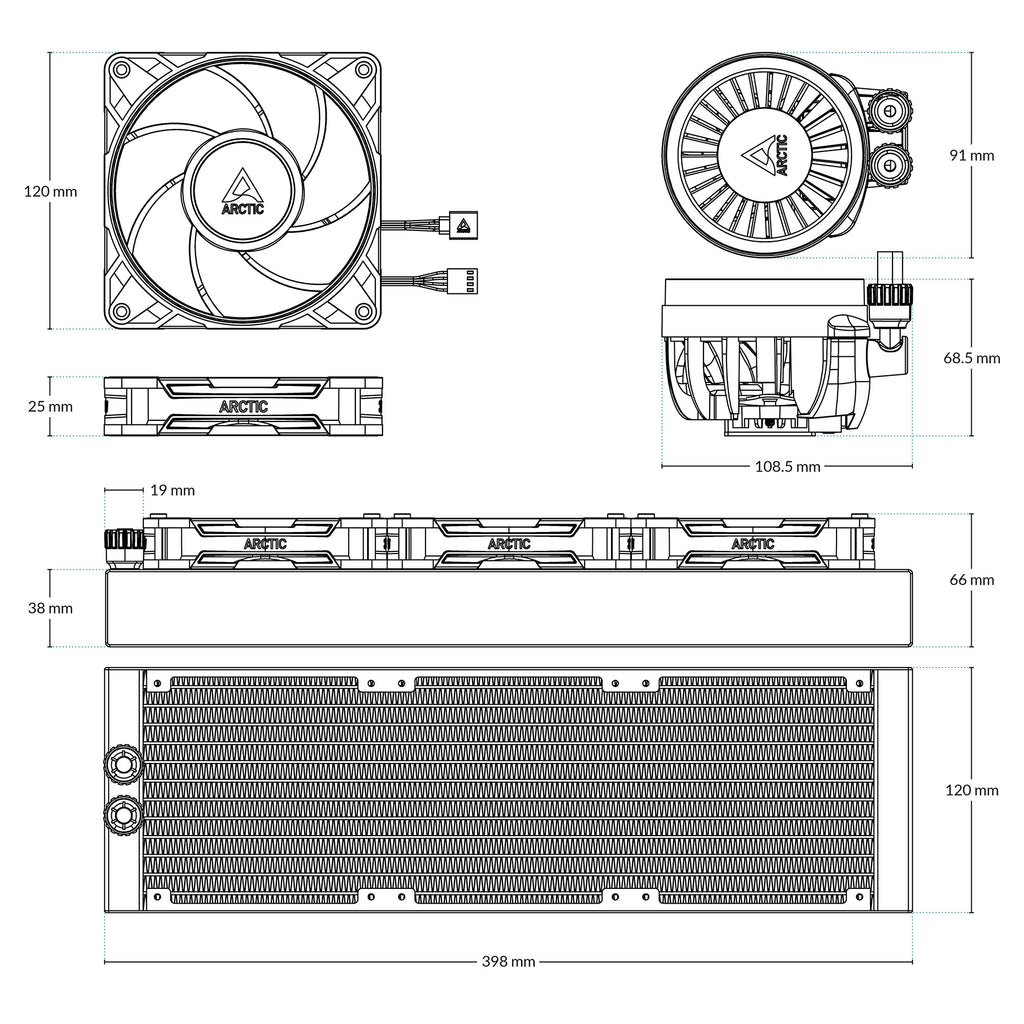

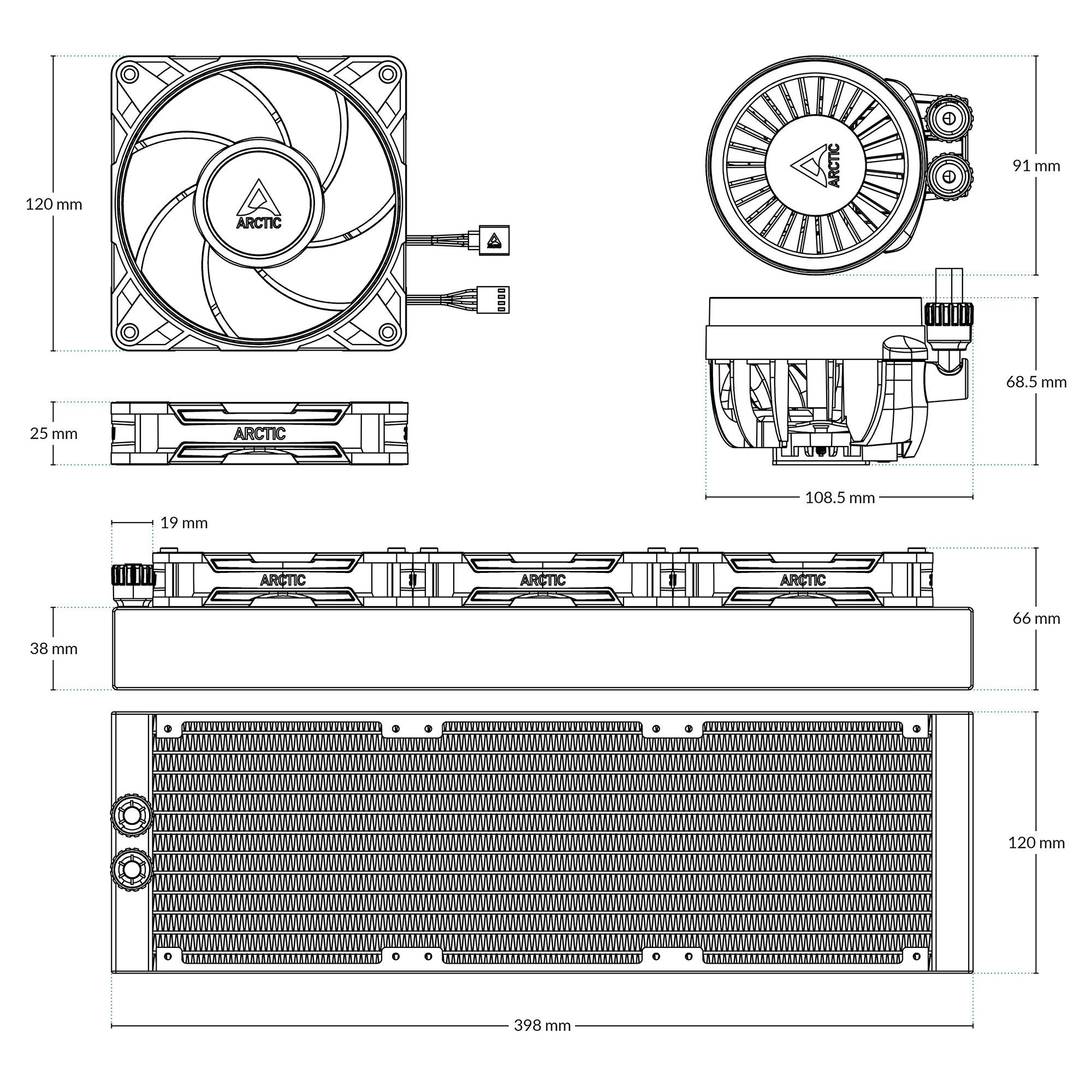

| Dimensions | 398 (L) x 120 (W) x 38 (H) mm |
| VRM Module | |
| VRM Fan | 400–2500 rpm (PWM-controlled) |
| Current | Voltage | 0.05 A | 12 V DC |
| Radiator Fan | |
| General | 3x P12 Pro |
| Speed | 600–3000 rpm |
| Airflow | 77 cfm | 131 m³/h |
| Static Pressure | 6.9 mmH2O |
| Bearing | Fluid Dynamic Bearing |
| Current | Voltage | 0.33 A | 12 V DC |
| Connector | 4-Pin Fan Plug |
