Description

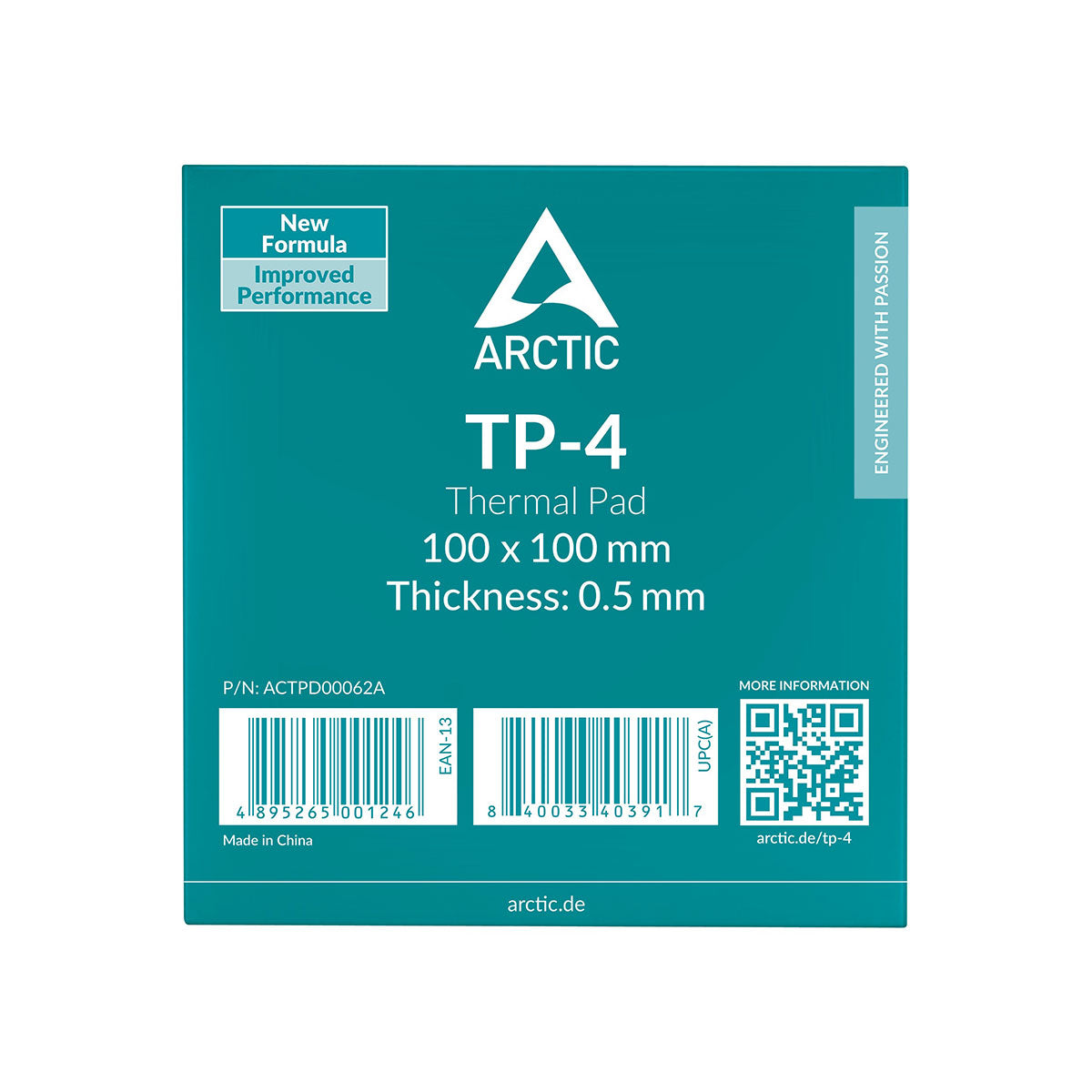

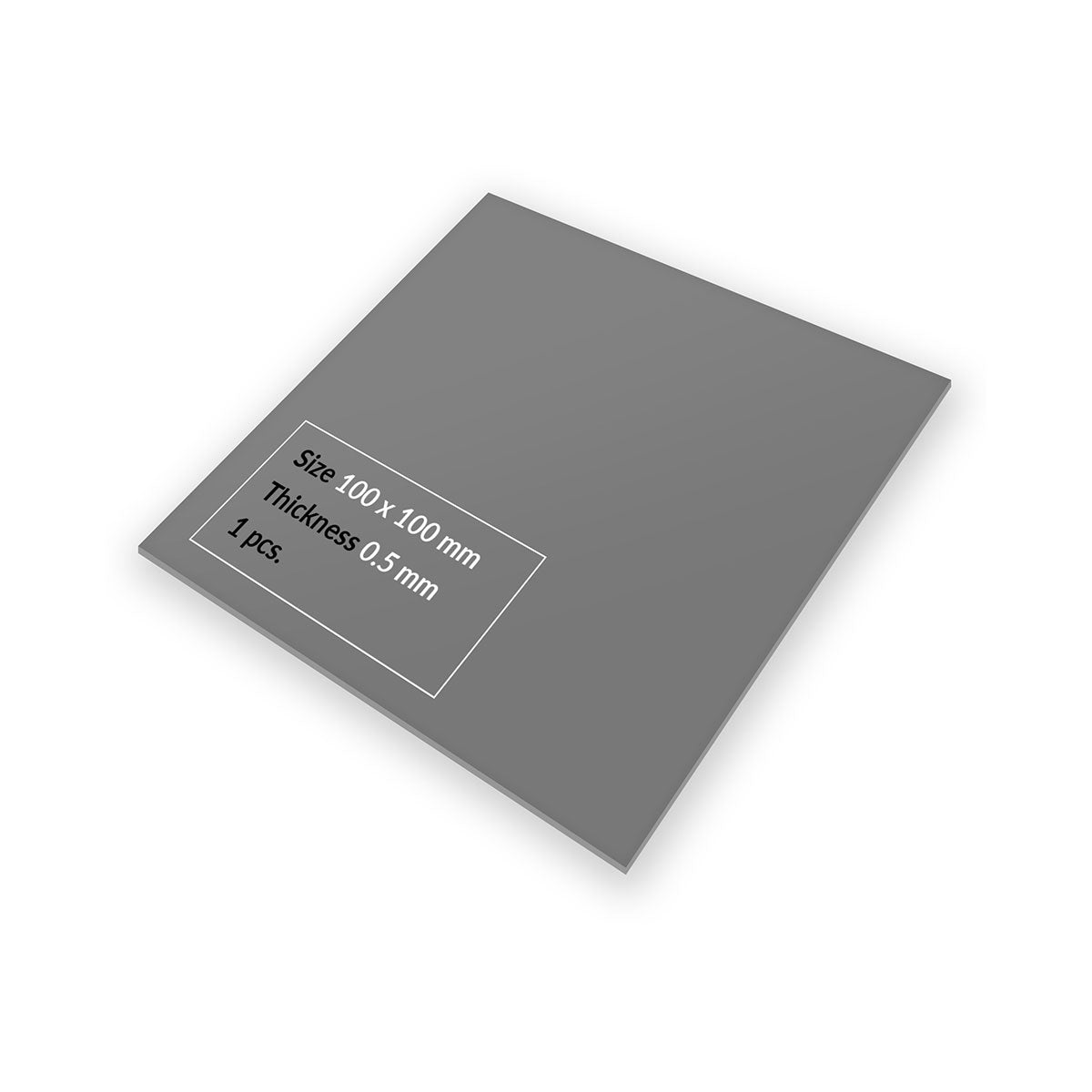

The Arctic TP-4 Premium Performance Thermal Pad (ACTPD00062A) is designed to provide efficient heat transfer between electronic components and their cooling surfaces. Measuring 100 x 100 mm with a thickness of 0.5 mm, this thermal pad is suitable for applications where reliable thermal contact is essential for maintaining stable operating temperatures.
With an operating temperature range of -40°C to 200°C, the Arctic TP-4 is built to withstand a wide range of thermal conditions. Its soft 50 Shore OO hardness helps it conform to component surfaces, supporting effective contact and heat dissipation. The pad also features electrical insulation properties, a breakdown voltage of 8620 V/mil, and a UL 94 V-0 flammability rating.
Specification:
| General Specifications | |
|---|---|
| Operating Ambient Temperature | -40-200 °C |
| Dimensions | 100 (L) x 100 (W) x 0.5 (H) mm |
| Thermal Pad Specifications | |
| Hardness | 50 Shore OO |
| Specific Gravity | 3.4 g/cm³ |
| Breakdown Voltage | 8620 V/mil |
| Dielectric Constant | 7.2 @1 MHz |
| Volume Resistance | 1.52 x 1013 Ω-cm |
| Flammability Rating | UL 94 V-0 |
| Packaging | |
| Width | 115 mm |
| Height | 1.5 mm |
| Length | 120 mm |
| Weight | 0.031 kg |
