Description

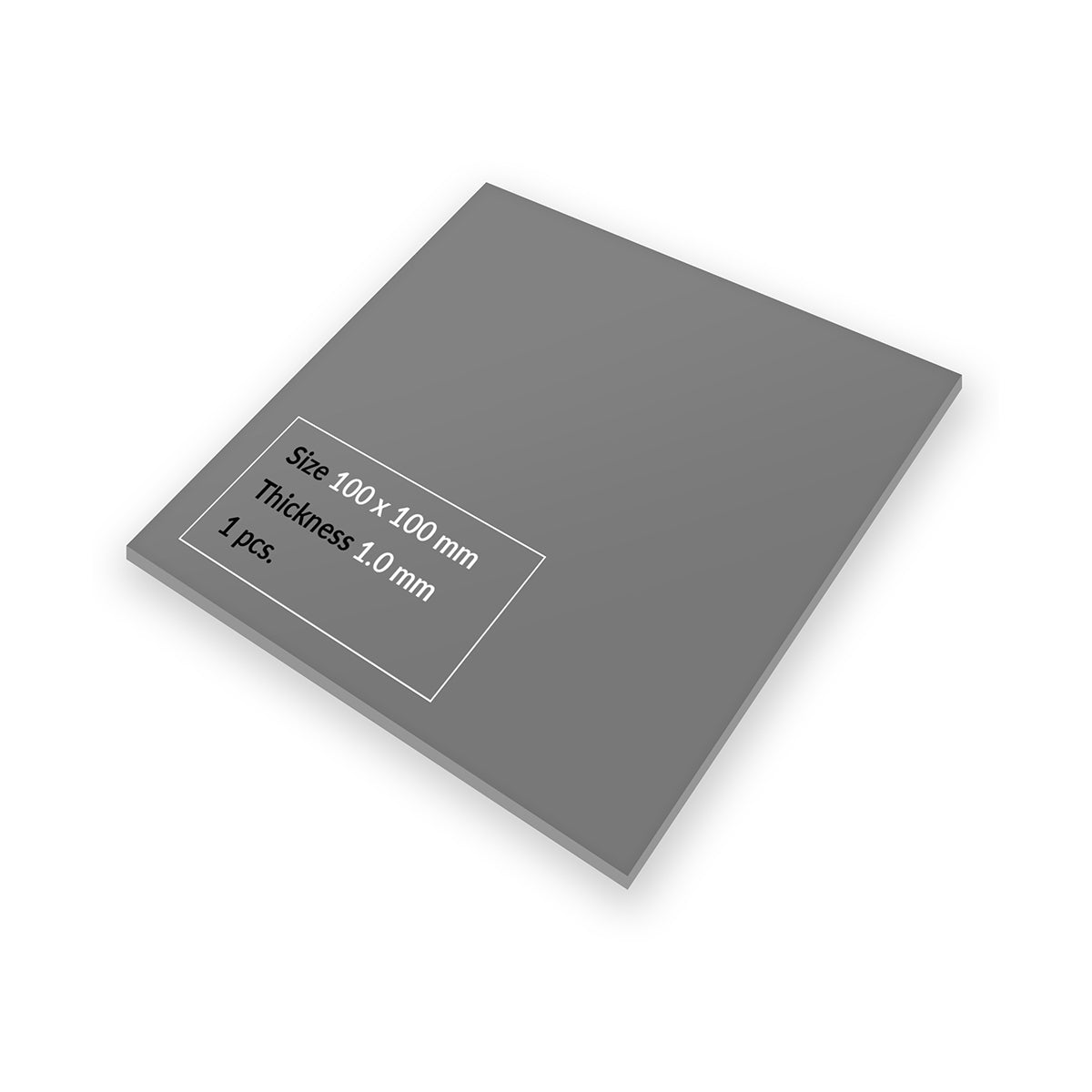

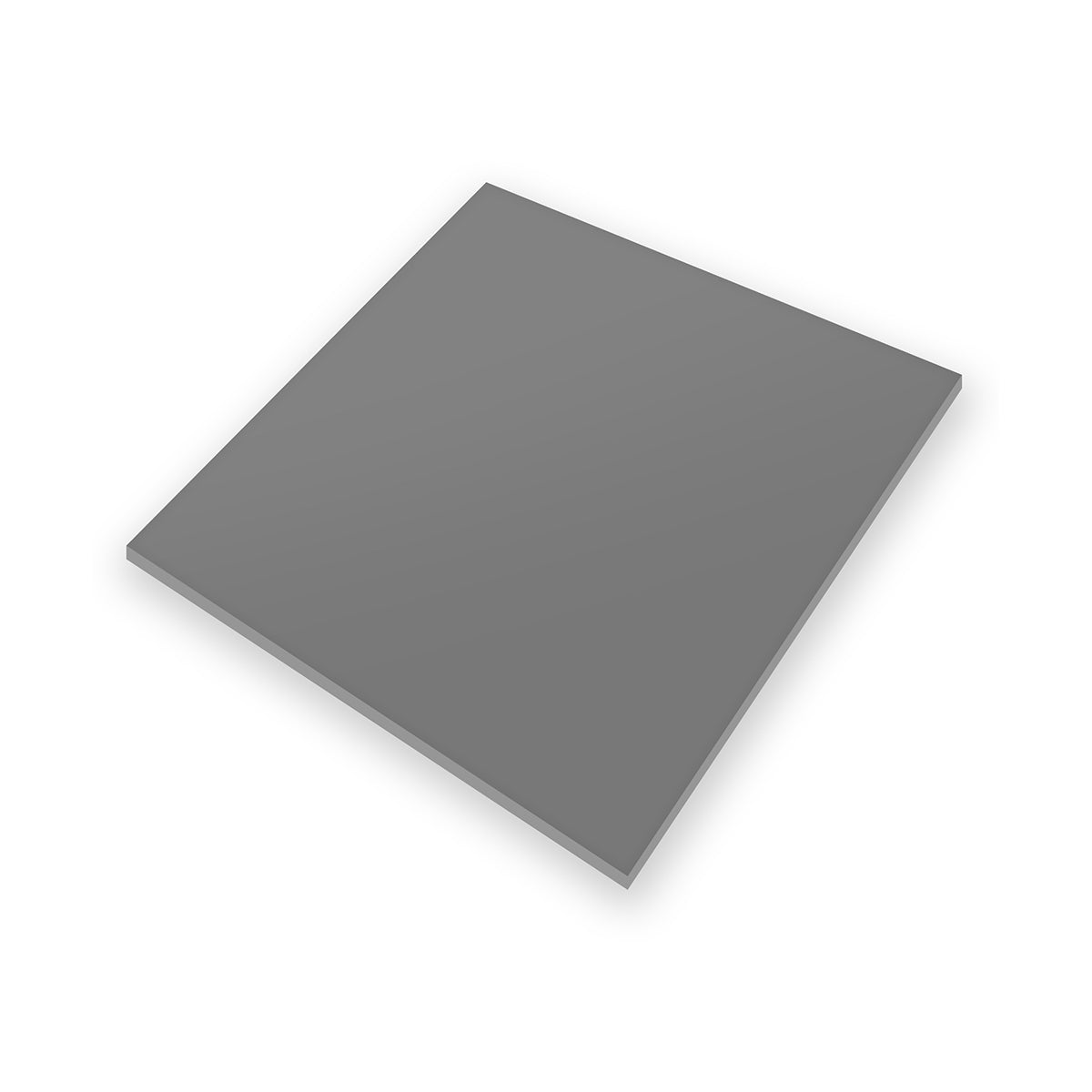

The Arctic TP-4 Premium Performance Thermal Pad (ACTPD00063A) is designed to provide reliable heat transfer between electronic components and their cooling surfaces. Measuring 100 x 100 mm with a thickness of 1.0 mm, this thermal pad offers a convenient solution for applications that require a thicker thermal interface to fill gaps between compatible components and heatsinks.
Built to operate within a temperature range of -40°C to 200°C, the Arctic TP-4 is suitable for demanding thermal conditions. Its soft 50 Shore OO construction helps it conform to component surfaces, promoting consistent contact and efficient heat dissipation. It also features electrical insulation properties and a UL 94 V-0 flammability rating for added reliability in compatible applications.
Specification:
| General Specifications | |
|---|---|
| Operating Ambient Temperature | -40-200 °C |
| Dimensions | 100 (L) x 100 (W) x 1 (H) mm |
| Thermal Pad Specifications | |
| Hardness | 50 Shore OO |
| Specific Gravity | 3.4 g/cm³ |
| Breakdown Voltage | 8620 V/mil |
| Dielectric Constant | 7.2 @1 MHz |
| Volume Resistance | 1.52 x 1013 Ω-cm |
| Flammability Rating | UL 94 V-0 |
| Packaging | |
| Width | 115 mm |
| Height | 2 mm |
| Length | 120 mm |
| Weight | 0.045 kg |
