| Motherboard Support |
up to E-ATX (285 mm wide) |
| Dimensions (L x W x H) |
529 x 231 x 529 mm |
| Volume / Net Weight |
64 l / 15.4 kg |
| Max GPU Length |
up to 482 mm (337 mm with Side Radiator) |
| Max CPU Cooler Height |
up to 171 mm
|
| Max PSU Length |
ATX up to 318 mm (200 mm with HDD Cage) |

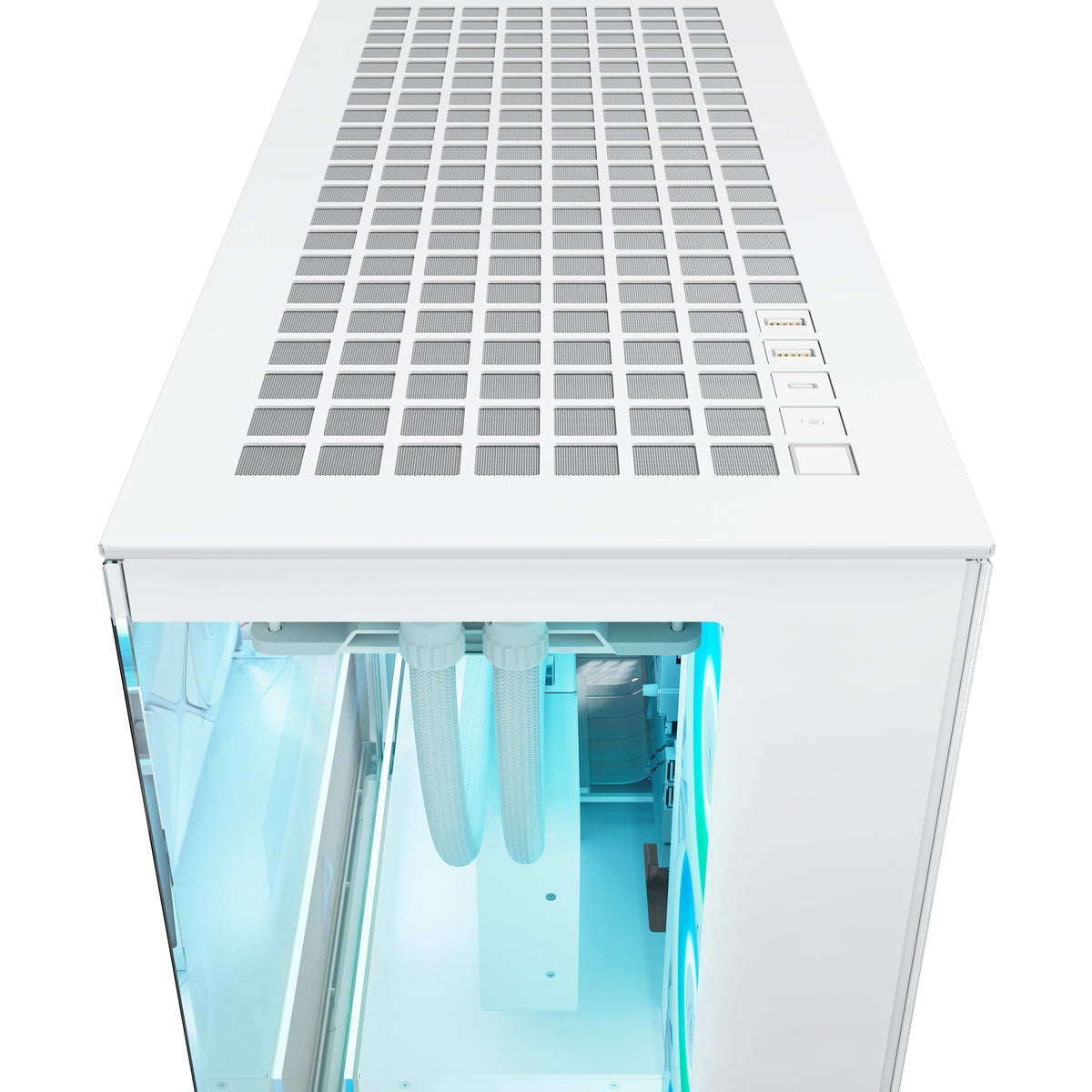

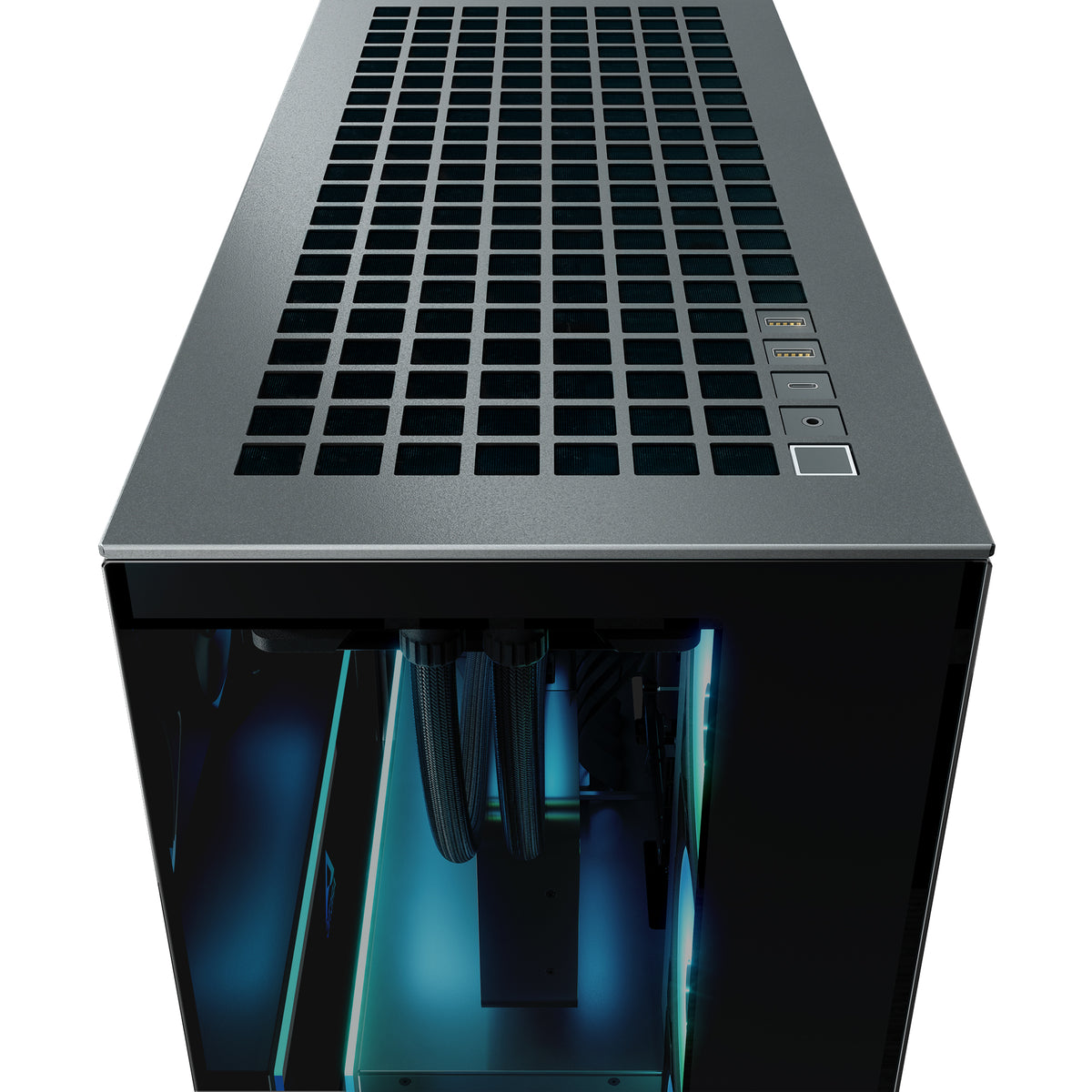

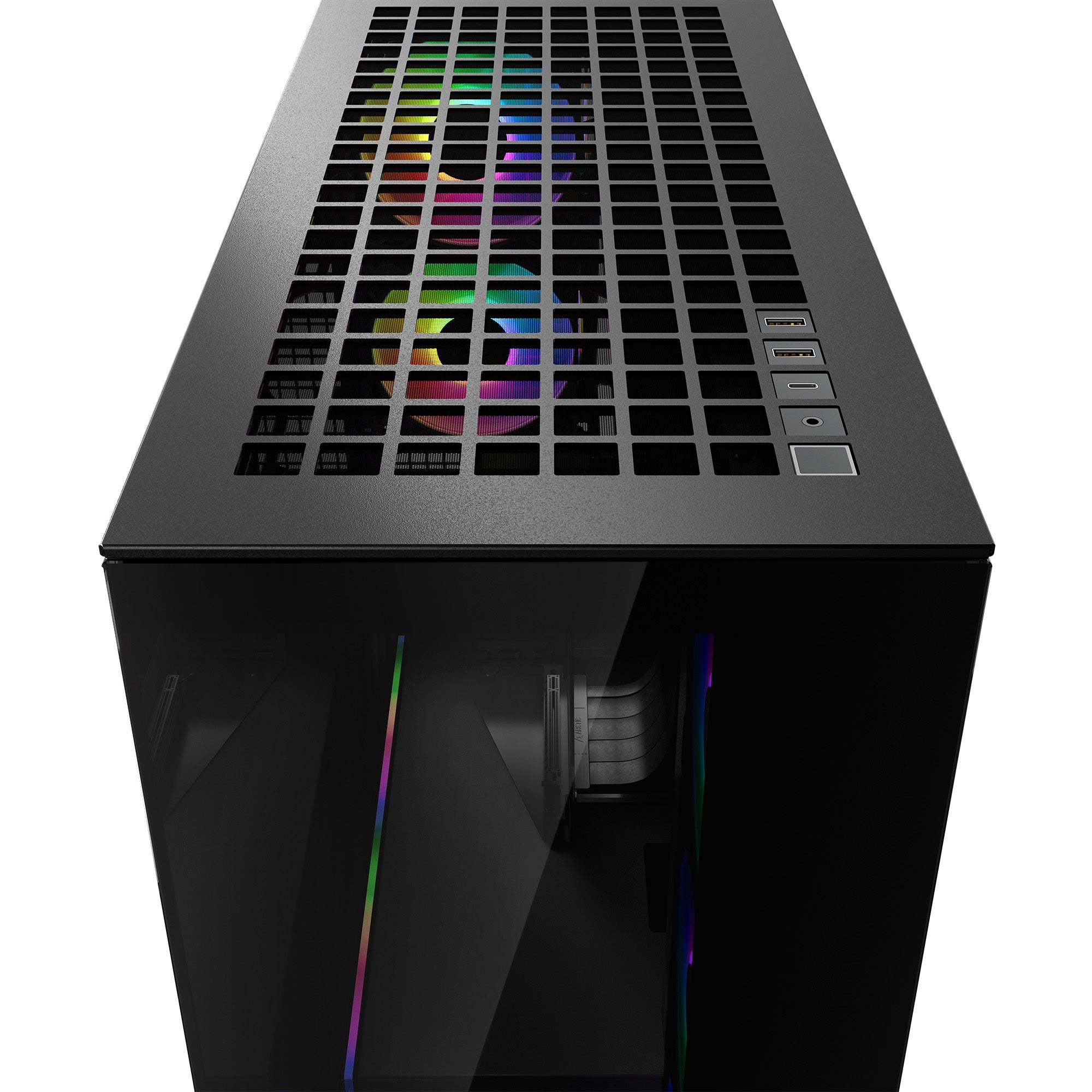

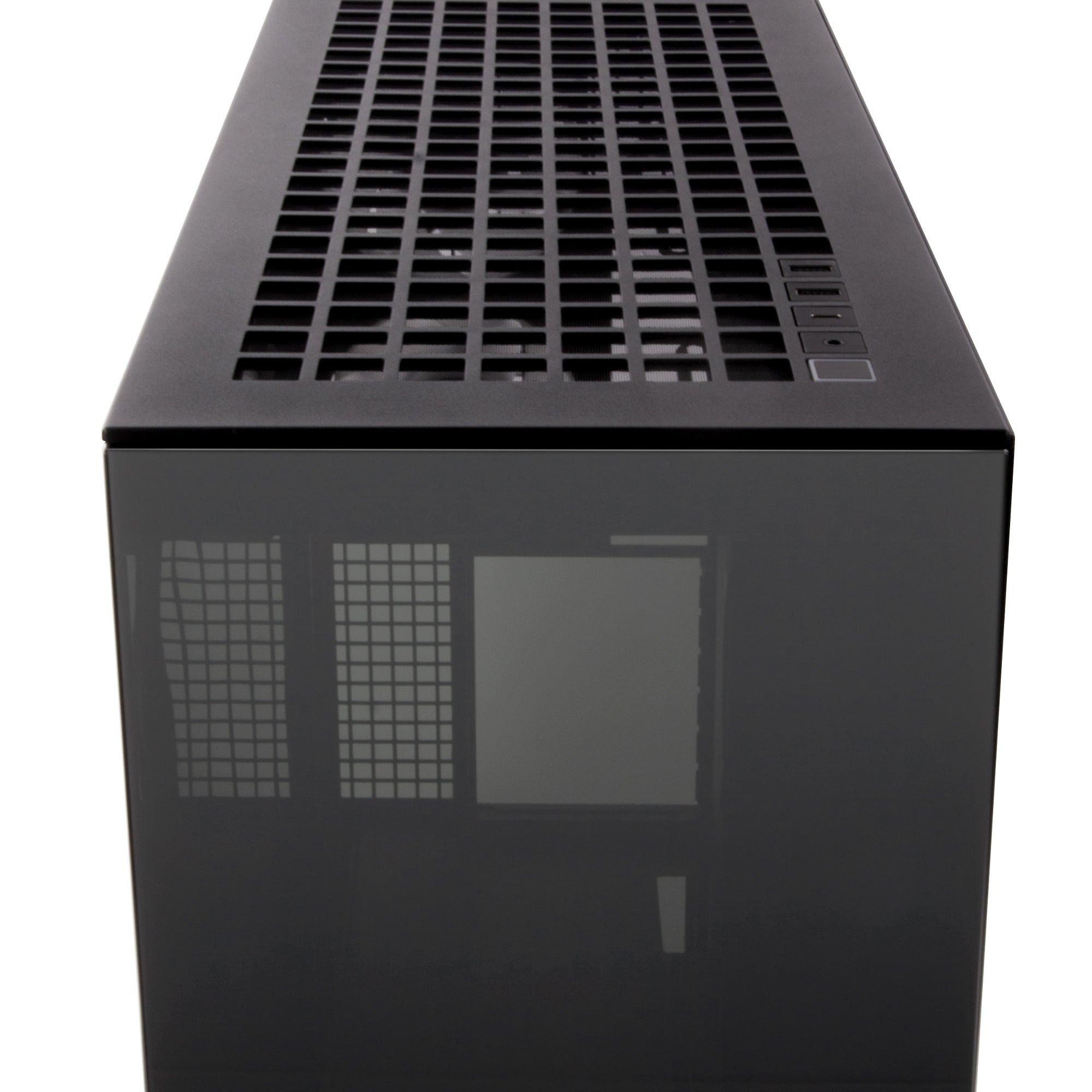

| Front I/O |
USB-C (10 Gbps), 2x USB-A (5 Gbps), 3.5 mm Jack, Power Button |
| Drive Bays |
3× 2.5" (Behind Mainboard) + 2x 3.5" or 2x 2.5" (in HDD Cage) |

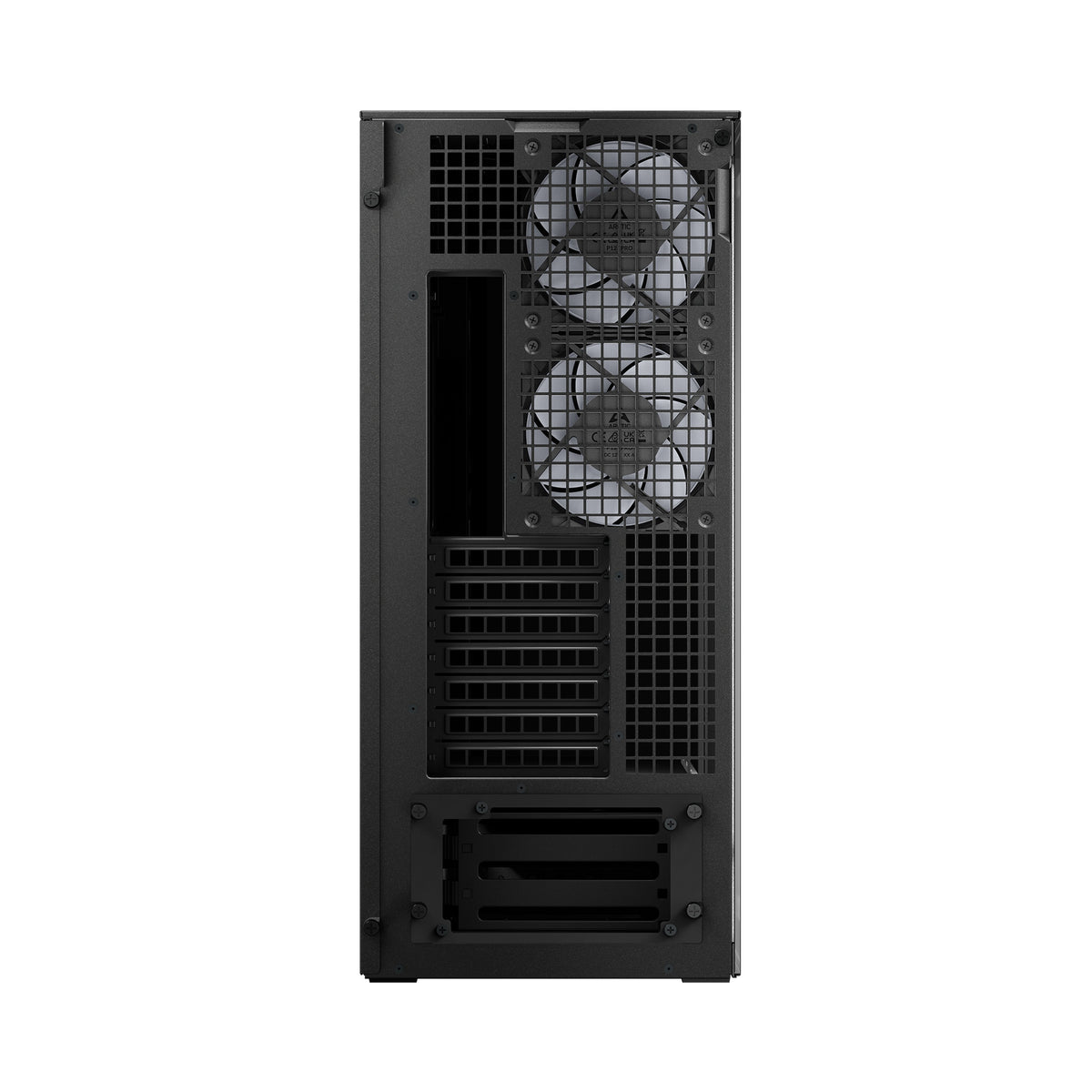

| PCI Slots / Warranty |
7 Slots / 6 Years Warranty |

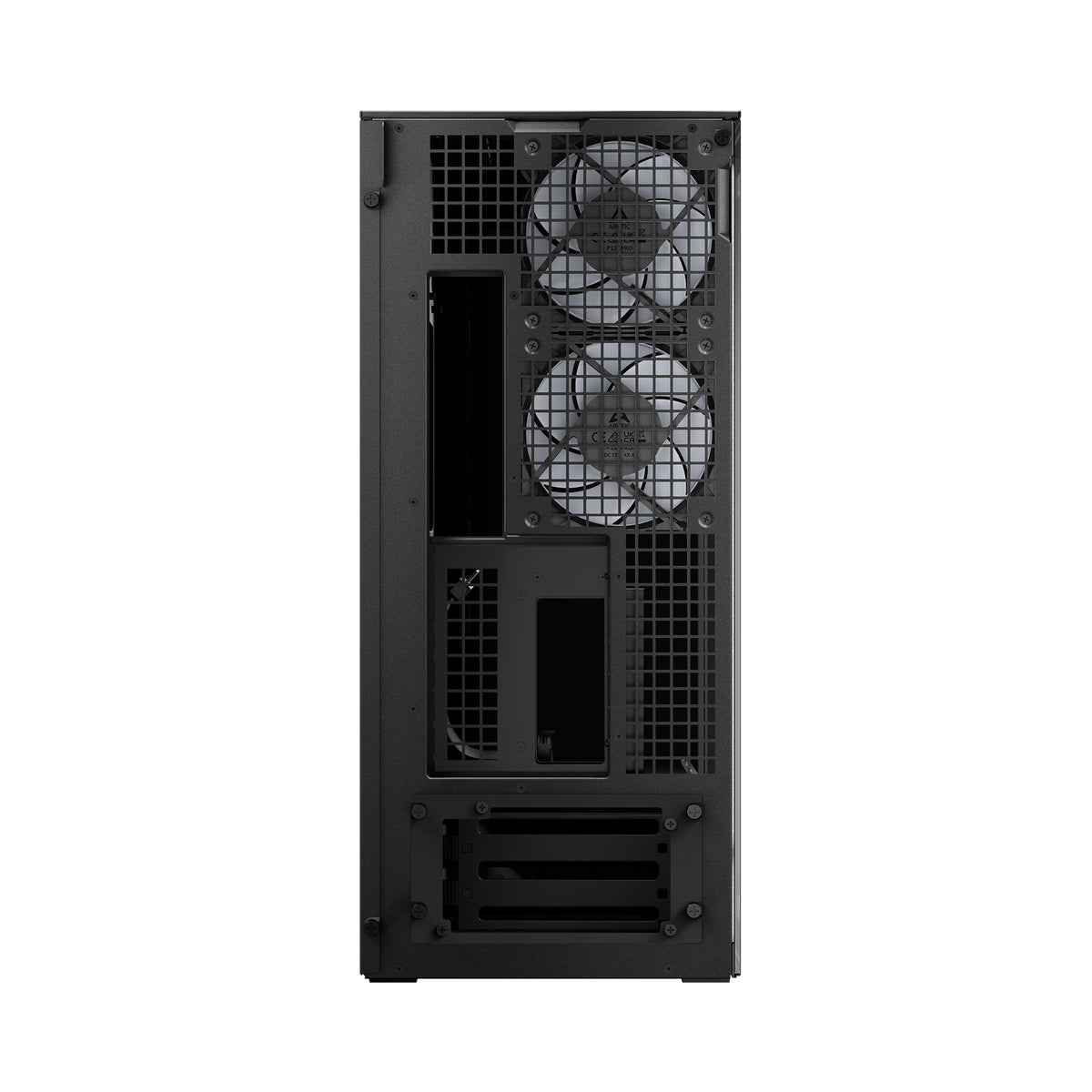

| Vertical GPU Mounting Kit (VG Versions Only) |
| Riser Cable Standard |
Length / Standard |
160 mm / **PCIe 4.0 x16** (Backward Compatible) |
| Kit Dimensions |
(L x W x H) |
196 x 153 x 140 mm |
| Required Clearance |
GPU / Slots |
Up to 482 mm Length / 3-Slot Mounting, 7 PCI Slots Required |
| Fan and Radiator Support |
| Fan Support |
Top / Side / Rear |
Top: 3x 120/140 mm. Side: 3x 120/140 mm (included). Rear: 2x 120 mm (included). |
| Radiator Support |
Top / Side |
240 / 280 / 360 / 420 mm
|
| Pre-installed Fan Specifications |
| Rear Fans (2x P12 Pro A-RGB) |
Performance |
Speed: 600–3000 rpm / Air Flow: 77 cfm / Static Pressure: 6.9 mmH₂O |
| Side Fans (3x P14 Pro Reverse A-RGB) |
Performance |
Speed: 400–2650 rpm / Airflow: 98 cfm / Static Pressure: 5.1 mmH₂O |

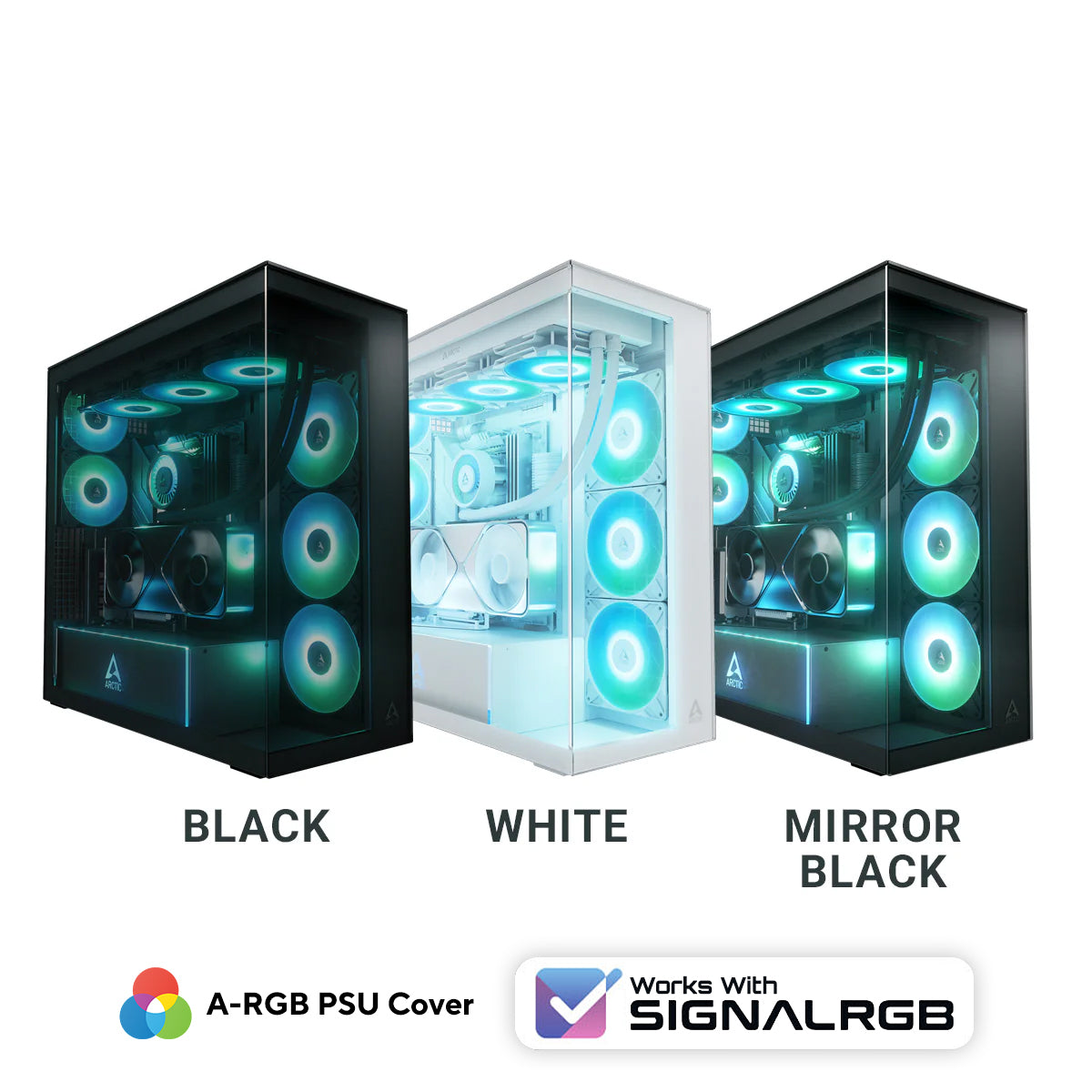

| RGB and Power Specifications |
| PSU RGB Stripe |
LEDs / Power |
24 × A-RGB Gen 2 LEDs / 0.89 A @ 5 V DC |
| Fan RGB Specs |
LEDs / Power |
12x A-RGB Gen 2 LEDs / 0.40 A @ 5 V DC |
| RGB Connector |
Type |
3-Pin A-RGB Plug + Socket (Daisy-Chain compatible) |
| Fan Power Connector |
Type |
4-Pin Fan Plug + Socket (PWM) |
