Description
RX7900XT TC 20GO
-
Clock: GPU / Memory
Boost Clock*: Up to 2560 MHz / 20 Gbps
Game Clock**: 2220 MHz / 20 Gbps -
Key Specification
AMD Radeon™ RX 7900 XT GPU
20GB GDDR6 on 320-Bit Memory Bus
84 AMD RDNA™ 3 Compute Units (With Rt+Ai Accelerators)
80MB AMD Infinity Cache™ Technology
PCI® Express 4.0 Support
3 x 8-pin Power Connectors

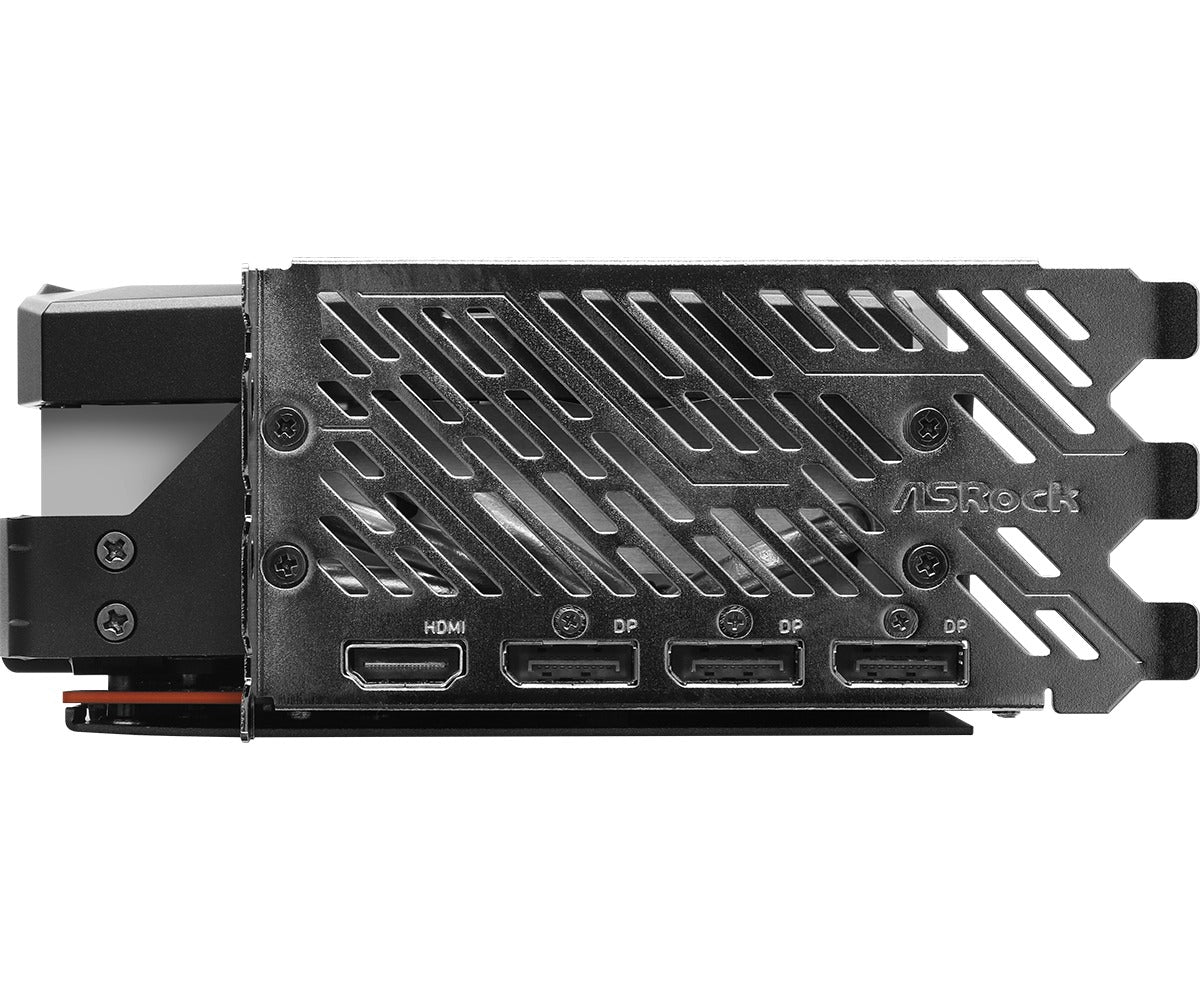

3 x DisplayPort™ 2.1 / 1 x HDMI™ 2.1 -
Key Features
Polychrome SYNC
Taichi 3X Cooling System

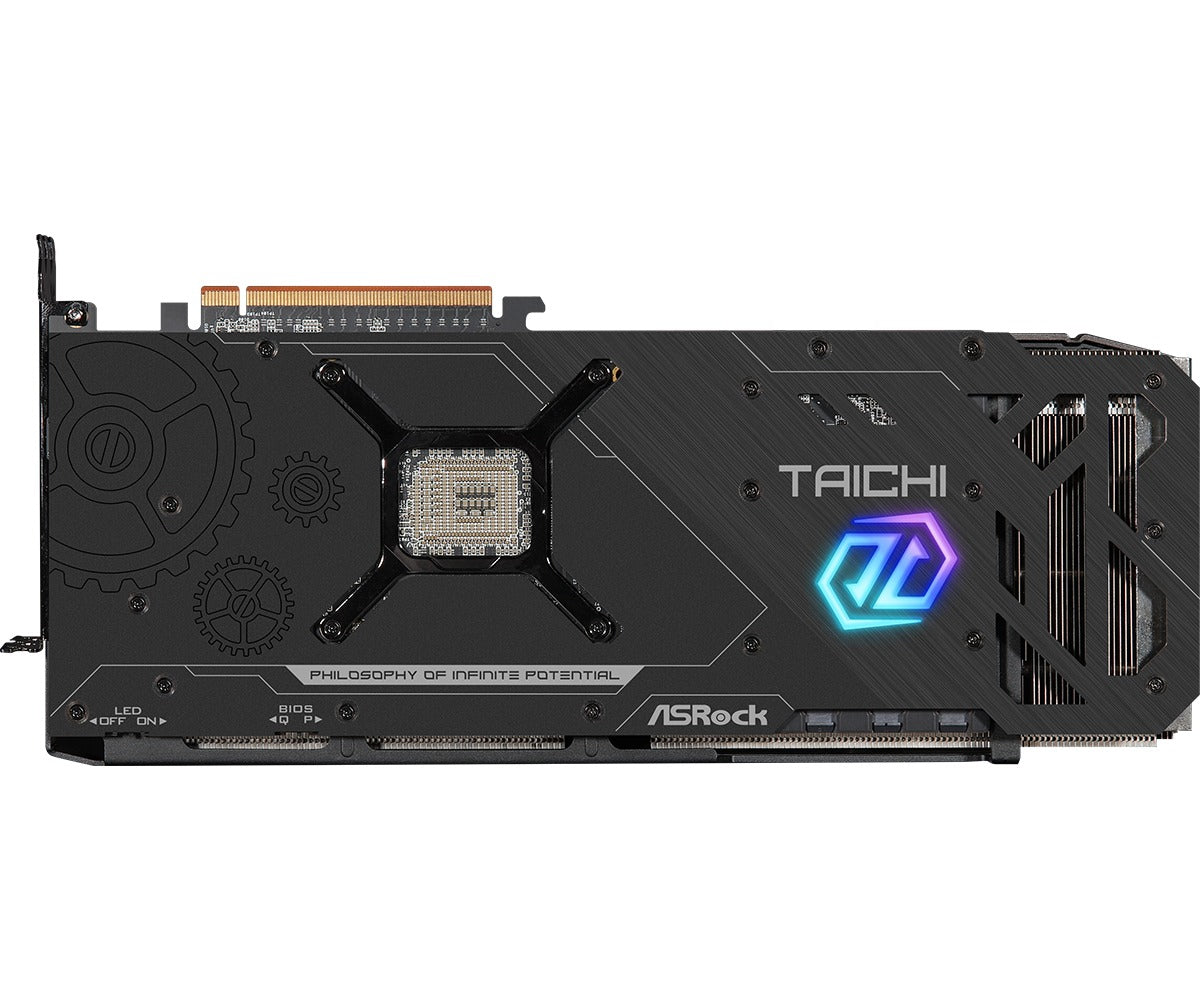

ARGB Backplate
Reinforced Metal Frame
Dual BIOS
20 Power Phase Design

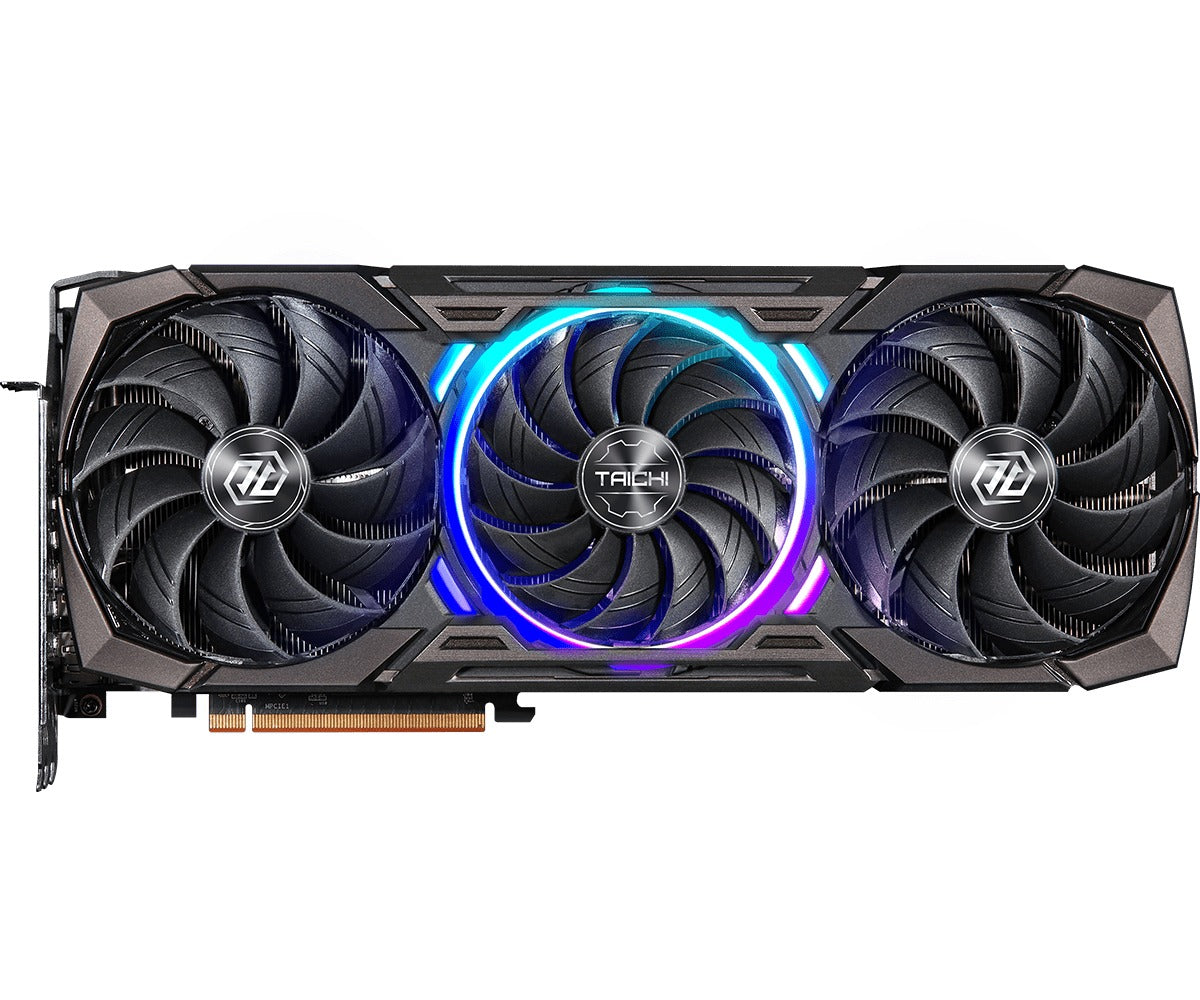

110/100/110mm Striped Ring Fans
SPECIFICATION
-
Graphics Engine- AMD Radeon™ RX 7900 XT
-
Bus Standard- PCI® Express 4.0 x16
-
DirectX- 12 Ultimate
-
OpenGL- 4.6
-
Memory- 20GB GDDR6
-
Engine Clock- Boost Clock: Up to 2560 MHz*
- Game Clock: 2220 MHz**
*Boost Clock is the maximum frequency achievable on the GPU running a bursty workload. Boost clock achievability, frequency, and sustainability will vary based on several factors, including but not limited to: thermal conditions and variation in applications and workloads.
**Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary. -
Stream Processors- 5376
-
Compute Units- 84
-
Memory Clock- 20 Gbps
-
Memory Interface- 320-bit
-
Resolution- Digital Max Resolution: 7680x4320
-
Interface- 3 x DisplayPort™ 2.1*
- 1 x HDMI™ 2.1
*DisplayPort (DP) 2.1 on any one or two ports. DisplayPort (DP) 1.4a on any and up to 4 ports simultaneously. -
HDCP- Yes
-
Multi-view- 4
-
Recommended PSU- 800W
-
Power Connector- 3 x 8-pin
-
Accessories- 1 x Quick Installation Guide
- 1 x Taichi Post Card
- 1 x Graphics Card Stand -
Dimensions- 345 x 140 x 61 mm, 3-slot
