Description
- Supports AMD Ryzen™ 9000, 8000 and 7000 Series Processors
- 14+2+1 Phase Power Design, SPS
- 4 x DDR5 DIMMs
Supports Dual Channel, up to 7200+ (OC) - 1 PCIe 4.0 x16, 1 PCIe 3.0 x16, 1 PCIe 4.0 x1
- Graphics Output Options: 1 HDMI, 1 DisplayPort
- Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio
- 1 Blazing M.2 (PCIe Gen5x4),
1 Hyper M.2 (PCIe Gen4x4),
1 M.2 (PCIe Gen3x2 & SATA3),
4 SATA3 - 1 USB 3.2 Gen2x2 Type-C (Front),
2 USB 3.2 Gen2 Type A+C (Rear),
4 USB 3.2 Gen1 (2 Rear, 2 Front),
9 USB 2.0 (6 Rear, 3 Front) - Dragon 2.5G LAN
- 802.11axe WiFi 6E + Bluetooth
| Motherboard Specifications | |
|---|---|
| Unique Feature |
Superb Productivity - PCIe Gen5 (M.2) - Dual Channel DDR5 Rock-Solid Durability - 14+2+1 Power Phase, SPS with Enlarged Heatsink Armor - Flexible Integrated I/O Shield Ultrafast Connectivity - 2.5G LAN, 802.11axe Wi-Fi 6E Module EZ Update - BIOS Flashback Button - ASRock Auto Driver Installer EZ Troubleshooter - ASRock Post Status Checker |
| CPU | Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors* |
| Chipset | AMD B650 |
| Memory | - Dual Channel DDR5 Technology - 4 x DDR5 DIMM Slots - Supports ECC/non-ECC, un-buffered up to 7200+(OC) - Max 256GB - Supports XMP and EXPO |
| BIOS | 256Mb AMI UEFI Legal BIOS with GUI support |
| Graphics | Integrated AMD RDNA™ graphics (varies by CPU) - 1 x HDMI 2.1 (4K 120Hz) - 1 x DisplayPort 1.4 (4K 120Hz) |
| Audio | - 7.1 CH HD Audio (Realtek ALC897) - Nahimic Audio |
| LAN | - 2.5 Gigabit LAN (RTL8125BG) - Supports Dragon LAN Software, Smart Bandwidth, Priority Control |
| Wireless LAN | - 802.11axe Wi-Fi 6E, Dual-Band 2x2 - Bluetooth 5.2 - MU-MIMO Support *6GHz support depends on country and OS (Windows 11 only) |
| Expansion Slots |
CPU: - 1 x PCIe 4.0 x16 - 1 x PCIe 3.0 x16 (x4 mode) Chipset: - 1 x PCIe 4.0 x1 - 1 x M.2 (Key E) for WiFi - Supports AMD CrossFire™, 15μ Gold VGA Slot |
| Storage |
CPU: - 1 x M.2 (PCIe Gen5x4) Chipset: - 1 x M.2 (SATA3 + PCIe Gen3x2) - 1 x M.2 (PCIe Gen4x4) - 2 x SATA3 (Chipset) - 2 x SATA3 (ASMedia ASM1061) *Supports NVMe SSD boot disks |
| RAID | - RAID 0/1 (SATA) - RAID 0/1/10 (NVMe M.2) *RAID 10 requires extra NVMe cards |
| USB |
CPU: - 1 x USB 3.2 Gen2 Type-C (Rear) - 1 x USB 3.2 Gen2 Type-A (Rear) - 1 x USB 3.2 Gen1 (Rear) Chipset: - 1 x USB 3.2 Gen2x2 Type-C (Front) - 3 x USB 3.2 Gen1 (1 Rear, 2 Front) - 9 x USB 2.0 (6 Rear, 3 Front) *All USB ports support ESD protection |
| Connectors | - TPM, RGB, LED, Fan headers - 24-pin ATX & 8+4 pin CPU Power - Front panel audio, Thunderbolt AIC - USB 2.0, 3.2 Gen1, 3.2 Gen2x2 Headers *Supports LED up to 36W (12V) / 15W (5V) |

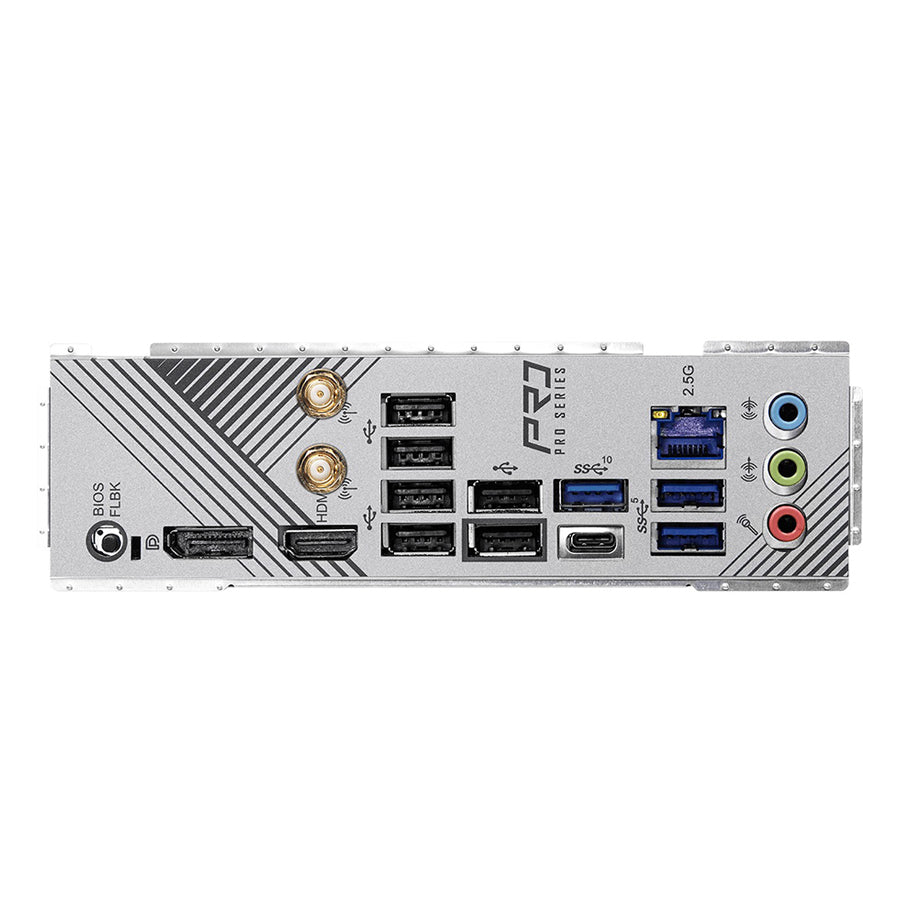

| Rear I/O | - 2 x Antenna Ports - HDMI, DisplayPort - USB 3.2 Gen2 Type-A/C, USB 3.2 Gen1, USB 2.0 - RJ-45 LAN - BIOS Flashback Button - HD Audio Jacks |
| Software and UEFI |
Software: - ASRock A-Tuning, Dragon LAN, Polychrome SYNC* UEFI: - Full HD UEFI, Auto Driver Installer, Instant Flash |
| Accessories | - User Manual - 2 x SATA Cables - 2 x WiFi Antennas - 2 x M.2 Screws |
| Form Factor | ATX (30.5 x 24.4 cm), 8 Layer PCB |
| OS | Windows® 10/11 64-bit |
| Certifications | FCC, CE, ErP/EuP Ready |
