| Socket |
AMD AM5 |
| Chipset |
AMD B850 |
| CPU Support |
AMD Ryzen 9000, 8000, and 7000 Series Processors |
| Form Factor |
Micro-ATX (24.4 x 22.6 cm) |
| Memory Support |
2 x DDR5 DIMM Slots, Dual Channel, up to 128GB, DDR5-8200+ (OC), ECC/Non-ECC, AMD EXPO & Intel XMP |
| Graphics Outputs |
1 x HDMI 2.1 (up to 4K 120Hz), 1 x DisplayPort 1.4 (up to 4K 120Hz) |
| Audio |
7.1 Channel HD Audio (Realtek ALC897 Codec) |
| LAN |
2.5 Gigabit LAN (Dragon RTL8125BG) |
| Wireless Connectivity |
Wi-Fi 6E (802.11axe), Bluetooth 5.3, Dual-Band 2x2 MU-MIMO |
| PCIe Slots |
1 x PCIe 5.0 x16, 1 x PCIe 3.0 x16 (x4 mode), 1 x M.2 Key-E for Wi-Fi Module |
| M.2 Storage |
1 x PCIe Gen5 x4 M.2 (2280), 1 x PCIe Gen4 x4 M.2 (2260/2280) |
| SATA Ports |
4 x SATA 6Gb/s |
| RAID Support |
RAID 0, RAID 1, RAID 10 (SATA and NVMe) |
| Rear USB Ports |
4 x USB 3.2 Gen1 Type-A, 2 x USB 2.0 |
| Front USB Support |
1 x USB 3.2 Gen1 Type-C, 2 x USB 3.2 Gen1 Type-A, 4 x USB 2.0 |
| Rear I/O |

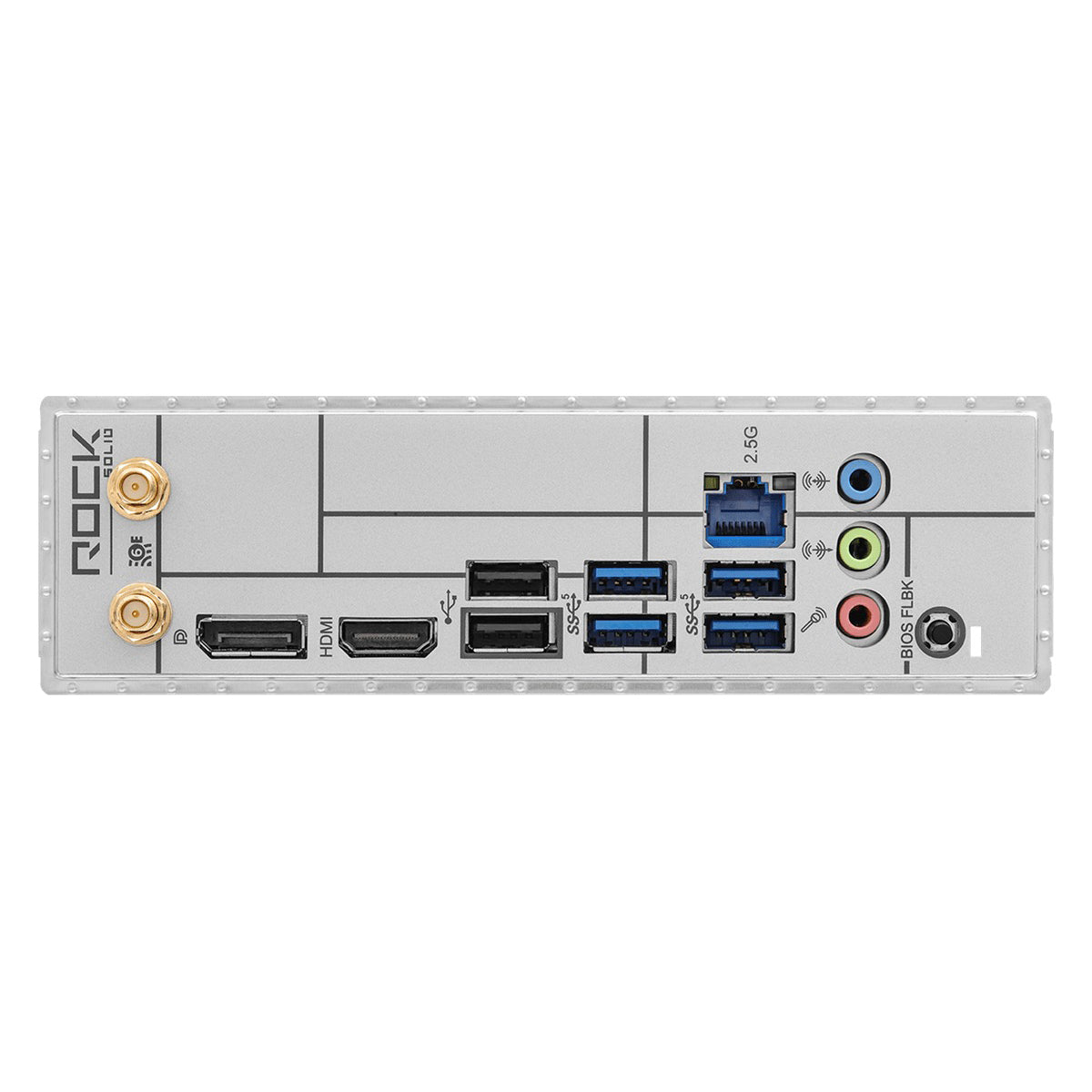

2 x Wi-Fi Antenna Ports, HDMI, DisplayPort, RJ-45 LAN, BIOS Flashback Button, Audio Jacks |
| Cooling Headers |
1 x CPU Fan, 2 x Chassis Fan, 1 x AIO Pump |
| RGB Support |
1 x RGB Header, 3 x Addressable RGB Headers |
| Special Features |
PCIe Gen5 Graphics & M.2, Pre-Installed I/O Shield, BIOS Flashback, Auto Driver Installer, Post Status Checker |
| Accessories |
2 x SATA Cables, 2 x Wi-Fi Antennas |
| Operating System Support |
Windows 10 64-bit / Windows 11 64-bit |
