Description

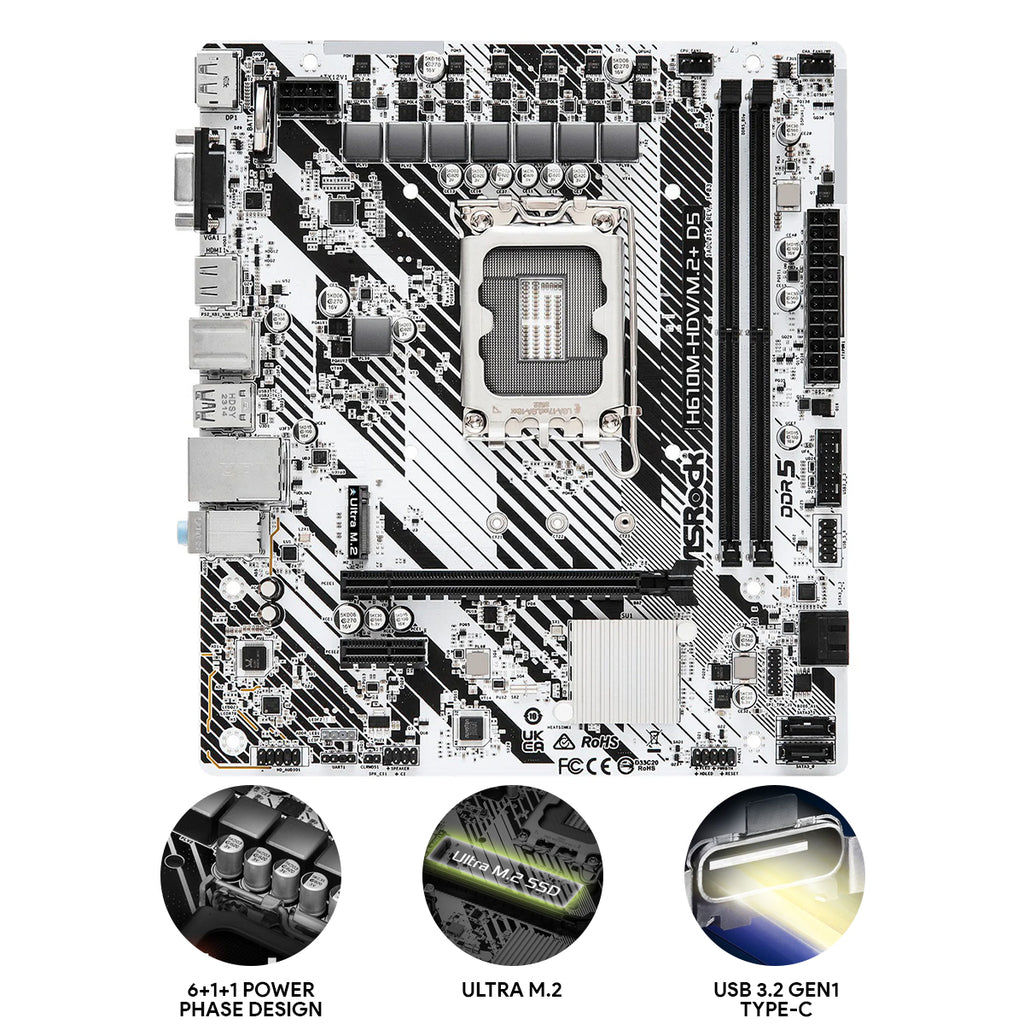

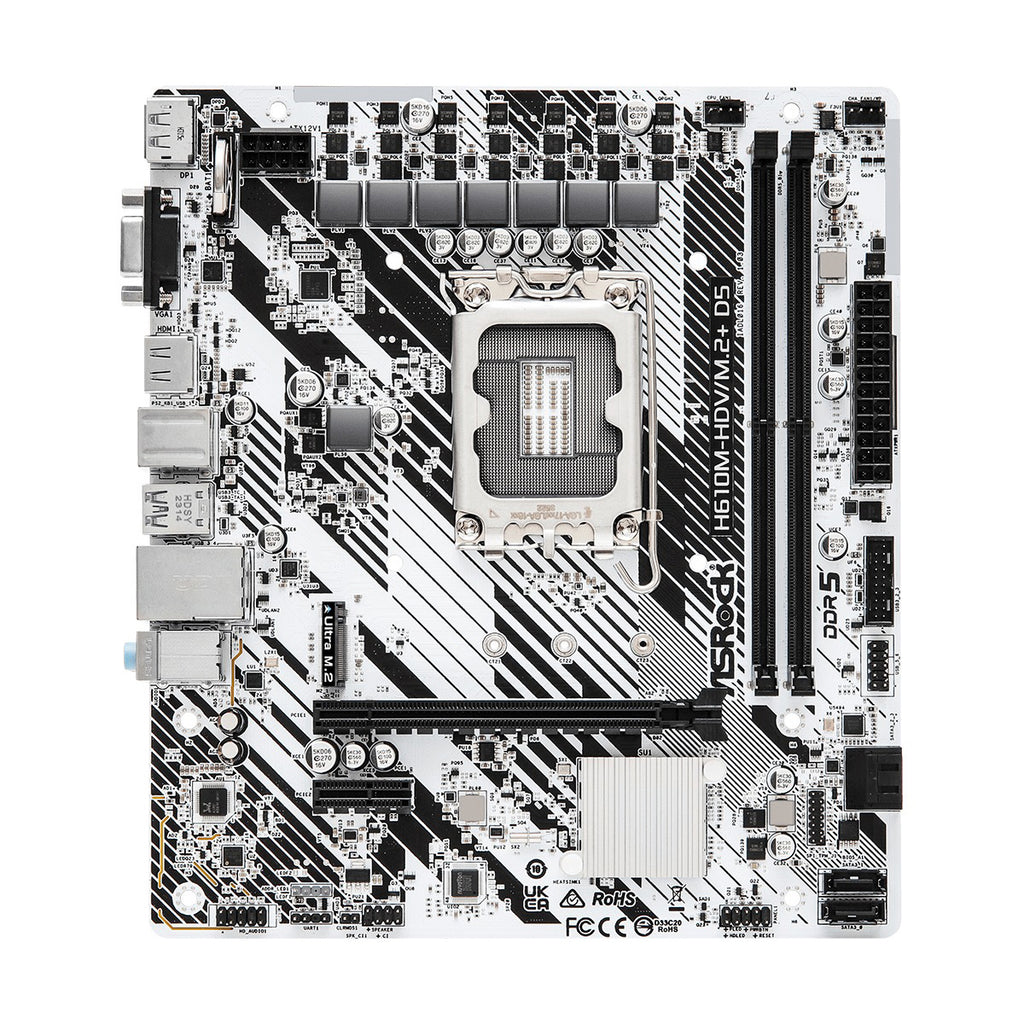

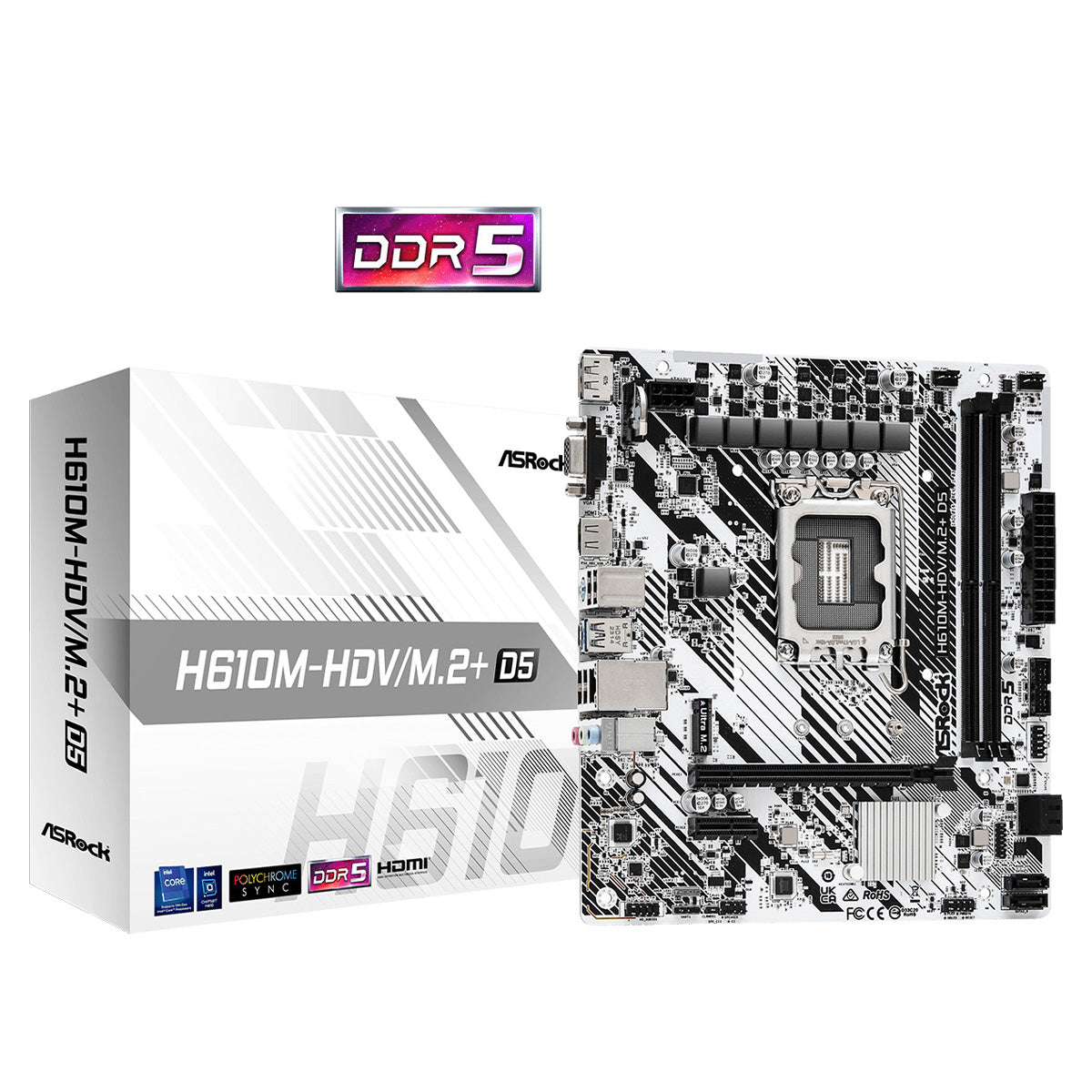

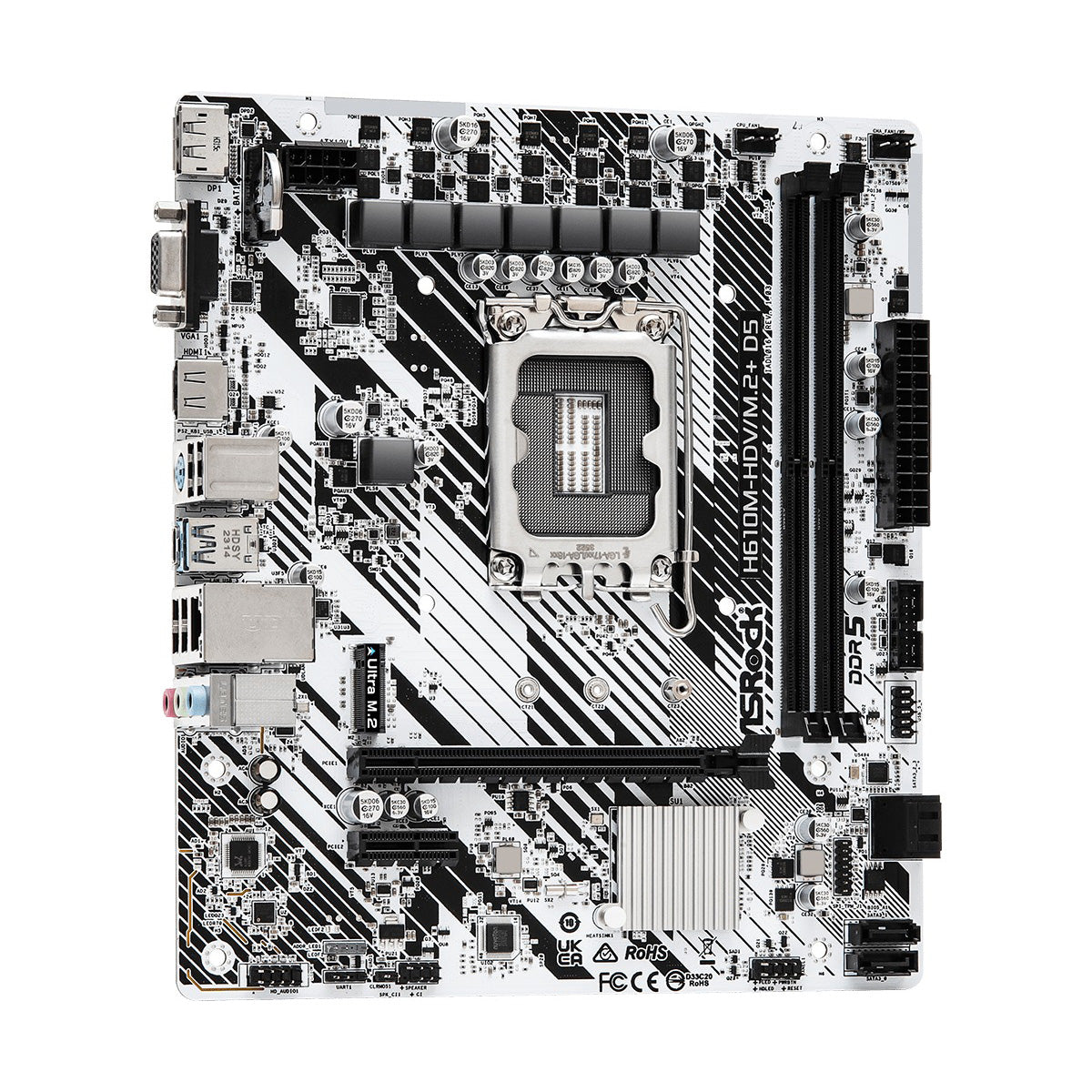

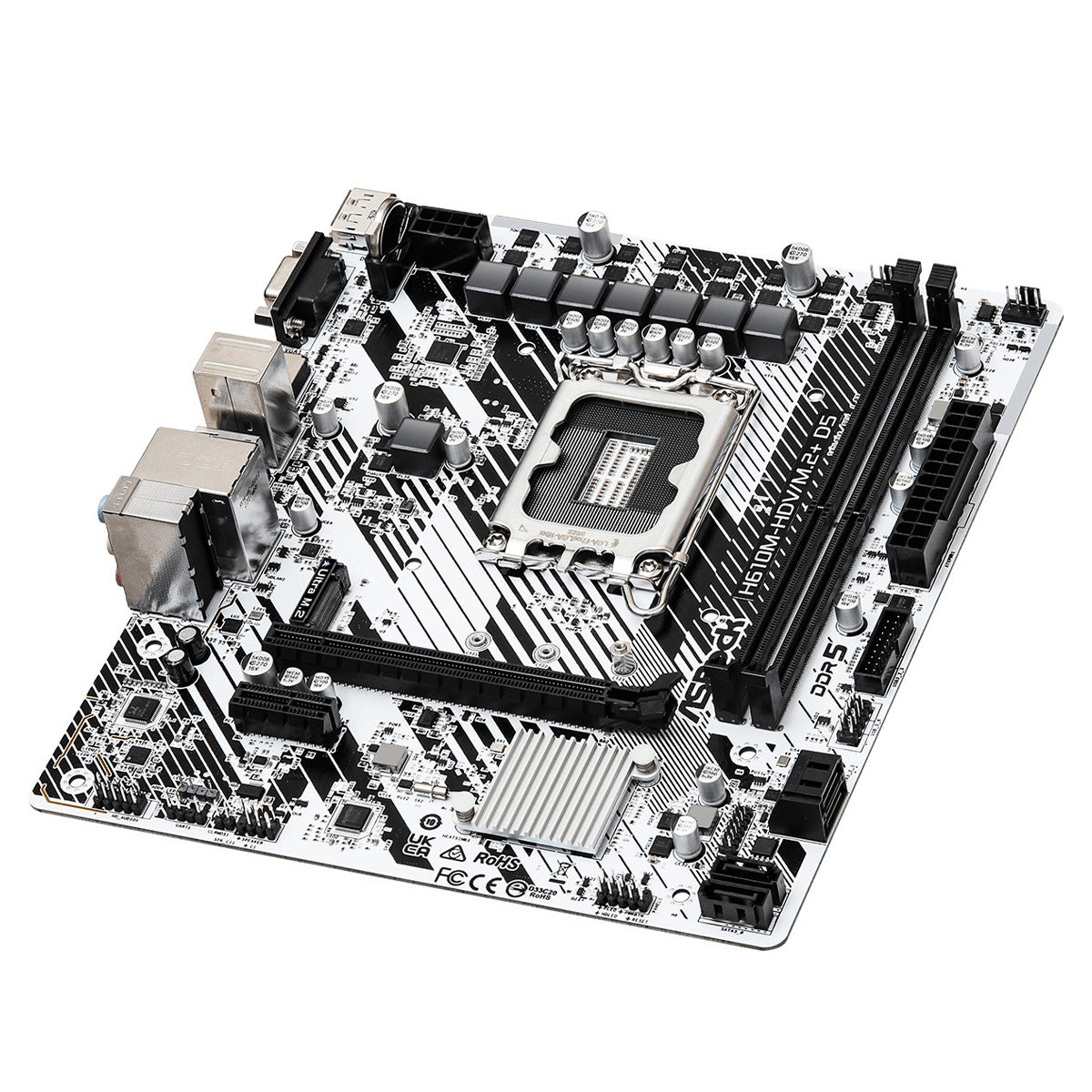

H610M-HDV/M.2+ D5
- Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700)
- 6+1+1 Power Phase
- 2 x DDR5 DIMMs
Supports Dual Channel, up to 5600* - 1 PCIe 4.0 x16, 1 PCIe 3.0 x1
- Graphics Output Options: HDMI, DisplayPort, D-Sub
- Realtek ALC897 7.1 CH HD Audio Codec
- 4 SATA3, 1 Ultra M.2 (PCIe Gen3x4)
- 1 USB 3.2 Gen1 Type-C (Rear),
3 USB 3.2 Gen1 Type-A (1 Rear, 2 Front),
6 USB 2.0 (4 Rear, 2 Front) - Realtek Gigabit LAN
- Supports ASRock Auto Driver Installer
* Actual support may vary by CPU.
Specification:
|
Unique Feature
|
Superb Productivity - Dual Channel DDR5 Rock-Solid Durability - 6+1 Power Phase EZ Update - ASRock Auto Driver Installer |
|
CPU
|
- Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700) - Supports Intel® Hybrid Technology - Supports Intel® Turbo Boost Max 3.0 Technology |
|
Chipset
|
- Intel® H610 |
|
Memory
|
- Dual Channel DDR5 Memory Technology - 2 x DDR5 DIMM Slots - 13th Gen Intel® Core™ Processors support DDR5 non-ECC, un-buffered memory up to 5600* - 12th Gen Intel® Core™ Processors support DDR5 non-ECC, un-buffered memory up to 4800* - Max. capacity of system memory: 96GB - Supports Intel® Extreme Memory Profile (XMP) 3.0
* Actual support may vary by CPU.
|
|
BIOS
|
- 128Mb AMI UEFI Legal BIOS with GUI support |
|
Graphics
|
- Intel® Xe Graphics Architecture (Gen 12)* - 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz - 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz - 1 x D-Sub, supports max. resolution up to Full HD (1920x1080) 60Hz
*Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.
|
|
Audio
|
- 7.1 CH HD Audio (Realtek ALC897 Audio Codec) |
|
LAN
|
- Gigabit LAN 10/100/1000 Mb/s - Realtek 8111H |
|
Slots
|
CPU: - 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode* Chipset: - 1 x PCIe 3.0 x1 Slot (PCIE2)*
*Supports NVMe SSD as boot disks
|
|
Storage
|
Chipset: - 1 x Ultra M.2 Socket (M2_1, Key M), supports type 2242/2260/2280 PCIe Gen3x4 (32 Gb/s) mode* - 4 x SATA3 6.0 Gb/s Connectors
*Supports NVMe SSD as boot disk
|
|
USB
|
- 1 x USB 3.2 Gen1 Type-C (Rear) - 3 x USB 3.2 Gen1 Type-A (1 Rear, 2 Front) - 6 x USB 2.0 (4 Rear, 2 Front)
* All USB ports support ESD Protection
|
|
Connector
|
- 1 x SPI TPM Header - 1 x Chassis Intrusion and Speaker Header - 1 x Addressable LED Header* - 1 x CPU Fan Connector (4-pin)** - 1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)*** - 1 x 24 pin ATX Power Connector - 1 x 8 pin 12V Power Connector - 1 x Front Panel Audio Connector - 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
*Support in total up to 5V/3A, 15W LED Strip
** CPU_FAN1 supports the fan power up to 1A (12W). *** CHA_FAN1/WP supports the fan power up to 2A (24W). CHA_FAN1/WP can auto detect if 3-pin or 4-pin fan is in use. |
|

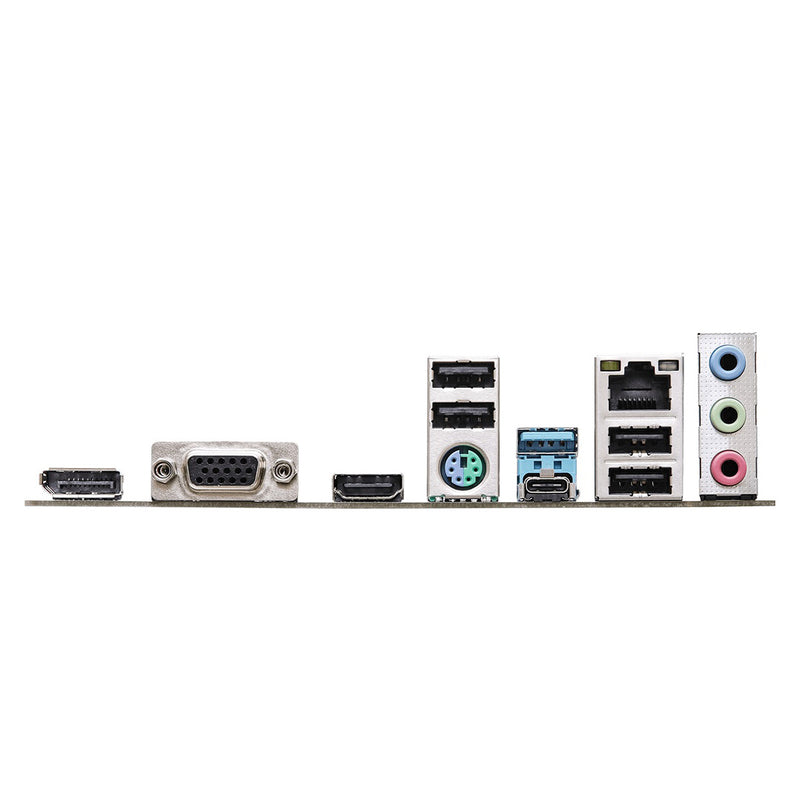

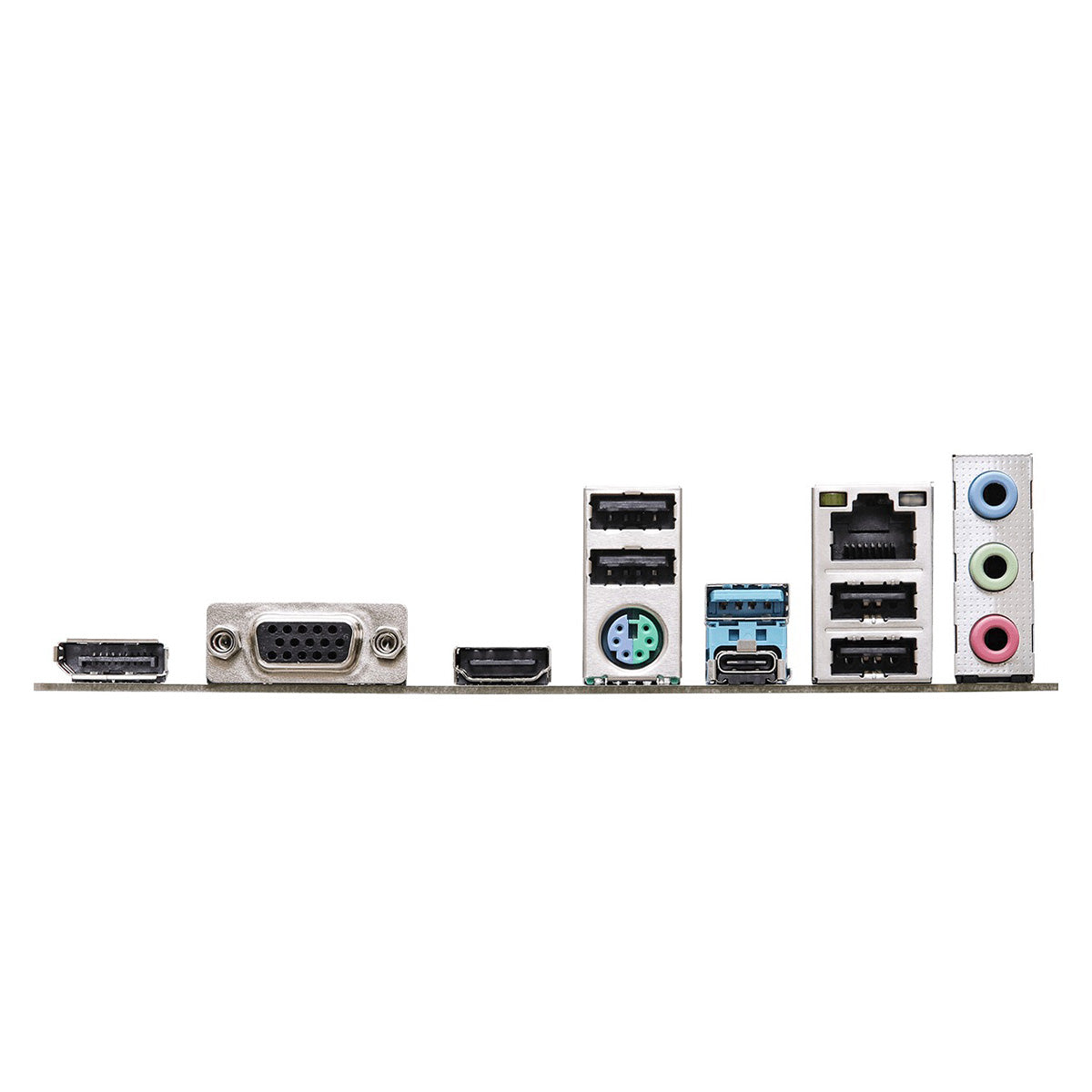

Rear Panel I/O
|
- 1 x PS/2 Mouse/Keyboard Port - 1 x D-Sub Port - 1 x HDMI Port - 1 x DisplayPort 1.4 - 1 x USB 3.2 Gen1 Type-C Port - 1 x USB 3.2 Gen1 Type-A Port - 4 x USB 2.0 Ports - 1 x RJ-45 LAN Port - HD Audio Jacks: Line in / Front Speaker / Microphone |
|
Software and UEFI
|
Software - ASRock Motherboard Utility (A-Tuning) - ASRock Polychrome SYNC* UEFI - ASRock EZ Mode - ASRock Full HD UEFI - ASRock My Favorites in UEFI - ASRock Auto Driver Installer - ASRock Instant Flash
*These utilities can be downloaded from ASRock Live Update & APP Shop.
|
|
Accessories
|
- 1 x User Manual - 1 x I/O Shield - 2 x SATA Data Cables - 1 x Screw for M.2 Socket |
|
Form Factor
|
- Micro ATX Form Factor: 8.66-in x 7.6-in, 22.0 cm x 19.3 cm |
|
OS
|
- Microsoft Windows® 10 64-bit / 11 64-bit |
|
Certifications
|
- FCC, CE - ErP/EuP ready (ErP/EuP ready power supply is required) |
