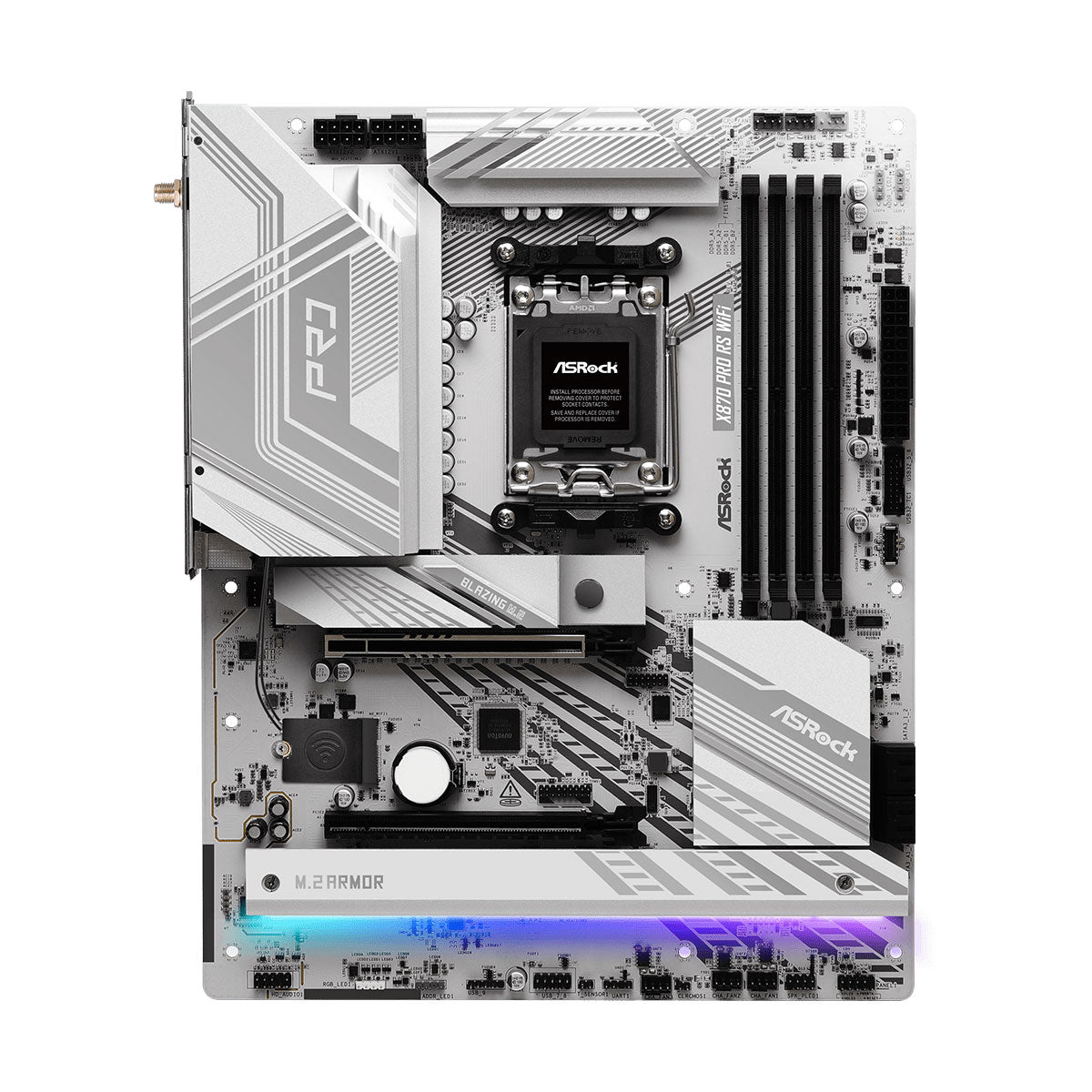

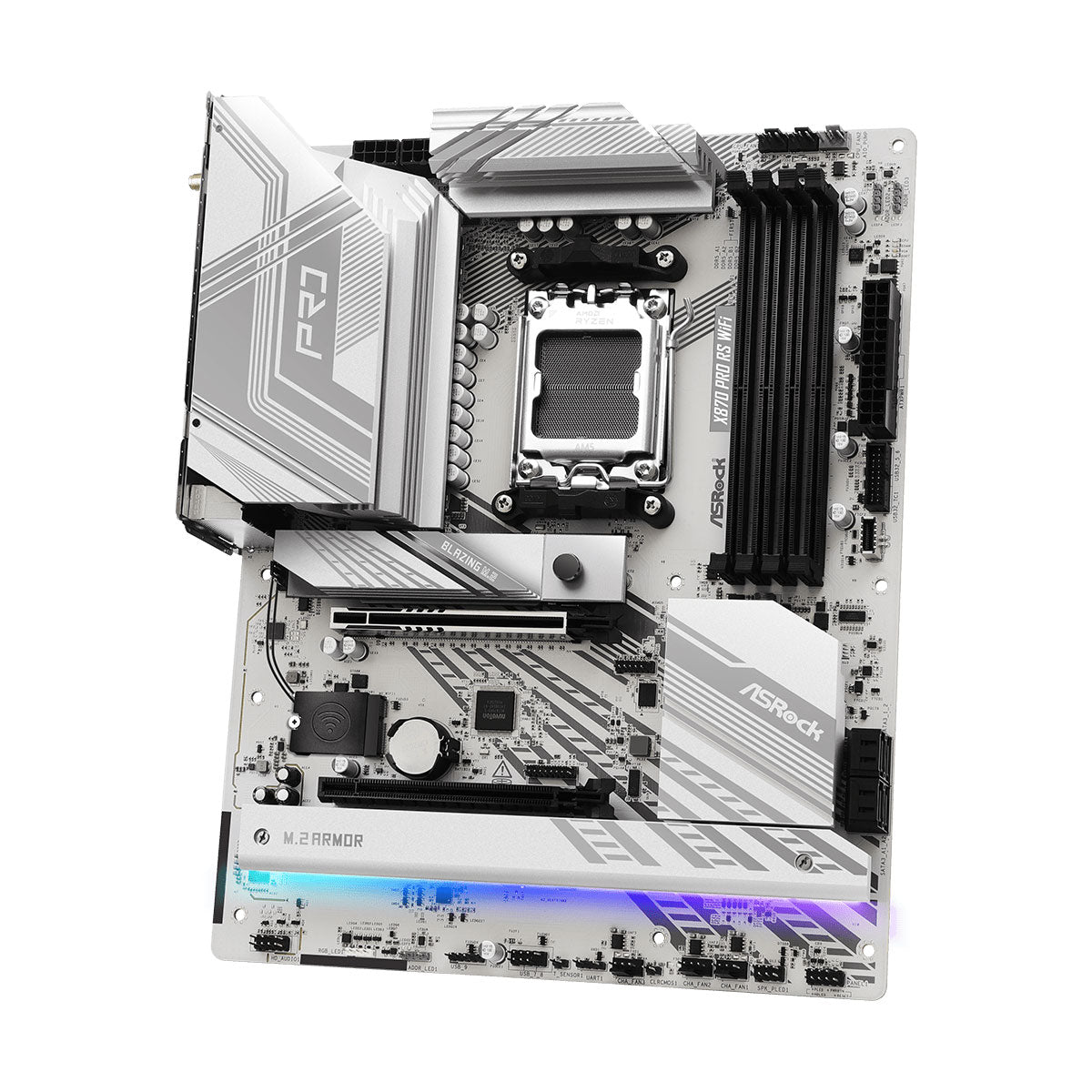

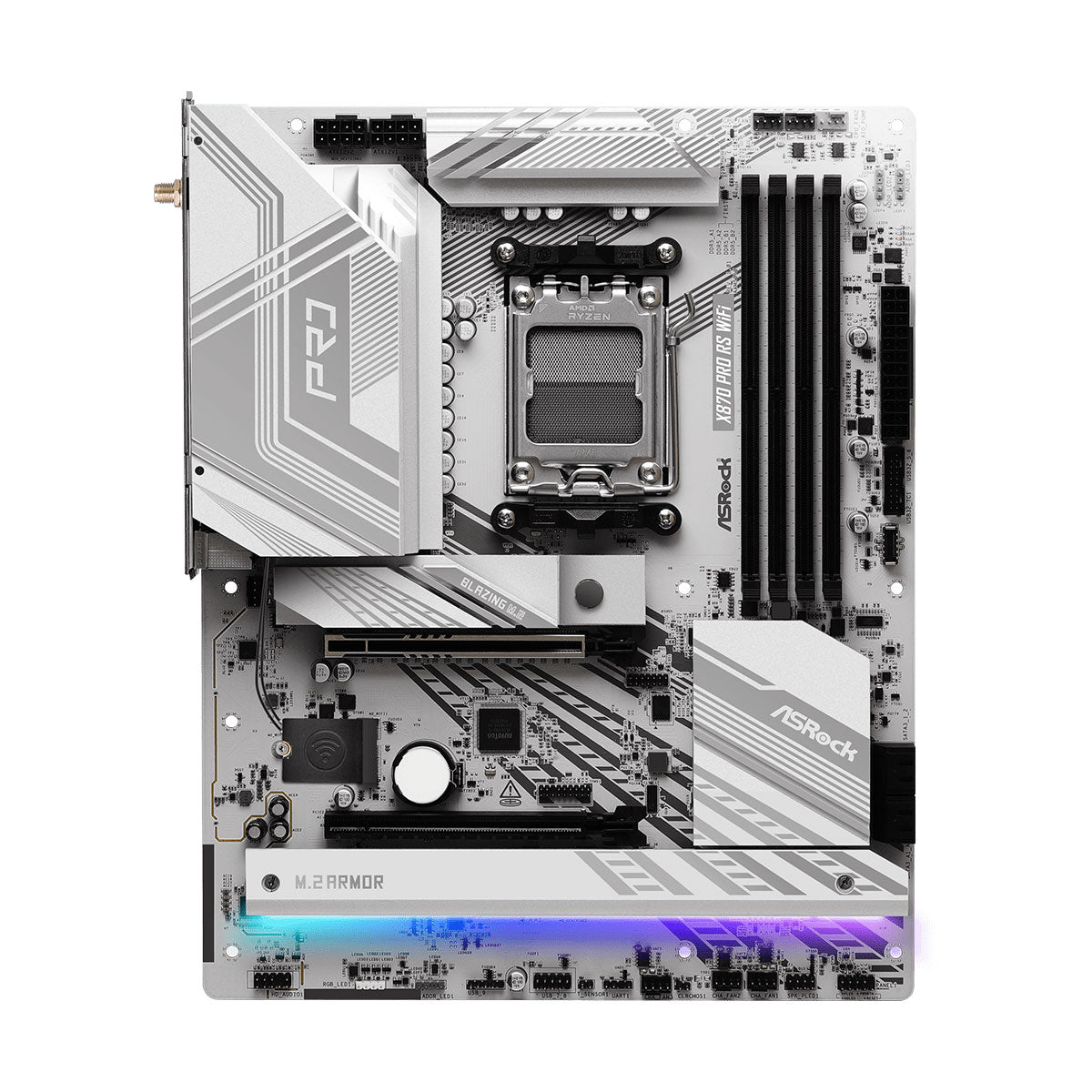

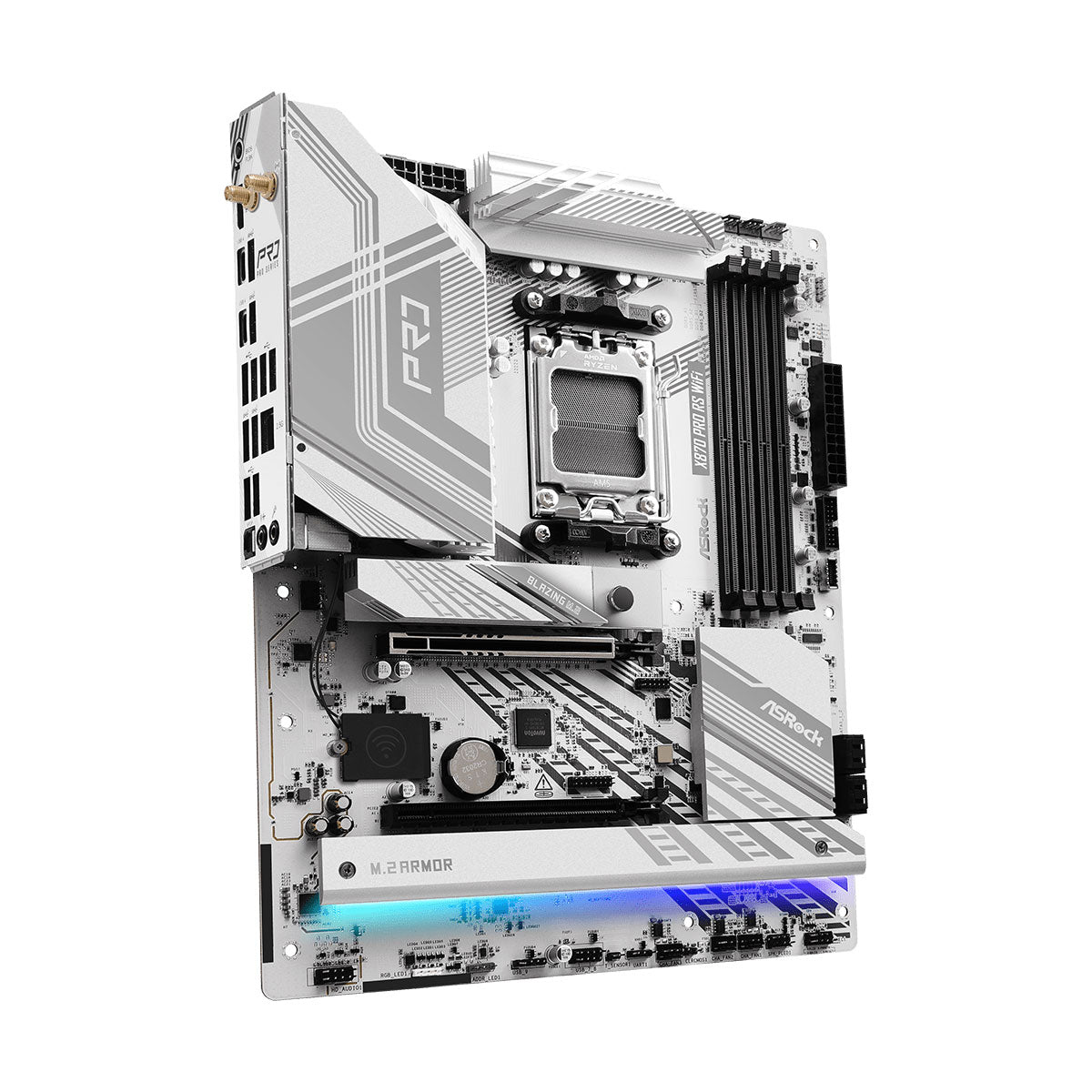

X870 Pro RS Wi-Fi
Modern and futuristic, with the attractive specifications and perfect balance, the Race Sport (RS) Edition is the evolution of the most popular PRO series motherboard.
SPECIFICATION
| * Supports NVMe SSD as boot disks | |
| M2_1 is the first priority for M.2 installation. | |
| M2_1 will run at Gen5x4 with 9000 and 7000 series processors and Gen4x4 with 8000 (Phoenix 1 and Phoenix 2) series processors. | |
| If M2_2 is occupied, PCIE2 will be disabled. | |
| If SATA3_1 or SATA3_2 is occupied, M2_3 will downgrade to Gen3x2 mode. | |
| RAID | - Supports RAID 0 and RAID 1 for SATA storage devices |
| - Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices* | |
| * Requires additional M.2 NVMe expansion cards to support RAID 10 | |
| USB | CPU: |
| - 2 x USB4 Type-C (Rear) | |
| - 2 x USB 3.2 Gen1 Type-A (Rear (USB32_1 and USB32_2)) | |
| Chipset: | |
| - 1 x USB 3.2 Gen2x2 Type-C (Front) | |
| - 4 x USB 3.2 Gen1 Type-A (2 Rear (USB32_3 and USB32_4), 2 Front) | |
| - 9 x USB 2.0 (6 Rear, 3 Front) | |
| * All USB ports support ESD Protection | |
| Connector | - 1 x Thermistor Cable Header |
| - 1 x SPI TPM Header | |
| - 1 x Power LED and Speaker Header | |
| - 1 x RGB LED Header* | |
| - 3 x Addressable LED Headers** | |
| - 2 x CPU Fan Connectors (4-pin) (Smart Fan Speed Control)*** | |
| - 4 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)*** | |
| - 1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)*** | |
| - 1 x 24 pin ATX Power Connector | |
| - 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector) | |
| - 1 x Front Panel Audio Connector | |
| - 2 x USB 2.0 Headers (Support 3 USB 2.0 ports) | |
| - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) | |
| - 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) | |
| * Supports in total up to 12V/3A, 36W LED Strip | |
| ** Support in total up to 5V/3A, 15W LED Strip | |
| *** CPU_FAN1 supports the fan power up to 1A (12W). | |
| CPU_FAN2, CHA_FAN1~4 and AIO_PUMP support the fan power up to 3A (36W). | |
| CPU_FAN2, CHA_FAN1~4 and AIO_PUMP can auto detect if 3-pin or 4-pin fan is in use. | |

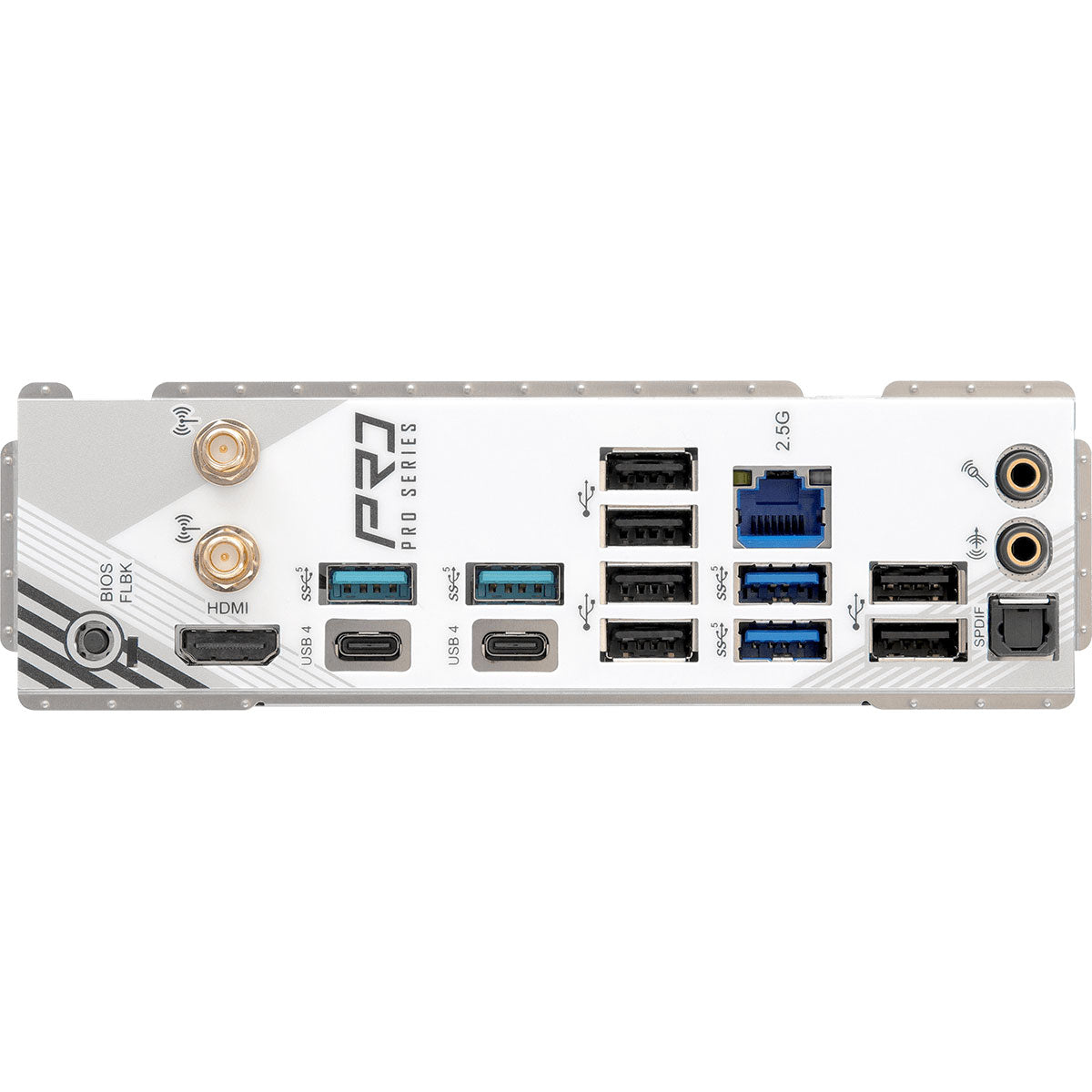

| Rear Panel I/O | - 2 x Antenna Ports |
| - 1 x HDMI Port | |
| - 1 x Optical SPDIF Out Port | |
| - 2 x USB4 Type-C Ports (40 Gb/s)* | |
| - 4 x USB 3.2 Gen1 Type-A Ports | |
| - 6 x USB 2.0 Ports | |
| - 1 x RJ-45 LAN Port | |
| - 1 x BIOS Flashback Button | |
| - 1 x Line Out Jack (Gold Audio Jack) | |
| - 1 x Microphone Input Jack (Gold Audio Jack) | |
| * Supports USB PD 3.0 up to 5V@3A (15W) charging | |
| c | Software |
| - ASRock Motherboard Utility (A-Tuning) | |
| - ASRock Dragon 2.5G LAN Software | |
| - ASRock Polychrome SYNC* | |
| UEFI | |
| - ASRock EZ Mode | |
| - ASRock Full HD UEFI | |
| - ASRock Auto Driver Installer | |
| - ASRock Instant Flash | |
| *These utilities can be downloaded from ASRock Live Update & APP Shop. | |

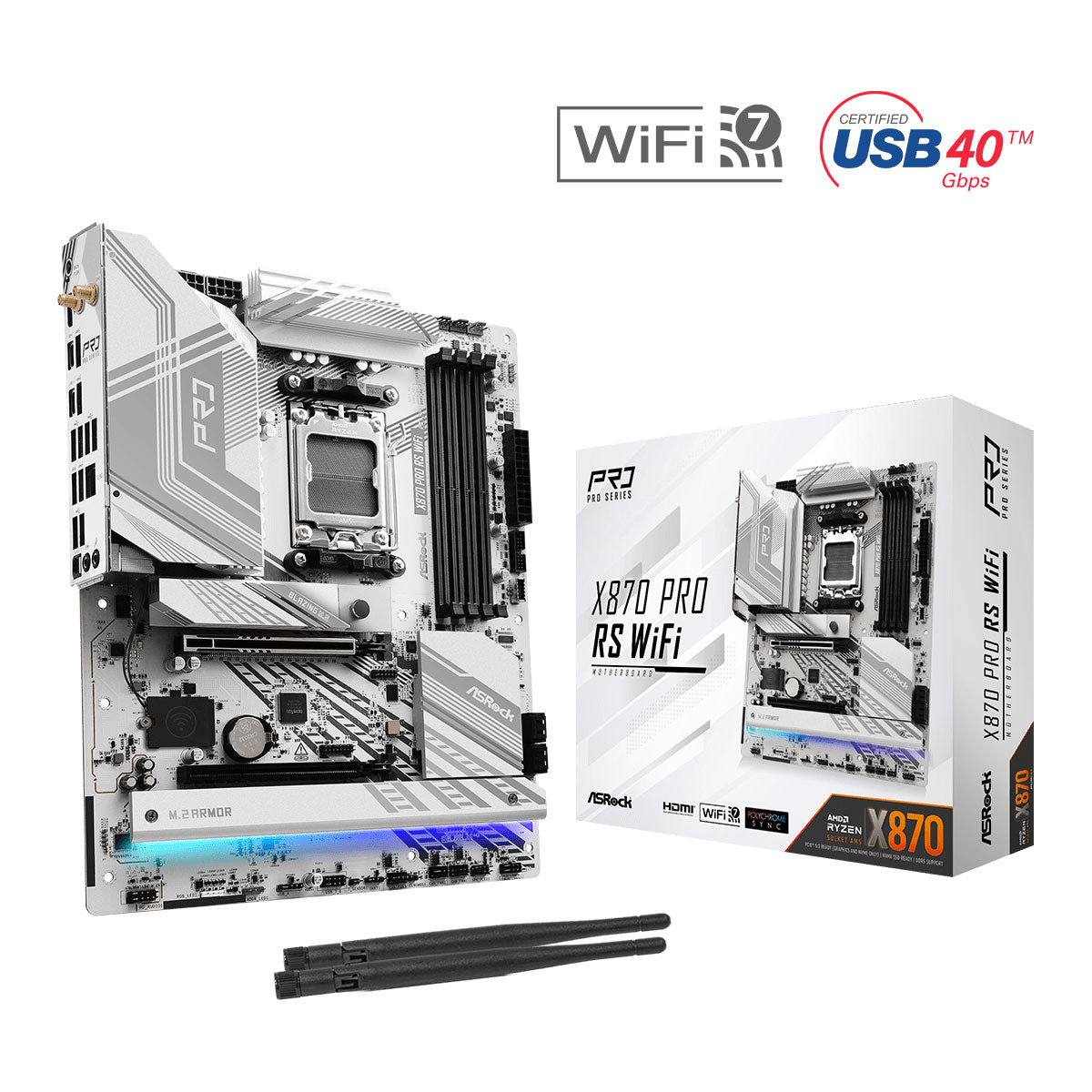

| Accessories | - 2 x SATA Data Cables |
| - 2 x ASRock WiFi 2.4/5/6 GHz Antennas | |
| Form Factor | - ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm |
| - 8 Layer PCB | |
| OS | - Microsoft Windows® 10 64-bit / 11 64-bit |
| Certifications | - FCC, CE |
| - ErP/EuP ready (ErP/EuP ready power supply is required) |
