Description

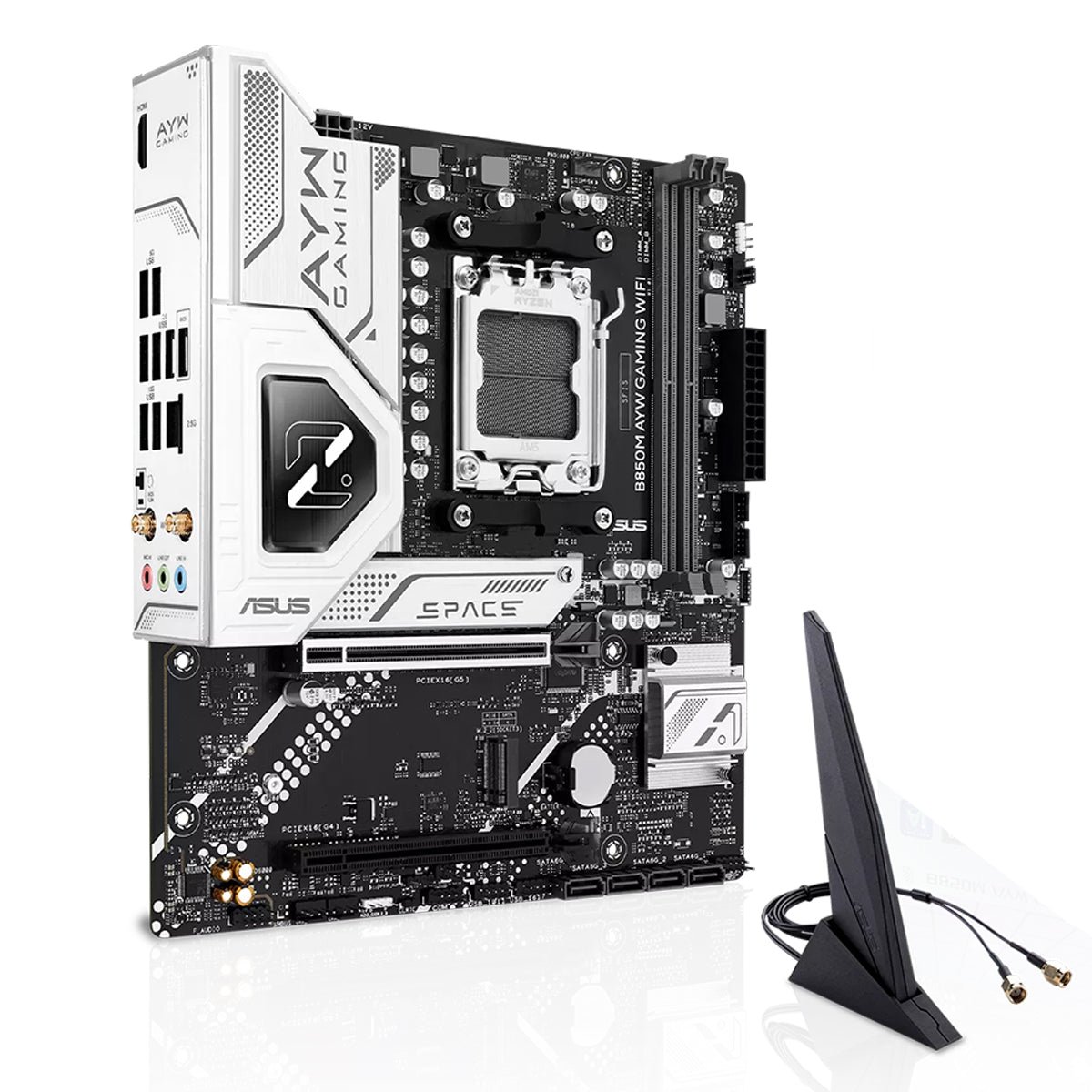

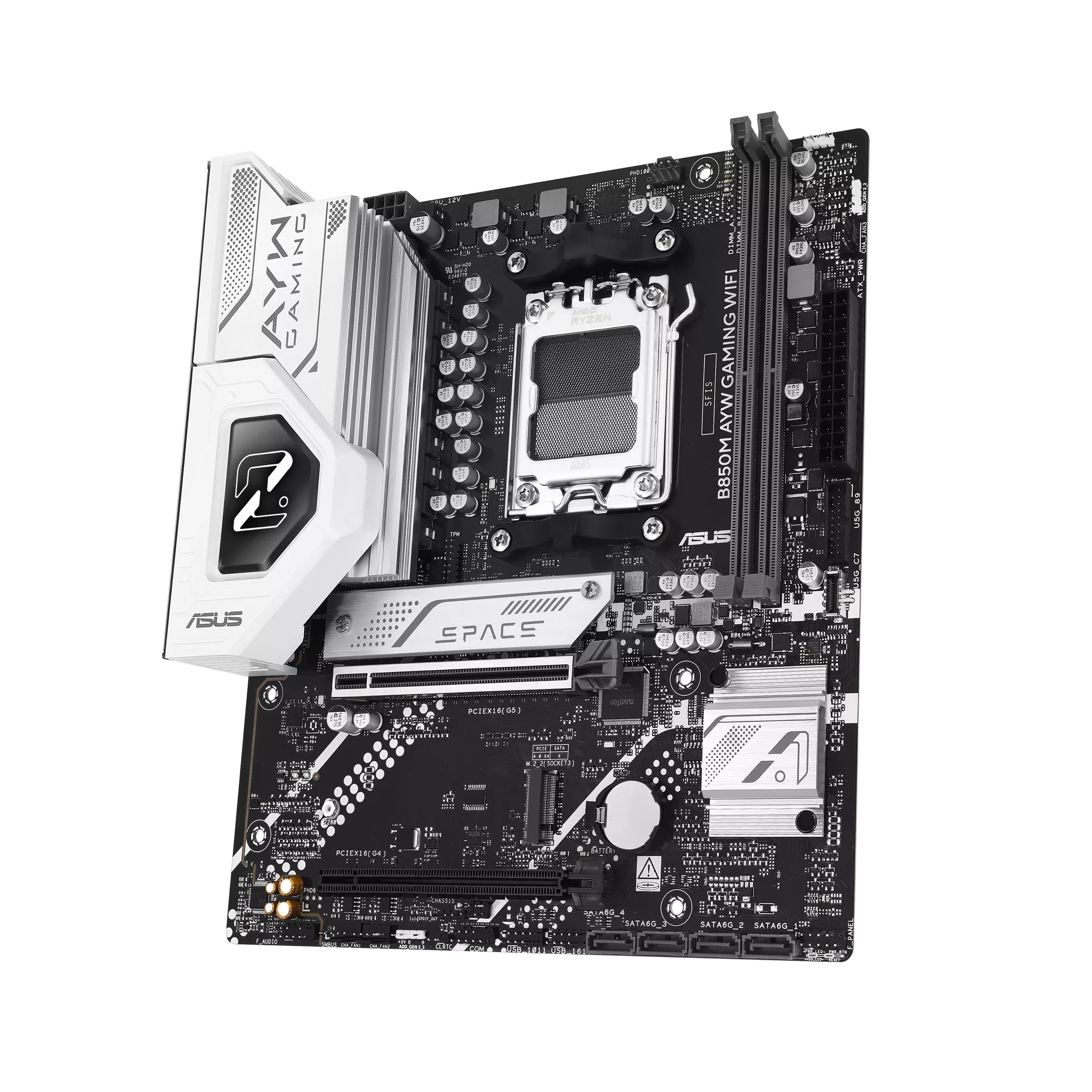

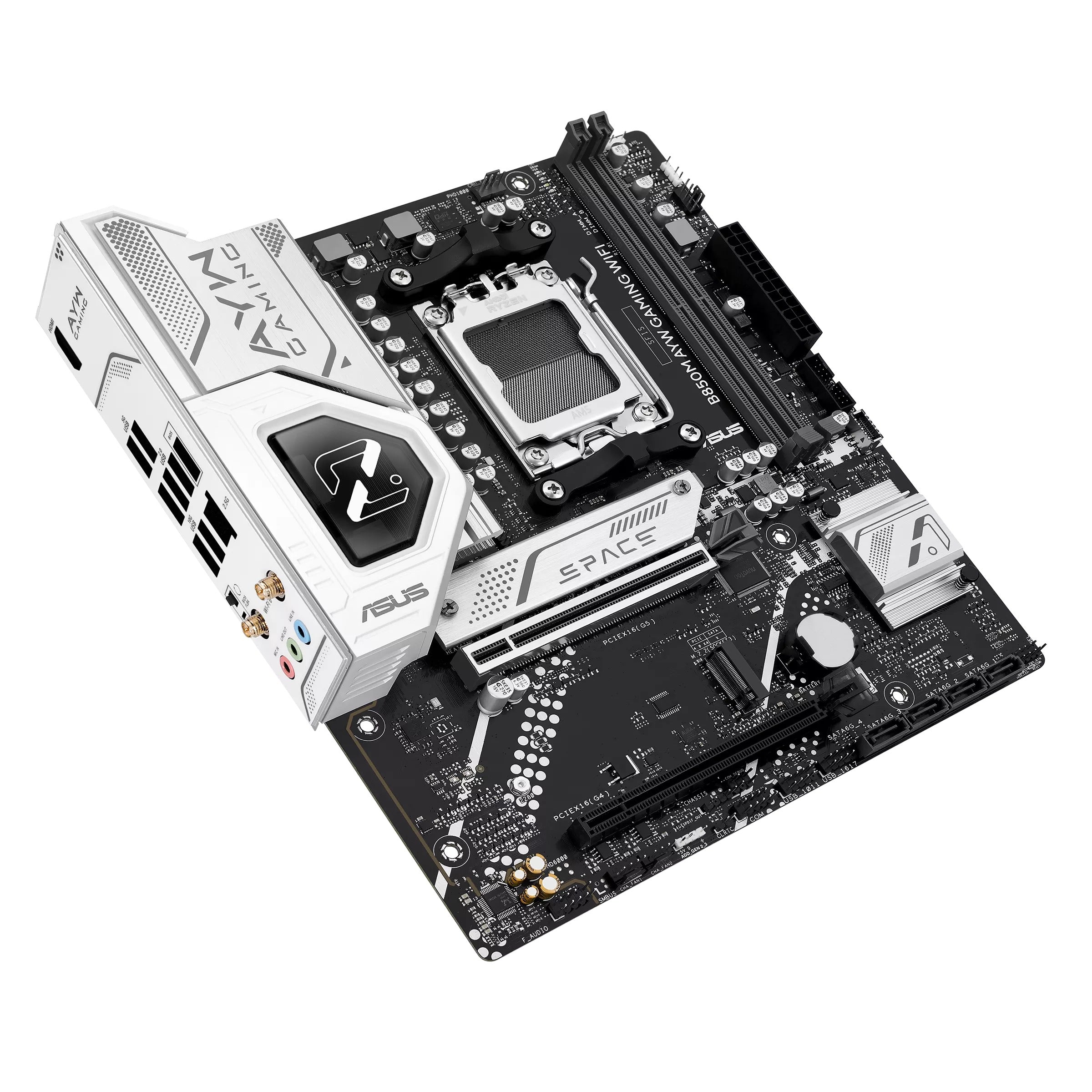

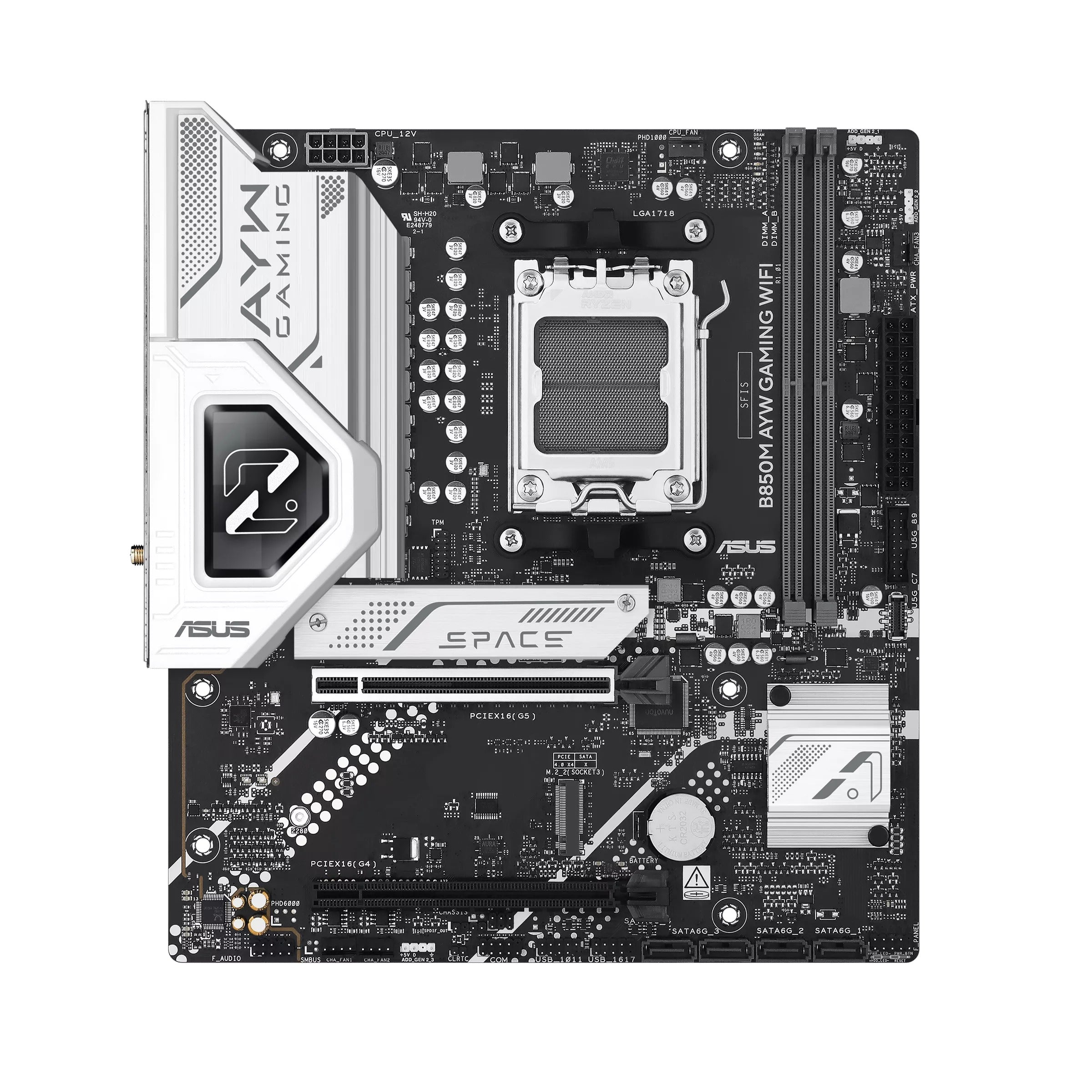

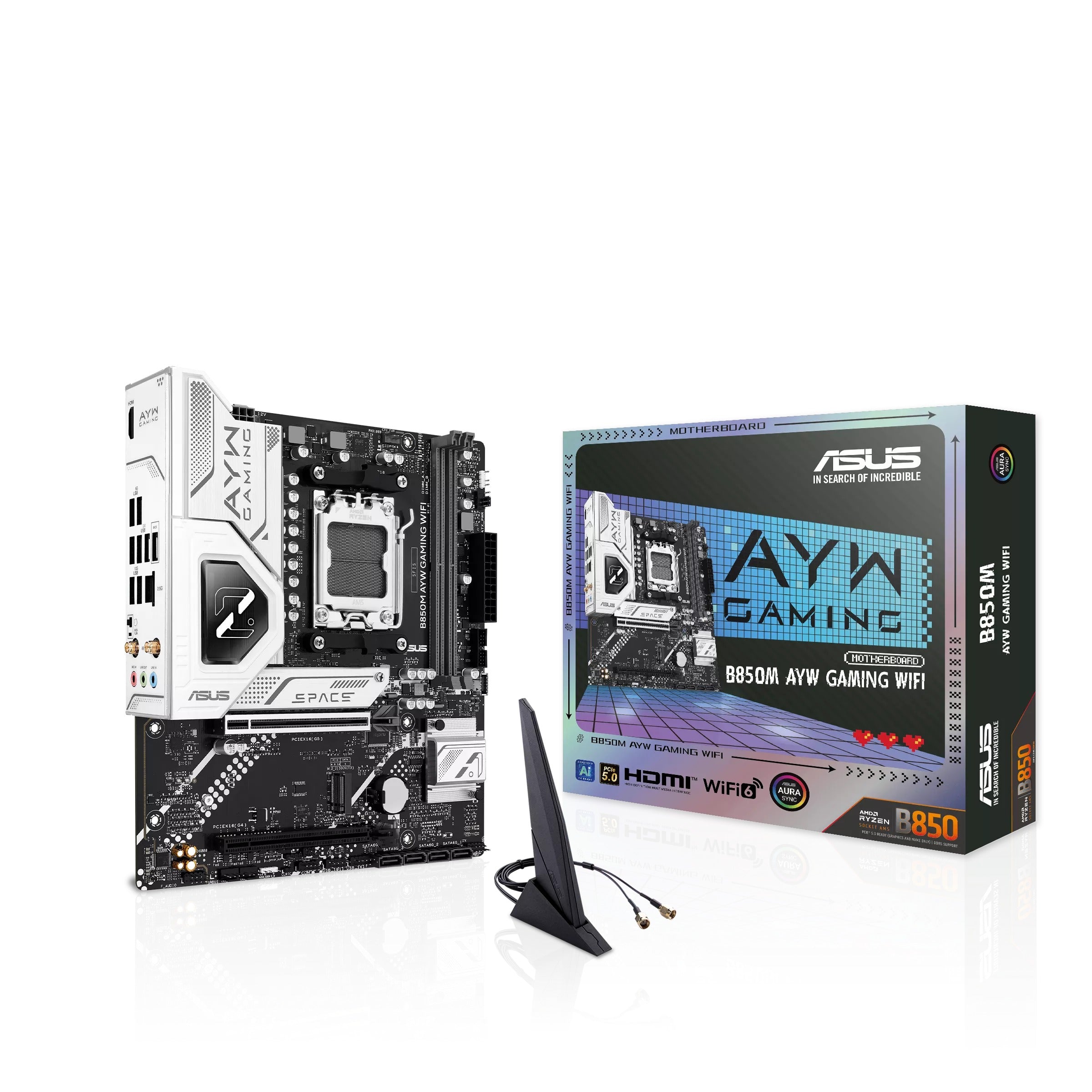

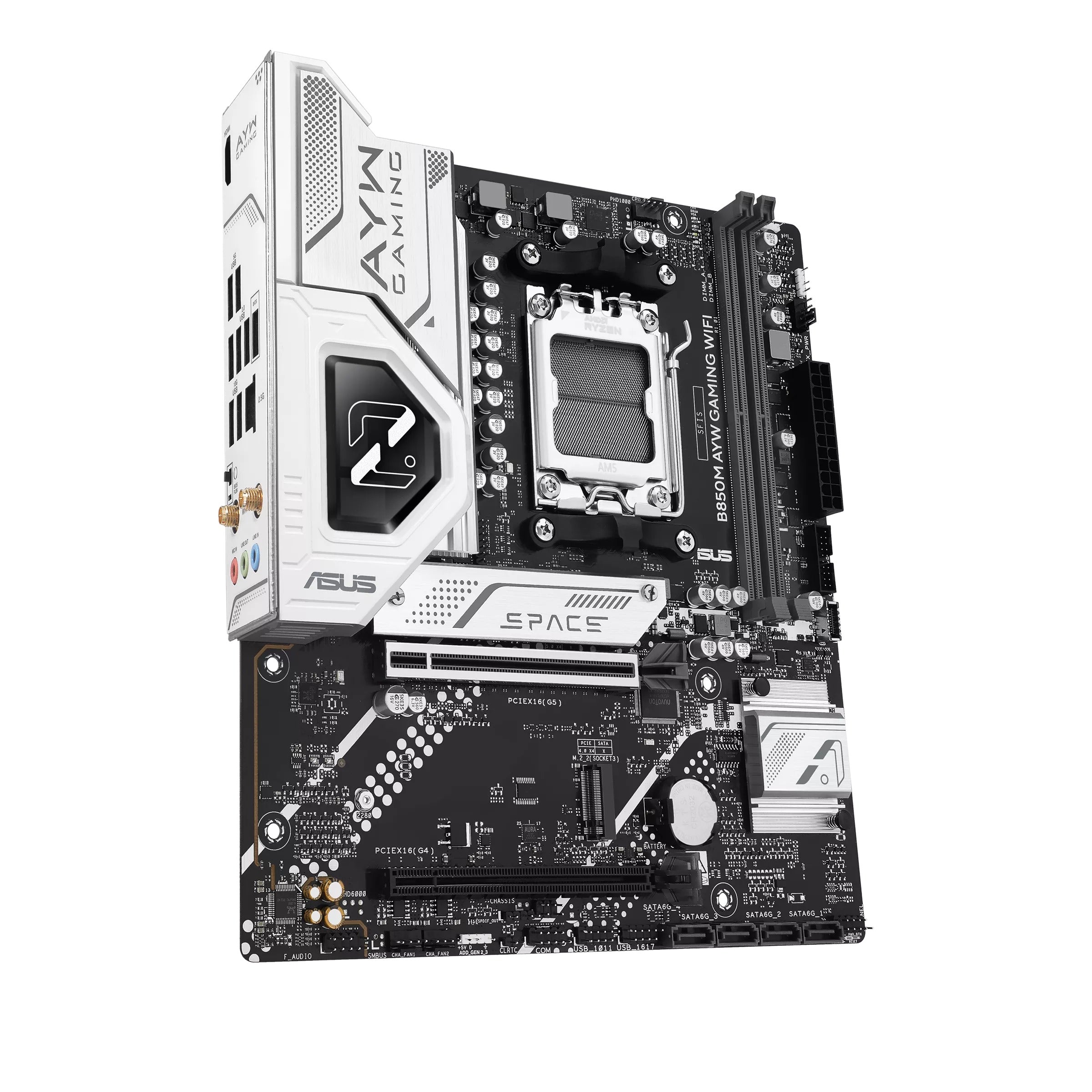

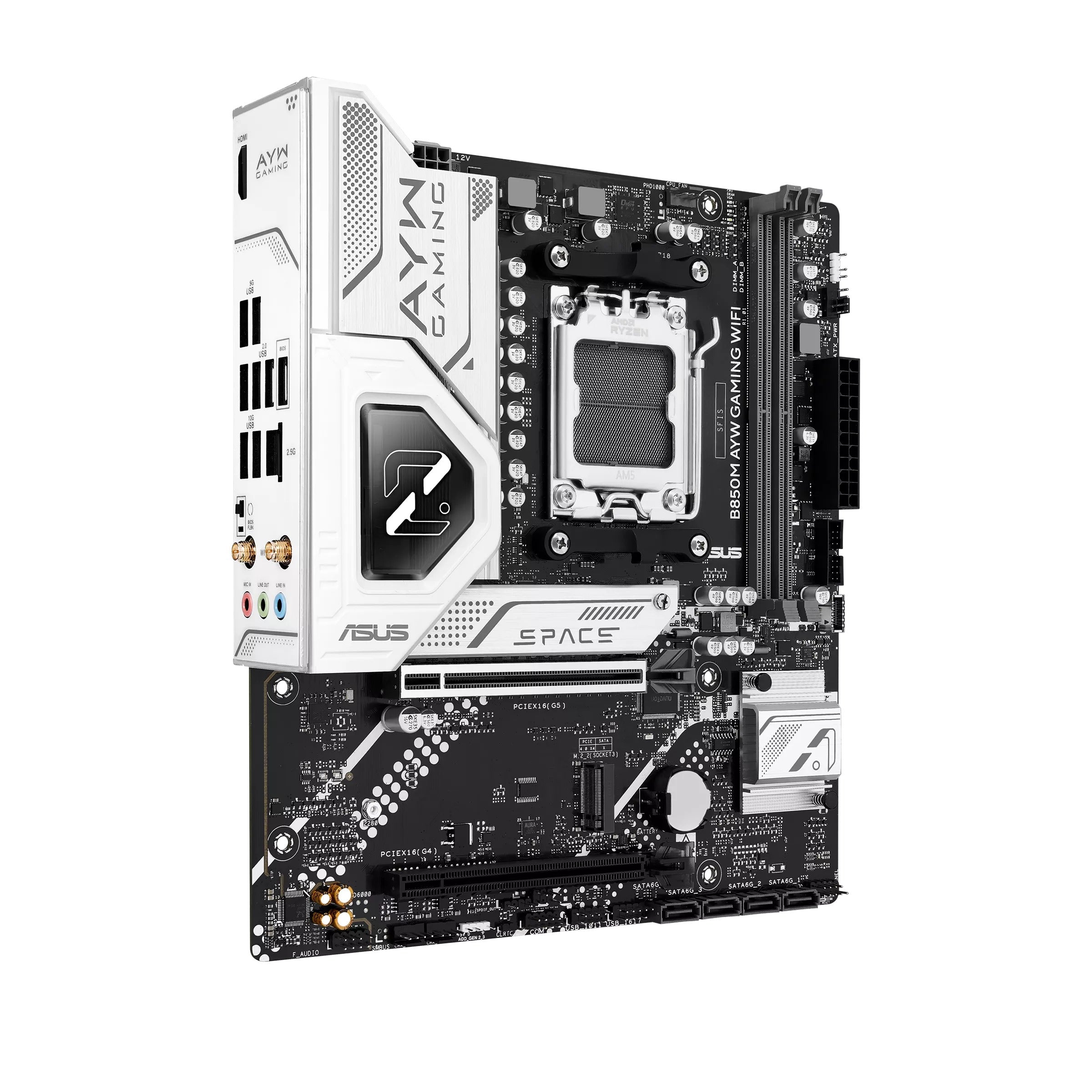

B850M
AYW GAMING WIFI
ASUS B850 series motherboards are expertly engineered to unleash the full potential of AMD Ryzen™ 9000 series processors. The B850M AYW GAMING WIFI motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.
Specification:
| Model | B850M AYW GAMING WIFI |
| CPU | AMD Socket AM5 for AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors |
| Chipset | AMD B850 Chipset |
| Memory | 2 x DIMM slots, max. 128GB, DDR5 up to 8200+ MT/s (Ryzen 9000), 9600+ MT/s (Ryzen 8000), 8000+ MT/s (Ryzen 7000); Dual Channel; ECC & Non-ECC Un-buffered; AMD EXPO™; ASUS AEMP |
| Graphics | 1 x HDMI™ port (supports 4K@60Hz) |
| Expansion Slots | Ryzen 9000/7000: 1 x PCIe 5.0 x16; Ryzen 8000: 1 x PCIe 4.0 x16 (x8/x4); Chipset: 1 x PCIe 4.0 x16 (x4) |
| Storage | 2 x M.2 slots; 4 x SATA 6Gb/s ports; RAID 0/1/5/10 (varies by CPU) |
| Ethernet | Realtek 2.5Gb Ethernet (ASUS LANGuard) |
| Wireless & Bluetooth | Wi-Fi 6 (802.11ax, 2.4/5GHz), Bluetooth® 5.3 |
| USB (Rear) | 2 x USB 10Gbps Type-A; 2 x USB 5Gbps Type-A; 4 x USB 2.0 Type-A |
| USB (Front) | 1 x USB 5Gbps Type-C connector; 1 x USB 5Gbps header (2 ports); 2 x USB 2.0 headers (4 ports) |
| Audio | Realtek 7.1 Surround Sound HD Audio (24-bit/192 kHz) |

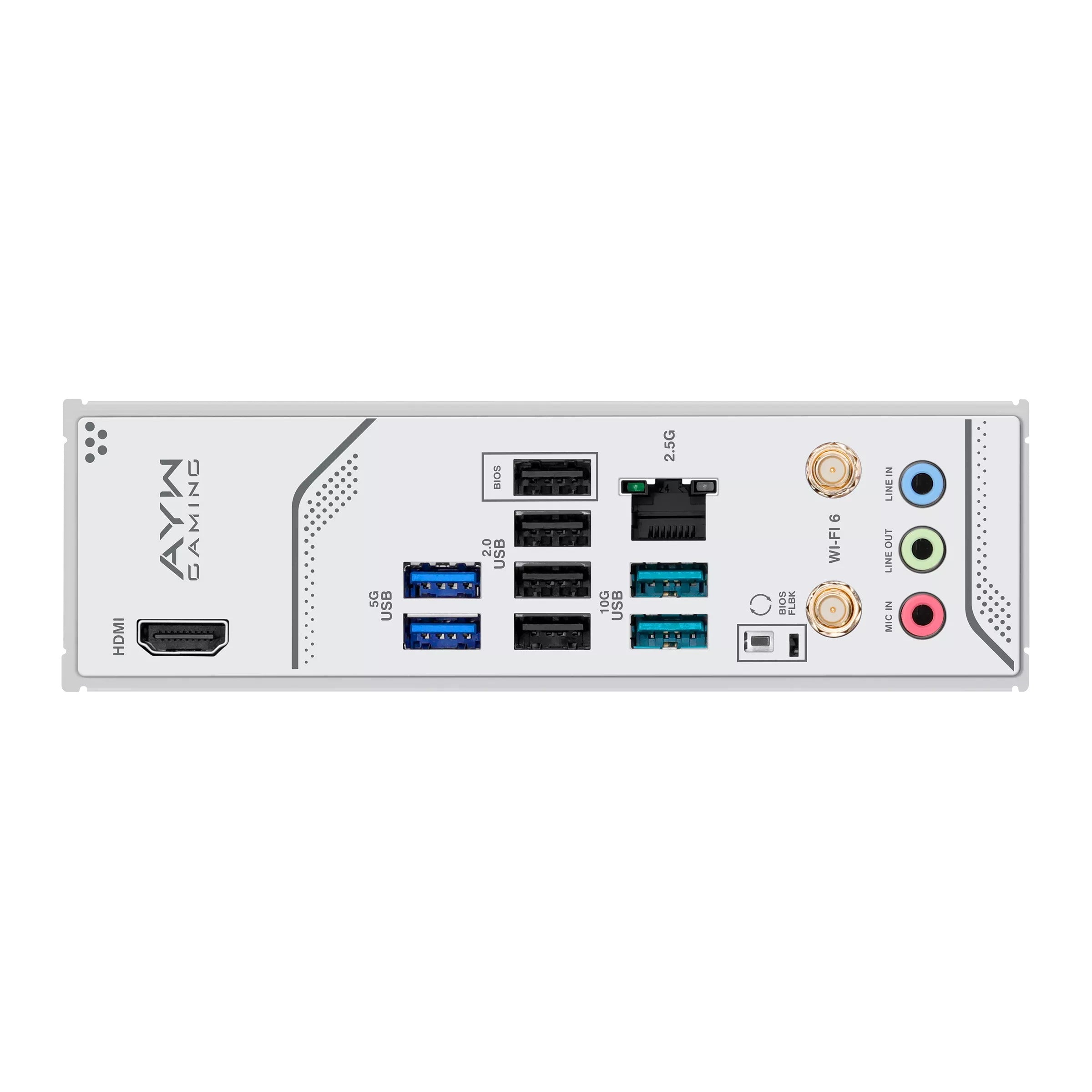

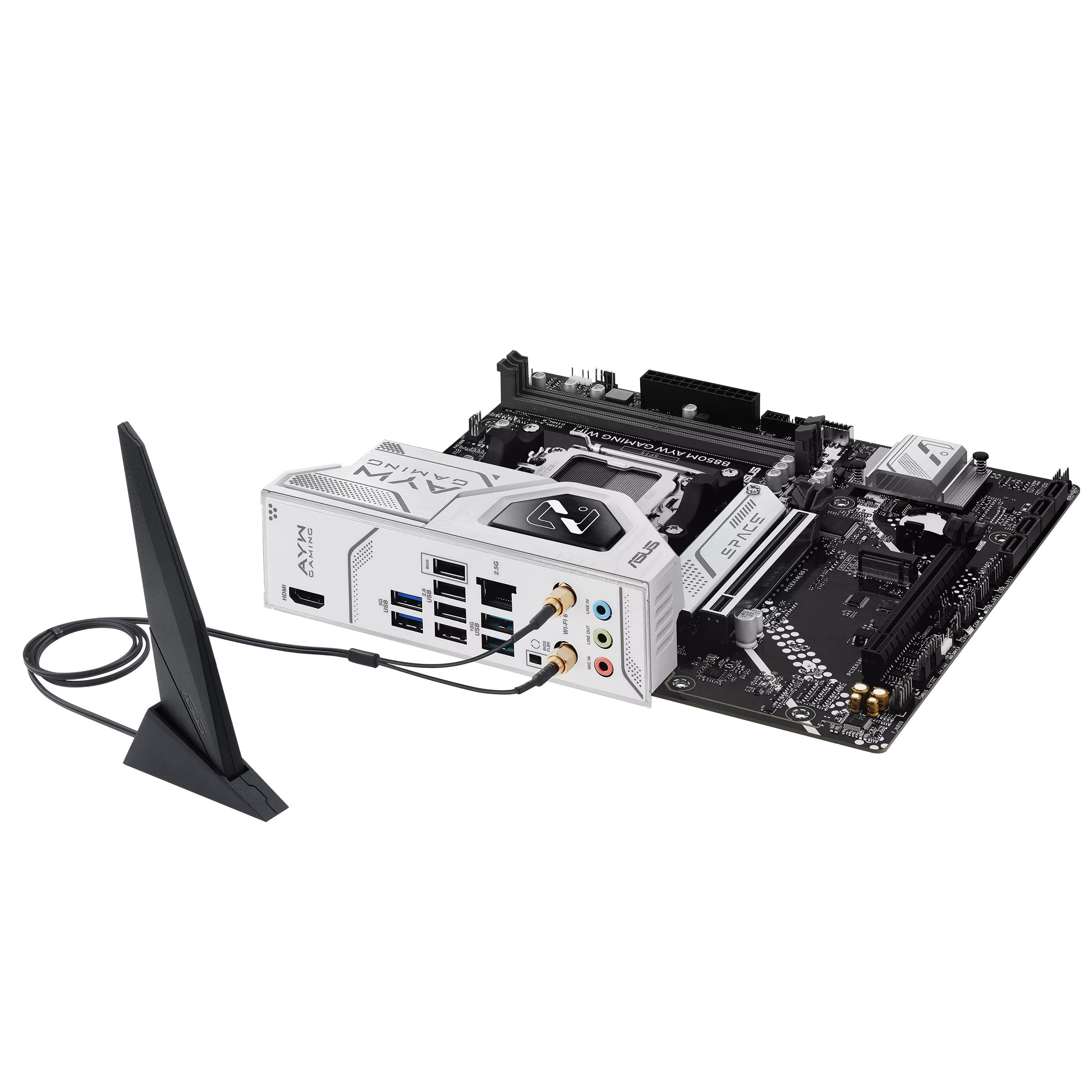

| Back Panel I/O | HDMI; Wi-Fi module; Realtek 2.5Gb LAN; 3 x Audio jacks; BIOS FlashBack™ button; 8 x USB ports |
| Internal Connectors | CPU fan x1; Chassis fan x3; 24-pin ATX; 8-pin CPU; 2 x M.2; 4 x SATA; USB headers; RGB Gen2 x3; Clear CMOS; COM; Front audio; S/PDIF; TPM; System panel |
| Special Features | ASUS 5X Protection III; Q-Design; Thermal Solution; EZ DIY; Aura Sync |
| Software | Armoury Crate; Aura Sync; Fan Xpert 2+; AI Advisor; DriverHub; TurboV Core; GlideX; ASUS CPU-Z; UEFI BIOS |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |

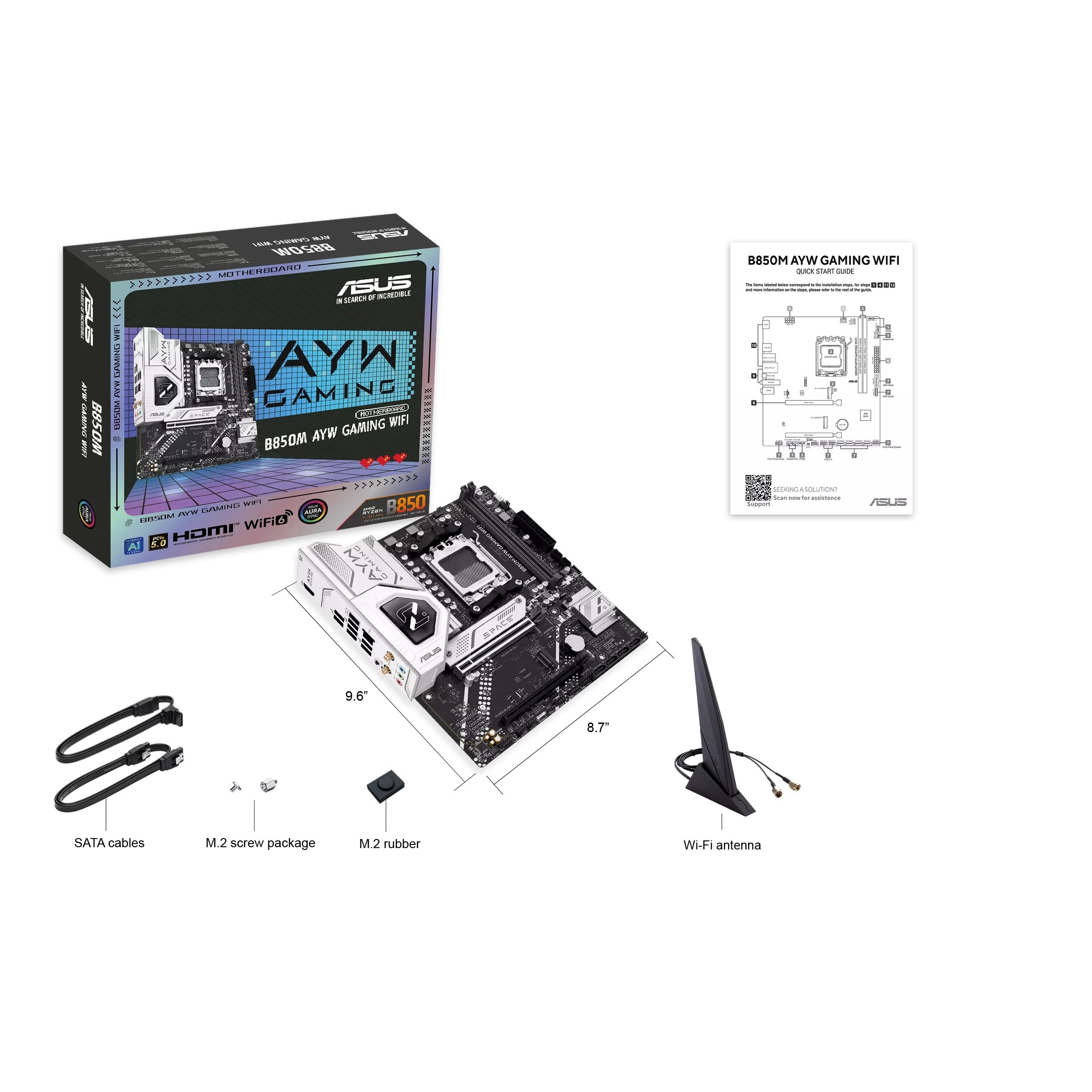

| Accessories | 2 x SATA cables; Wi-Fi antenna; M.2 rubber package; M.2 screw package; Quick start guide |
| Operating System | Windows® 11, Windows® 10 64-bit |
| Form Factor | Micro-ATX, 24.4 cm x 22.1 cm |
