Description

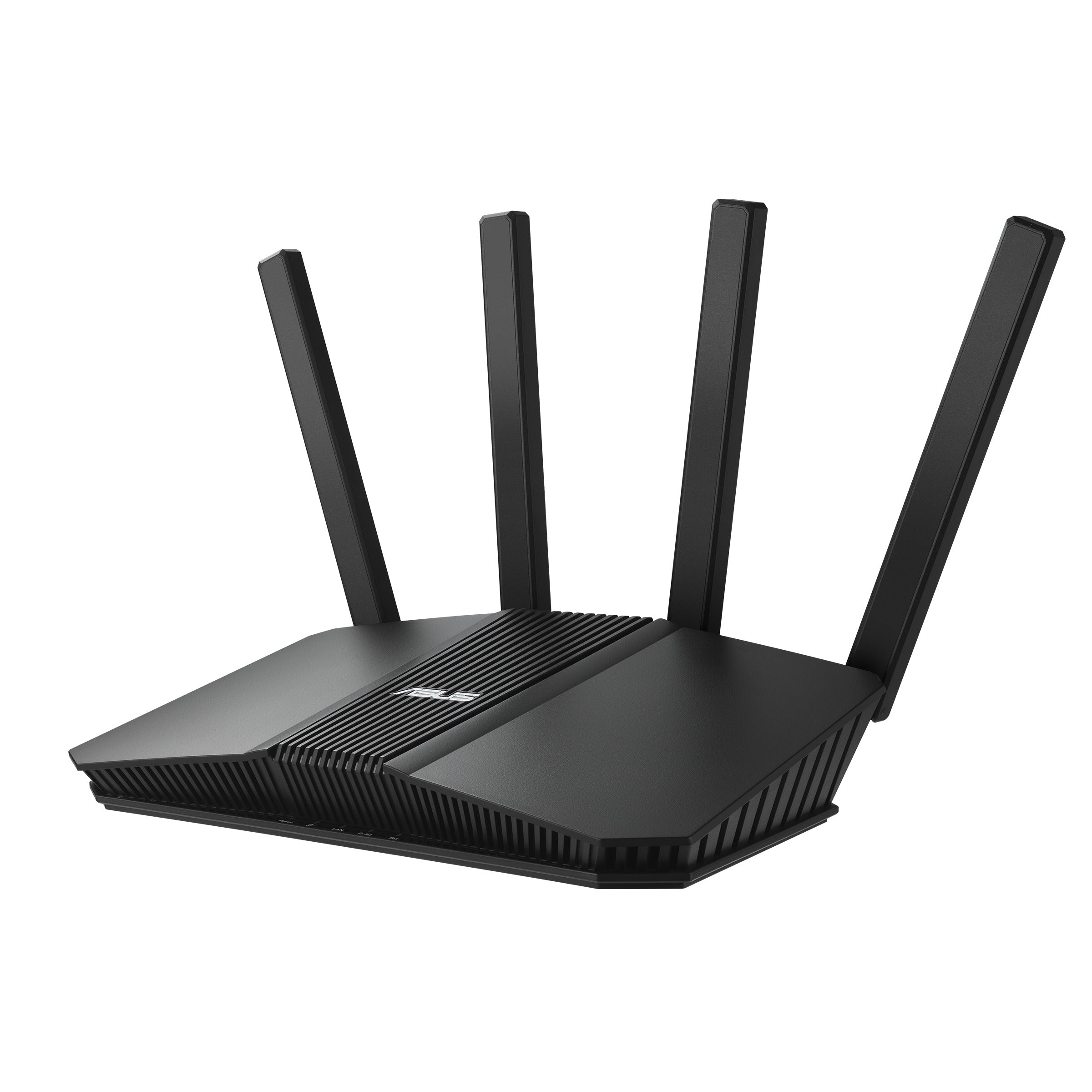

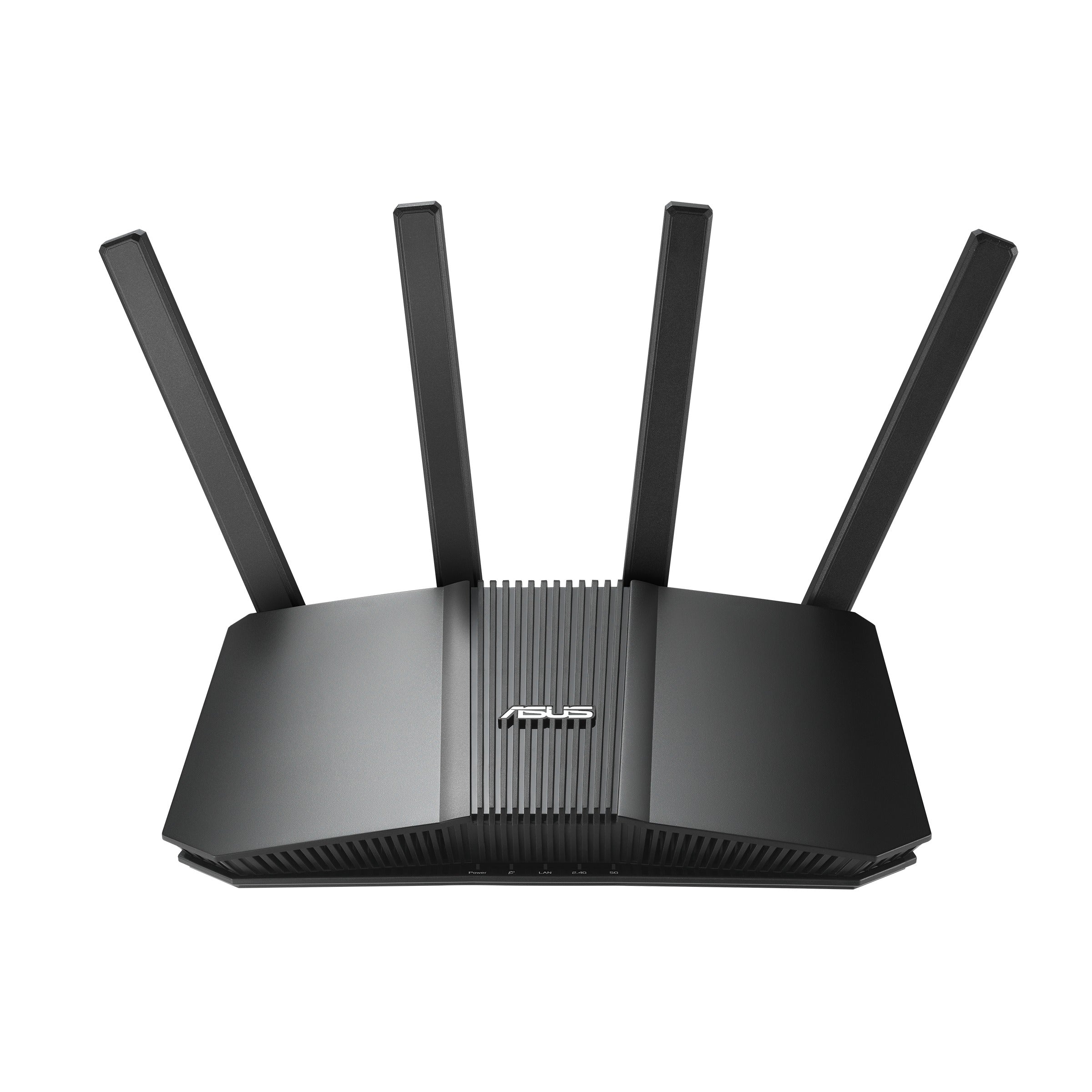

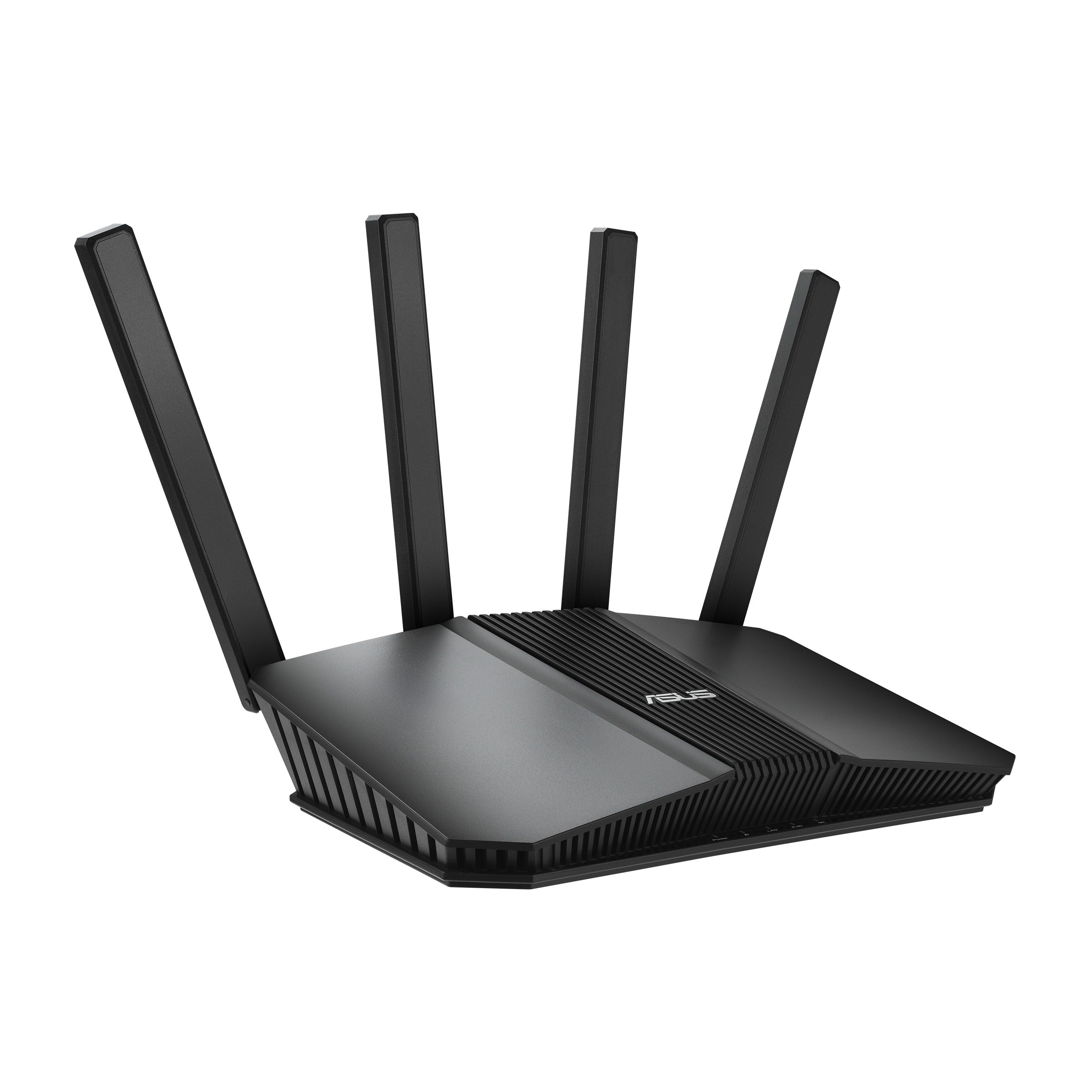

ASUS WiFi 7 Dual-Band Extendable Router, 4K-QAM, MLO, Five 2.5GbE ports, Commercial-Grade Network Security, Parental Control, IoT network, Kid’s network and VPN network
- Ultrafast WiFi 7 – WiFi 7 (802.11be) dual-band extendable router boosts speed up to 6500 Mbps, with 4096-QAM increasing a single frequency band’s transmission speed by 1.2 times
- Five 2.5GbE Ports – 2.5GbE ports prioritize traffic, optimizing wired internet connectivity for maximum performance
- Hassle-free AiMesh Extendable Network – AiMesh extendable routers enable whole home seamless roaming with rich, advanced features
- Multi-link Operation – Link to multiple bands at the same time to ensure stable internet connections and efficient data transfers
- Commercial-Grade Network Security – AiProtection powered by Trend Micro™, plus a one-tap security scan and Safe Browsing
Specification:
| Model | RT-BE82U |
|---|---|
| Network Standard | IEEE 802.11a IEEE 802.11b IEEE 802.11g WiFi 4 (802.11n) WiFi 5 (802.11ac) WiFi 6 (802.11ax) WiFi 7 (802.11be) IPv4 IPv6 |
| Product Segment | BE6500 ultimate BE performance : 688+5764 Mbps |
| WiFi Data Rate | WiFi 7 (802.11be) (2.4GHz): up to 688 Mbps WiFi 7 (802.11be) (5GHz): up to 5764 Mbps |
| Antenna | External antenna x 4 |
| Transmit / Receive | 2.4GHz 2x2 5GHz 4x4 |
| Processor | 2.0 GHz quad-core processor |
| Memory | 256 MB Flash 1 GB RAM |
| Boosts Speed | OFDMA (Orthogonal Frequency Division Multiple Access) Beamforming: standard-based and universal 4096-QAM high data rate 20/40/80/160 MHz bandwidth |
| Operating Frequency | 2.4 GHz 5 GHz |
| Operating Mode | Wireless router mode Access point mode Media bridge mode |

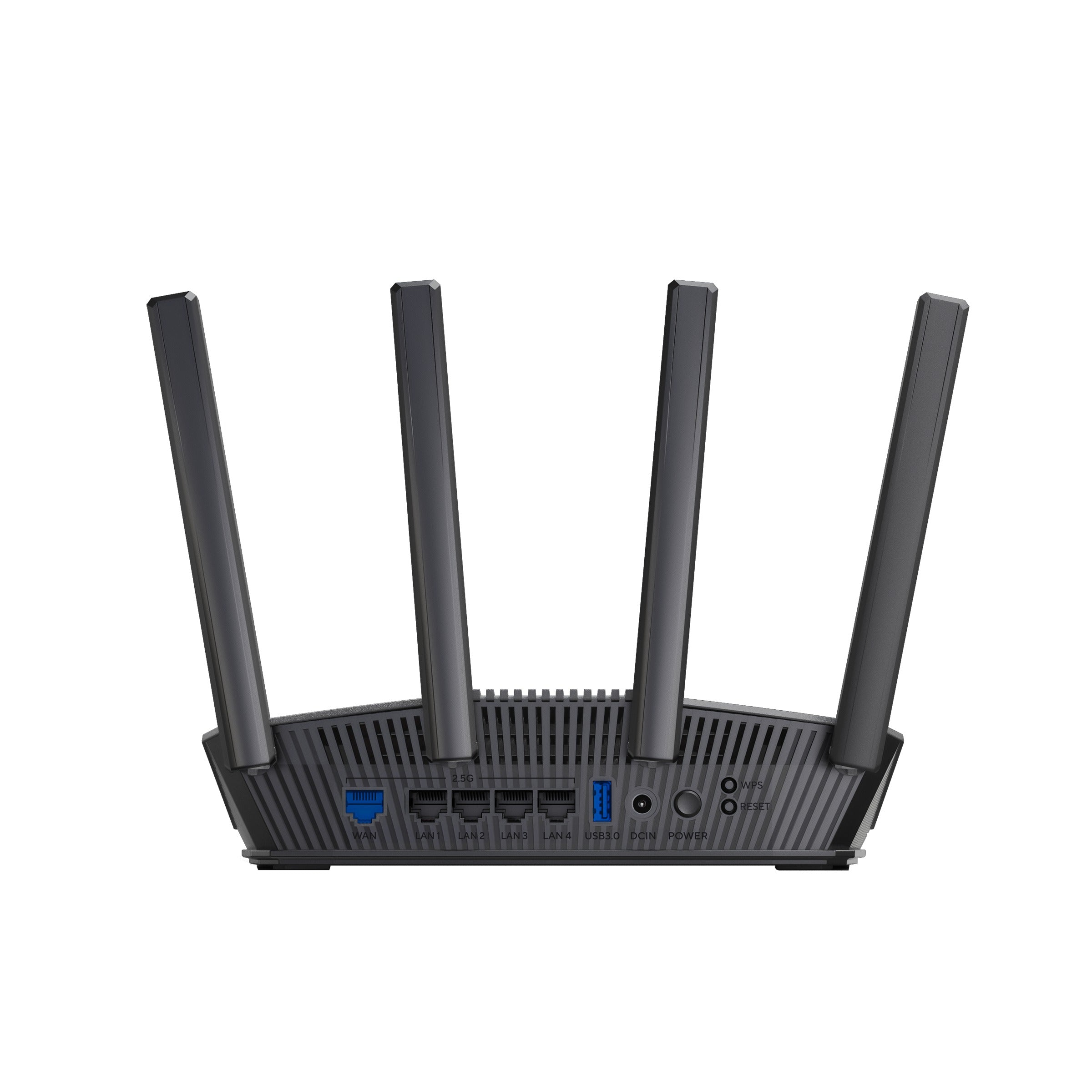

| I/O Ports | 1x 2.5G for WAN, 4x 2.5G for LAN, USB 3.2 Gen 1 x 1 |
| Buttons | WPS Button, Reset Button, Power Button |
| LED Indicator | Power x 1 WAN x 1 LAN x 1 2.4GHz WiFi x 1 5GHz WiFi x 1 |
| Power Supply | AC Input : 100V~240V (50~60Hz) DC Output : 12 V with max. 3 A current |

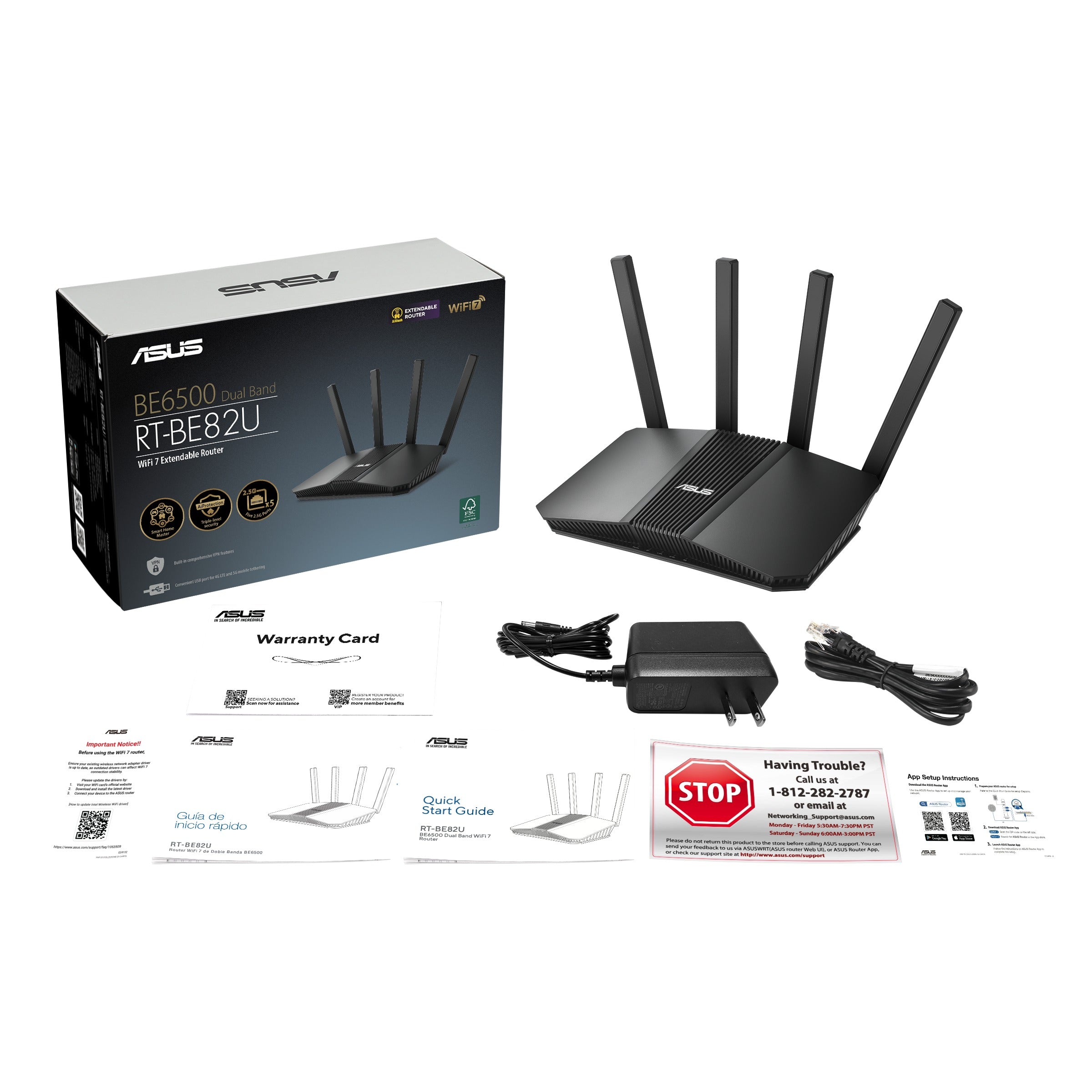

| Package Content | RT-BE82U RJ-45 cable Power adapter Quick Start Guide Warranty card |
| Product Weight (g) | 502g |
| Product Dimensions | 238 x 147 x 97 mm |
| AiMesh | AiMesh • Primary AiMesh Router • AiMesh Node |
| Parental Control | "Allow you to block access to unwanted websites and apps." Web & Apps Filters Time Scheduling Safe Browsing Customized Internet Schedule |
| Guest Network | "The Guest Network provides Internet connection for guests but restricts access to your local network." Support Guest Network • Maximum Guest Network Rule : 2.4GHz x3, 5GHz x3 Guest Network Connection Time Limit |
| Security | AiProtection VPN WPS support, WPA/WPA2/WPA3-Personal, WPA/WPA2-Enterprise WPS Let's Encrypt DNS-over-TLS SSH Security Scan Firewall • Maximum Firewall Keyword Filter : 64 • Maximum Firewall Network Service Filter : 32 • Maximum Firewall URL Filter : 64 |
| AiProtection | AiProtection • Router Security Assessment • Malicious Site Blocking • Two-Way IPS • Infected Device Prevention and Blocking |
| VPN | Instant Guard VPN Client L2TP VPN Client Open VPN VPN Client PPTP VPN Client WireGuard VPN Server IPSec VPN Server Open VPN VPN Server PPTP VPN Server WireGuard |
| Traffic Control | Adaptive QoS • Bandwidth Monitor • Bandwidth Limiter -- Maximum Bandwidth Limiter Rule : 32 Traditional QoS -- Maximum Traditional QoS Rule : 32 Traffic Monitor • Real-time Traffic Monitor • Wired Traffic Monitor • Wireless Traffic Monitor Traffic Analyzer • Traffic Analysis Period : Daily, Weekly, Monthly • Website History |
| WAN | Internet connection Type : PPPoE, PPTP, L2TP, Automatic IP, Static IP Dual WAN 3G / 4G LTE dongle 4G / 5G Auto Mobile Tethering Port forwarding • Maximum Port Forwarding Rule : 64 Port triggering • Maximum Port Triggering Rule : 32 DMZ DDNS NAT Passthrough : PPTP Pass-Through, L2TP Pass-Through, IPSec Pass-Through, RTSP Pass-Through, H.323 Pass-Through, SIP Pass-Through, PPPoE relay |
| LAN | DHCP Server IGMP Snooping IPTV Manually Assign IP Address • Maximum Manually Assign IP Address Rule : 64 Wake on LAN (WOL) |
| Wireless | MU-MIMO UTF-8 SSID WiFi MAC Address Filter • Maximum MAC Filters : 64 Wireless Scheduler Airtime Fairness RADIUS Client Universal Beamforming Explicit Beamforming |
| USB application | 4G / 5G Auto Mobile Tethering File System : HFS+, NTFS, vFAT, ext2, ext3, ext4 Safely Remove Disk AiCloud Download Master AiDisk Media Server Time Machine Samba Server FTP Server Shared Folder Privileges |
| User Interface | WEB: ASUSWRT APP: ASUS Router APP |
| Administration | Configuration Backup and Restore Diagnosis tools Feedback System System Log New Device Connect Notification Login Captcha Connection Diagnosis Auto Firmware Update |
