Description

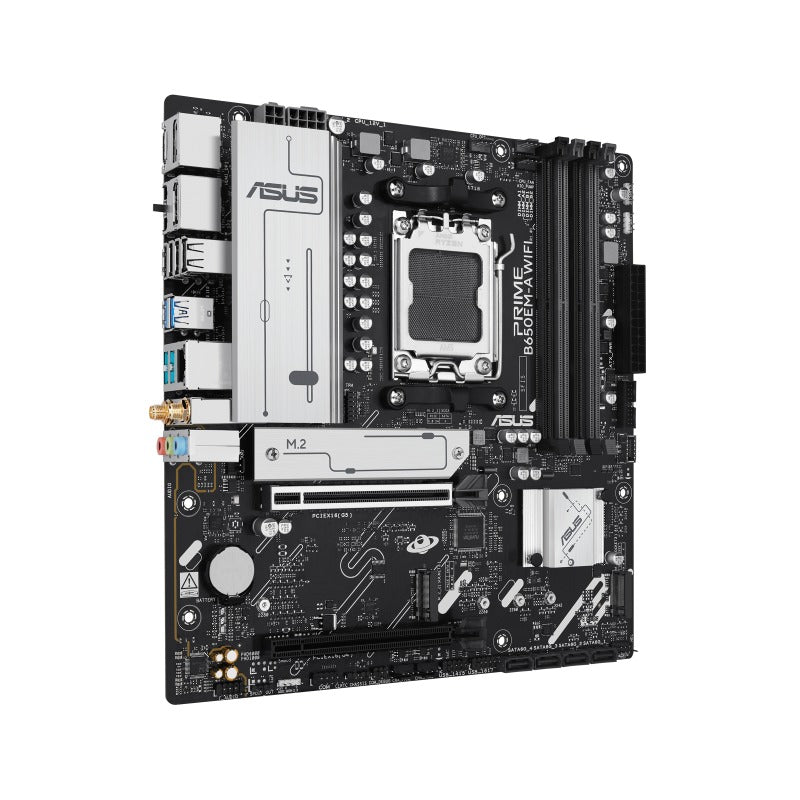

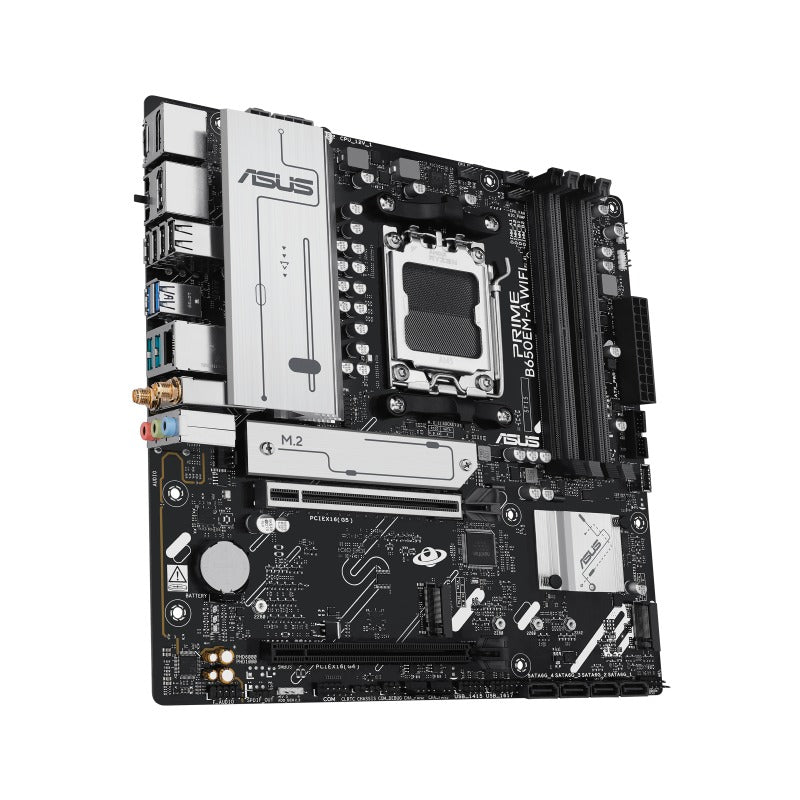

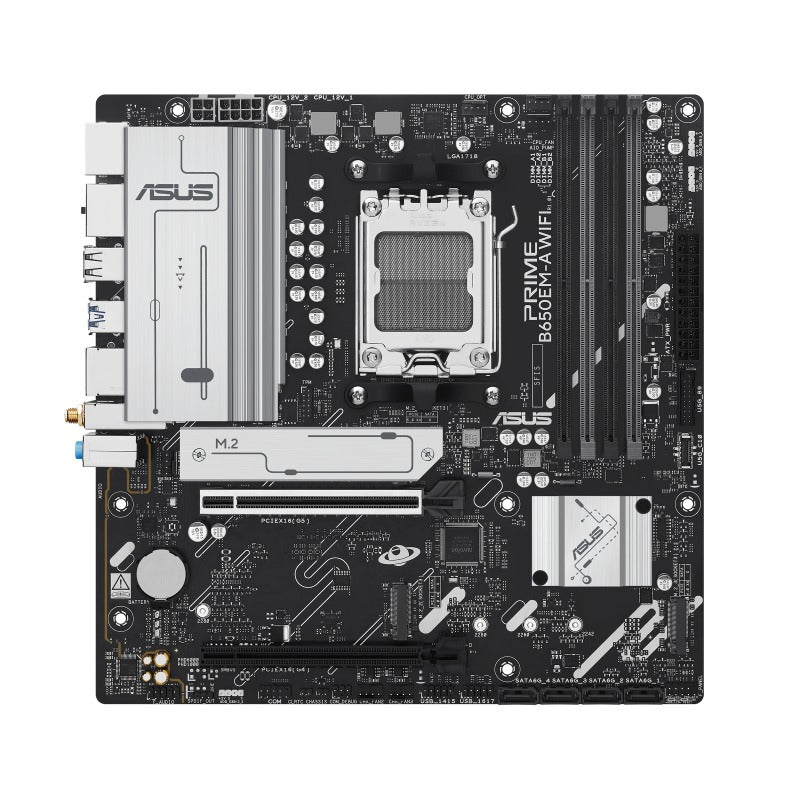

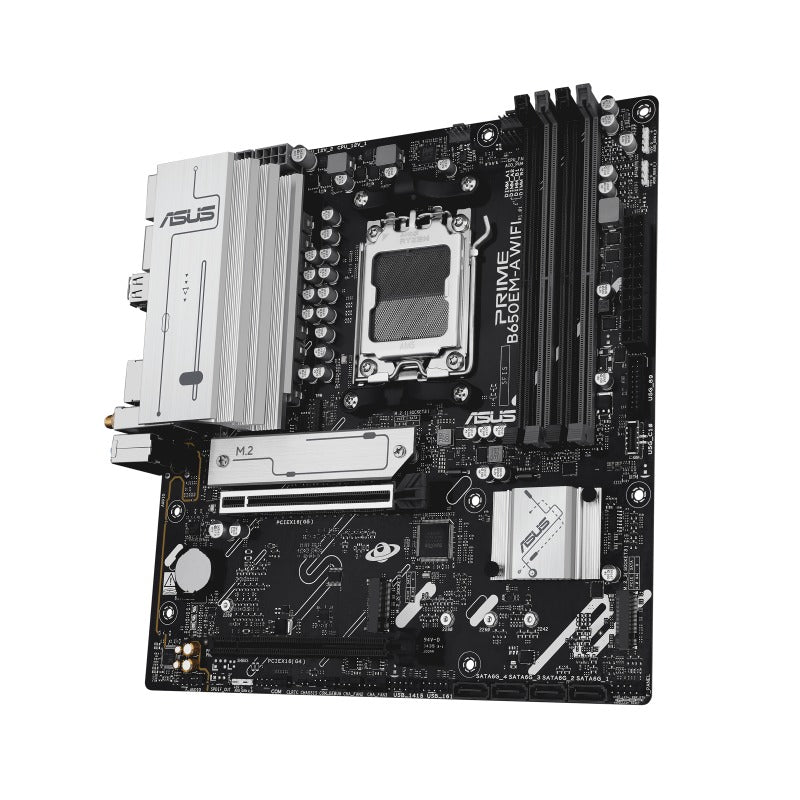

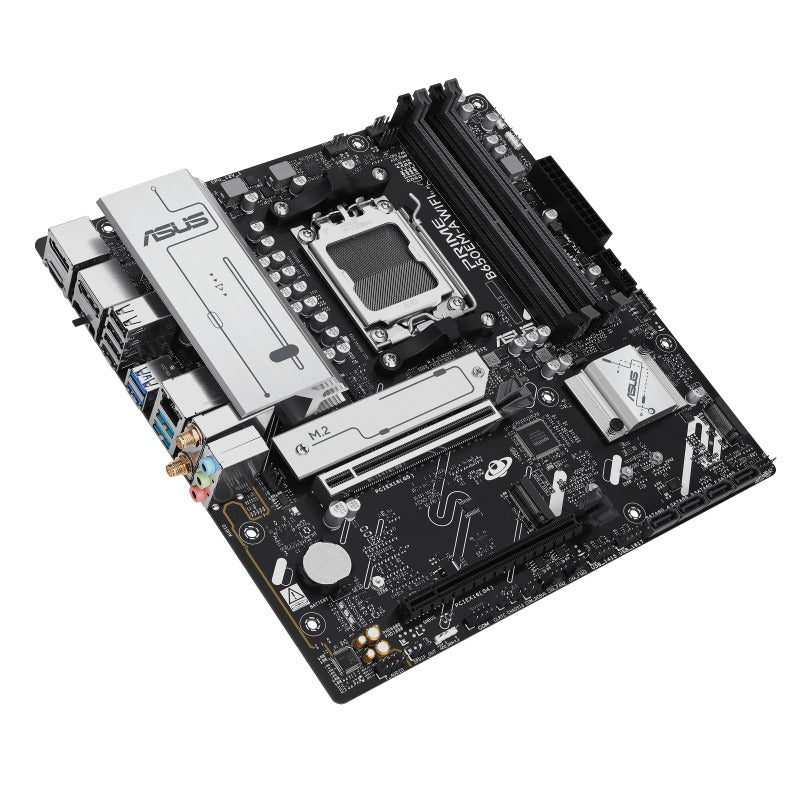

AMD B650 Micro-ATX motherboard, DDR5, PCIe 5.0 Ready, three M.2 slots, Wi-Fi 6, Realtek 2.5Gb Ethernet, 2 x DisplayPort, HDMI™, front USB 5Gbps Type-C® support, BIOS FlashBack™, Aura Sync
- Ready for Advanced AI PC: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications
- AM5 Socket for AMD Ryzen™ Desktop Processors
- Ultrafast Connectivity: Wi-Fi 6, PCIe 5.0 x16 slot, PCIe 5.0 M.2 slot, Realtek 2.5Gb Ethernet, rear USB 10Gbps Type-A ports, front USB 5Gbps Type-C® support
- Comprehensive Cooling: VRM and M.2 heatsinks, PCH heatsink, hybrid fan headers and Fan Xpert 2+
- Unmatched Personalization: Three Addressable RGB Gen 2 headers, all configurable with ASUS-exclusive Aura Sync RGB lighting
Specifications:
| Model | PRIME B650EM-A WIFI |
| News & Updates | |
| Please visit the ASUS GLOBAL website to check and download the latest updates. | |
| CPU | |
| AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors* * Refer to https://www.asus.com/support/download-center/ for CPU support list. |
|
| Chipset | AMD B650 Chipset |
| Memory | |
| 4 x DIMM slots, Max. 256GB DDR5 Supports up to 8000+MT/s (OC) ECC and Non-ECC Un-buffered DIMM* Dual channel memory architecture Supports AMD EXPO™ & ASUS AEMP * Non-ECC DDR5 supports On-Die ECC function. |
|
| Graphics | |
| 2 x DisplayPort (max. 8K@30Hz, DP 1.4) 1 x HDMI™ port (4K@60Hz, HDMI 2.1) |
|
| Expansion Slots | |
| Ryzen™ 9000 & 7000: 1 x PCIe 5.0 x16 (x16) Ryzen™ 8000: 1 x PCIe 4.0 x16 (x8/x4)** B650 Chipset: 1 x PCIe 4.0 x16 (x1) * See PCIe bifurcation table on support site. ** Specs vary by CPU. |
|
| Storage | |
| 3 x M.2 slots, 4 x SATA 6Gb/s ports Ryzen™ 9000 & 7000: - M.2_1 (PCIe 5.0 x4) - M.2_2 (PCIe 4.0 x4) Ryzen™ 8000: - M.2_1 (PCIe 4.0 x4) - M.2_2 (PCIe 4.0 x4/x2) B650 Chipset: - M.2_3 (PCIe 4.0 x4) - 4 x SATA 6Gb/s ports |
|
| RAID Support | |
| AMD RAIDXpert2 Ryzen™ 9000: RAID 0/1/5/10 Ryzen™ 8000: RAID 0/1 Ryzen™ 7000: RAID 0/1/10 |
|
| Ethernet | 1 x Realtek 2.5Gb Ethernet, ASUS LANGuard |
| Wireless & Bluetooth | |
| Wi-Fi 6 (802.11 a/b/g/n/ac/ax), 2.4/5GHz Bluetooth® v5.4* |
|
| USB | |
|
Rear (8 ports) - 2 x USB 10Gbps (Type-A) - 2 x USB 5Gbps (Type-A) - 4 x USB 2.0 (Type-A) Front (7 ports) - 1 x USB 5Gbps connector (USB Type-C®, 5V/3A PD) - 1 x USB 5Gbps header (2 ports) - 2 x USB 2.0 headers (4 ports) |
|
| Audio | |
| Realtek 7.1 Surround HD Audio CODEC* - Jack detection, Multi-streaming, Front Panel Jack-retasking - Up to 24-Bit/192 kHz playback Features: Audio Shielding, Premium capacitors, Dedicated PCB layers |
|
| Back Panel I/O | |
| 2 x USB 10Gbps (Type-A) 2 x USB 5Gbps (Type-A) 4 x USB 2.0 (Type-A) 2 x DisplayPort 1 x HDMI™ port 1 x Wi-Fi module 1 x Realtek 2.5Gb LAN 3 x Audio jacks 1 x BIOS FlashBack™ button |
|
| Internal I/O | |
| Cooling: 1 x CPU Fan, 1 x CPU OPT, 1 x AIO Pump, 3 x Chassis Fan Power: 1 x 24-pin ATX, 1 x 8-pin +12V, 1 x 4-pin +12V Storage: 3 x M.2, 4 x SATA USB: 1 x USB-C 5Gbps, 1 x USB 5Gbps header (2 ports), 2 x USB 2.0 headers (4 ports) Misc: 3 x ARGB Gen 2, Clear CMOS, Chassis Intrusion, COM, Front Audio, S/PDIF Out, SPI TPM (14-1 pin), Front Panel header |
|
| Special Features | |
| ASUS 5X Protection III: DIGI+ VRM, LANGuard, Overvoltage, SafeSlot, Stainless-steel I/O ASUS Q-Design: Q-DIMM, Q-LED Core, Q-Slot ASUS Thermal: M.2 & VRM heatsinks ASUS EZ DIY: BIOS FlashBack™ button & LED Aura Sync: ARGB Gen 2 headers |
|
| Software Features | |
| Armoury Crate: Aura Creator, Aura Sync, Fan Xpert 2+, Two-Way AI Noise Cancelation AI Suite 3: TurboV EVO, DIGI+ VRM, PC Cleaner ASUS DriverHub, CPU-Z Adobe Creative Cloud (Trial) Norton 360 Deluxe (60-day Trial) WinRAR (40-day Trial) |
|
| UEFI BIOS | |
| ASUS CrashFree BIOS 3, ASUS EZ Flash 3, UEFI BIOS EZ Mode | |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |
| Accessories | |

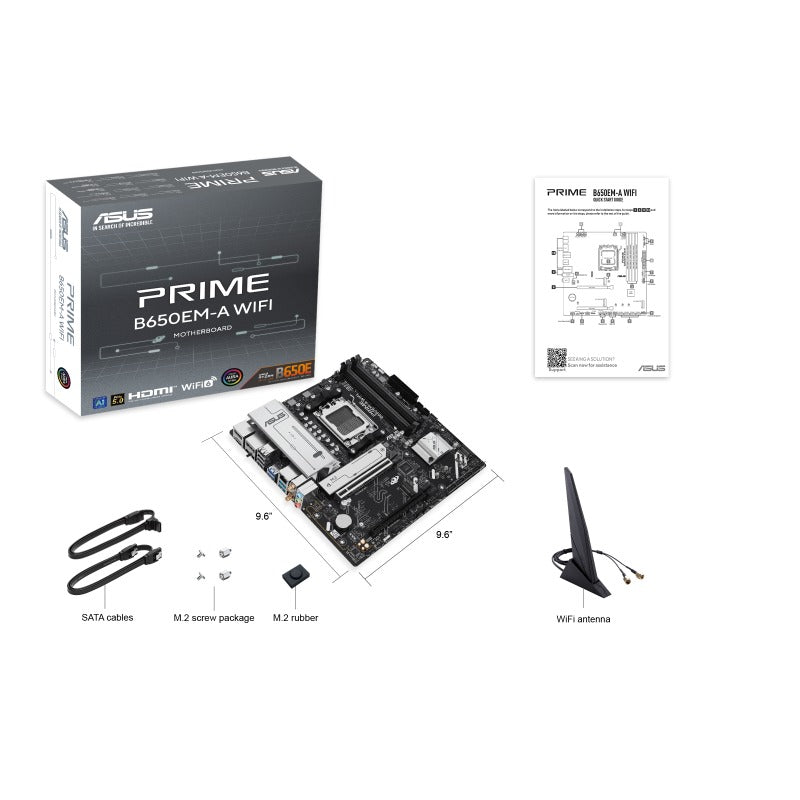

| Cables: 2 x SATA Misc: 1 x Wi-Fi antenna, 1 x I/O Shield, 1 x M.2 rubber package, 1 x M.2 screw package Docs: Quick start guide |
|
| Operating System | Windows® 11, Windows® 10 64-bit |
| Form Factor | mATX, 9.6" x 9.6" (24.4 cm x 24.4 cm) |
