Description

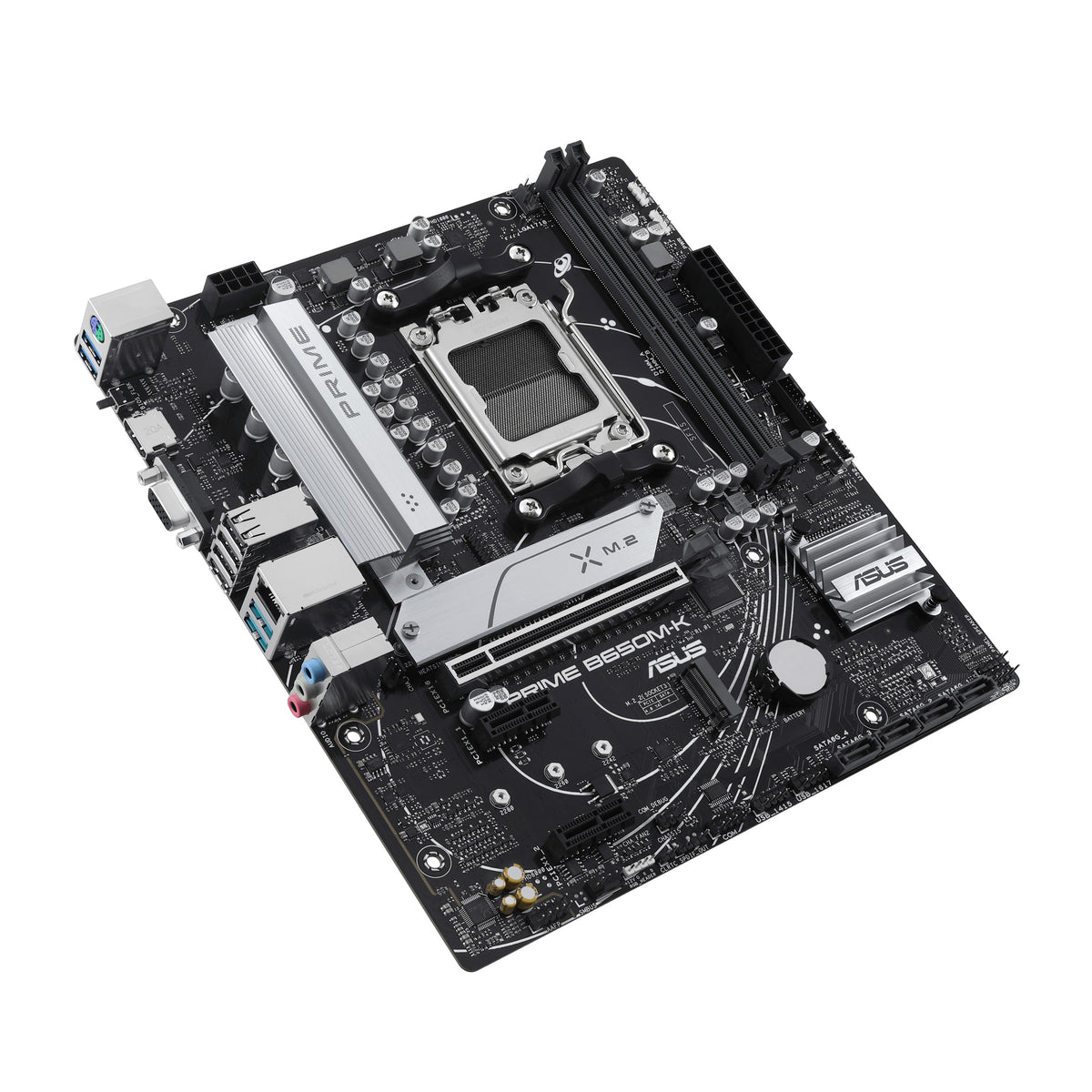

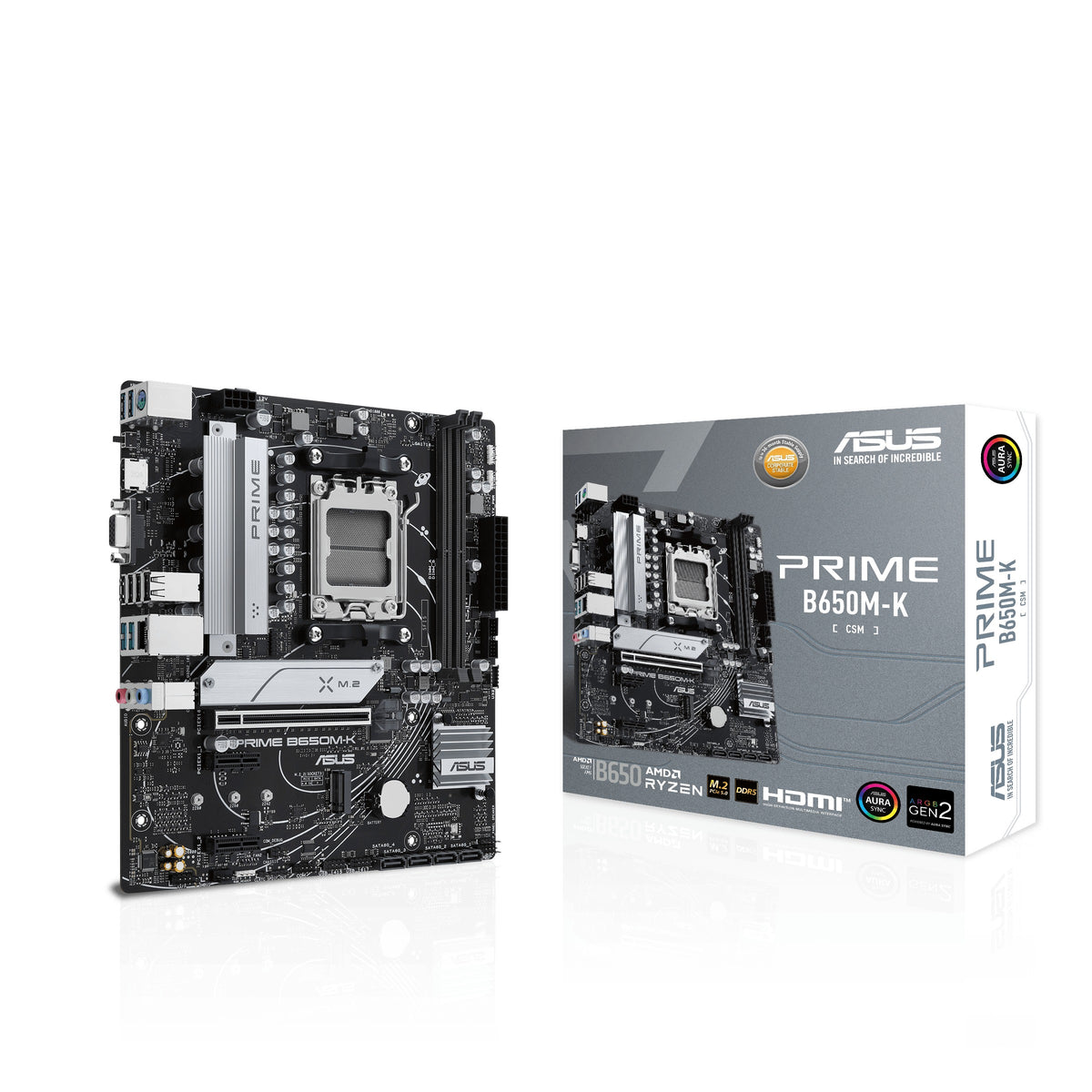

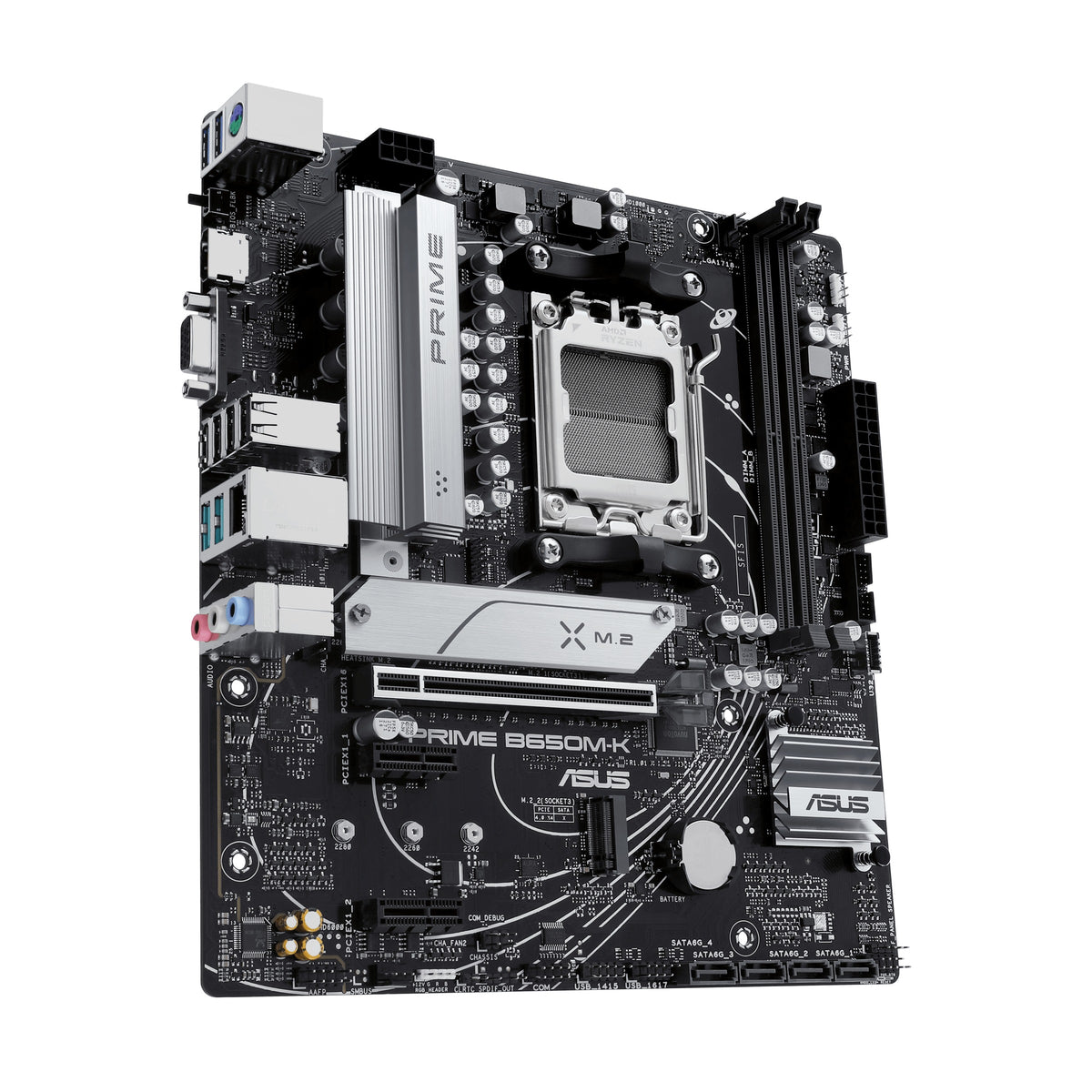

AMD B650 Micro-ATX motherboard with DDR5, PCIe 5.0 M.2, 2.5Gb Ethernet, HDMI™, VGA, rear USB 3.2 Gen 2, front USB 3.2 Gen 1 Type-C®, BIOS FlashBack™, Aura Sync
- Ready for Advanced AI PC: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications
- AM5 Socket for AMD Ryzen™ Desktop Processors
- Ultrafast Connectivity: M.2 PCIe 5.0, Realtek 2.5Gb Ethernet, USB 3.2 Gen 2 ports, front USB 3.2 Gen 1 Type-C®
- ASUS OptiMem II: Careful routing of traces and vias, plus ground layer optimizations to preserve signal integrity for improved memory overclocking
- Comprehensive Cooling: VRM heatsink, M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+
- Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardware
Specifications:
| Model | PRIME B650M-K |
| CPU Support | AMD Socket AM5 for Ryzen™ 9000/8000/7000 Series |
| Chipset | AMD B650 |
| Memory | 2 x DIMM, Max. 96GB, DDR5 Supported speeds: 8000+(OC) to 4800 Dual Channel, ECC & Non-ECC, Un-buffered AMD EXPO™, OptiMem II |
| Graphics Outputs | 1 x VGA, 1 x HDMI (4K@60Hz) |
| Expansion Slots | 1 x PCIe 4.0 x16 2 x PCIe 4.0 x1 * Depends on CPU generation |
| Storage | 2 x M.2 slots - M.2_1: PCIe 5.0 or 4.0 x4 (CPU dependent) - M.2_2: PCIe 4.0 x4/x2 4 x SATA 6Gb/s ports Supports RAID 0/1/10 |
| Ethernet | Realtek 2.5Gb Ethernet |
| Rear USB Ports | 2 x USB 3.2 Gen 2 Type-A 2 x USB 3.2 Gen 1 Type-A 4 x USB 2.0 Type-A |
| Front USB Support | 1 x USB 3.2 Gen 1 Type-C 1 x USB 3.2 Gen 1 header (2 ports) 2 x USB 2.0 headers (4 ports) |
| Audio | Realtek 7.1 HD Audio CODEC 24-bit/192kHz playback Audio shielding, premium capacitors, dedicated layers |

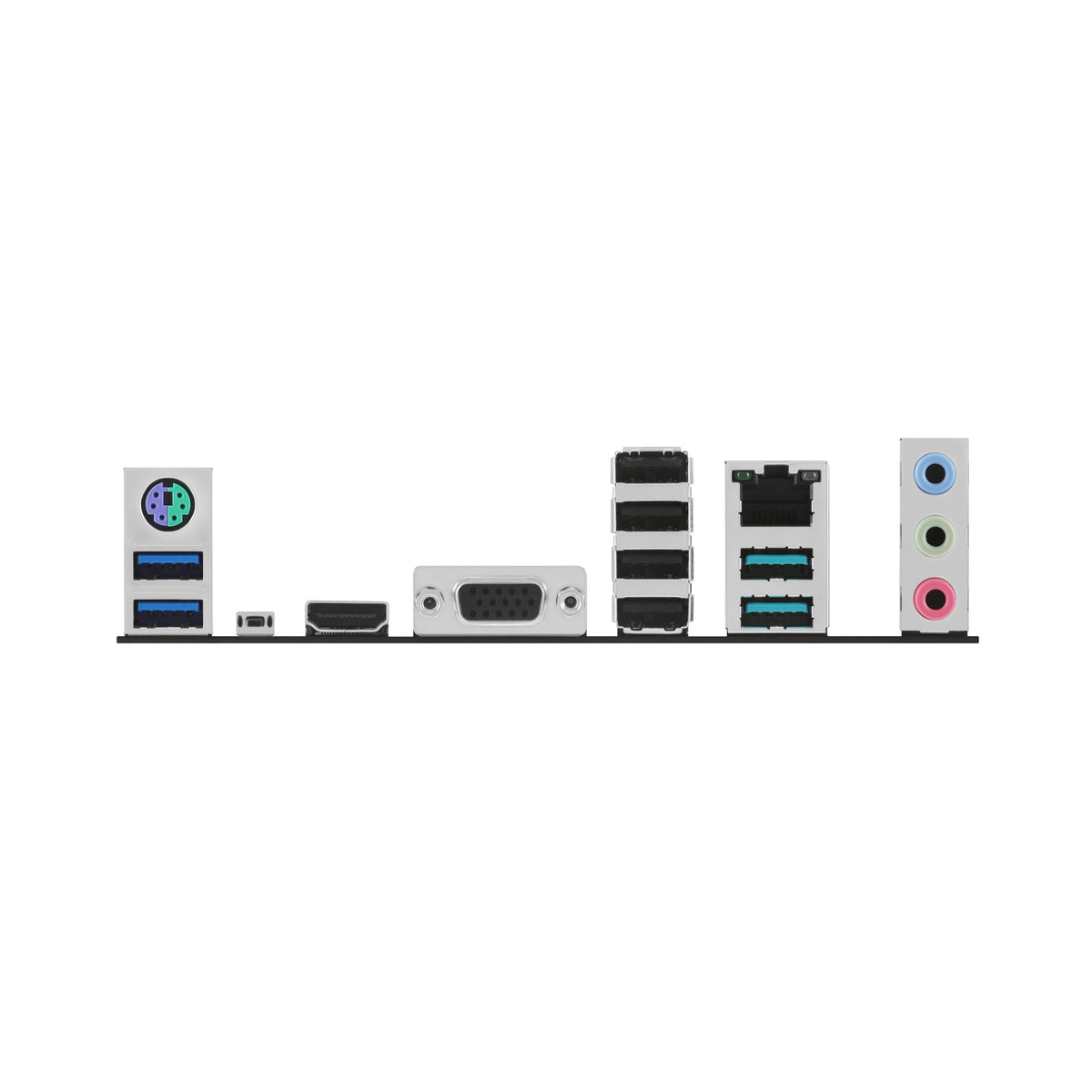

| Back Panel I/O | USB: 2 x USB 3.2 Gen 2, 2 x USB 3.2 Gen 1, 4 x USB 2.0 1 x VGA, 1 x HDMI 1 x 2.5Gb LAN 3 x Audio jacks 1 x BIOS FlashBack™ button 1 x PS/2 combo port |
| Cooling & Power Headers | 1 x 4-pin CPU Fan 2 x 4-pin Chassis Fan 1 x 24-pin Main, 1 x 8-pin +12V |
| Internal Headers | 2 x Addressable Gen 2 RGB, 1 x Aura RGB Clear CMOS, COM, S/PDIF Out, TPM, Front Audio System panel, Speaker |
| Special Features | ASUS 5X Protection III, Q-DIMM, Q-LED Core, Q-Slot M.2 & VRM Heatsinks BIOS FlashBack™, Aura Sync |
| Software | Armoury Crate, AI Suite 3, ASUS CPU-Z, Fan Xpert 2+, TurboV EVO Norton 360 (60-day), WinRAR |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| OS Support | Windows 11 / 10 64-bit |
| Form Factor | micro-ATX (24.4 cm x 22.1 cm) |

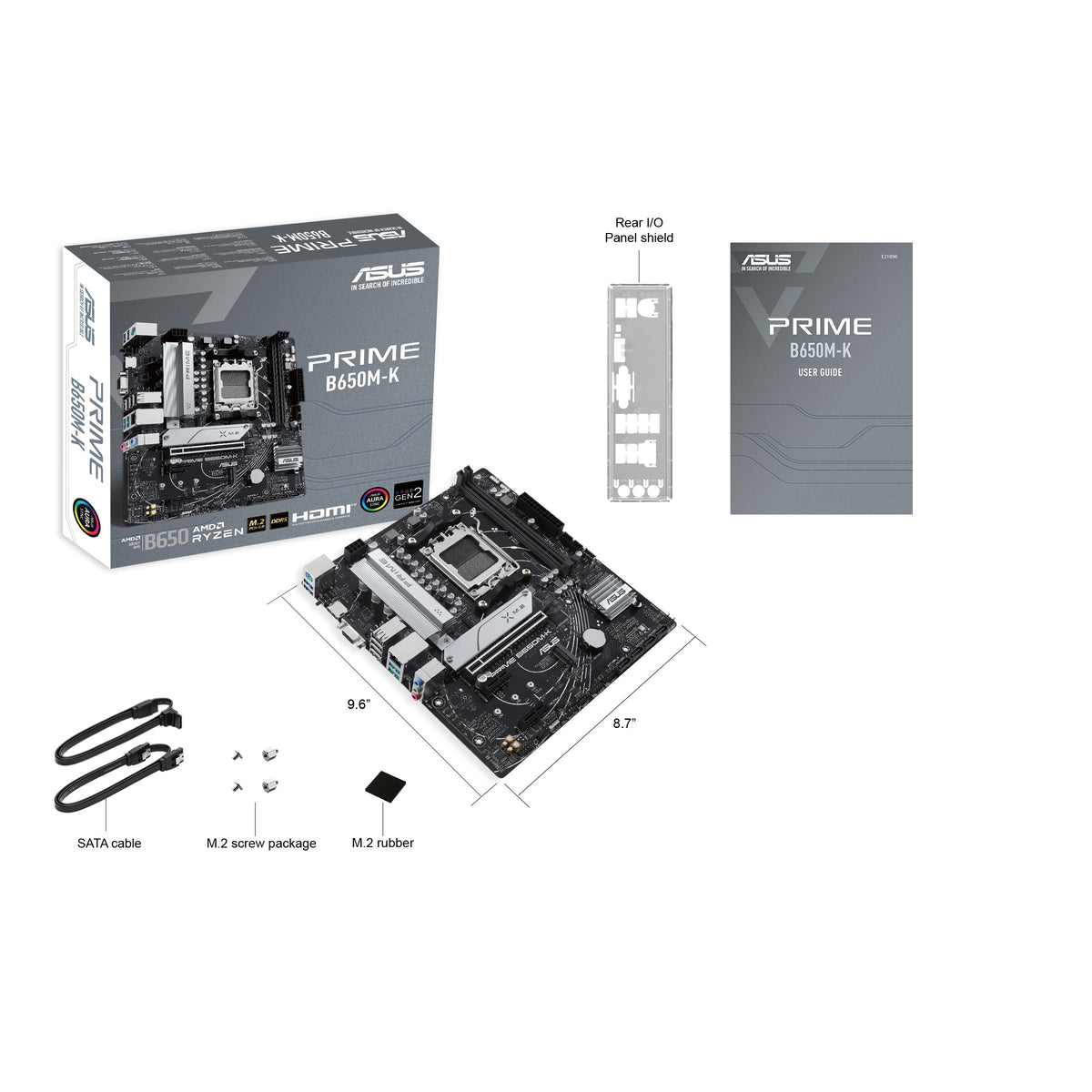

| Accessories | 2 x SATA 6Gb/s cables 1 x I/O Shield, M.2 rubber & screw packages 1 x User Guide |
