Description
- Intel® LGA 1700 Socket: Ready for 13th and 12th Gen Intel® processors
- Ultrafast Connectivity: PCIe 4.0, two PCIe 4.0 M.2 slots, Realtek 2.5Gb Ethernet and front USB 3.2 Gen 1 support
- Comprehensive Cooling: VRM heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+
- Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardware
SPECIFICATION

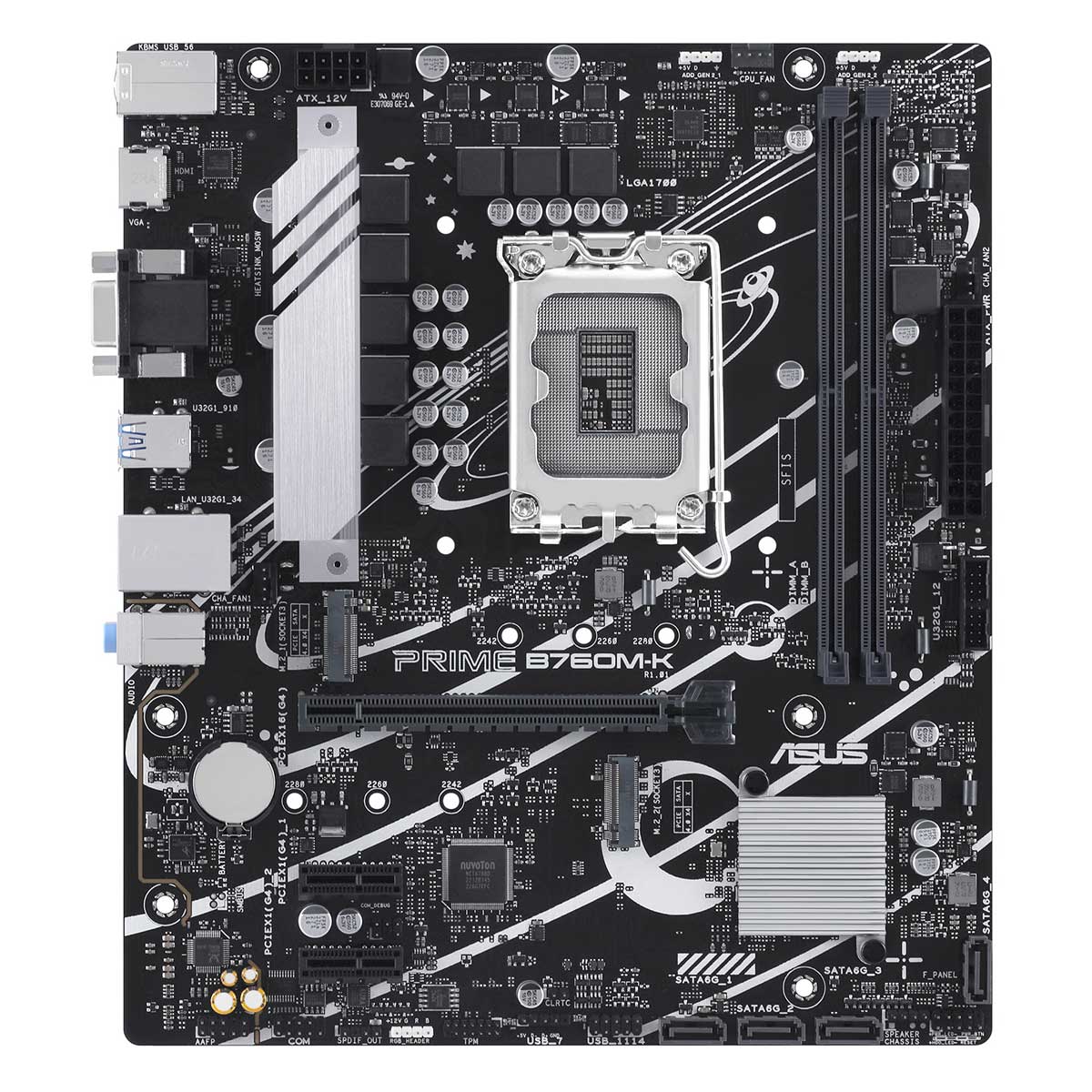

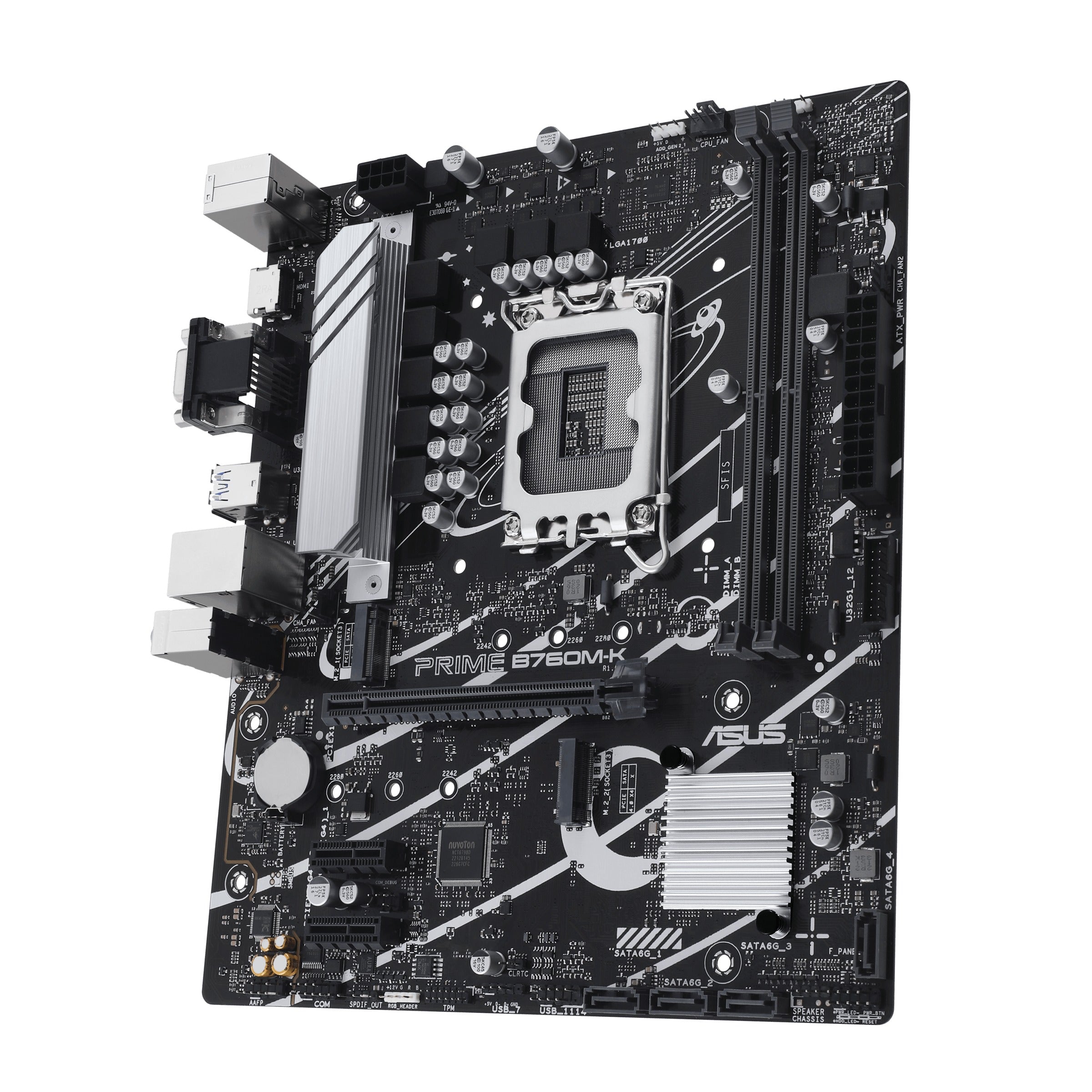

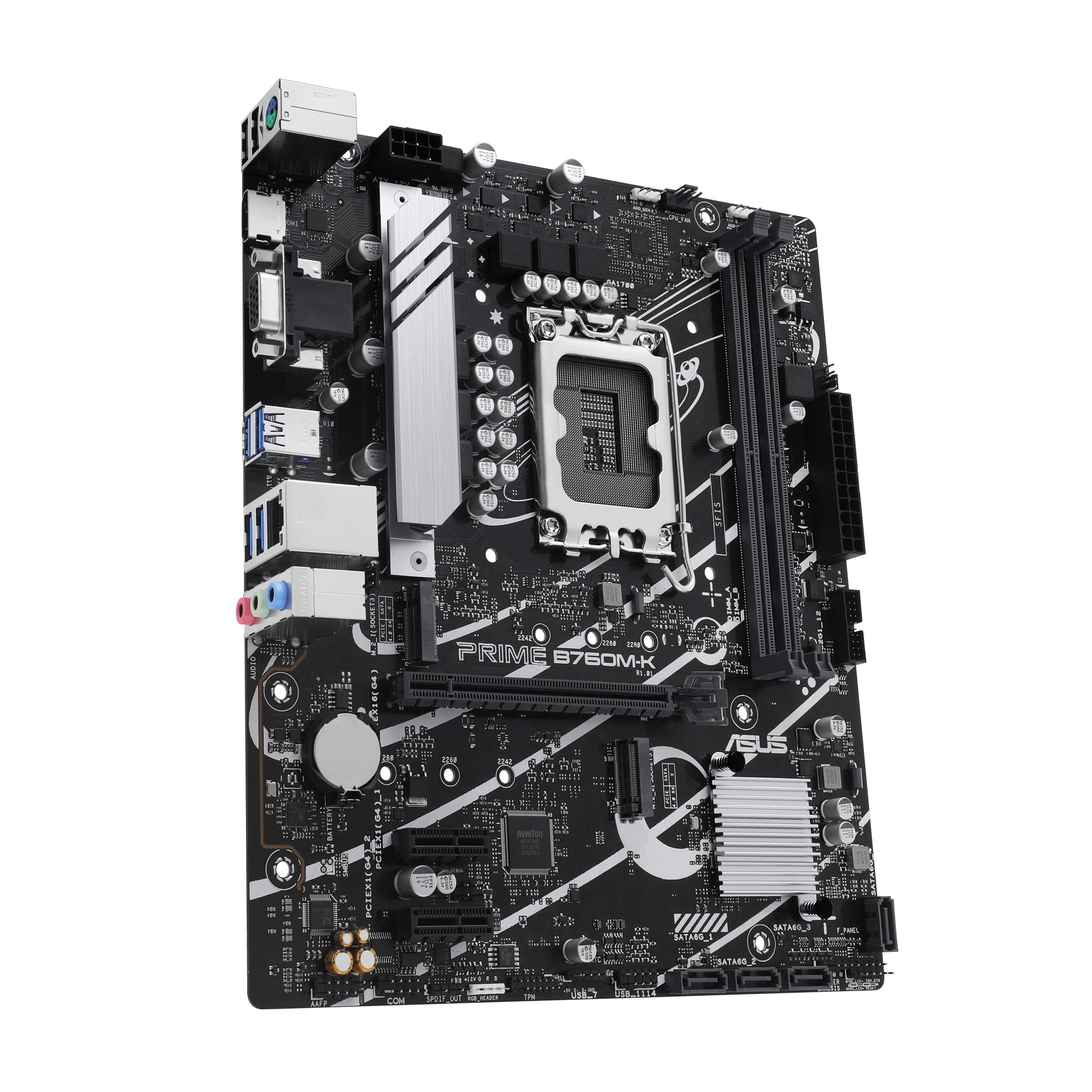

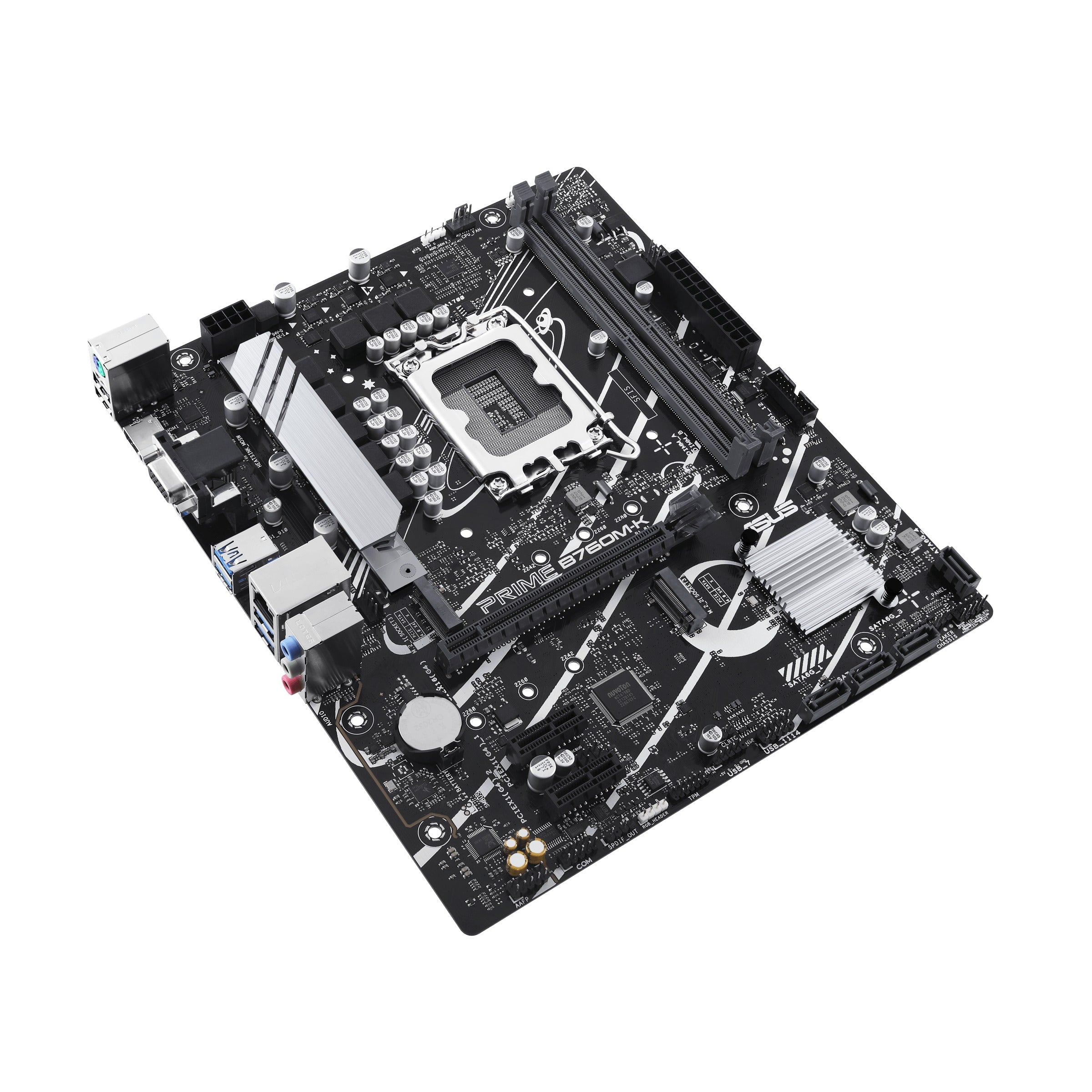

| Model | PRIME B760M-K |
| CPU | Intel® Socket LGA1700 for 13th Gen Intel® Core™ & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors* |
| Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0 | |
| Chipset | Intel B760 Chipset |
| Memory | 2 x DIMM slots, Max. 96GB, DDR5 8000(OC)/7800(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory* |
| Dual Channel Memory Architecture | |
| Supports Intel Extreme Memory Profile (XMP) | |
| Graphics | 1 x VGA port |
| 1 x HDMI port | |
| Expansion Slots | Intel 13th & 12th Gen Processors |
| 1 x PCIe 4.0 x16 slot | |
| Intel B760 Chipset | |
| 2 x PCIe 4.0 x1 slots | |
| Storage | Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports* |
| Intel 13th & 12th Gen Processors | |
| M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) | |
| Intel B760 Chipset | |
| M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) | |
| 4 x SATA 6Gb/s ports | |
| * Intel Rapid Storage Technology supports SATA RAID 0/1/5/10. | |
| Ethernet | 1 x Realtek 2.5Gb Ethernet |
| USB | Rear USB (Total 6 ports) |
| 4 x USB 3.2 Gen 1 (5G) ports (4 x Type-A) | |
| 2 x USB 2.0 ports (2 x Type-A） | |
| Front USB (Total 5 ports) | |
| 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports | |
| 2 x USB 2.0 headers support 3 additional USB 2.0 ports | |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC* |
| - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking | |
| - Supports up to 24-Bit/192 kHz playback | |
| Audio Features | |
| - Audio Shielding | |
| - Premium audio capacitors | |
| - Dedicated audio PCB layers | |
| * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. | |

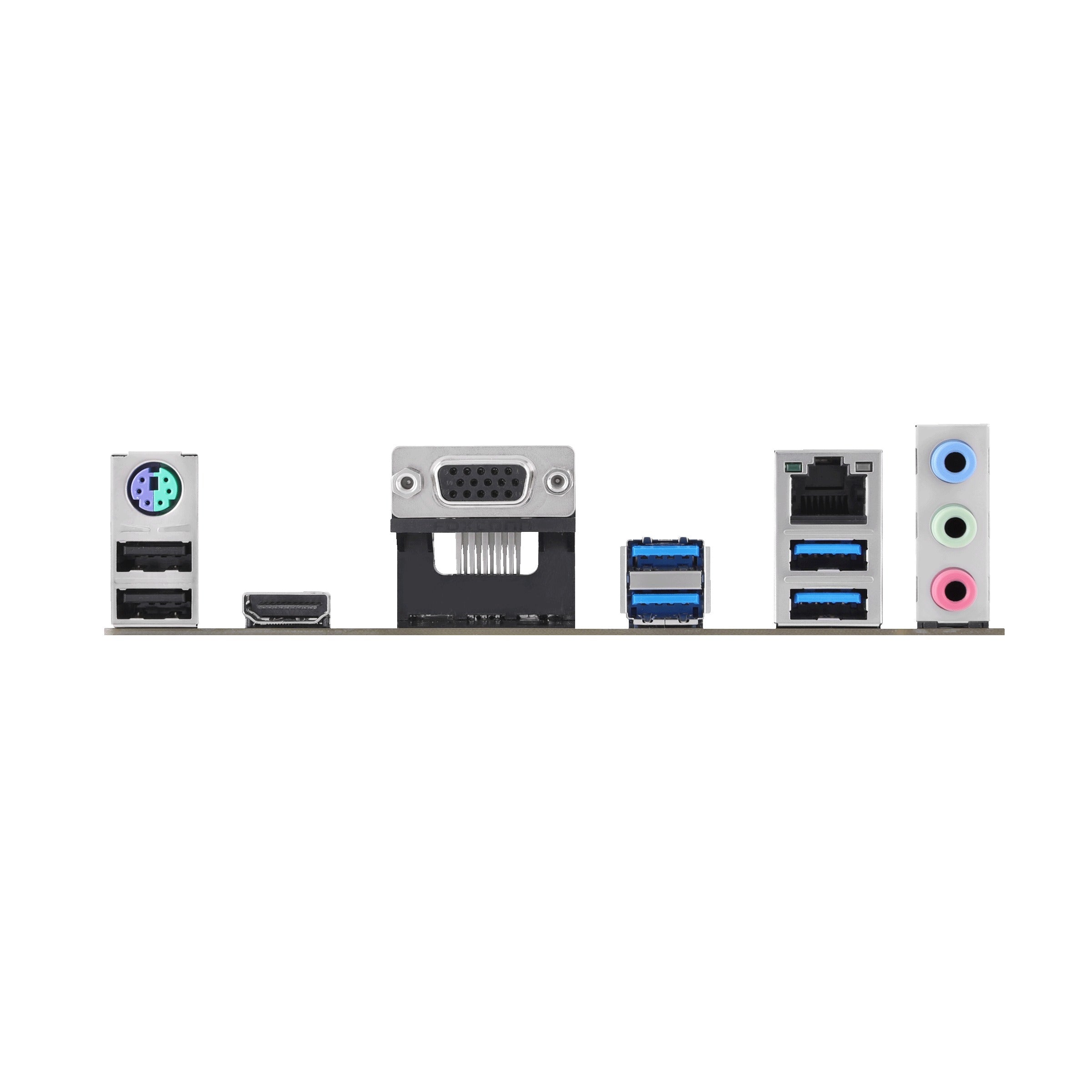

| Back Panel I/O Ports | 4 x USB 3.2 Gen 1 (5G) ports (4 x Type-A) |
| 2 x USB 2.0 ports (2 x Type-A) | |
| 1 x VGA port | |
| 1 x HDMI port | |
| 1 x Realtek 2.5Gb Ethernet port | |
| 3 x Audio jacks | |
| 1 x PS/2 Keyboard/Mouse combo port | |
| Internal I/O Connectors | Fan and Cooling related |
| 1 x 4-pin CPU Fan header | |
| 2 x 4-pin Chassis Fan headers | |
| Power related | |
| 1 x 24-pin Main Power connector | |
| 1 x 8-pin +12V Power connector | |
| Storage related | |
| 2 x M.2 slots (Key M) | |
| 4 x SATA 6Gb/s ports | |
| USB | |
| 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports | |
| 2 x USB 2.0 headers support 3 additional USB 2.0 ports | |
| Miscellaneous | |
| 2 x Addressable Gen 2 headers | |
| 1 x Aura RGB header | |
| 1 x Clear CMOS header | |
| 1 x COM Port header | |
| 1 x Front Panel Audio header (AAFP) | |
| 1 x S/PDIF Out header | |
| 1 x Speaker header | |
| 1 x SPI TPM header (14-1pin) | |
| 1 x 10-1 pin System Panel header | |
| Special Features | ASUS 5X PROTECTION III |
| - DIGI+ VRM | |
| - LANGuard | |
| - Overvoltage Protection | |
| - SafeSlot Core | |
| - Stainless-Steel Back I/O | |
| ASUS Q-Design | |
| - Q-DIMM | |
| - Q-LED Core | |
| - Q-Slot | |
| ASUS EZ DIY | |
| - ProCool | |
| ASUS Thermal Solution | |
| - VRM heatsink design | |
| Aura Sync | |
| - Aura RGB header | |
| - Addressable Gen 2 headers | |
| Software Features | ASUS Exclusive Software |
| Armoury Crate | |
| - Aura Sync | |
| - Fan Xpert 2+ | |
| - Power Saving | |
| - Two-Way AI Noise Cancellation | |
| AI Suite 3 | |
| - DIGI+ VRM | |
| - PC Cleaner | |
| ASUS CPU-Z | |
| Norton 360 Deluxe (60 Days Free Trial) | |
| WinRAR | |
| UEFI BIOS | |
| ASUS EZ DIY | |
| - ASUS CrashFree BIOS 3 | |
| - ASUS EZ Flash 3 | |
| - ASUS UEFI BIOS EZ Mode | |

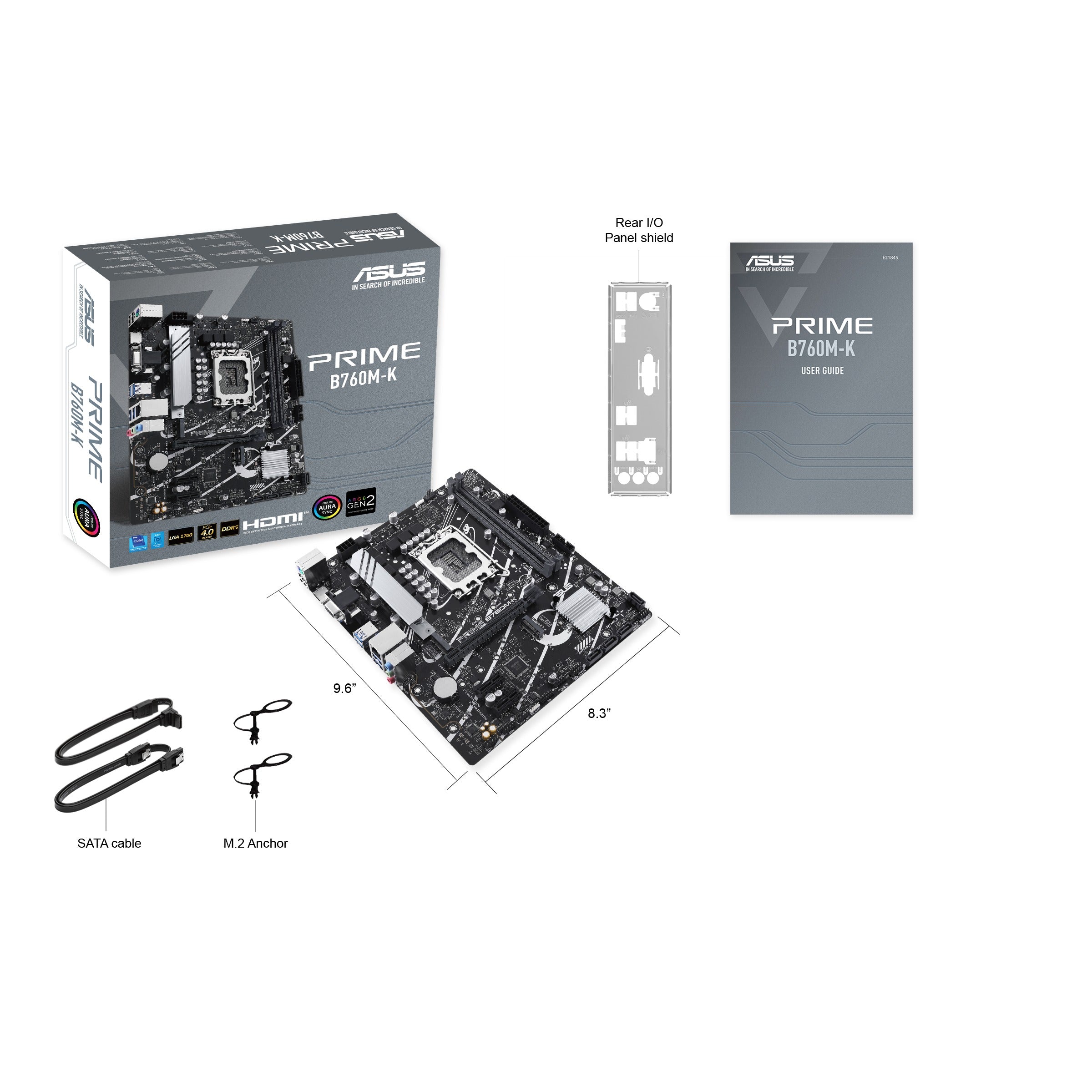

| BIOS | Cables |
| 2 x SATA 6Gb/s cables | |
| Miscellaneous | |

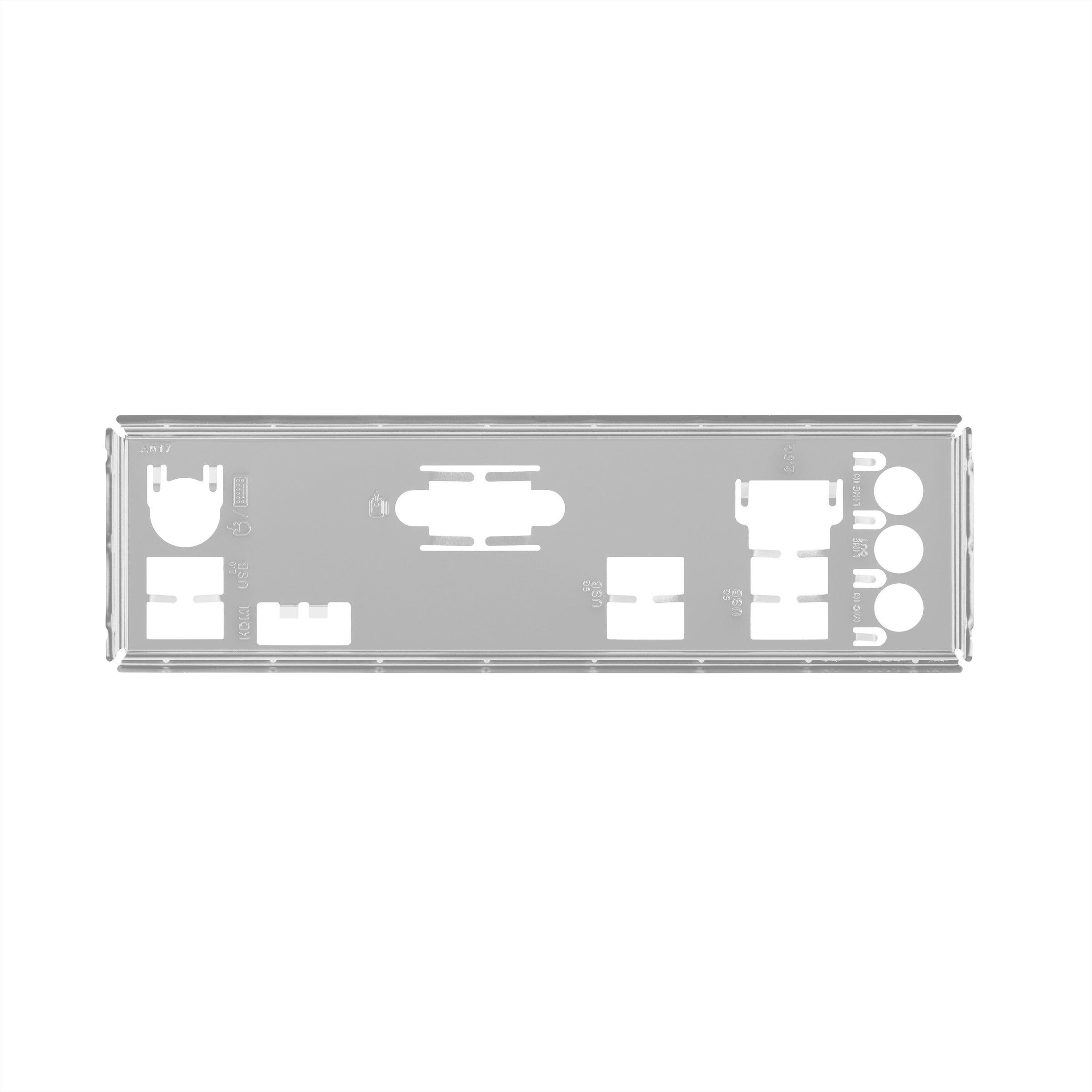

| 1 x I/O Shield | |
| 2 x M.2 anchors | |
| Documentation | |
| 1 x User guide | |
| Operating System | Windows 11, Windows 10 64-bit |
| Form Factor | mATX Form Factor |
| 9.6 inch x 8.3 inch (24.4cm x 21.1cm) |
