Description

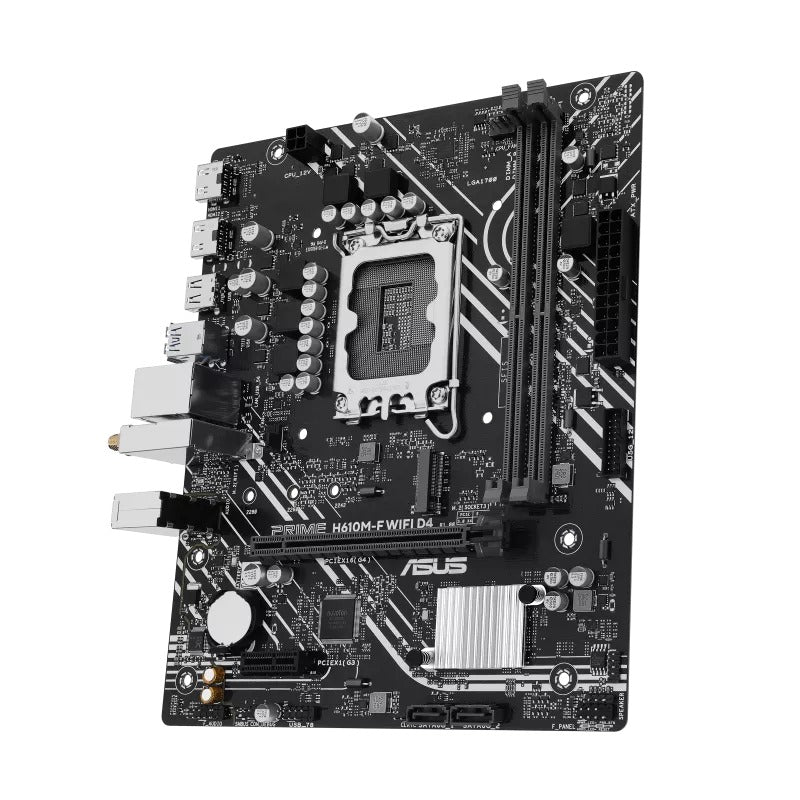

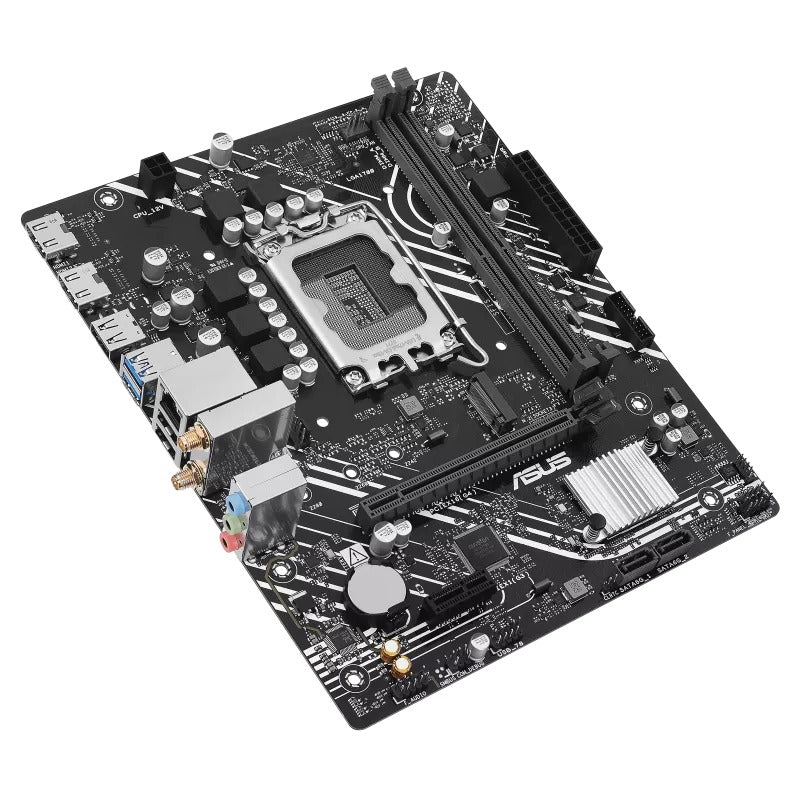

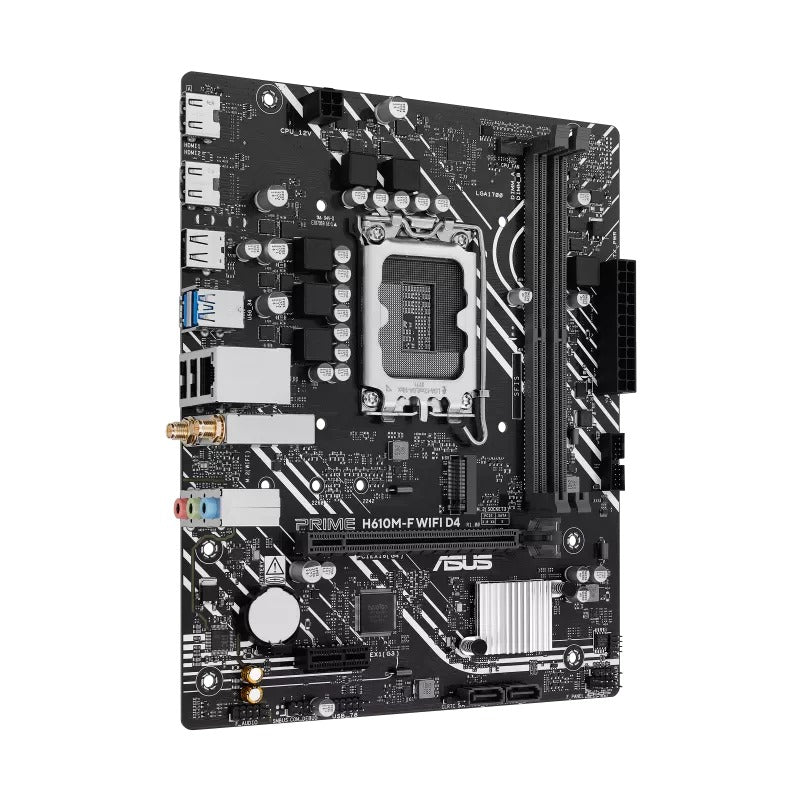

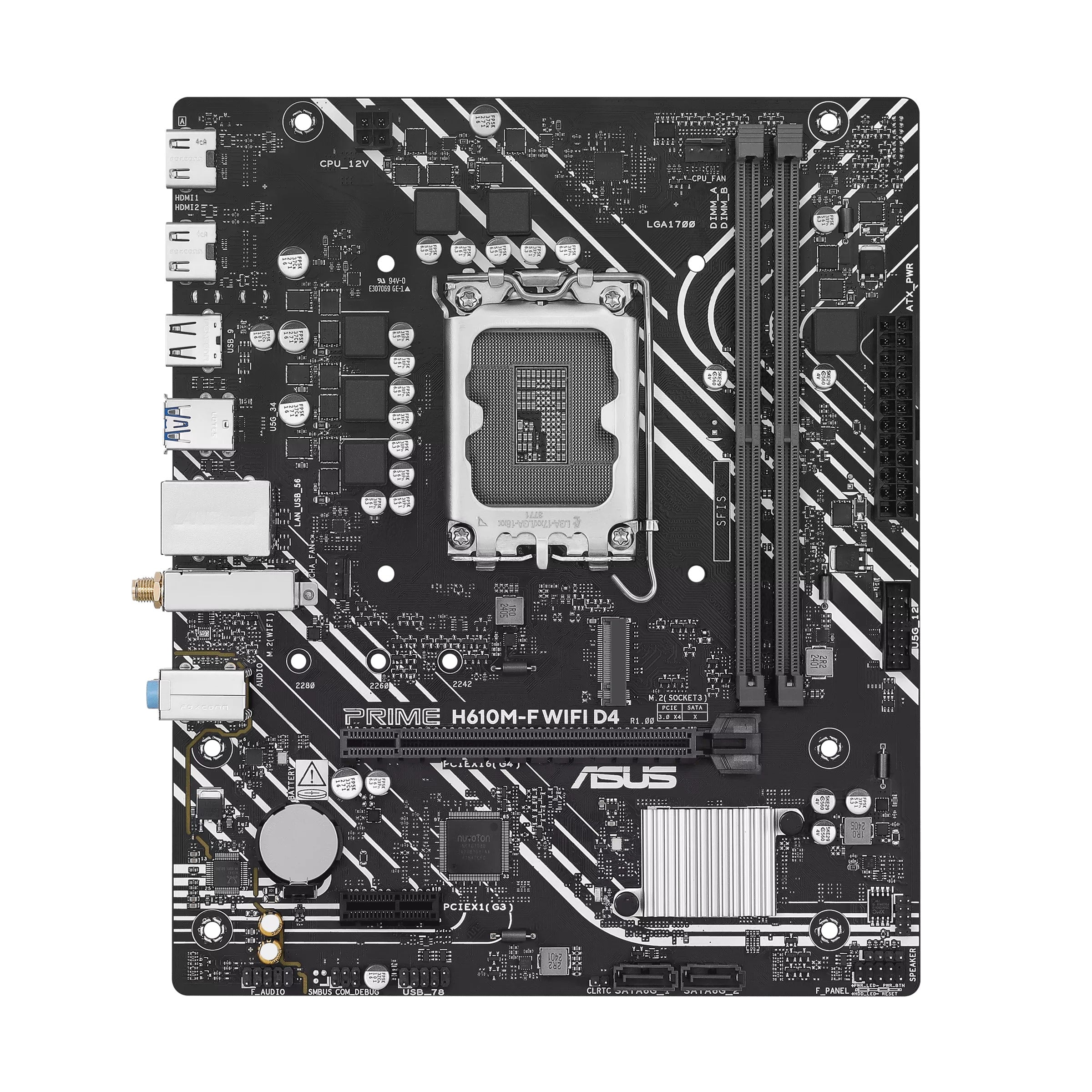

ASUS PRIME H610M-F WIFI D4, an Intel® H610 LGA 1700 micro-ATX motherboard with PCIe 4.0, DDR4, WiFi 6, Realtek 1Gb Ethernet, 2 x HDMI™, M.2 slot, SATA 6 Gbps, USB 5Gbps ports
- Intel® LGA 1700 Socket: Ready for 14th, 13th and 12th Gen Intel® processors
- Ultrafast Connectivity: 32Gbps M.2 slot, Realtek 1Gb Ethernet and USB 5Gbps support
- Comprehensive Cooling: PCH heatsink
- 5X Protection III: Multiple hardware safeguards for all-round protection
Specifications:
| Model | PRIME H610M-F WIFI D4 |
| News & Updates | |
| Please visit the ASUS GLOBAL website to check and download the latest updates. | |
| CPU | |
| Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors* Supports up to Intel® 65W CPU Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** * Refer to https://www.asus.com/support/download-center/ for CPU support list. ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types. |
|
| Chipset | Intel® H610 Chipset |
| Memory | |
| 2 x DIMM slots, Max. 64GB, DDR4 3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory* Dual channel memory architecture Supports Intel® Extreme Memory Profile (XMP) * Supported memory types, speeds, and module count vary depending on CPU. See support list. |
|
| Graphics | |
| 2 x HDMI™ ports** * Specs vary by CPU. See Intel website. ** Supports 4K@30Hz (HDMI 1.4). |
|
| Expansion Slots | |
| Intel® Core™ CPUs (14th/13th/12th Gen): 1 x PCIe 4.0 x16 slot Intel® H610 Chipset: 1 x PCIe 3.0 x1 slot |
|
| Storage | |
| 1 x M.2 slot (Key M, 2242/2260/2280, PCIe 3.0 x4) 2 x SATA 6Gb/s ports |
|
| Ethernet | 1 x Realtek 1Gb Ethernet |
| Wireless & Bluetooth | |

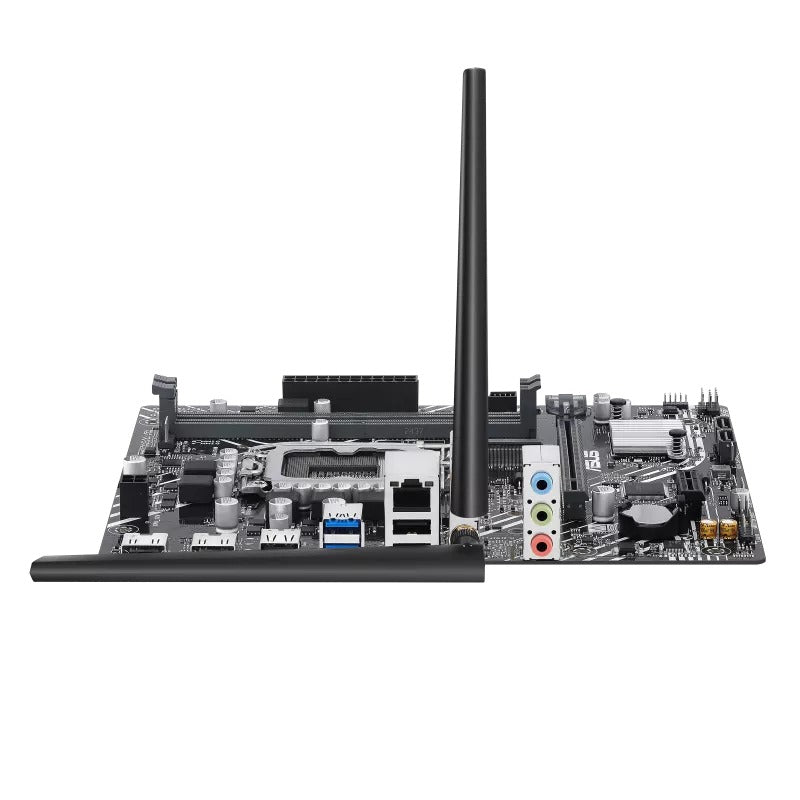

| Wi-Fi 6 (802.11 a/b/g/n/ac/ax), 2.4/5GHz Bluetooth® v5.3* |
|
| USB | |
|
Rear (5 ports) - 2 x USB 5Gbps (Type-A) - 3 x USB 2.0 (Type-A) Front (4 ports) - 1 x USB 5Gbps header (2 ports) - 1 x USB 2.0 header (2 ports) |
|
| Audio | |
| Realtek 7.1 Surround Sound HD Audio CODEC* - Jack detection, Multi-streaming, Front Panel Jack-retasking - Up to 24-Bit/192 kHz playback Features: Audio Shielding, Premium capacitors, Dedicated PCB layers |
|
| Back Panel I/O | |

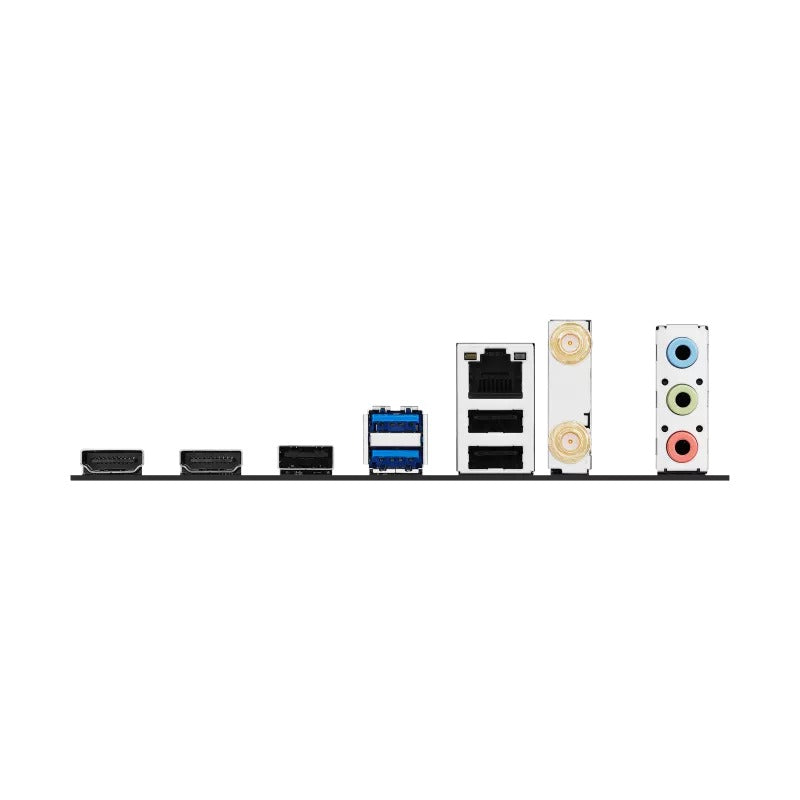

| 2 x USB 5Gbps (Type-A) 3 x USB 2.0 (Type-A) 2 x HDMI™ ports 1 x Wi-Fi module 1 x Realtek 1Gb LAN 3 x Audio jacks |
|
| Internal I/O Connectors | |
|
Cooling: 1 x 4-pin CPU fan, 1 x 4-pin Chassis fan Power: 1 x 24-pin ATX, 1 x 4-pin +12V Storage: 1 x M.2, 2 x SATA 6Gb/s USB: 1 x USB 5Gbps header (2 ports), 1 x USB 2.0 header (2 ports) Misc: Clear CMOS, Front Audio, Speaker, 10-1 pin Front Panel |
|
| Special Features | |
| ASUS 5X Protection III: DIGI+ VRM, LANGuard, Overvoltage protection, SafeSlot Core, Stainless-steel I/O ASUS Q-Design: Q-DIMM, Q-Slot, Q-LED Core ASUS Thermal: Aluminum heatsink design |
|
| Software Features | |
| Armoury Crate (Power Saving), DriverHub, CPU-Z Norton 360 Deluxe (60-day trial) WinRAR (40-day trial) |
|
| UEFI BIOS | |
| ASUS CrashFree BIOS 3, ASUS EZ Flash, ASUS EZ Mode | |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |
| Accessories | |

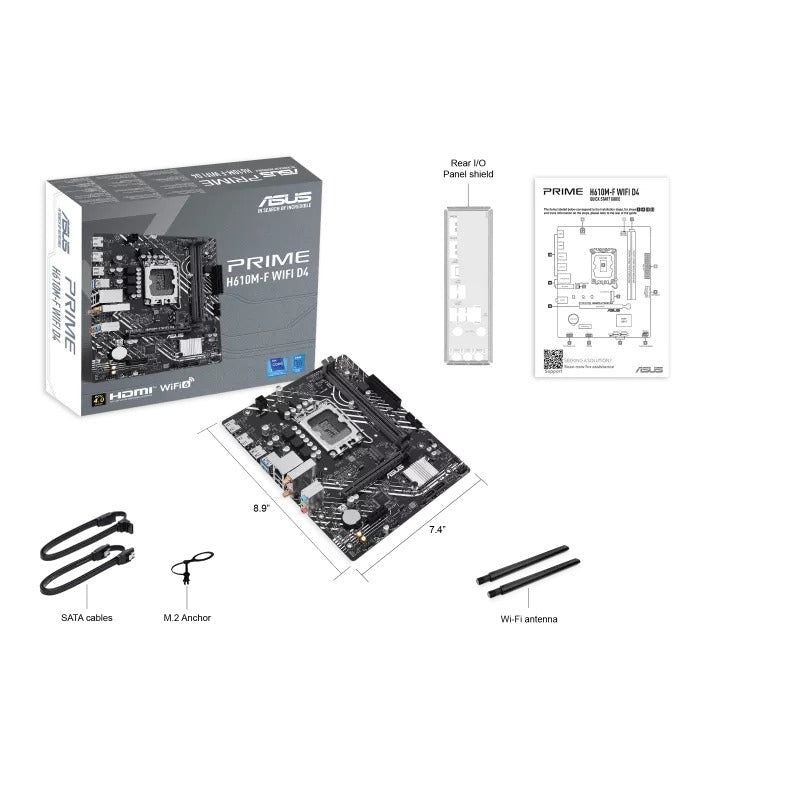

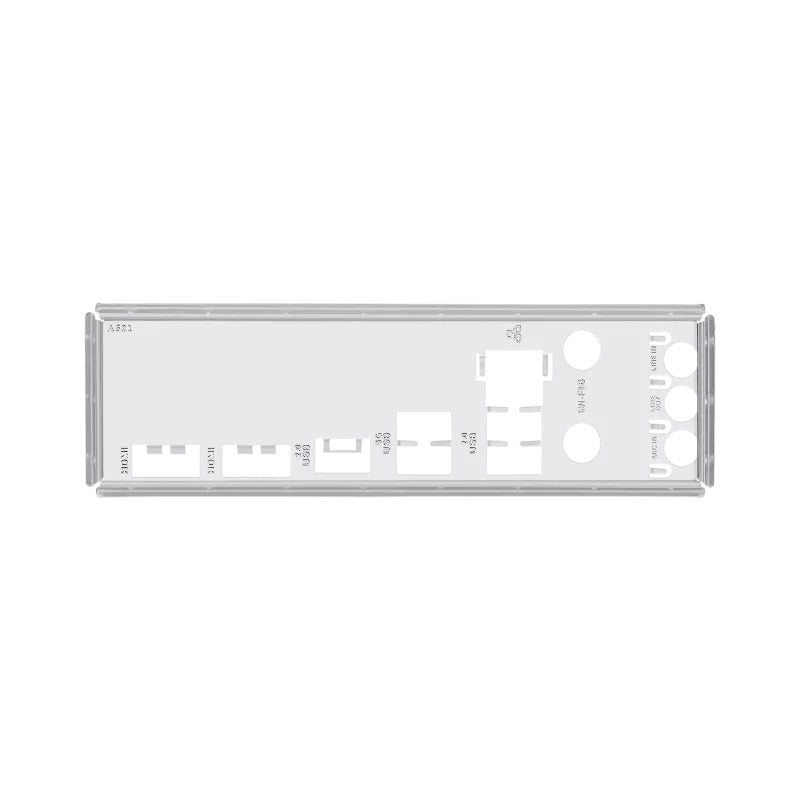

| 2 x SATA cables, 1 x Wi-Fi antennas, 1 x I/O shield, 1 x M.2 anchor, Quick start guide | |
| Operating System | Windows® 11, Windows® 10 64-bit |
| Form Factor | micro-ATX, 8.9" x 7.4" (22.6 cm x 18.8 cm) |
