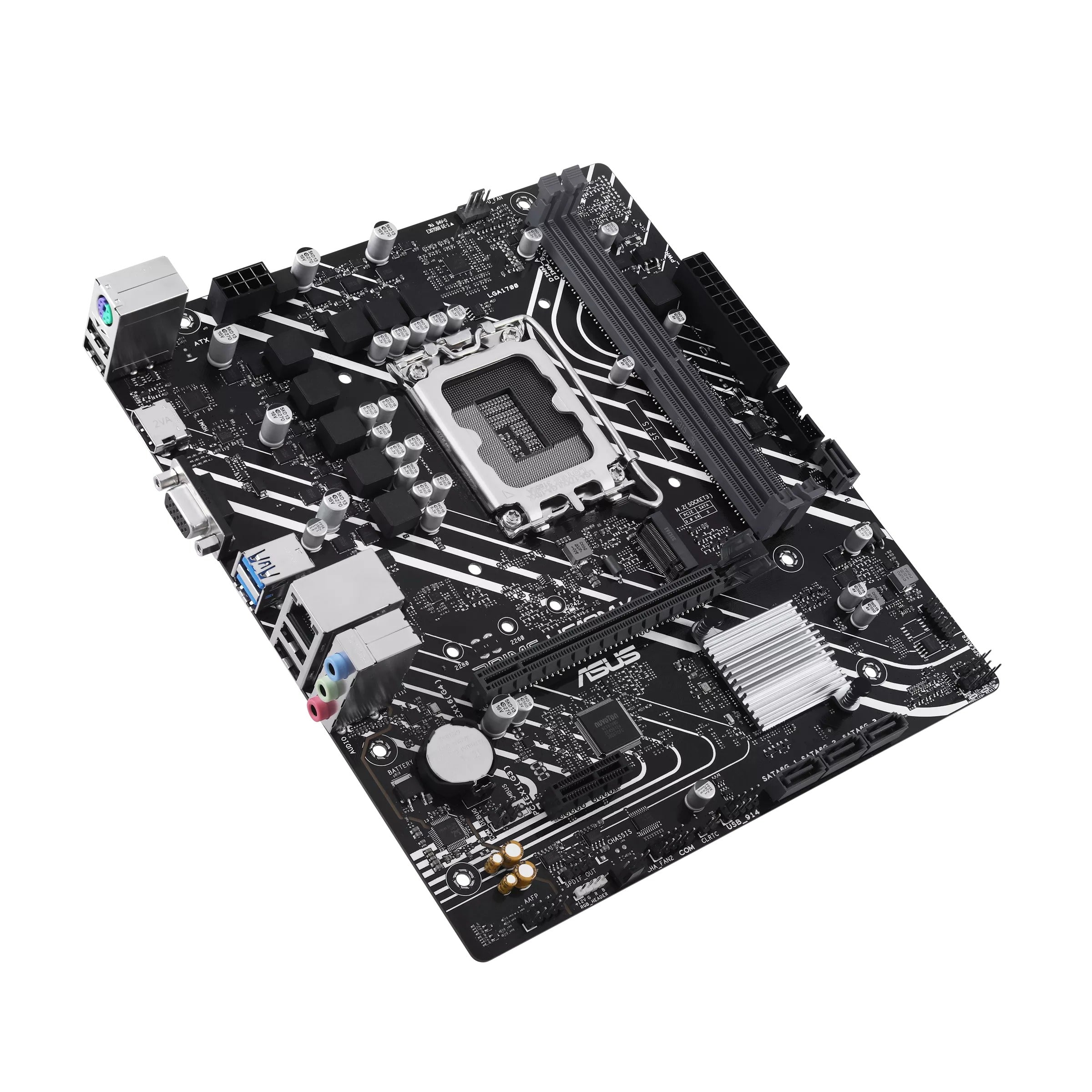

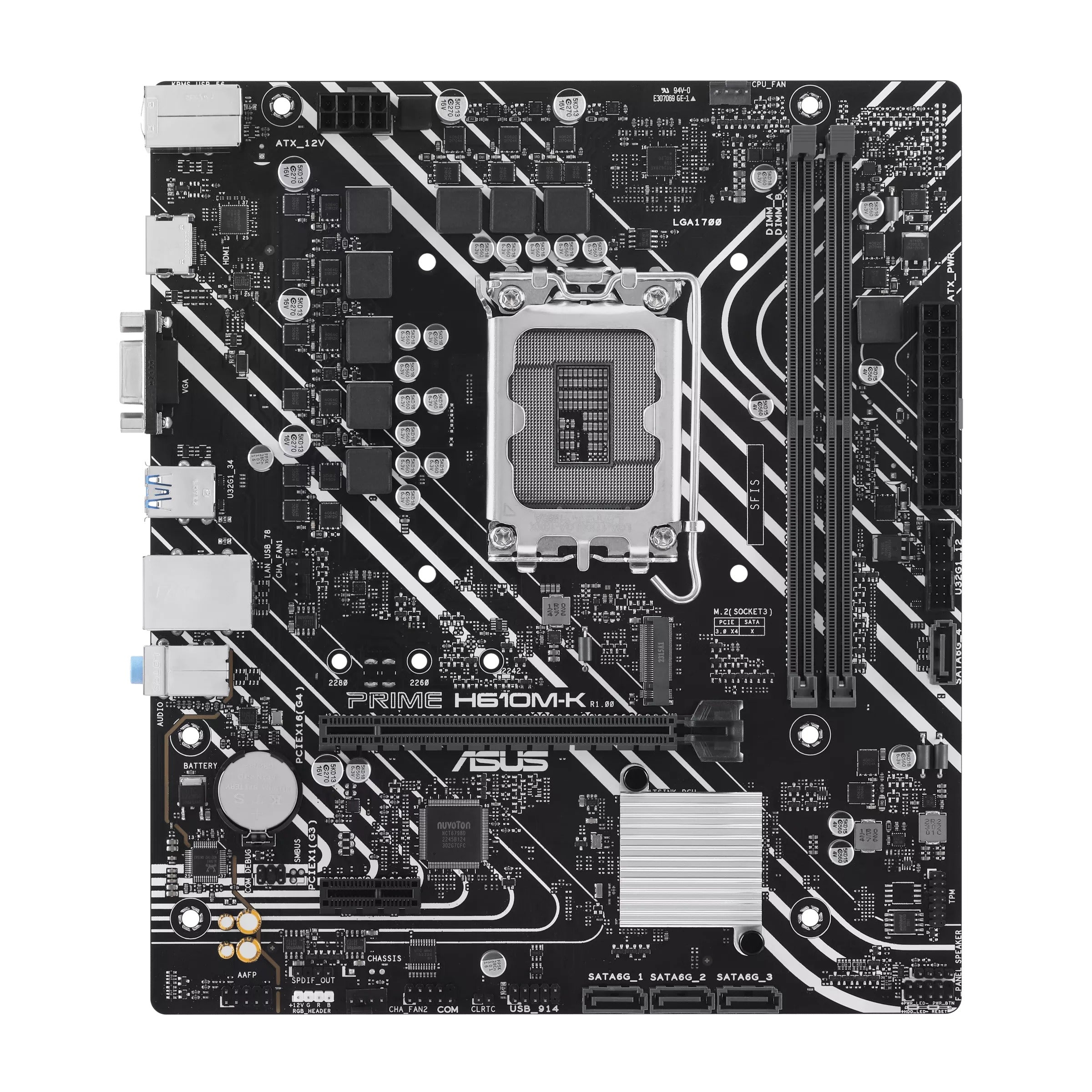

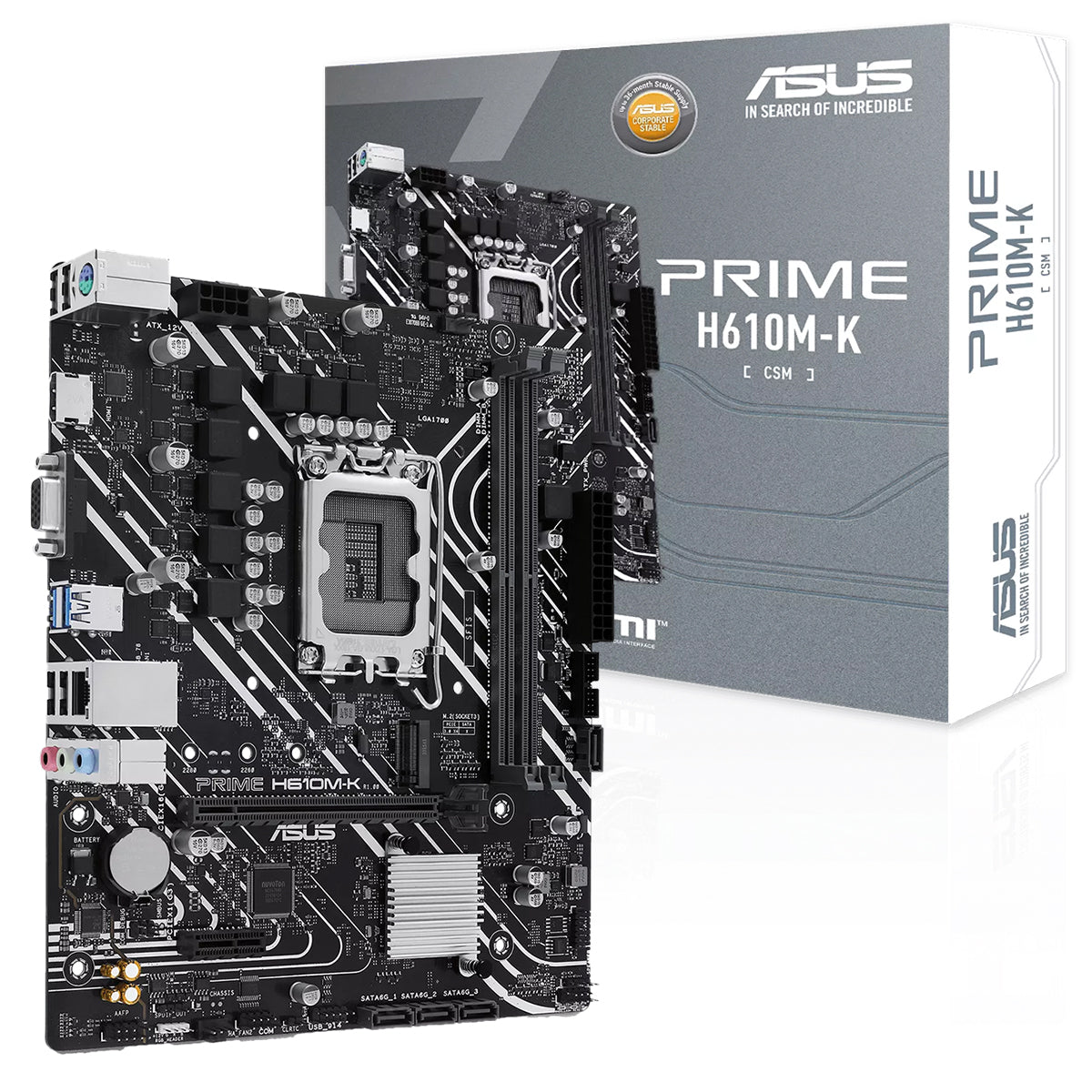

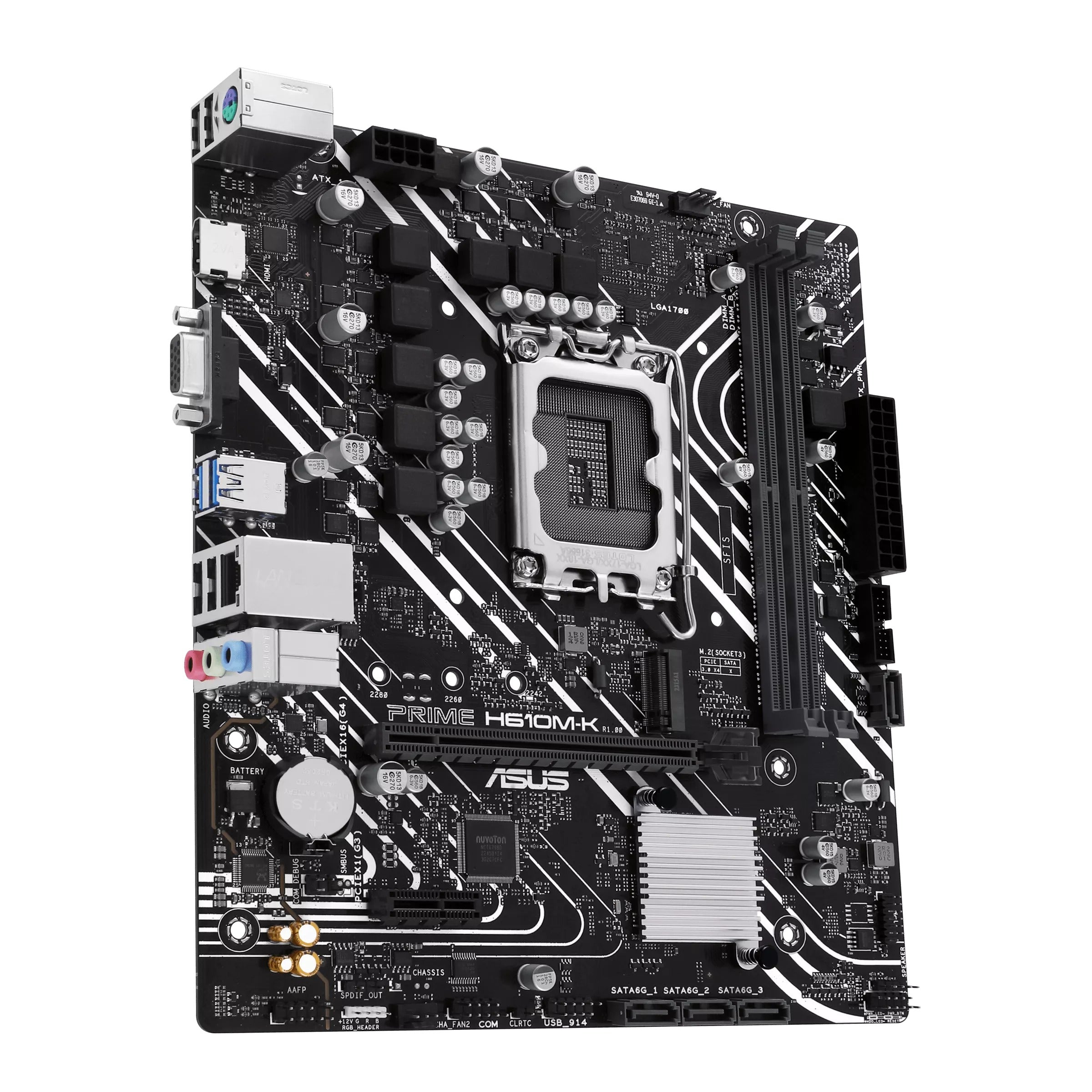

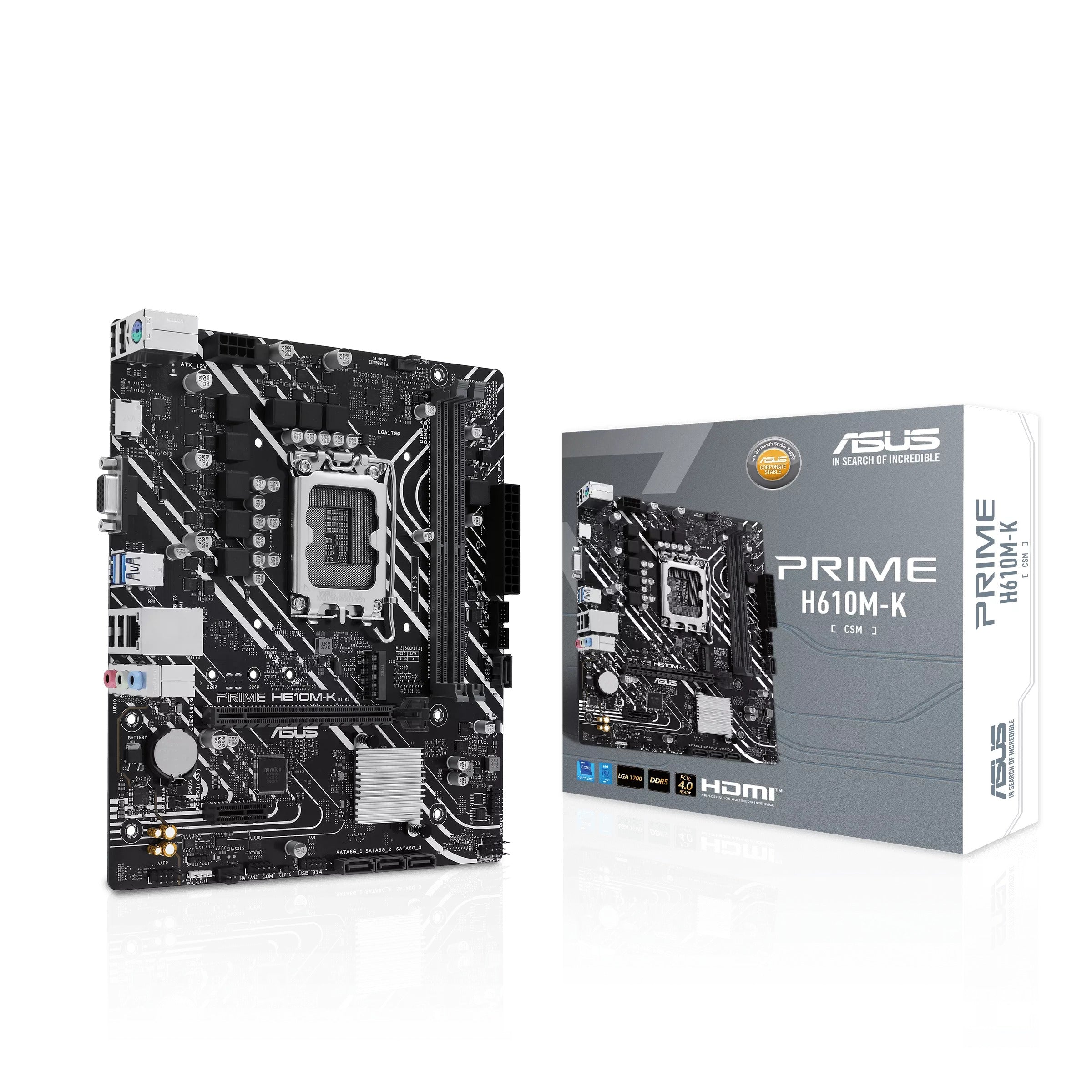

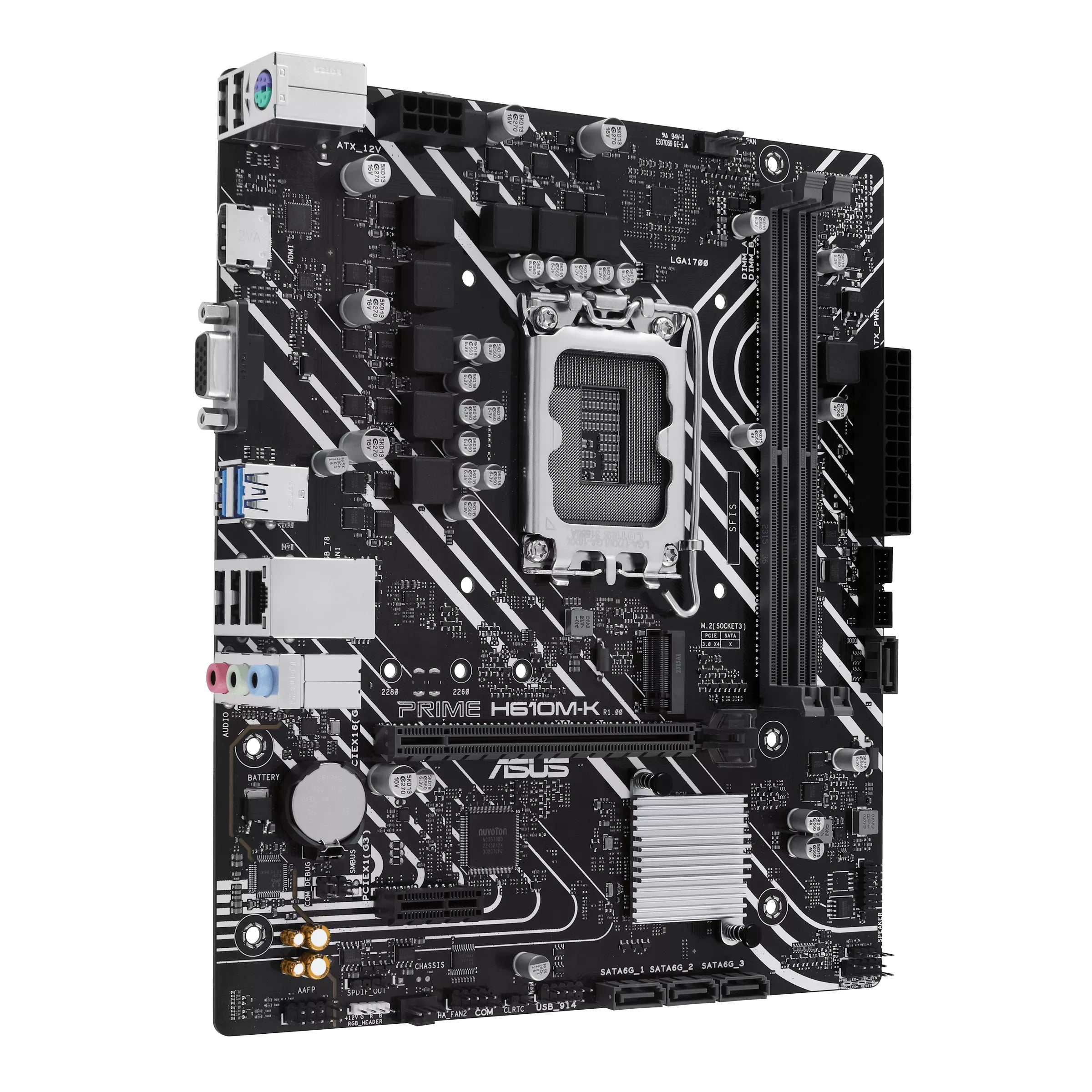

Asus Prime H610M-K-CSM DDR5 Intel Motherboard
Intel® H610 (LGA 1700) micro-ATX motherboard, DDR5, PCIe 4.0, M.2 slot, Realtek 1 Gb Ethernet, HDMI™, VGA, USB 3.2 Gen 1, SATA 6 Gbps, COM header, RGB header
- Intel® LGA 1700 Socket: Ready for 14th, 13th and 12th Gen Intel® processors
- Ultrafast Connectivity: PCIe 4.0, 32Gbps M.2 slot, Realtek 1 Gb Ethernet and USB 3.2 Gen 1
- Comprehensive Cooling: PCH heatsink and Fan Xpert 2+
- 5X Protection III: Multiple hardware safeguards for all-round protection
- ASUS Control Center Express: Real-time IT monitoring and management software for enhanced data protection
| ASUS PRIME H610M-K-CSM Specifications | |
|---|---|
| CPU Support | Intel® LGA1700 for 14th/13th/12th Gen Core, Pentium® Gold, Celeron® Processors Supports Intel® Turbo Boost 2.0 & Turbo Boost Max 3.0 |
| Chipset | Intel® H610 |
| Memory | 2 x DIMM slots, Max. 96GB DDR5 4800–5600 MHz, Non-ECC, Un-buffered, Dual Channel, Supports Intel® XMP |
| Graphics | 1 x VGA, 1 x HDMI 2.1 (max 4K@60Hz) |
| Expansion Slots | 1 x PCIe 4.0 x16, 1 x PCIe 3.0 x1 |
| Storage | 1 x M.2 slot (2242/2260/2280, PCIe 3.0 x4) 4 x SATA 6Gb/s ports |
| Ethernet | 1 x Realtek 1Gb Ethernet |
| USB Ports | Rear (6): 2 x USB 3.2 Gen 1 (Type-A), 4 x USB 2.0 (Type-A) Front (4): 1 x USB 3.2 Gen 1 header (2 ports), 1 x USB 2.0 header (2 ports) |
| Audio | Realtek 7.1 Surround HD Audio, Jack-detection, Multi-streaming, Front Panel Jack-retasking, 24-Bit/192kHz playback, Audio Shielding, Premium capacitors, Dedicated PCB layers |

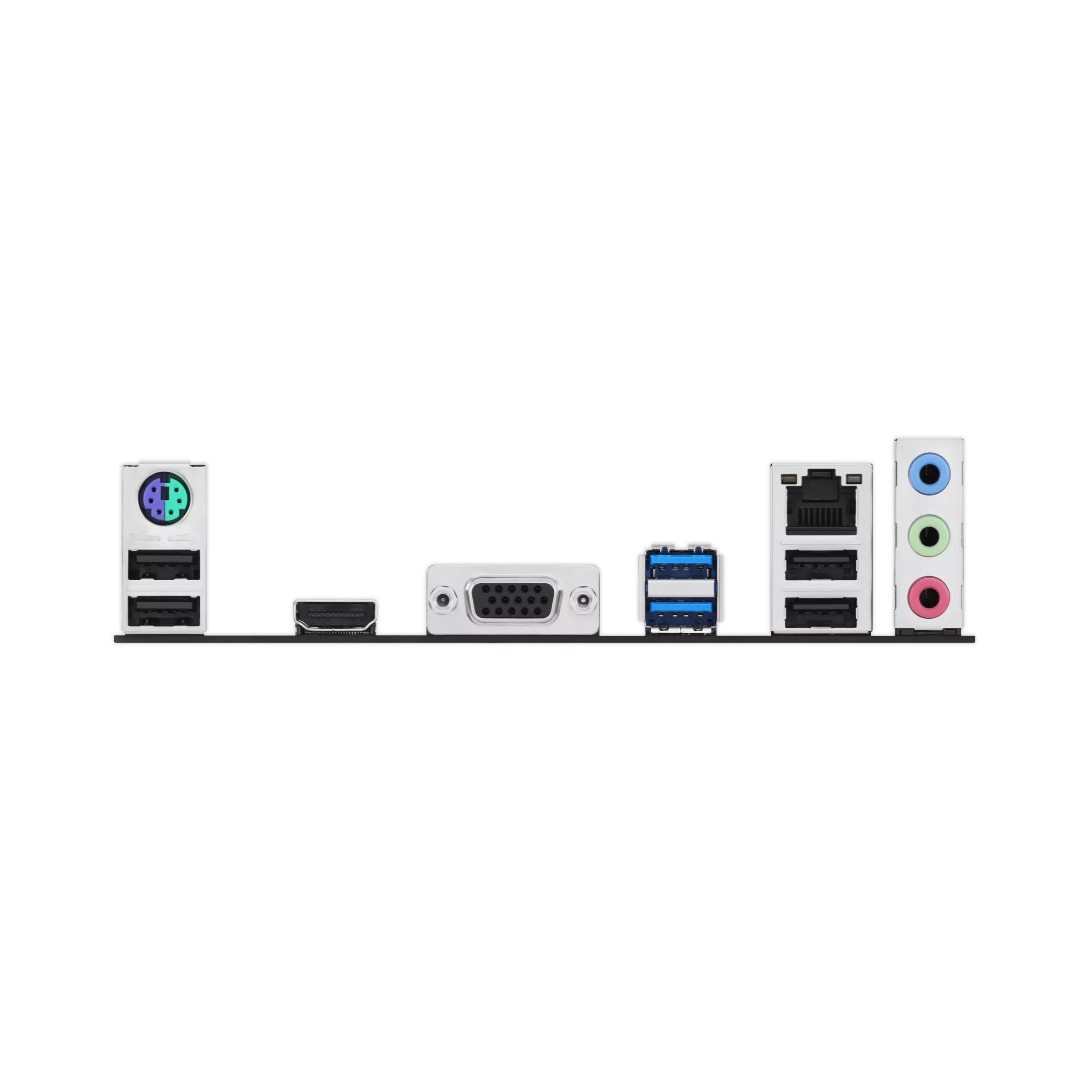

| Back Panel I/O | 2 x USB 3.2 Gen 1, 4 x USB 2.0, 1 x VGA, 1 x HDMI, 1 x Realtek 1Gb Ethernet, 3 x Audio jacks, 1 x PS/2 combo port |
| Internal I/O Connectors | Fan: 1 x CPU Fan, 2 x Chassis Fan headers Power: 1 x 24-pin Main, 1 x 8-pin +12V Storage: 1 x M.2, 4 x SATA 6Gb/s USB: as above Misc: 1 x RGB header, 1 x Clear CMOS, 1 x AAFP, 1 x COM, 1 x S/PDIF Out, 1 x Speaker, 1 x SPI TPM, 1 x 10-1 System Panel |
| Special Features | ASUS 5X PROTECTION III (DIGI+ VRM, LANGuard, Overvoltage, SafeSlot Core, Stainless-Steel Back I/O) ASUS Q-Design (Q-DIMM, Q-LED Core, Q-Slot) Thermal Solution: Aluminum heatsink RGB Lighting Control |
| Software Features | Armoury Crate (Fan Xpert 2+), AI Suite 3 (EPU, DIGI+ VRM, PC Cleaner), ASUS CPU-Z, ASUS Control Center Express, Norton 360 Deluxe 60-day trial, WinRAR |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS, CrashFree BIOS 3, EZ Flash 3, UEFI BIOS EZ Mode |
| Accessories | 2 x SATA cables, 1 x I/O Shield, 1 x M.2 Anchor, 1 x M.2 screw package, 1 x ACC Express key card, 1 x User guide |
| Operating System | Windows® 11, Windows® 10 64-bit |
| Form Factor | micro-ATX (23.4 cm x 20.3 cm / 9.2" x 8.0") |
