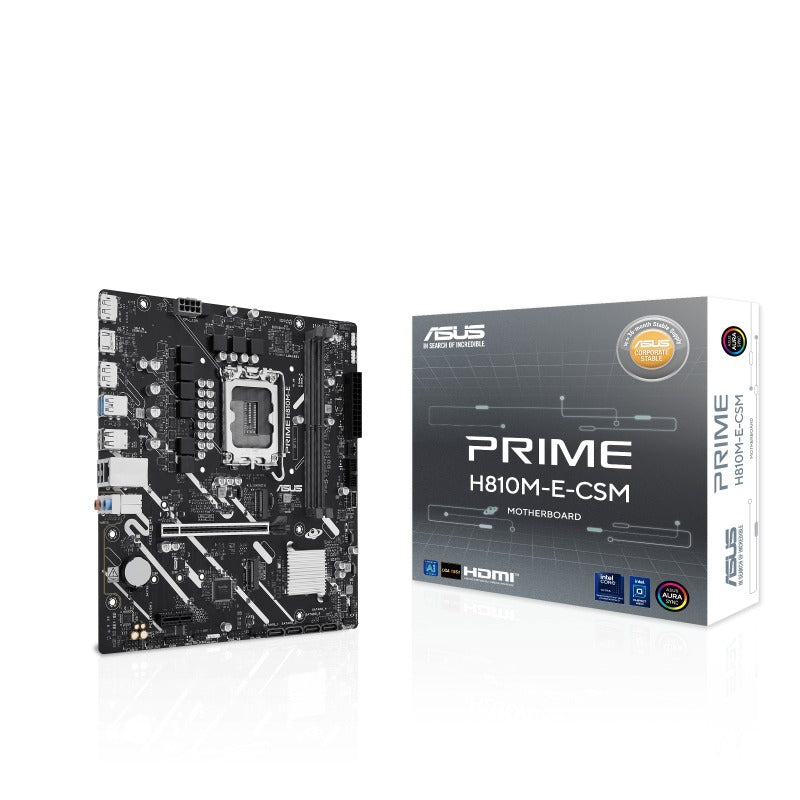

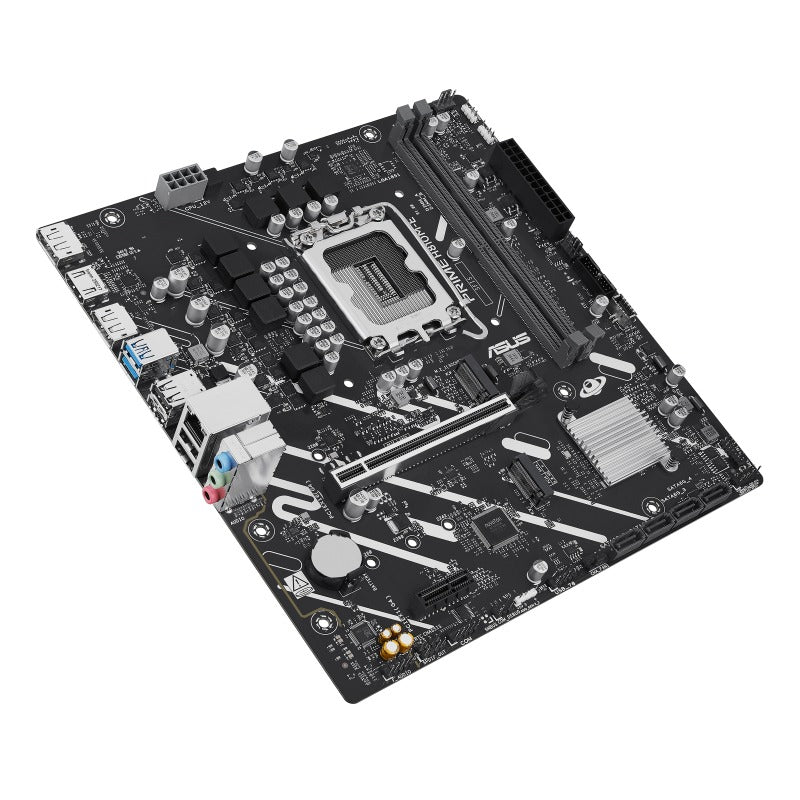

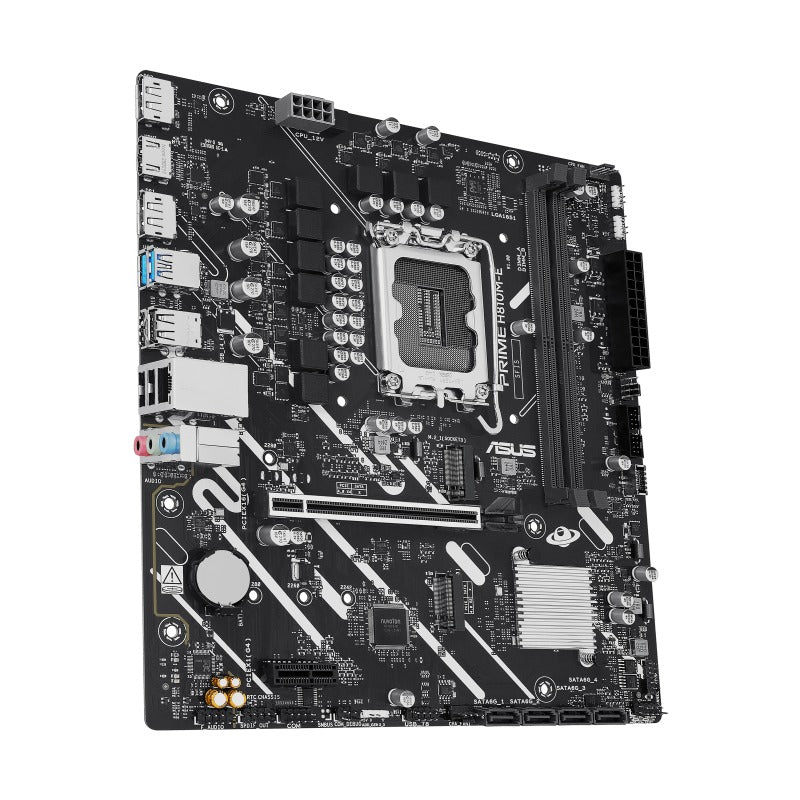

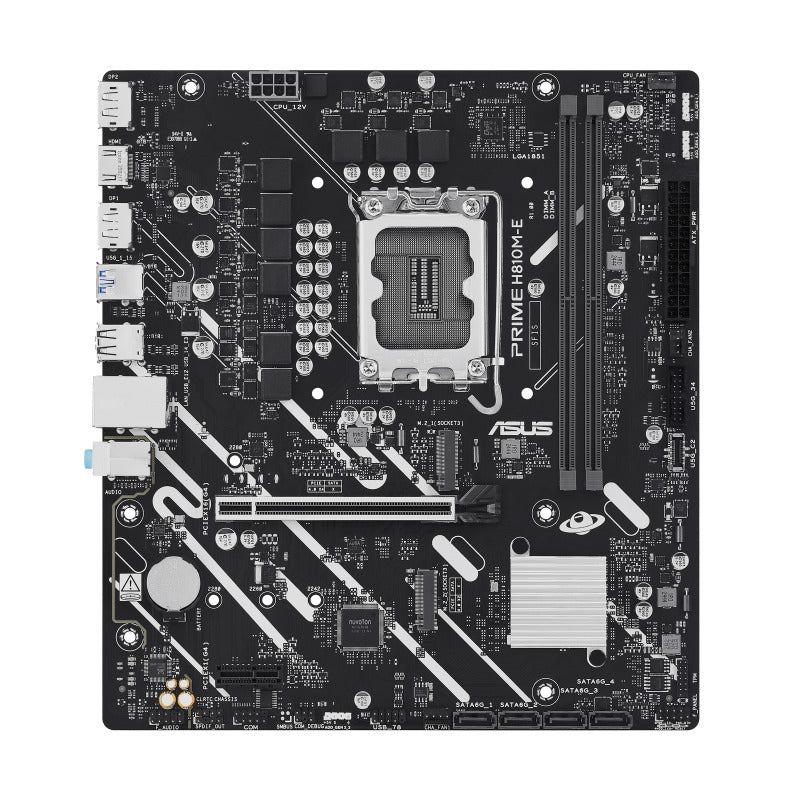

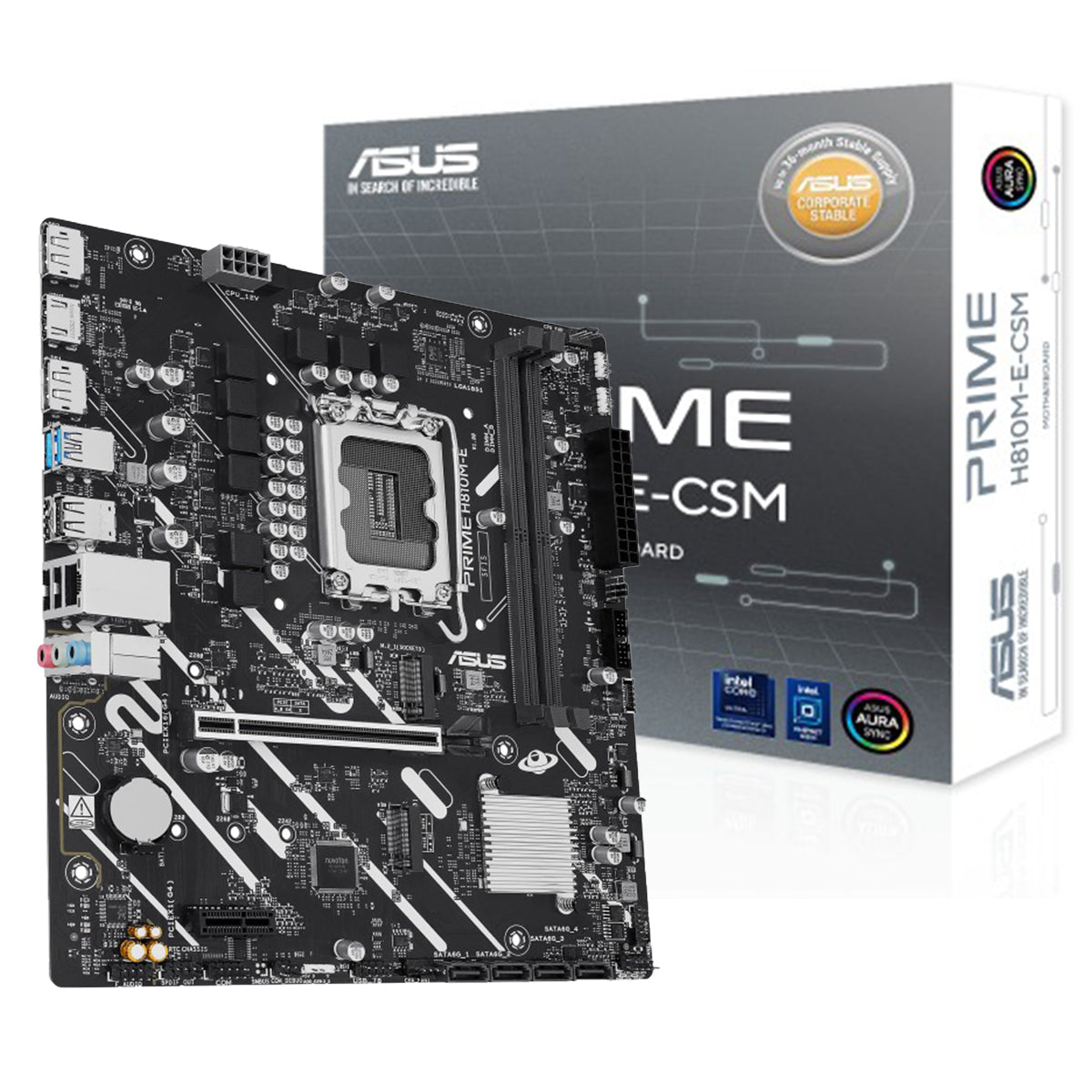

Asus Prime H810M-E-CSM DDR5 Intel Motherboard
H810M-E-CSM
ASUS PRIME series motherboards are expertly engineered to unleash the full potential of the latest Intel® Core™ Ultra Processors (Series 2). Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, the PRIME H810M-E-CSM motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.
| ASUS PRIME H810M-E-CSM Specifications | |
|---|---|
| CPU Support | Intel® Core™ Ultra Processors (Series 2), LGA1851 Supports Intel® Turbo Boost Technology 2.0 and Turbo Boost Max Technology 3.0 |
| Chipset | Intel® H810 |
| Memory | 2 x DIMM slots, max. 128GB DDR5 Up to 6400MT/s, Non-ECC, Un-buffered Dual channel, supports XMP & AEMP II |
| Graphics | 2 x DisplayPort (max 4K@60Hz) 1 x HDMI 2.1 port (max 4K@60Hz) |
| Expansion Slots | 1 x PCIe 4.0 x16 (CPU) 1 x PCIe 4.0 x1 (Chipset) |
| Storage | 2 x M.2 slots (2280 / 2242/2260) 4 x SATA 6Gb/s ports |
| Ethernet | 1 x Realtek 1Gb Ethernet, ASUS LANGuard |
| USB Ports | Rear (6): 2 x USB 5Gbps (Type-A), 4 x USB 2.0 (Type-A) Front (5): 1 x USB 5Gbps Type-C, 1 x USB 5Gbps header (2 ports), 1 x USB 2.0 header (2 ports) |
| Audio | Realtek 7.1 Surround Sound HD Audio CODEC 24-Bit / 192kHz playback, Jack-detection, Multi-streaming, Front Panel Jack-retasking Audio Shielding, Premium capacitors, Dedicated PCB layers |

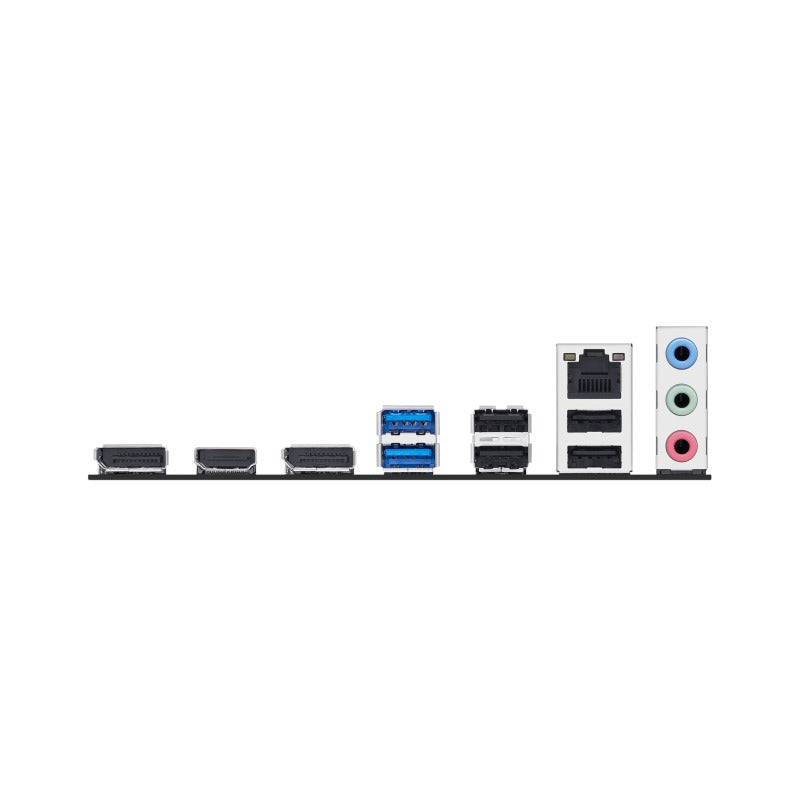

| Back Panel I/O | 2 x USB 5Gbps, 4 x USB 2.0, 2 x DisplayPort, 1 x HDMI, 1 x Ethernet, 3 x Audio jacks |
| Internal I/O Connectors | 1 x 4-pin CPU Fan 2 x 4-pin Chassis Fan 1 x 24-pin Main Power 1 x 8-pin +12V CPU Power 2 x M.2 slots, 4 x SATA 6Gb/s USB connectors (as above) 3 x Addressable RGB Gen 2 headers 1 x Clear CMOS, Chassis Intrusion, COM Port, F_AUDIO, S/PDIF Out, SPI TPM, 10-1 Front Panel System |
| Special Features | ASUS 5X Protection III (DIGI+ VRM, LANGuard, Overvoltage protection, SafeSlot Core+, Stainless-steel back I/O) ASUS Q-Design (Q-Dashboard, Q-LED Core, Q-Slot) ASUS Thermal Solution (Aluminum heatsink) ASUS EZ DIY (Dual DIMM clips) Aura Sync (Addressable RGB Gen 2 headers) |
| Software Features | Armoury Crate, Aura Creator, Aura Sync, Fan Xpert 2+, ASUS DriverHub, ASUS CPU-Z, Norton 360 Deluxe (60 days), WinRAR (40 days) |
| BIOS | 256 (128+128) Mb Flash ROM, UEFI AMI BIOS ASUS CrashFree BIOS 3, EZ Flash, EZ Mode, MyHotkey, DIMM FIT Pro |

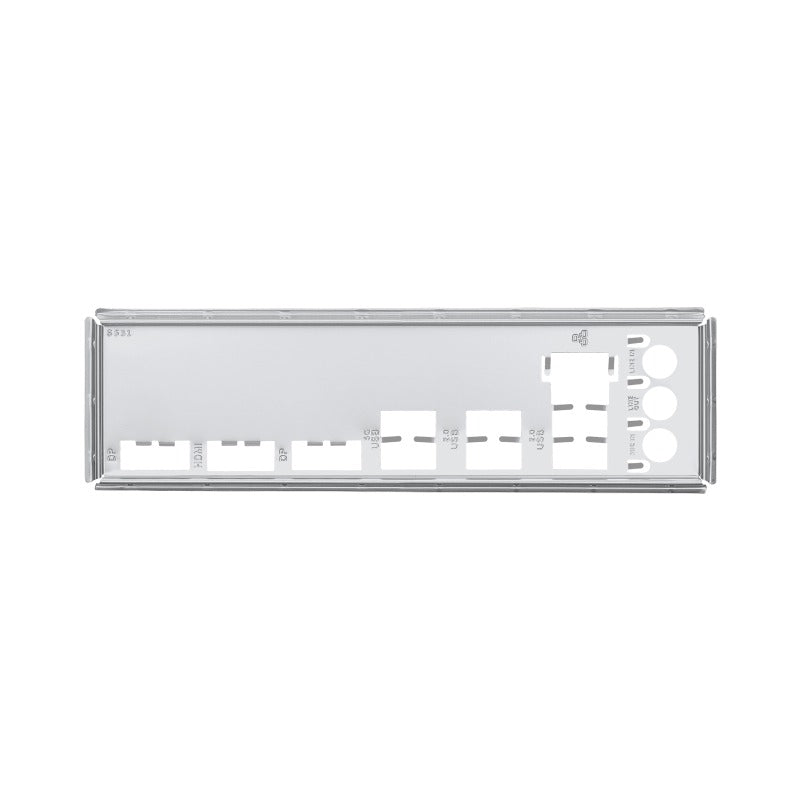

| Accessories | 2 x SATA cables, 1 x I/O shield, 1 x M.2 anchor, 1 x Quick start guide, 1 x ACC Express activation key card |
| Operating System | Windows 11 (22H2 & later), Windows 10 64-bit (21H2 & later) |
| Form Factor | micro-ATX (24.4 cm x 22.2 cm / 9.6" x 8.75") |
