Description
|

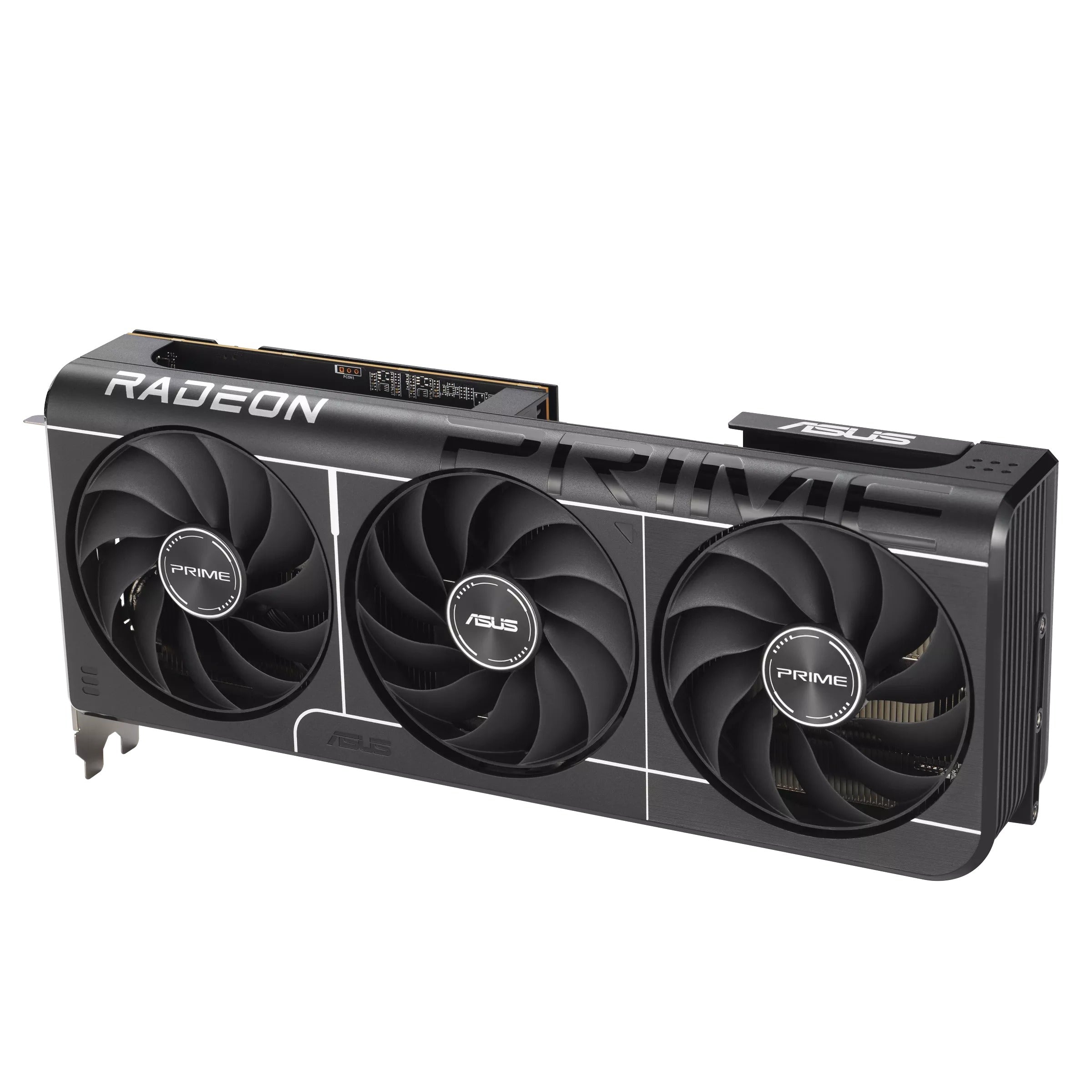

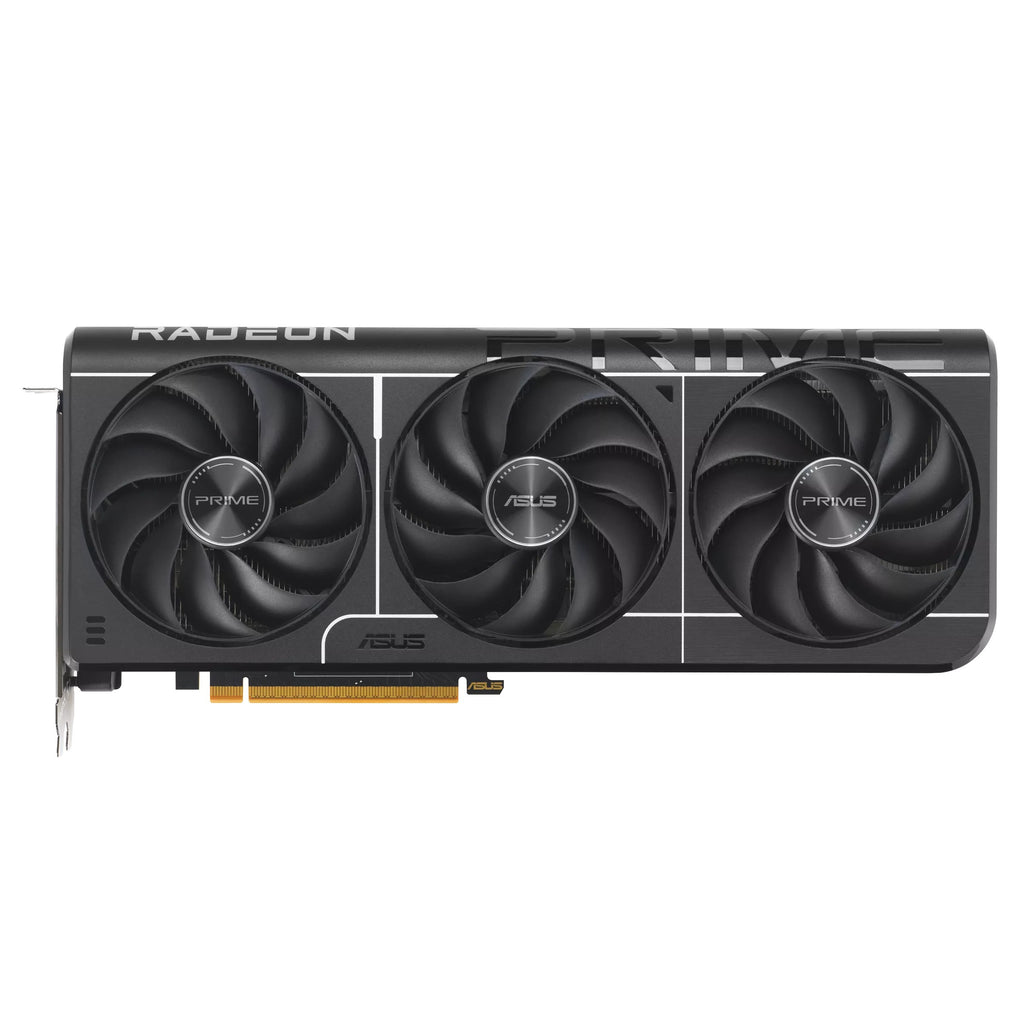

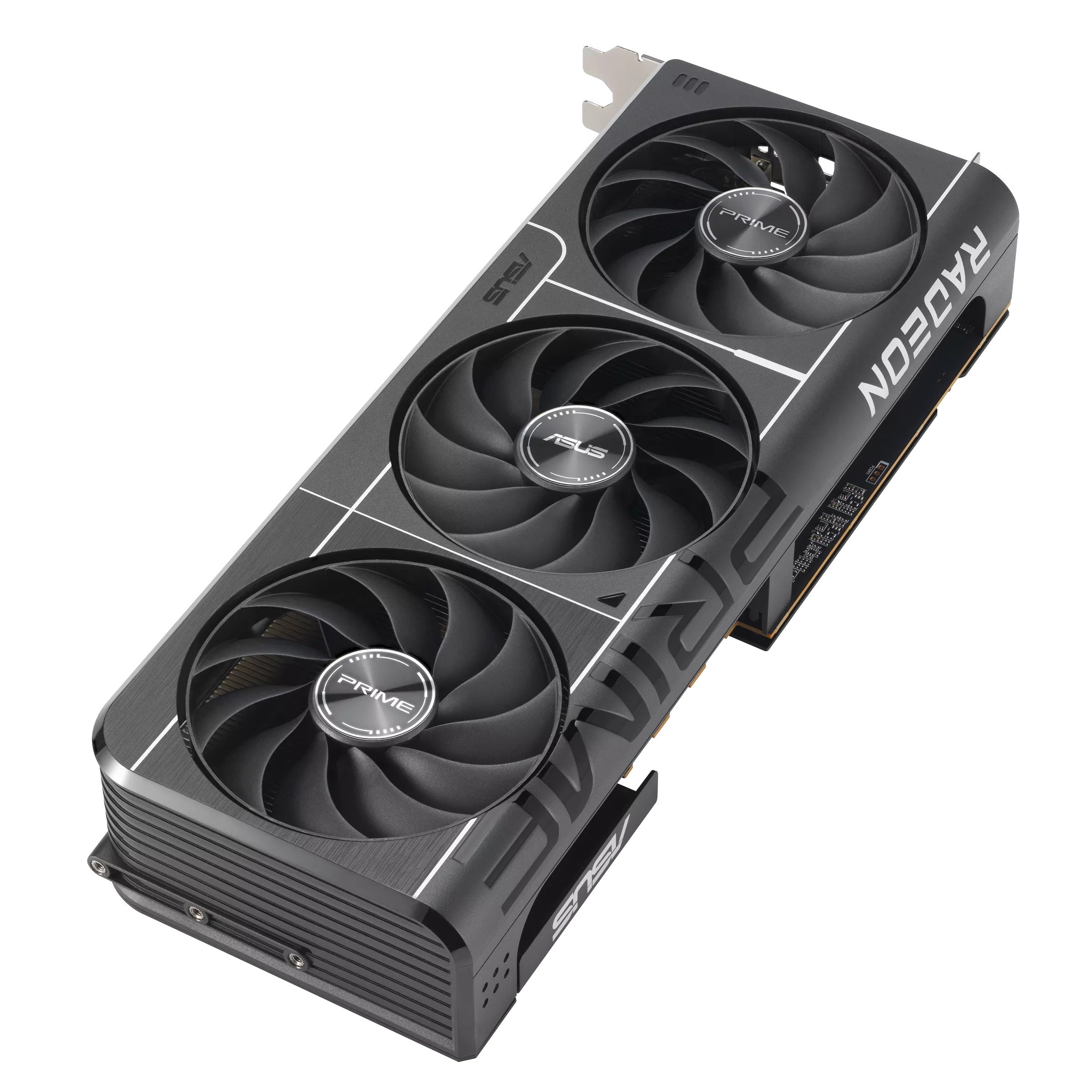

Axial-tech Upgrades Three tried-and-true Axial-tech fans feature a smaller hub that facilitates longer blades and a barrier ring to increase downward air pressure for lower temperatures, less noise and higher performance. |
|
|
|
0dB Technology |
|
Dual Ball Fan Bearings |
 |
|
|

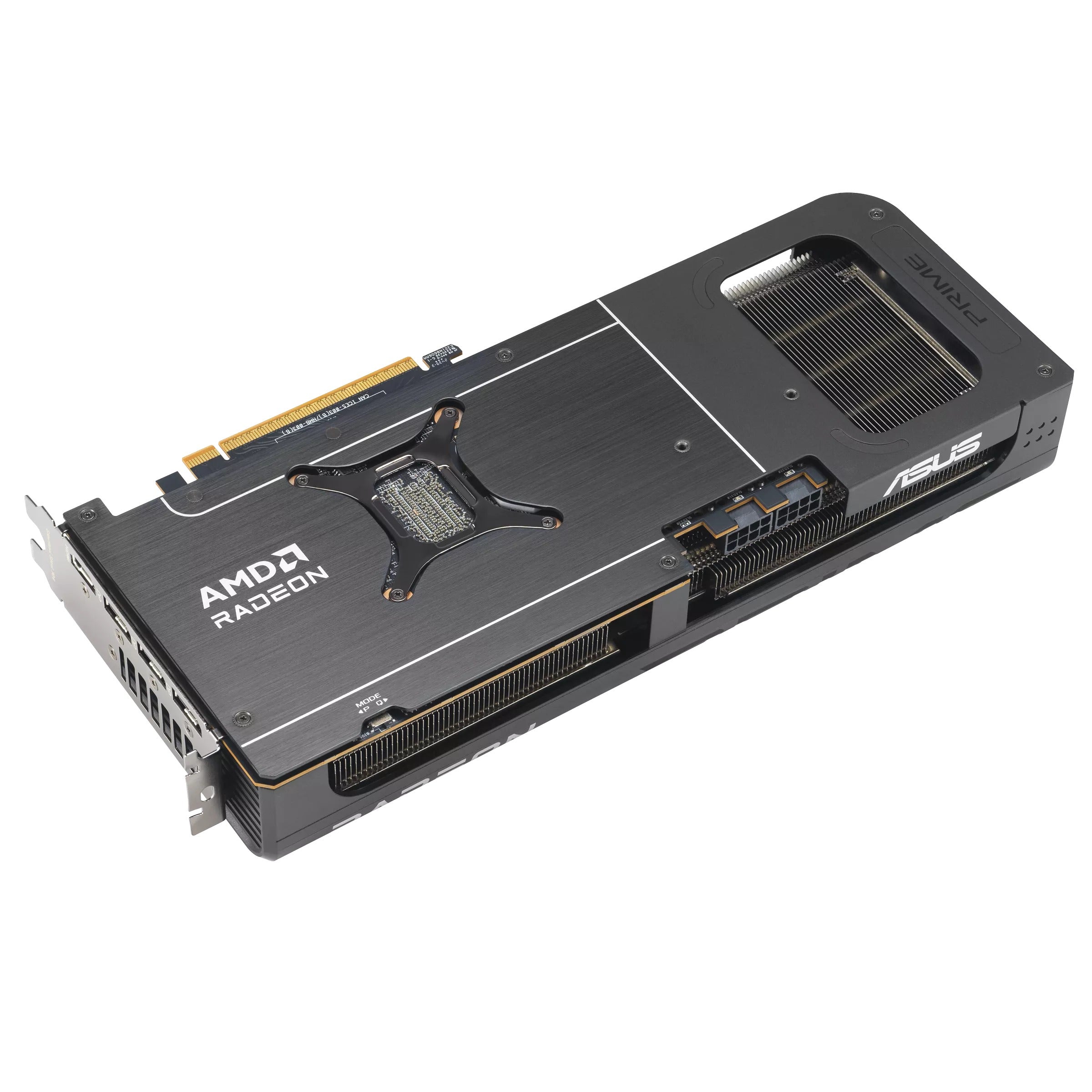

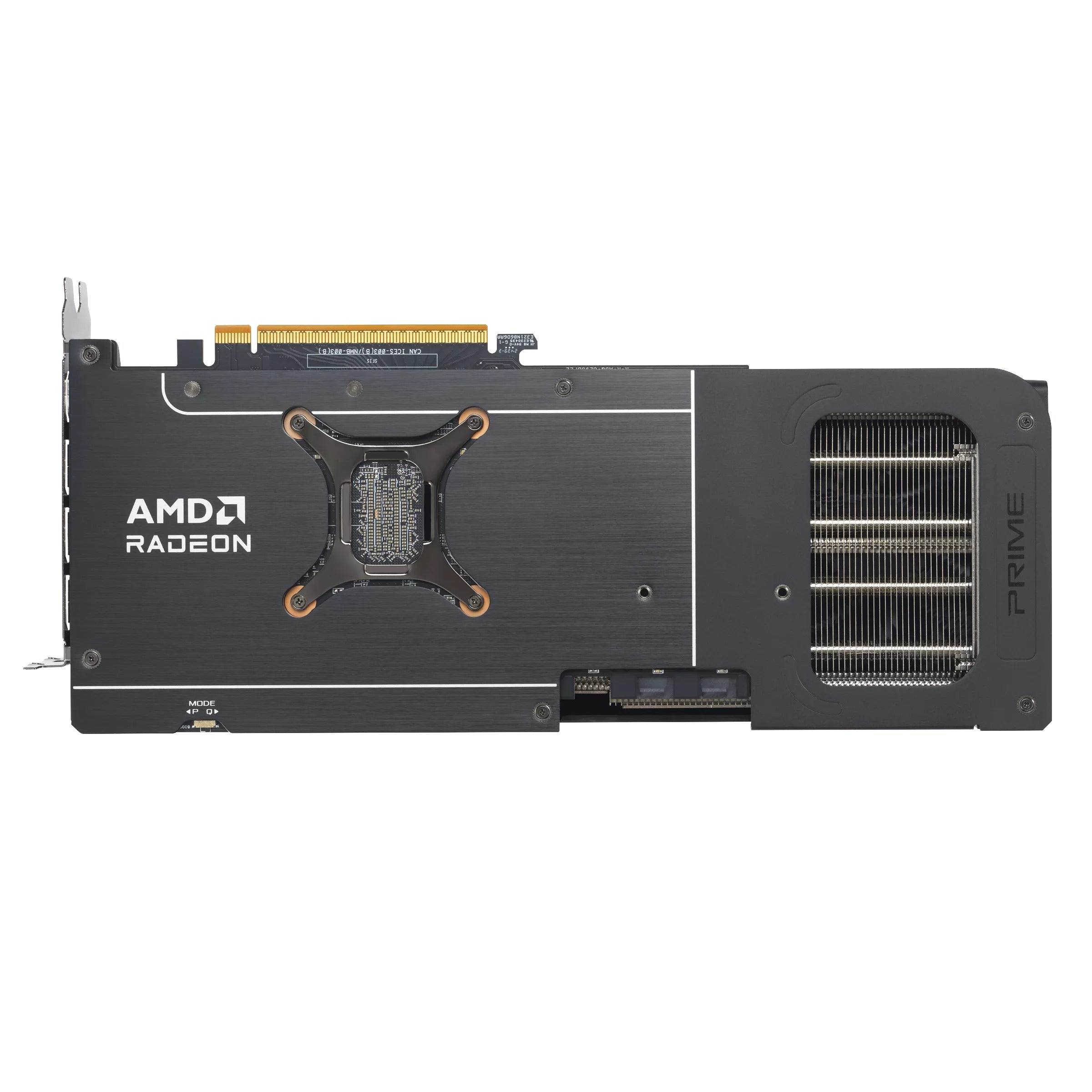

Vented Backplate Large backplate vents significantly enhance heat dissipation, helping to keep the GPU cooler during intense tasks. This additional airflow helps ensure optimal temperatures, boosting performance, longevity and stability by defending against overheating and thermal throttling. |
Phase-Change GPU Thermal PadBy melting to effectively fill the gaps between the GPU and the thermal module, a premium phase-change GPU thermal pad provides superior thermal conductivity and enhanced heat dissipation, ensuring optimal performance and longevity for graphics cards under heavy loads. |
Unmatched Reliability
|
ASUS GPU Guard & Bracket ASUS GPU Guard applies adhesive to secure all four corners to reduce the risk of cracks, while a GPU bracket helps ensure uniform mounting pressure and extra stability. |
Protective Backplate The PCB is reinforced by a backplate that adds structural rigidity, helping to prevent flex and to protect components and trace pathways from damage. |

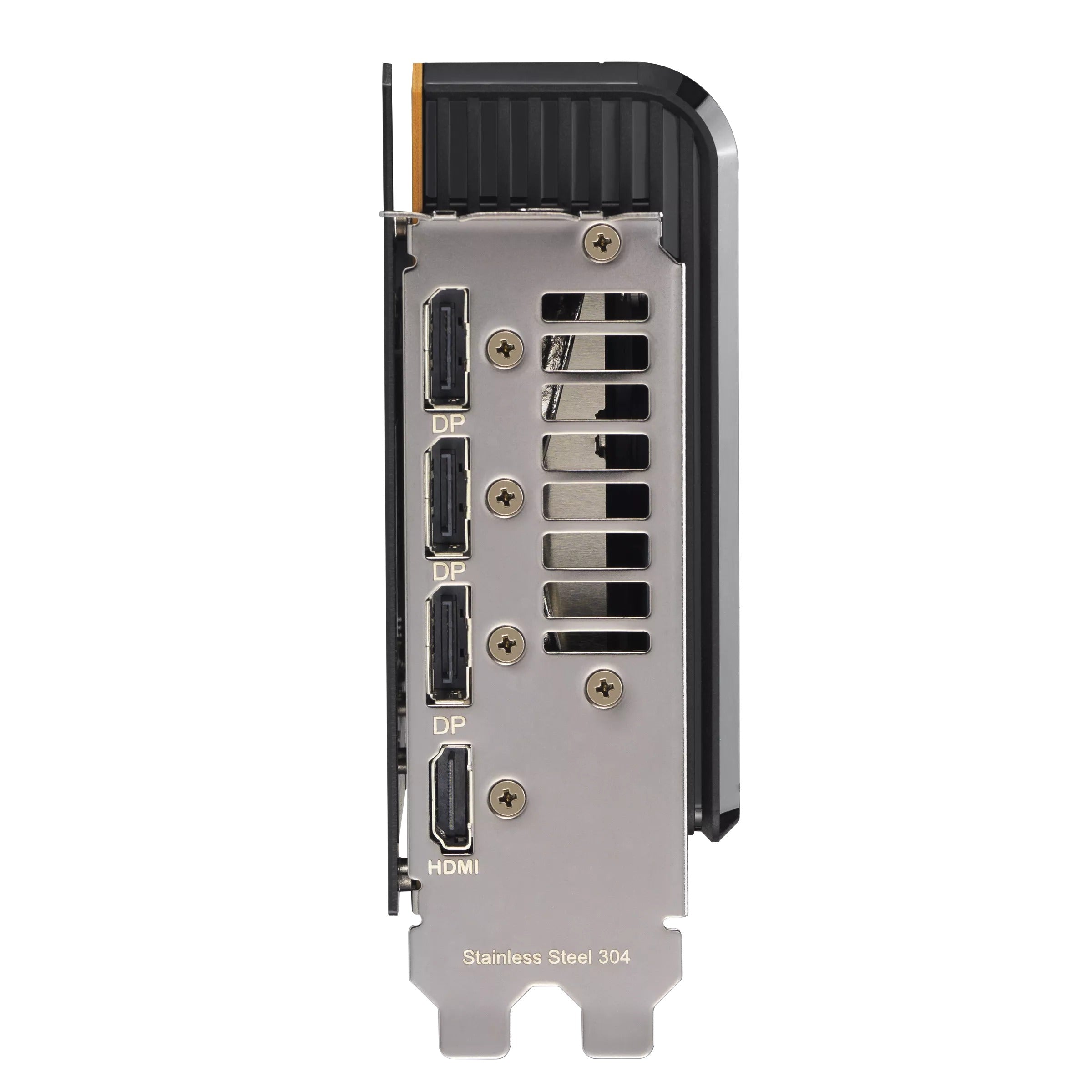

Stainless Steel Bracket The mounting bracket features grade 304 stainless steel, chosen for its strength and high resistance to corrosion. |
Specification:

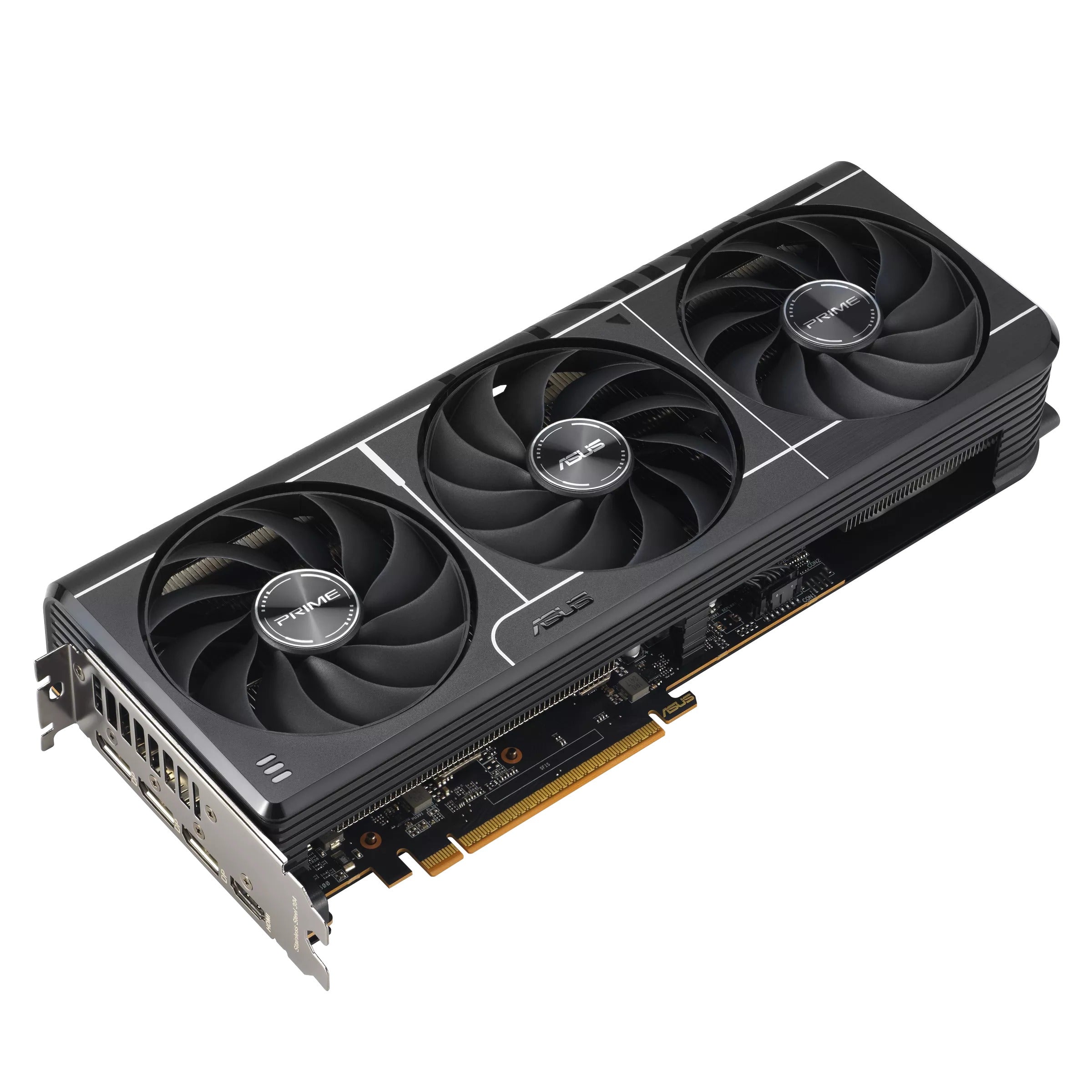

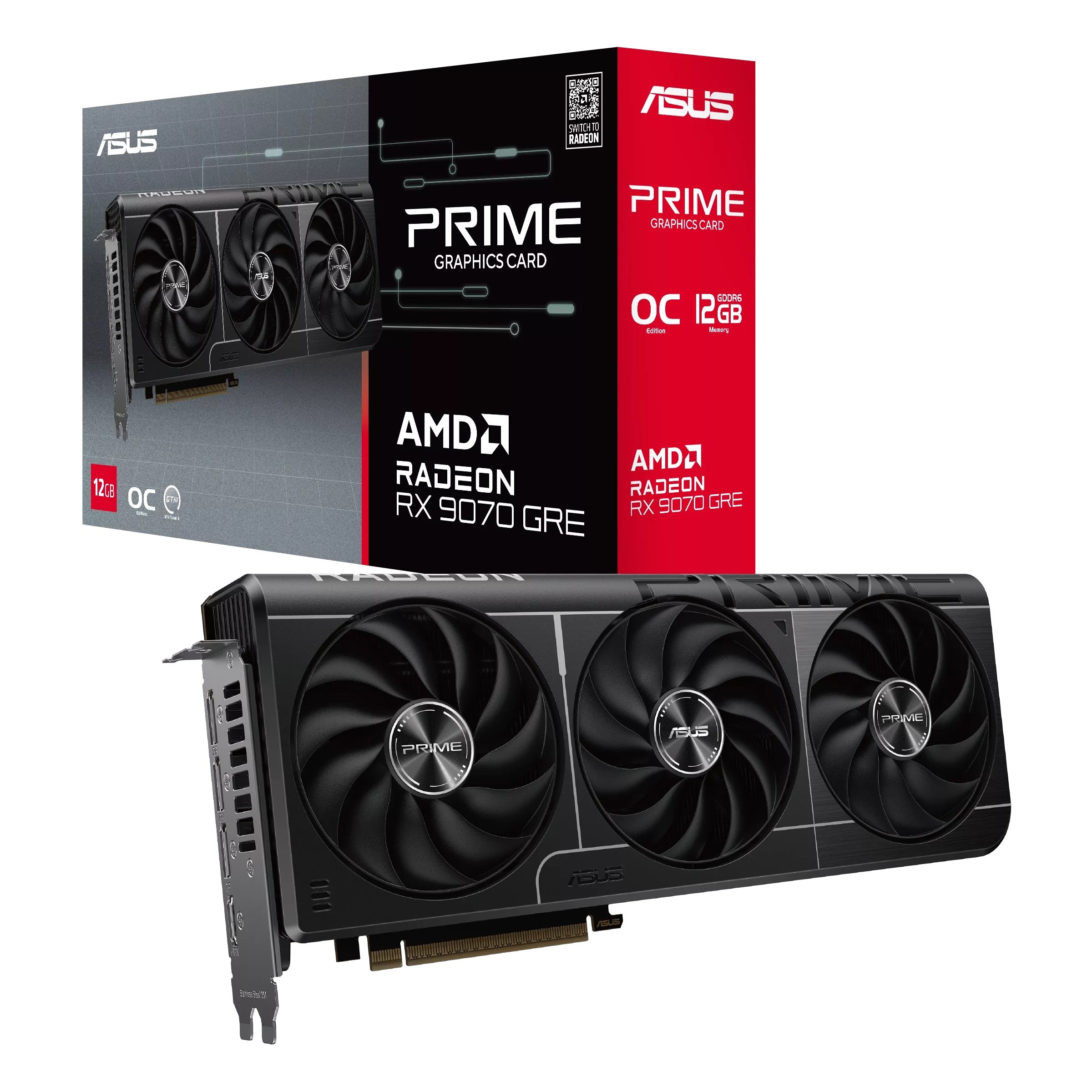

| Model | PRIME-RX9070GRE-O12G-EVO |
|---|---|
| Graphics Engine | AMD Radeon™ RX 9070 GRE |
| Bus Standard | PCI Express 5.0 |
| OpenGL | OpenGL® 4.6 |
| Video Memory | 12GB GDDR6 |
| Engine Clock |
OC Mode (GPU Tweak III): up to 2880 MHz (Boost Clock), up to 2300 MHz (Game Clock) Default Mode: up to 2860 MHz (Boost Clock), up to 2280 MHz (Game Clock) |
| Stream Processors | 3072 |
| Memory Speed | 18 Gbps |
| Memory Interface | 192-bit |
| Maximum Resolution | 7680 × 4320 |
| Display Outputs | 1 × HDMI 2.1b 3 × DisplayPort 2.1a HDCP 2.3 Support |
| Maximum Displays | 4 |
| NVLink / CrossFire Support | No |
| Accessories | 1 × Speedsetup Manual 1 × Thank You Card |
| Software | ASUS GPU Tweak III & Drivers (download from the ASUS support site) |
| Dimensions | 304 × 126 × 50 mm (12 × 4.96 × 2 inches) |
| Recommended PSU | 650W |
| Power Connectors | 2 × 8-pin |
| Slot Size | 2.5 Slot |
| SFF Ready | Compatible |
| Notes | • Recommended PSU wattage is based on a fully overclocked GPU and CPU configuration. • Specifications are subject to change without notice. • Product availability may vary by region. • Game Clock is the expected GPU clock during typical gaming workloads. • Boost Clock is the maximum achievable GPU frequency under burst workloads and may vary depending on thermal conditions and workload. |
