Description

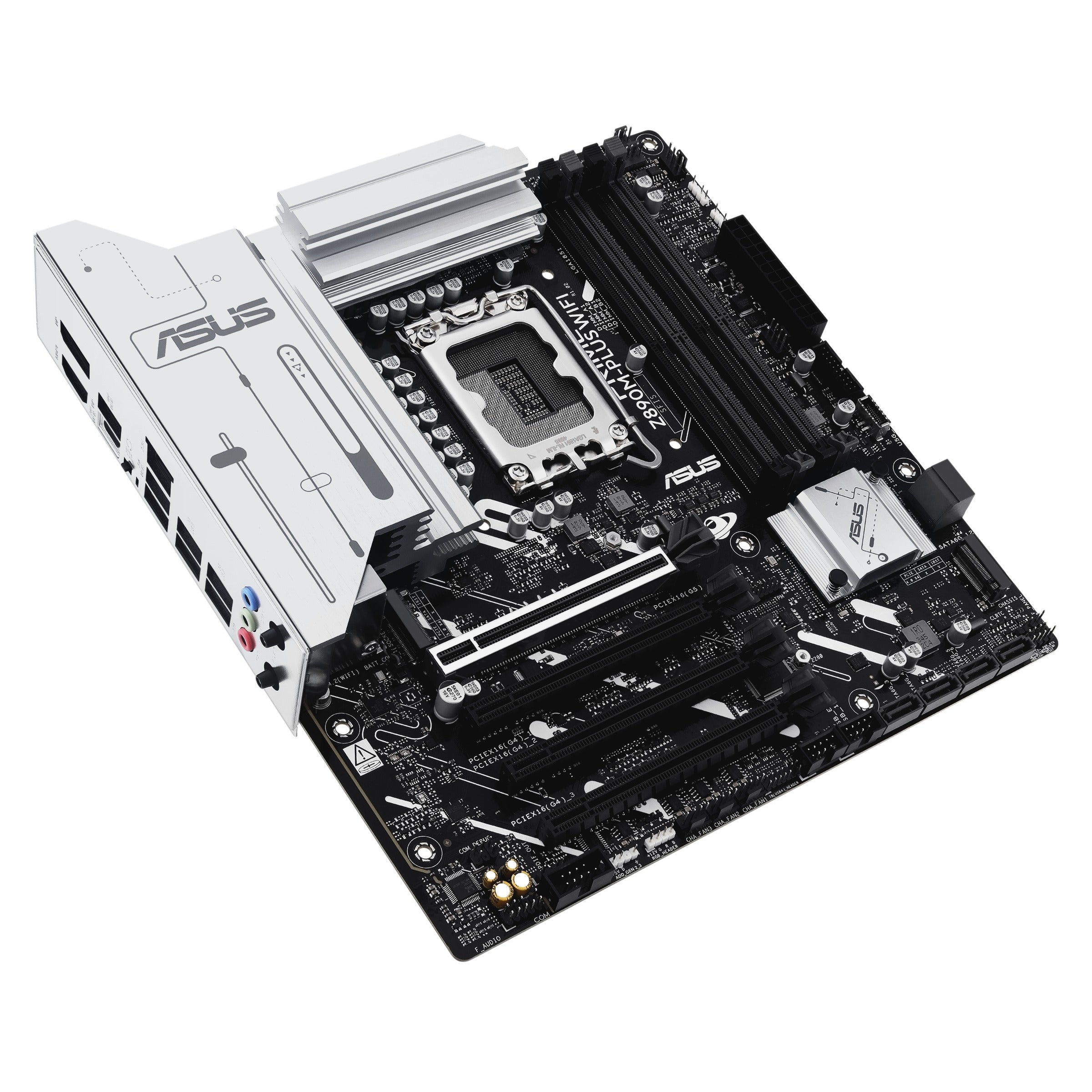

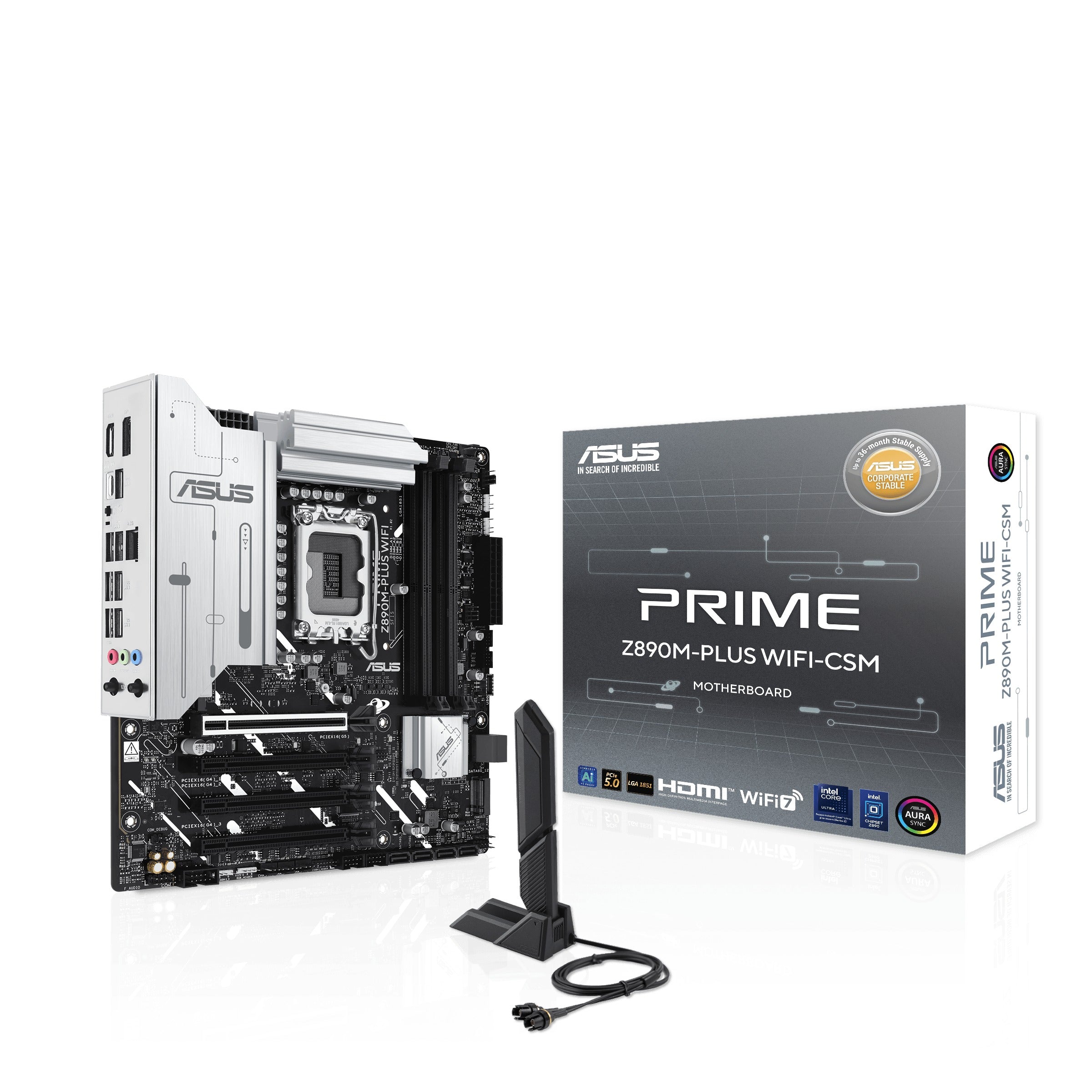

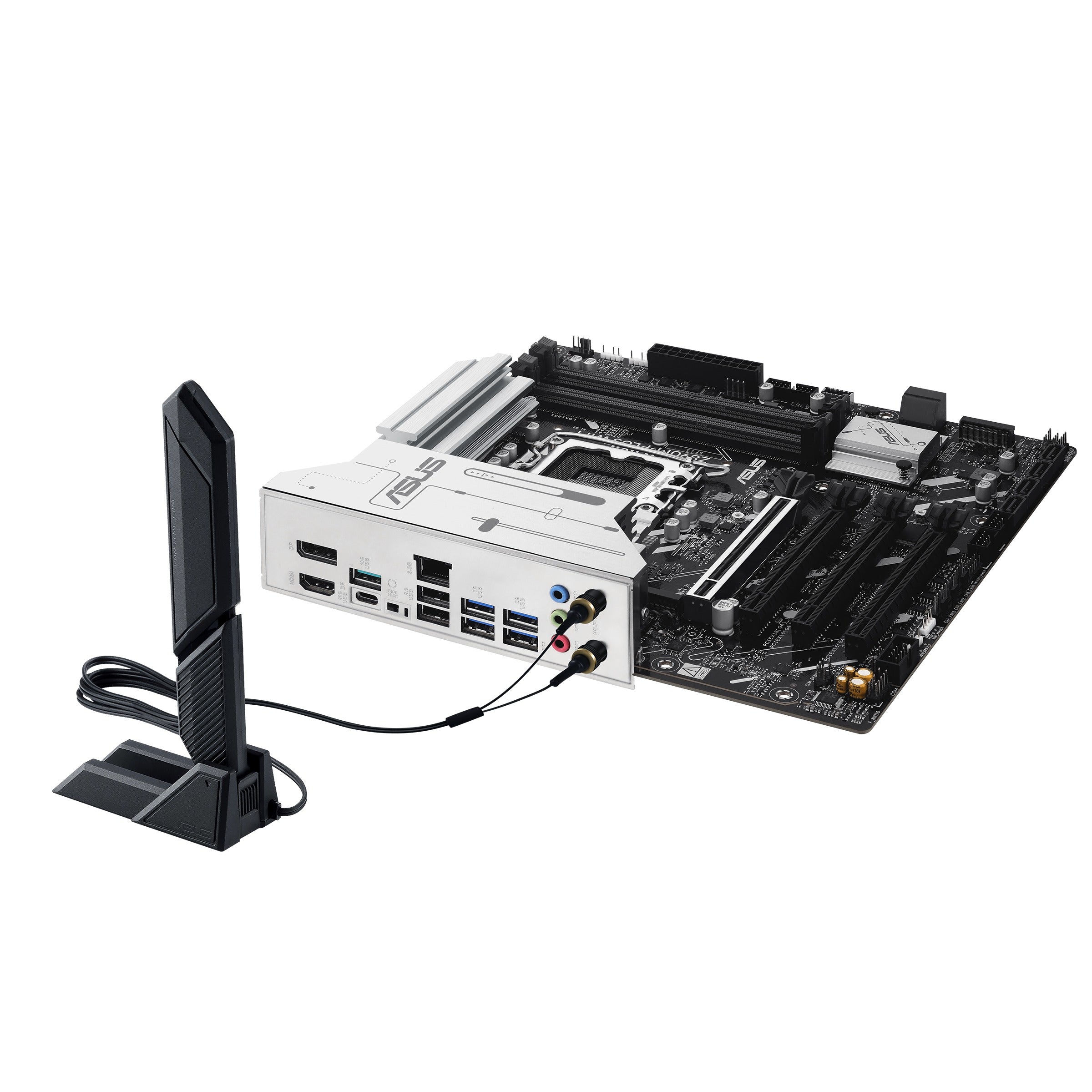

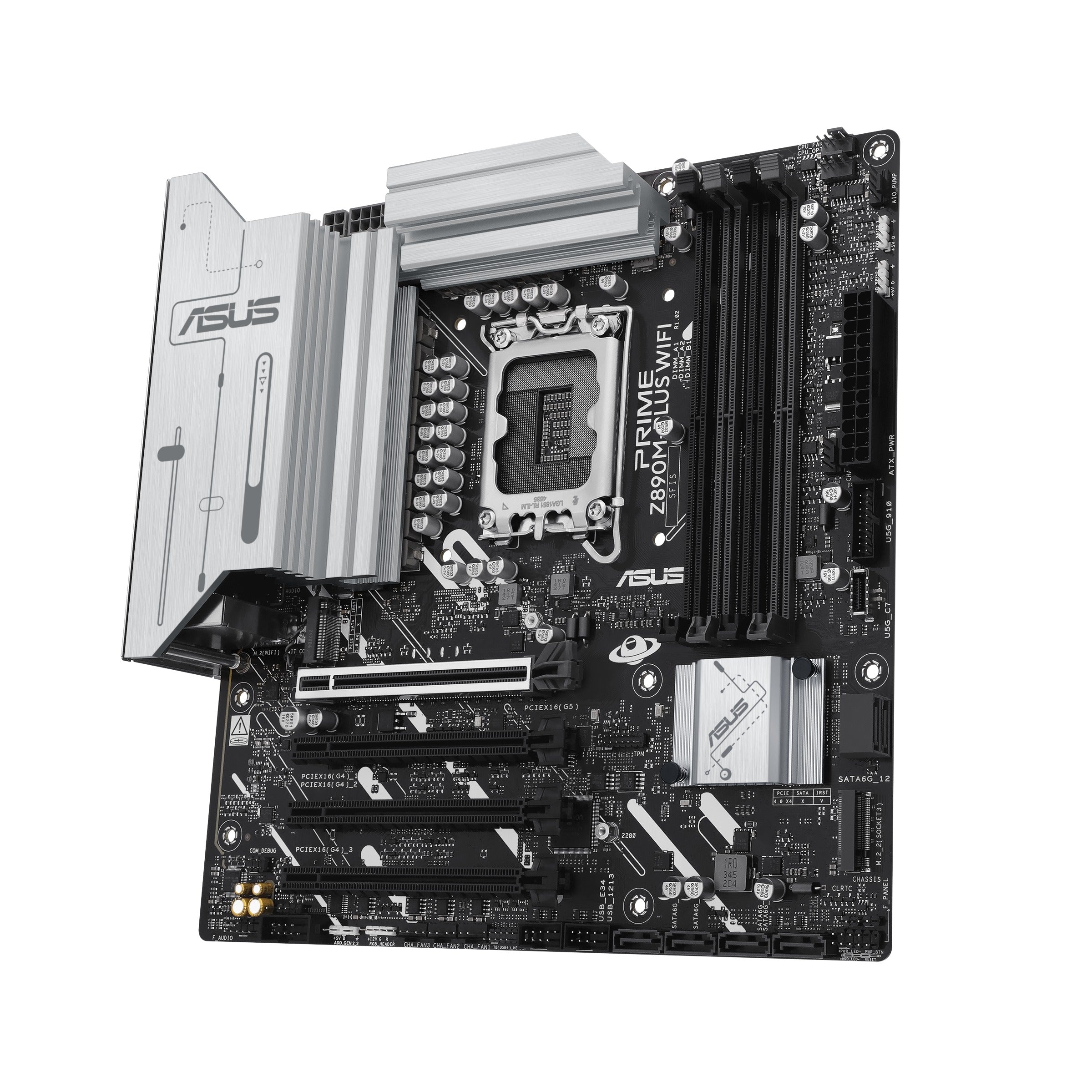

Asus Prime Z890M-Plus Wifi-CSM DDR5 Intel Motherboard
Specification:
| CPU | Supports Intel® Core™ Ultra Processors (Series 2), LGA1851 Supports Intel® Turbo Boost Technology 2.0 and Max Technology 3.0 * Refer to ASUS website for CPU support list |
| Chipset | Intel® Z890 Chipset |
| Memory | 4 x DIMM slots, up to 256GB DDR5, up to 8666+ MT/s (OC) Dual Channel, Non-ECC, Un-buffered DIMMs Intel® XMP & ASUS Enhanced Memory Profile III |
| Graphics | 1 x DisplayPort, 1 x HDMI™, 1 x USB-C with DP output Supports up to 4K@120Hz via DisplayPort |
| Expansion Slots | 1 x PCIe 5.0 x16, 1 x PCIe 4.0 x16 (x4), 2 x PCIe 4.0 x16 (x1) |
| Storage | 3 x M.2 slots (1x PCIe 5.0, 2x PCIe 4.0) 6 x SATA 6Gb/s Intel® RST support for RAID 0/1/5/10 |
| Networking | Realtek 2.5Gb Ethernet, ASUS LANGuard Wi-Fi 7 (802.11be) + Bluetooth® v5.4 |
| USB Ports | Rear: 1x USB-C 20Gbps, 1x USB-A 10Gbps, 4x USB-A 5Gbps, 2x USB 2.0 Front: USB-C, USB 5Gbps header, 2x USB 2.0 headers |
| Audio | Realtek 7.1 Surround HD Audio CODEC Audio shielding, premium capacitors, S/PDIF Out |

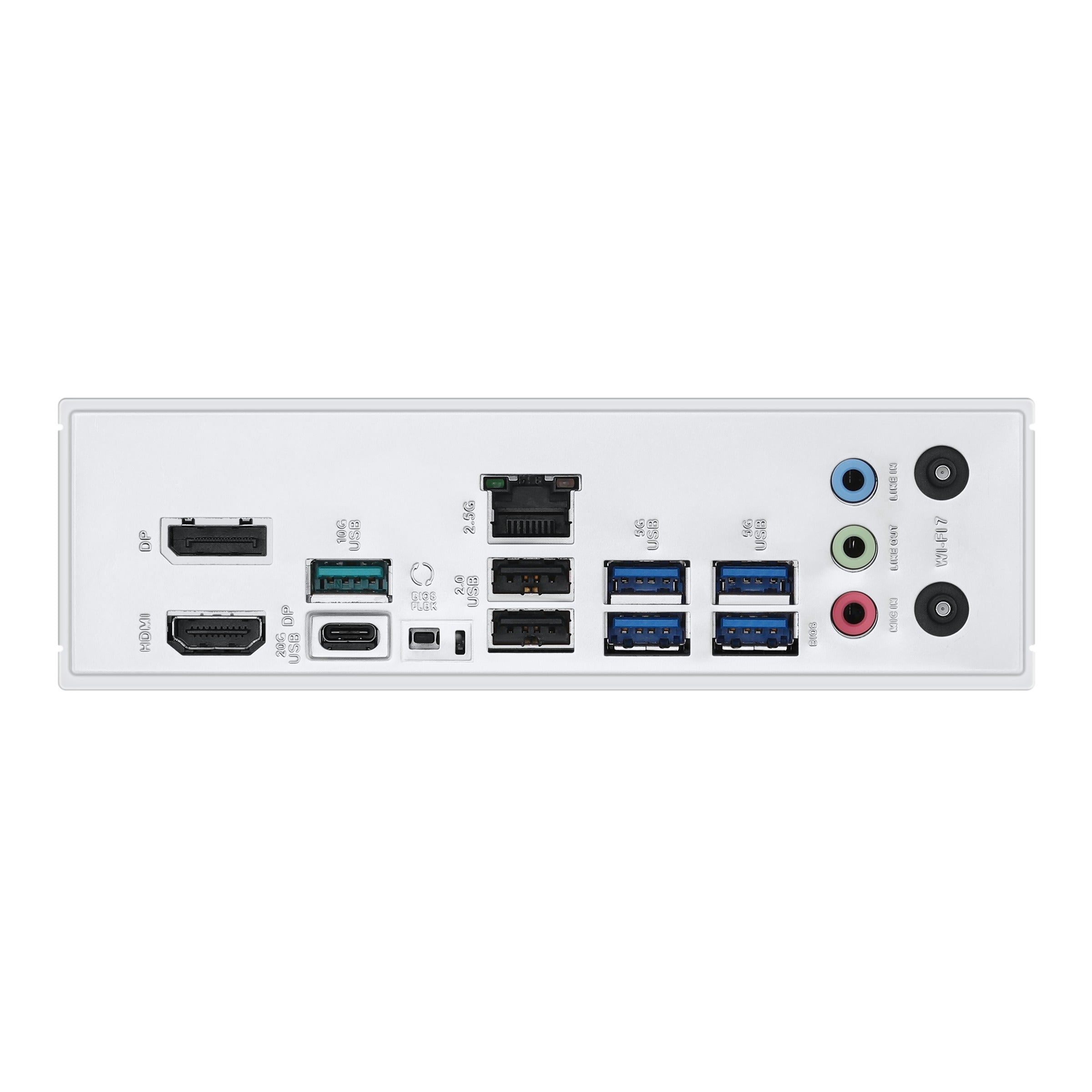

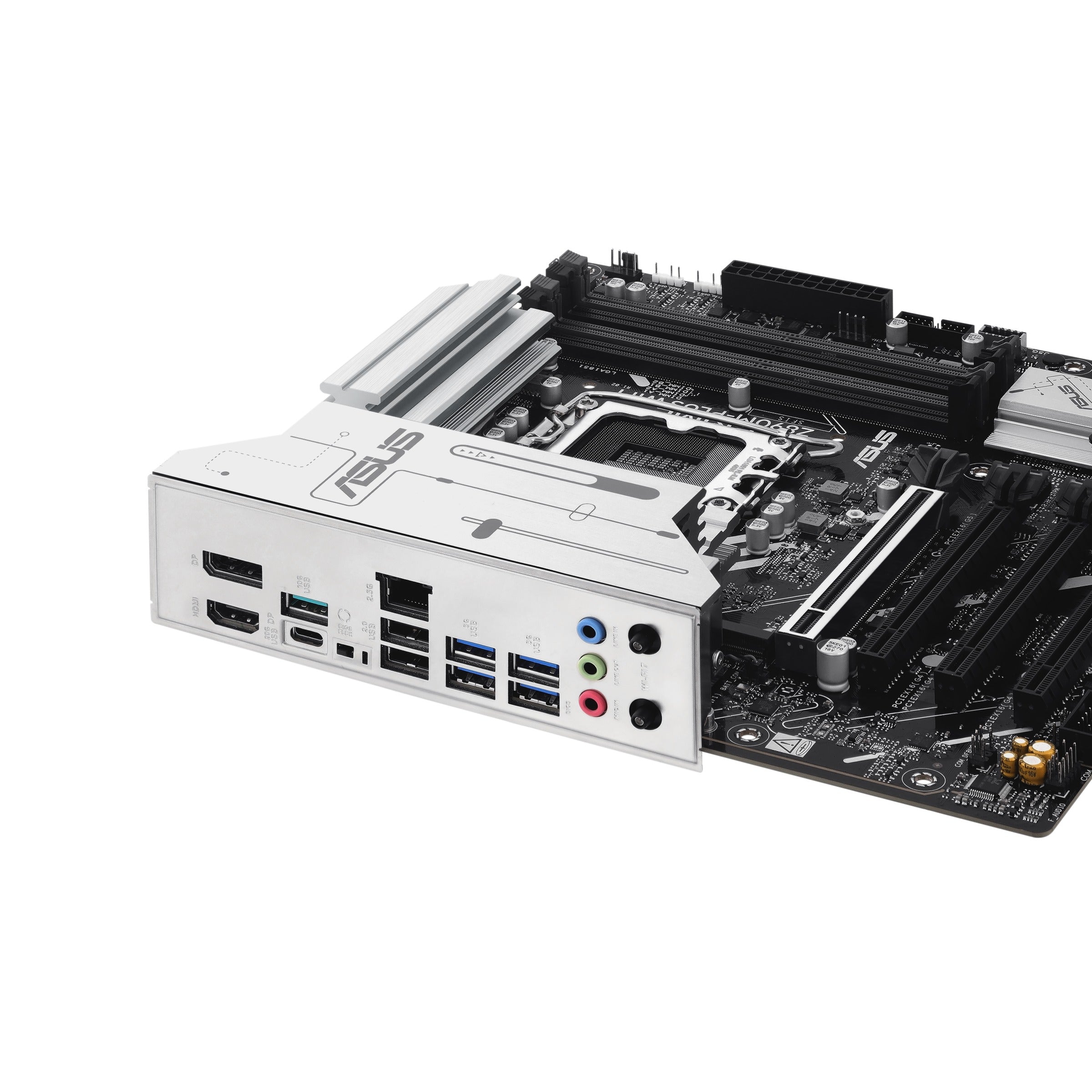

| Back Panel I/O | USB ports, DisplayPort, HDMI™, Wi-Fi module, Ethernet, Audio jacks, BIOS FlashBack™ |
| Internal I/O | CPU/Chassis fan headers, Power connectors, M.2, SATA, USB headers, RGB headers, TPM, Thunderbolt™ header, S/PDIF, etc. |
| Special Features | ASUS 5X Protection III, Q-Design, Aura Sync, EZ DIY, AI Advisor |
| Software | Armoury Crate, Fan Xpert 4, ASUS CPU-Z, TurboV Core, Norton 360 (60 Days), WinRAR |
| BIOS | 256Mb UEFI AMI BIOS, NPU Boost (Intel K-series) |
| Accessories | 2x SATA cables, WiFi antenna, M.2 screws, QSG, ACC Express key card |
| OS Support | Windows 11 (22H2 and later) |
| Form Factor | mATX, 9.6 x 9.6 in (24.4 x 24.4 cm) |
